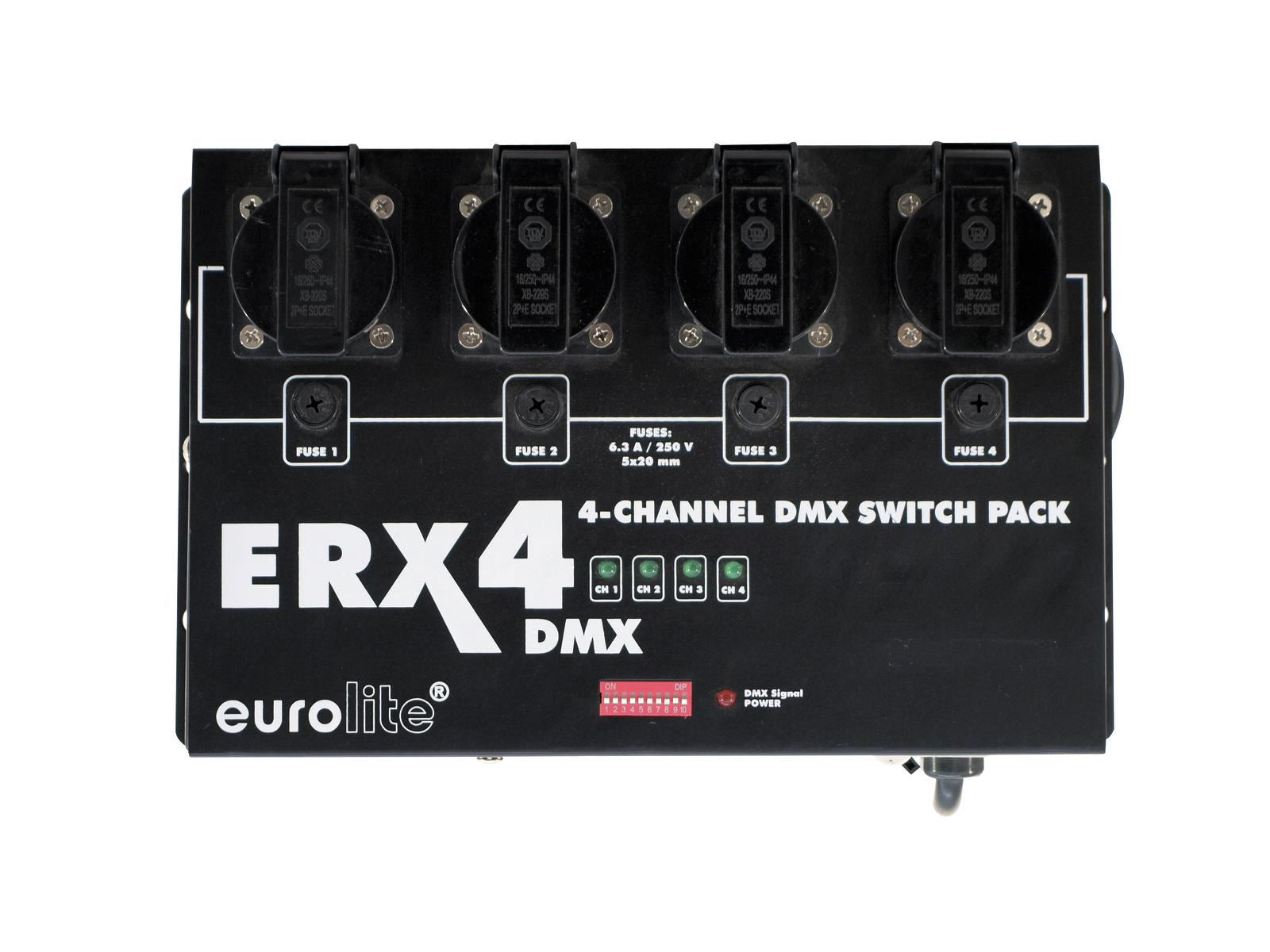

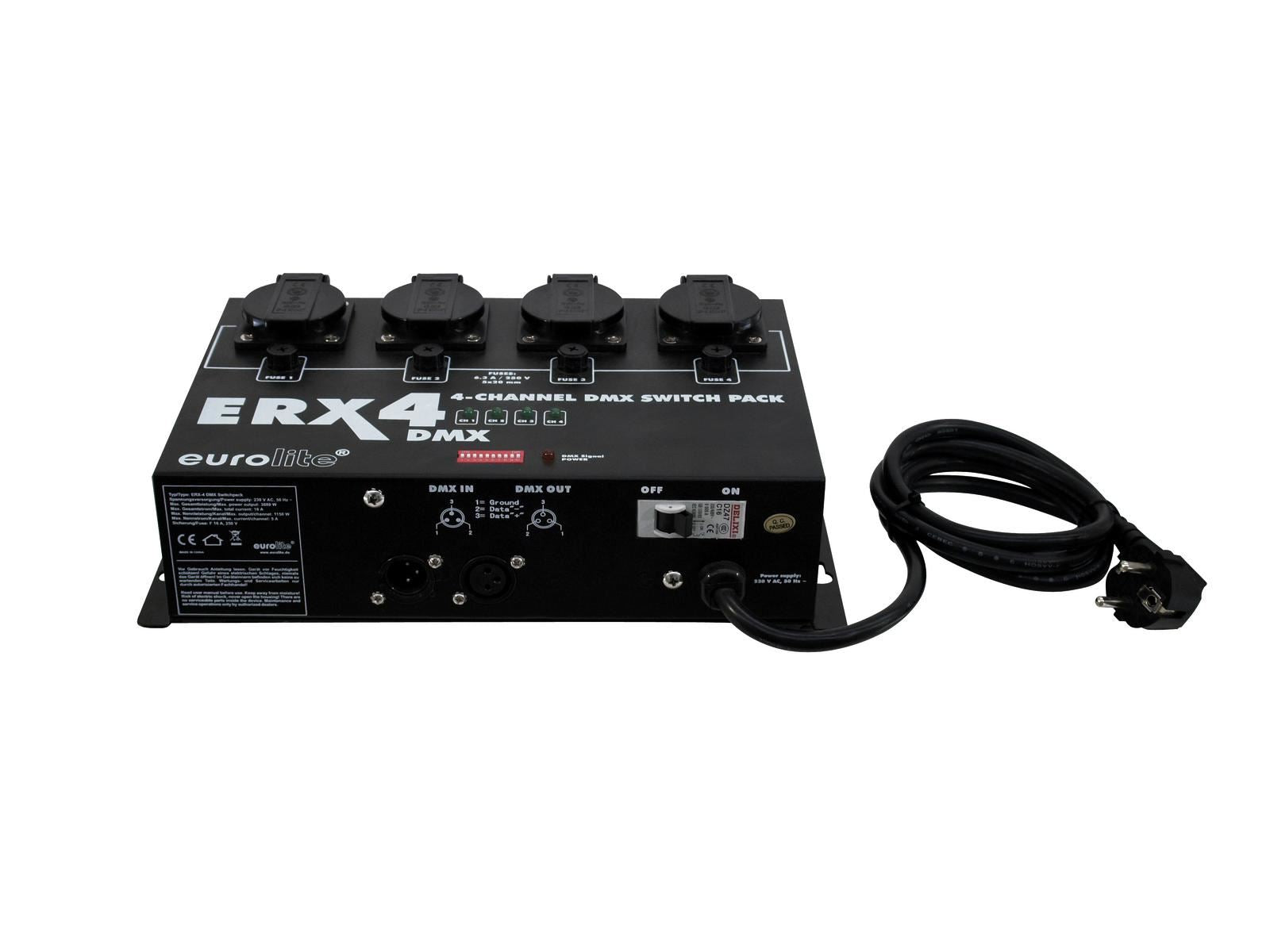

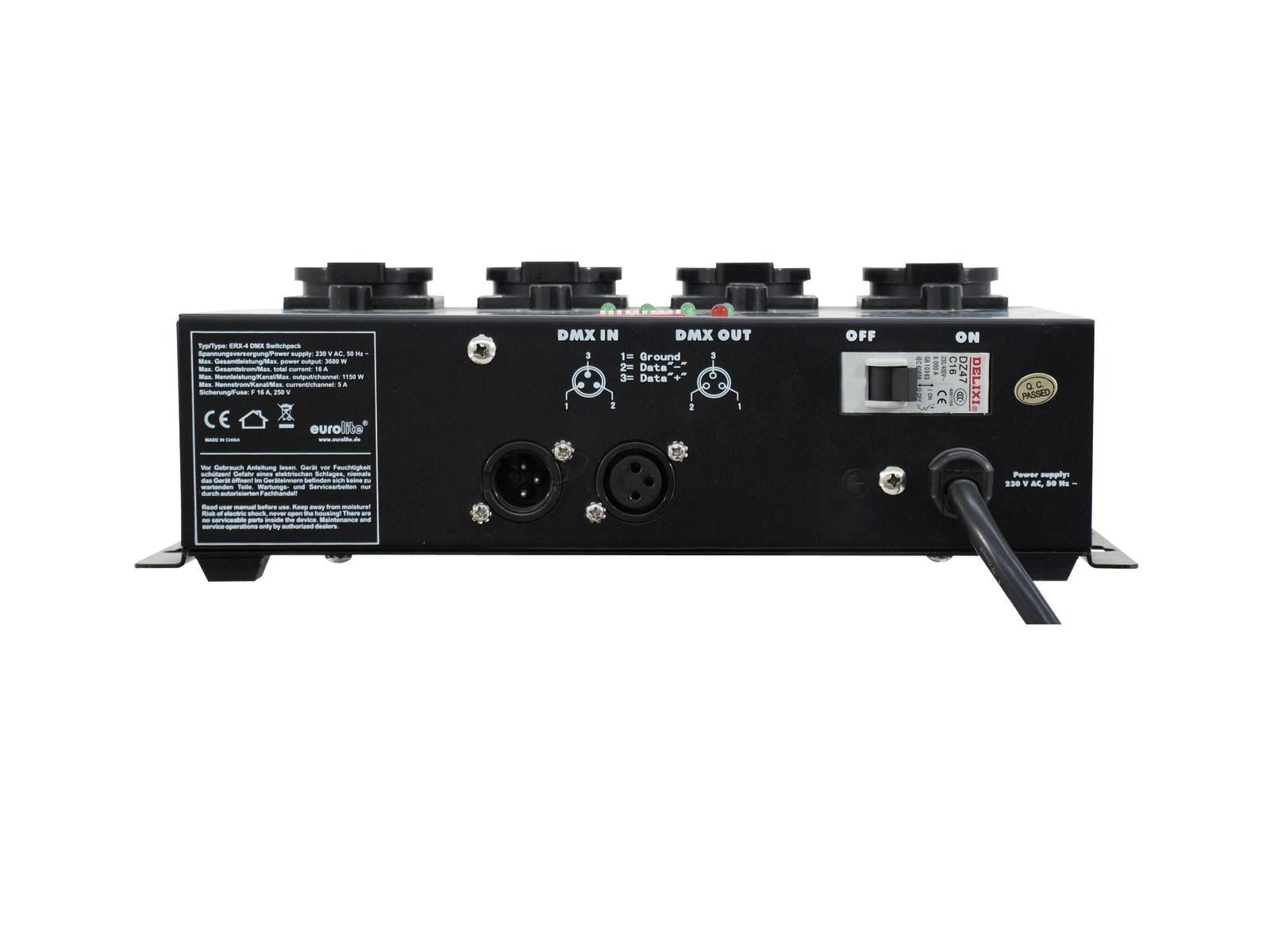

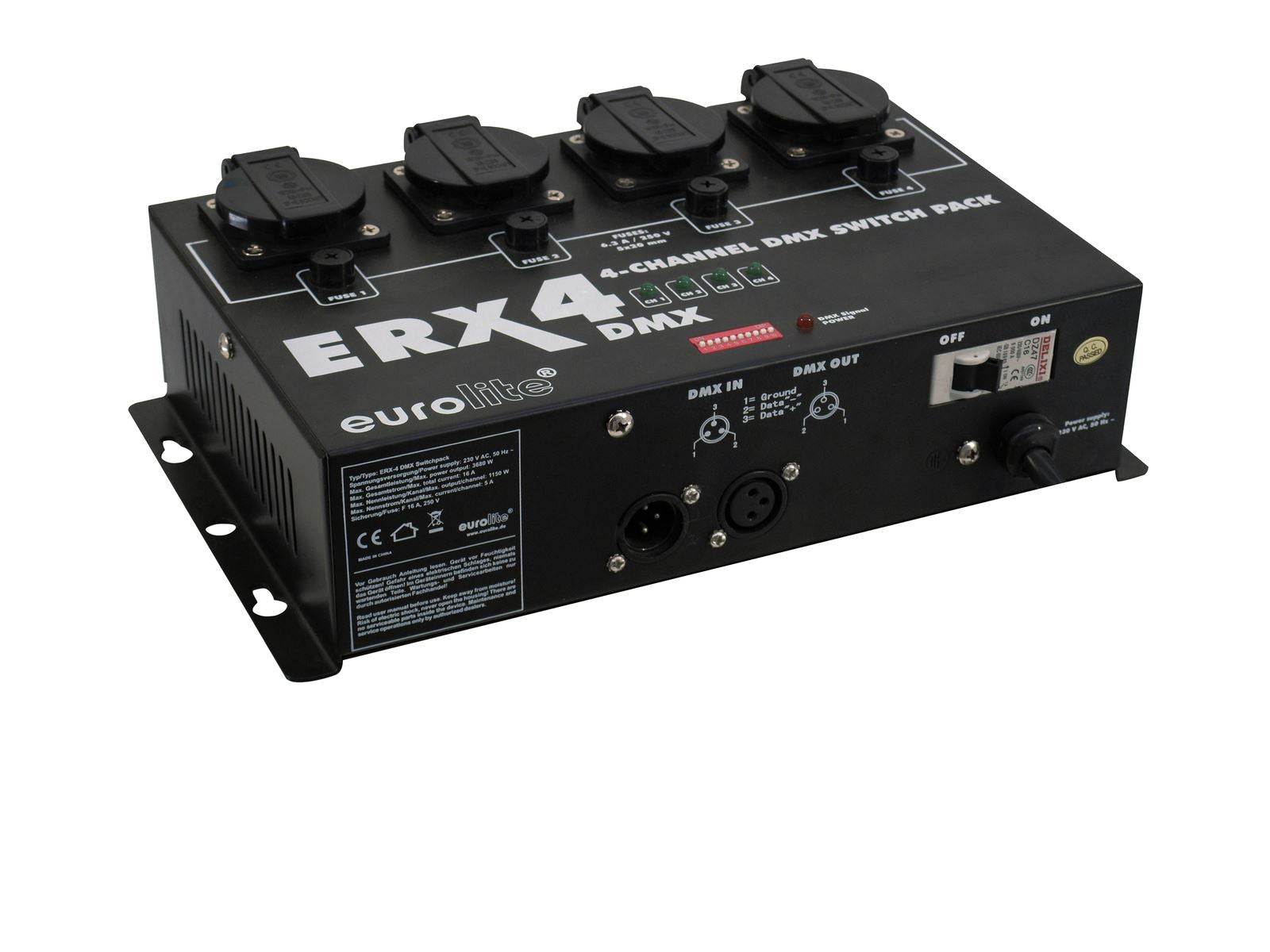

Eurolite Erx-4 Dmx Switch Pack

4-channel switch pack, up to 5 A load per channel, control with relay
Vendor: Eurolite
SKU: 154-70064210
Icon In Stock In Stock
Icon Delivery Time


4-channel switch pack, up to 5 A load per channel, control with relay

  • Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
  • 4 controllable channels
  • LED indicator per channel
  • 5 A load per channel
  • Maximum current 16 A
  • Outputs via 4 safety sockets
  • DMX512 input and output
  • DMX starting address adjustable via DIP switches
  • For truss installation and wall installation
  • Can be operated in 4 CH mode
  • Controlling by Stand-alone; DMX

Power supply: 230 V AC, 50 Hz
Output power: Max. 3680 W
Max. 1150 W per channal
Output current: Max. 16 A
Power connection: Fixed Power supply cord with safety plug
Power output: 4 x Safety contact (F), hinged lid mounting version
DMX channels: 4
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: Stand-alone; DMX
Control channels: 4
Color: Black
Dimension: Width: 30 cm
Depth: 19 cm
Height: 8.5 cm
Weight: 2.51 kg
