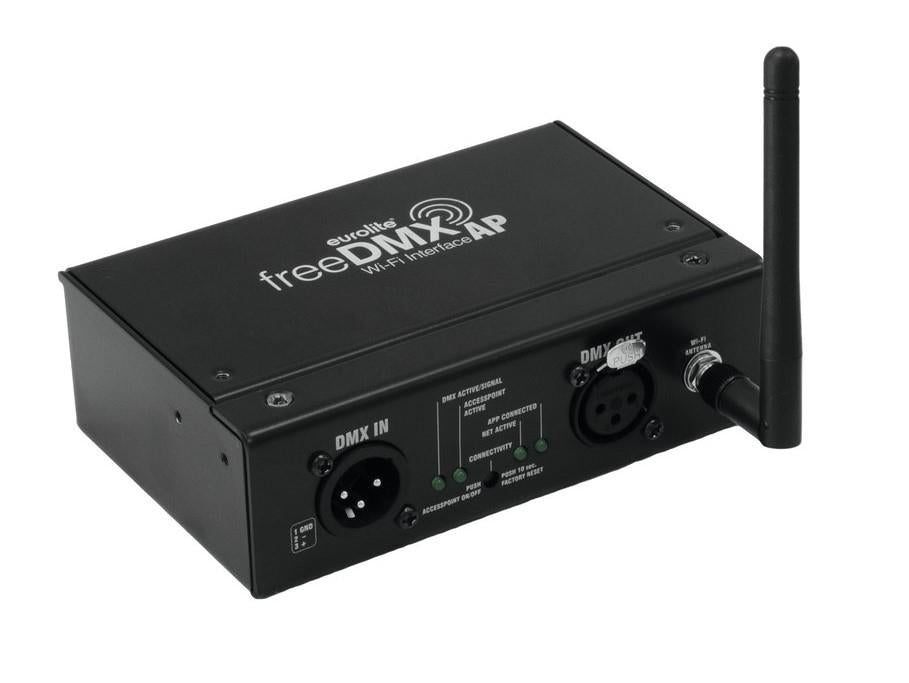

Eurolite freeDMX AP Wi-Fi Interface for Light Captain or Light'J *B Stock*

Description:

Wireless WLAN DMX interface for apps & programs like Steinigke Light'J

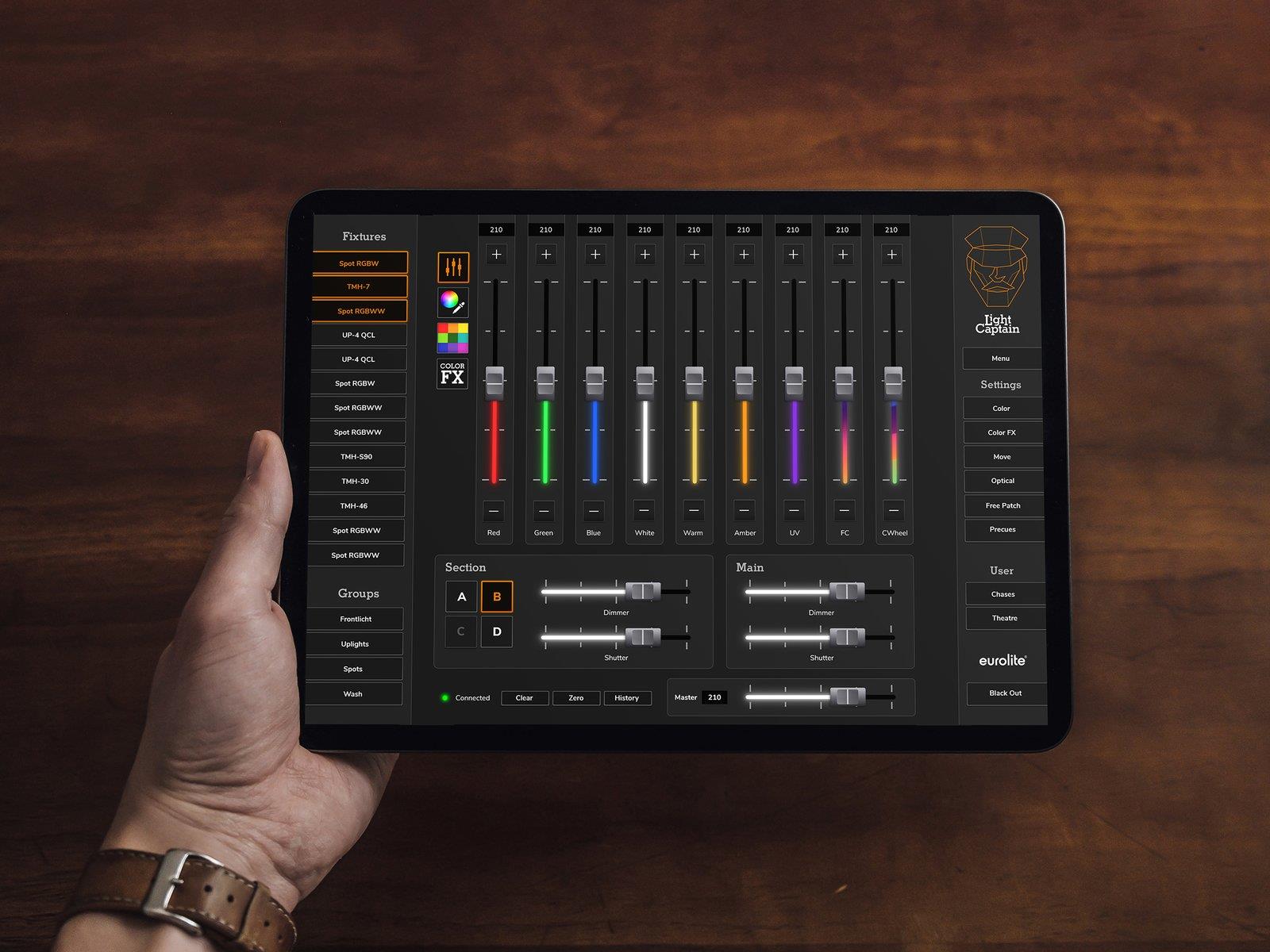

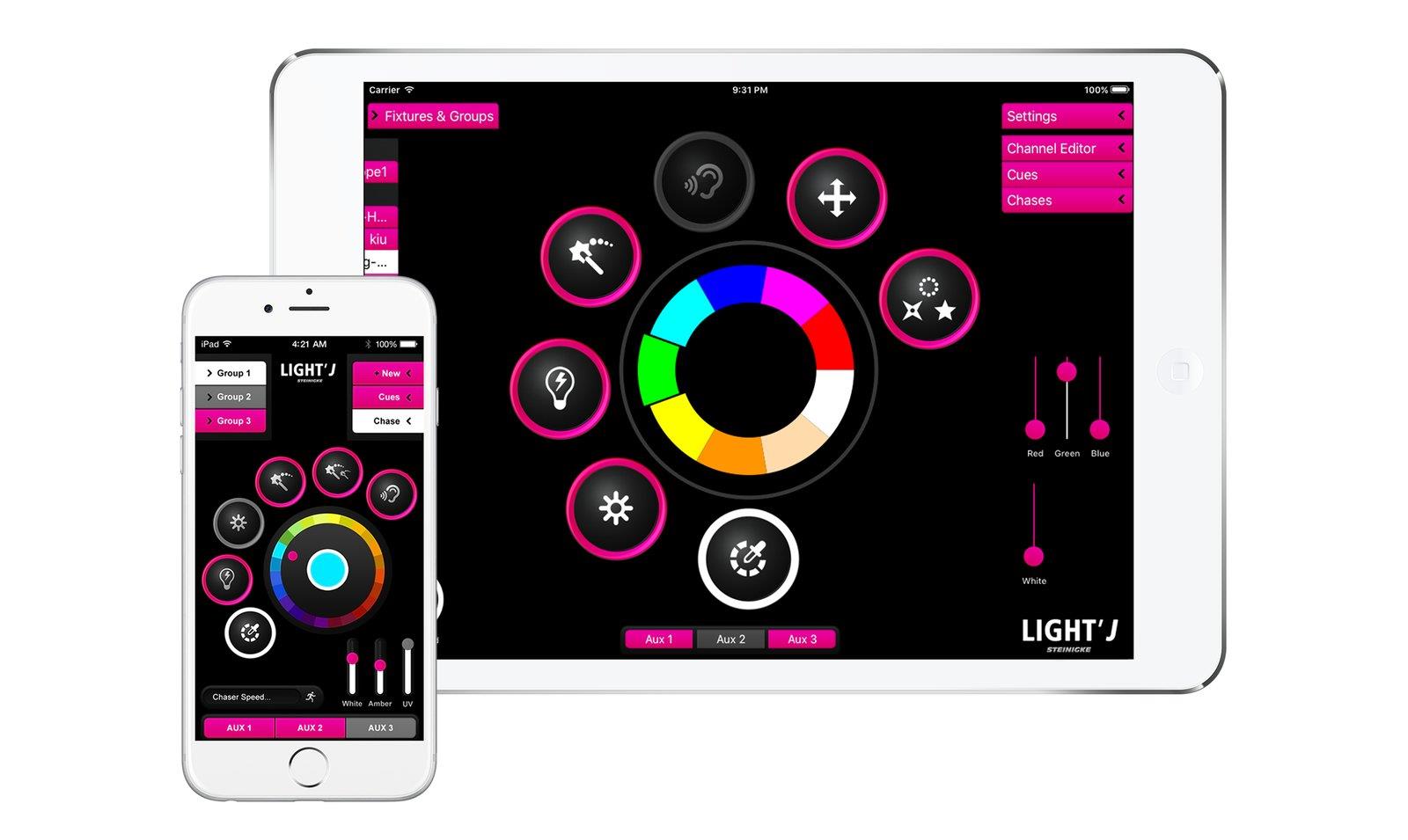

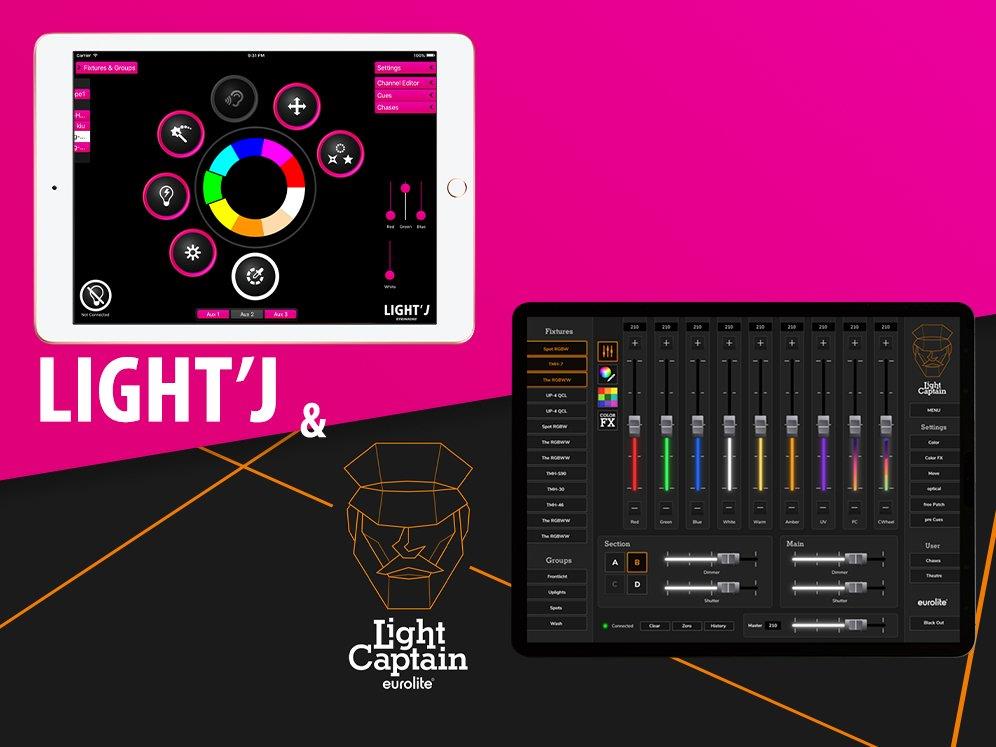

Control your fixtures, lighting effects or even moving heads conveniently from your tablet. In addition to the freeDMX Interface, all you need is one of our apps (Light Captain or Light'J) as an innovative lighting controller.

Simply connect the fixtures to the freeDMX via DMX cable or QuickDMX and connect it to your mobile device using the integrated W-LAN module: you can already control your light via app.

Features:

WLAN DMX interface for wireless lighting control from your tablet or PC
Receives the control signals via the network and transmits them to the DMX line via cable
Works with iOS and Android devices
The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
Configuration via integrated webserver
Access point and infrastructure mode
1 DMX feed-through output
LED status indicators

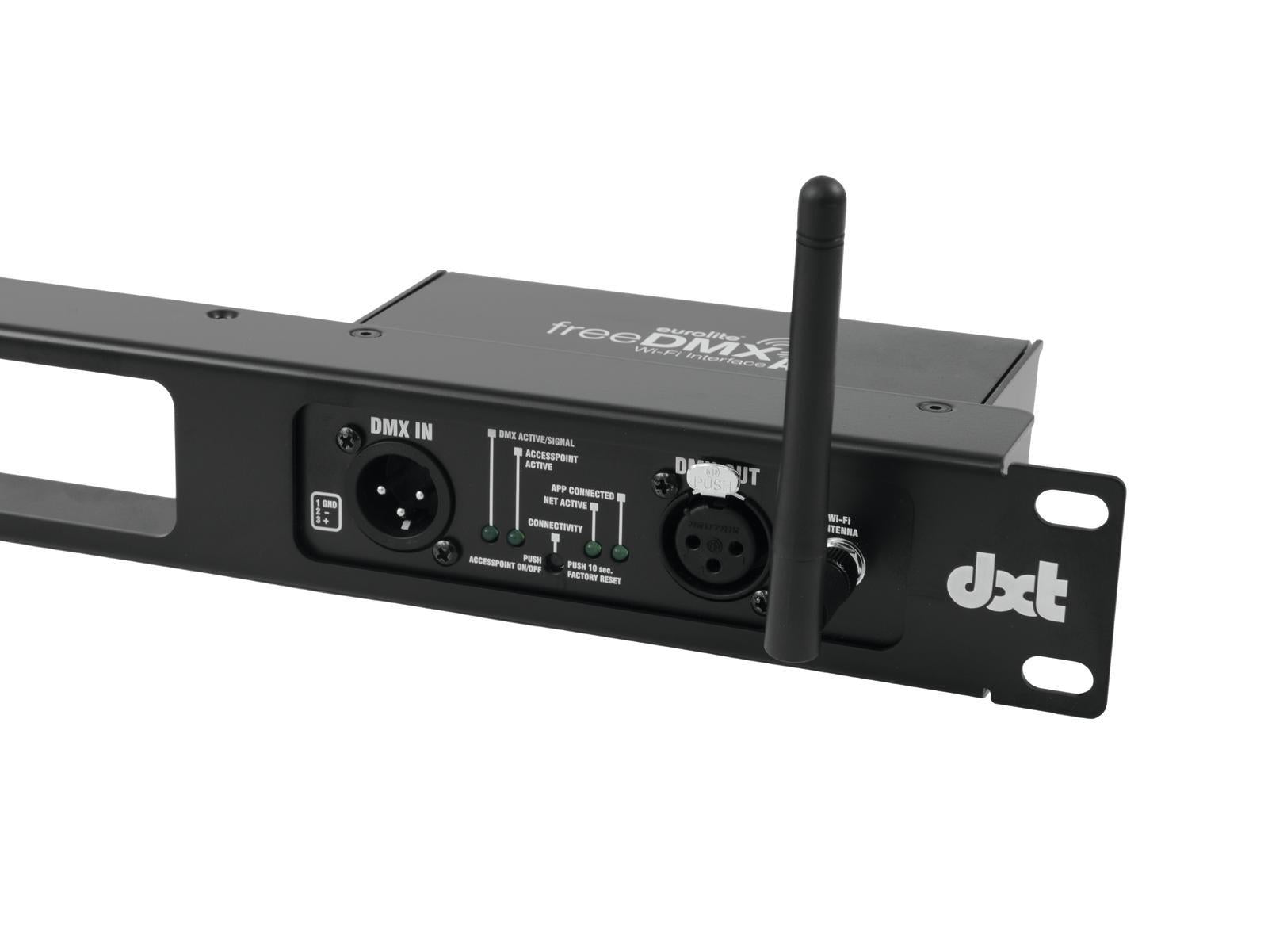

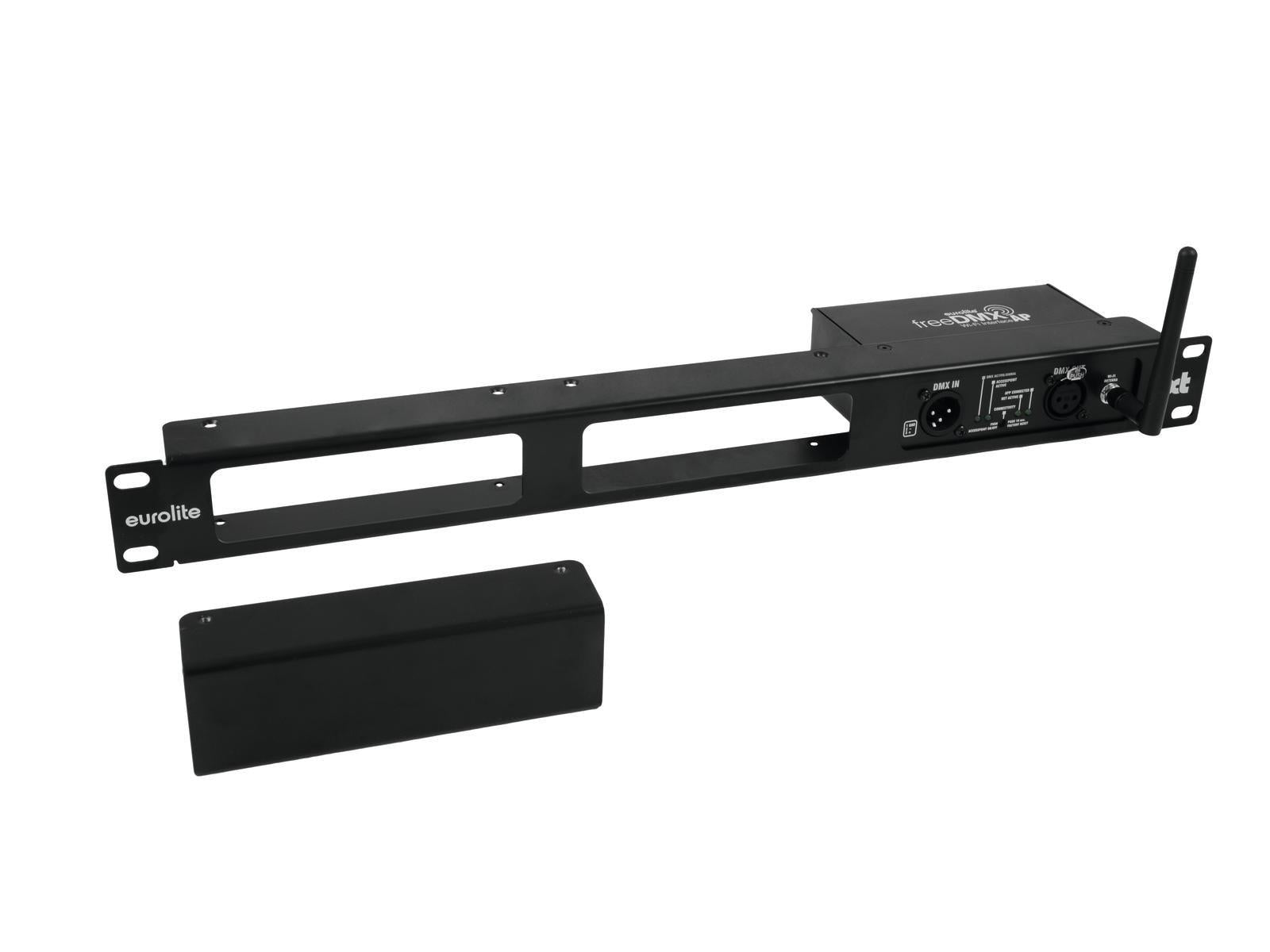

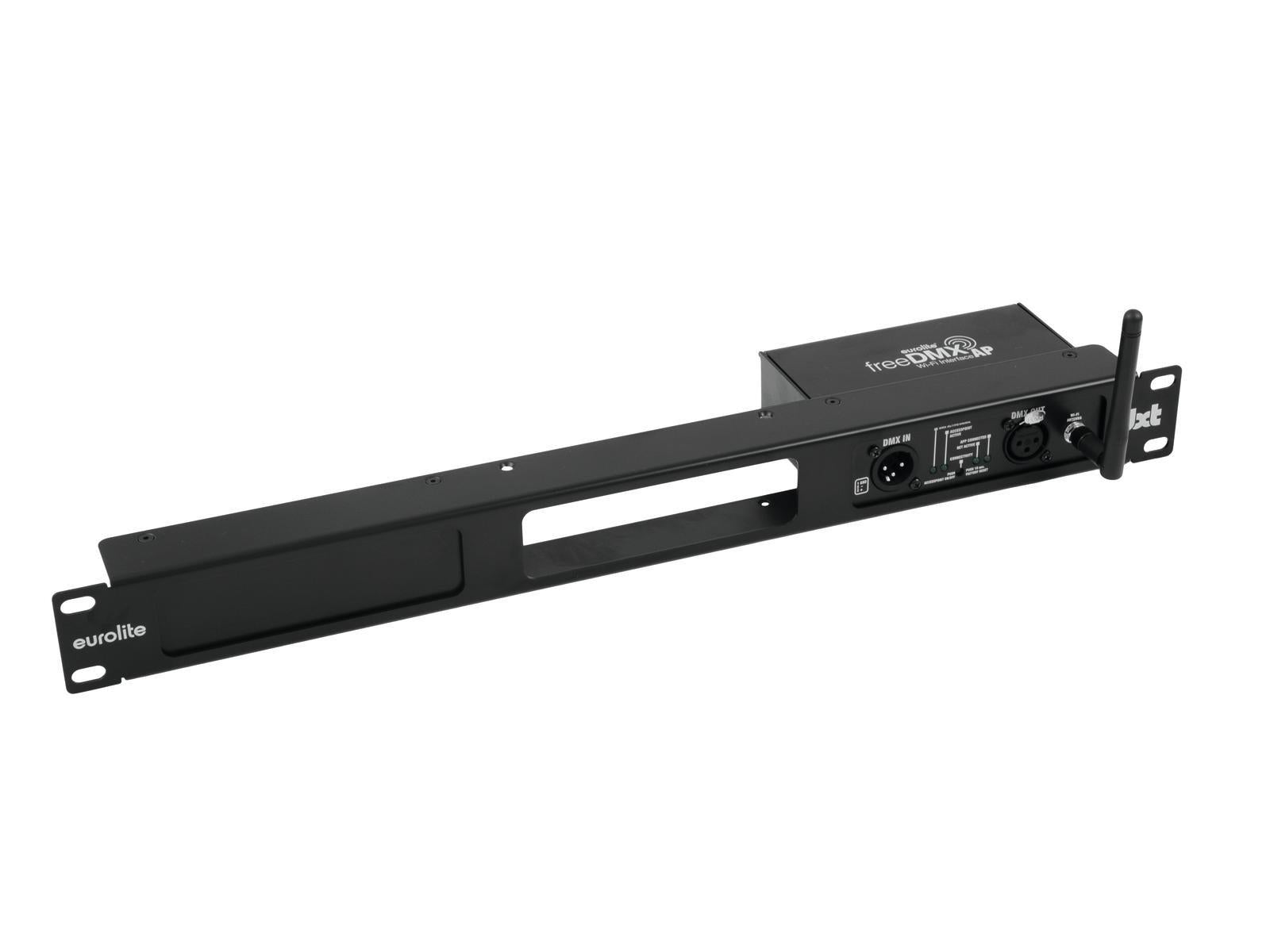

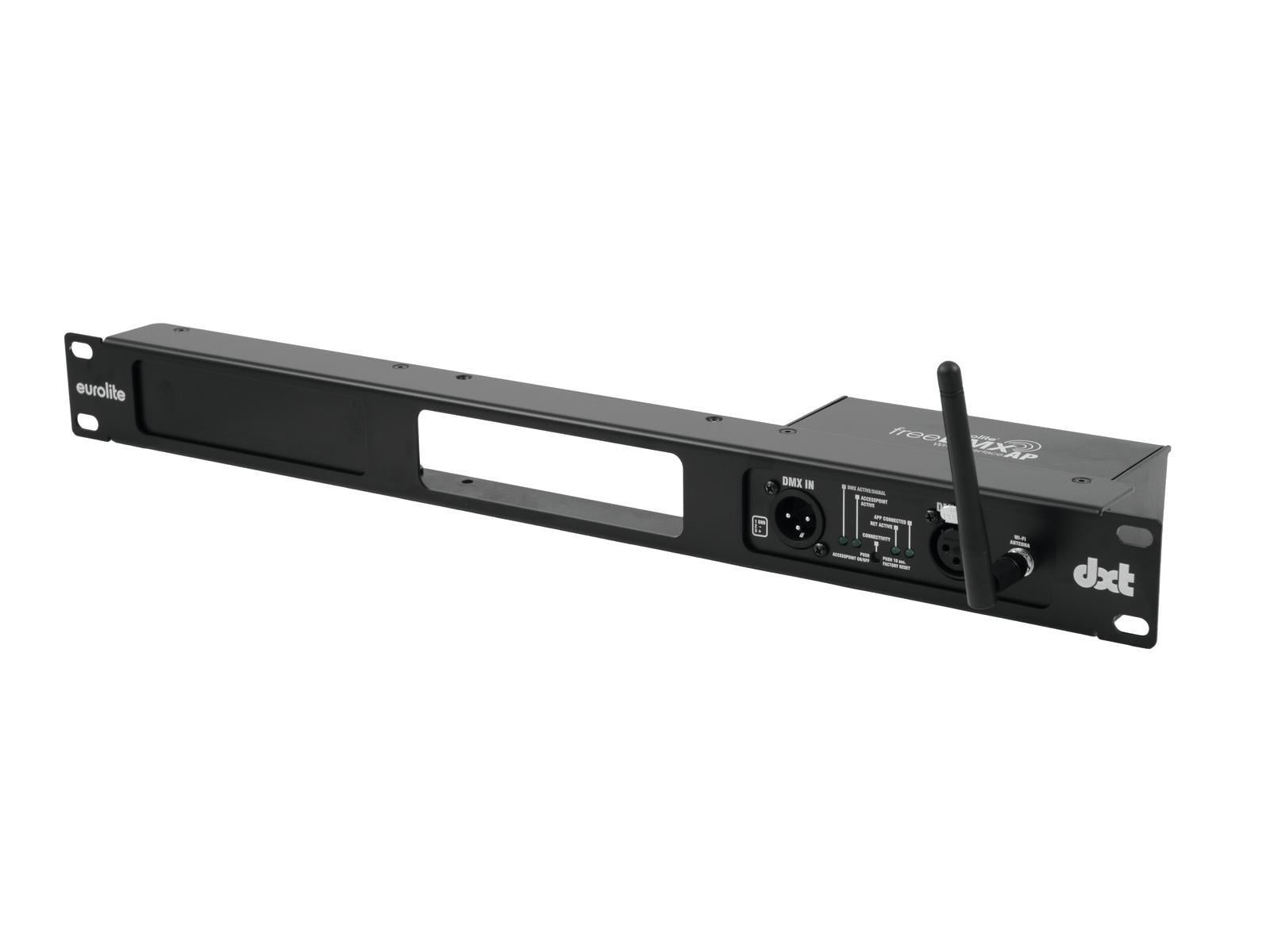

Mounting kits for racks, desks and truss systems available as an option
Can transmit up to 512 DMX channels
Controlling by DMX; Light´J app; W-Lan; Light Captain App
2.4 GHz license-free worldwide
Operating range up to 60m in the open air
Operating range up to 30m in buildings
Built with NEUTRIK connector
In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Made in Germany

Specifications:

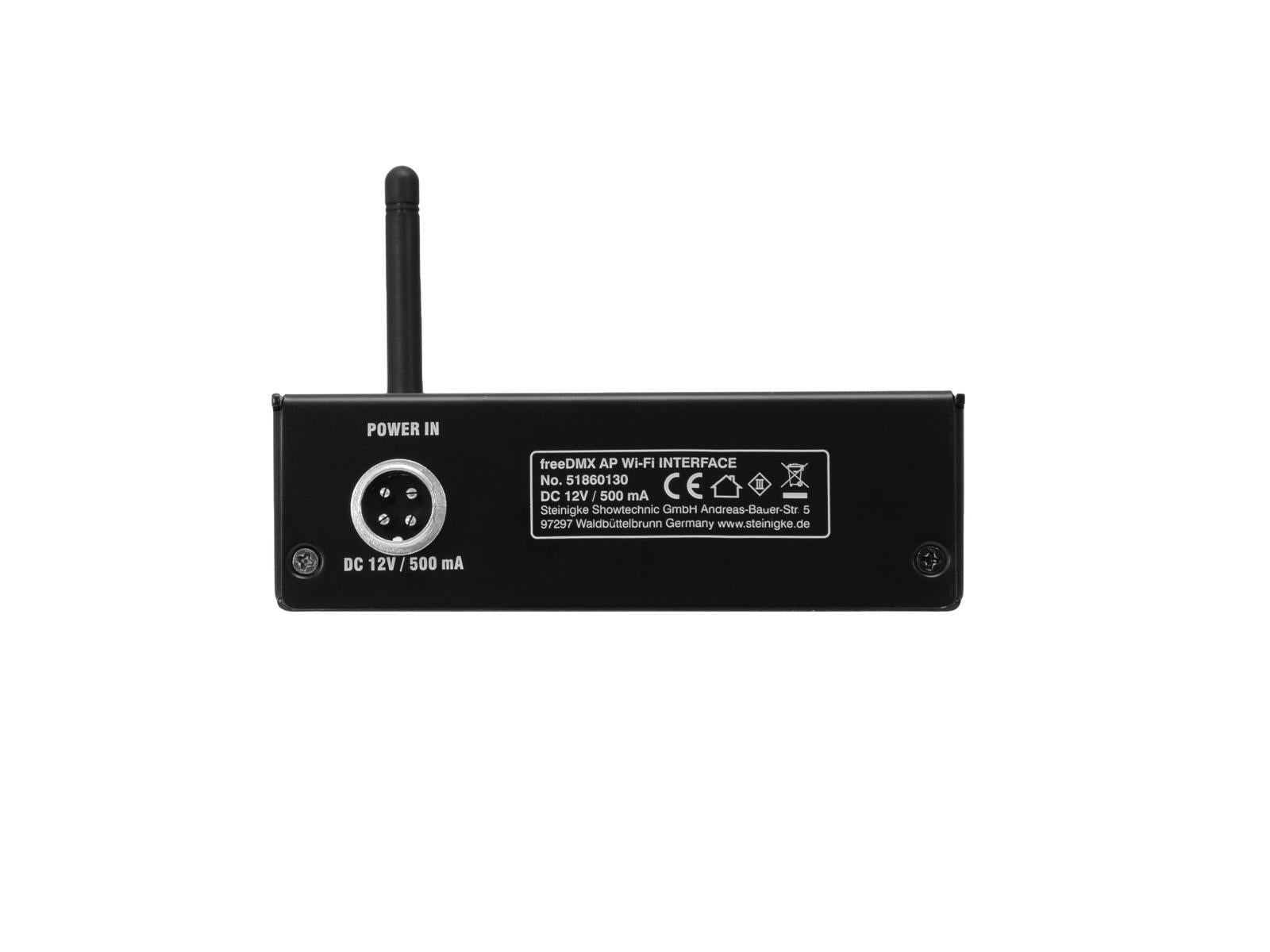

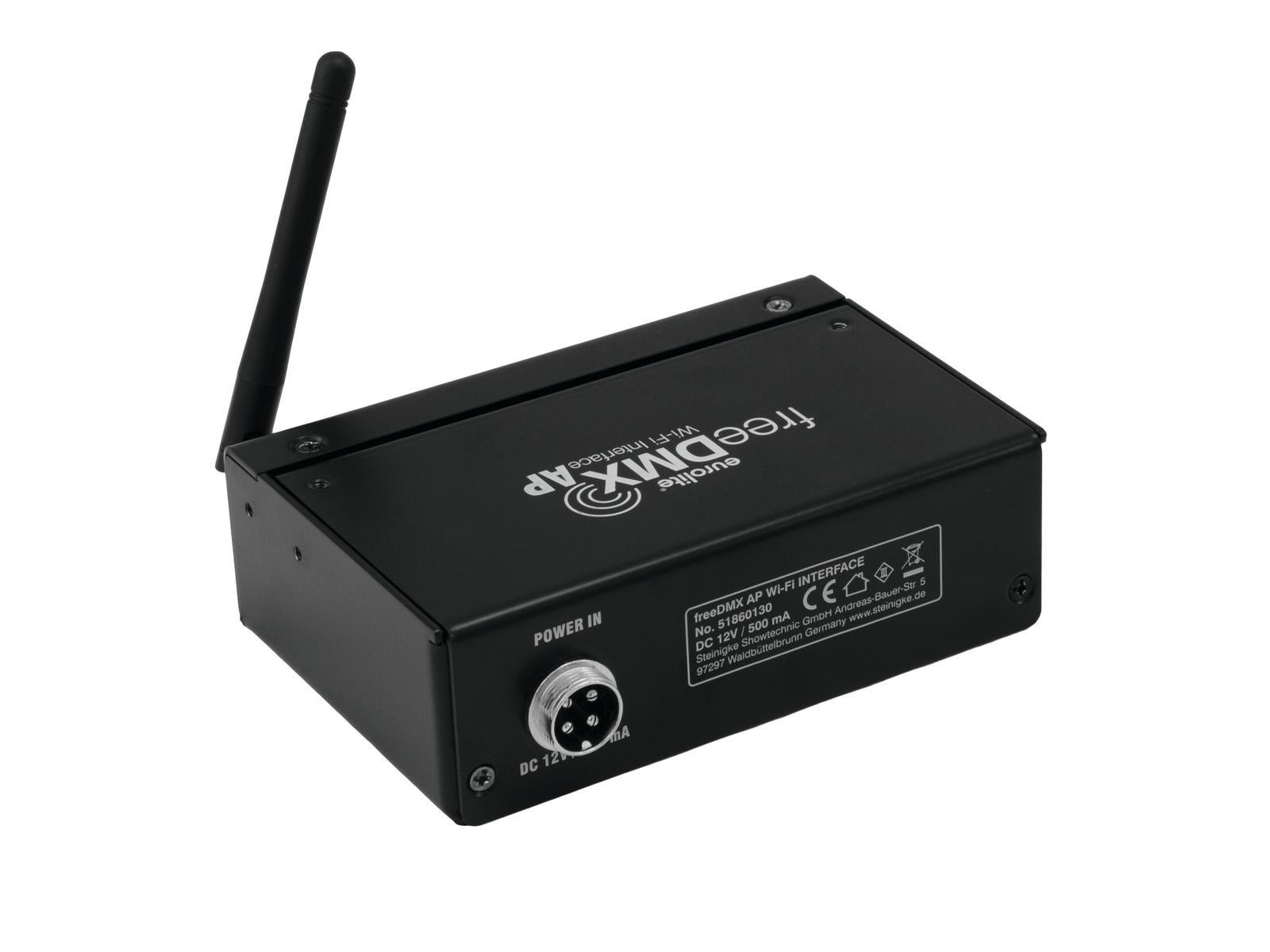

Power supply: 100-240 V AC, 50/60 Hz
12 V DC 1 A
IP classification: IP20
WiFi: Standard: IEEE 802.11 b/g/n
DMX channels: Output 512

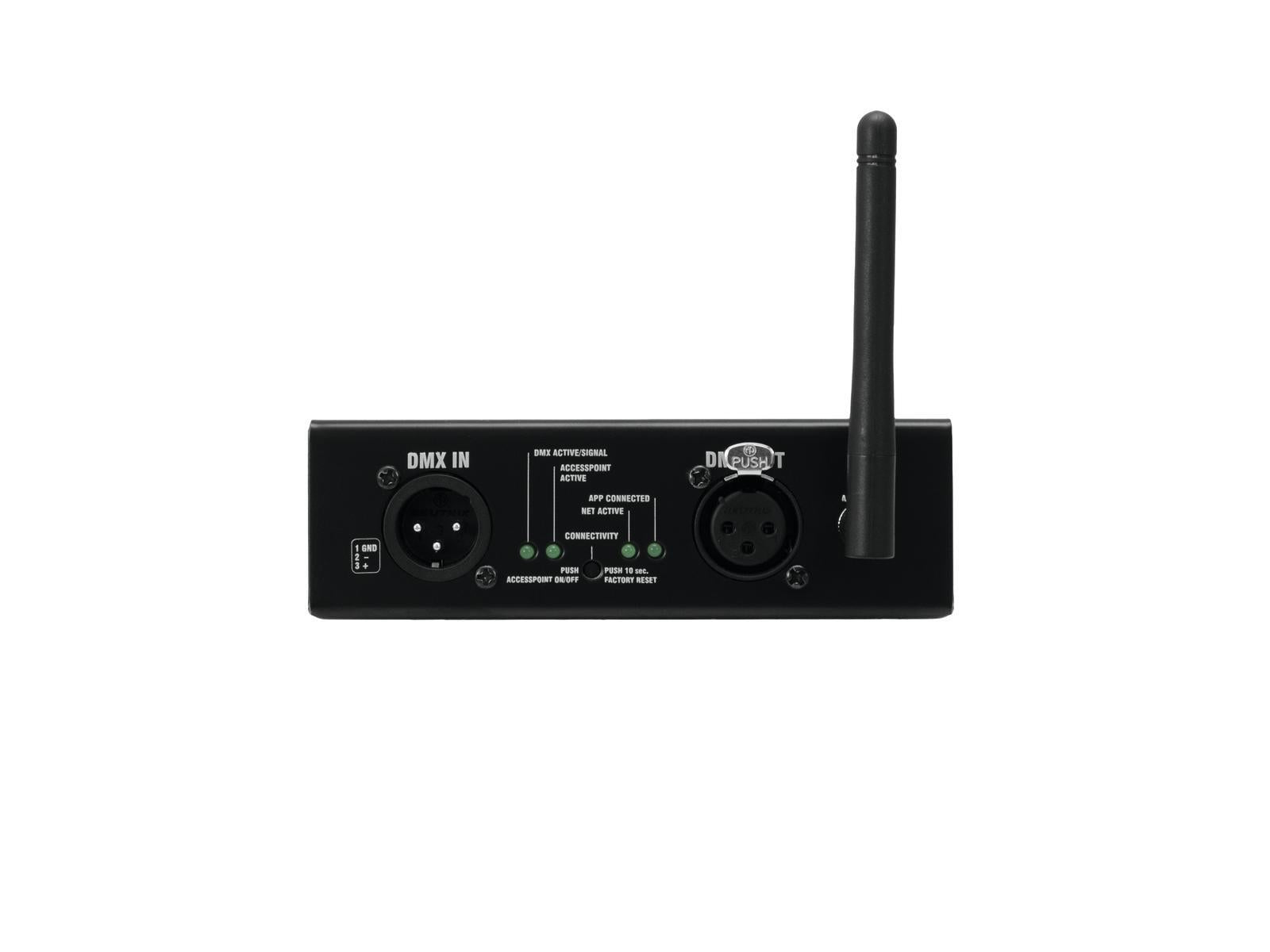

DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; Light´J app; W-Lan; Light Captain App
Frequency band: 2.4 GHz
Antenna gain: 2 dBi
Range: Range up to 60m in the open air
Range up to 30m in buildings
Use of brands: Built with NEUTRIK connector
Color: Black
PC connect: F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Dimensions:
Width: 13 cm
Depth: 11,5 cm
Height: 4,1 cm
Weight: 650 g
