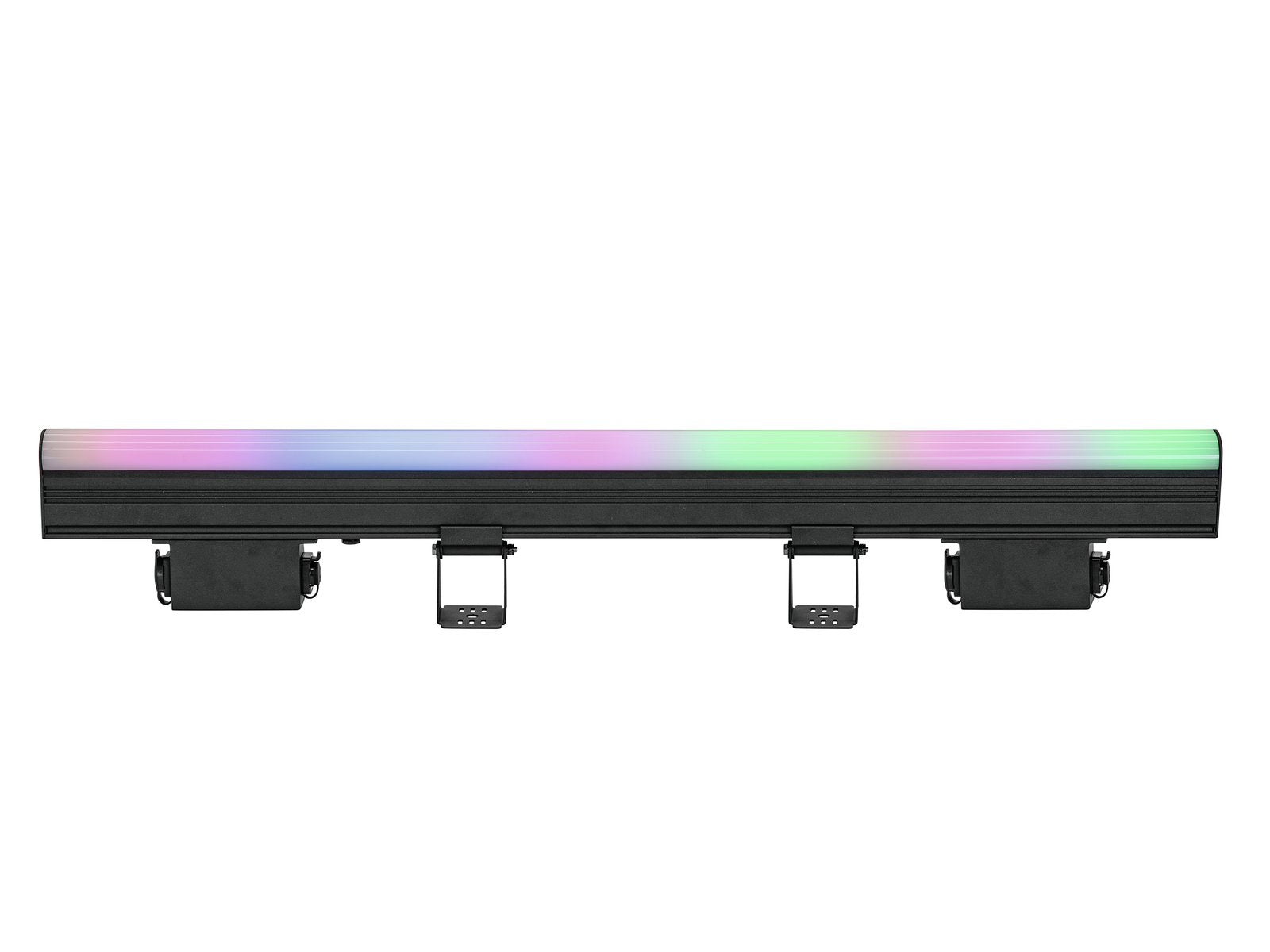

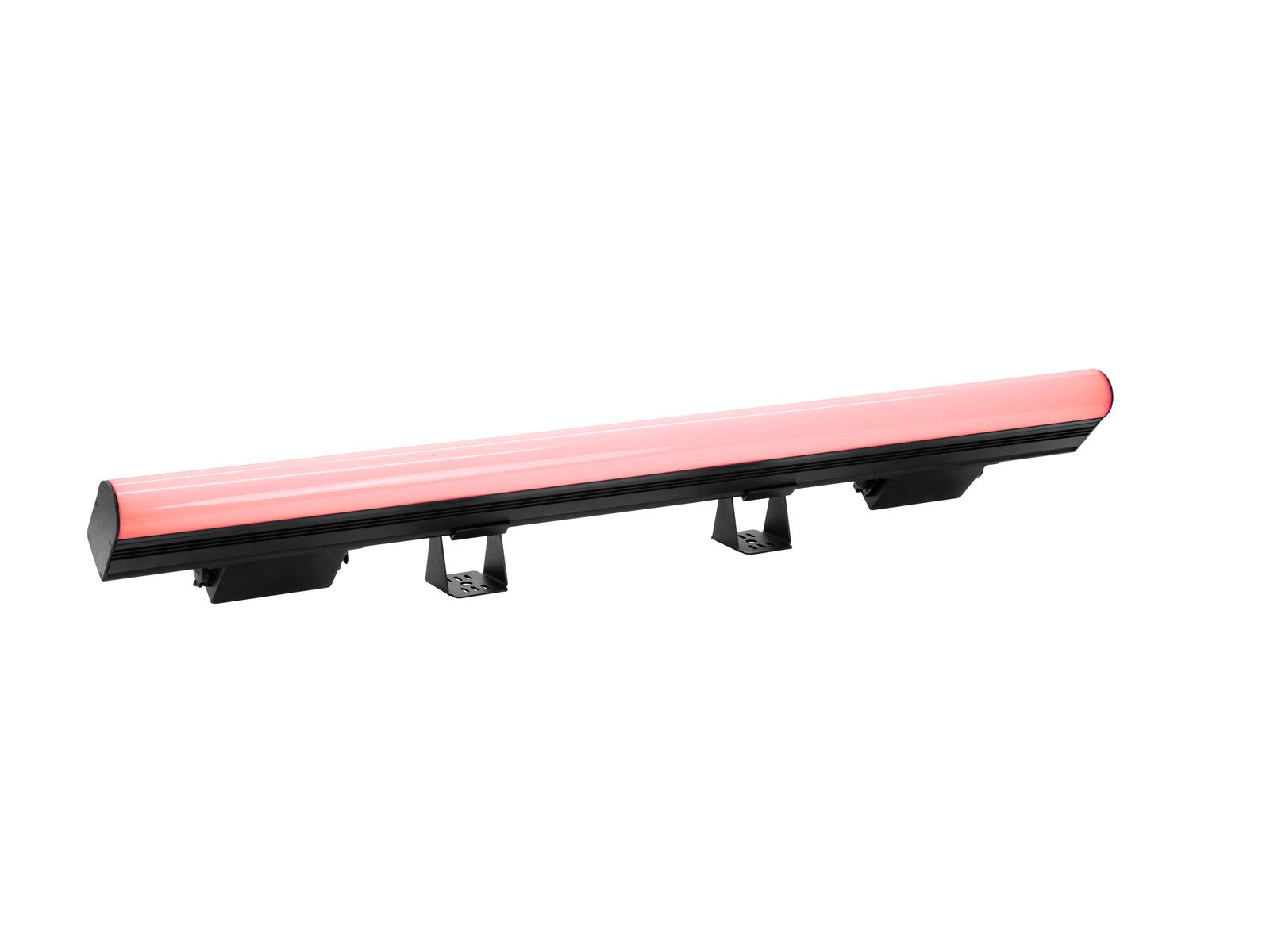

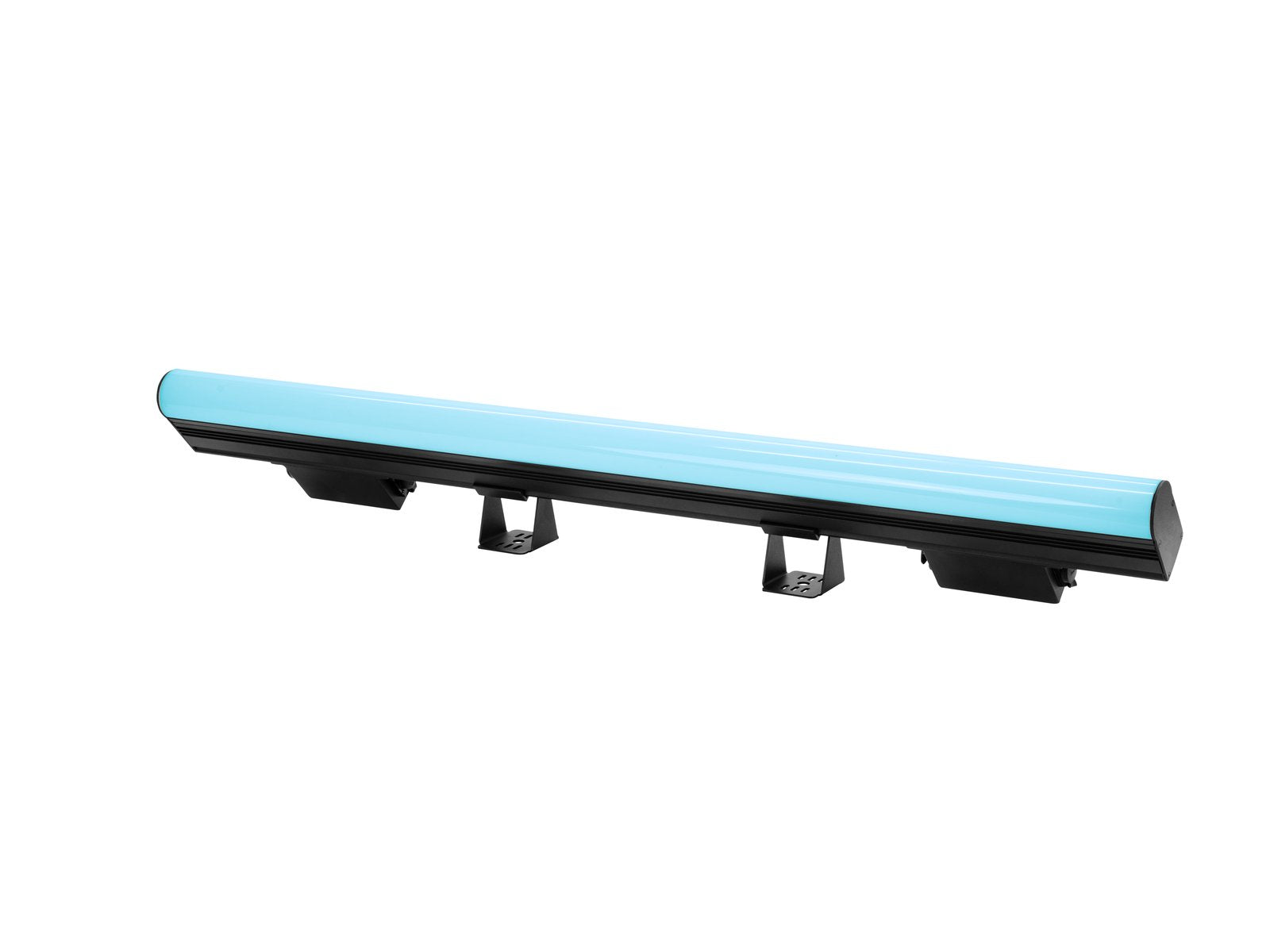

Eurolite LED IP PT-100/34 RGB/WW Pixel DMX Tube

Description:

Weather-proof DMX pixel tube with RGB/WW color mixing

Features:

102 powerful LEDs 0,5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
34 segments controlled separately
12 integrated show programs
Direct color selection for 19 preset colors
Control via stand-alone; DMX; Master/slave function
Color change adjustable; Dimmer electronic; program speed adjustable; background color adjustable; running light adjustable
Flicker-free
With a beam angle of 120°
The device is cooled by passive convection cooling

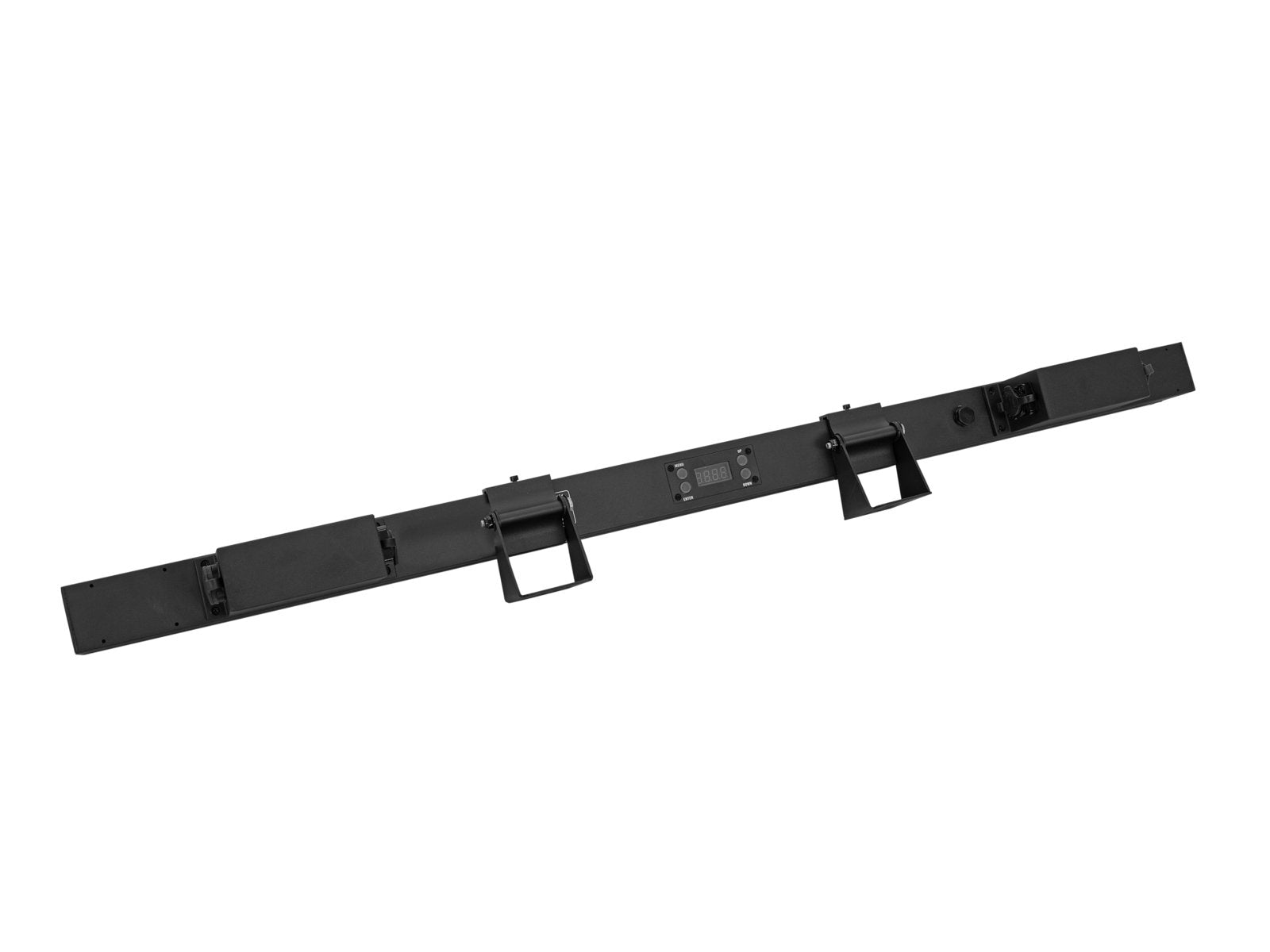

With Mounting bracket

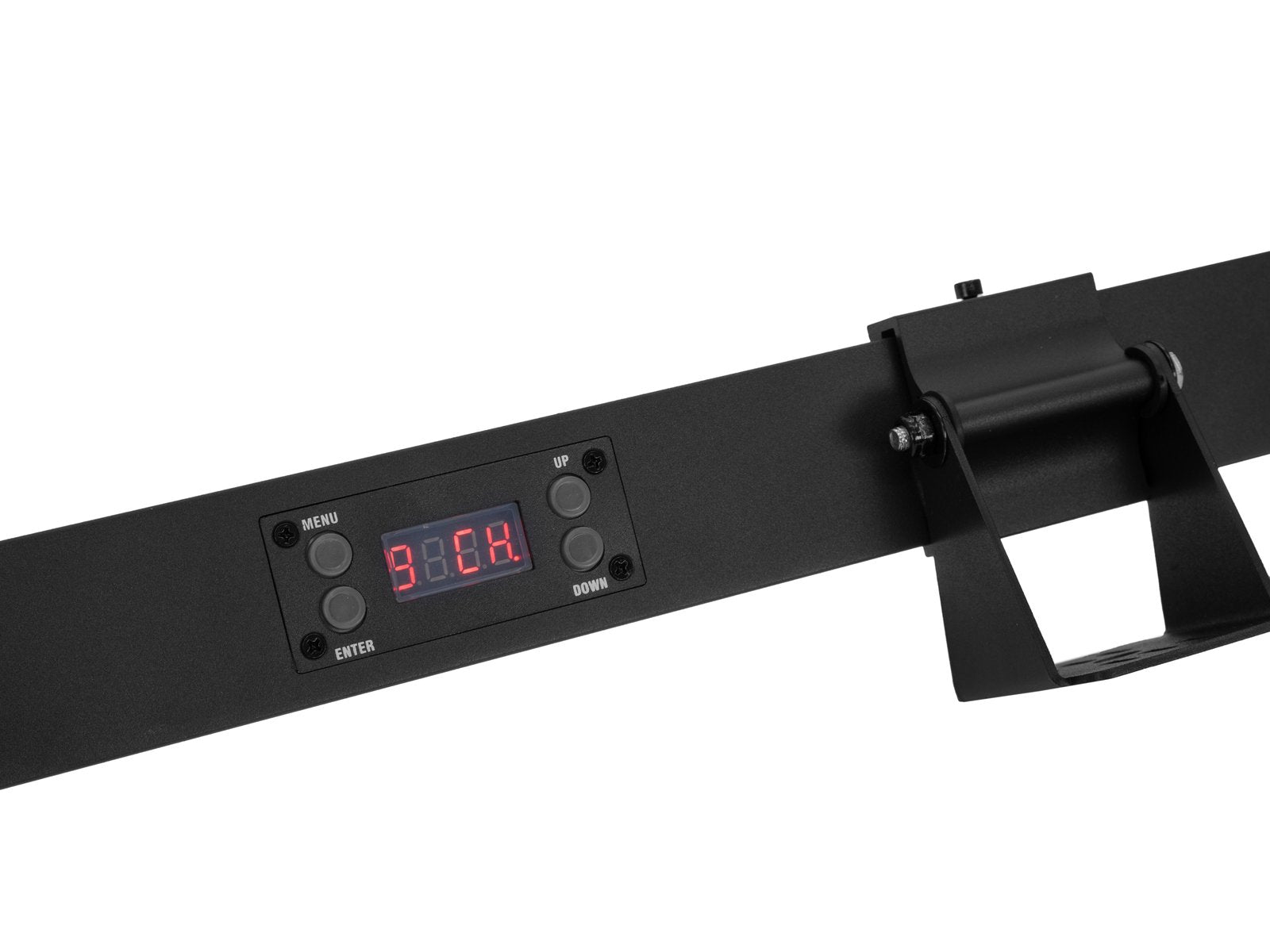

4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
Suitable for outdoor use IP65
For application areas such as: Clubs/dancing school; Installation; Stage; architecture
Silent operation
Application possibility: Suspended; Wall mounting
Preprogrammed in Light Captain

Features:

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
40 W
IP classification:
IP65
Protection class:
Protection class I

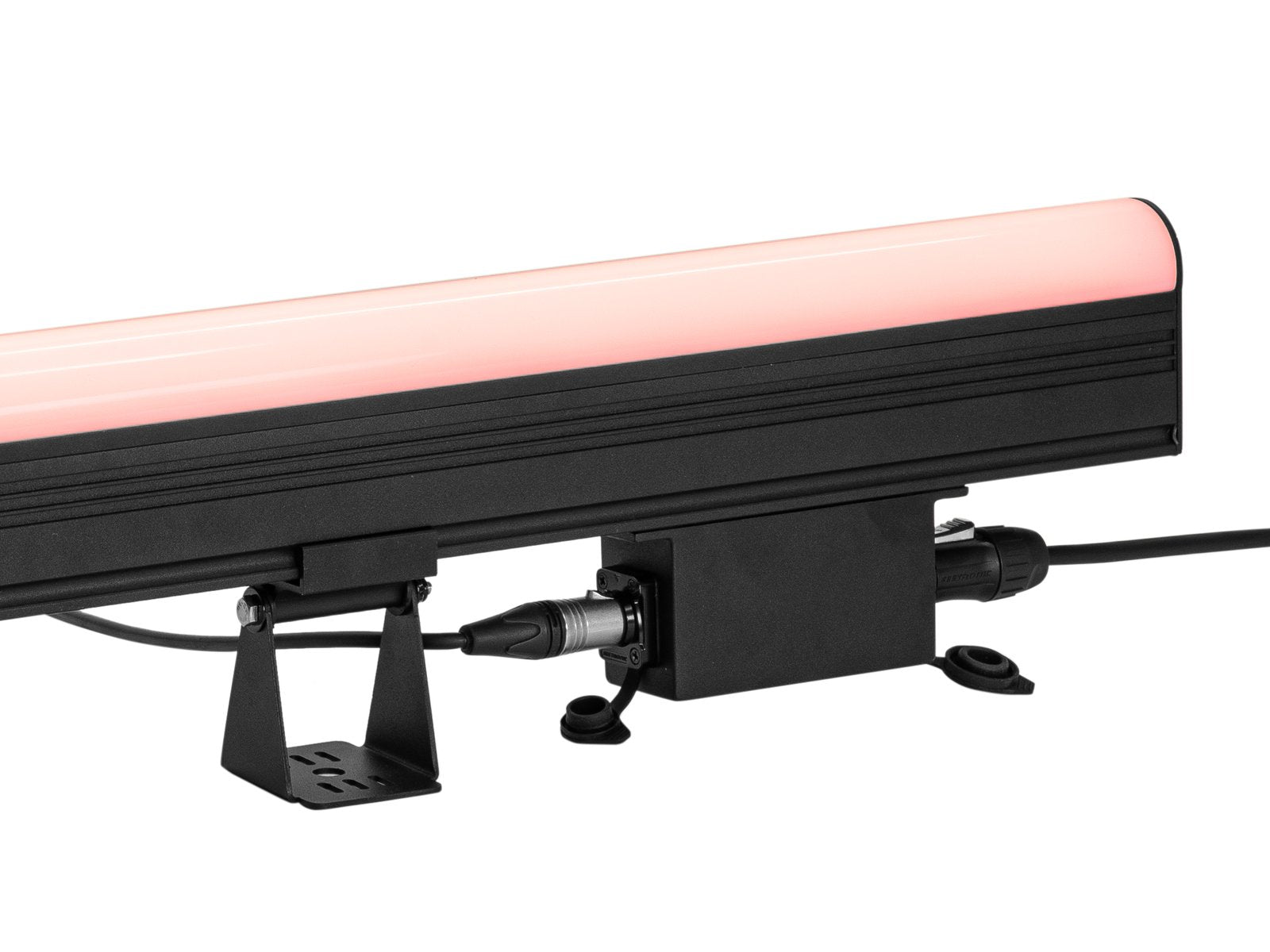

Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:
IP T-Con (F) mounting version
Fuse:
5 x 20 mm, F 1 A Fuse serviceable
Lamp type:
LED lamp
LED type:
102 x 0,5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 4; 6; 9; 13; 20; 68; 136
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Master/slave function
Preprogrammed in:
Light Captain
Projection:
Flicker-free
Beam angle:
120°
Beam angle (1/2 peak):
120°
Housing color:
Black
Attachment system:
Ø 10mm
2x Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 1,001 m
Width: 7,0 cm
Height: 16,8 cm
Weight:
3,84 kg
Noise classification:
Class 0 (no noise at all)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
