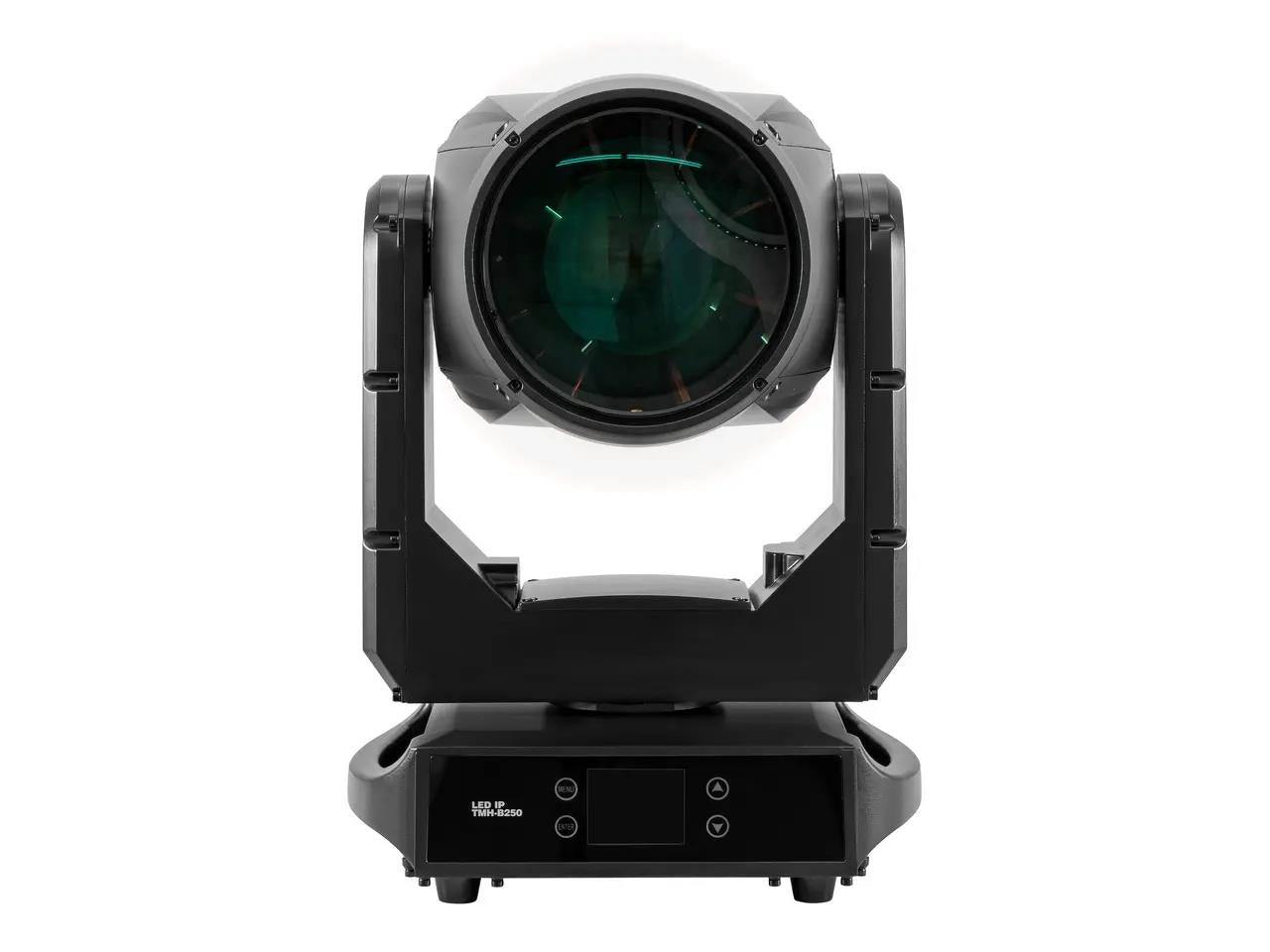

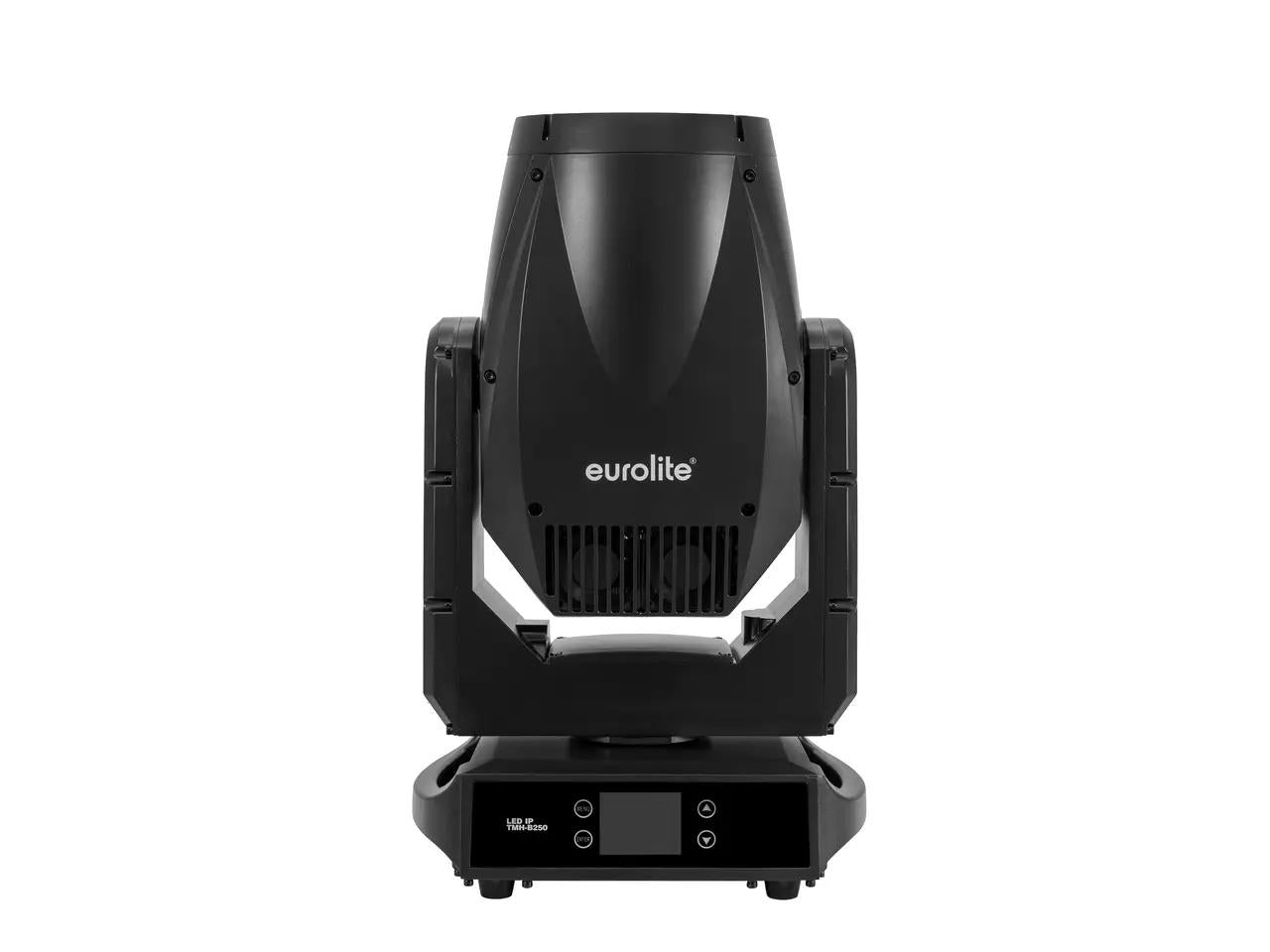

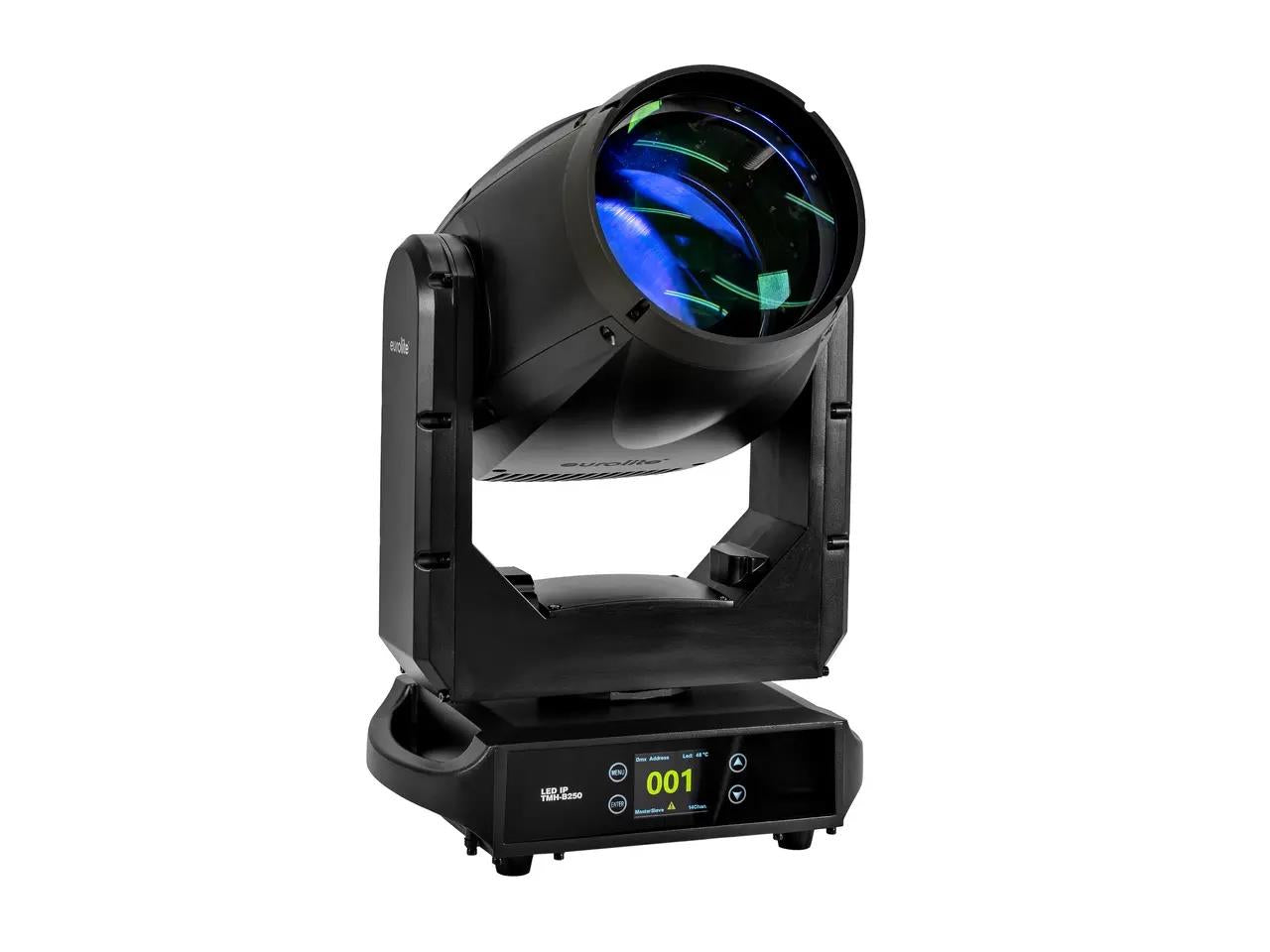

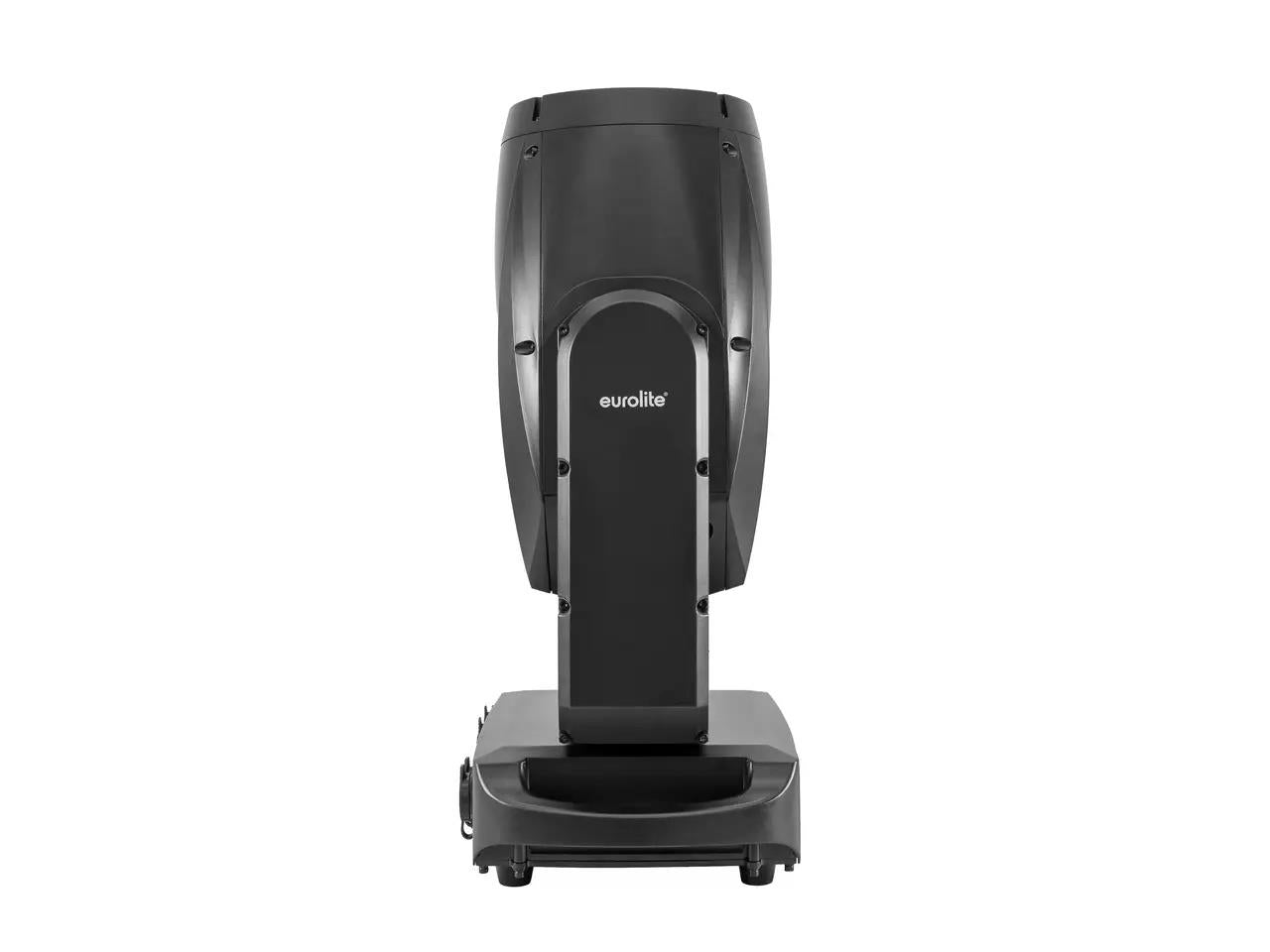

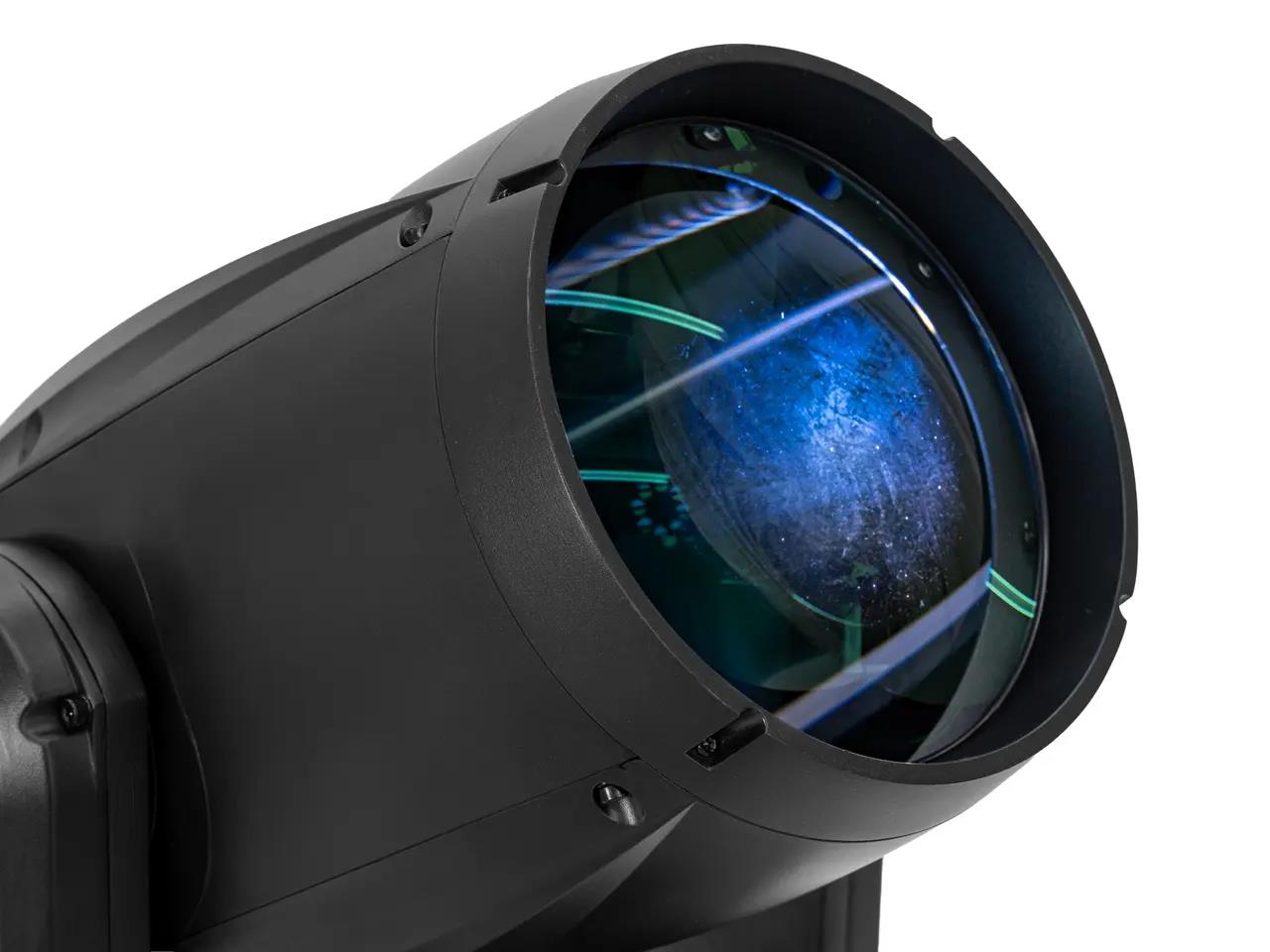

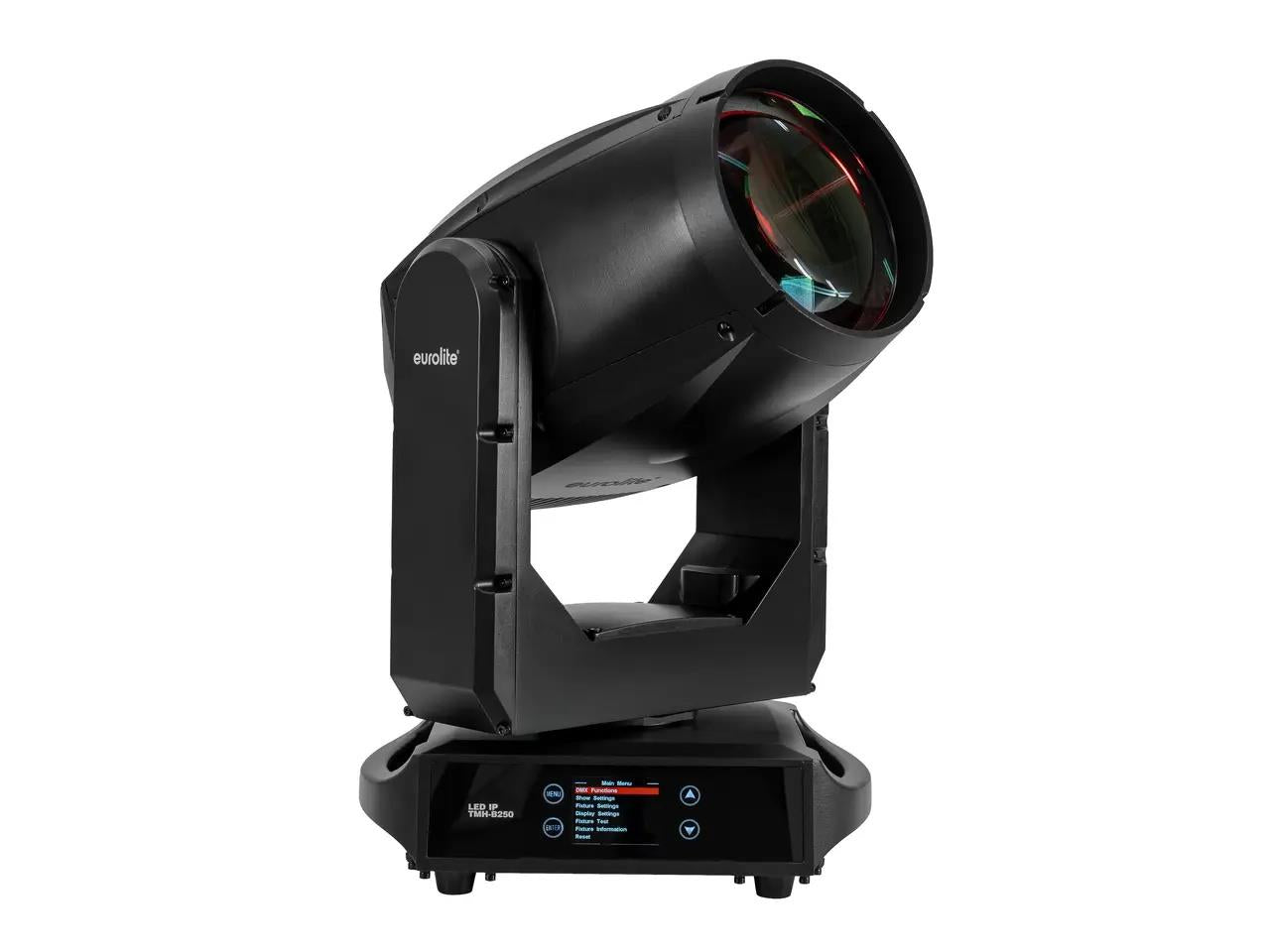

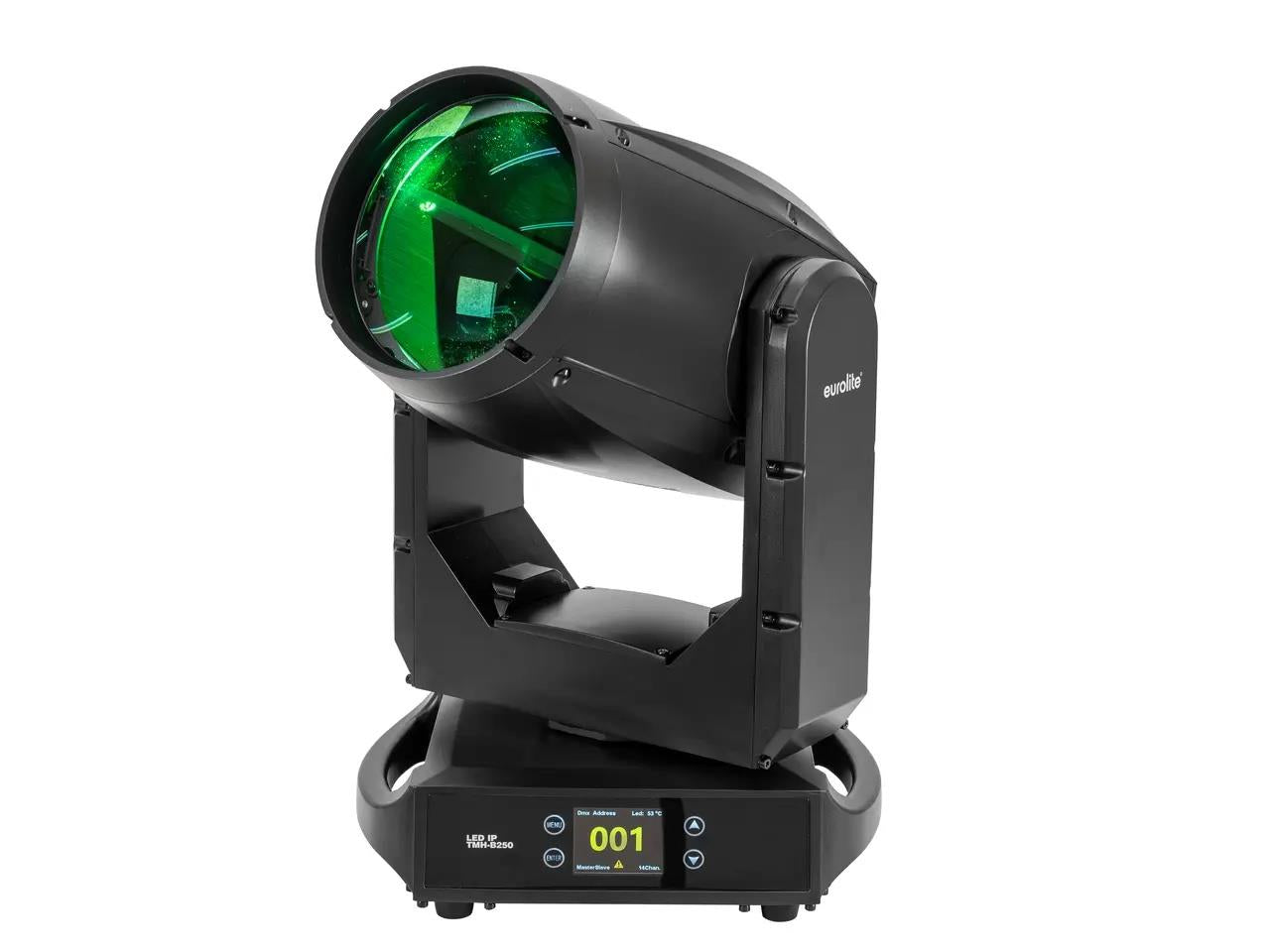

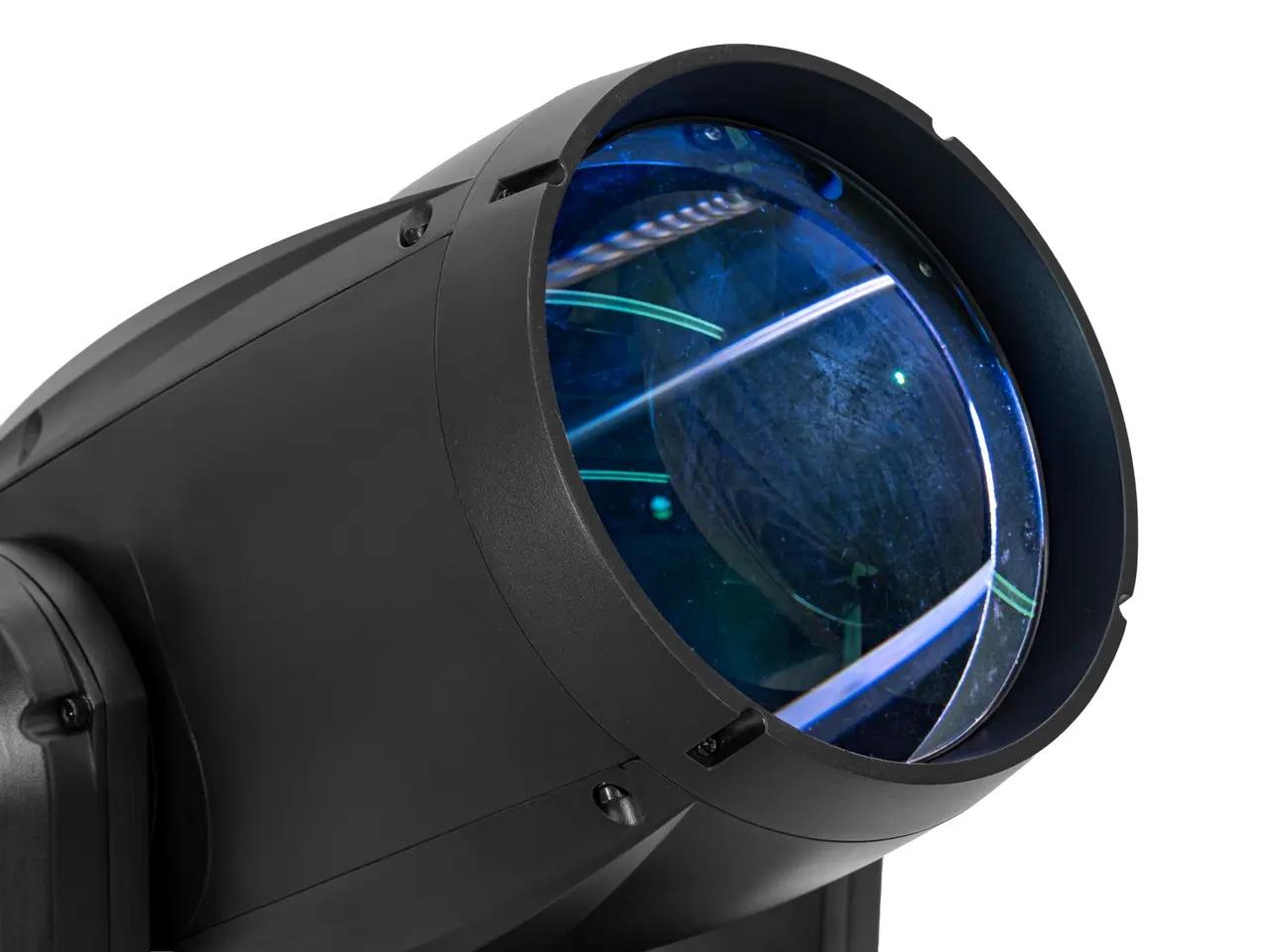

EUROLITE LED IP TMH-B250 Moving Head Beam IP65

Description

This IP65-rated beam moving head is engineered for high-impact outdoor and indoor applications, delivering an ultra-tight 1° beam for sharp, penetrating aerial effects. Powered by a 250W COB LED, it produces intense output suitable for large-scale events, stages, and touring environments. A comprehensive effects system including a 13-slot gobo wheel, dual rotating prisms, and a multicolour filter enables complex and dynamic visuals, while robust weatherproof construction ensures reliable operation in all conditions.

Features

IP65-rated weatherproof moving head suitable for outdoor use
Ultra-narrow 1° beam angle for precise aerial effects
250W COB cold white LED light source
Gobo wheel with 13 static gobos plus open position
Dual rotating prisms including 8-facet and 24-facet, usable individually or combined
Colour wheel with 14 dichroic filters plus open and split colour capability
Multicolour effect filter for enhanced visual effects
Motorised focus and integrated frost filter
540° pan and 250° tilt with 16-bit precise positioning
Auto position correction for accurate movement
Flicker-free operation with 4000 Hz PWM frequency
Multiple control modes including DMX, RDM, master/slave, stand-alone, and sound-to-light
DMX fail modes including hold, blackout, and auto
Low-noise cooling system with temperature-controlled fans

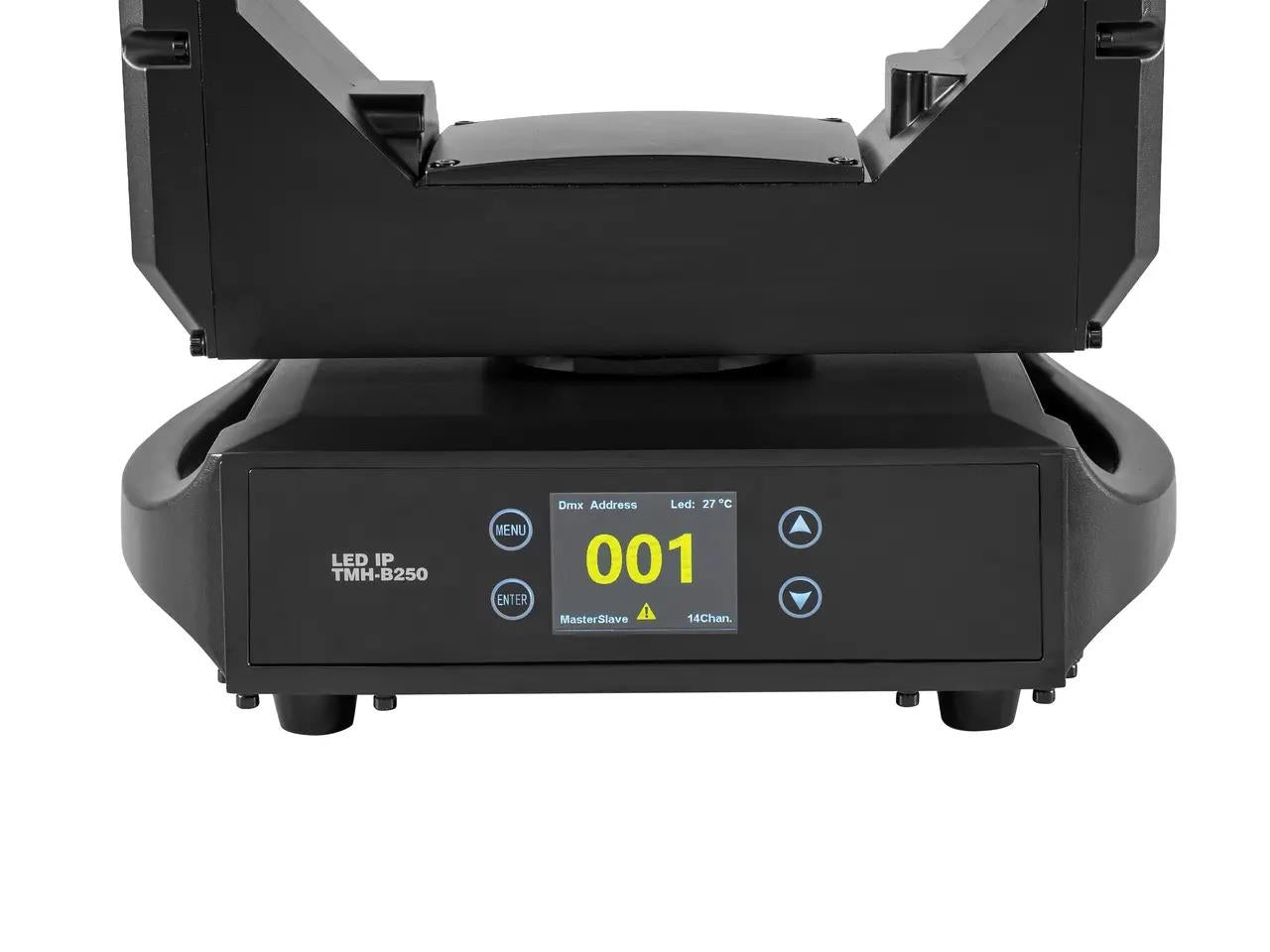

Multicolour LCD display for setup and configuration

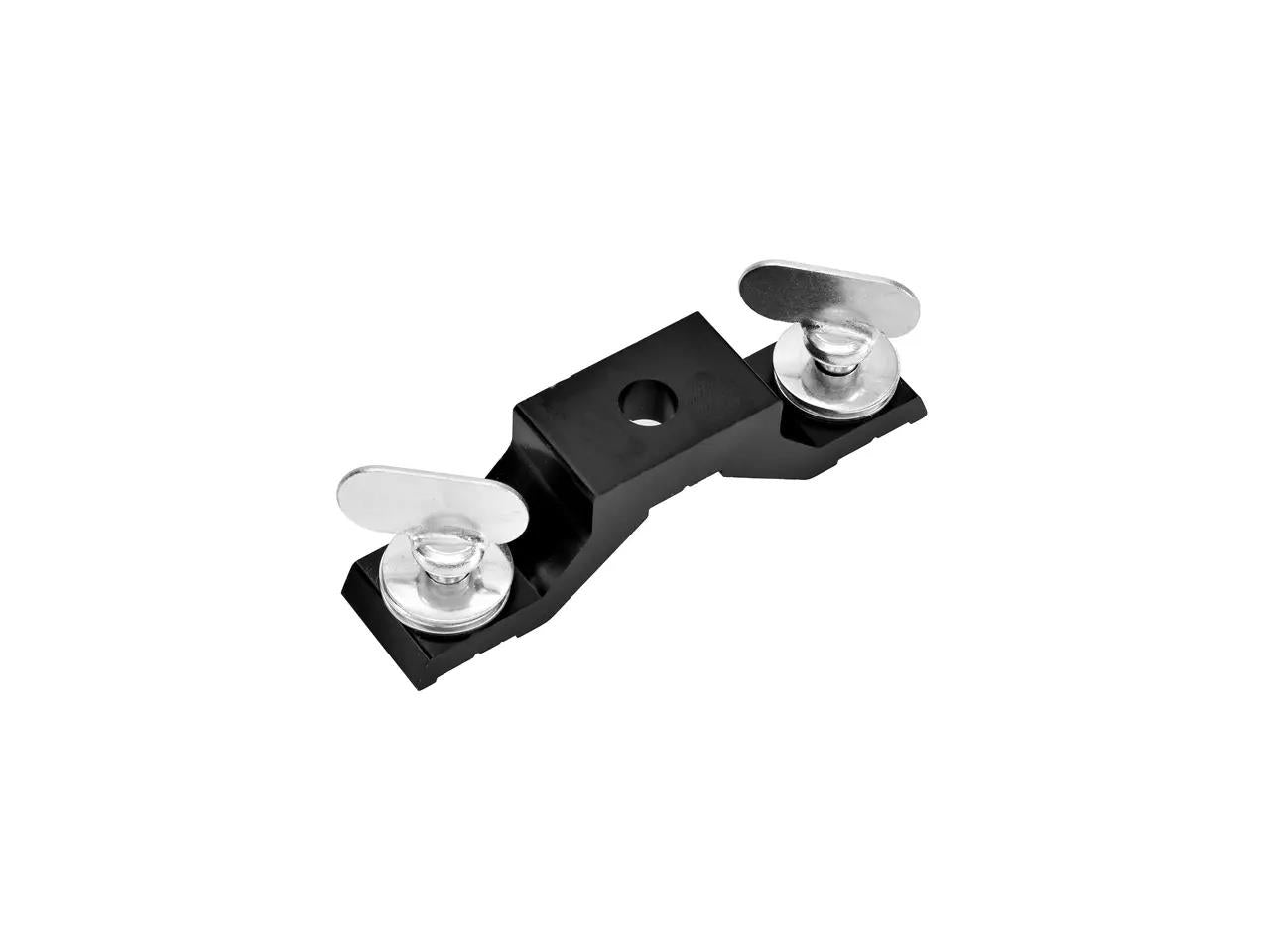

Omega bracket mounting system included
Power linking capability for up to 8 units
Pressure compensation membrane for durability
Integrated carrying handles for transport

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 310 W
IP rating: IP65
Protection class: Class I
Light source: 1 x 250 W COB cold white LED
Pan movement: 540° with 16-bit resolution and auto correction
Tilt movement: 250° with 16-bit resolution and auto correction
Beam angle: 1°
Flash rate: 1 – 20 Hz
DMX channels: 14 or 16 selectable

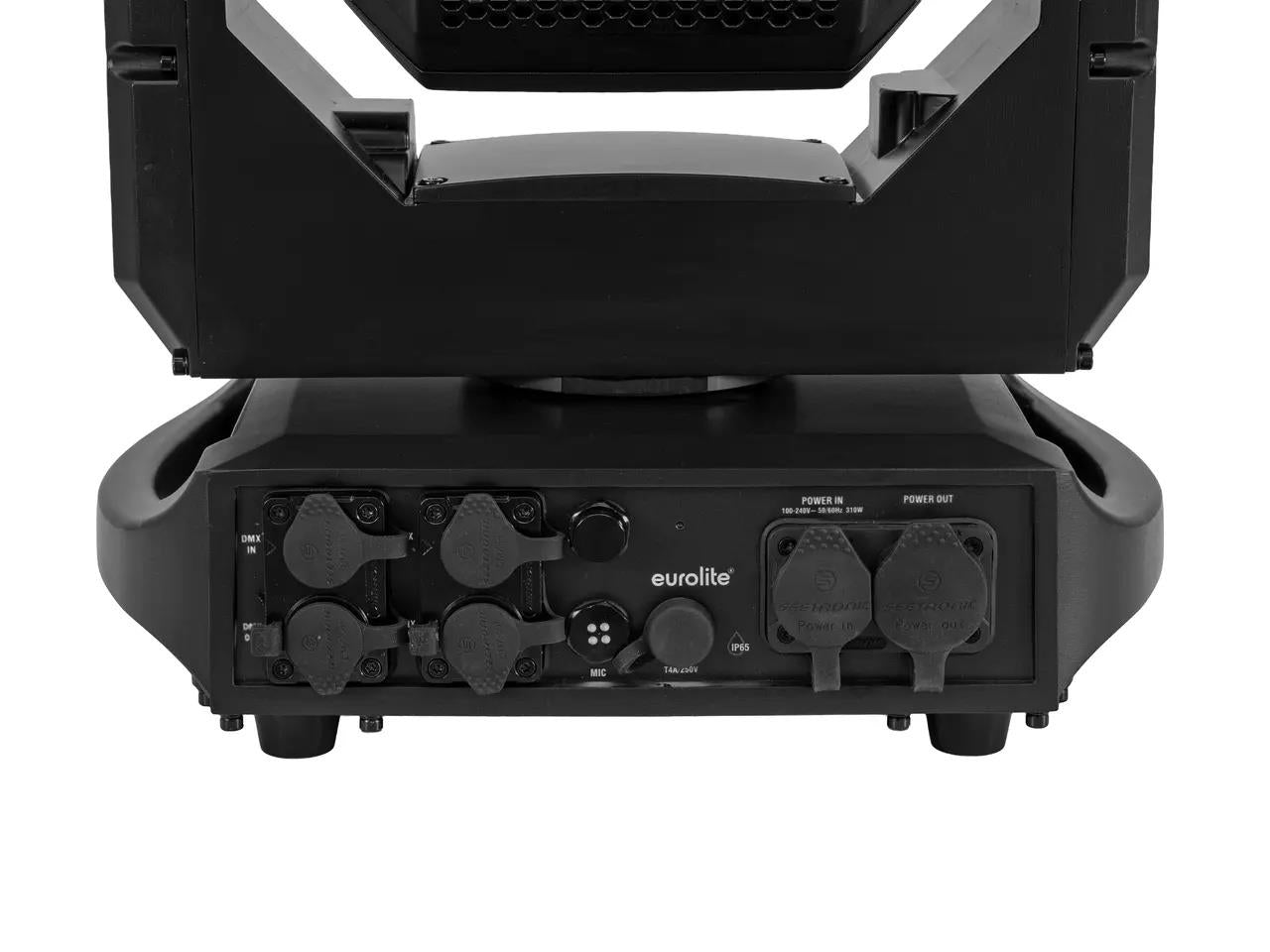

DMX connections: 3-pin and 5-pin XLR (IP rated)
Control modes: DMX, RDM, master/slave, stand-alone, sound-to-light

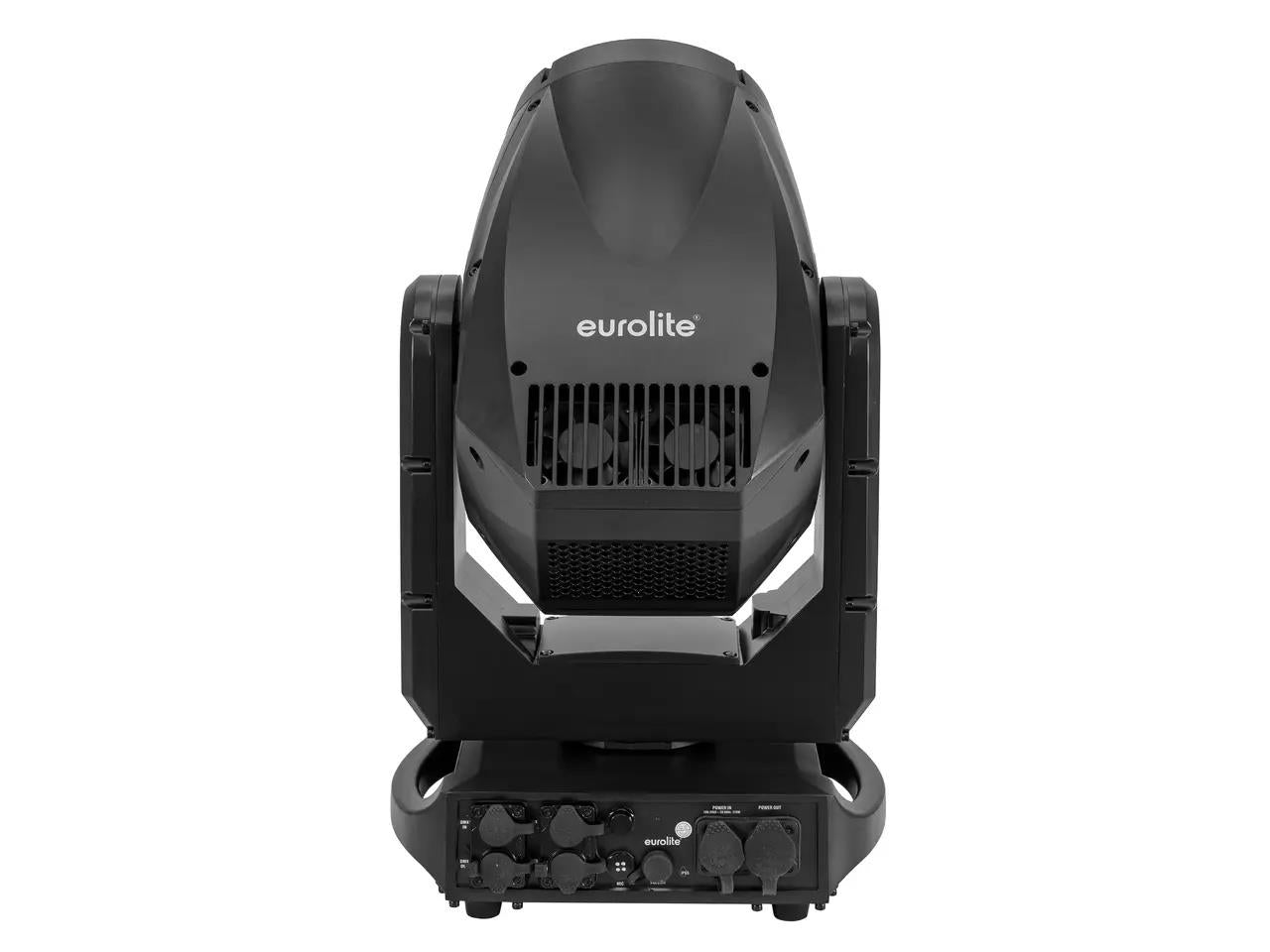

Cooling: Low-noise base fan and 5 temperature-controlled head fans
PWM frequency: 4000 Hz
Housing material: Aluminium casting
Colour: Black
Display: Multicolour LCD

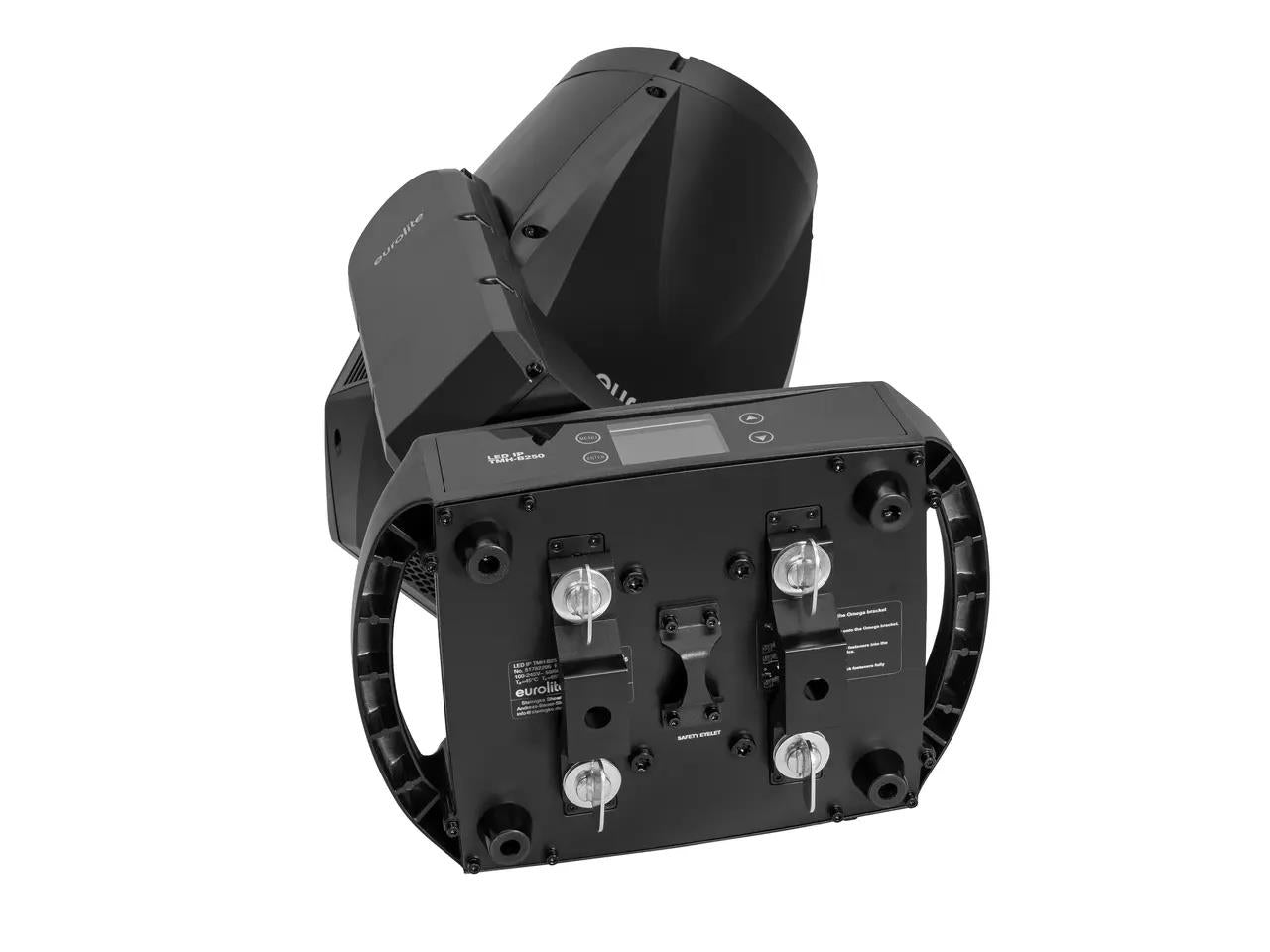

Mounting: Dual omega brackets with Ø12 mm mounting holes
Dimensions (W x D x H): 320 x 225 x 520 mm
Weight: 16.35 kg
Noise level: Class 2 (slight noise)
