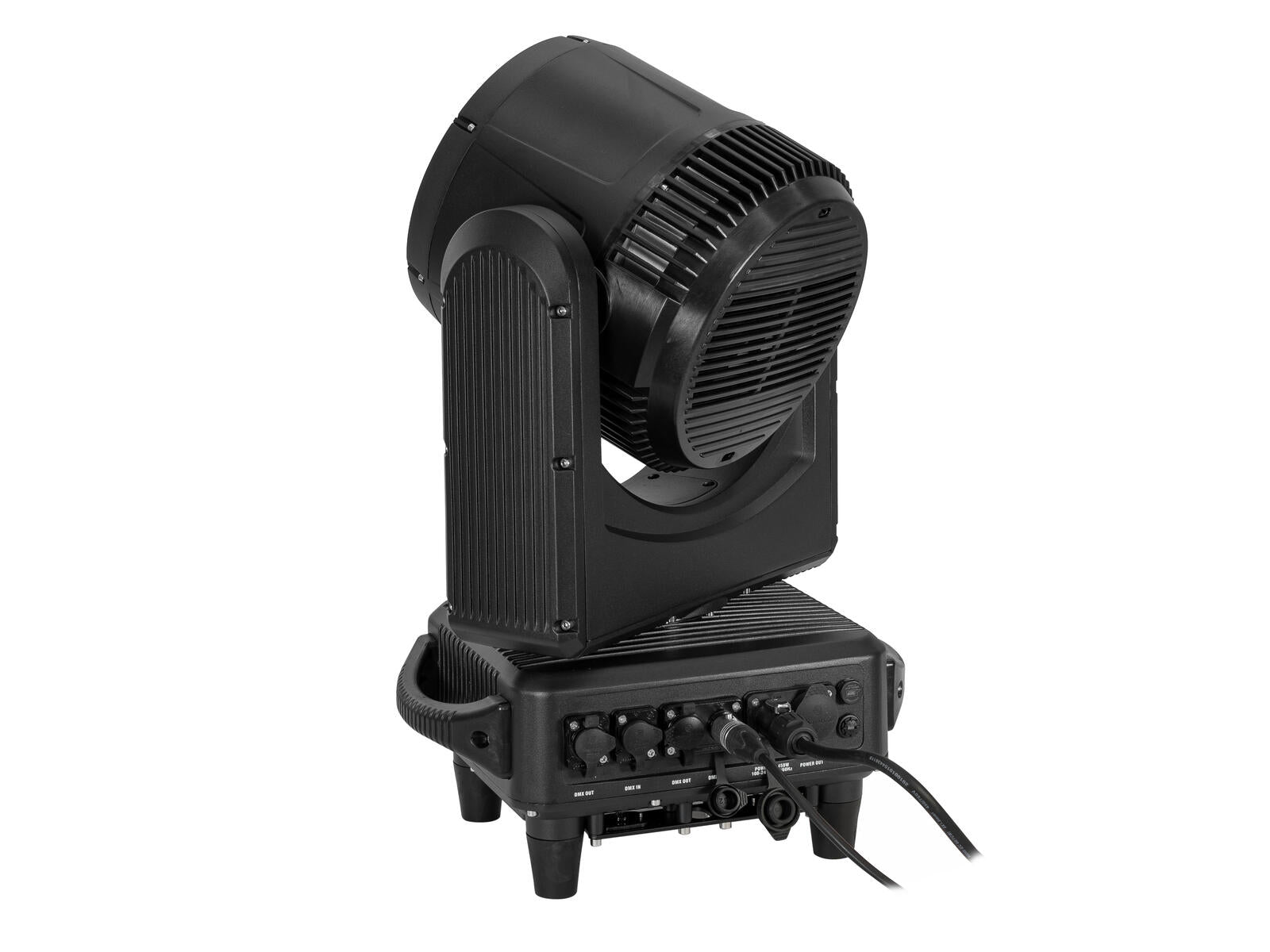

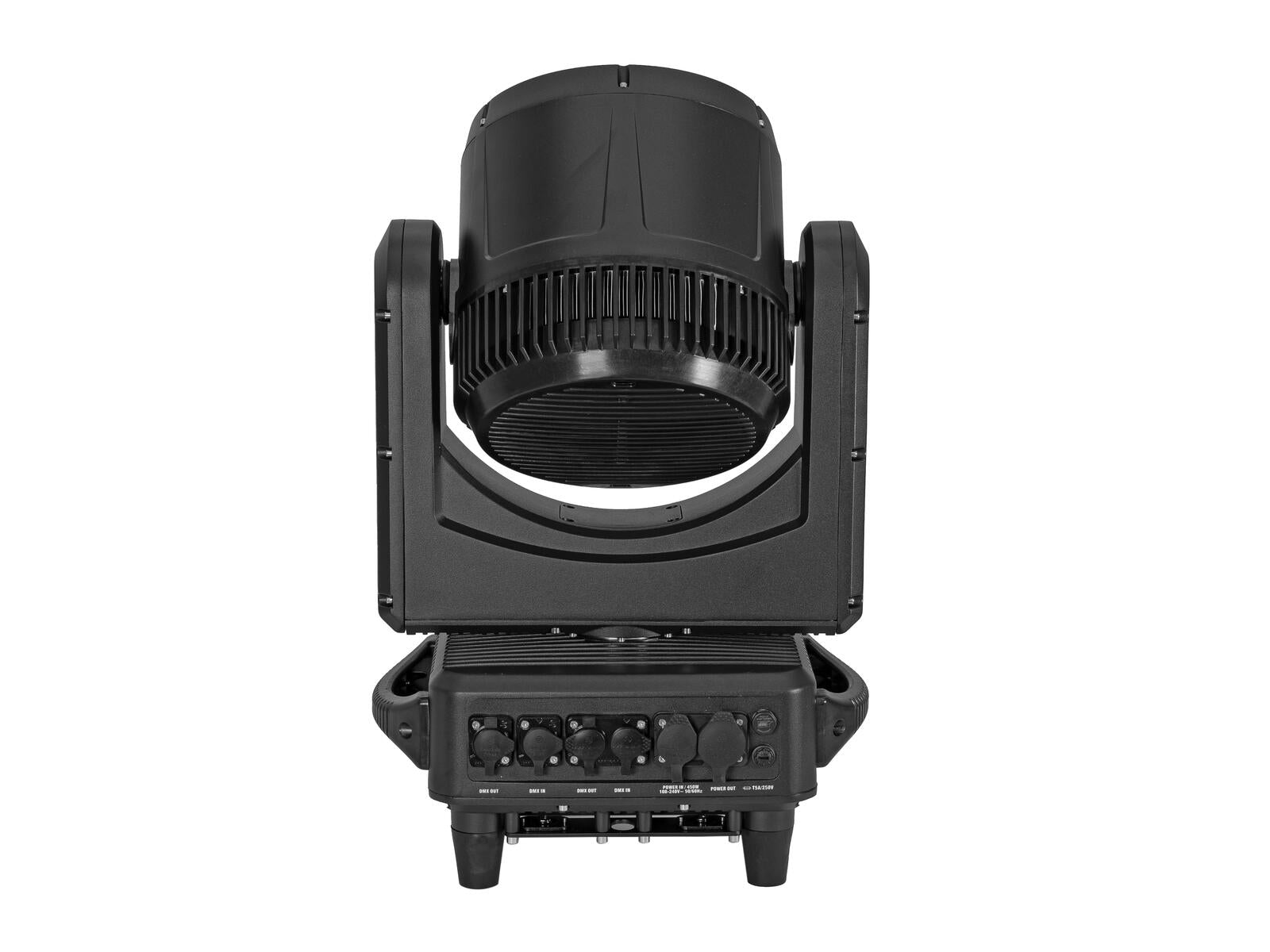

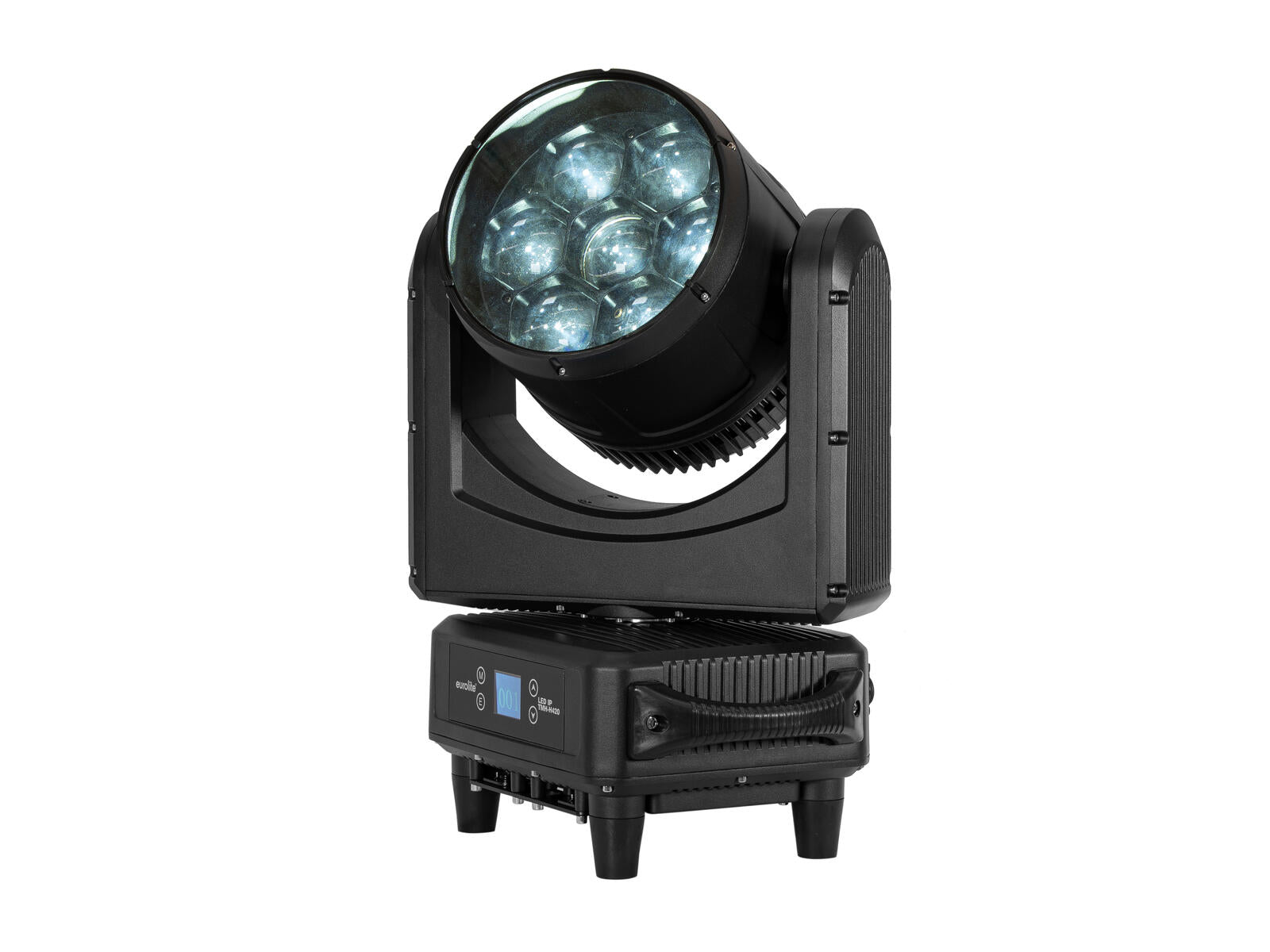

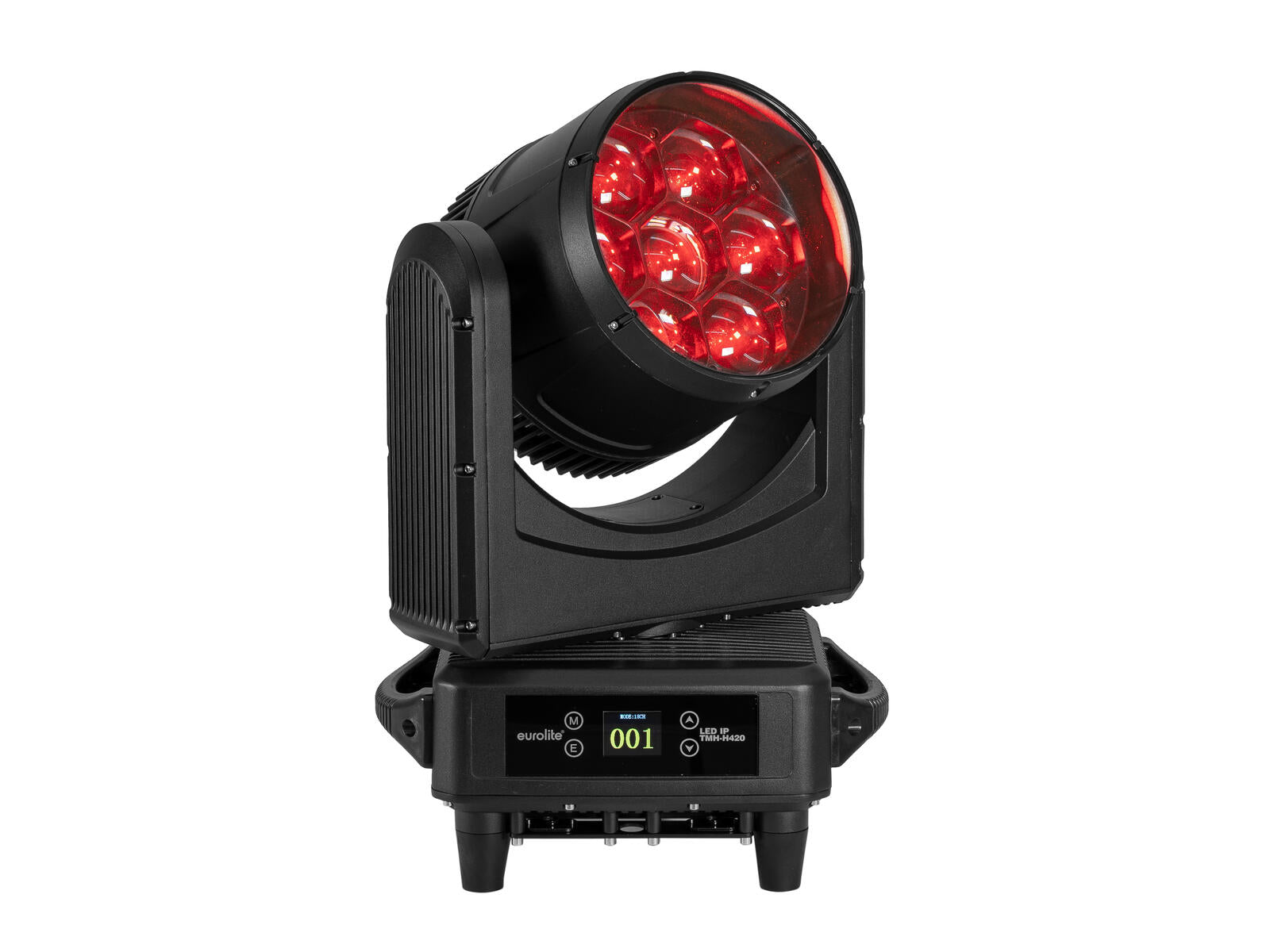

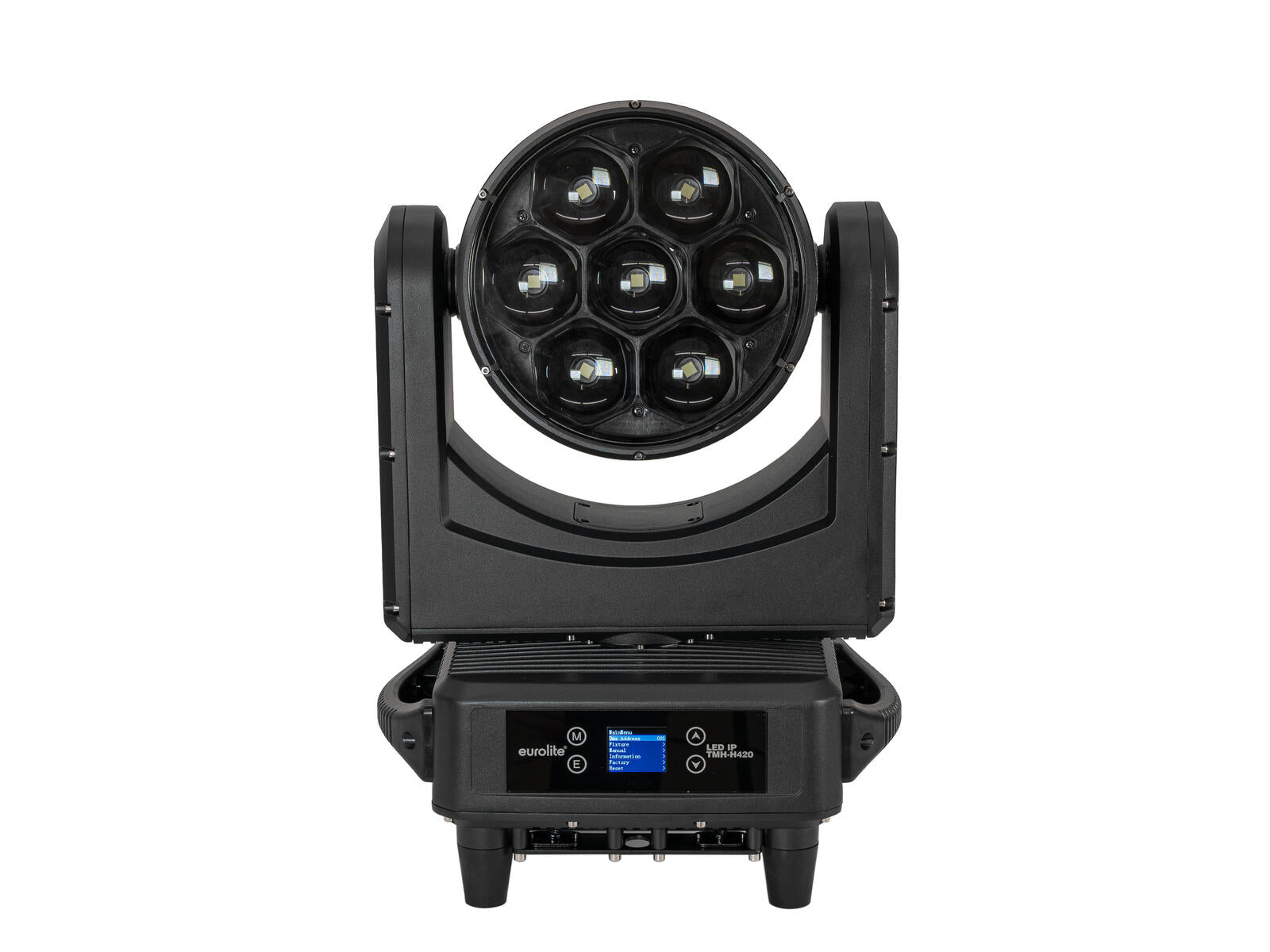

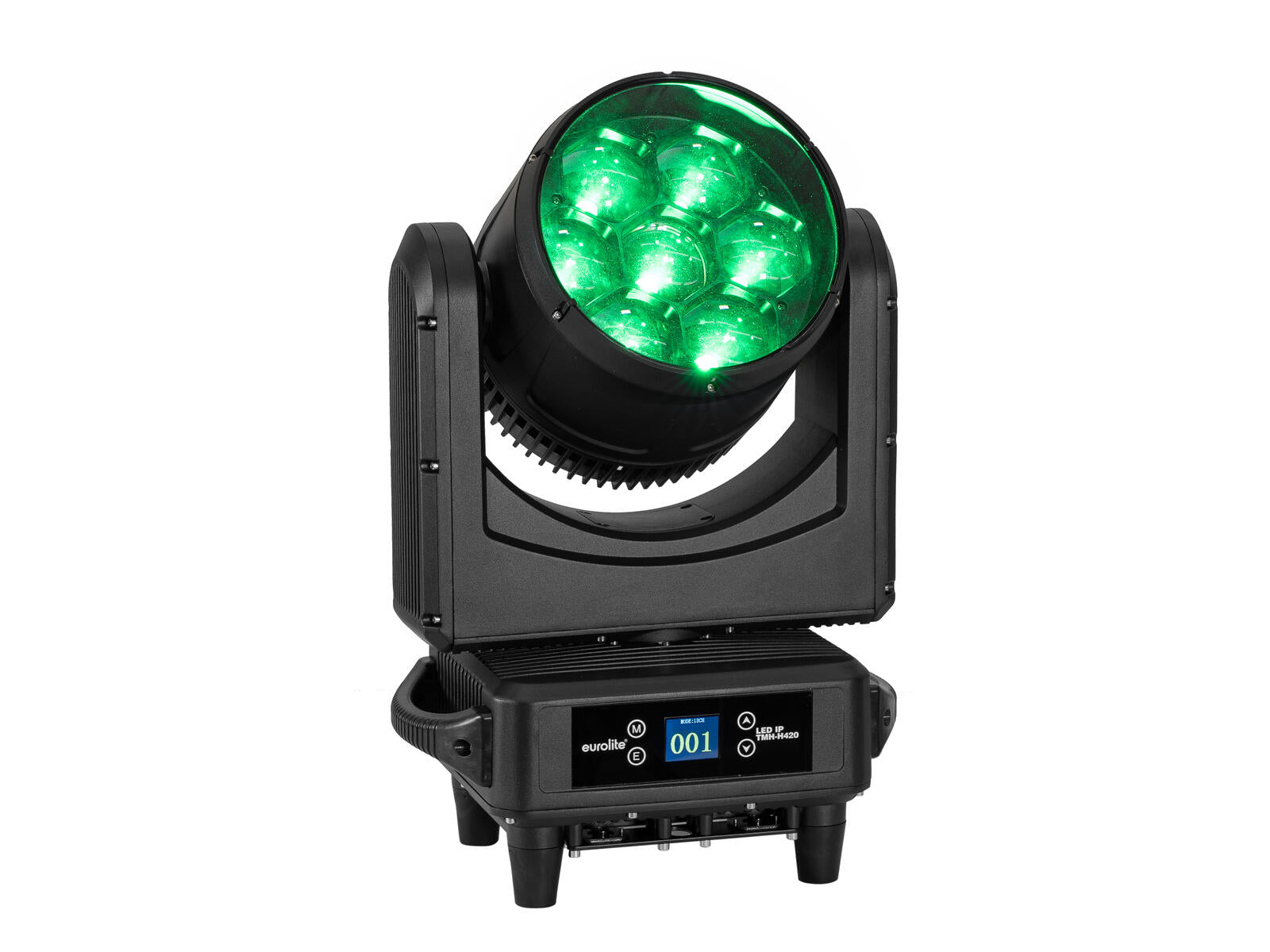

EUROLITE LED IP TMH-H420 7 x 60W RGBW LED Moving Head Outdoor IP65

The EUROLITE LED IP TMH-H420 is a high-performance, weather-proof moving head designed for professional lighting applications in demanding environments. Equipped with seven 60W SMD 6065 4-in-1 RGBW LEDs, each individually controllable, this fixture delivers intense, vibrant colors with seamless blending and homogenous output.

With a versatile 2°–55° motorized zoom, rotating flower effect, wash capabilities, and pixel control, the TMH-H420 is a multi-functional powerhouse. Lens rotation adds dynamic movement, while 16-bit PAN (540°) and TILT (205°) positioning with auto-correction ensures precision. Multiple effects such as strobe, color presets, and smooth dimming provide creative flexibility for any show.

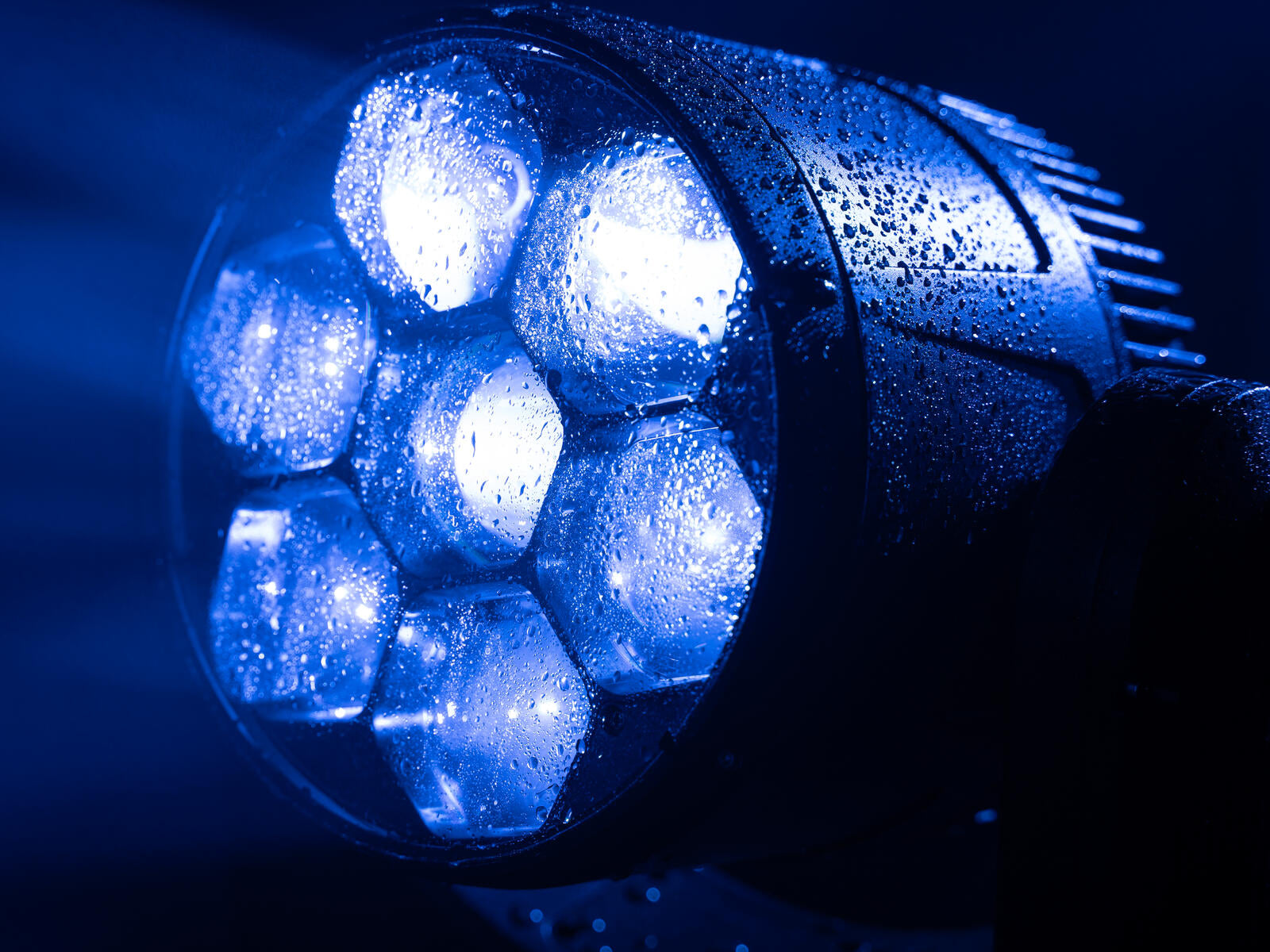

Built for outdoor use with an IP65 rating, the TMH-H420 features a rugged aluminum casting, pressure compensation membrane, and SEETRONIC power connectors. Low-noise fans at the base and temperature-controlled fans in the head ensure reliable cooling. Control options include DMX, master/slave, and stand-alone operation, with flicker-free output for video production.

Features:
Weather-proof IP65 moving head with beam, wash, and flower effects
7 x 60W RGBW 4-in-1 LEDs with pixel control for precise effects
Motorized zoom: 2° narrow beam to 55° wide wash
Rotating flower effect for dynamic aerial patterns
Individually controllable LEDs with seamless color mixing
16-bit PAN/TILT positioning (540° / 205°) with auto-correction
Low-noise and temperature-controlled cooling system
DMX control with multiple channel modes (18, 26, 46 channels)
Flicker-free projection for video use
Rugged aluminum housing with hinged hook brackets
SEETRONIC power connectors with power linking for up to 4 units
Multicolor LCD display, 2 carrying handles, and rubber feet

Technical Specifications:
Power Supply: 100–240V AC, 50/60 Hz
Power Consumption: 450 W
IP Classification: IP65
Protection Class: I
Power Connection: Mains in via IP T-Con (M) with safety plug
Power Output: IP T-Con (F)
Fuse: 5 x 20 mm, T 5 A (replaceable)
LED Type: 7 x 60 W SMD 6065 4-in-1 RGBW QCL
Beam Angle: 2°–55° (half peak 2–40°, tenth peak 6–55°)
PAN Movement: 540° (16-bit, auto correction)
TILT Movement: 205° (16-bit, auto correction)
Flash Rate: 1–20 Hz
Effects: Lens rotation, strobe, wash, flower effect
Control Modes: Stand-alone, DMX, master/slave
DMX Channels: 18, 26, 46
DMX I/O: 3-pin XLR (M/F) IP-rated, 5-pin XLR (M/F) IP-rated
Cooling: Low-noise fans at base, temperature-controlled fans in head
Material: Aluminum casting
Housing Color: Black

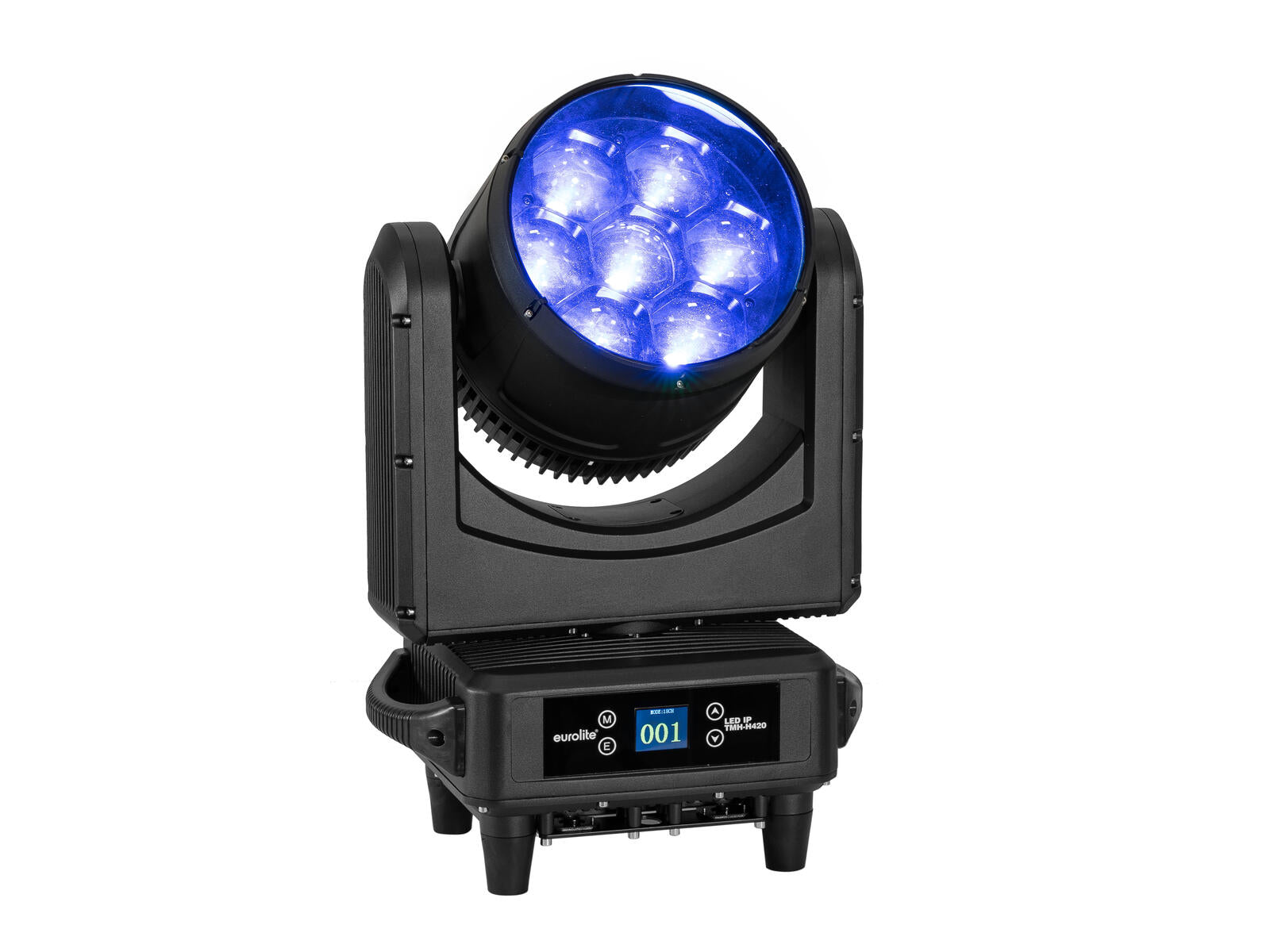

Display: Multicolor LCD

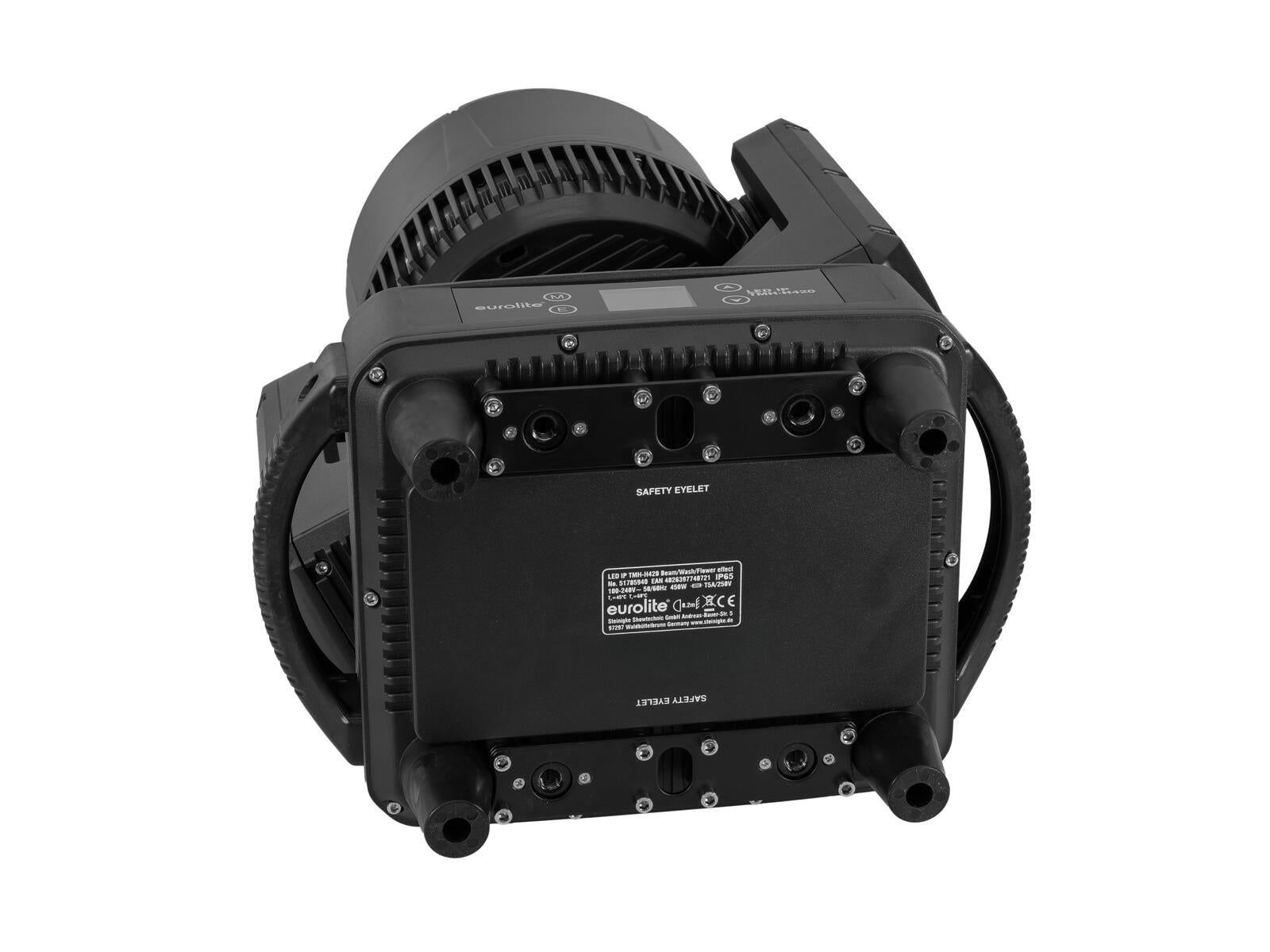

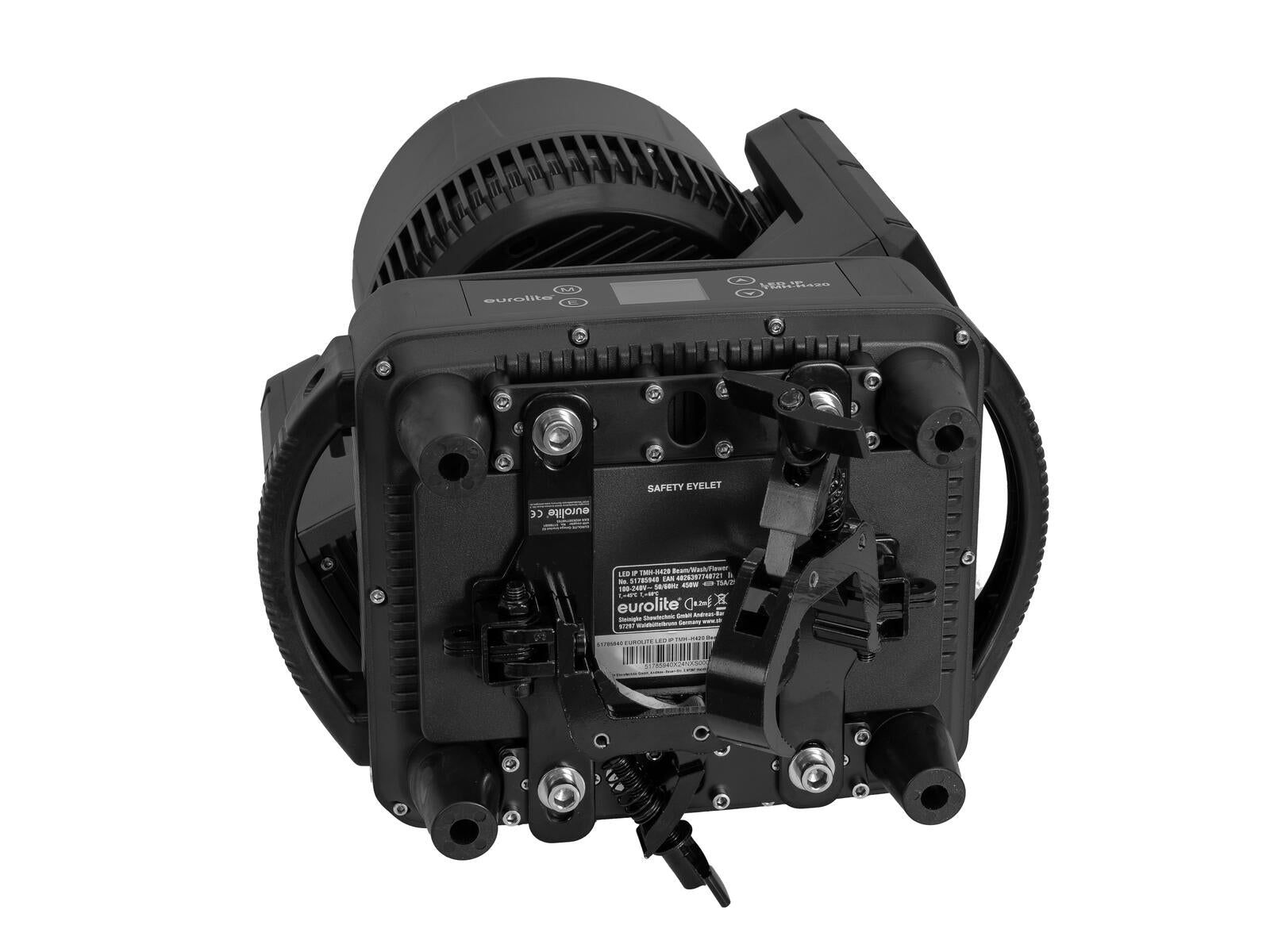

Attachment System: 2 x bracket with hinged hooks
Handles: 2 pcs
Feet: 4 rubber feet
Dimensions (W x D x H): 34.5 x 23.5 x 52.0 cm
Weight: 17.05 kg

Performance (Illuminance in Lux):
Wide (all LEDs): 1m: 12,711 lx / 3m: 1,637 lx / 6m: 502 lx
Narrow (all LEDs): 1m: 58,151 lx / 3m: 56,122 lx / 6m: 15,091 lx
