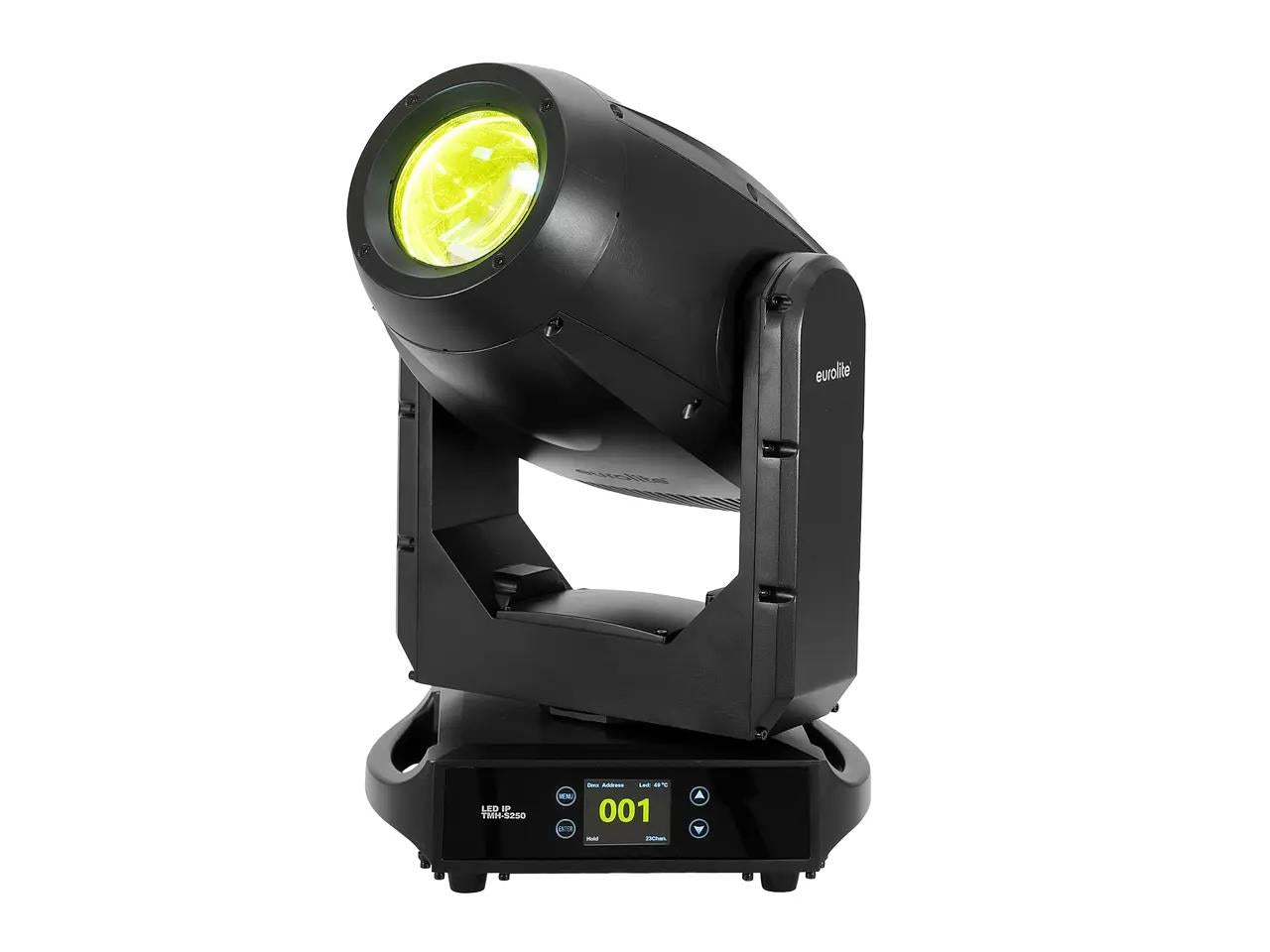

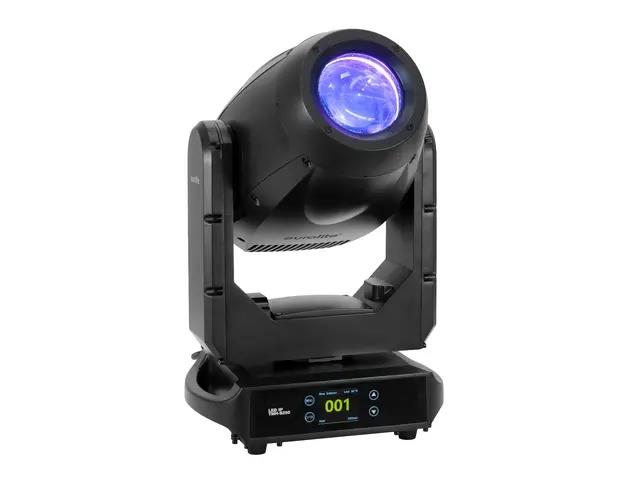

EUROLITE LED IP TMH-S250 Moving Head Beam/Spot/Wash 250W IP65

Description

This IP65-rated BSW moving head is built for reliable performance in all weather conditions, making it ideal for outdoor events, architectural lighting, and professional stage use. Powered by a 250W COB LED, it delivers strong output with a versatile zoom range from a tight 4° beam to a wide 35° wash. Designed for maximum flexibility, it functions as a beam, spot, and wash fixture, with an integrated frost filter for smooth wash effects. A comprehensive effects package including rotating and static gobos, a rotating prism, and a wide colour range allows for dynamic and creative lighting designs across a variety of applications.

Features

IP65-rated weatherproof moving head suitable for outdoor use
Zoom range from 4° to 35° for beam, spot, and wash applications
250W COB cold white LED light source
Two gobo wheels with 8 rotating gobos and 8 static gobos plus open positions
Slot-in gobo system for easy replacement
Colour wheel with 10 dichroic filters plus open and split colour capability
Rainbow effect with adjustable speed in both directions
4-facet rotating prism for enhanced effects
Motorised focus and zoom
Integrated frost filter for wash effects
16-bit pan and tilt positioning with auto position correction
540° pan and 240° tilt movement
Flicker-free operation with 4000 Hz PWM frequency
Multiple control modes including DMX, RDM, master/slave, stand-alone, and sound-to-light
DMX fail modes including hold, blackout, and auto
Low-noise cooling system with temperature-controlled fans

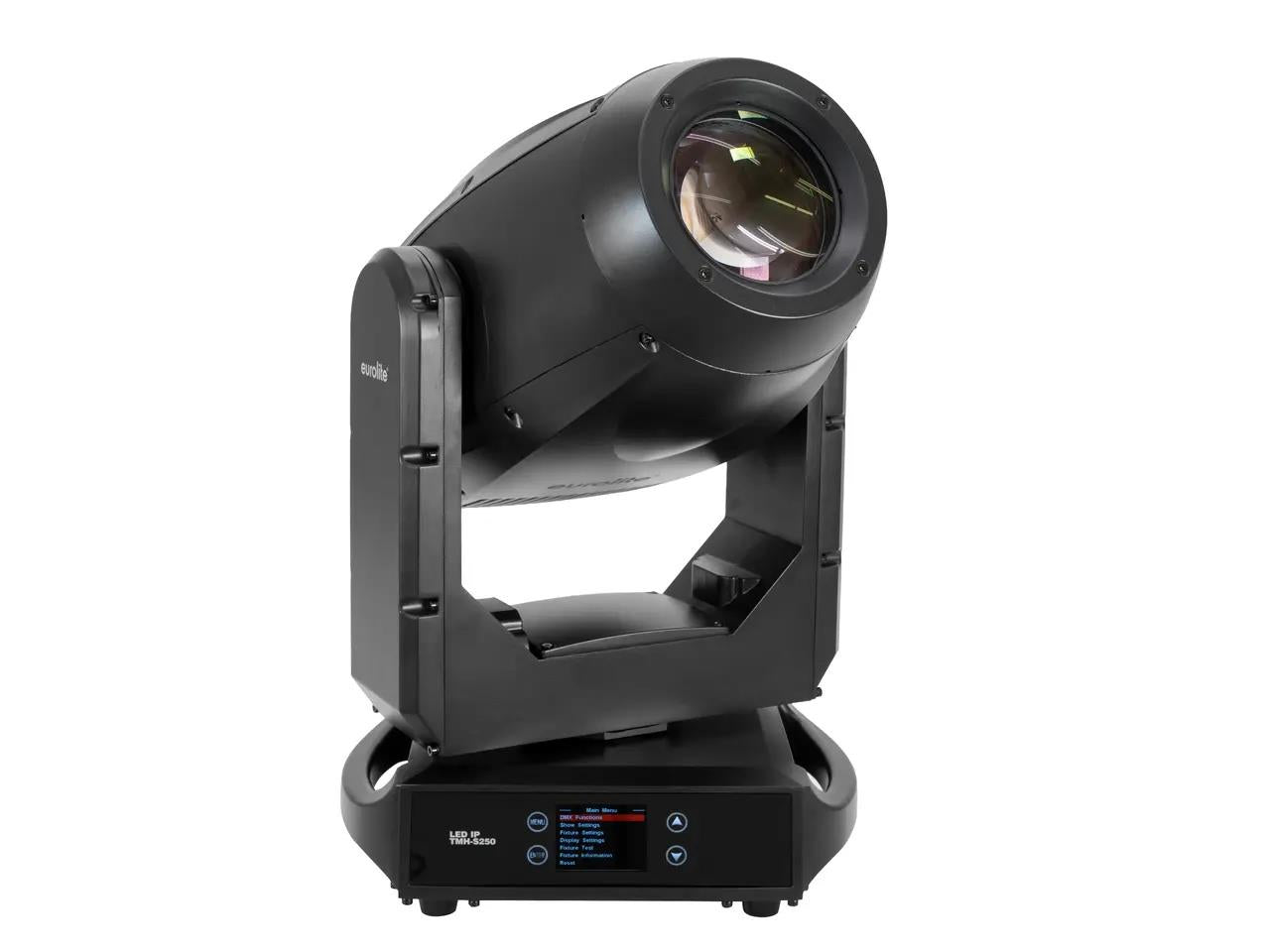

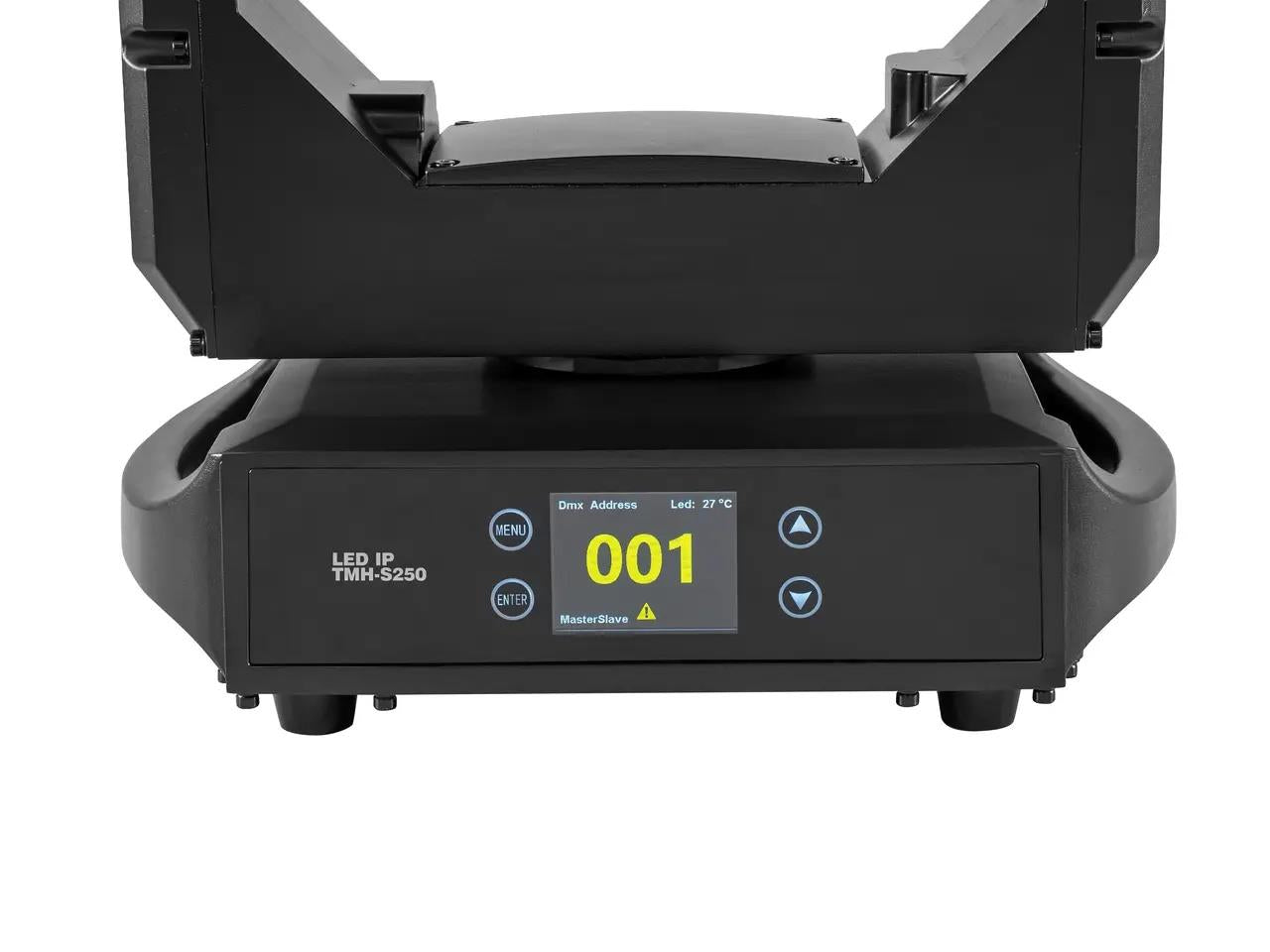

Multicolour LCD display for easy setup

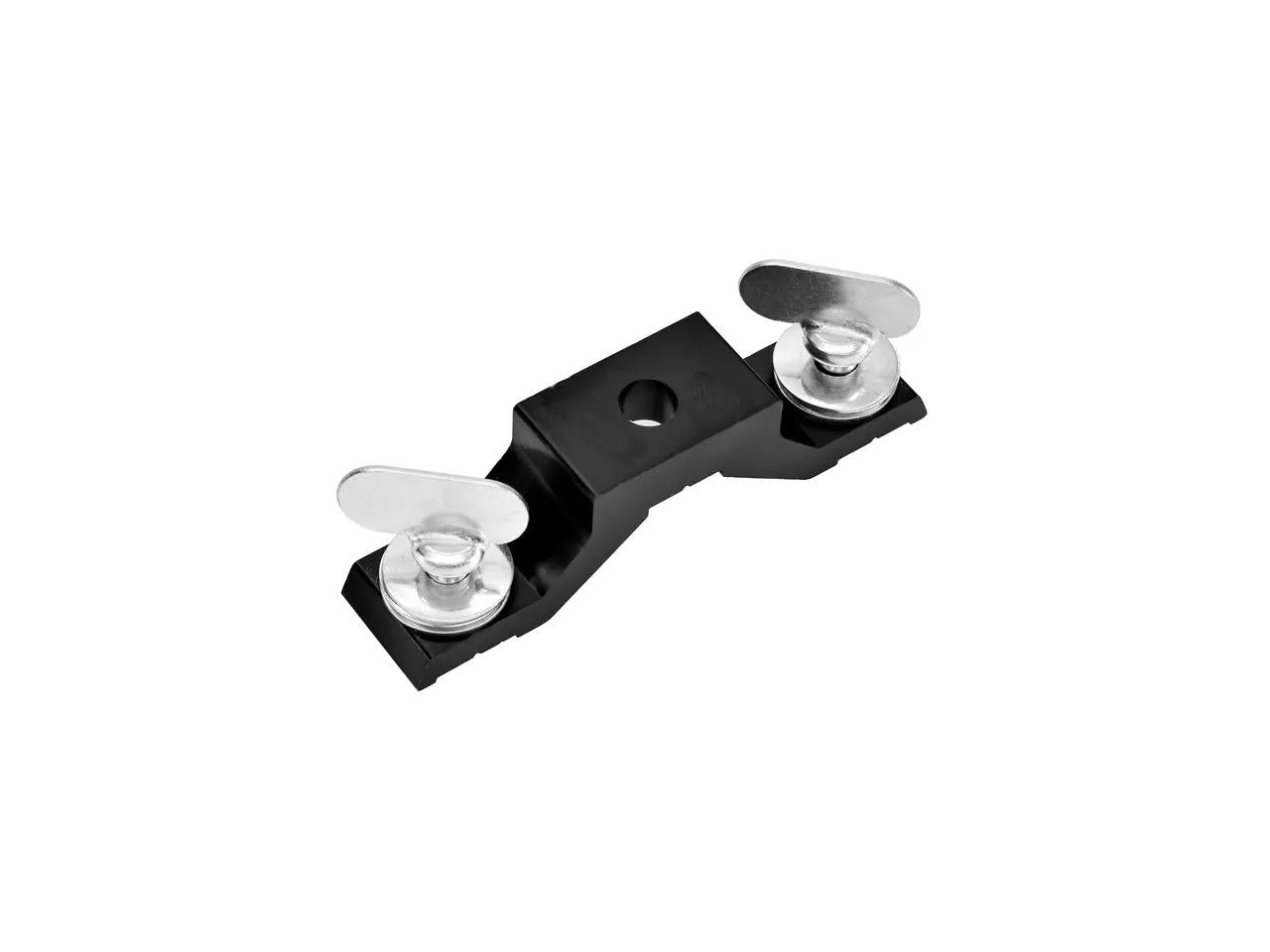

Omega bracket mounting system included
Power linking capability for up to 8 units
Rugged housing with carrying handles for transport

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 310 W
IP rating: IP65
Protection class: Class I
Light source: 1 x 250 W COB cold white LED
Pan movement: 540° with 16-bit resolution and auto correction
Tilt movement: 240° with 16-bit resolution and auto correction
Beam angle: 4° – 35°
Flash rate: 1 – 20 Hz
DMX channels: 18, 19, or 23 selectable

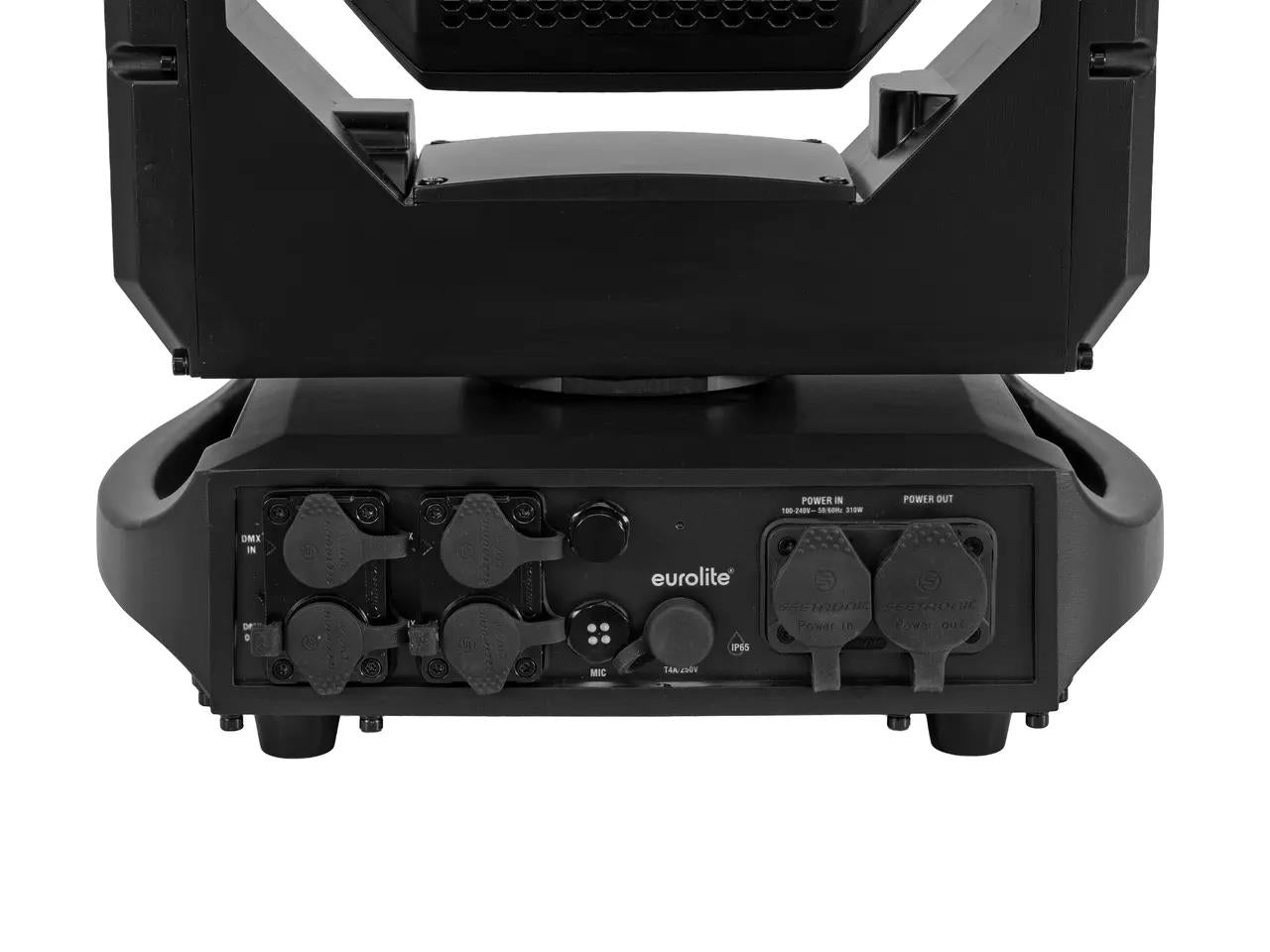

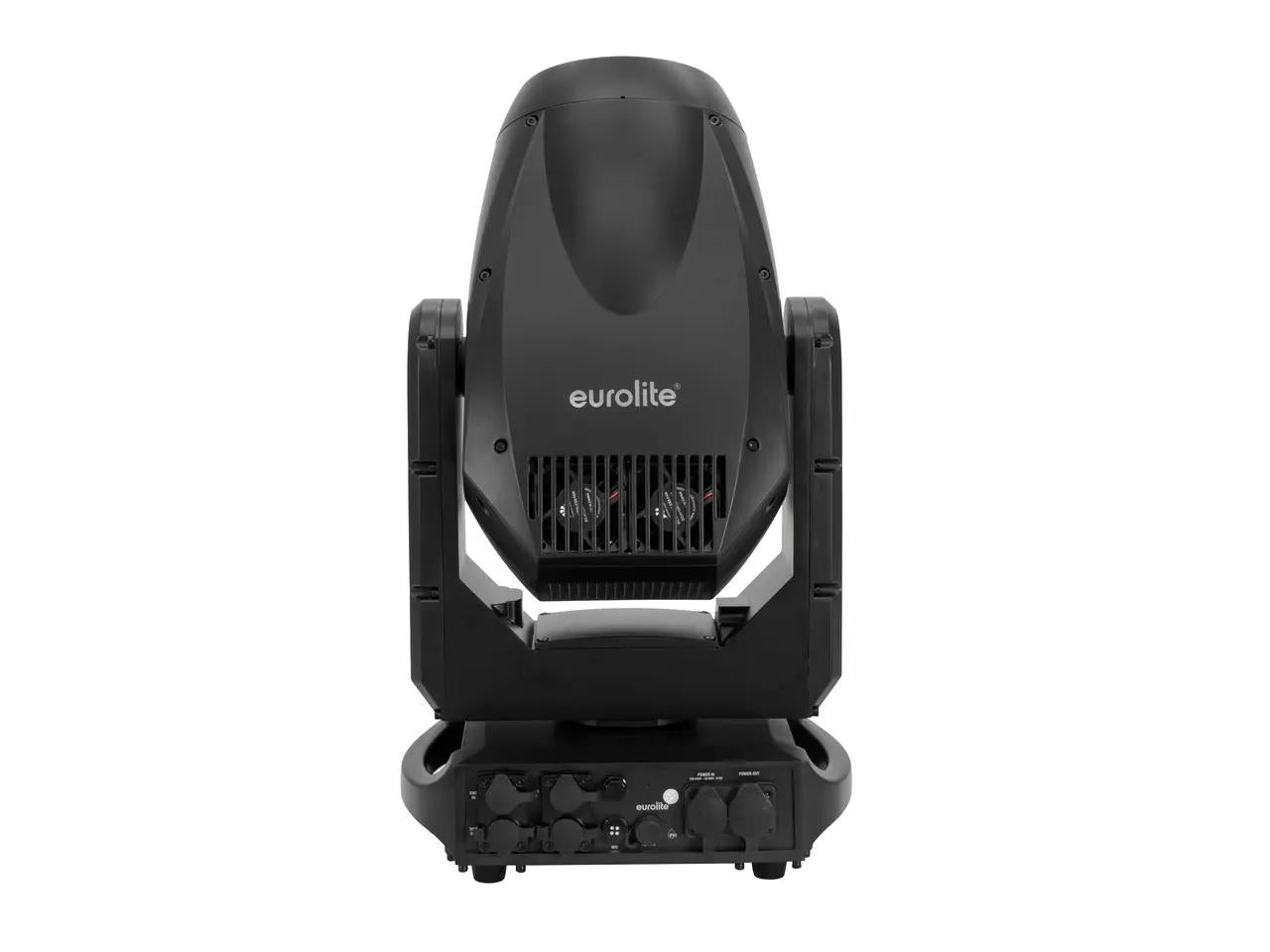

DMX connections: 3-pin and 5-pin XLR (IP rated)

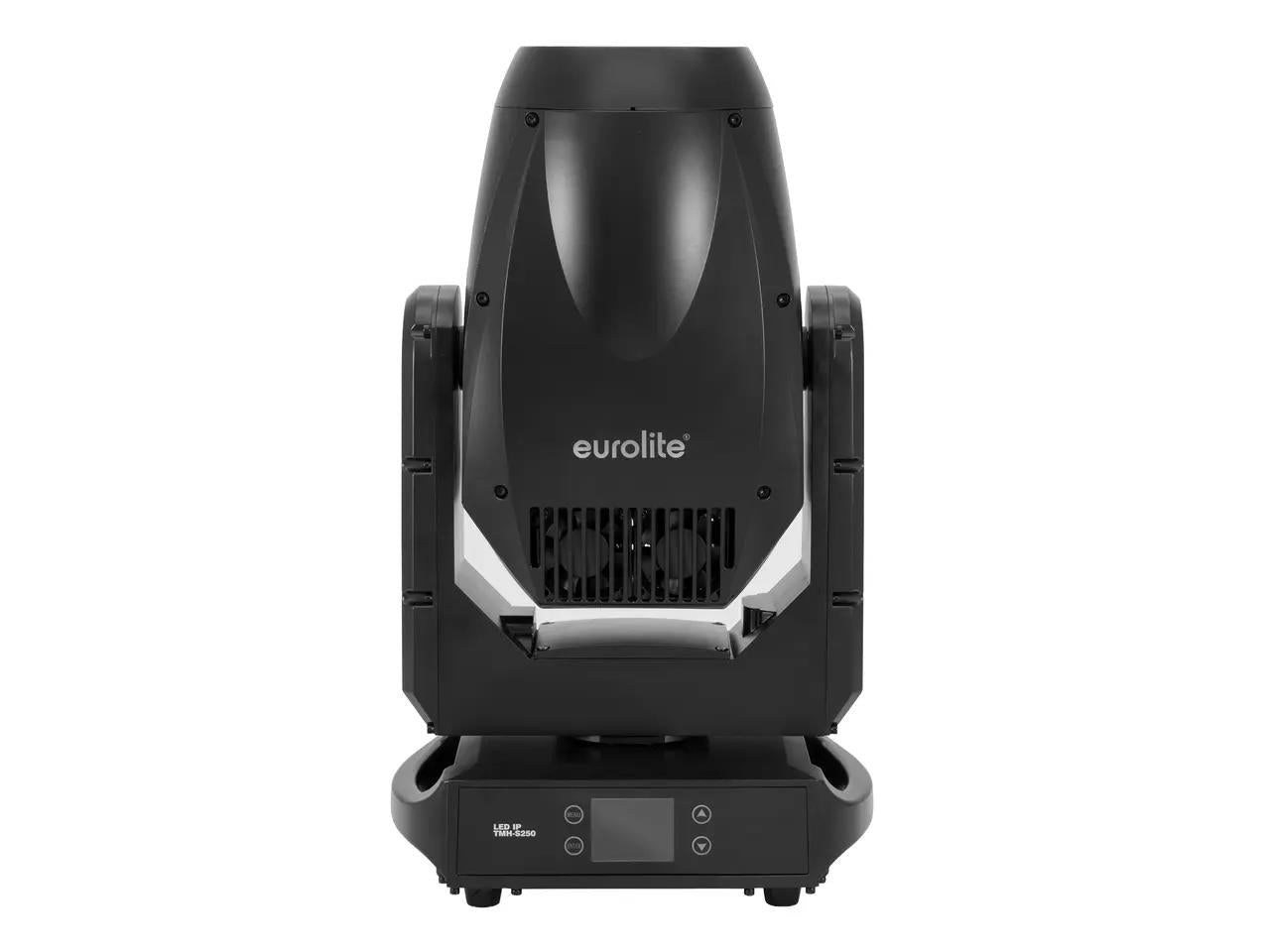

Cooling: Low-noise base fan and 5 temperature-controlled head fans
Control modes: DMX, RDM, master/slave, stand-alone, sound-to-light
PWM frequency: 4000 Hz
Housing material: Aluminium casting
Colour: Black
Display: Multicolour LCD

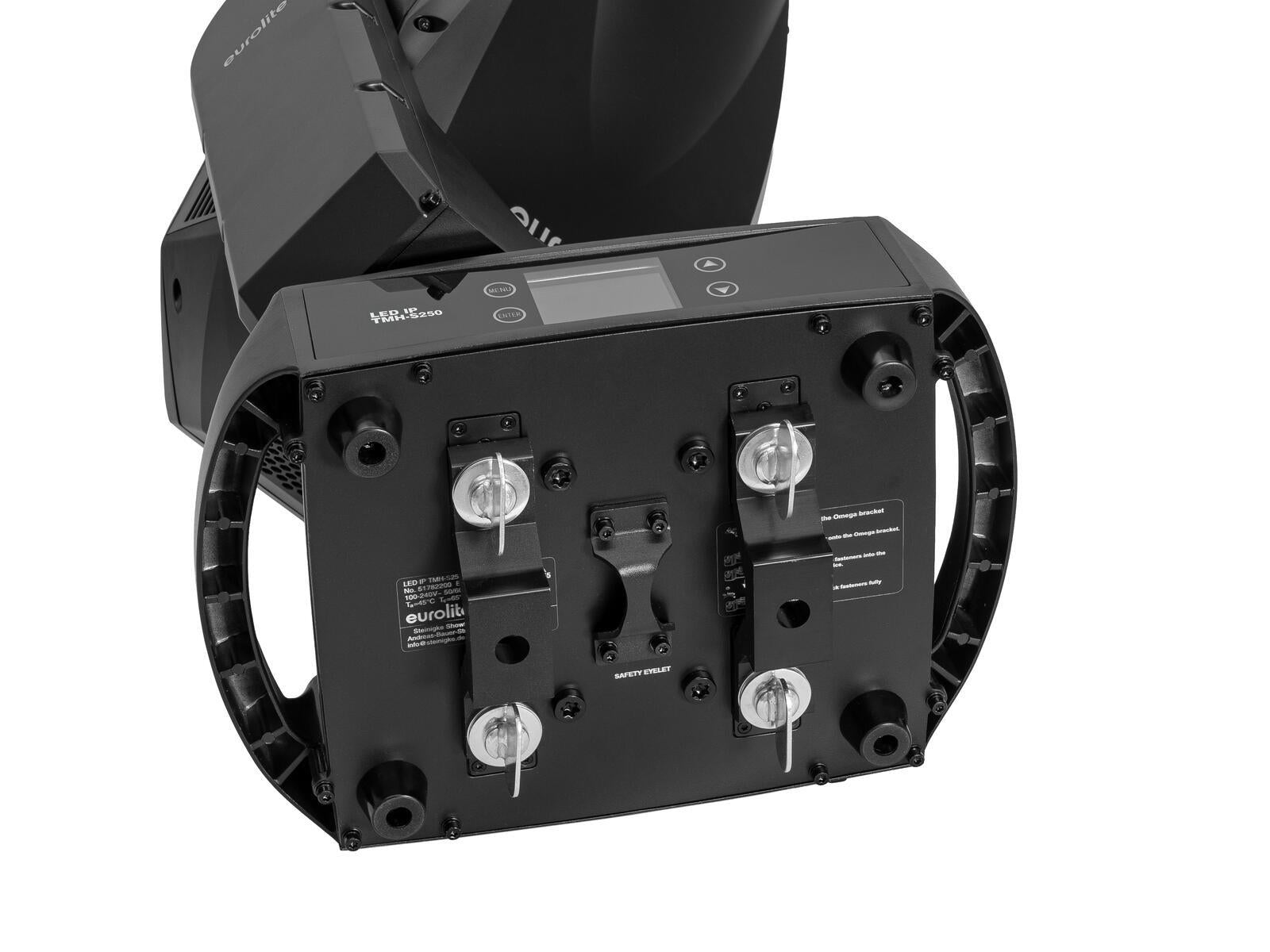

Mounting: Dual omega brackets with Ø12 mm holes
Dimensions (W x D x H): 320 x 225 x 540 mm
Weight: 15.25 kg
Noise level: Class 2 (slight noise)
