EUROLITE LED PIX-144/72 RGB/CW LED Light Bar Batten
- £143.50
- £143.50
- Unit price
- per

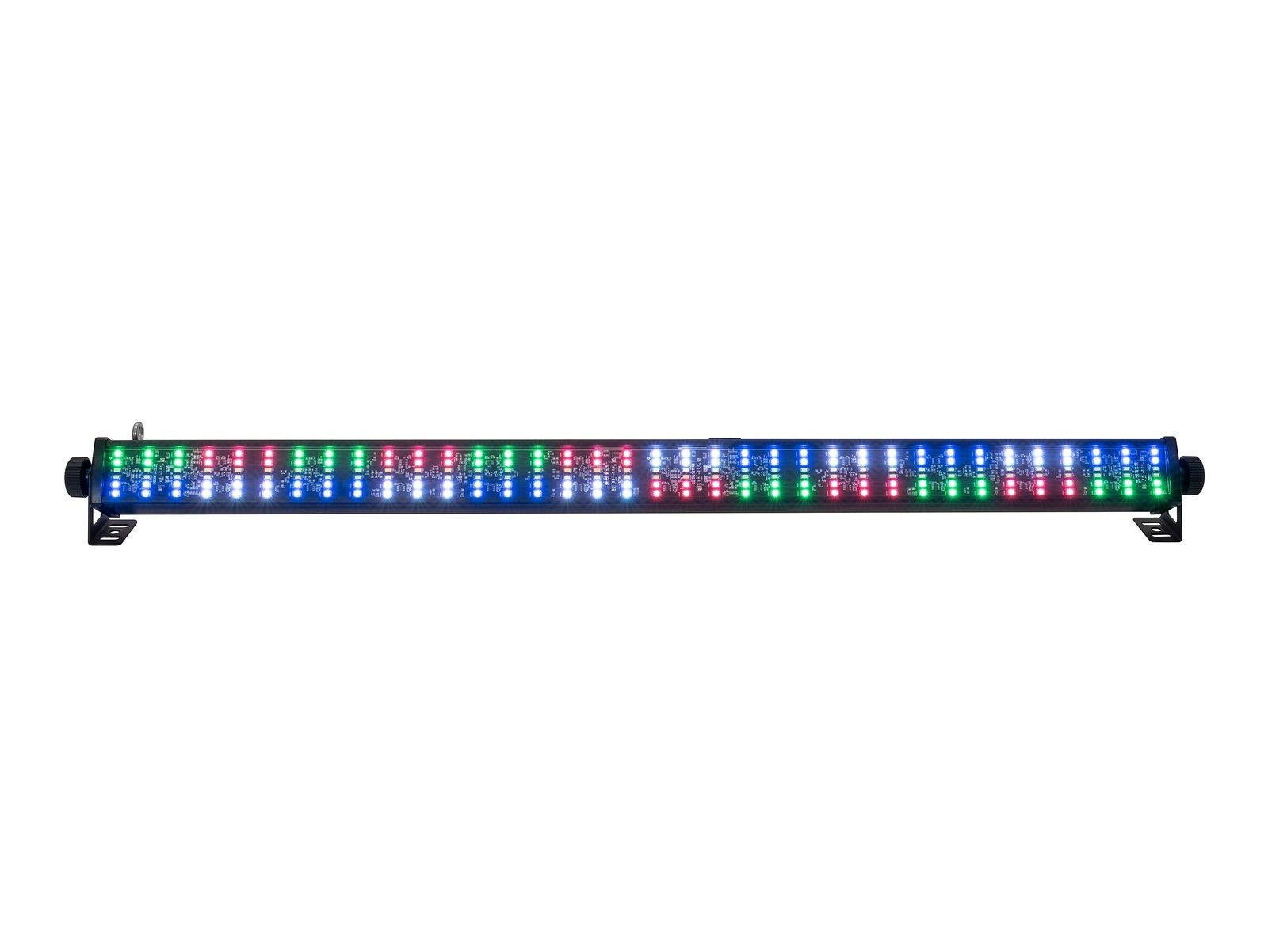

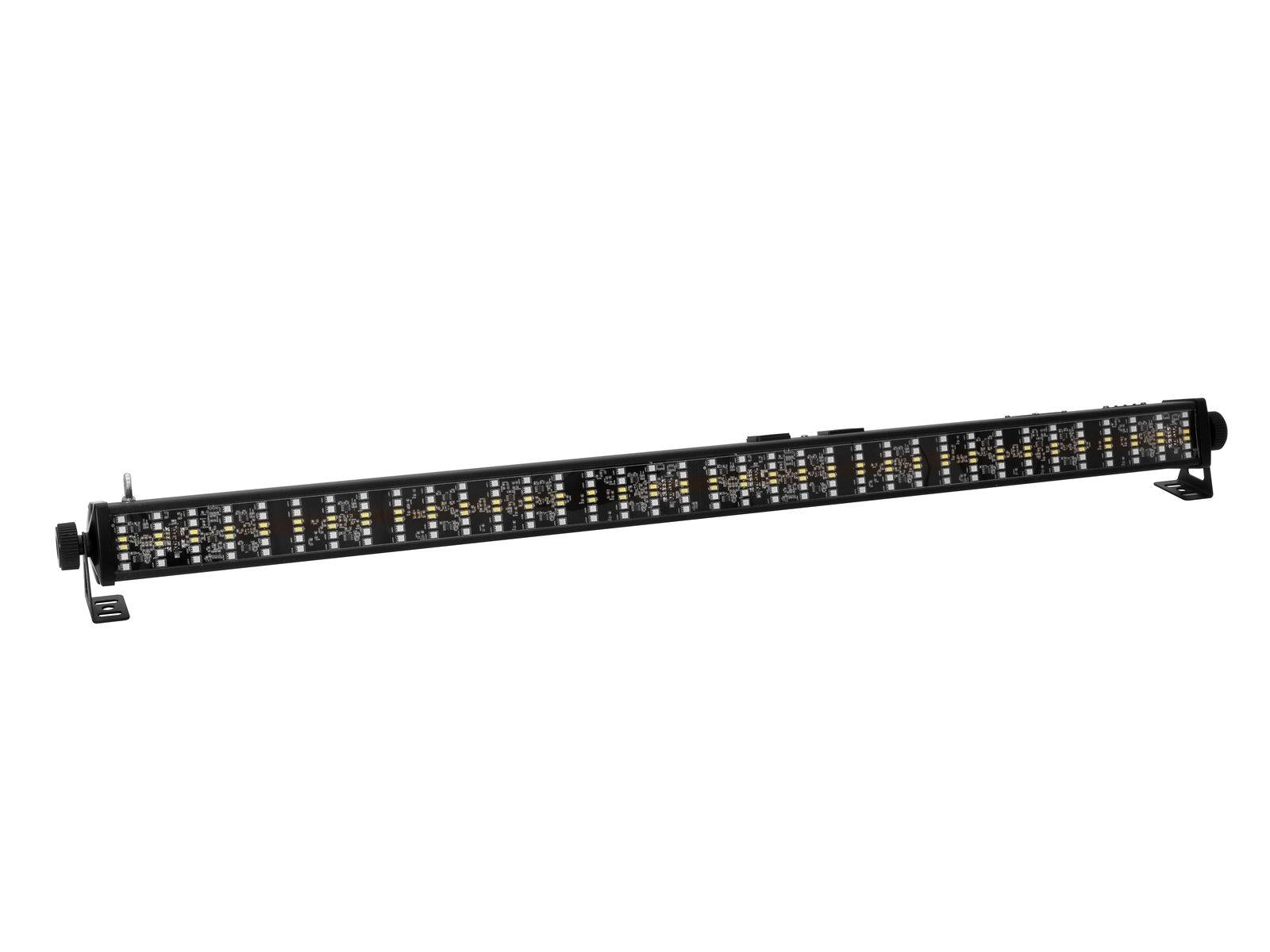

LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control.
iFrame
Description:
LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control
Features:
Individually controllable pixel groups
Stepless color blend, color change, running light, dimmer and strobe effects
Background color macros controllable via DMX
Mains input and output for power linking up to 8 units
144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)

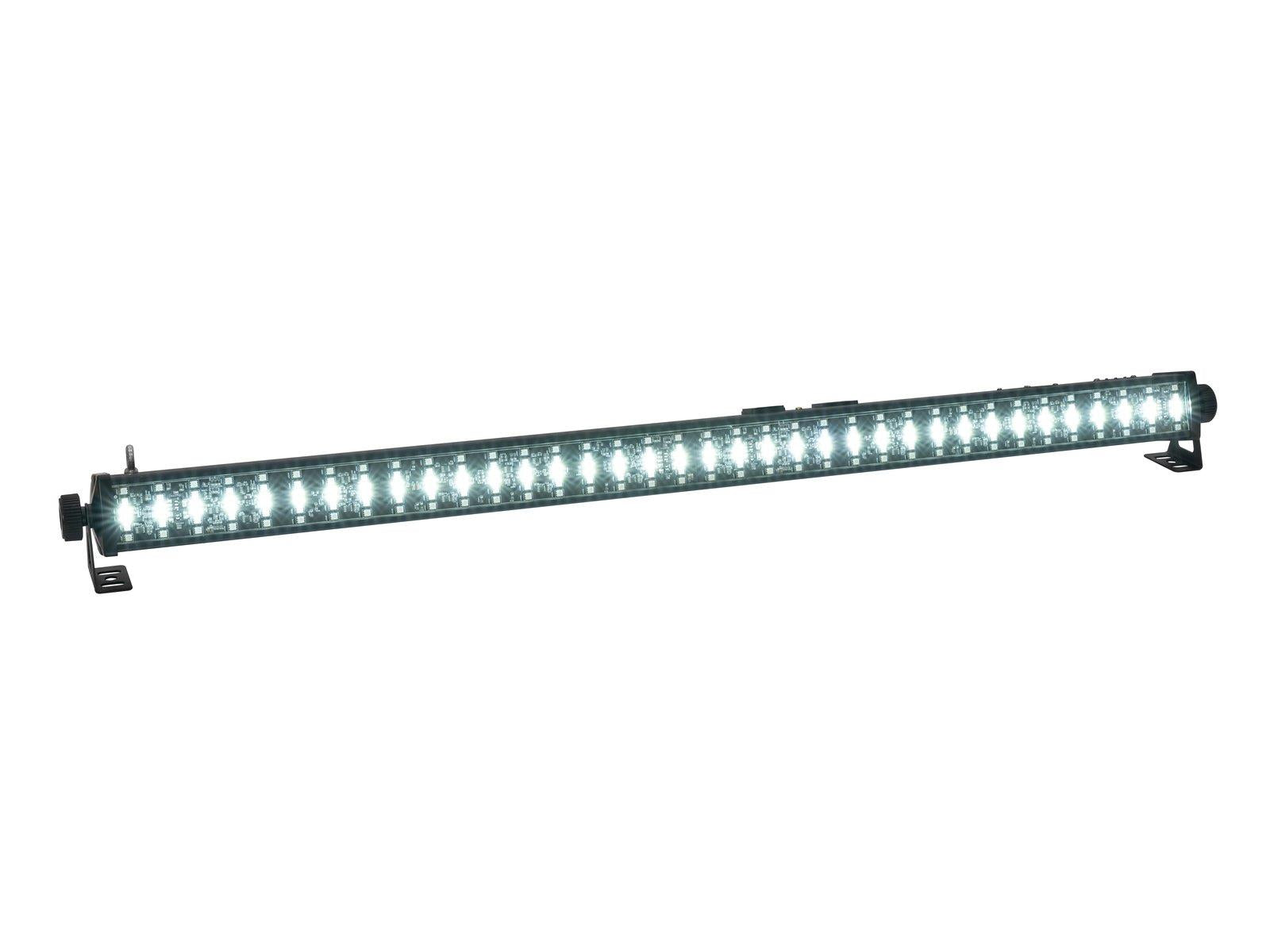

72 powerful LEDs SMD 5730 cold white (CW)
16 integrated Showprograms
Can be operated in 6; 16; 84 CH mode
The device is cooled by passive convection cooling
Controlling by stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light´J; Light Captain
Flicker-free
With a beam angle of 120°
With Mounting bracket
4 digits 7-segment LED display
Specifications:
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 55 W
IP classification: IP20
Protection class: Class I

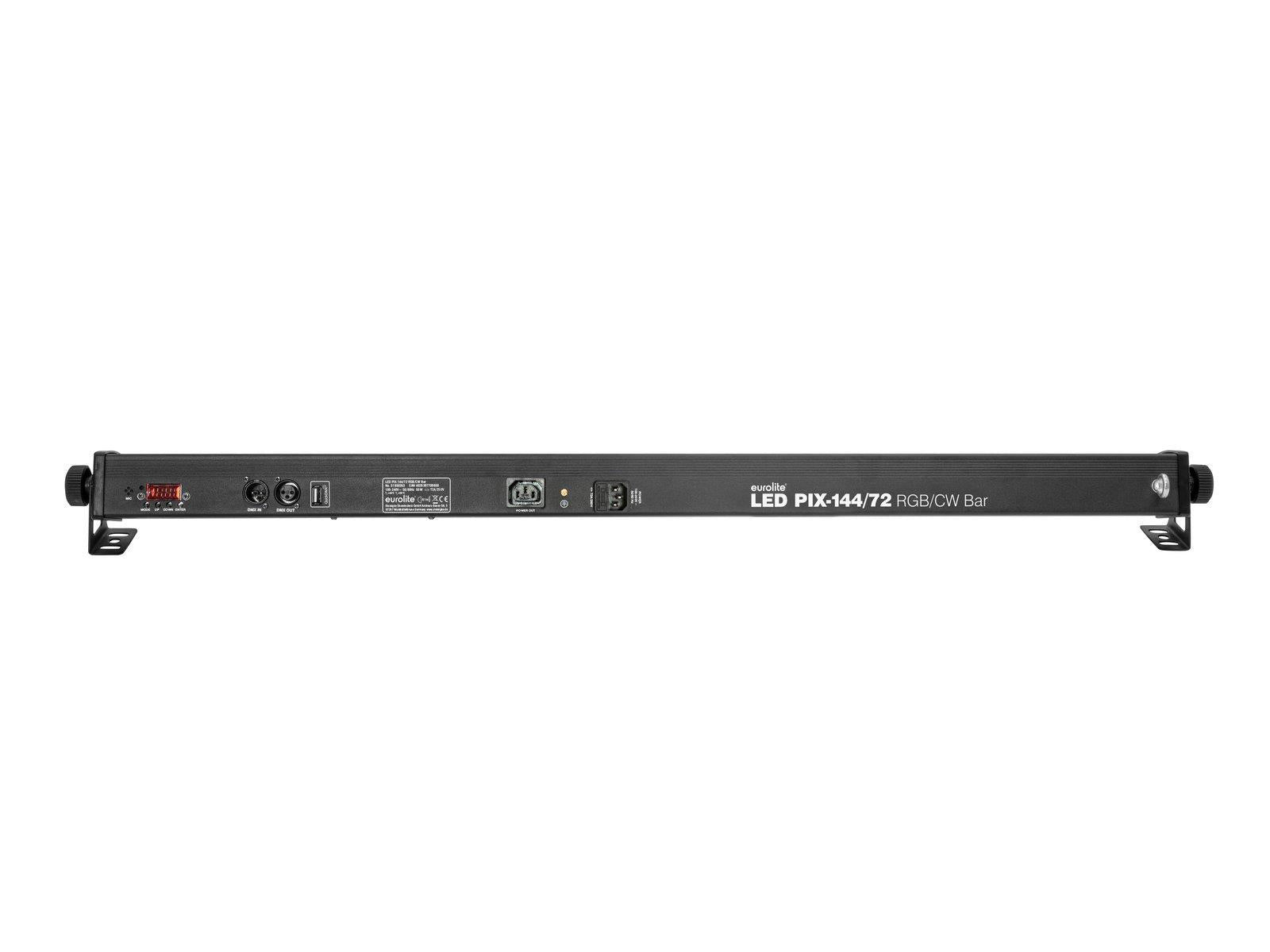

Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output: IEC connector (F) mounting version
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
LED: 144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
72 x SMD 5730 cold white (CW)
Flash rate: 10 Hz
DMX channels: 6; 16; 84
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light´J; Light Captain
Beam angle: 120°
Beam angle (1/2 peak): 120°
Housing color: Black
Attachment system: 2x Mounting bracket
Display type: 4 digits 7-segment LED display
Dimensions:
Length: 1,085 m
Depth: 6,5 cm
Height: 9,0 cm
Weight: 1,63 kg
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
