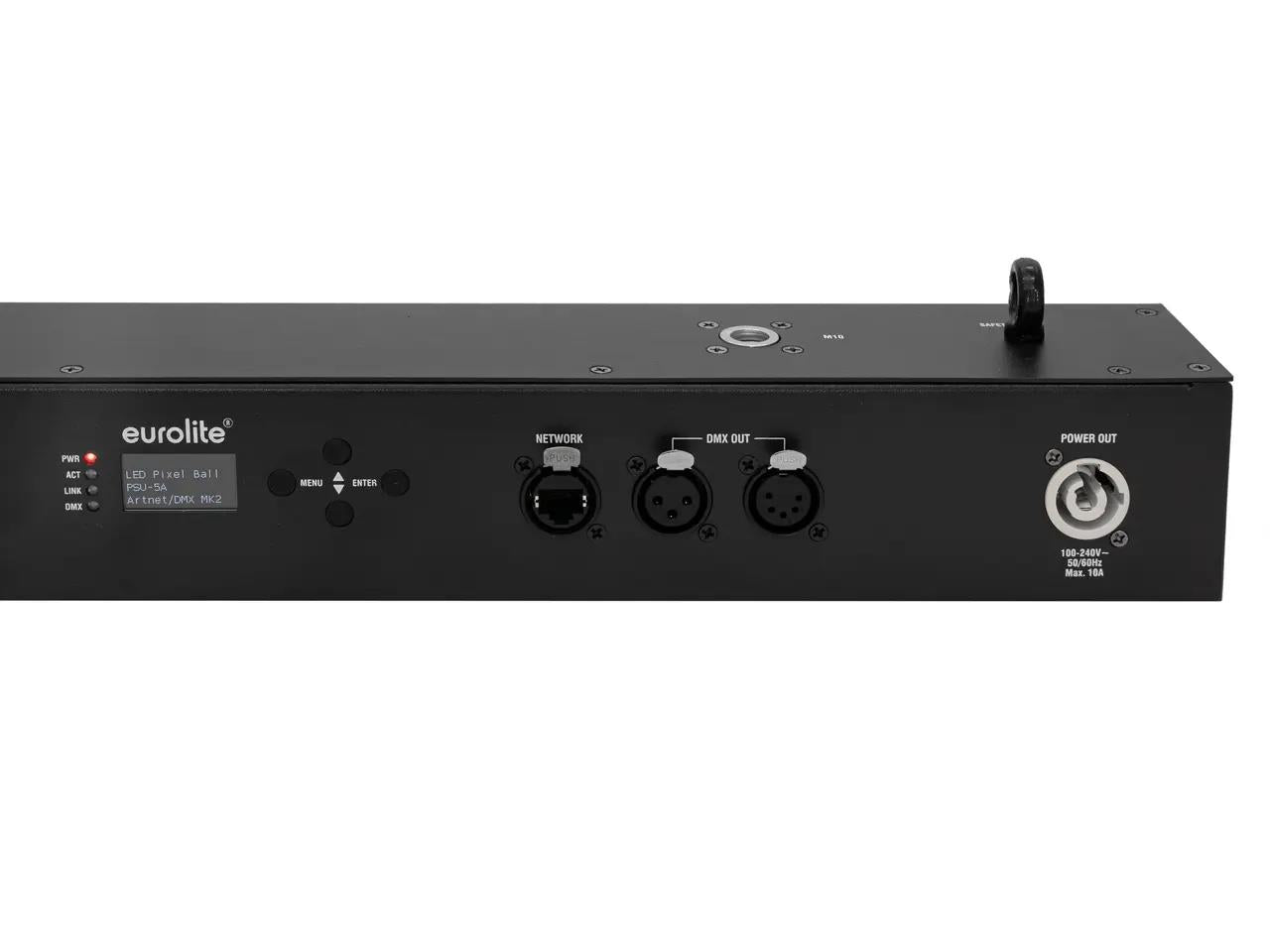

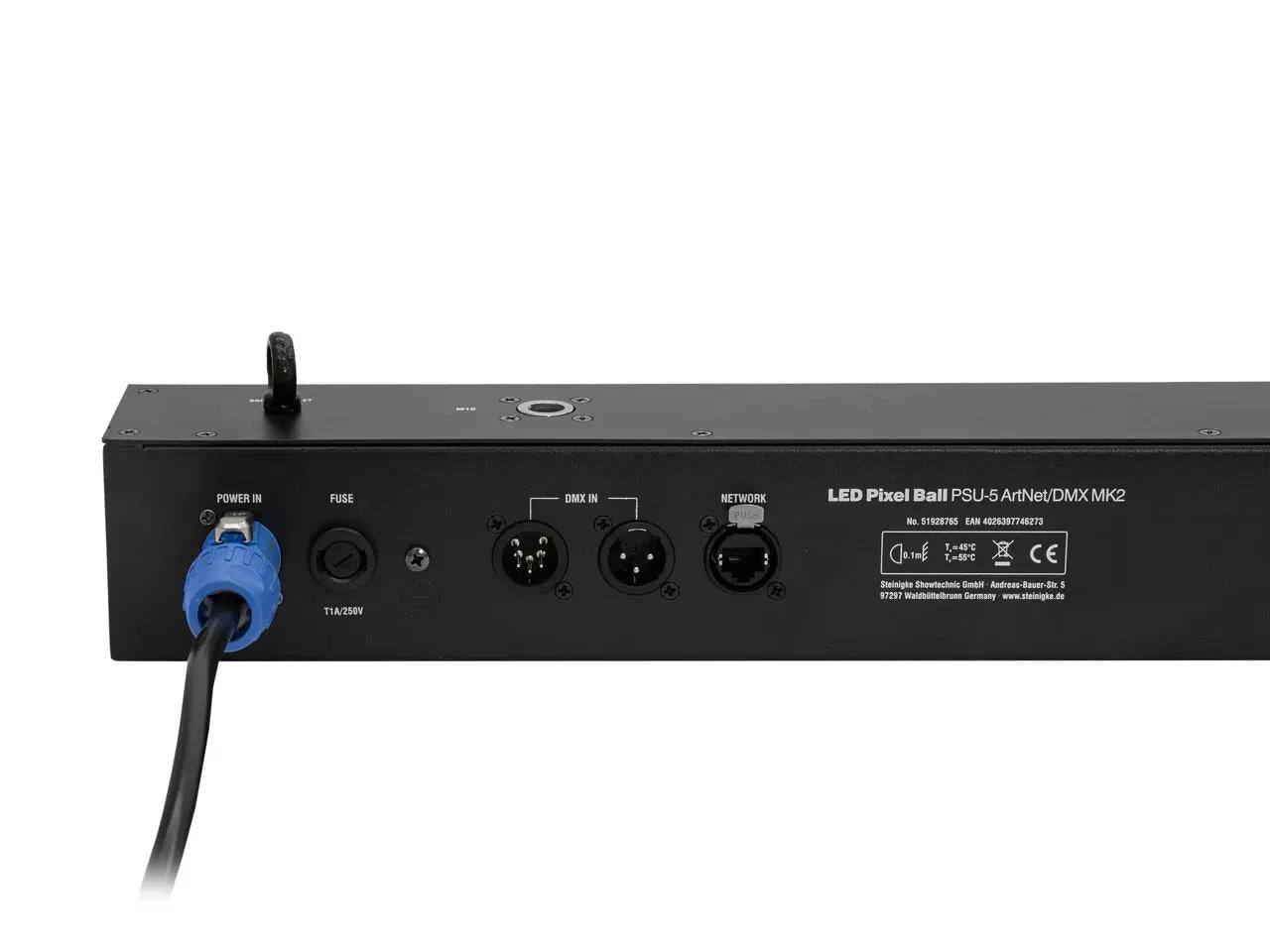

EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

Description

The EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2 is a professional control unit designed for use with the EUROLITE LED Pixel Ball 360° 1m MK2 pixel string system. Built for advanced pixel mapping, animated lighting installations, and large-scale visual displays, the controller provides flexible standalone, DMX, Art-Net, and wireless DMX integration for professional entertainment and architectural lighting environments.

Designed to control extensive pixel ball installations, the PSU-5 MK2 supports up to 150 pixel balls per bar and allows series connection of up to six pixel strings per output. Integrated standalone programs provide instant animated effects, while advanced network protocols allow full integration into professional lighting systems and pixel mapping environments.

The controller features silent passive cooling, multiple DMX channel modes, RDM compatibility, and optional wireless DMX support via QuickDMX, W-DMX, or CRMX adapters. Its compact interface-style housing supports suspended or wall-mounted installation, making it suitable for clubs, stages, weddings, hospitality venues, and permanent installations.

Features

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2
Supports advanced pixel mapping and animation control
Controls up to 150 pixel balls per bar
Supports series connection of up to 6 pixel strings per output
30 integrated standalone show programs
Standalone, DMX, Art-Net, and master/slave operation
Optional QuickDMX wireless DMX support
Optional W-DMX and CRMX wireless compatibility
RDM compatibility
Selectable DMX fail modes including hold and blackout
Silent passive convection cooling
Monochrome OLED display
Power linking capability for up to 8 units
SEETRONIC connector construction
Suitable for suspended and wall-mounted installations
Ideal for clubs, stages, weddings, and architectural lighting

Specifications

Brand : EUROLITE
Product name : LED Pixel Ball PSU-5 ArtNet/DMX MK2
Product type : Pixel ball control unit
Compatibility : EUROLITE LED Pixel Ball 360° 1m MK2
Maximum pixel balls : Up to 150 per bar
Maximum string connection : 6 strings per output
Integrated programs : 30
Control modes : Standalone, DMX, Art-Net, master/slave
Wireless DMX compatibility : QuickDMX, W-DMX, CRMX via optional USB adapters
Protocols : DMX, Art-Net 3, RDM
DMX channels : 3, 5, 7, 10, 15, 19
DMX inputs : 3-pin XLR, 5-pin XLR
DMX outputs : 3-pin XLR, 5-pin XLR
Network connections : 2 x RJ45 EtherCON
DMX fail modes : Hold, blackout
Cooling : Passive convection
Display : Monochrome OLED
USB port : Type A
Power supply : 100 – 240V AC, 50/60Hz
Power consumption : 130W
Protection class : Class I
Power connections : P-Con input/output
Fuse : 5 x 20mm T1A
Housing material : Metal
Housing colour : Black
Installation : Suspended or wall-mounted
Application : Show effect lighting and pixel installations
Dimensions : 100 x 7.7 x 10.7 cm
Weight : 3.65 kg
Noise classification : Class 0 (silent operation)
