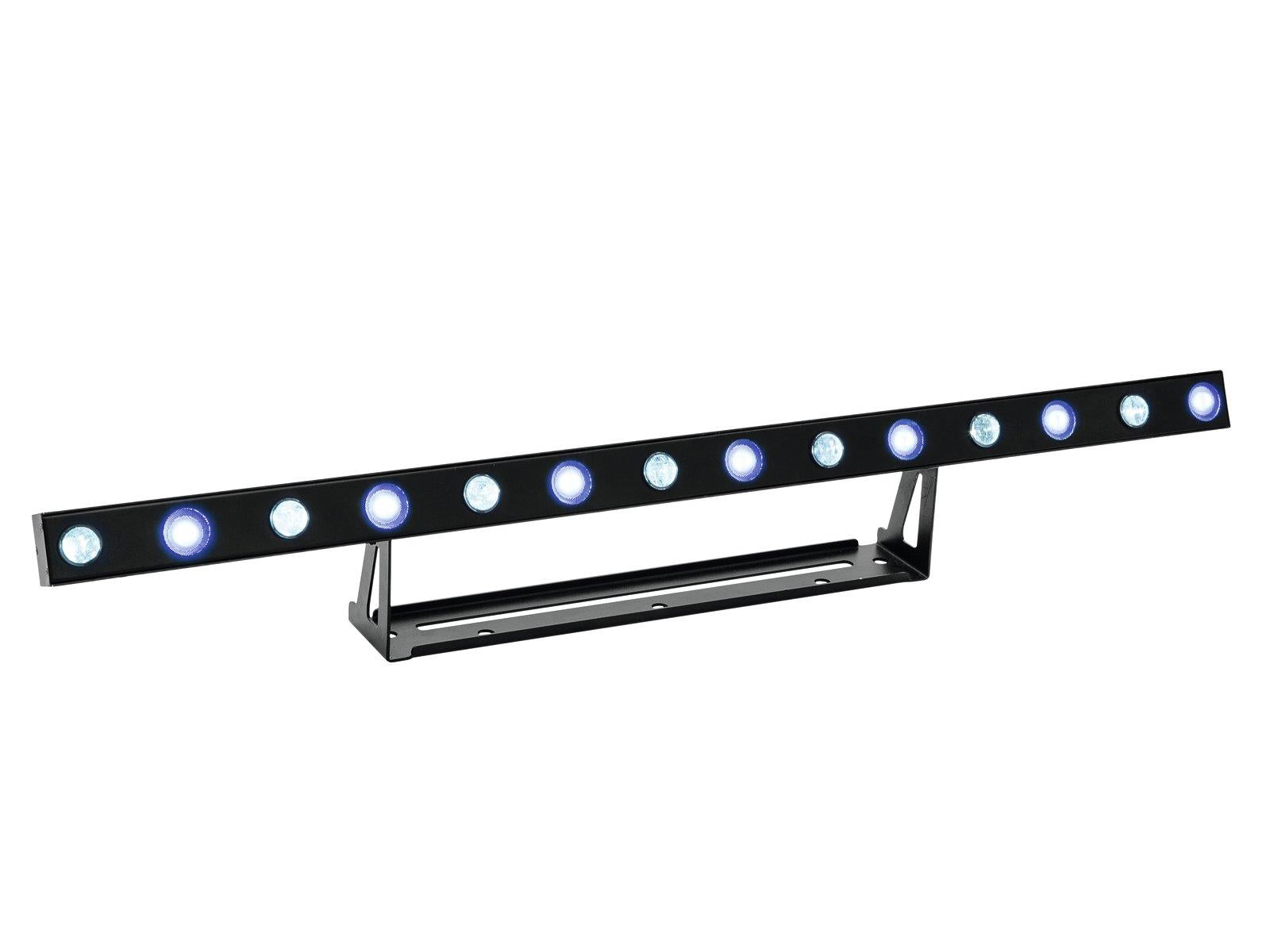

Eurolite LED STP-7 Beam/Wash Bar


LED light bar with 7 LEDs for beam and 7 LEDs for wash effects.

Vendor: Eurolite
SKU: 154-51930390
Icon Out of Stock Out Of Stock

LED light bar with 7 LEDs for beam and 7 LEDs for wash effects.

You can see them on huge show stages as well as on small musician’s stages or with mobile DJs: LED bars with white LEDs that project towards the audience. They produce either very narrow beams or wide surfaces. It was high time to take up this basic idea and expand upon it with some new Eurolite STP versions.

Narrow and wide radiating LEDs in one bar - also this LED bar is something very special. It is equipped with 14 LED units. Half of them are extremely narrow-angled with 2°. These cold white LEDs permeate fog beautifully. The other half radiate with an extremely broad 40° and provide the basic colour atmosphere. The colour mixing of these LEDs is based on red, green and blue. You can control the narrow, white LEDs individually.

Operable in stand-alone mode or via DMX
3, 4, 6, 10, 12, or 15 DMX channels selectable
Each beam LED can be controlled individually via DMX
Sound-control via built-in microphone with adjustable microphone sensitivity
Addressing and setting via control panel with 4-digit LED display
Functions: Static colours, RGB colour blend, built-in show programs in auto and sound control modes, dimmer and strobe settings, Master/Slave
7 cold white 3 W LEDs for beam effects (beam angle 2°)
7 powerful 7 W RGB LEDs (3in1) for wash effects (beam angle 40°)
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
P-Con terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
Control: Stand-alone; Sound to light via Microphone; DMX
Effect: Strobe effect

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 180 W
IP classification: IP20
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output: 1 x P-Con (gray), mounting version
LED: 7 x high-power 3 W CW (homogenous color mix)
7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
Beam angle: 2°
2° Spot
40° Wash effect
Flash rate: 0 - 20 Hz
DMX channels: 3; 6; 4; 10; 12; 15
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: Stand-alone
Sound to light via Microphone
Housing colour: Black
Legal specifications
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting

1000 x 140 x 120 mm

4 kg
