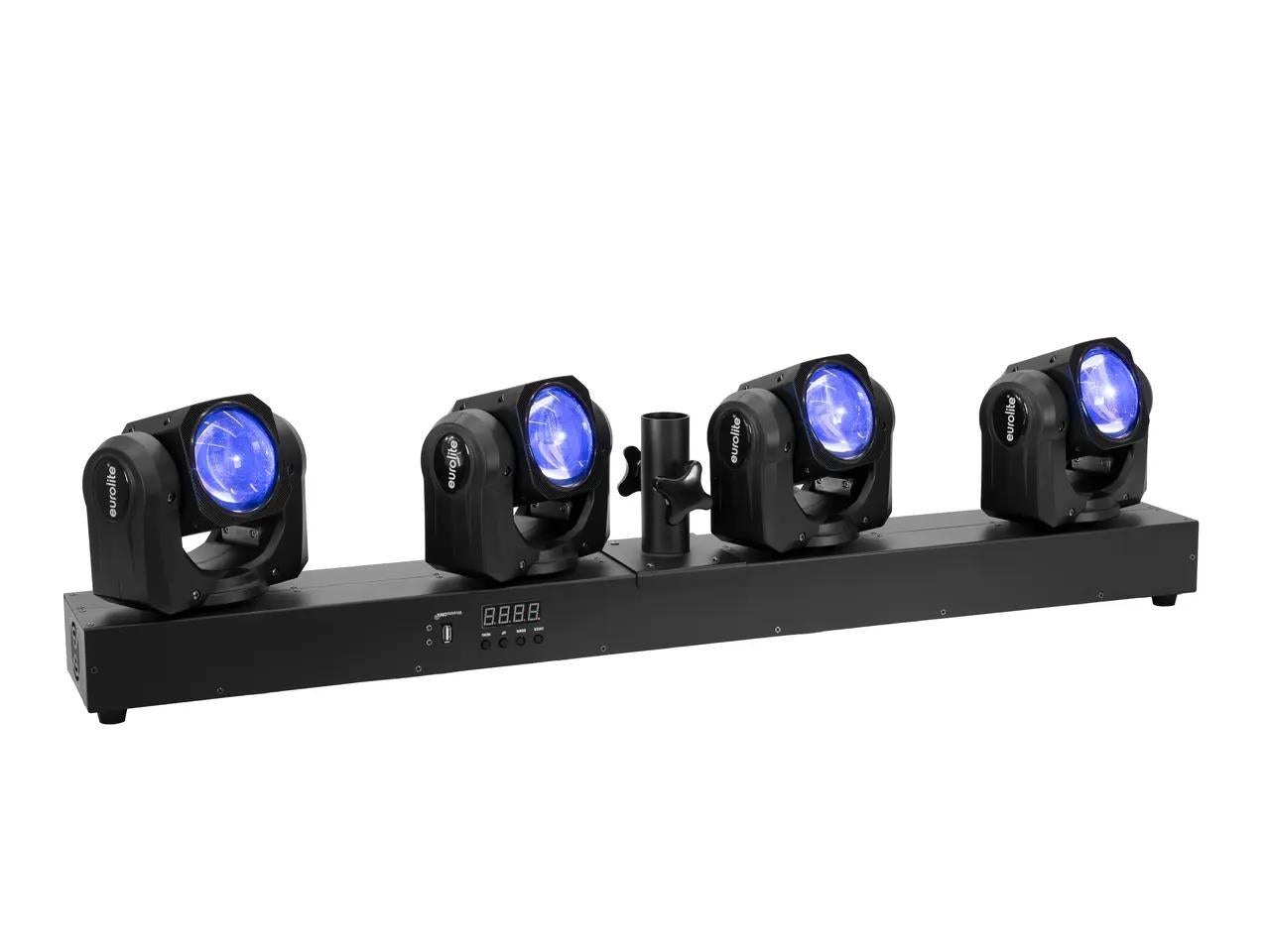

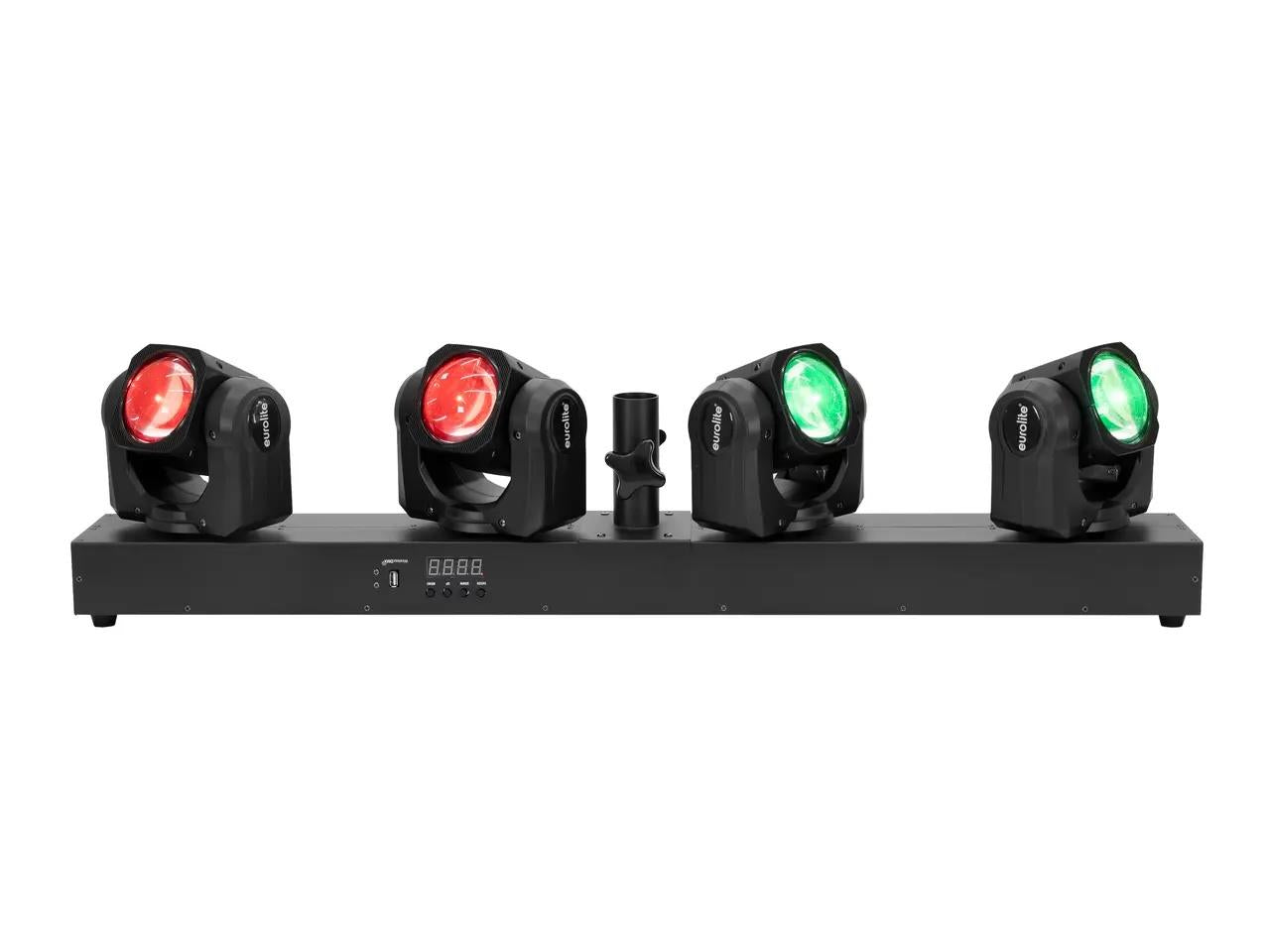

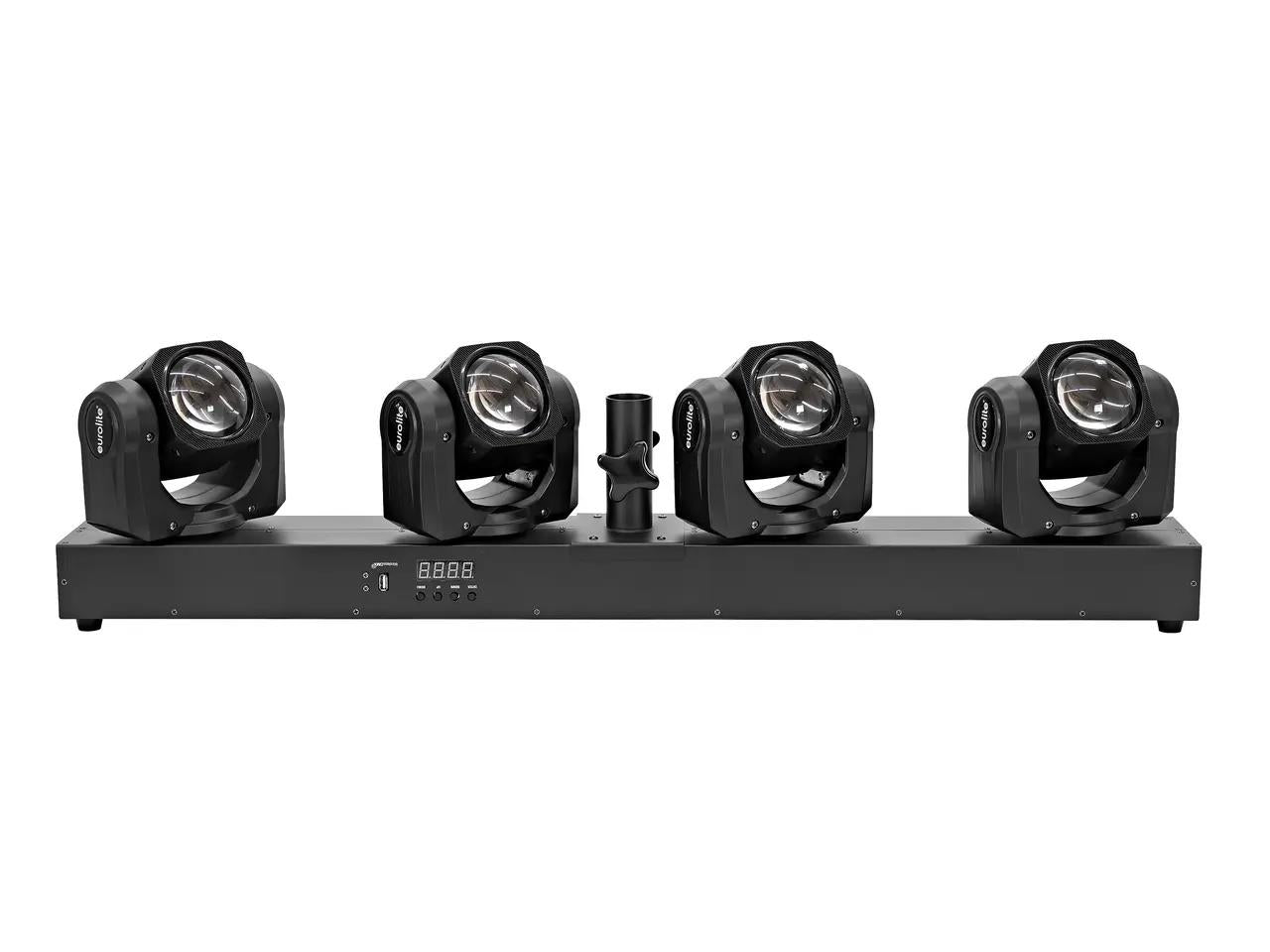

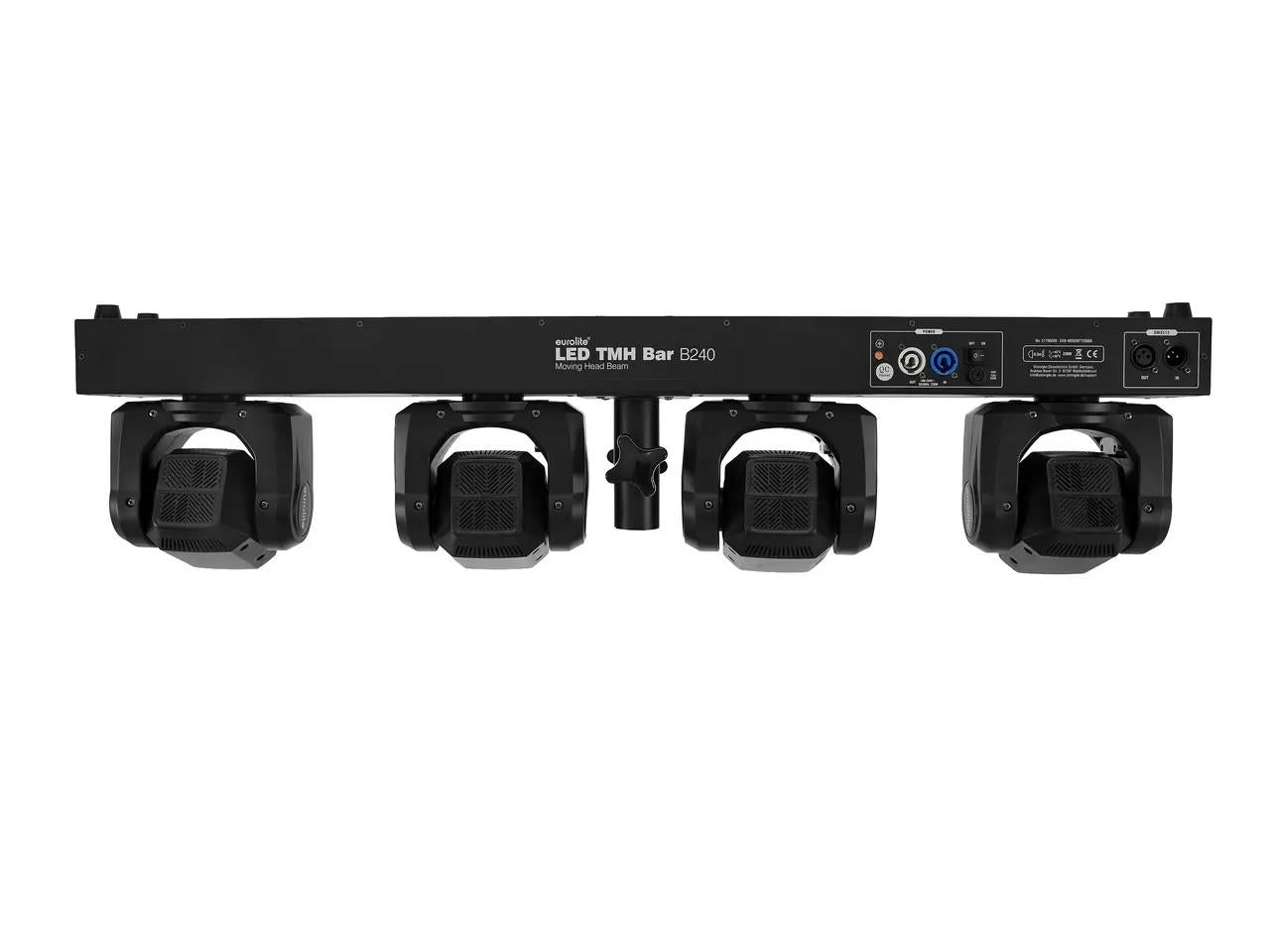

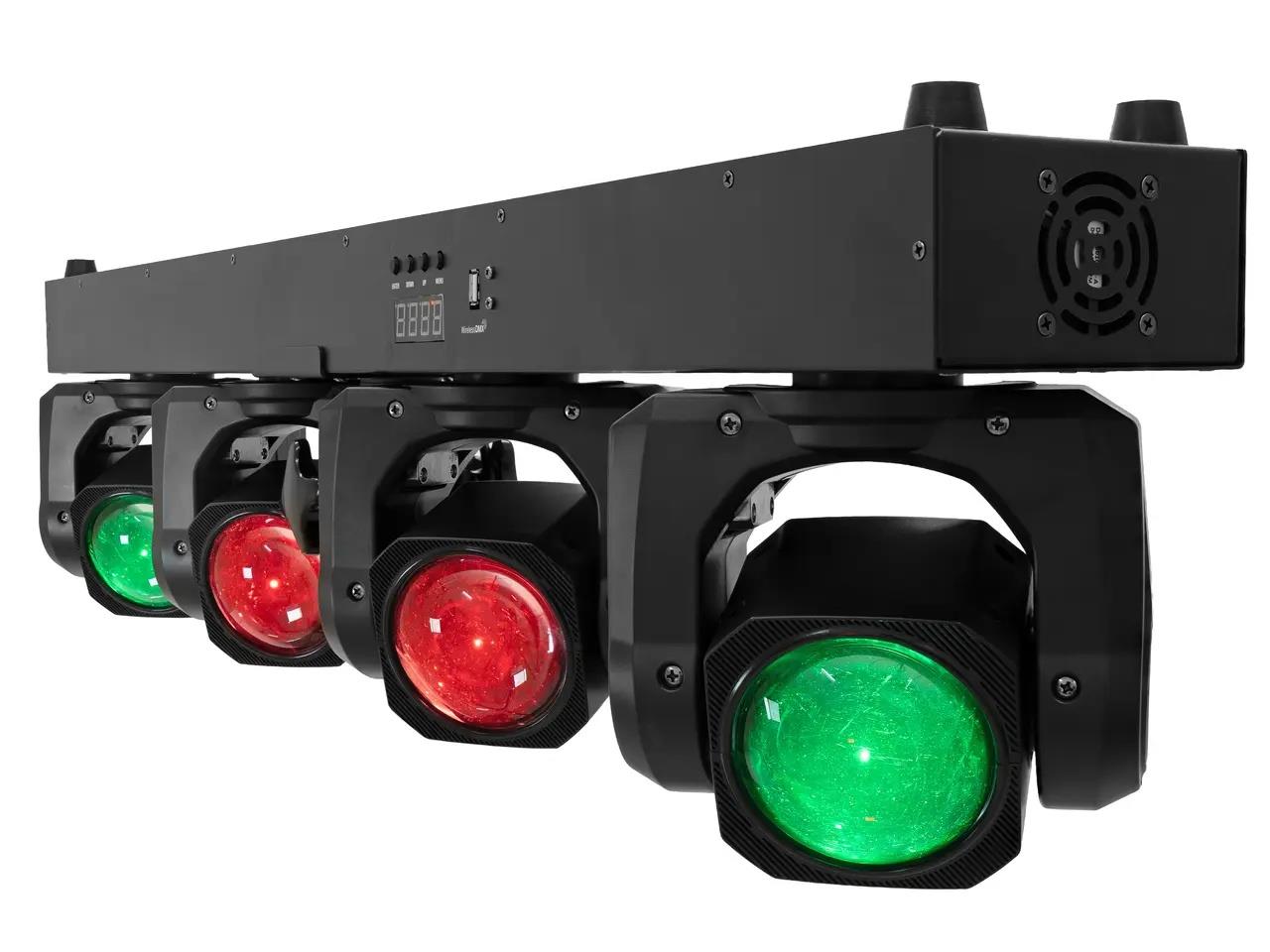

EUROLITE LED TMH Bar B240 Moving Head Beam 4 x 60W RGBW

Description

This moving head bar features four individually controllable beam fixtures, each powered by a high-output 60W RGBW LED to deliver intense, narrow beams with vibrant colour mixing. Designed for versatility, it can be floor-mounted, stand-mounted, or truss-mounted, making it ideal for mobile DJs, events, and stage applications. With a tight 2° beam angle and fast, precise movement, it produces dynamic aerial effects, while built-in macros and show programs allow complex looks to be created with minimal programming. Its flexible control options ensure compatibility with both simple and advanced DMX setups.

Features

Four individually controllable 60W RGBW moving head beams
Tight 2° beam angle for sharp, high-impact aerial effects
540° pan and 180° tilt with 16-bit precise positioning
Independent control of movement, colour, and effects
Built-in motion and colour macros for quick programming
22 integrated show programs for stand-alone operation
Multiple DMX channel modes for flexible control setups
Compatible with QuickDMX, W-DMX, and CRMX wireless control via USB (optional)
Sound-to-light operation via built-in microphone
Flicker-free operation with high PWM frequency
Low-noise fan cooling system
Power linking capability for up to 8 units

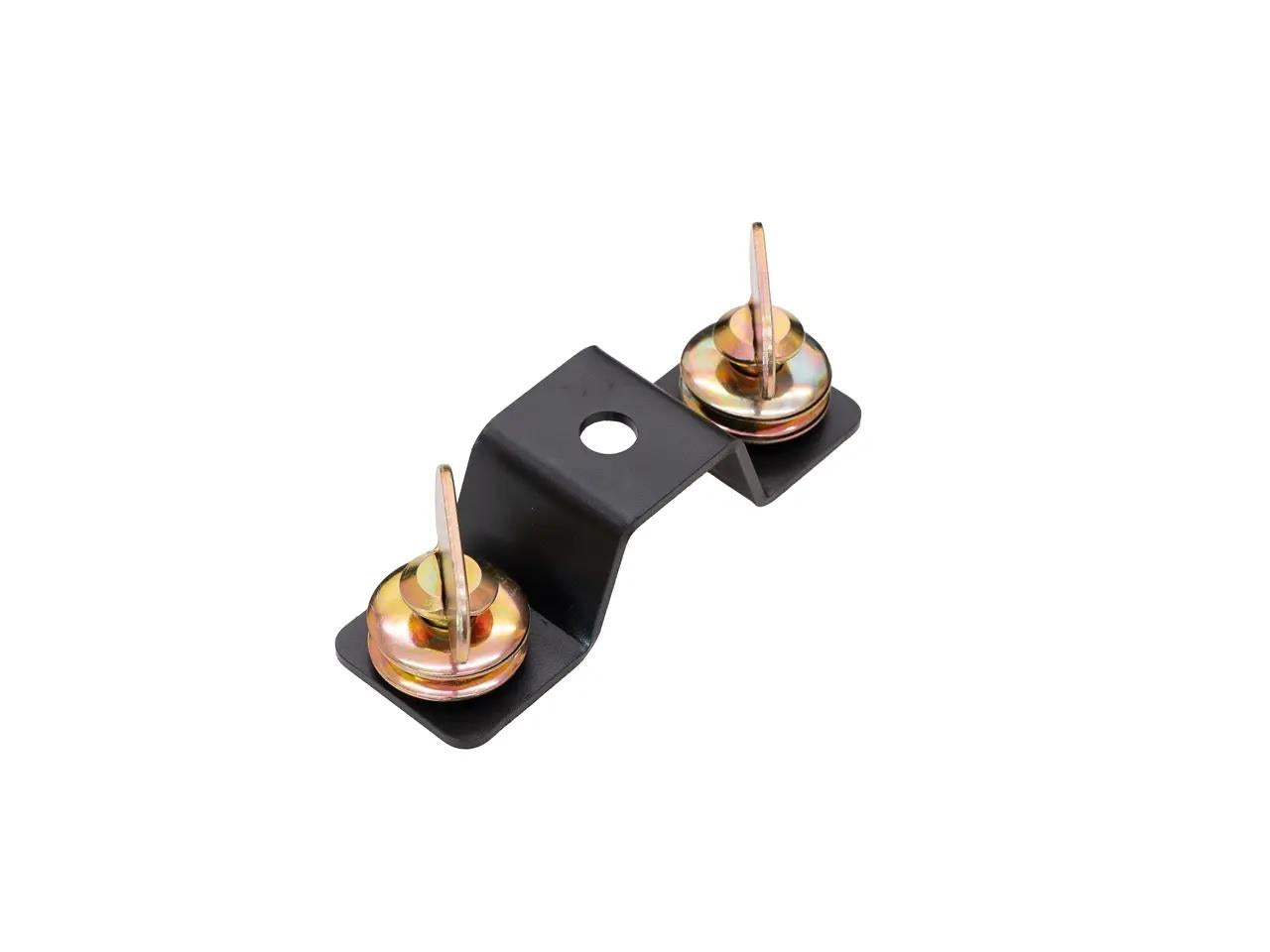

Omega bracket and 35mm stand mounting options

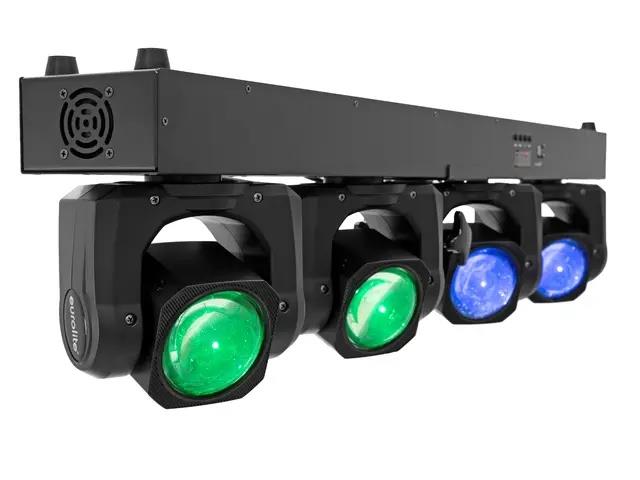

Suitable for floor standing, truss mounting, or stand use

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 230 W
Protection class: Class I
Light source: 4 x 60 W SMD 6065 RGBW LEDs
Pan movement: 540° with 16-bit resolution
Tilt movement: 180° with 16-bit resolution
Beam angle: 2°
Flash rate: 2 – 15 Hz
DMX channels: 4, 8, 13, 15, 23, 27, 40, or 48 selectable

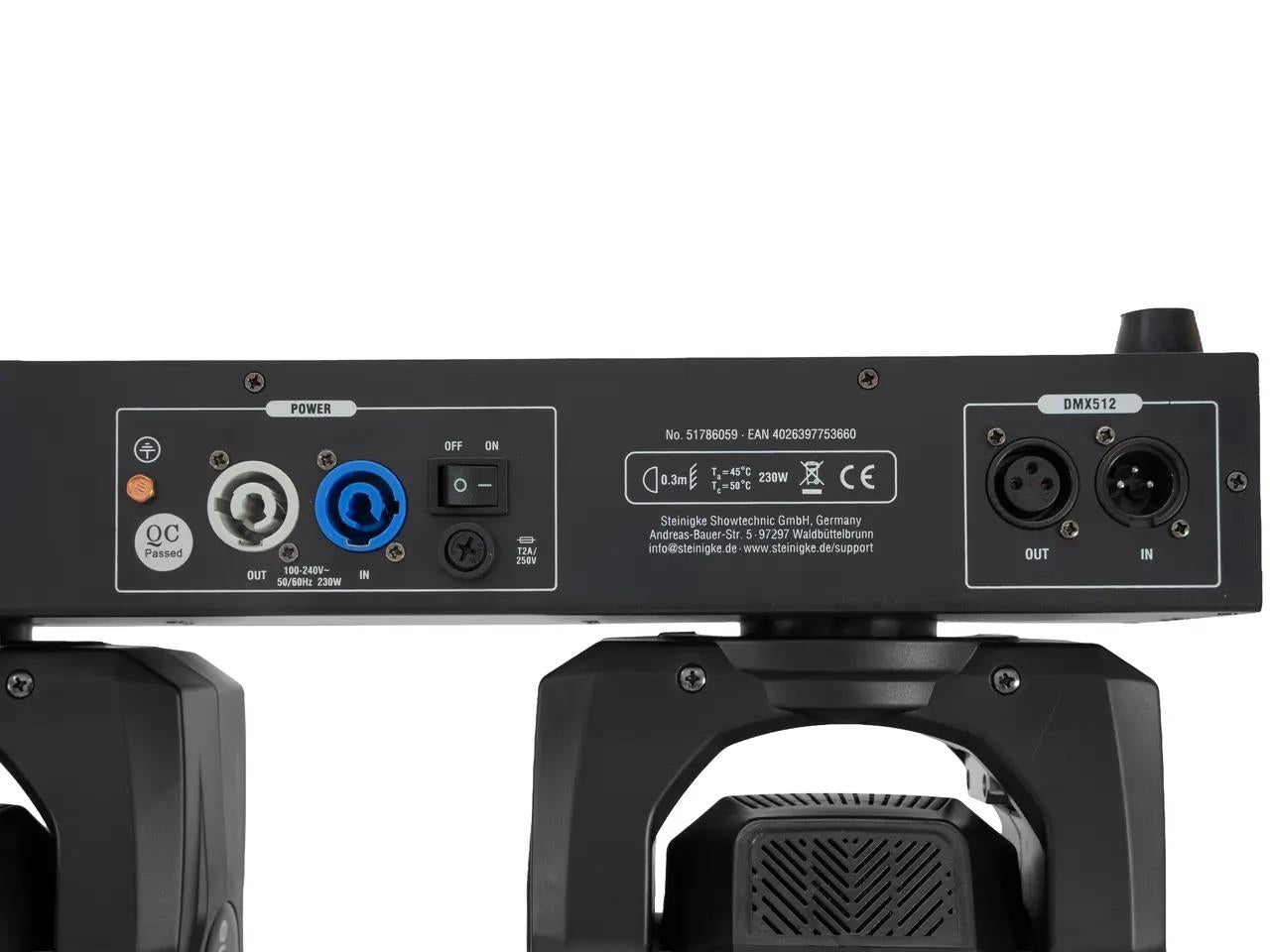

DMX connections: 3-pin XLR input and output
Control modes: Stand-alone, sound-to-light, DMX, master/slave, optional wireless DMX via USB
Cooling: 2 base fans and 4 head fans
PWM frequency: 11000 Hz
Lamp life: 20000 hours
Housing material: Steel
Colour: Black

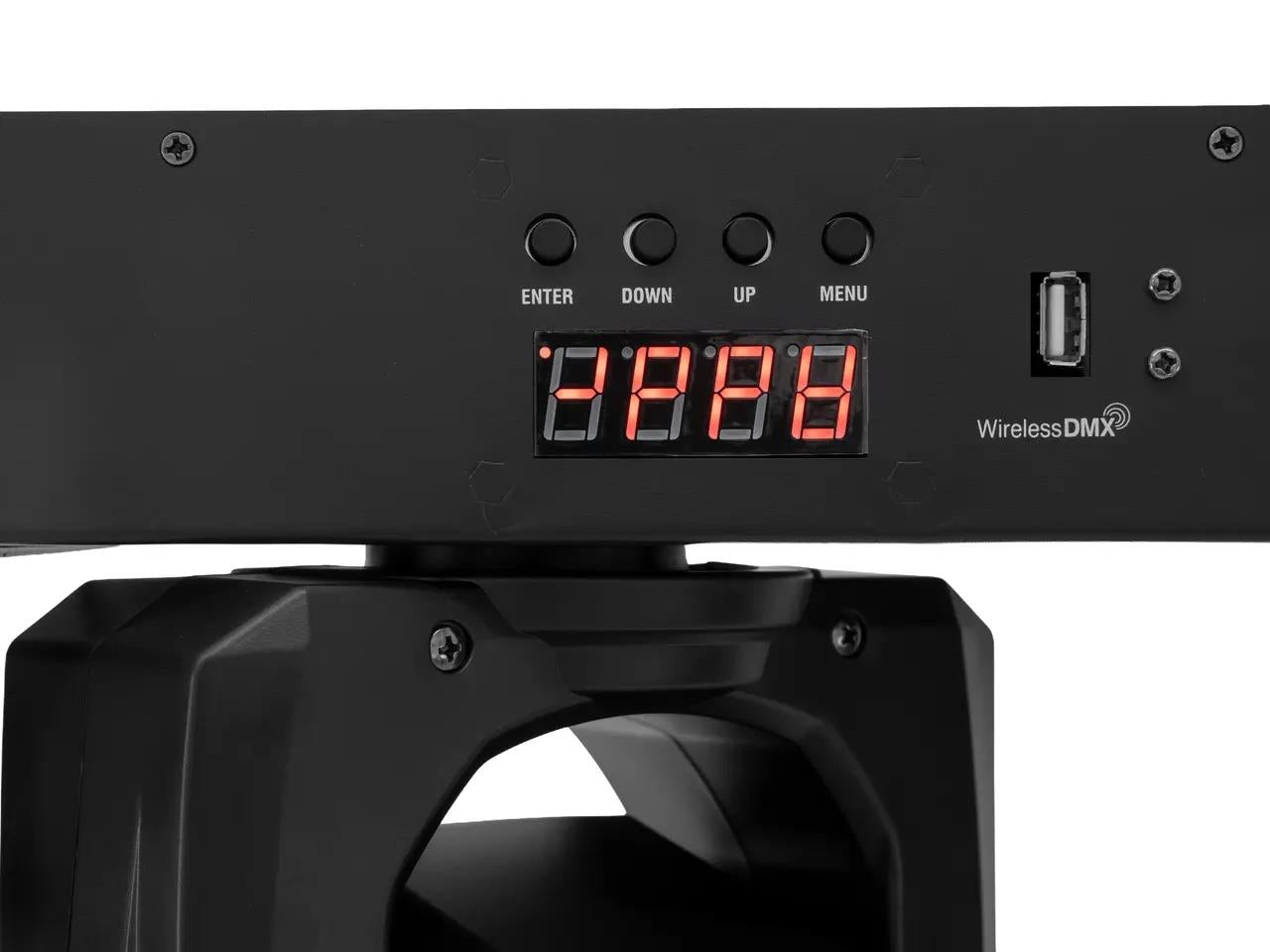

Display: 4-digit 7-segment LED

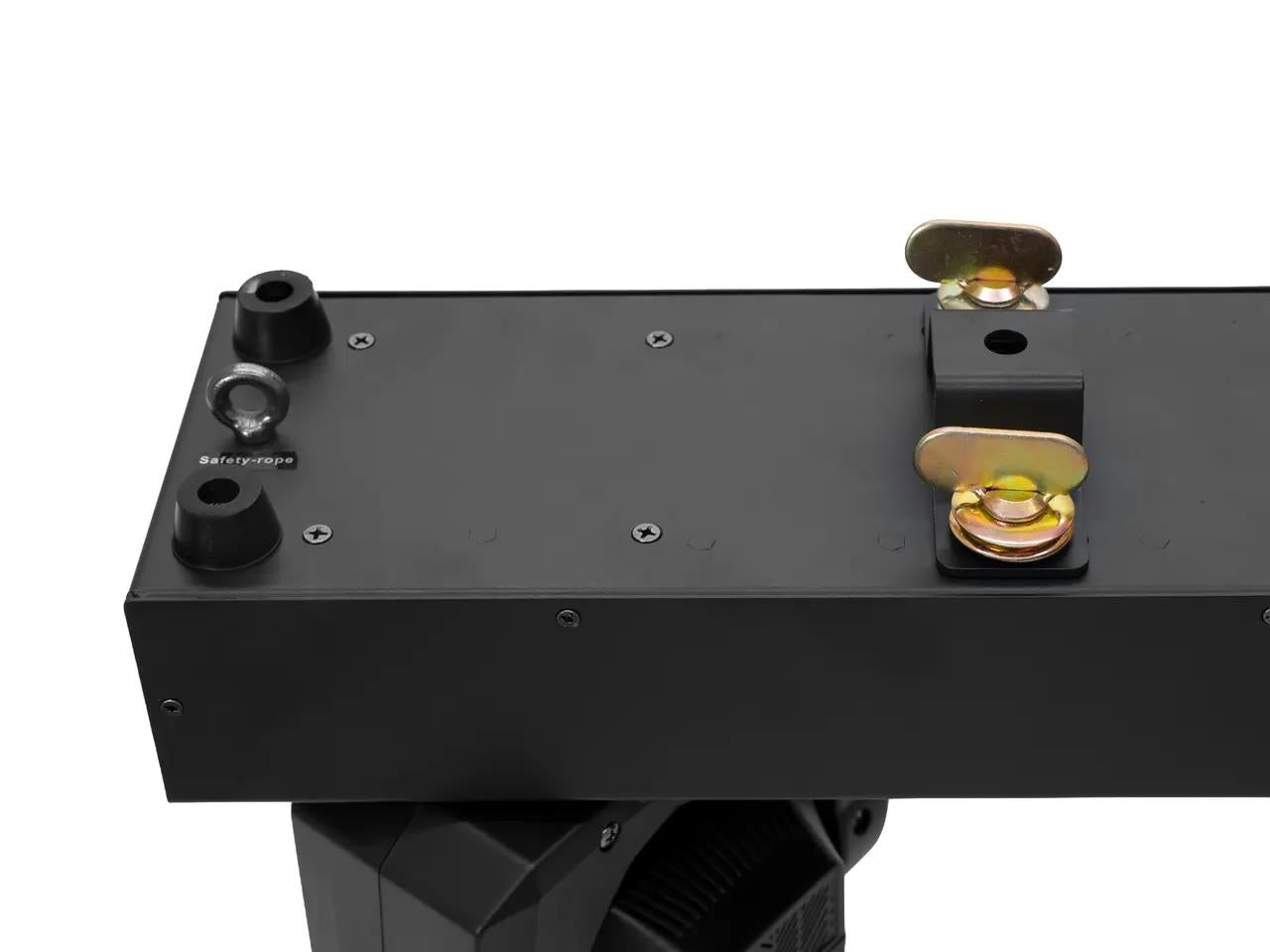

Mounting: Omega brackets and 35mm stand mount
Dimensions (W x D x H): 1000 x 175 x 255 mm
Weight: 12.55 kg
Noise level: Class 2 (slight noise)
