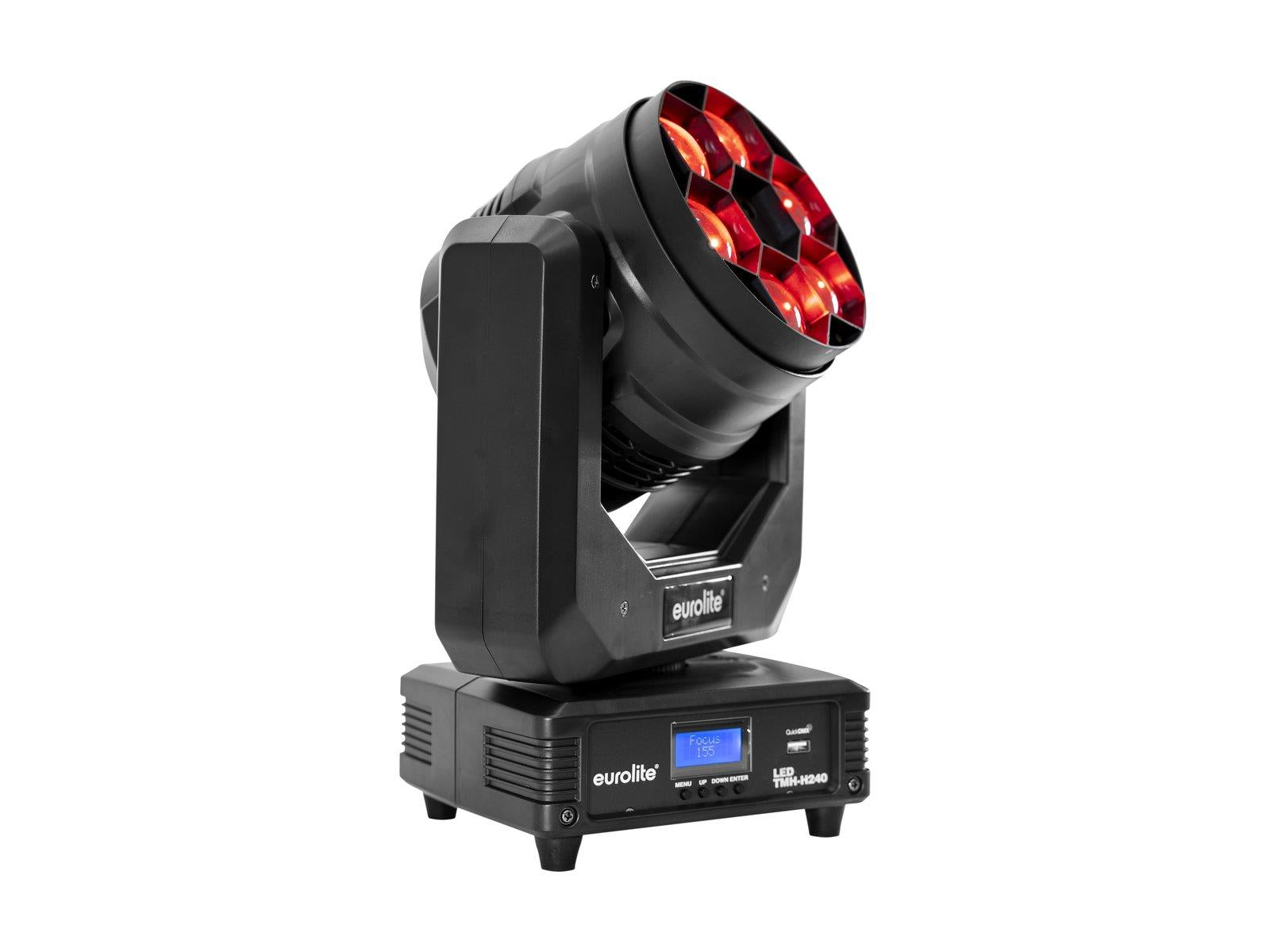

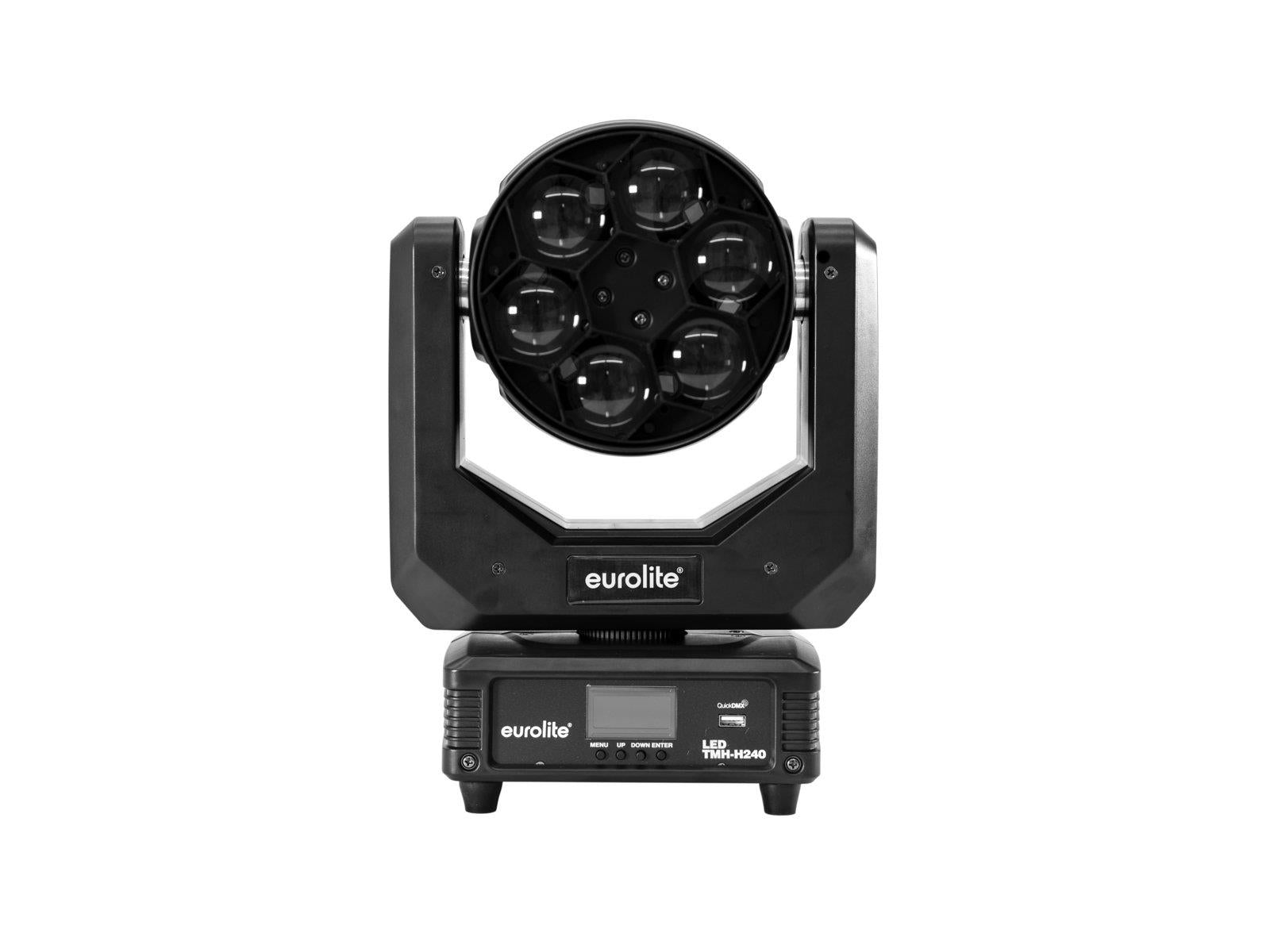

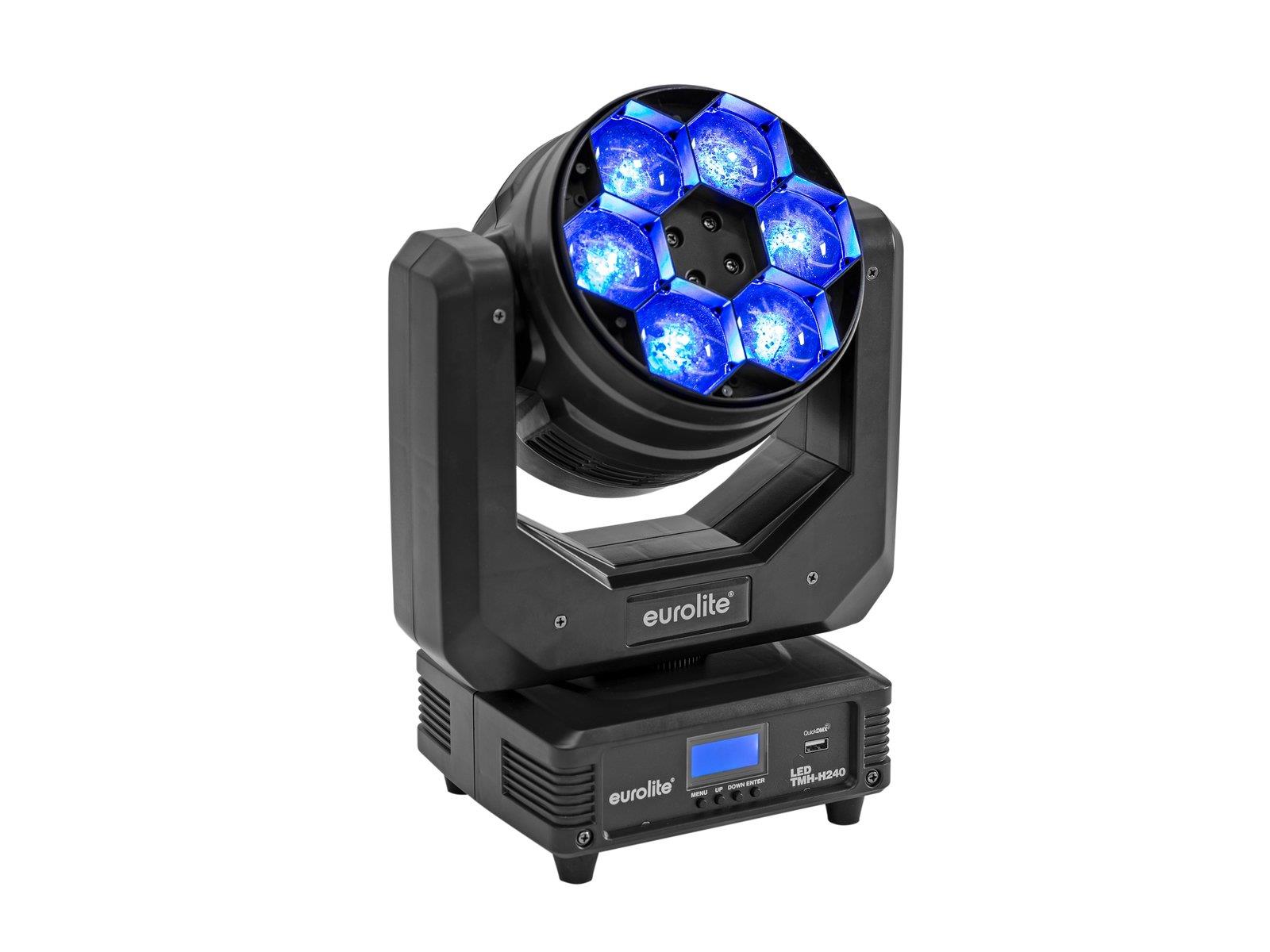

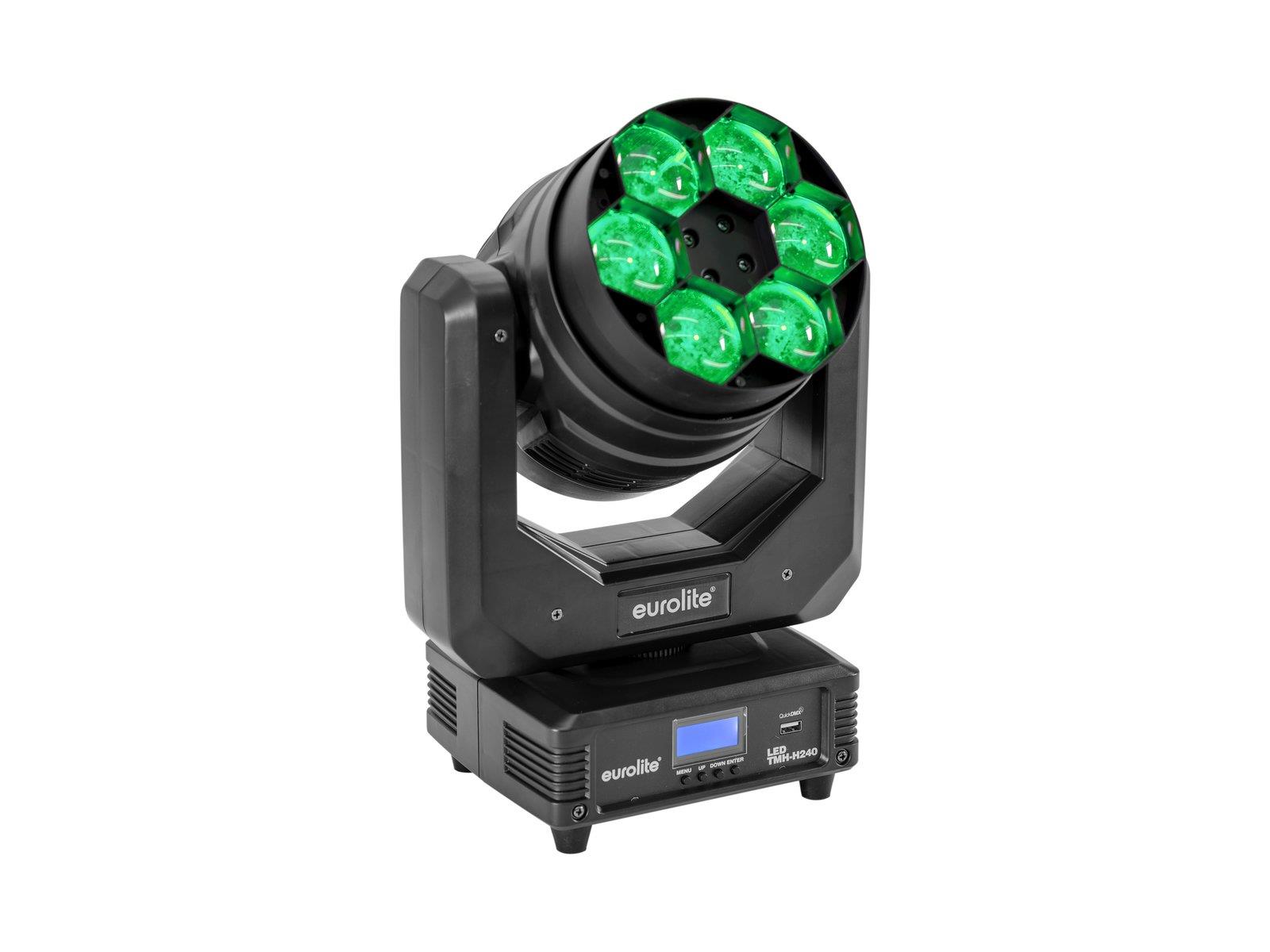

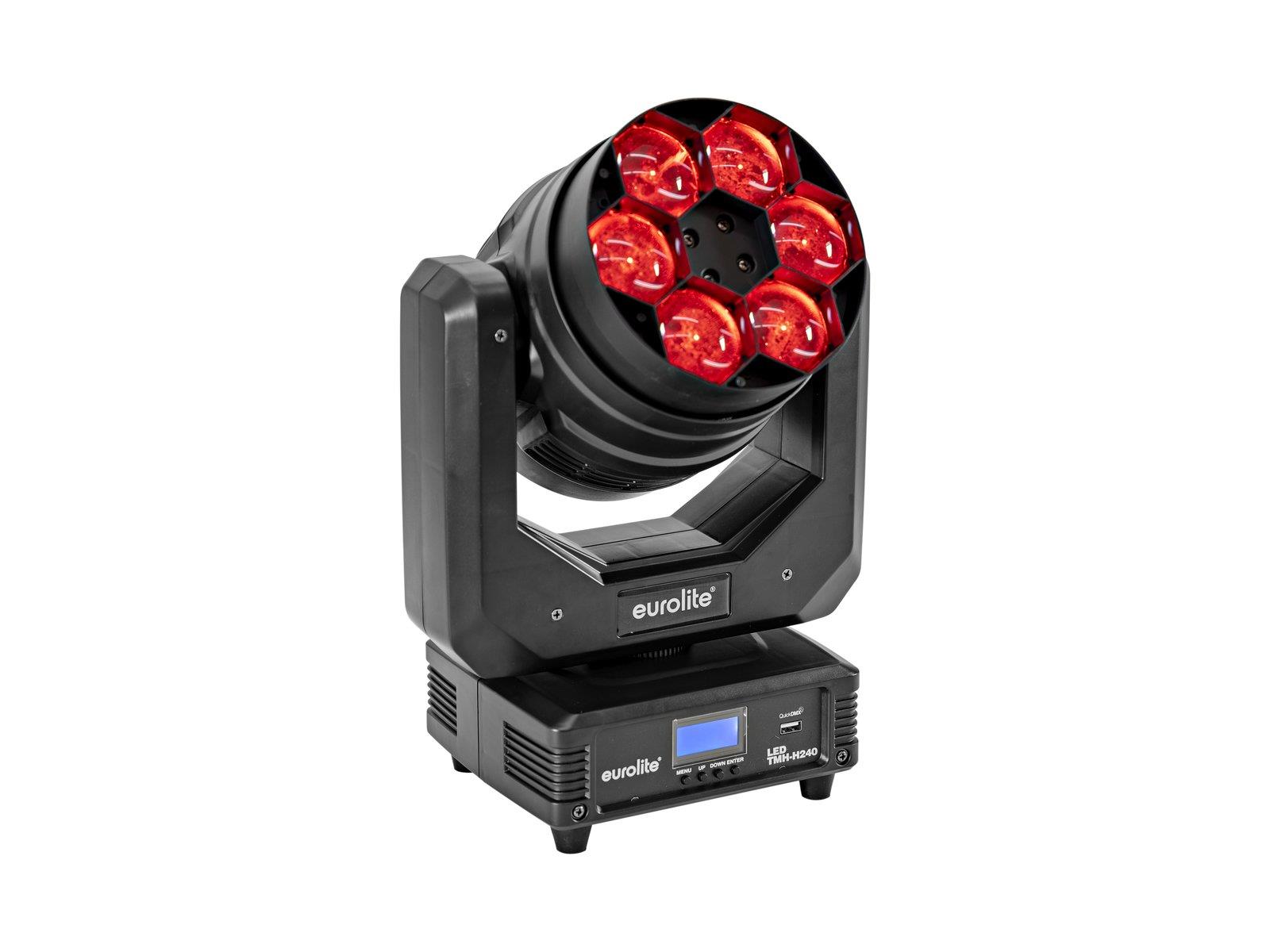

EUROLITE LED TMH-H240 Beam/Wash/Flower Effect Moving Head

Description:

Hybrid moving head with RGBW LEDs, zoom, macros, patterns and color temperature presets

3-in-1 moving head - beam, wash and flower effect in one device
Each LED can be controlled individually via DMX
Motorized zoom, lens rotation, stepless color blend, color change, preset colors, color temperature setting, pattern and flower effects, backlight
Strobe effect with adjustable speed, random strobe effects
Dimmer speed (step response) adjustable
Mains input and output for power linking up to 8 units
6 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
Positioning within 540° PAN and 240° TILT
PAN angle switchable between 540° and 360°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Integrated Showprograms
Can be operated in 16; 21; 24; 32; 56 CH mode
The device is cooled by temperature-controlled fan
Controlling by stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
Preprogrammed in Light Captain
Flicker-free

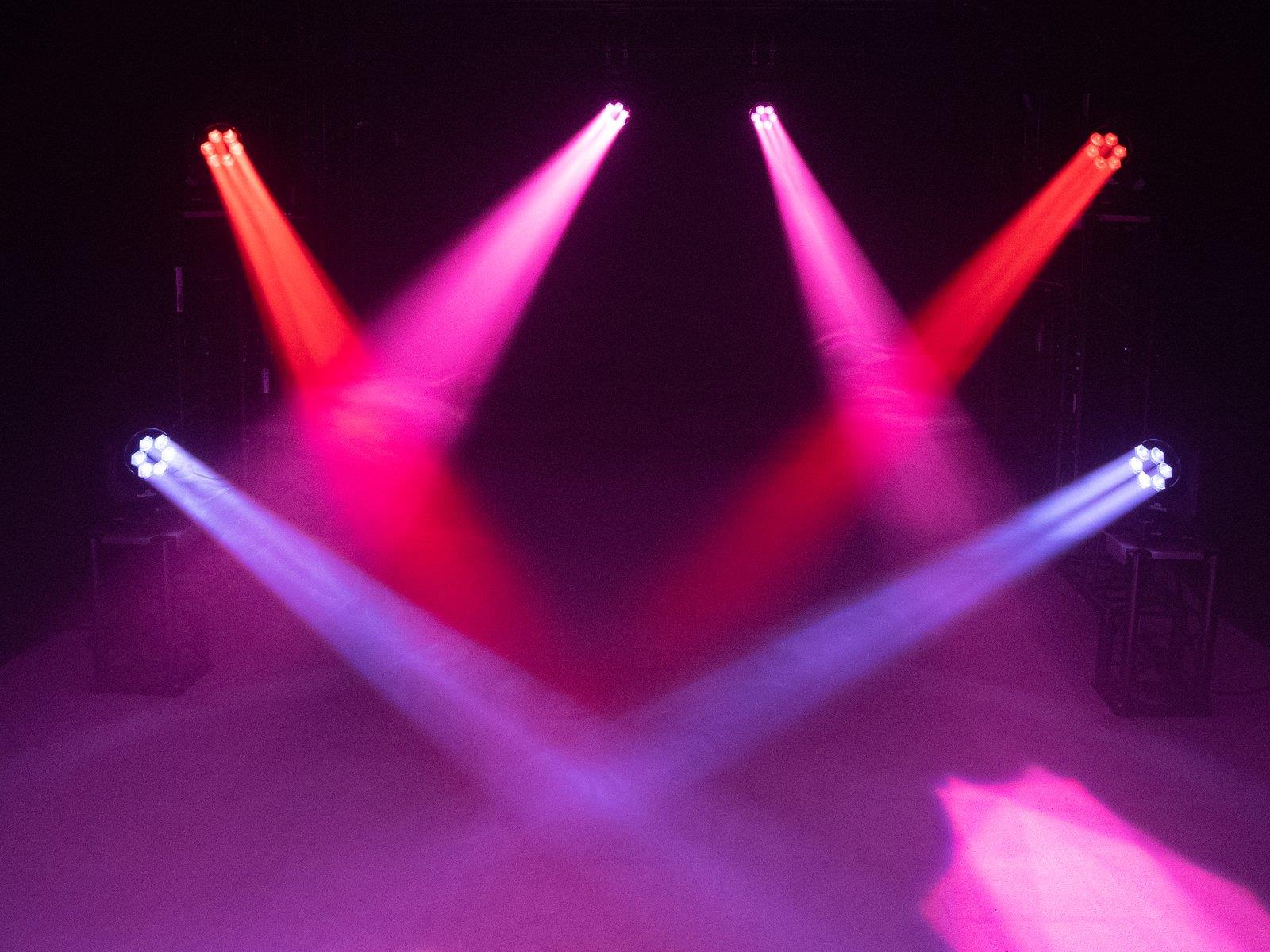

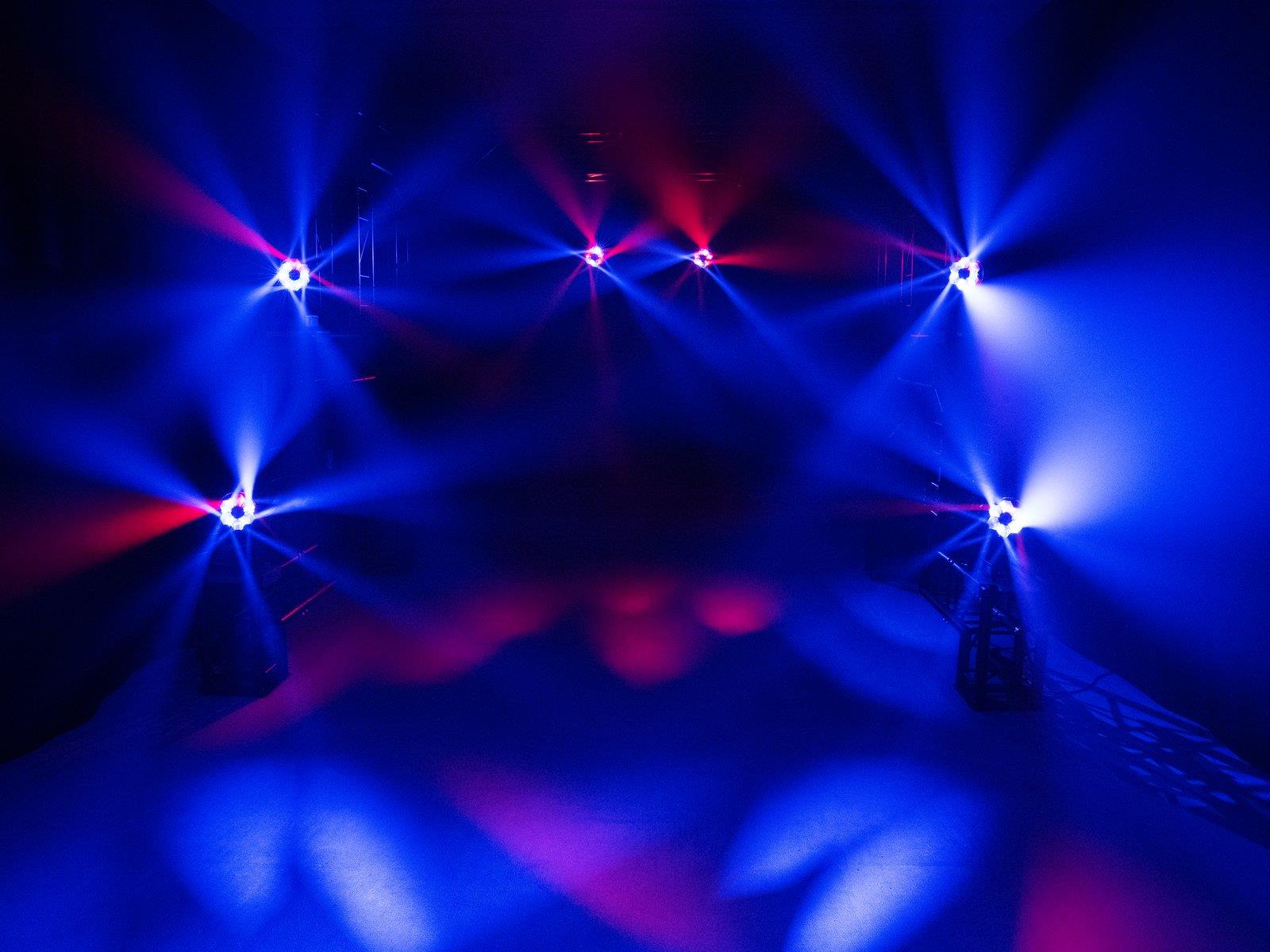

Effect: Multi beam effect
With a beam angle of 2° - 40°

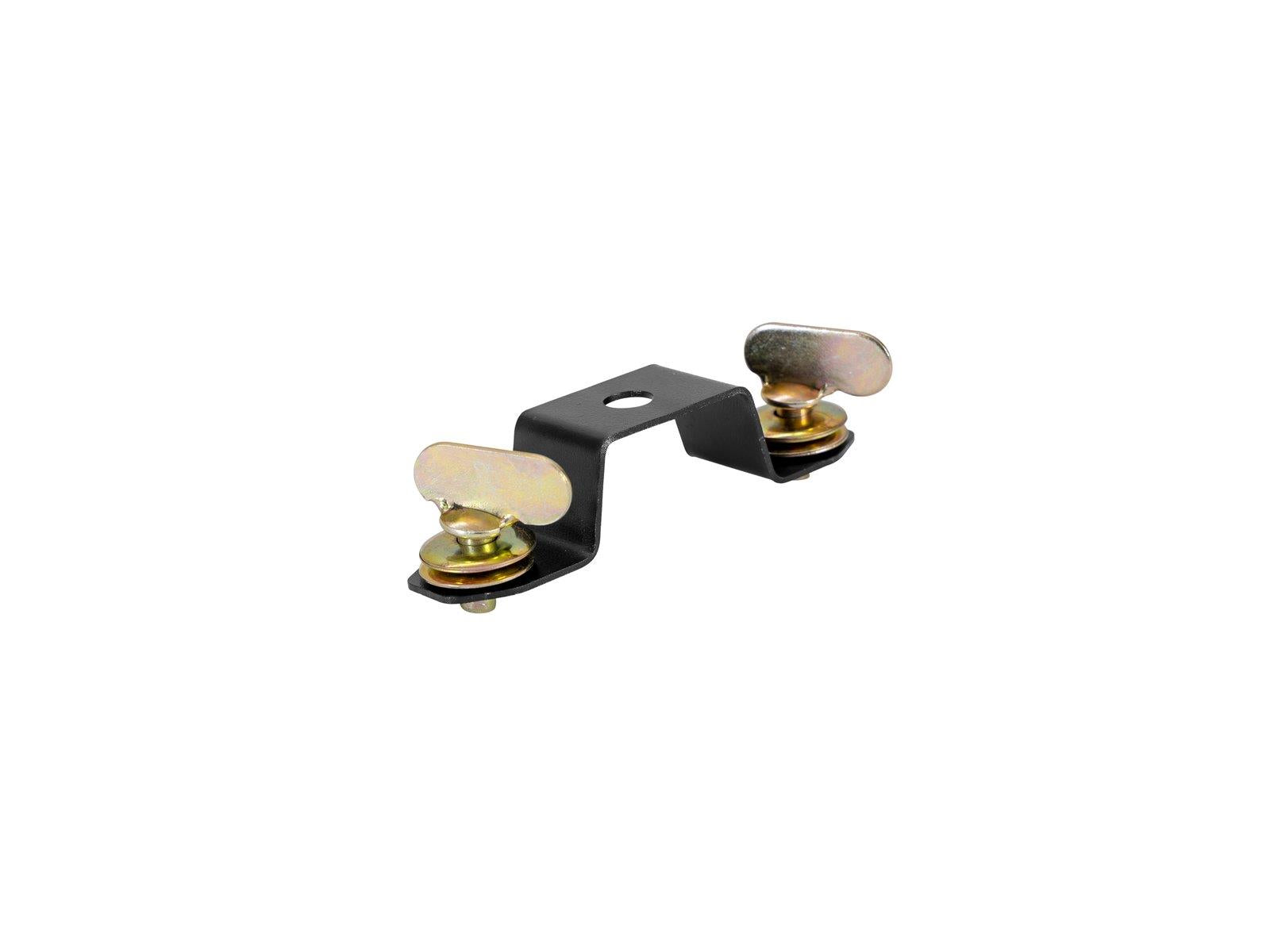

With Omega bracket
LCD display

Specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 190 W
IP classification: IP20
Protection class: Class I

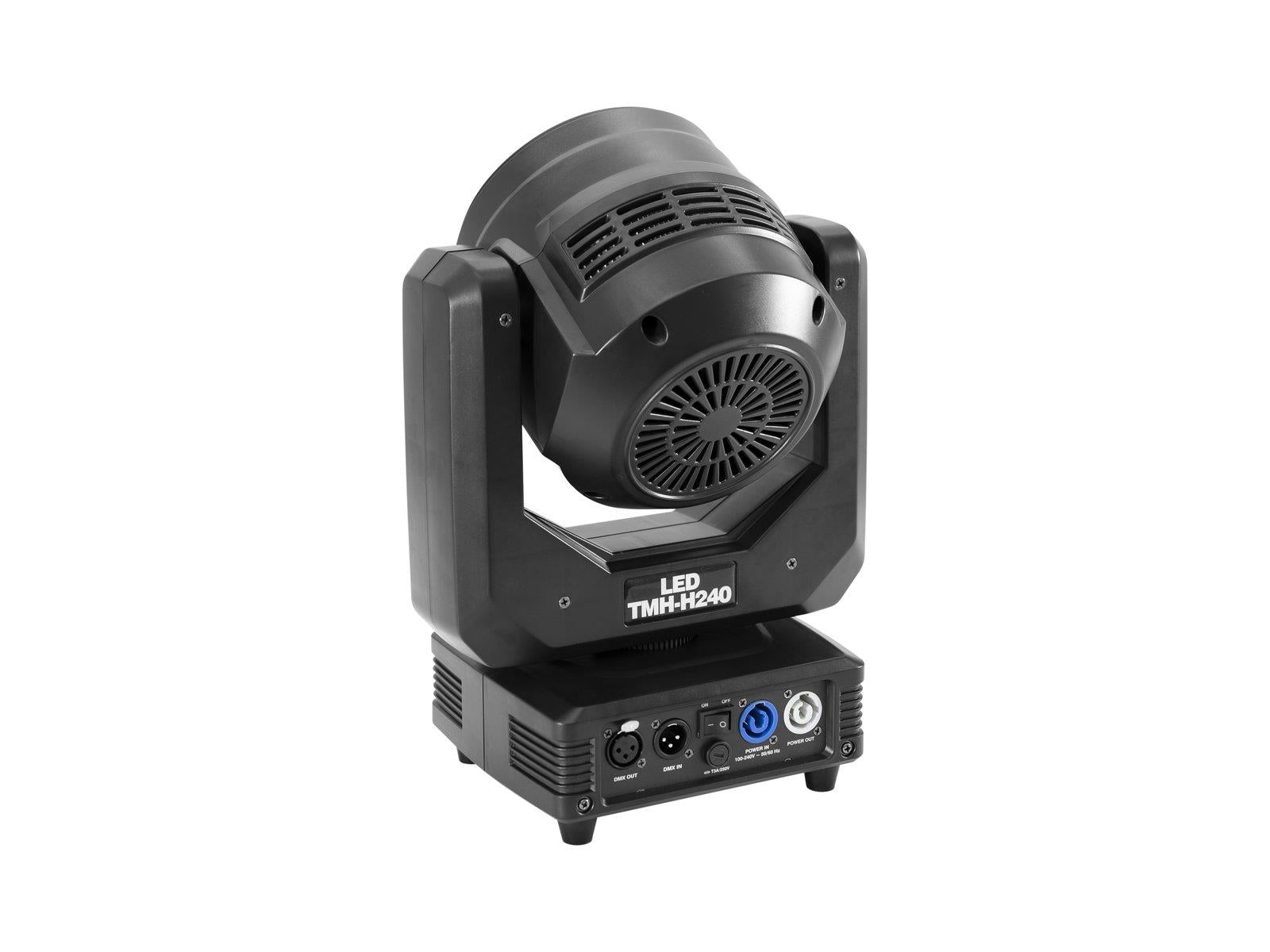

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 3 A
Lamp type: LED lamp
LED: 6 x 40 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 240° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement: 540°, 360° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate: 1 - 25 Hz
DMX channels: 16; 21; 24; 32; 56
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan
Control: Stand-alone; Sound to light via Microphone; DMX; Light Captain; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
Beam angle: 2° - 40°
Beam angle (1/2 peak): 2 - 25°
Beam angle (1/10 peak): 8 - 40°
Illuminance in Lux (lx):
Narrow red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx
Narrow green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx
Narrow blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx
Narrow cold white (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx
Narrow all 1m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx
Housing color: Black

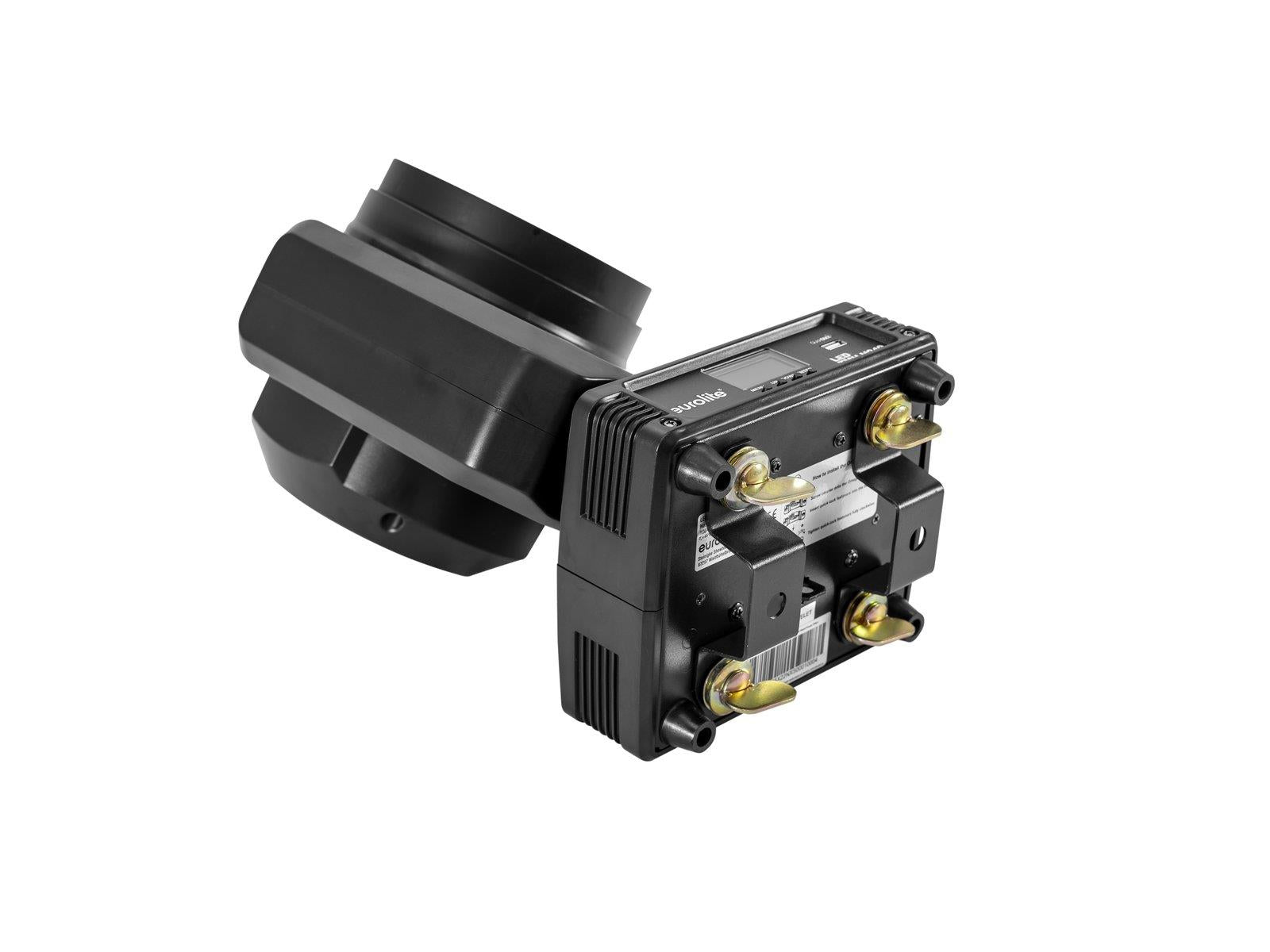

Attachment system: 2x Omega bracket
Display type: LCD display
Dimensions:
Width: 26 cm
Depth: 18 cm
Height: 33 cm
Weight: 6,10 kg
Legal specifications Special product: Not designed for household room illumination
Intended use: Show effect lighting
