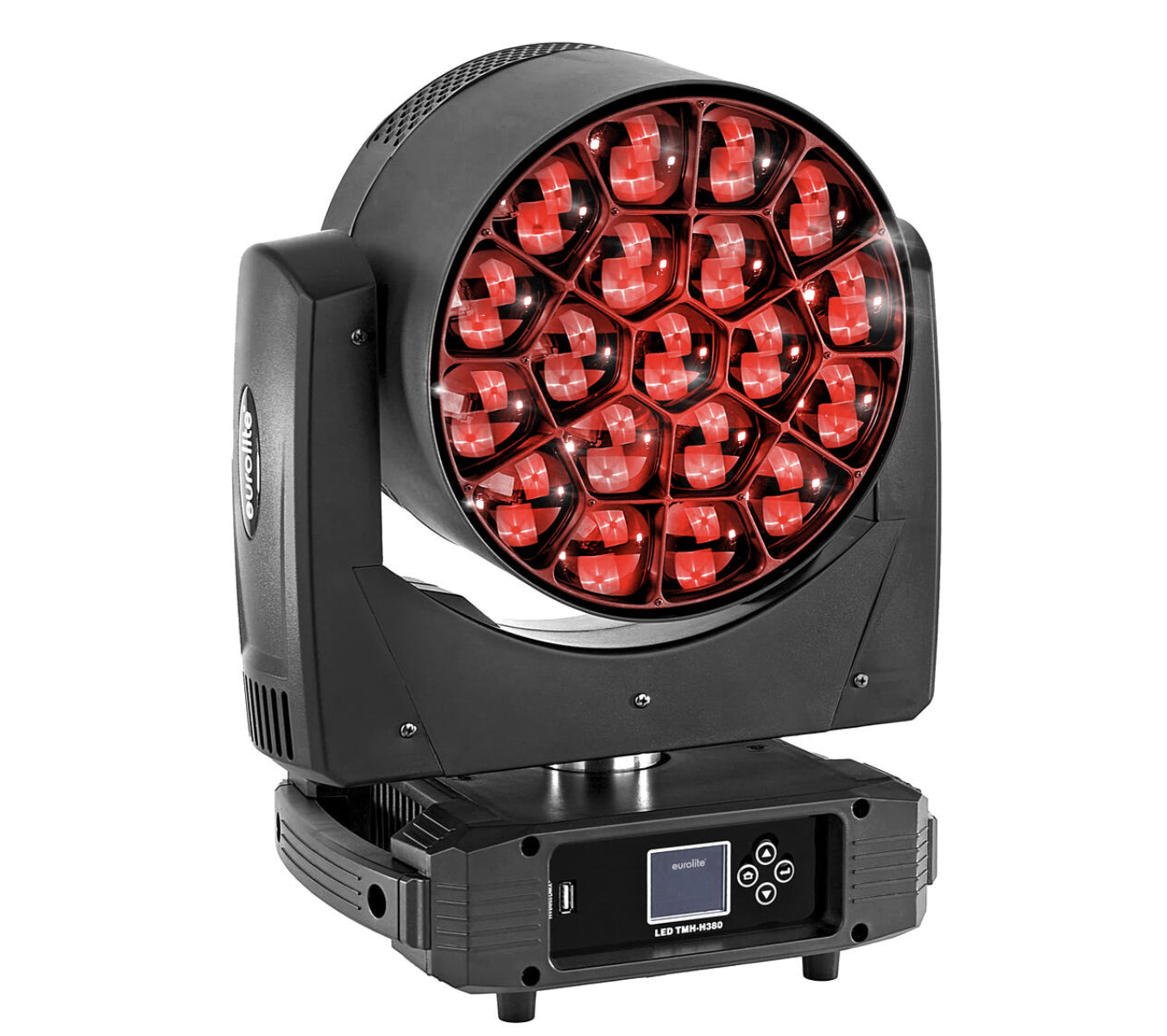

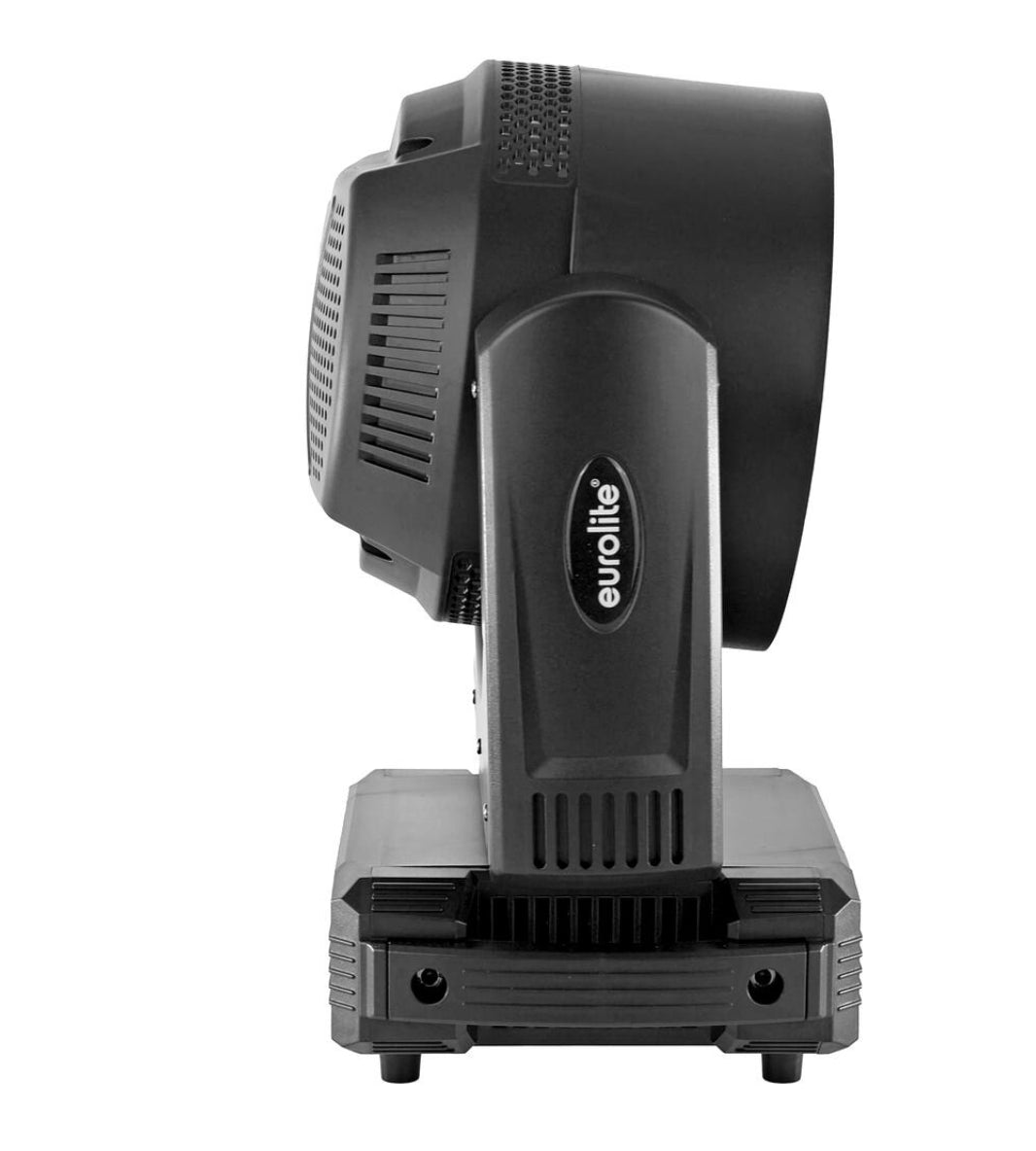

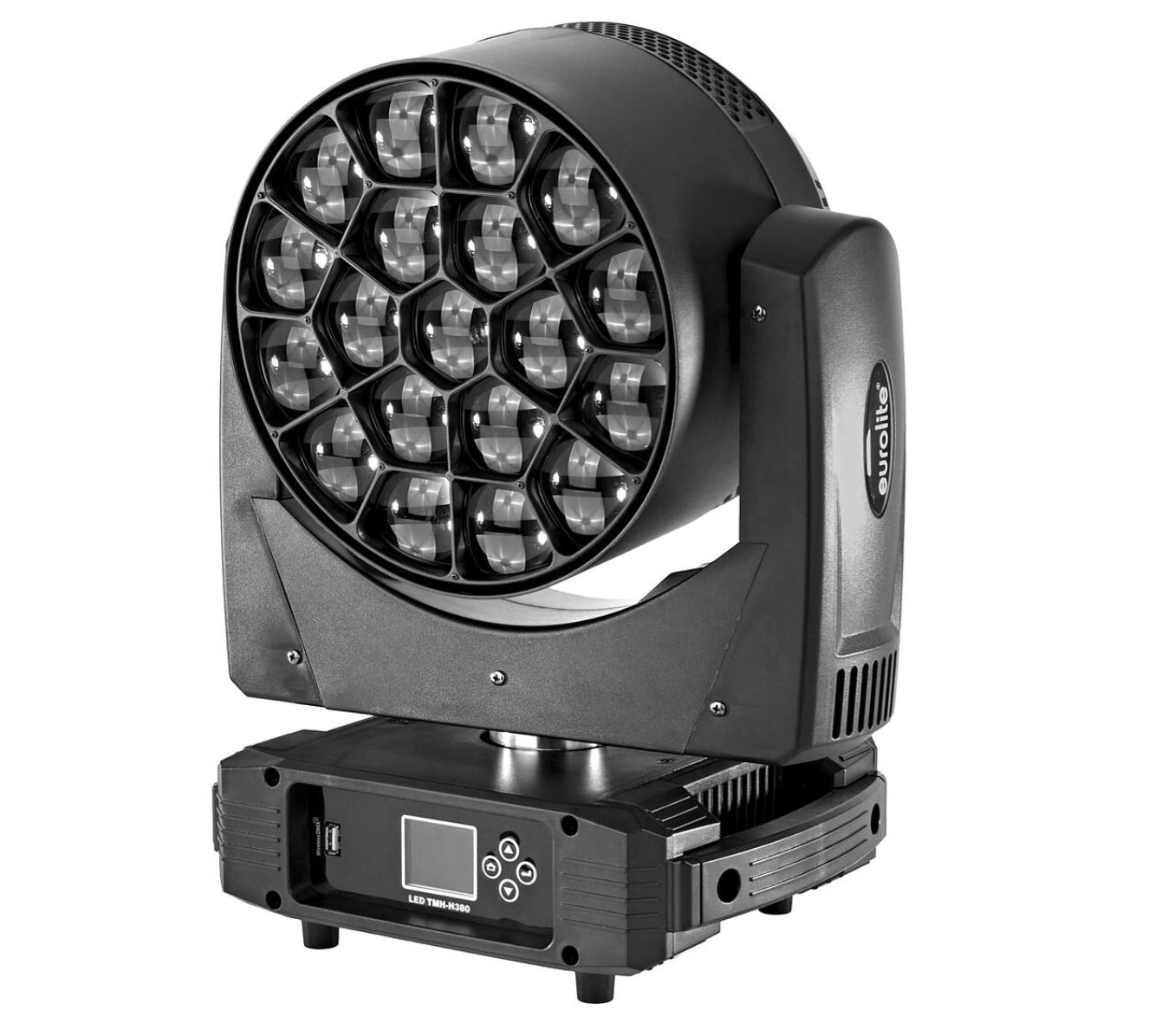

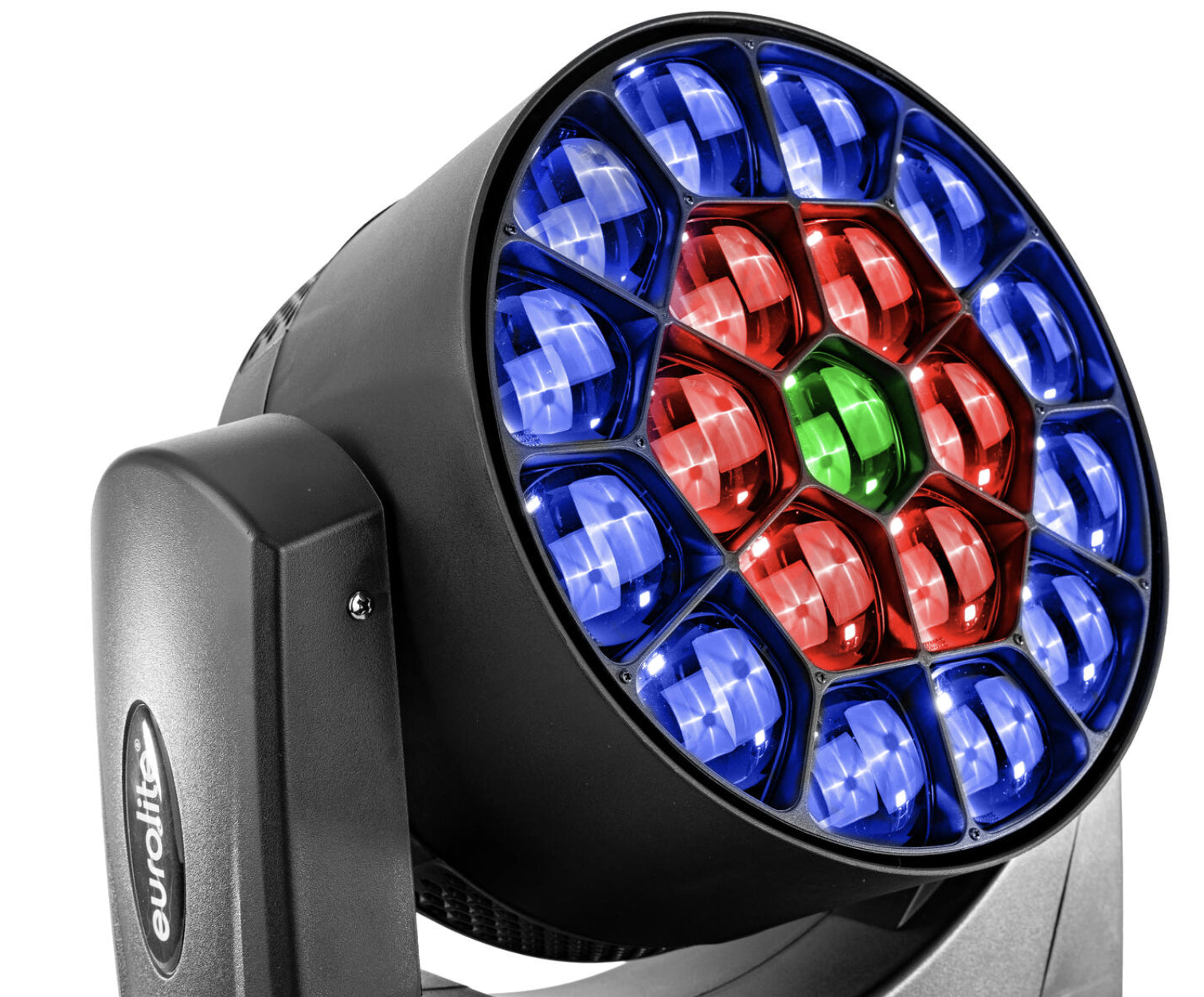

EUROLITE LED TMH-H380 Beam Wash Flower Effect Moving Head

Description

Moving washlight with 19 × 20W RGBL LEDs, rotating flower effect, and pixel control.
19 × 20W 4-in-1 QCL RGBL LEDs with homogeneous color mixing.
LEDs can be controlled separately.
540° PAN and 215° TILT movement with auto-position correction (feedback).
Exact 16-bit positioning.
Motor-driven zoom and rotating lens.
Adjustable PWM, dimmer, stepless color blend, and preset colors.
Effects include wash, flower, and beam.

The device is cooled by a fan at the base and a temperature-controlled fan at the head.

Control options: stand-alone, sound-to-light via microphone, DMX, QuickDMX via USB (optional), W-DMX via wireless solution (optional), CRMX via LumenRadio (optional), master/slave mode.

DMX fail mode: zero values or hold.

Beam angle: 1° – 35°

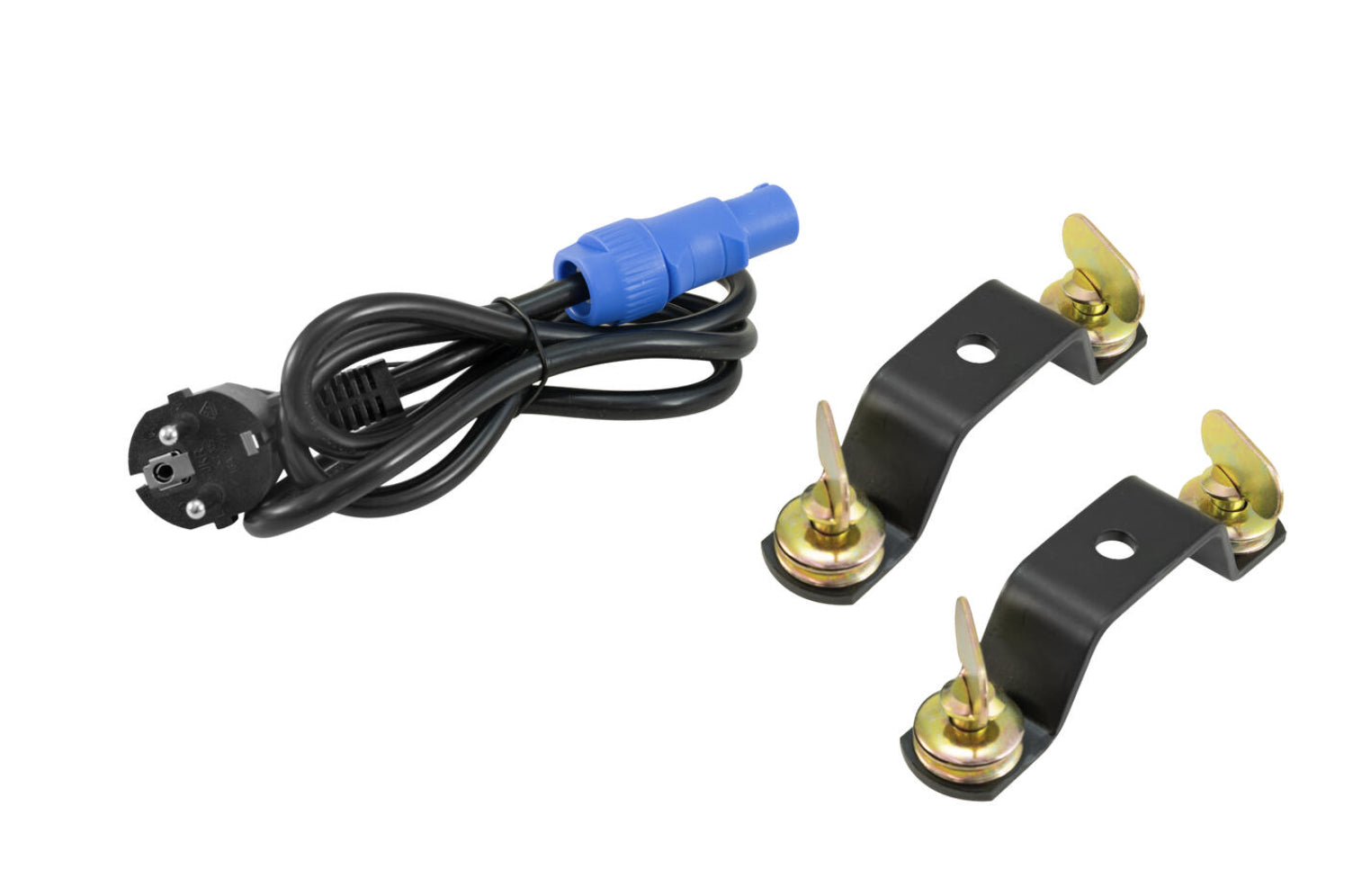

Includes omega bracket.

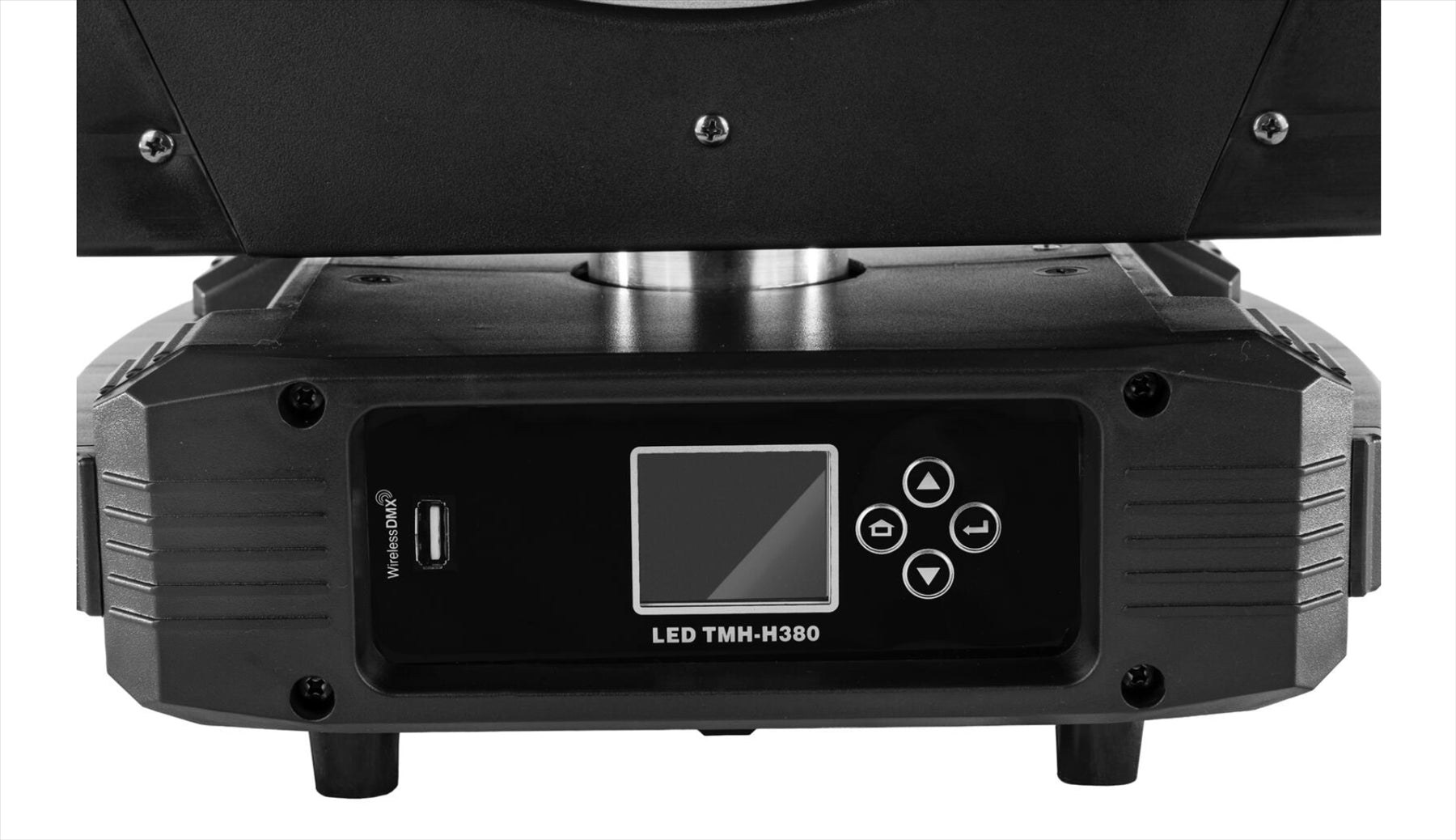

Multicolor LCD display.
Two rugged carrying handles.
Four rubber feet.
Mains input and output for power linking up to 8 units.

Suitable for stage, clubs, dance schools, weddings, events, mobile DJs, restaurants, bars, hotels, and rental applications.
Can be used standing or suspended.

Pre-programmed in Light Captain.
Flicker-free operation.

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 270 W
IP classification: IP20
Protection class: I
Power connection: Mains input via P-Con (blue) with mounting version power supply cord and safety plug
Cable construction: 3 × 1.0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 × 20 mm, T 3.15 A, replaceable
Lamp type: LED
LED type: 19 × 20 W 4-in-1 QCL RGBL (homogenous color mix)
Max TILT movement: 215° exact positioning (16-bit resolution) with auto position correction
Max PAN movement: 540° exact positioning (16-bit resolution) with auto position correction
Flash rate: 1–18 Hz
Equipment: Zoom motor driven; lens rotation
DMX channels: 18, 30, 94

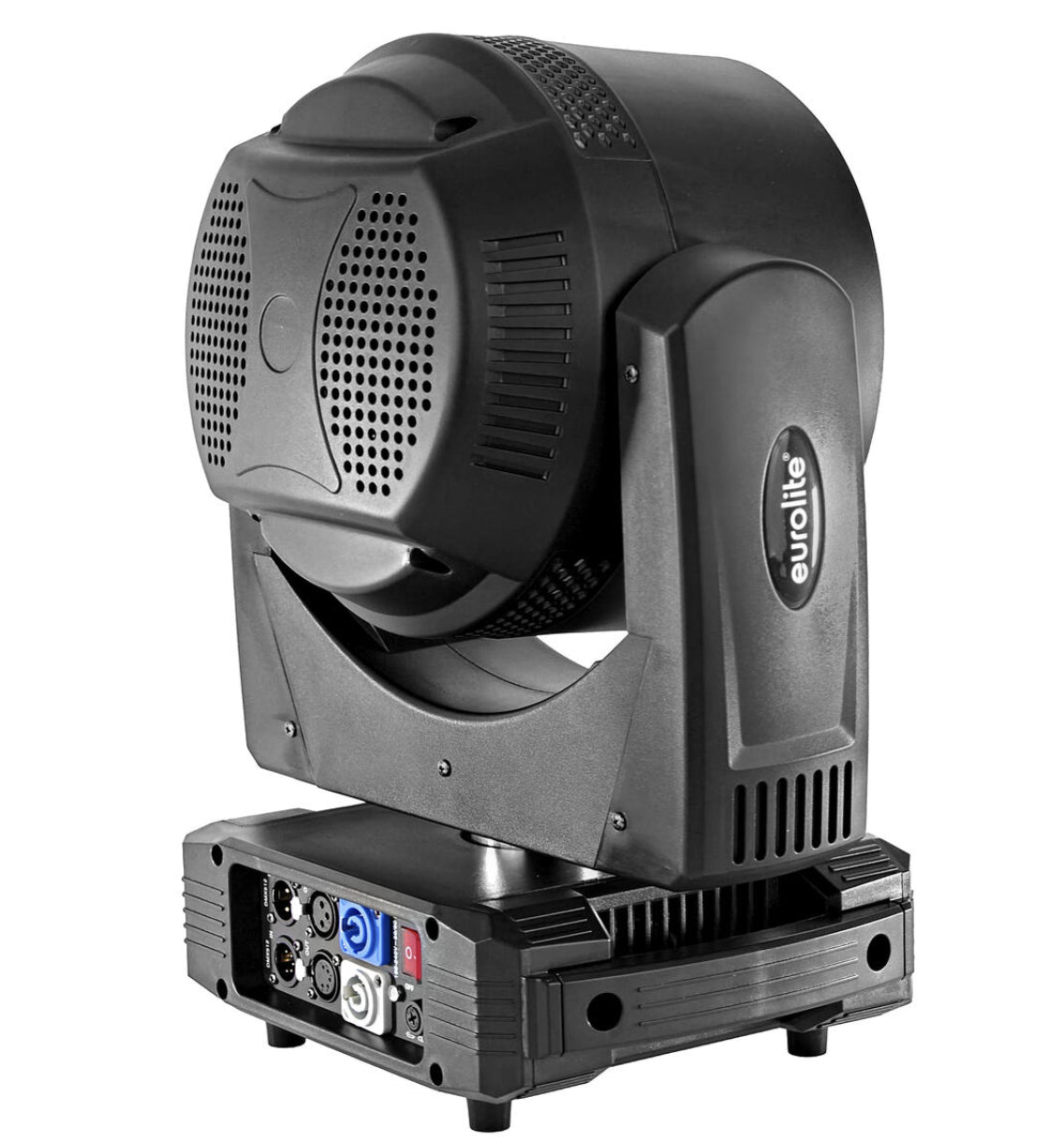

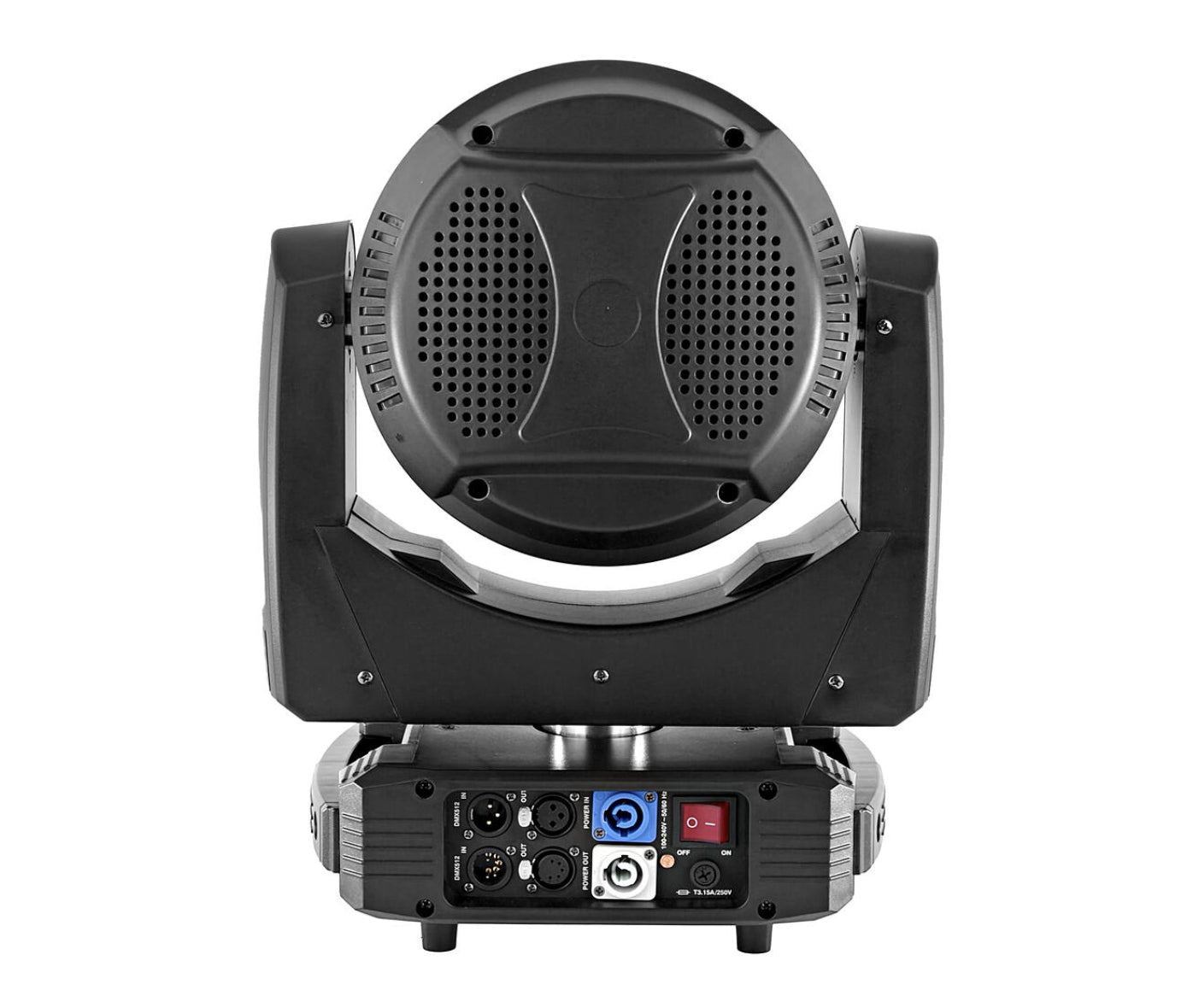

DMX input: 3-pin XLR (M) and 5-pin XLR (M)
DMX output: 3-pin XLR (F) and 5-pin XLR (F)
Cooling: 1 fan at the base; 2 temperature-controlled fans at the head
Control: Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX via LumenRadio via USB (optional); master/slave function
Preprogrammed in: Light Captain
Projection: Flicker-free
DMX fail mode: Zero values; hold
Beam angle: 1°–35°
Beam angle (1/2 peak): 1°–21°
Beam angle (1/10 peak): 6°–35°

Illuminance in Lux:
Narrow red (R) 1 m: 13251 lx, 3 m: 5839 lx, 6 m: 1772 lx
Narrow green (G) 1 m: 33878 lx, 3 m: 14512 lx, 6 m: 4482 lx
Narrow blue (B) 1 m: 6854 lx, 3 m: 2372 lx, 6 m: 831 lx
Narrow lime 1 m: 42876 lx, 3 m: 18212 lx, 6 m: 5554 lx
Narrow all 1 m: 86946 lx, 3 m: 35241 lx, 6 m: 11092 lx
Wide red (R) 1 m: 3735 lx, 3 m: 458 lx, 6 m: 119 lx
Wide green (G) 1 m: 9051 lx, 3 m: 1106 lx, 6 m: 289 lx
Wide blue (B) 1 m: 1639 lx, 3 m: 204 lx, 6 m: 54 lx
Wide lime 1 m: 11875 lx, 3 m: 1430 lx, 6 m: 381 lx
Wide all 1 m: 23450 lx, 3 m: 2819 lx, 6 m: 742 lx

Lamp life: 20000 h
Housing color: Black

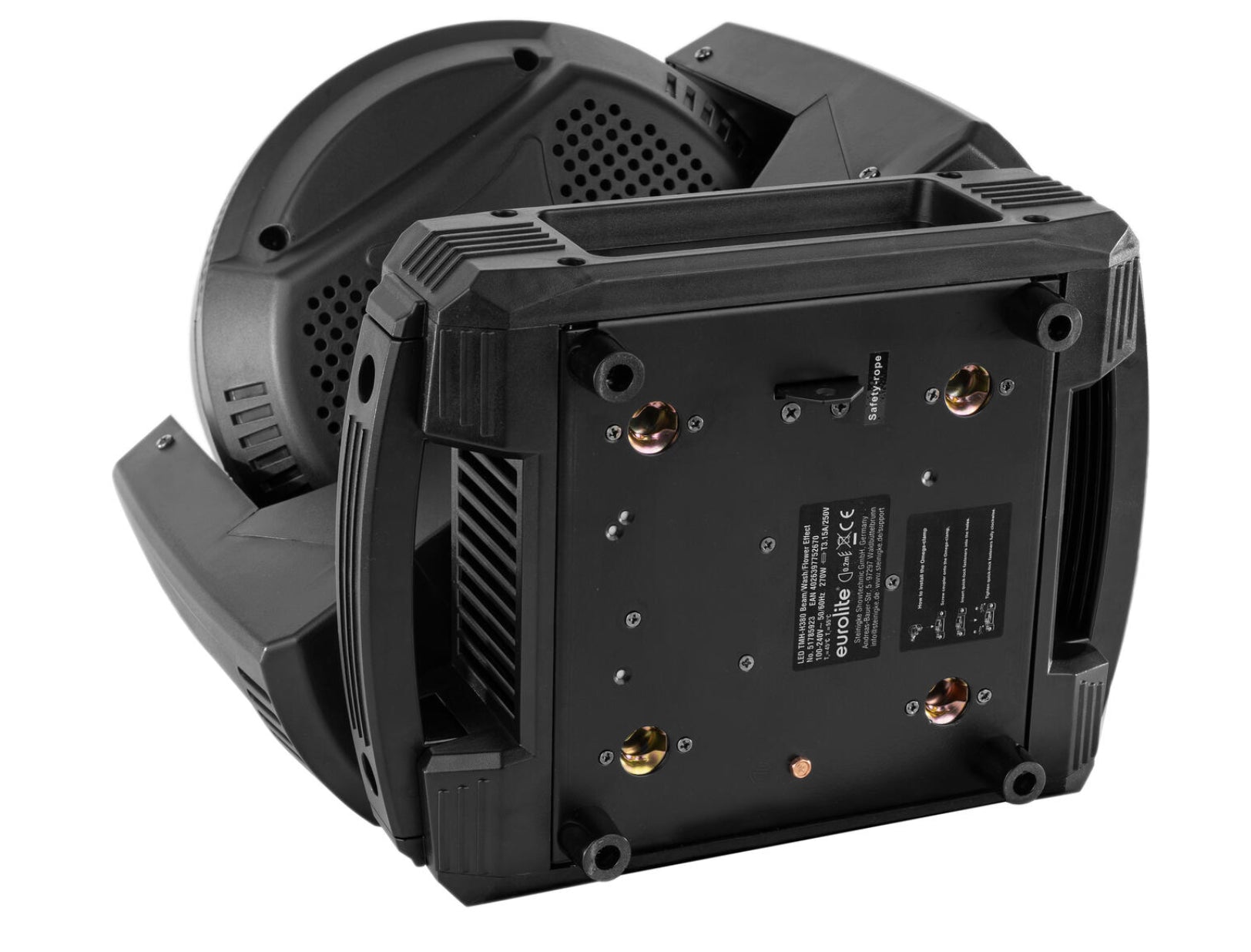

Attachment system: 2 × omega bracket
Display type: Multicolor LCD display
Control elements: Power switch
USB port: Type A
Carrying handles: 2 pcs
Transport aid: 4 rubber feet
Diameter mounting holes: 2 × Ø10 mm
Material: Metal
Dimensions: 34.0 × 22.5 × 34.5 cm (W × D × H)
Weight: 11.75 kg
Noise classification: Class 3 (clearly perceptible sounds)
