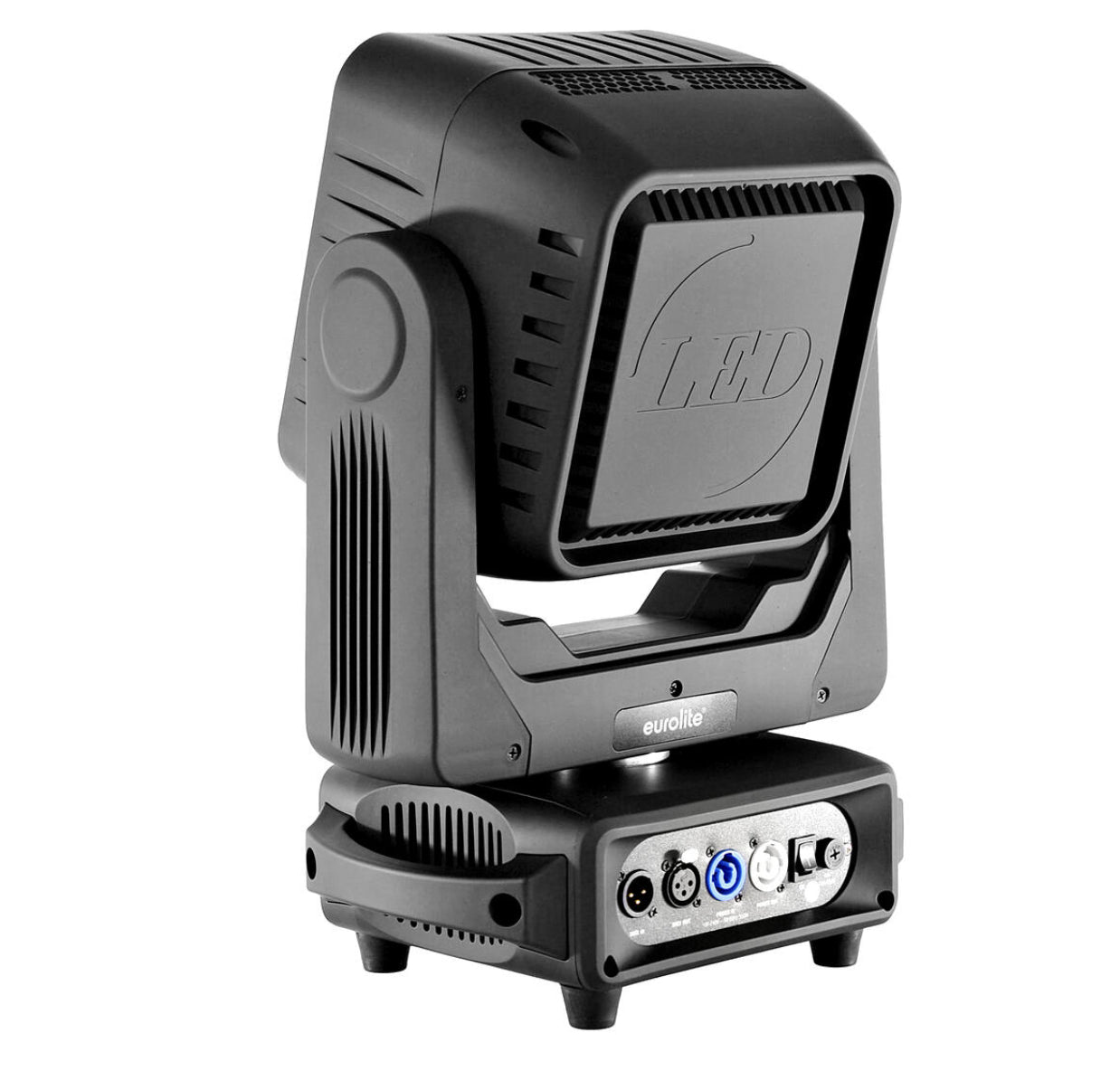

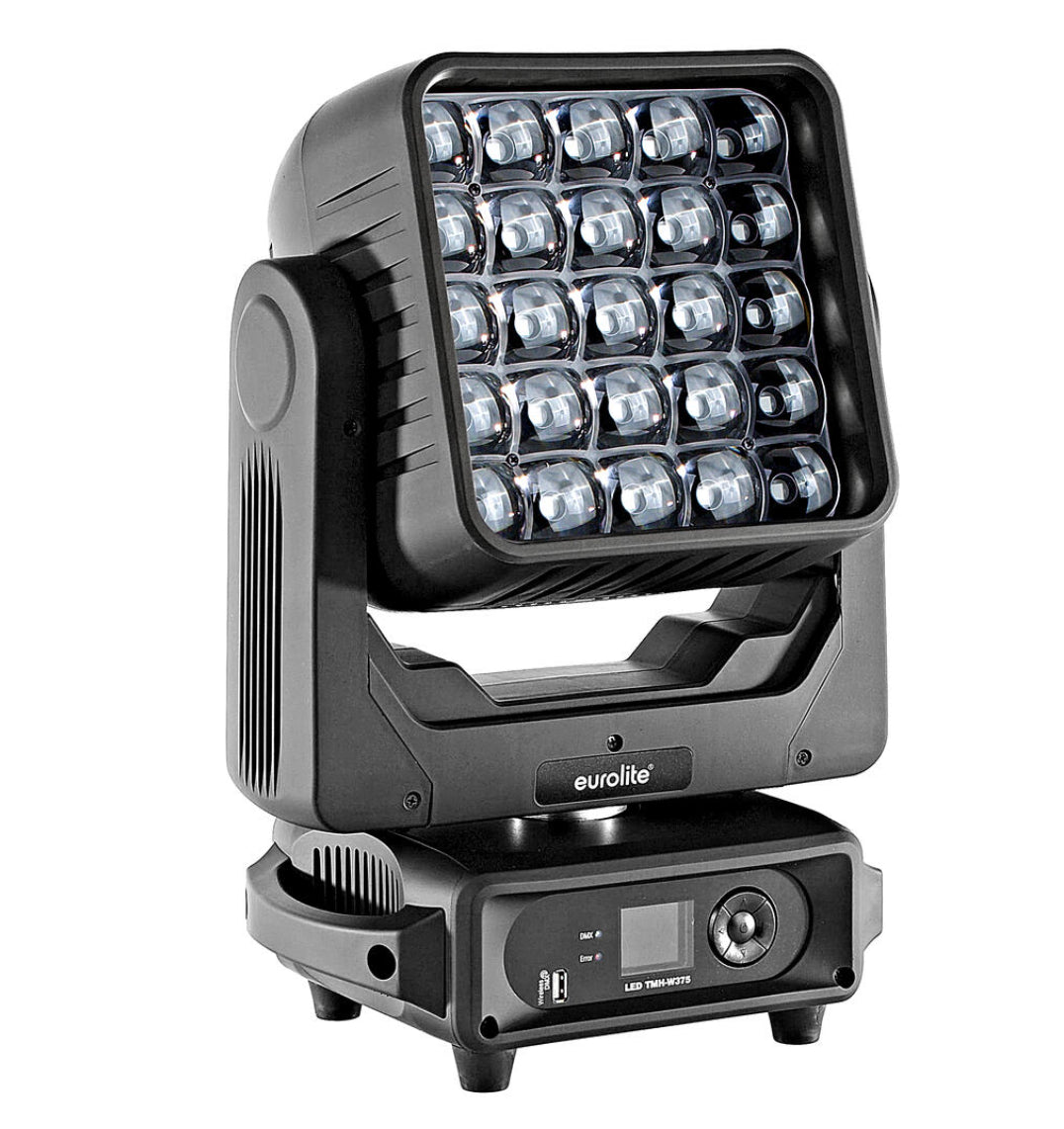

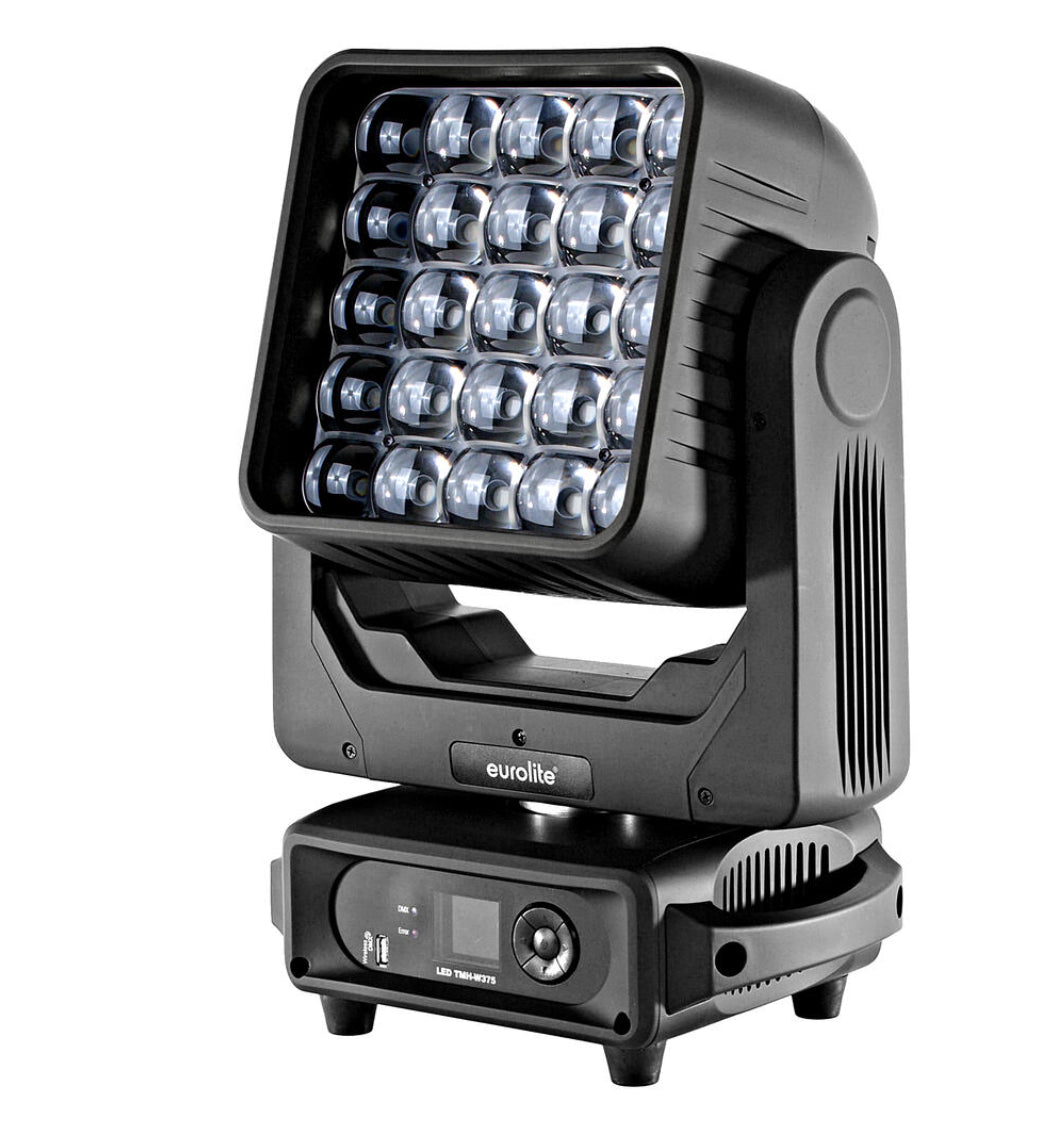

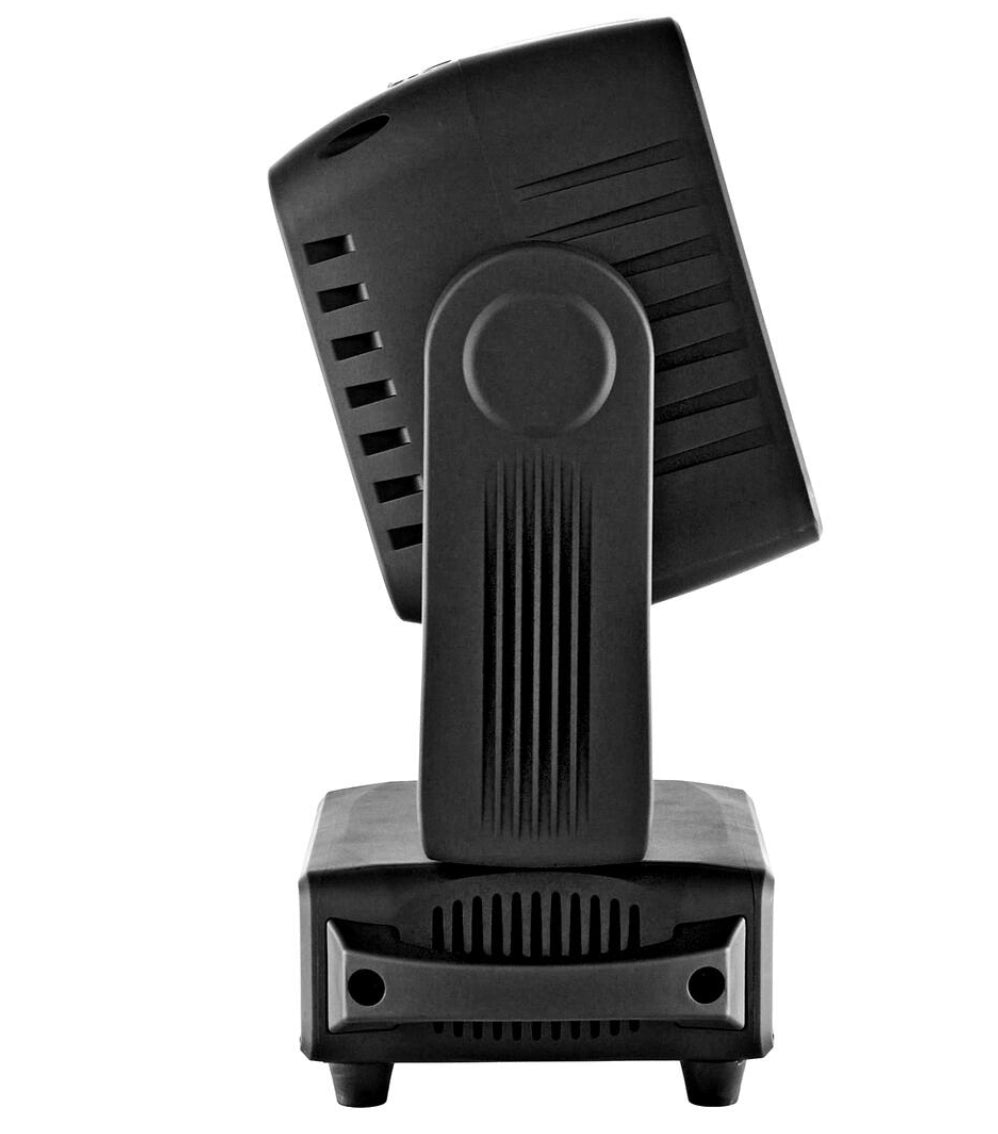

EUROLITE LED TMH-W375 Matrix Moving Head Wash Zoom

Description

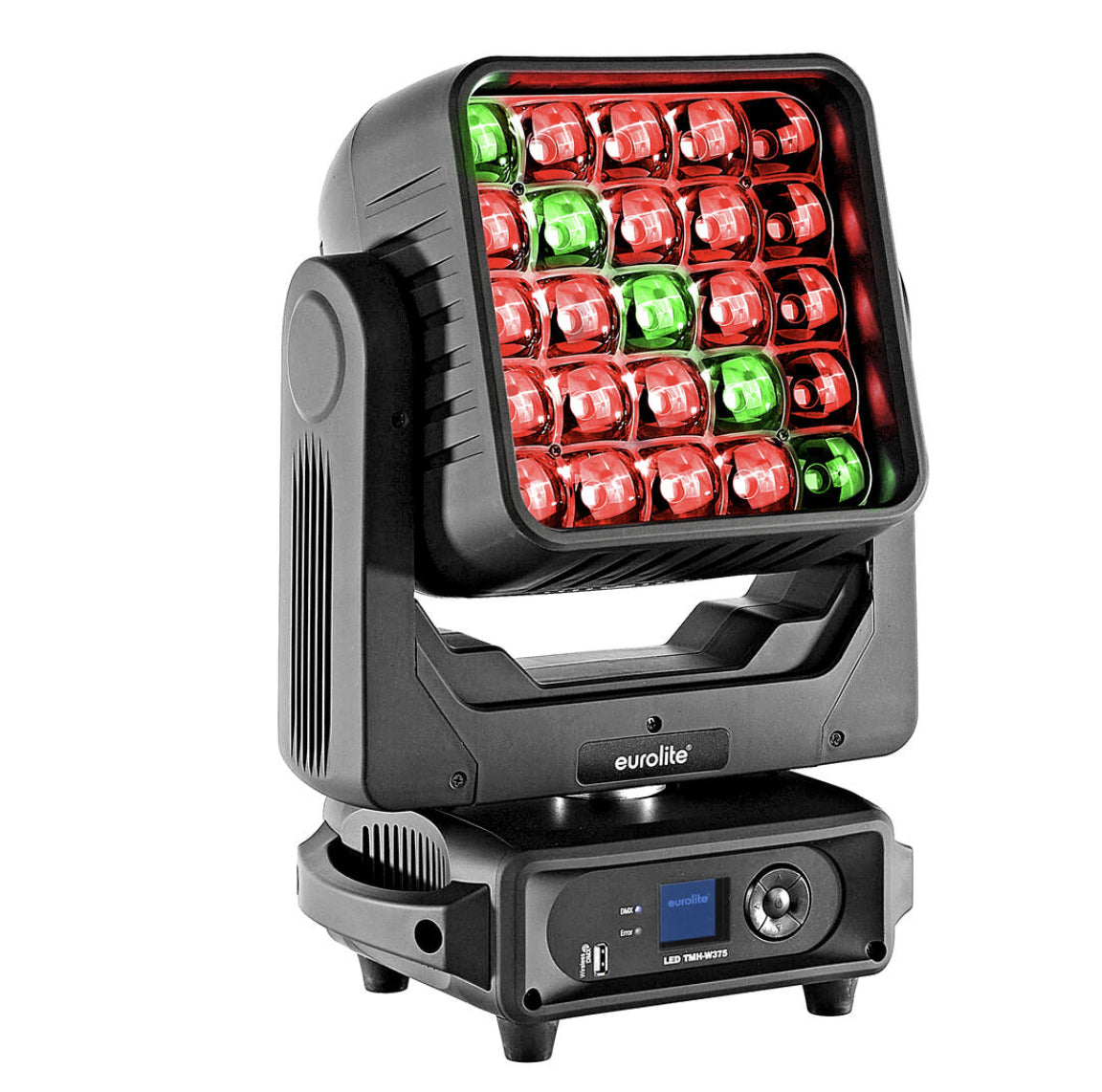

Matrix moving head with RGBW LEDs, pixel control and macros for animations, letters and numbers
25 powerful LEDs, 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Positioning within 540° PAN and 215° TILT
Auto position correction (feedback)
Exact positioning with 16-bit resolution
Motor-driven zoom
Electronic dimmer; white balance; adjustable color macros; animated patterns; adjustable background color; color fade; stepless color blend

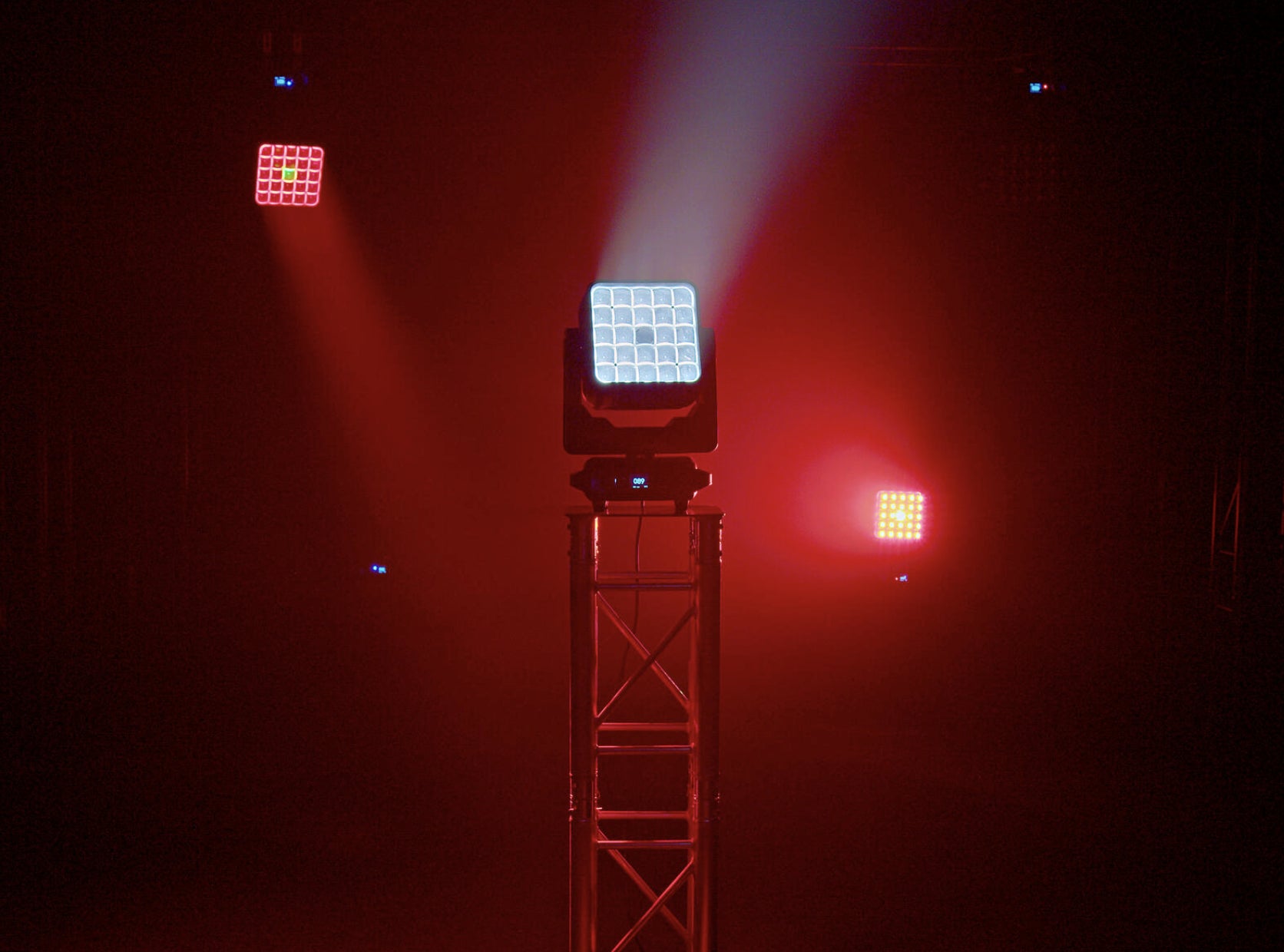

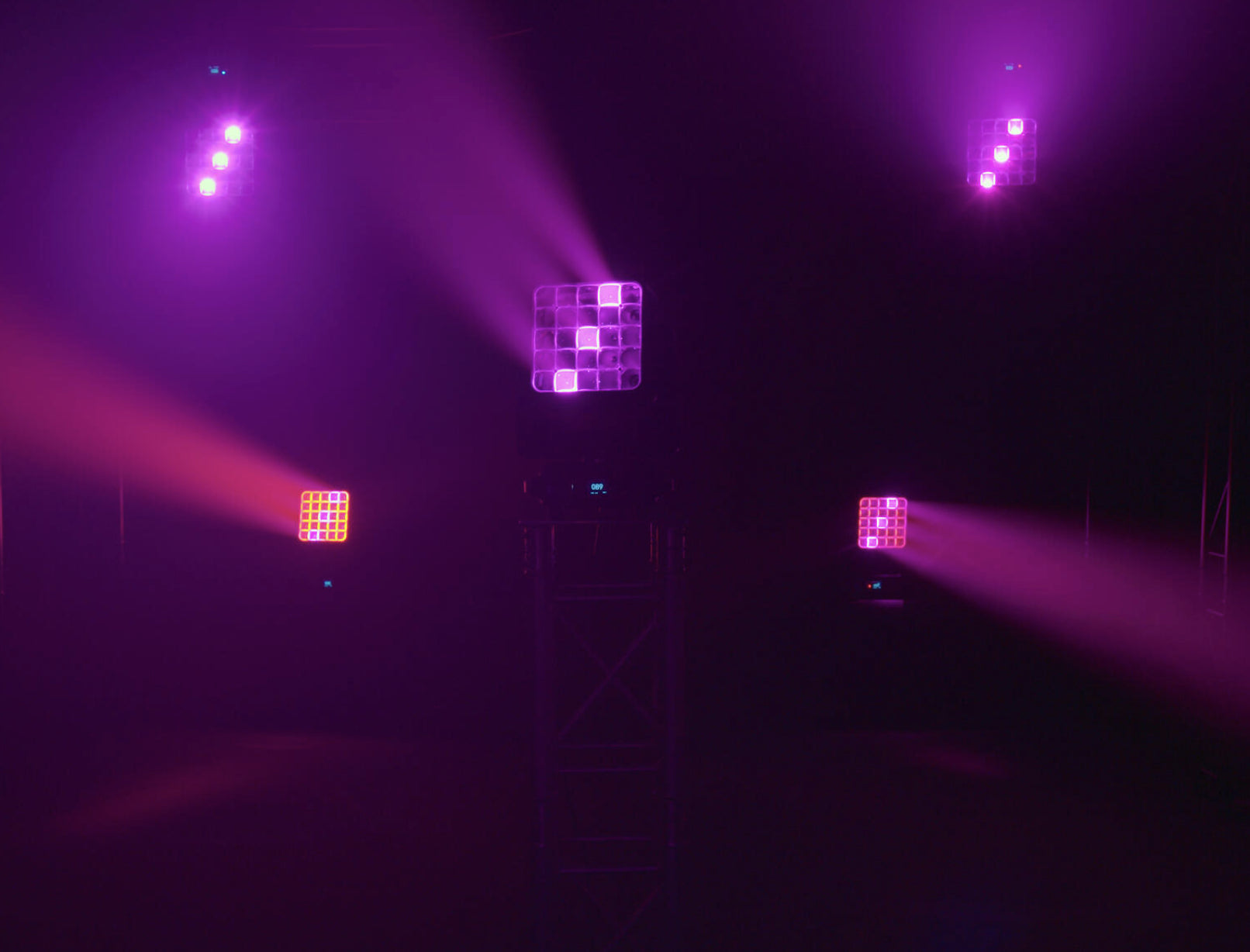

Wash effect and matrix effect
Device cooled by a fan in the head
Control via stand-alone, sound-to-light, master/slave, DMX, RDM, QuickDMX via USB (optional), W-DMX by Wireless Solution via USB (optional), CRMX by LumenRadio via USB (optional)
Flicker-free
DMX fail mode: hold or zero values
Beam angle: 2° to 42°
Includes omega bracket

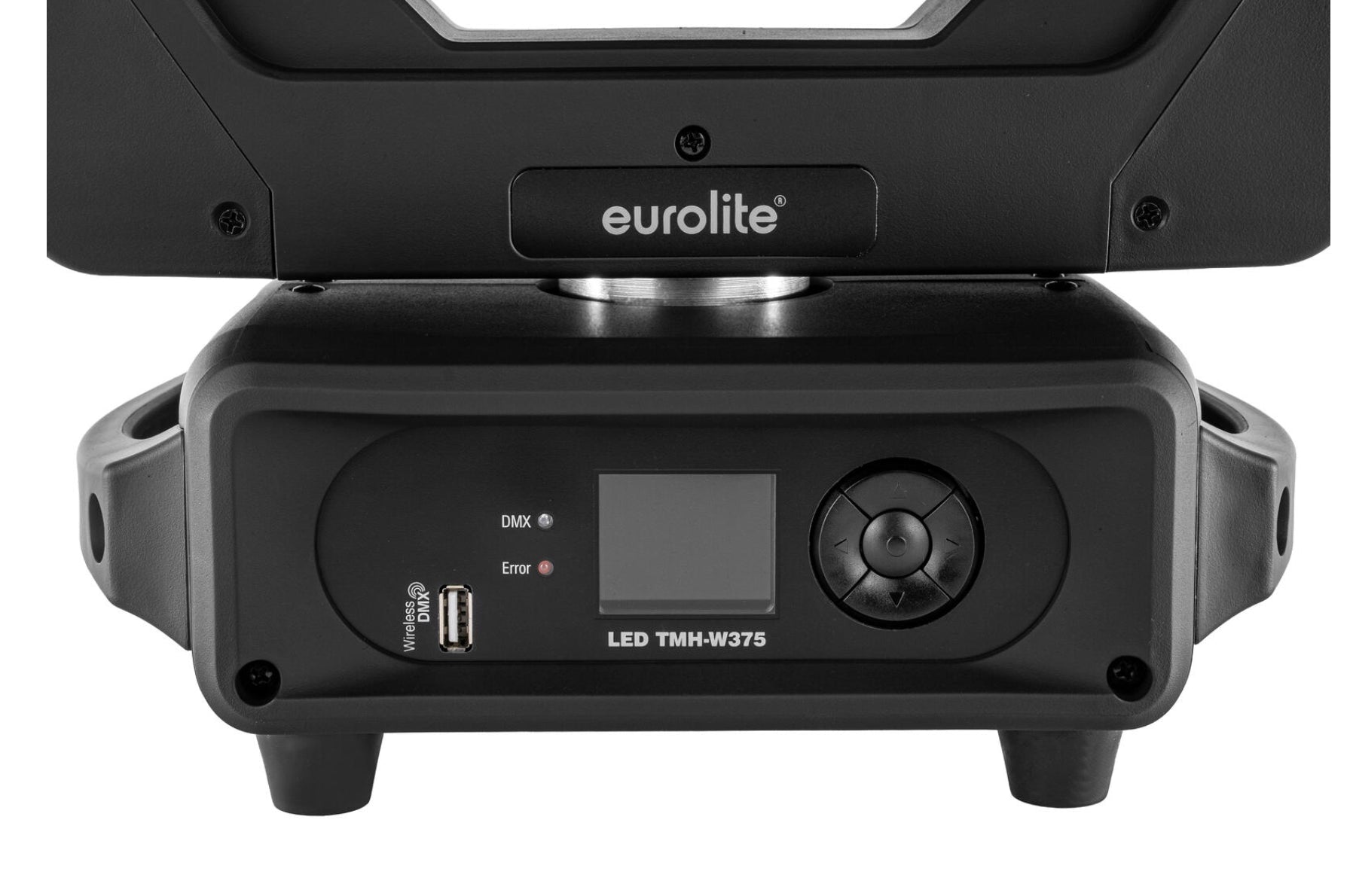

Multicolor LCD display
Two rugged carrying handles
Four rubber feet
Mains input and output for power linking up to four units
Preprogrammed in Light Captain
Suitable for stage, clubs, dance schools, weddings, galas, events, mobile DJs, entertainers, restaurants, bars and hotels
Application possibilities: standing or suspended

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 350 W
Protection class: Protection class I

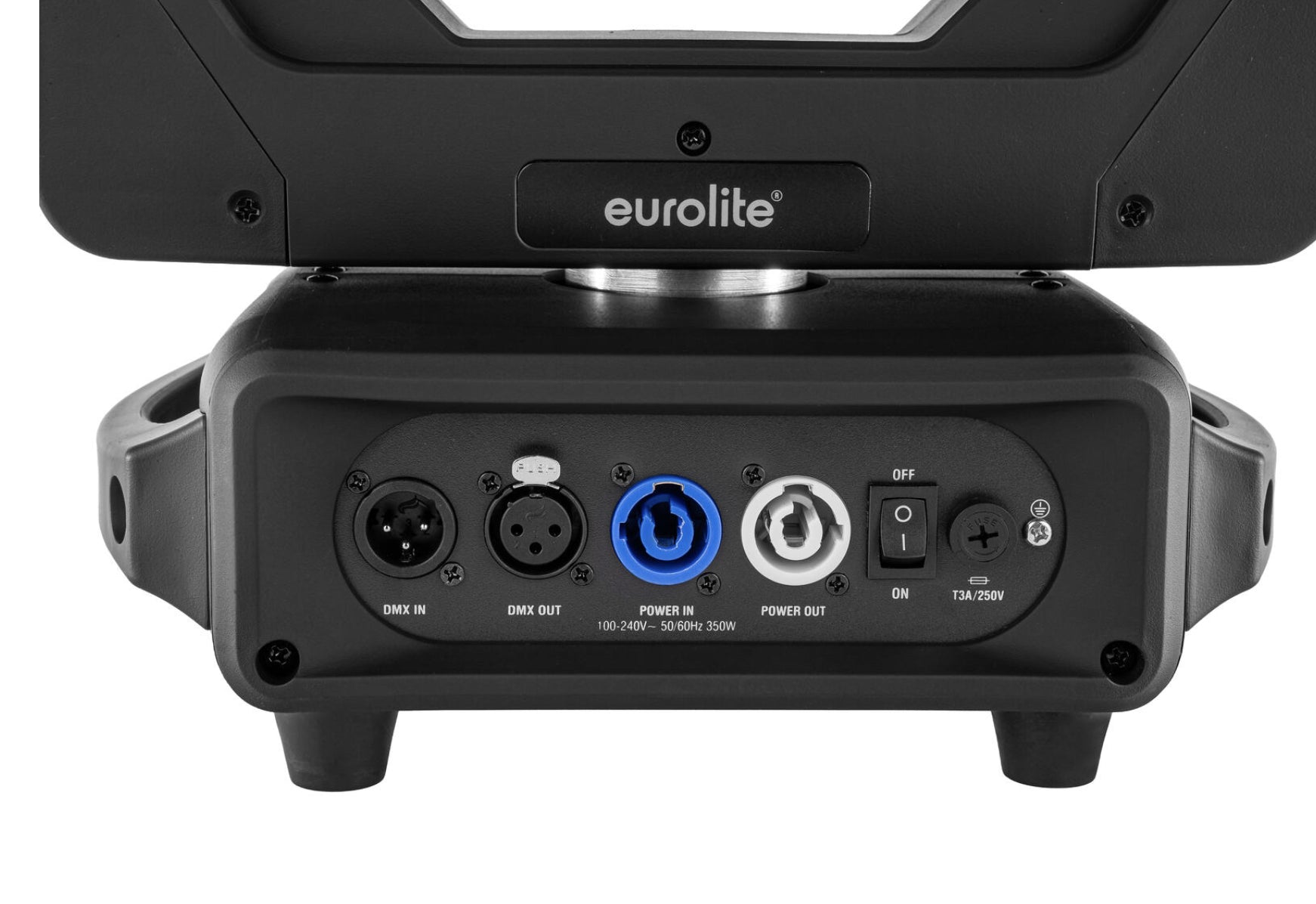

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction: 3 × 1.0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 × 20 mm, T 3 A, replaceable
Lamp type: LED lamp
LED type: 25 × 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 215°, exact positioning (16-bit resolution), auto position correction (feedback)
Max. PAN movement: 540°, exact positioning (16-bit resolution), auto position correction (feedback)
Flash rate: 0.5–17 Hz
Equipment: Zoom motor driven
DMX channels: 11, 22, 109, 122

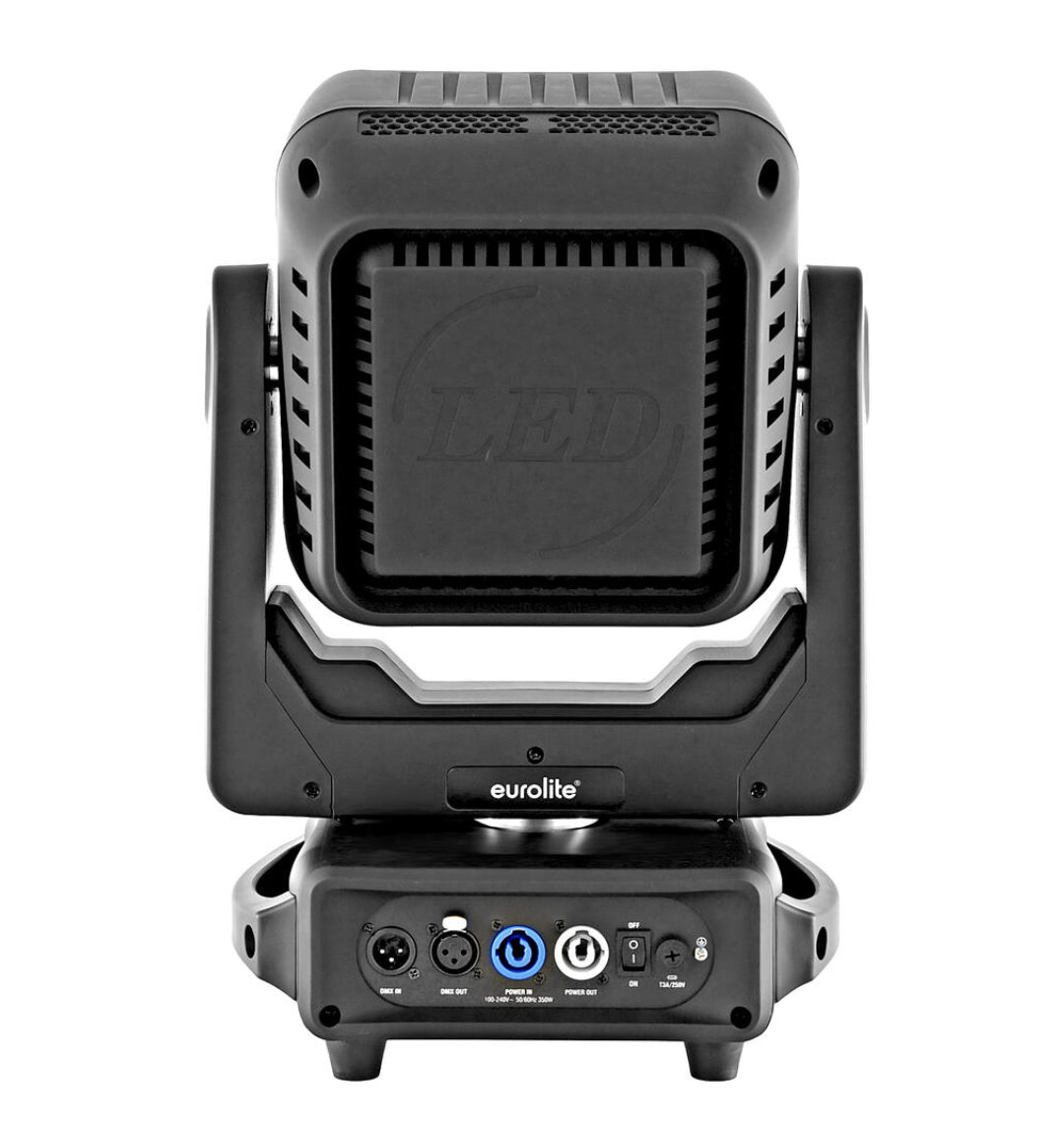

DMX input: 3-pin XLR (M), mounting version
DMX output: 3-pin XLR (F), mounting version
Cooling: 2 × cooling fan at the head
Control: Stand-alone, sound-to-light, master/slave function, DMX, RDM, QuickDMX via USB (optional), W-DMX by wireless solution via USB (optional), CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light Captain
Projection: Flicker-free
PWM frequency: 3700 Hz
DMX fail mode: Hold, zero values
Beam angle: 2°–42°
Beam angle (1/2 peak): 2–26°
Beam angle (1/10 peak): 8–42°
Illuminance in Lux (lx):
Narrow red (R) 1 m: 23482 lx, 3 m: 5325 lx, 6 m: 1516 lx
Narrow green (G) 1 m: 52510 lx, 3 m: 12247 lx, 6 m: 3458 lx
Narrow blue (B) 1 m: 9390 lx, 3 m: 2326 lx, 6 m: 657 lx
Narrow cold white (CW) 1 m: 69828 lx, 3 m: 16074 lx, 6 m: 4560 lx
Narrow all 1 m: 132161 lx, 3 m: 30789 lx, 6 m: 8704 lx
Wide red (R) 1 m: 3644 lx, 3 m: 456 lx, 6 m: 124 lx
Wide green (G) 1 m: 8216 lx, 3 m: 1048 lx, 6 m: 288 lx
Wide blue (B) 1 m: 1513 lx, 3 m: 186 lx, 6 m: 51 lx
Wide cold white (CW) 1 m: 10873 lx, 3 m: 1330 lx, 6 m: 368 lx
Wide all 1 m: 20729 lx, 3 m: 2577 lx, 6 m: 710 lx
Housing color: Black

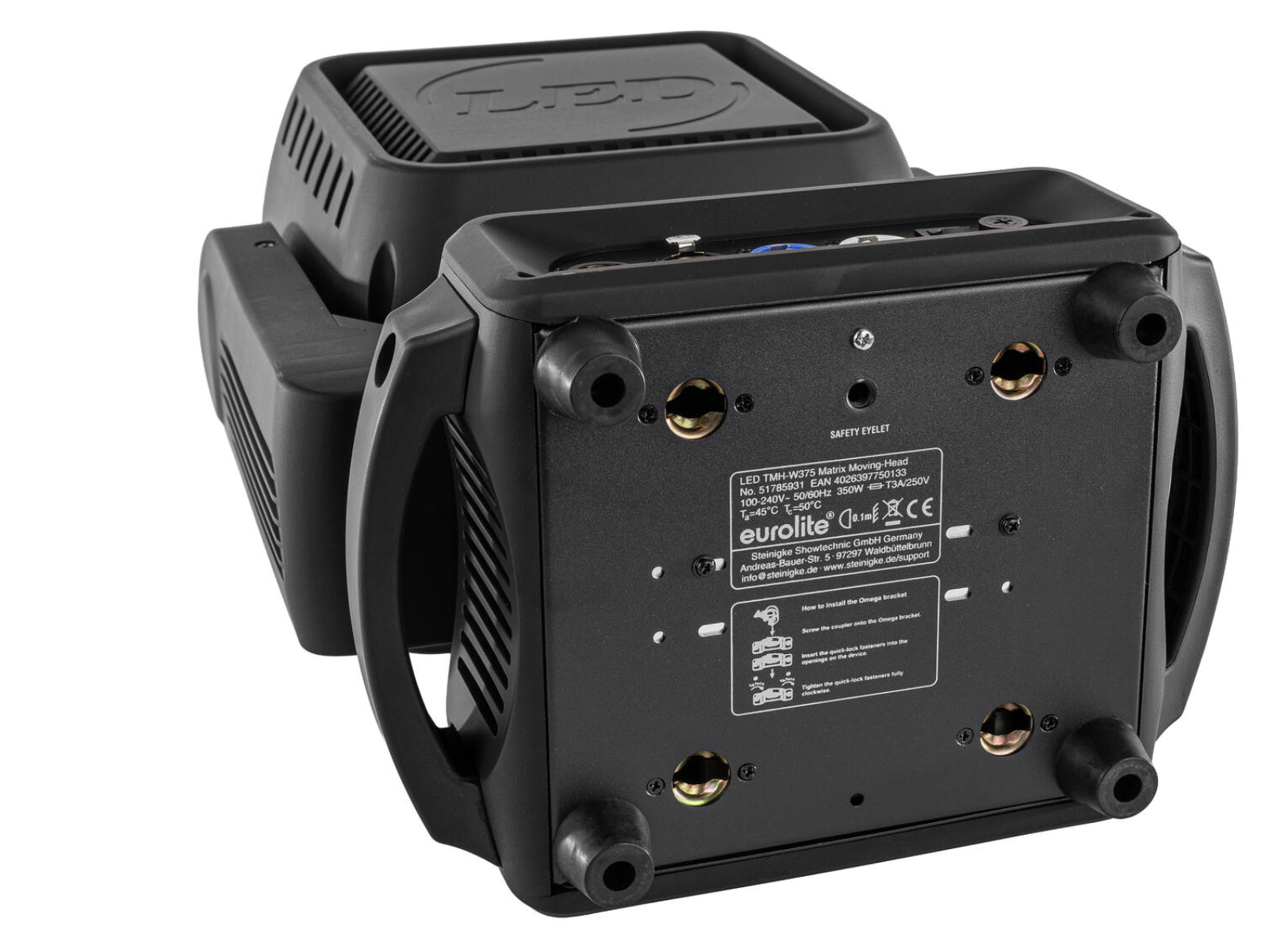

Attachment system: 2 × omega bracket
Display type: Multicolor LCD display
Control elements: Power switch
Status LED: DMX, fault
USB port: Type A
Carrying handle: 2 pcs
Transport aid: 4 × rubber feet
Diameter mounting holes: 2 × Ø10 mm
Material: Plastic
Dimensions: Width 30.3 cm, Depth 23.5 cm, Height 41.6 cm
Weight: 9.70 kg
Noise classification: Class 2 (slight noise)
Special product: Not designed for household room illumination
Intended use: Show effect lighting
