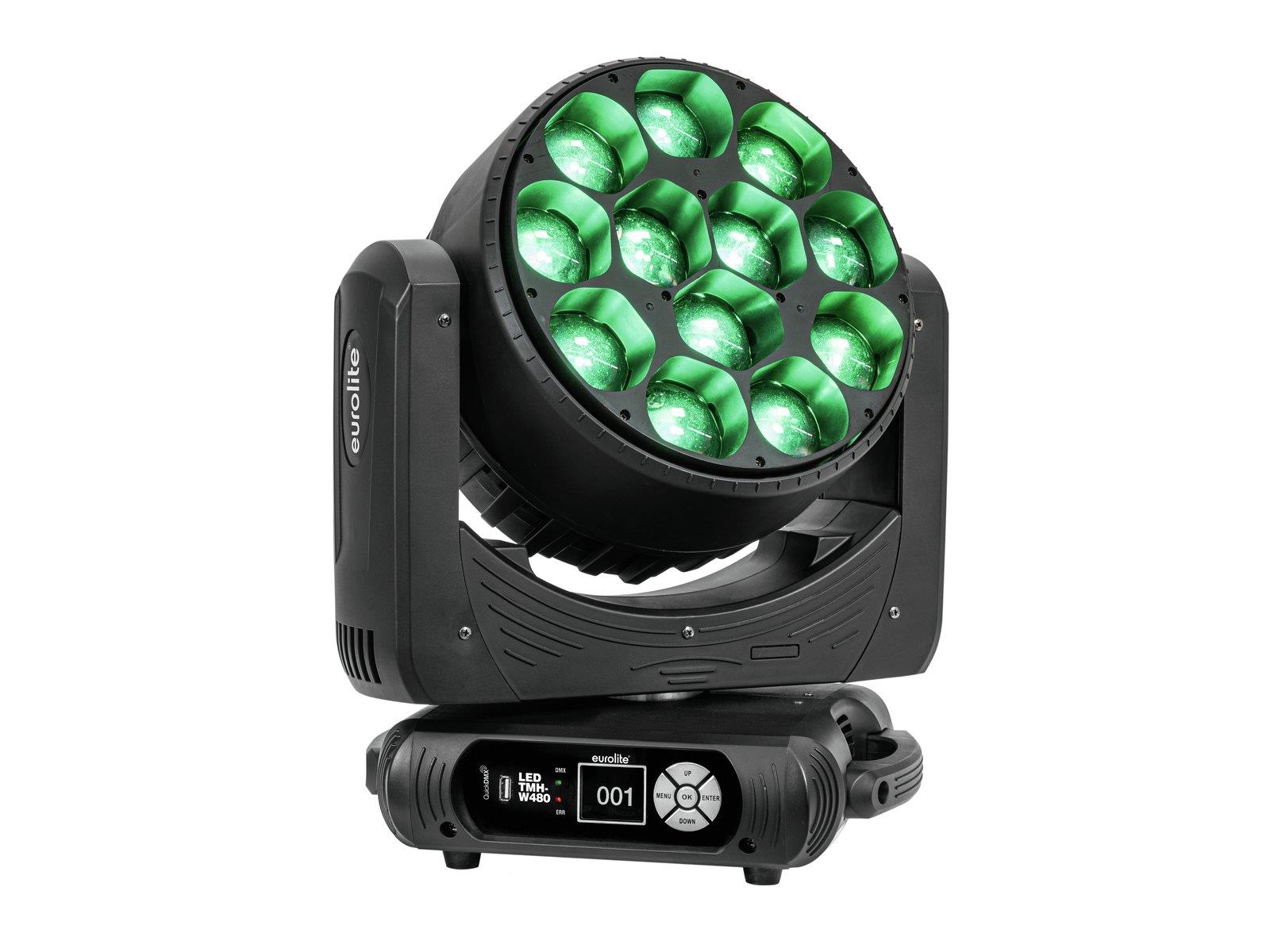

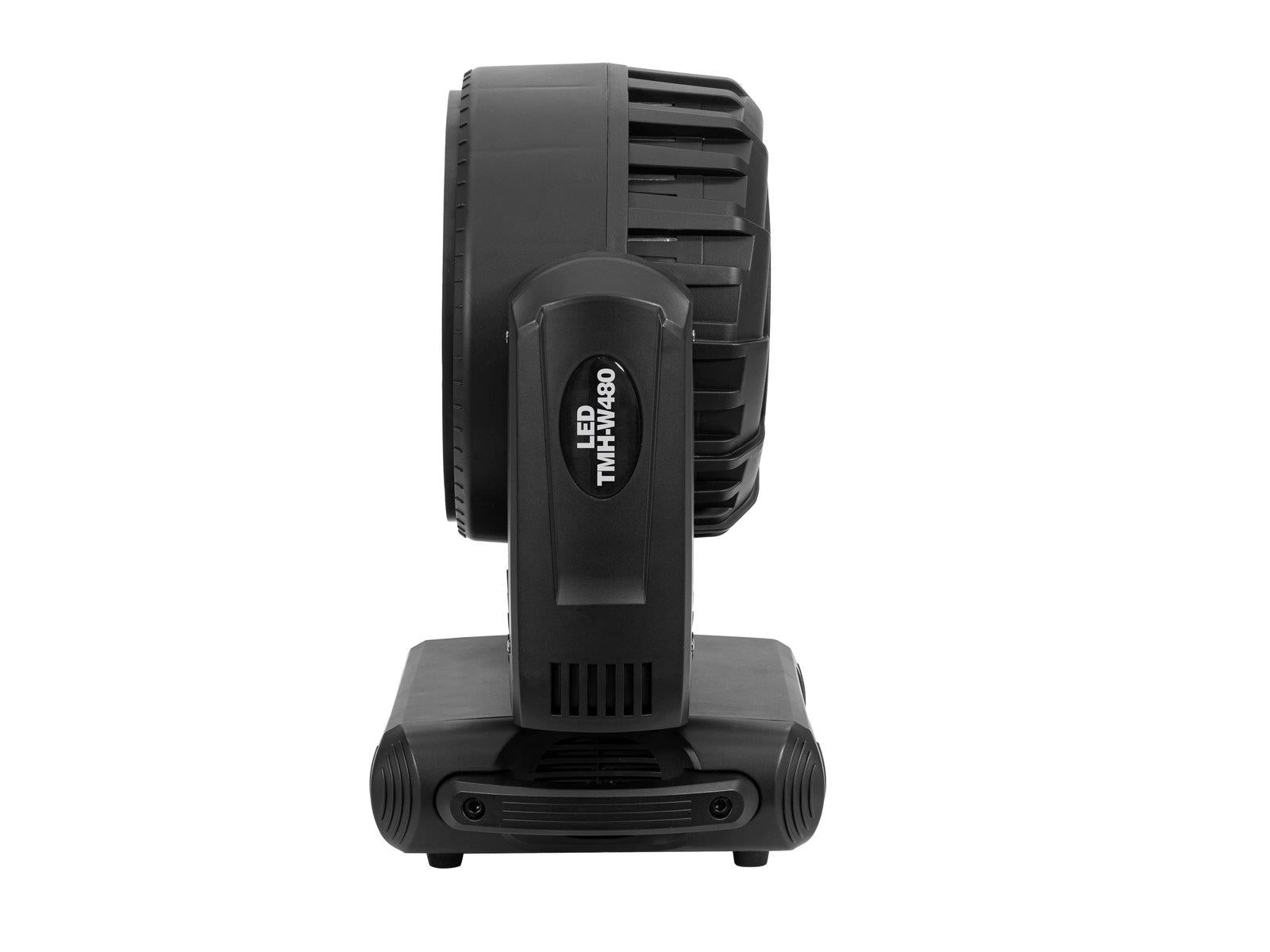

Eurolite LED TMH-W480 Moving Head Wash Zoom

Description:

Washlight with 12 bright 40 W RGBW LEDs, zoom, pixel control, pattern effects

Mains input and output for power linking up to 4 units

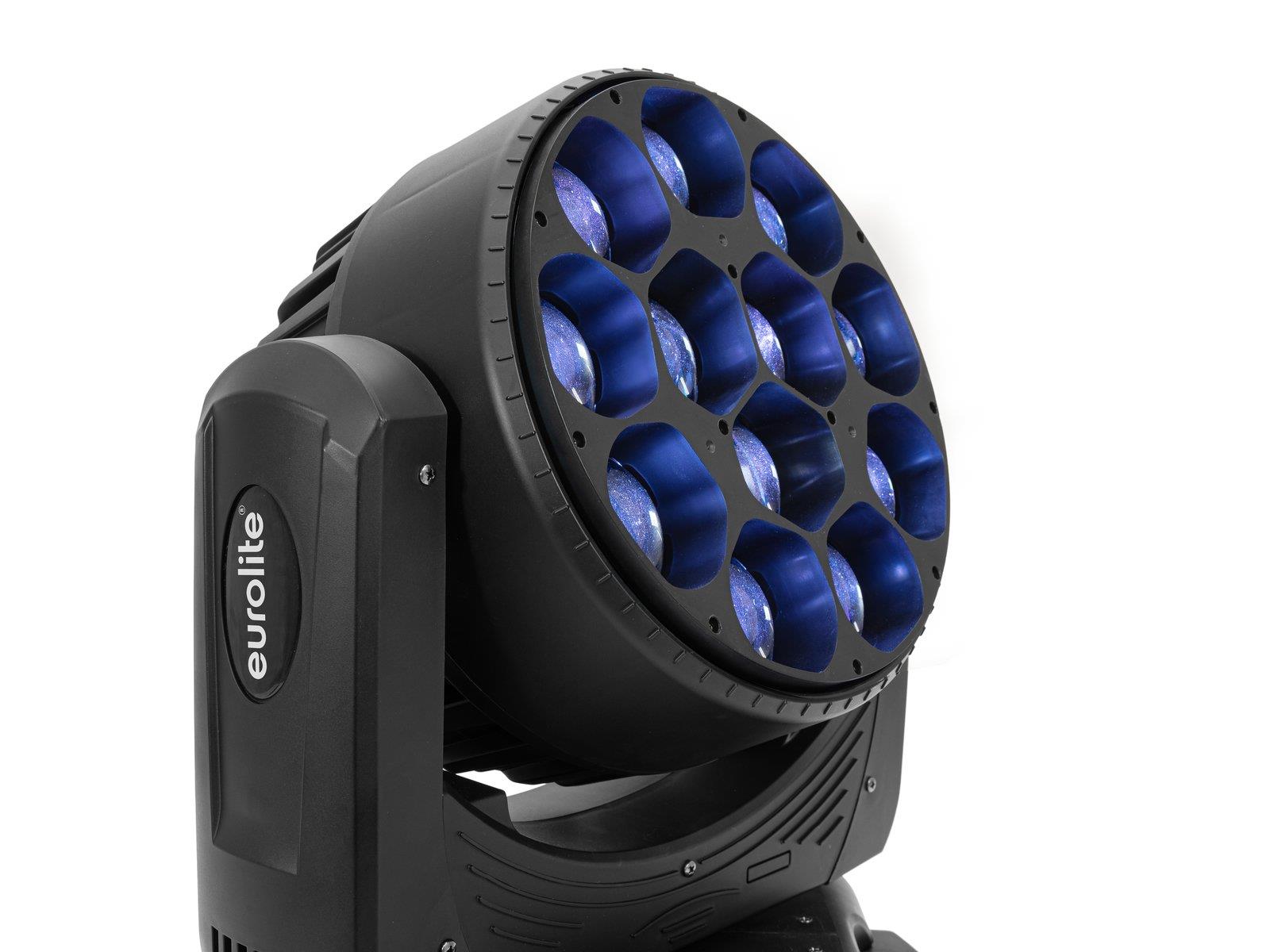

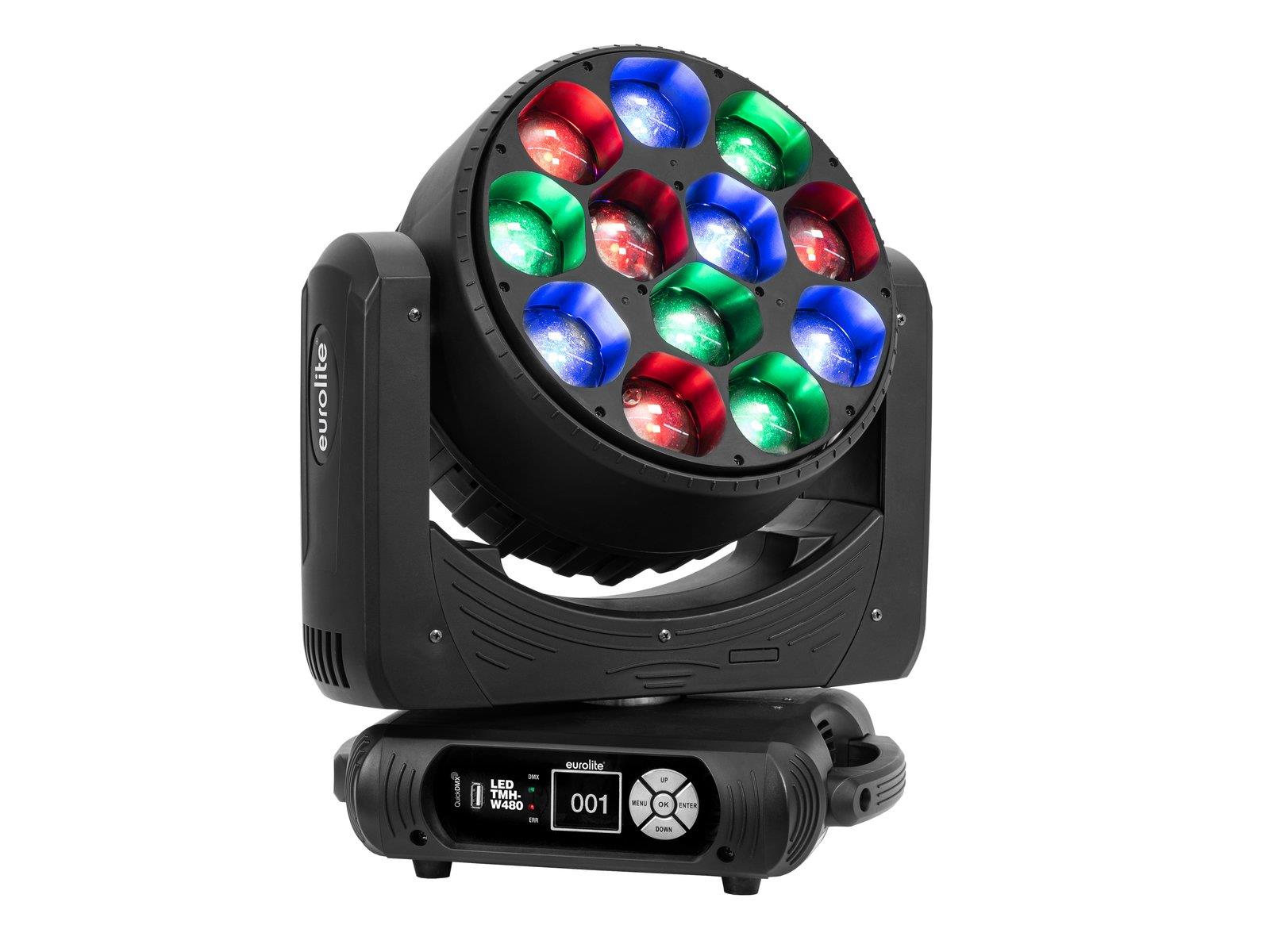

12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
12 LEDs separate controlling
Positioning within 540° PAN and 215° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Exact 16 bit resolution at Dimmer
Zoom motor-driven; Dimmer
Strobe effect
Integrated Show programs
Direct color selection
Can be operated in 11; 16; 18; 58 CH mode
The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the Base
Controlling by stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; Master/slave function
Flicker-free
With a beam angle of 1° - 35°
Multicolor LCD display
Color blend stepless; color change adjustable; patterns animated; background color adjustable
Preprogrammed in Light Captain

Specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 475 W
IP classification: IP20
Protection class: Protection class I

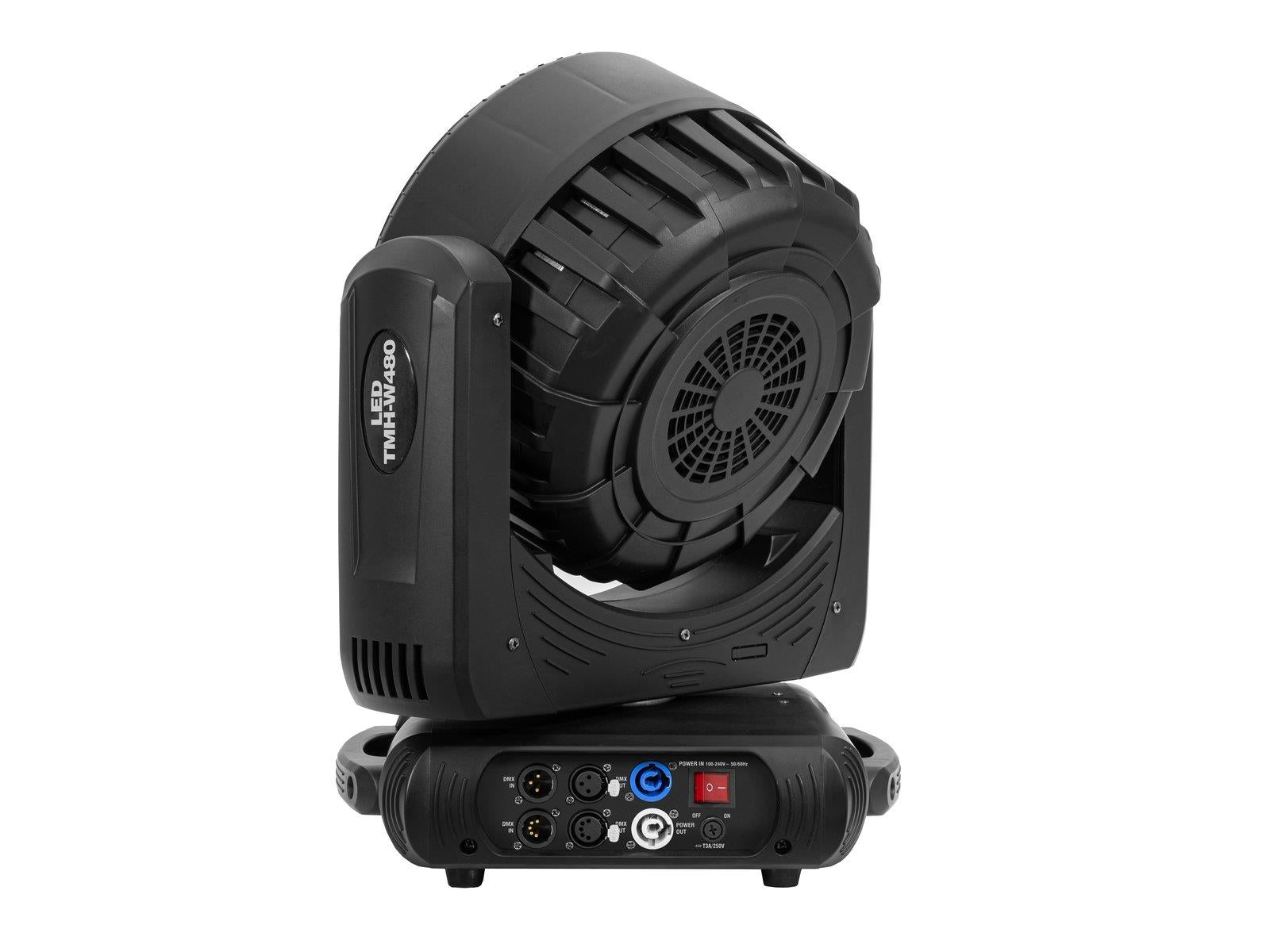

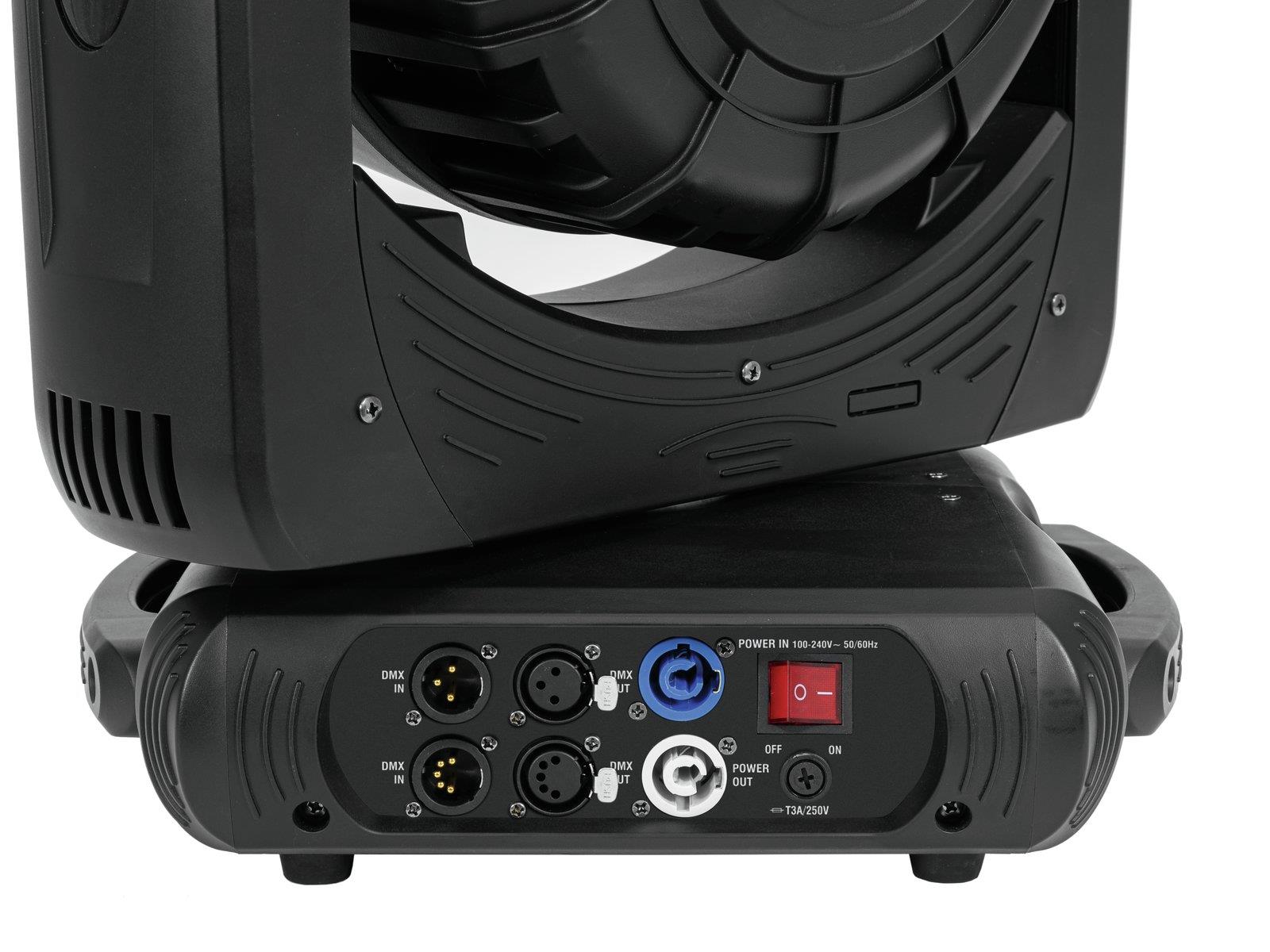

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: P-Con (gray), mounting version
Lamp type: LED lamp
LED: 12 x 40 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 215° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Equipment: Zoom motor-driven; Dimmer
DMX channels: 11; 16; 18; 58
DMX input: 3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Cooling: Temperature-controlled fan at the Head
Low-noise cooling fan at the Base
Control: Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; Master/slave function; Light Captain
Beam angle: 1° - 35°
Beam angle (1/2 peak): 1 - 18°
Beam angle (1/10 peak): 6 - 35°
Illuminance in Lux (lx): Narrow red (R) 1m: 10753 lx, 3m: 4966 lx, 6m: 1572 lx
Narrow green (G) 1m: 30231 lx, 3m: 12941 lx, 6m: 4189 lx
Narrow blue (B) 1m: 3586 lx, 3m: 2214 lx, 6m: 830 lx
Narrow cold white (CW) 1m: 29150 lx, 3m: 12657 lx, 6m: 4024 lx
Narrow all 1m: 66539 lx, 3m: 31156 lx, 6m: 10125 lx
Wide red (R) 1m: 2592 lx, 3m: 363 lx, 6m: 99 lx
Wide green (G) 1m: 7263 lx, 3m: 966 lx, 6m: 265 lx
Wide blue (B) 1m: 1368 lx, 3m: 188 lx, 6m: 51 lx
Wide cold white (CW) 1m: 6610 lx, 3m: 887 lx, 6m: 242 lx
Wide all 1m: 16995 lx, 3m: 2285 lx, 6m: 622 lx
Housing color: Black

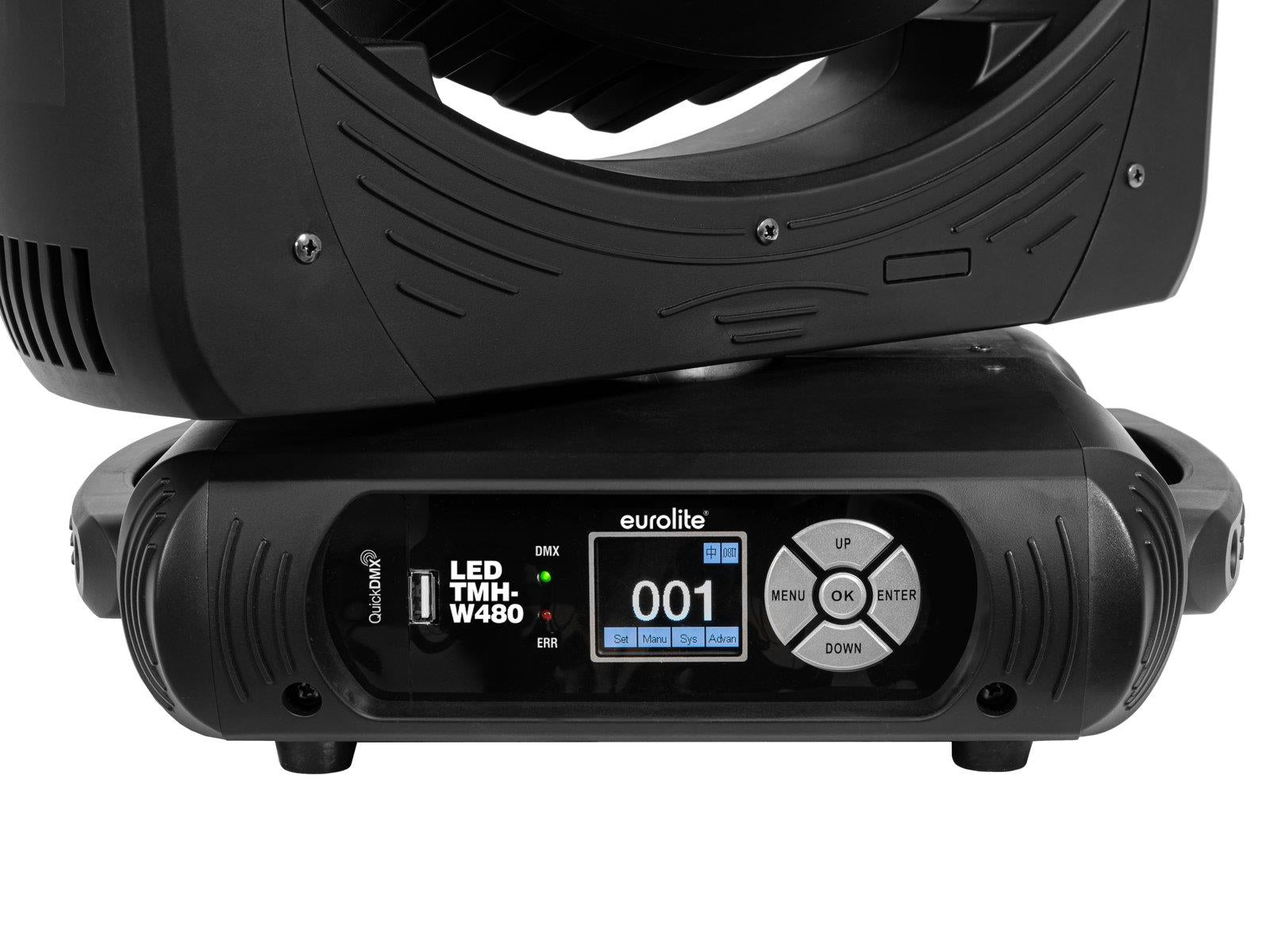

Display type: Multicolor LCD display
Dimensions:
Width: 39,0 cm
Depth: 27,0 cm
Height: 47,0 cm
Weight: 14,6 kg
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
