Eurolite Multiflood IP 24x40W RGBL Swing Frost

Description:

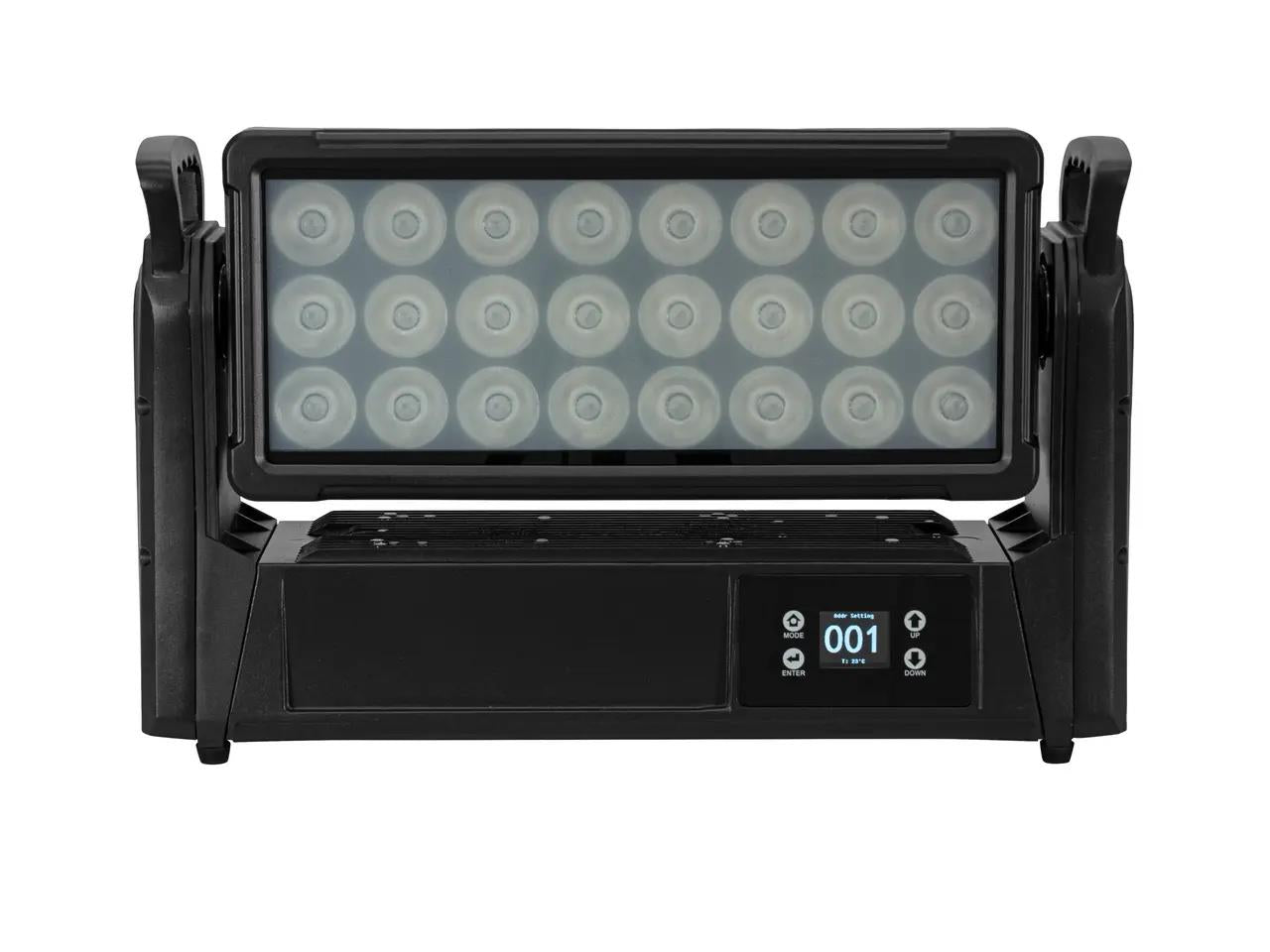

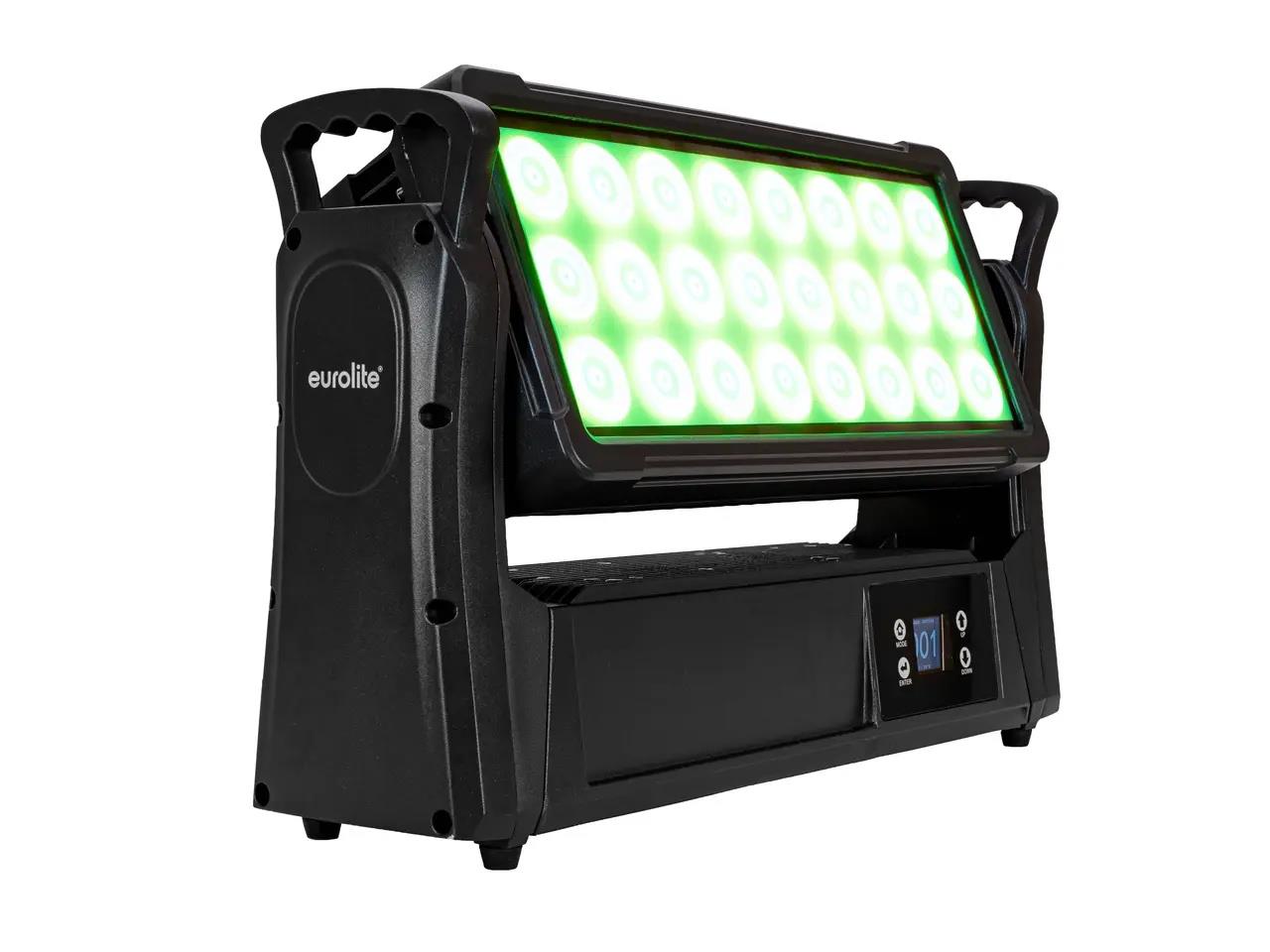

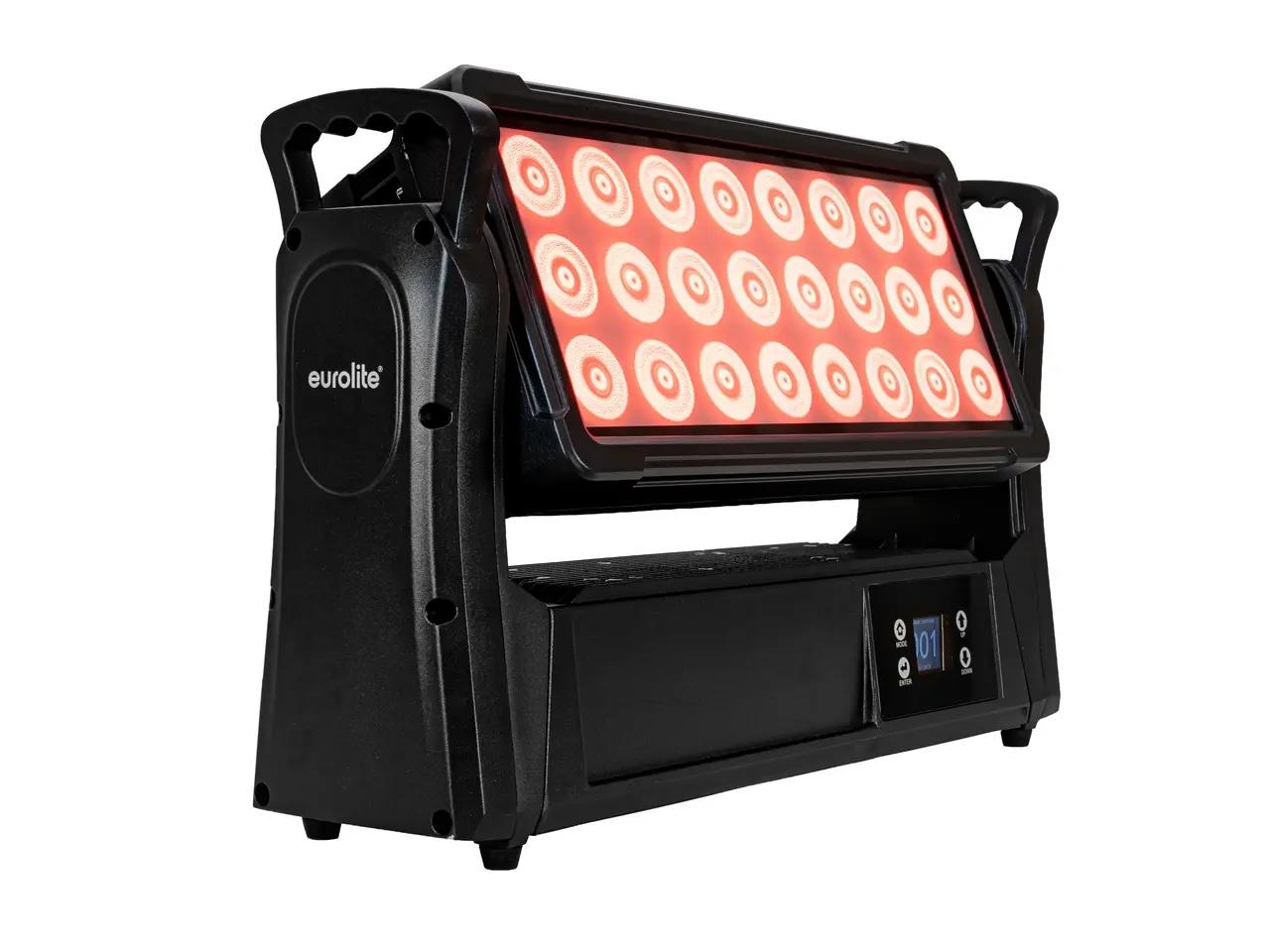

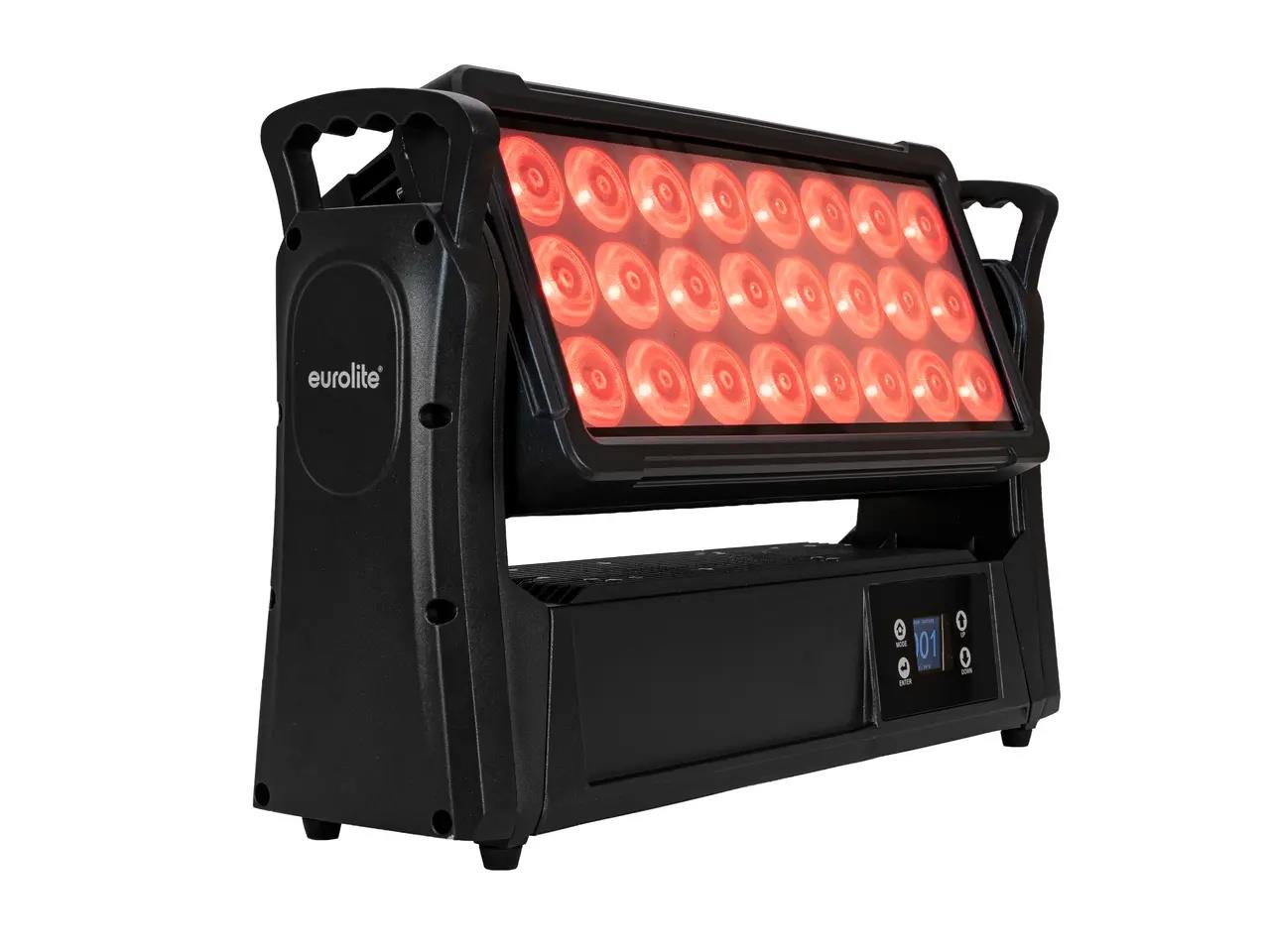

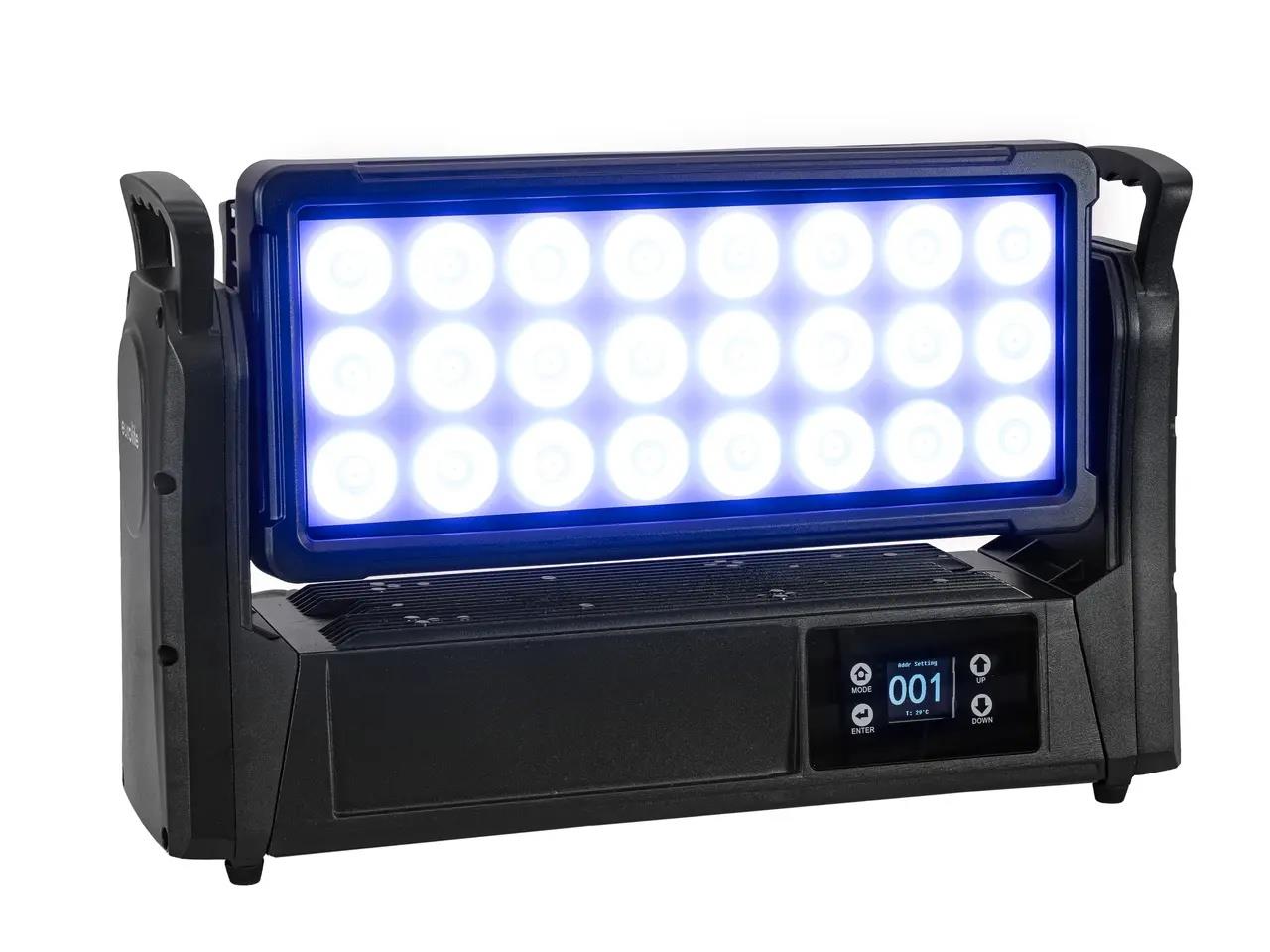

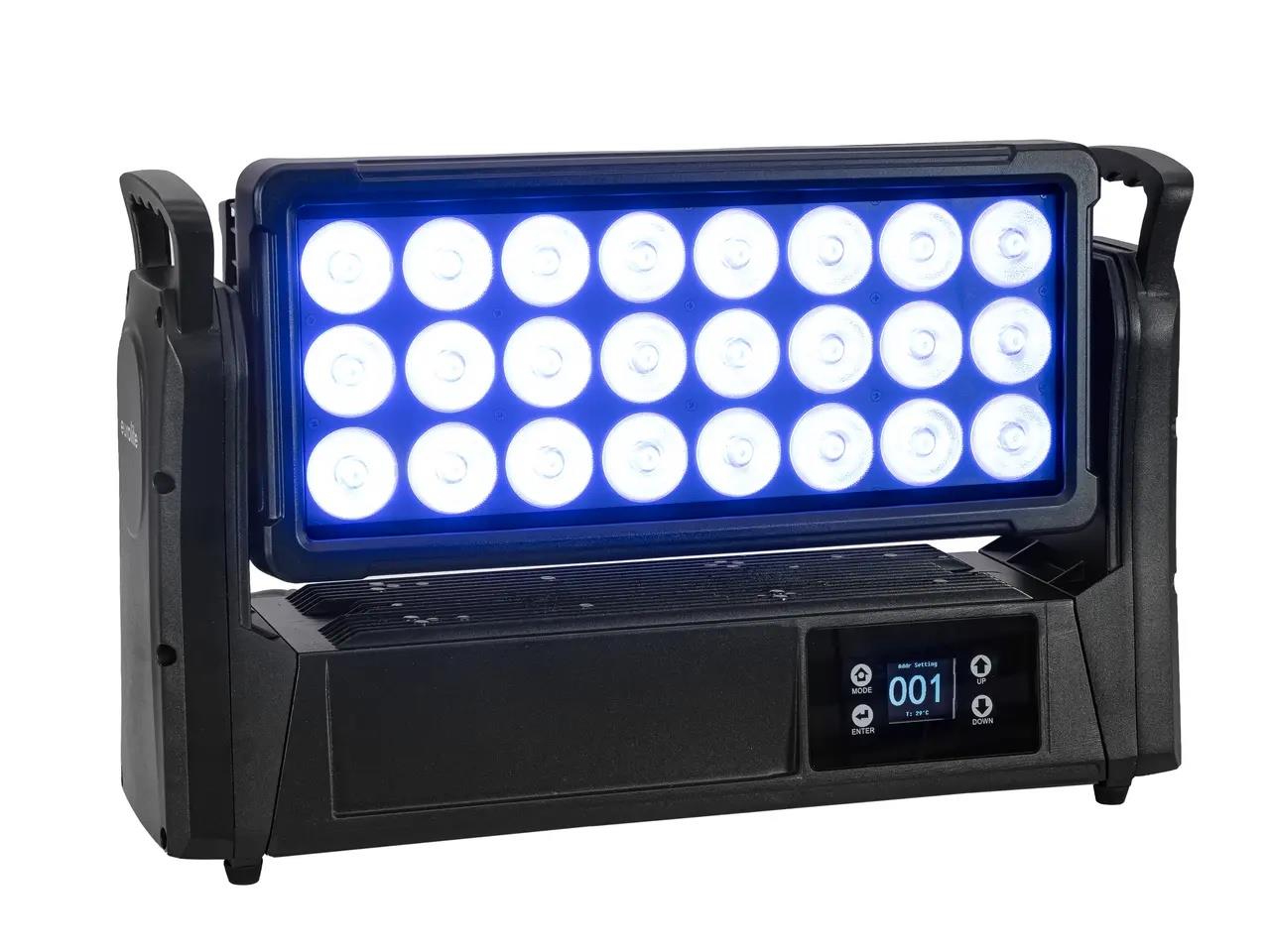

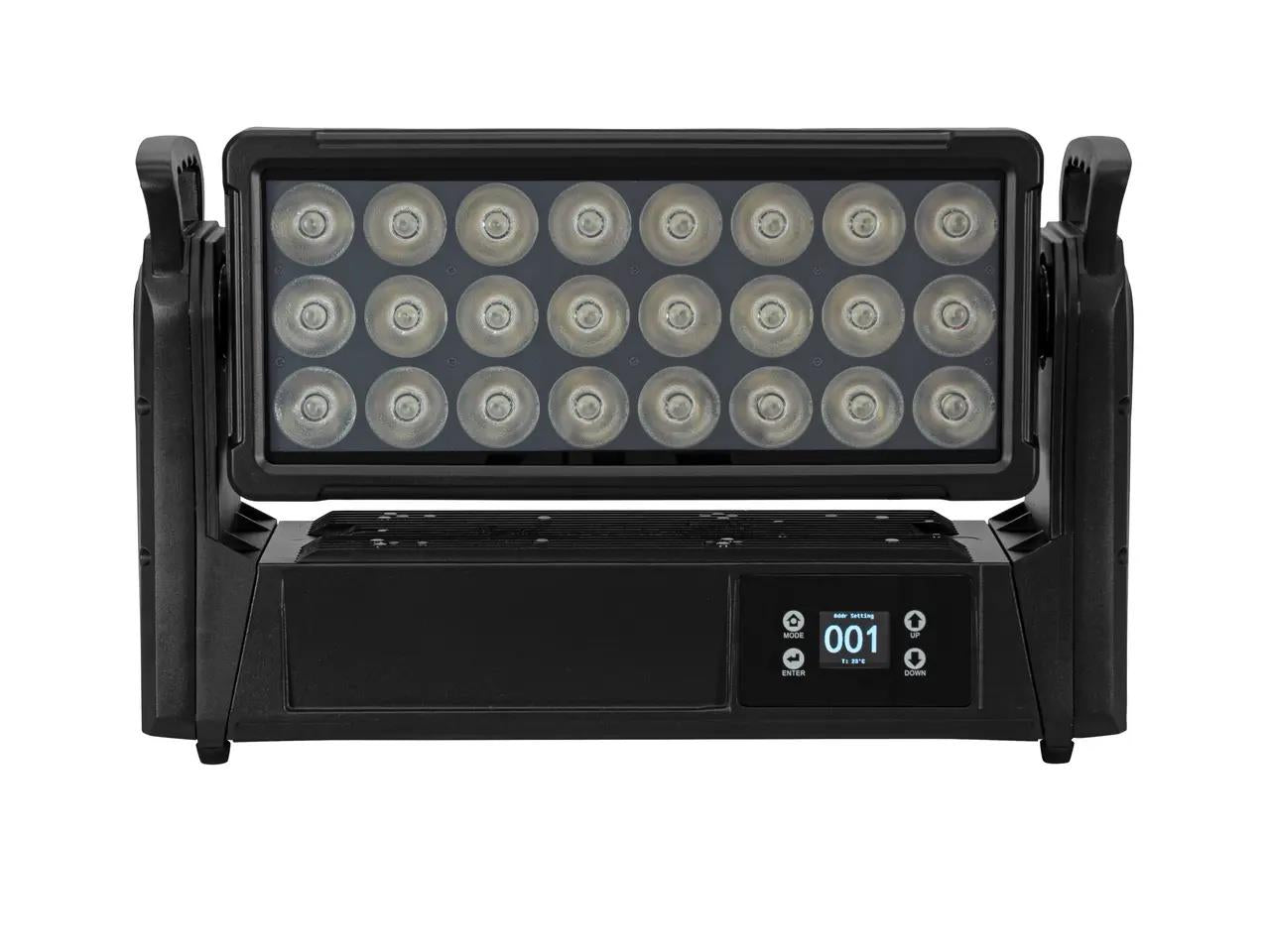

The EUROLITE Multiflood IP 24x40W RGBL SWING FROST is a powerful outdoor-rated LED effect fixture designed for beam, wash, flood, matrix, and architectural lighting applications. With an IP65 weatherproof housing, motorised 210° tilt movement, and 24 high-output 40W RGBL LEDs, it is ideal for stages, theatres, events, clubs, rental companies, installations, and outdoor productions requiring flexible and creative lighting control.

Each LED can be controlled individually, allowing the fixture to create precise pixel, matrix, and beam effects with an extremely narrow 2° beam angle. The RGBL colour system delivers intense colour mixing, improved orange and yellow tones, adjustable white colour temperatures from 2800K to 8100K, and a good colour rendering index of 81 Ra. With flicker-free output, high PWM frequency, and 16-bit resolution for dimming and colour control, the Multiflood IP provides smooth, professional results for live performance, broadcast, and installation use.

A key feature of the fixture is its stepless electronic frost filter, which allows the narrow beam to be transformed smoothly into a wide wash of up to 35°. This makes the unit highly versatile, switching quickly between tight aerial beam effects, uplighting, wide flood coverage, and soft wash lighting. With DMX, RDM, stand-alone, and master/slave control, 52 integrated show programmes, power linking, a multicolour TFT display, omega brackets, and silent operation depending on mode used, the Multiflood IP is a robust all-rounder for demanding professional lighting environments.

Features

Outdoor-rated motorised LED spotlight
IP65 weatherproof housing
24 x 40W RGBL SMD LEDs
RGBL colour mixing for rich colours and improved white tones
Stepless electronic frost filter
Beam, wash, flood and pixel effects
Adjustable beam angle from 2° to 35°
Individual LED control for matrix effects
Motorised tilt movement up to 210°
Good colour rendering index of 81 Ra
Variable colour temperature from 2800K to 8100K
Flicker-free projection
10,000 Hz PWM frequency
16-bit resolution for dimmer and colour control
Electronic dimmer and stepless colour blending
Adjustable colour macros
Adjustable motion macro speed
Adjustable foreground and background colours
52 integrated show programmes
Direct colour temperature selection with 33 preset values
DMX, RDM, stand-alone and master/slave control
Multiple DMX channel modes
Compatible with Light Captain, Colorchief and GDTF GrandMA3
Multicolour TFT display
Includes omega brackets
Power input and output for linking up to 8 units
Pressure compensation membrane
Temperature-controlled cooling fans
Silent operation depending on mode used
Suitable for standing or suspended installation
Ideal for clubs, events, stages, theatres, rental, installations and architecture

Specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 350 W
IP classification: IP65
Protection class: Protection class I
Power connection: Mains input via IP T-Con male mounting version with supplied safety plug power cord
Cable construction: 3 x 1.5 mm² H07RN-F
Power output: 1 x IP T-Con female mounting version bypass
Fuse: T 5 A serviceable fuse
Lamp type: LED lamp
LED type: 24 x 40 W SMD 5060 4in1 RGBL
LED colour mixing: Homogeneous colour mix
Effective LED power: Max. 105 W with single colours, max. 250 W with colour blend
Tilt movement: 210° positioning
Flash rate: 0.6 - 20 Hz
DMX channels: 6, 7, 10, 13, 16, 28-1, 28-2, 100, 106

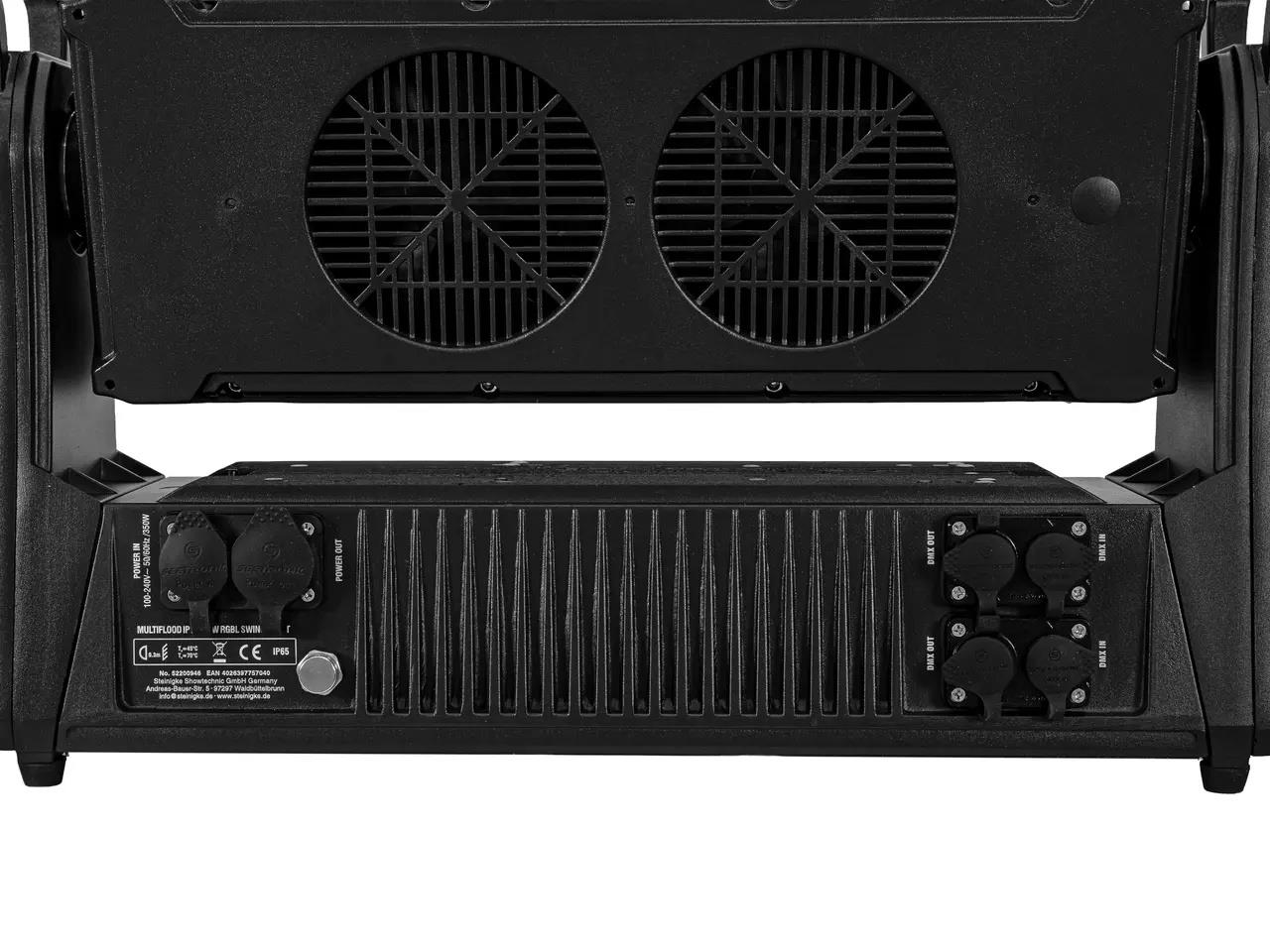

DMX input: 1 x 3-pin XLR male IP mounting version, 1 x 5-pin XLR male IP mounting version
DMX output: 1 x 3-pin XLR female IP mounting version, 1 x 5-pin XLR female IP mounting version

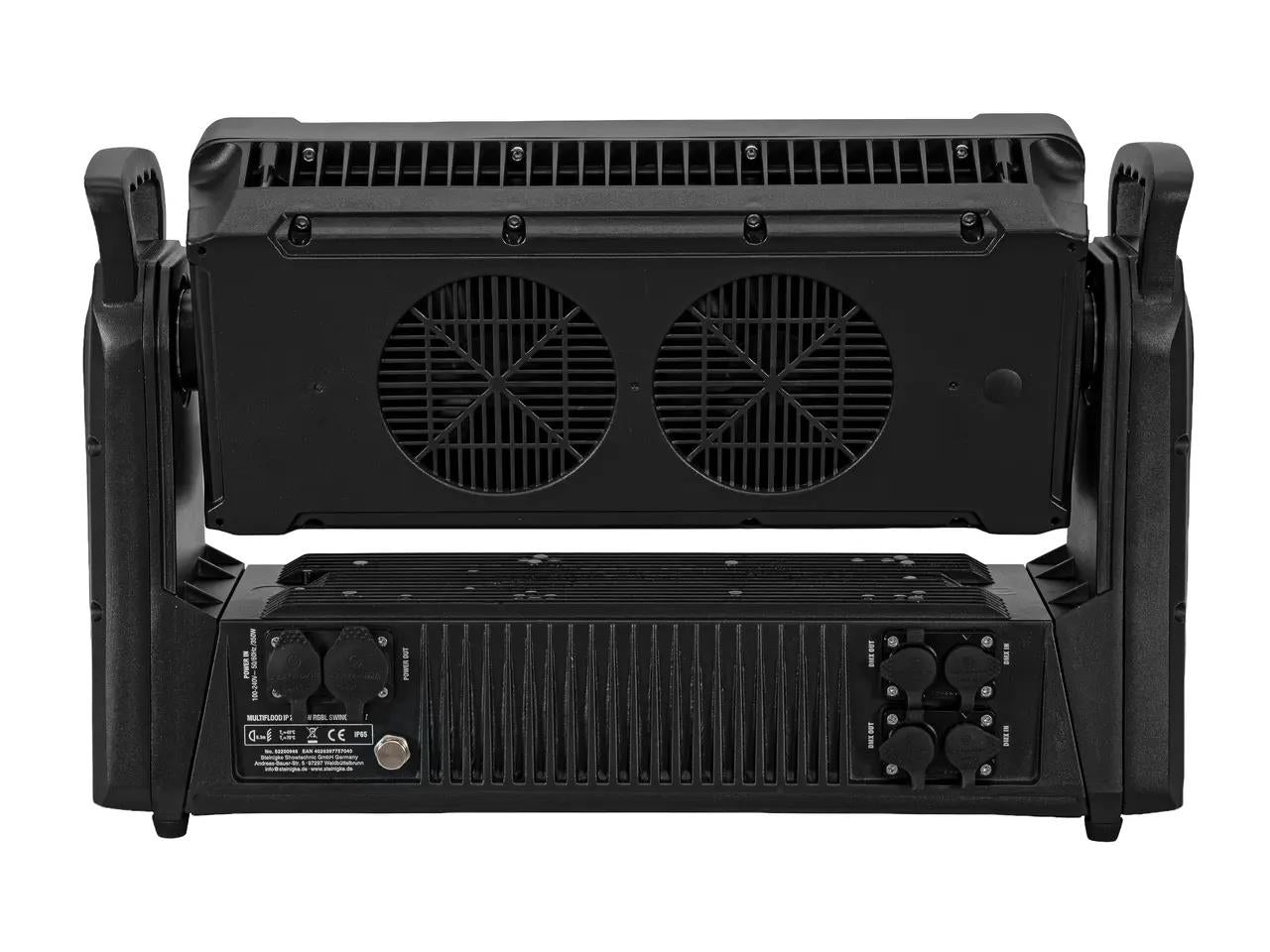

Cooling: 2 x temperature-controlled fans at the head, 1 x cooling fan at the base
Control: DMX, stand-alone, master/slave function, RDM
Fixture compatibility: Light Captain, Colorchief, GDTF GrandMA3
Projection: Flicker-free
PWM frequency: 10000 Hz
DMX features: RDM for bidirectional communication over the DMX line
DMX fail mode: Blackout, hold, auto
Beam angle: 2° - 35° with frost filter
Beam angle 1/2 peak: Frost filter 2° - 30°
Beam angle 1/10 peak: Frost filter 10° - 35°
Colour temperature: 2800K - 8100K adjustable
Colour rendering index: 81 Ra
Illuminance narrow red: 1m 13473 lx, 3m 5295 lx, 6m 1578 lx
Illuminance narrow green: 1m 27854 lx, 3m 8955 lx, 6m 2664 lx
Illuminance narrow blue: 1m 3729 lx, 3m 1774 lx, 6m 538 lx
Illuminance narrow lime: 1m 45989 lx, 3m 14182 lx, 6m 4137 lx
Illuminance narrow all colours: 1m 57067 lx, 3m 18121 lx, 6m 5324 lx
Illuminance wide red: 1m 1688 lx, 3m 216 lx, 6m 60 lx
Illuminance wide green: 1m 2514 lx, 3m 296 lx, 6m 81 lx
Illuminance wide blue: 1m 461 lx, 3m 56 lx, 6m 16 lx
Illuminance wide lime: 1m 4428 lx, 3m 524 lx, 6m 142 lx
Illuminance wide all colours: 1m 5470 lx, 3m 654 lx, 6m 175 lx
Housing colour: Black matte

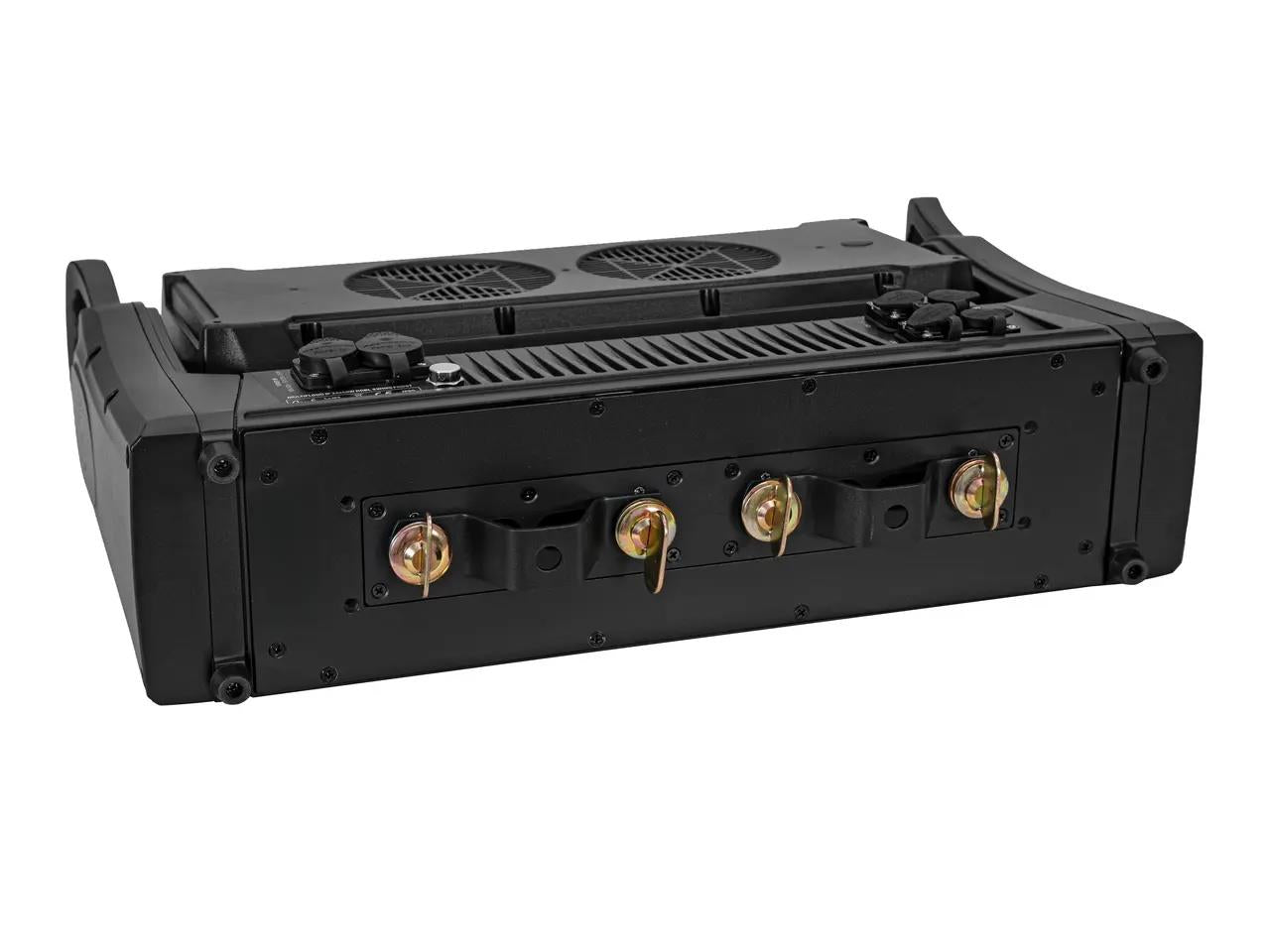

Attachment system: 2 x omega bracket

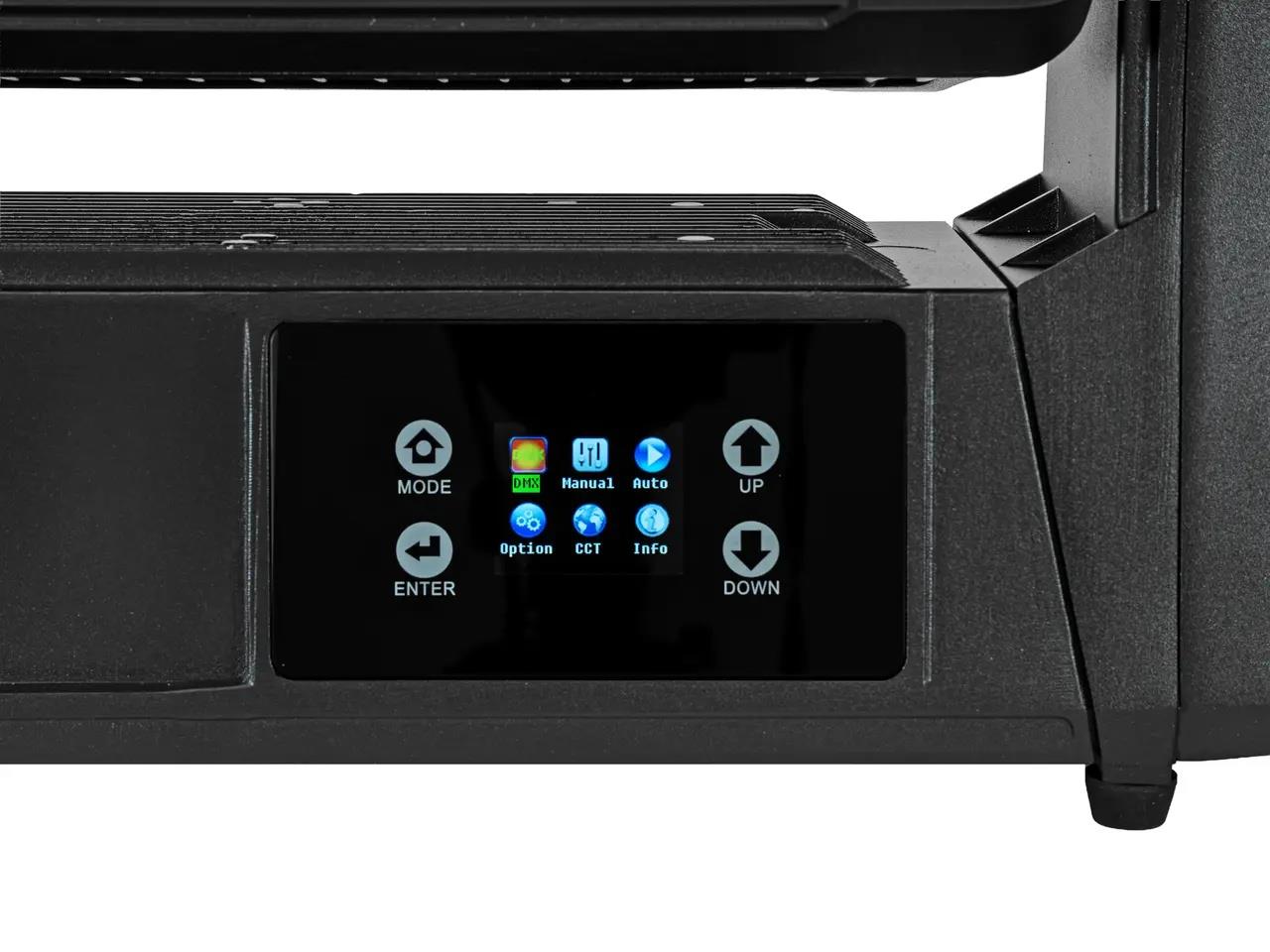

Display type: Multicolour TFT display
Carrying handles: 2
Transport aid: 4 x rubber feet
Mounting hole diameter: 2 x Ø12 mm
Connectors: Built with SEETRONIC connector
Material: 2.5 mm painted metal, plastic
Dimensions: 528 x 139 x 326.5 mm
Weight: 10.90 kg
Noise classification: Class 0, no noise at all depending on mode used
Special product: Not designed for household room illumination
Intended use: Show effect lighting
