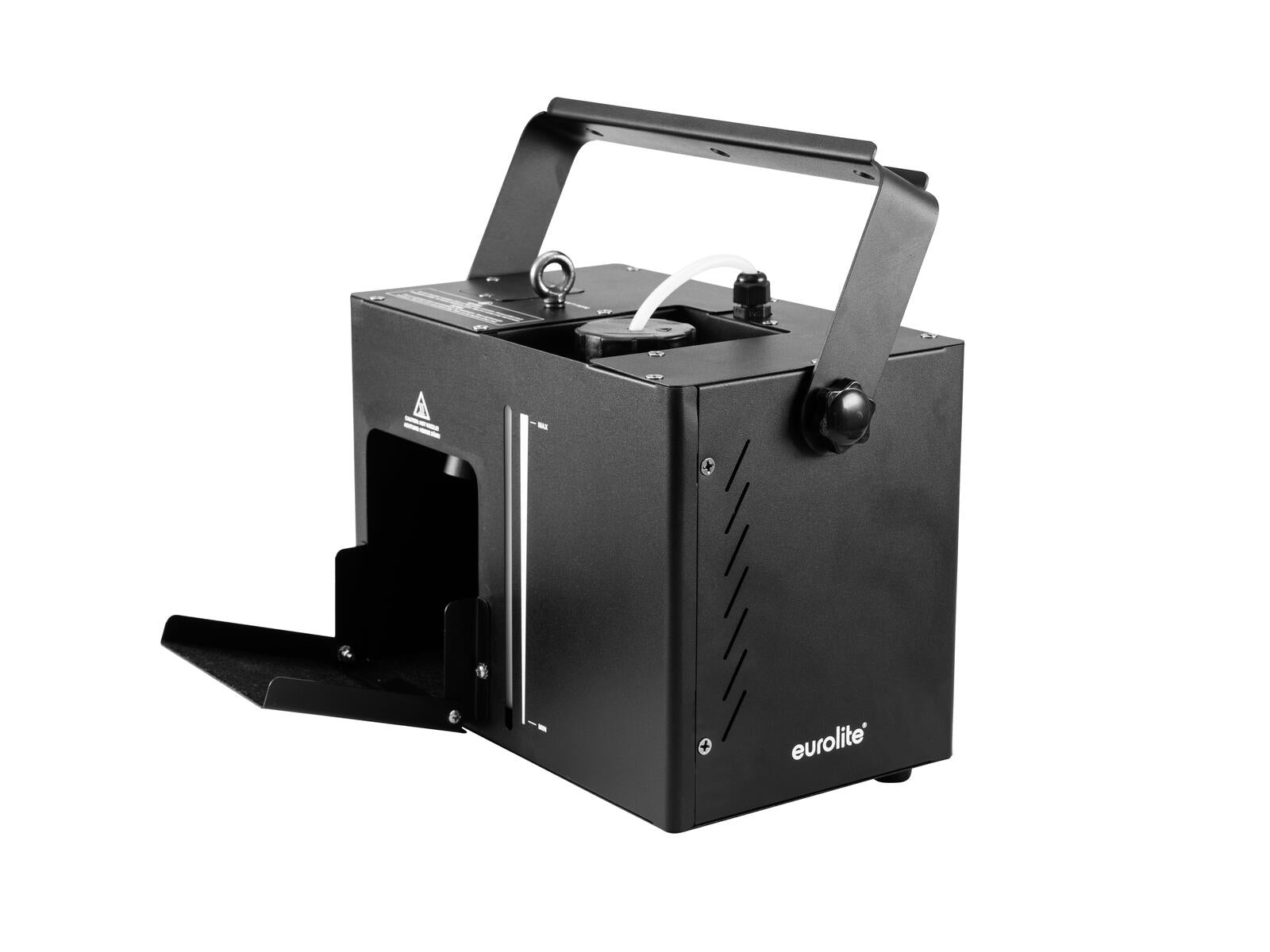

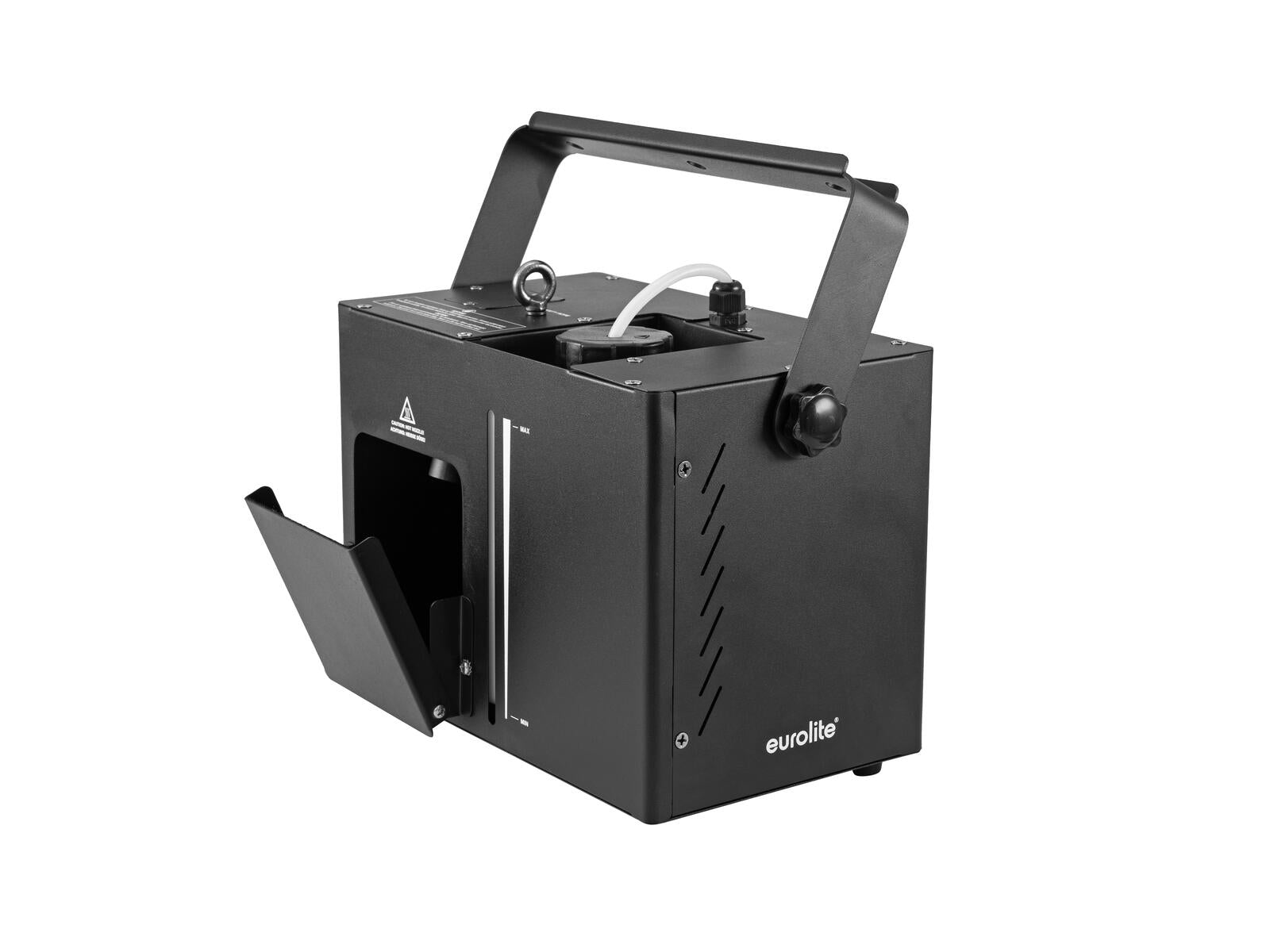

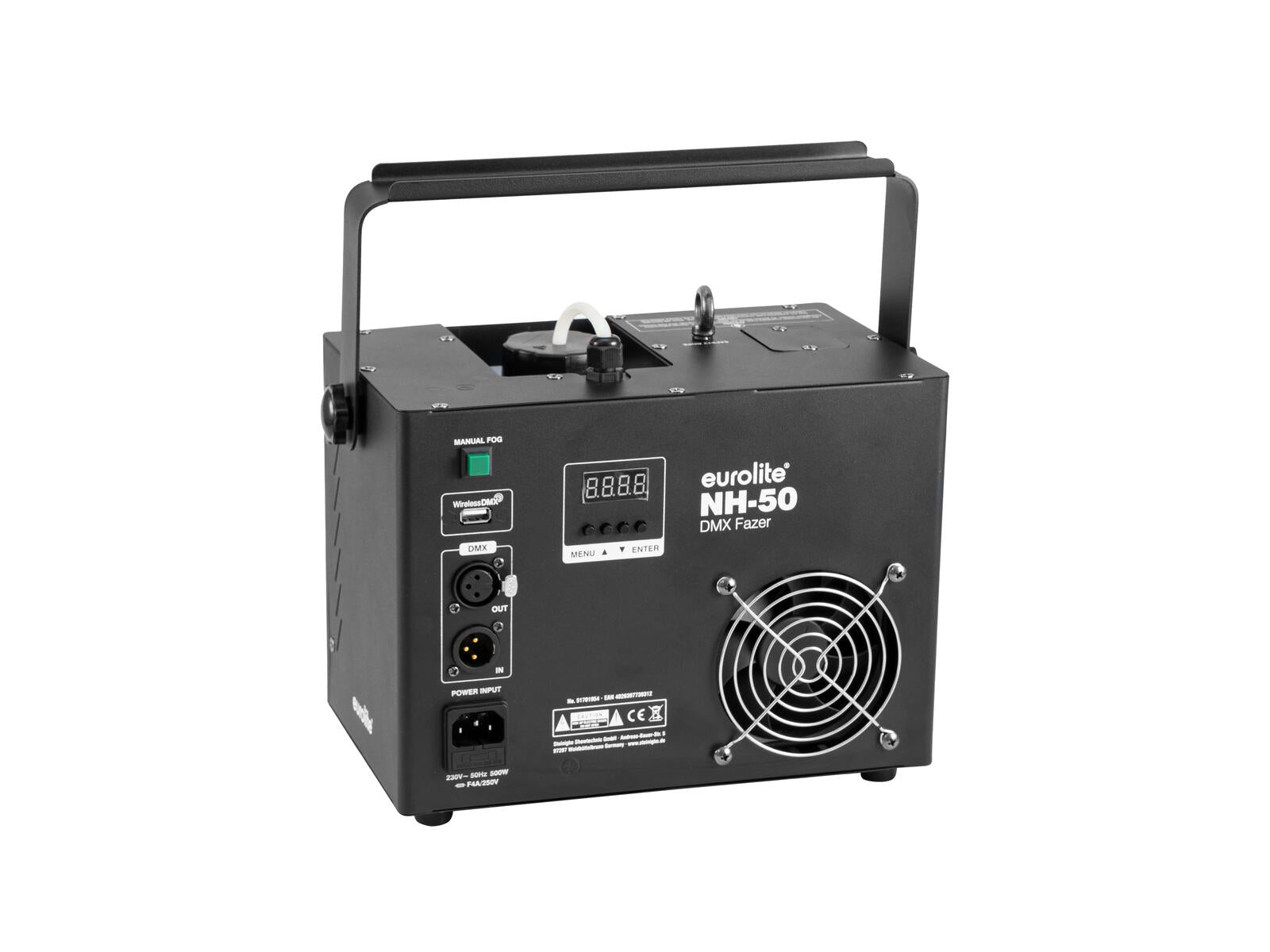

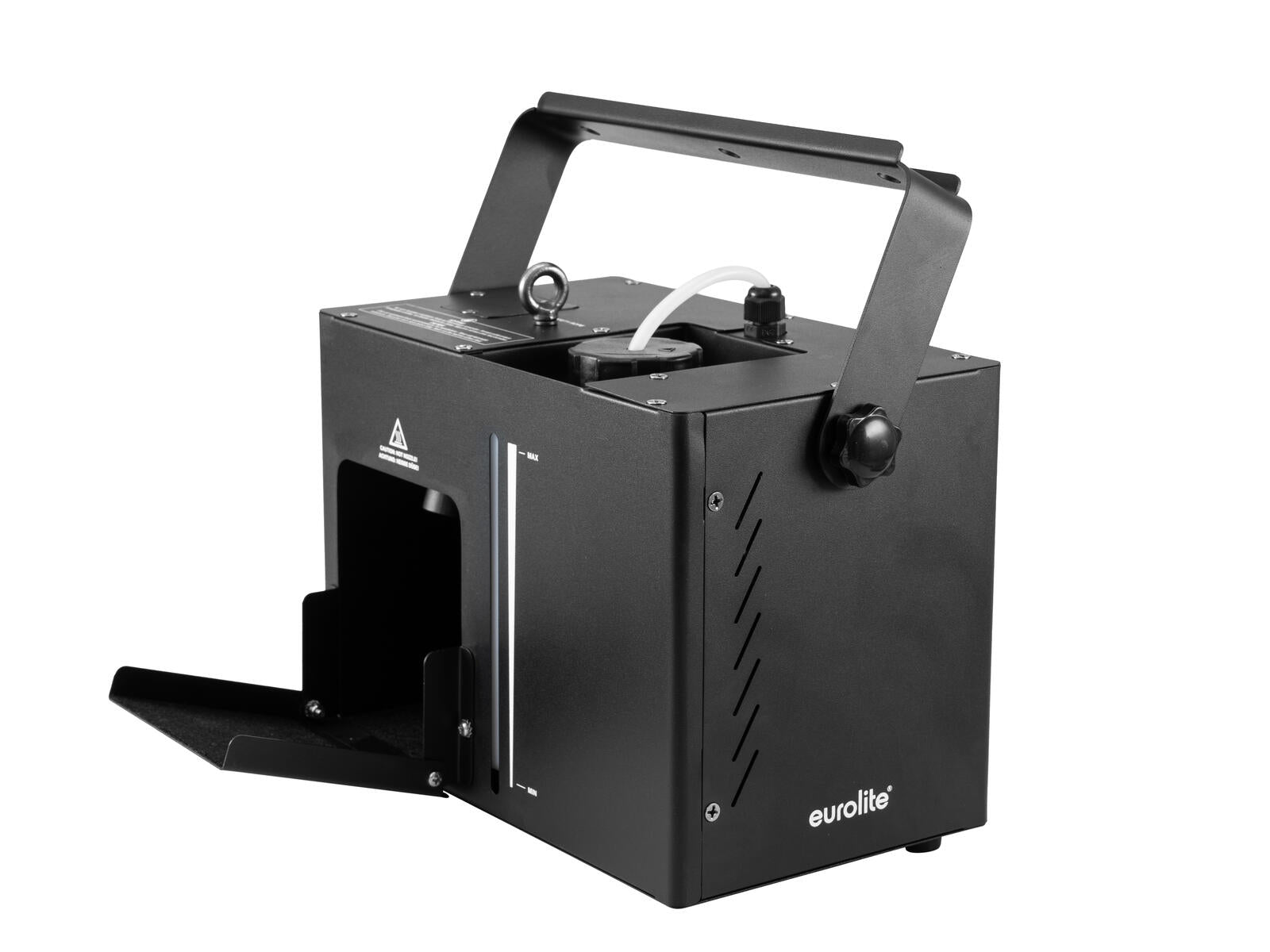

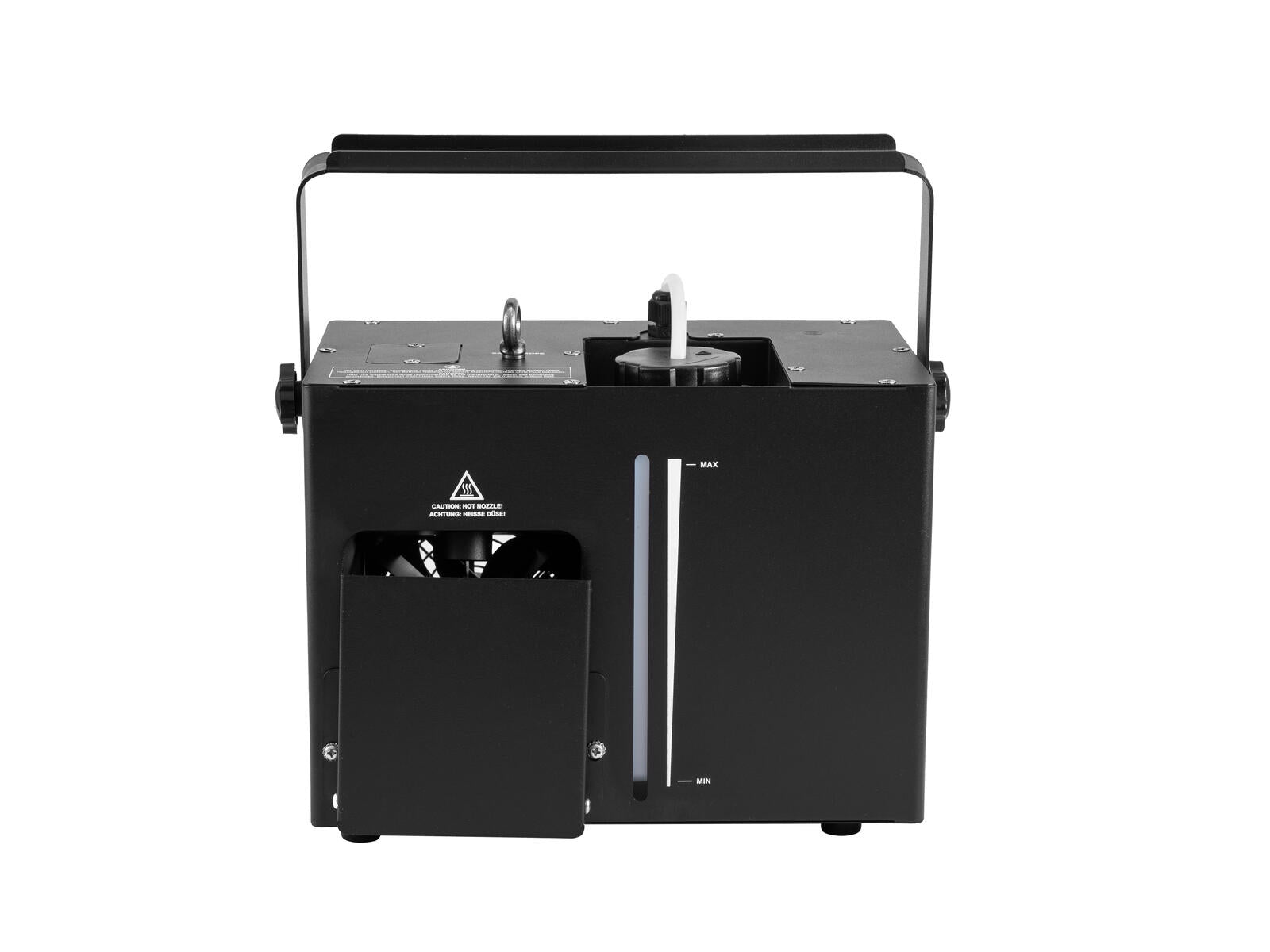

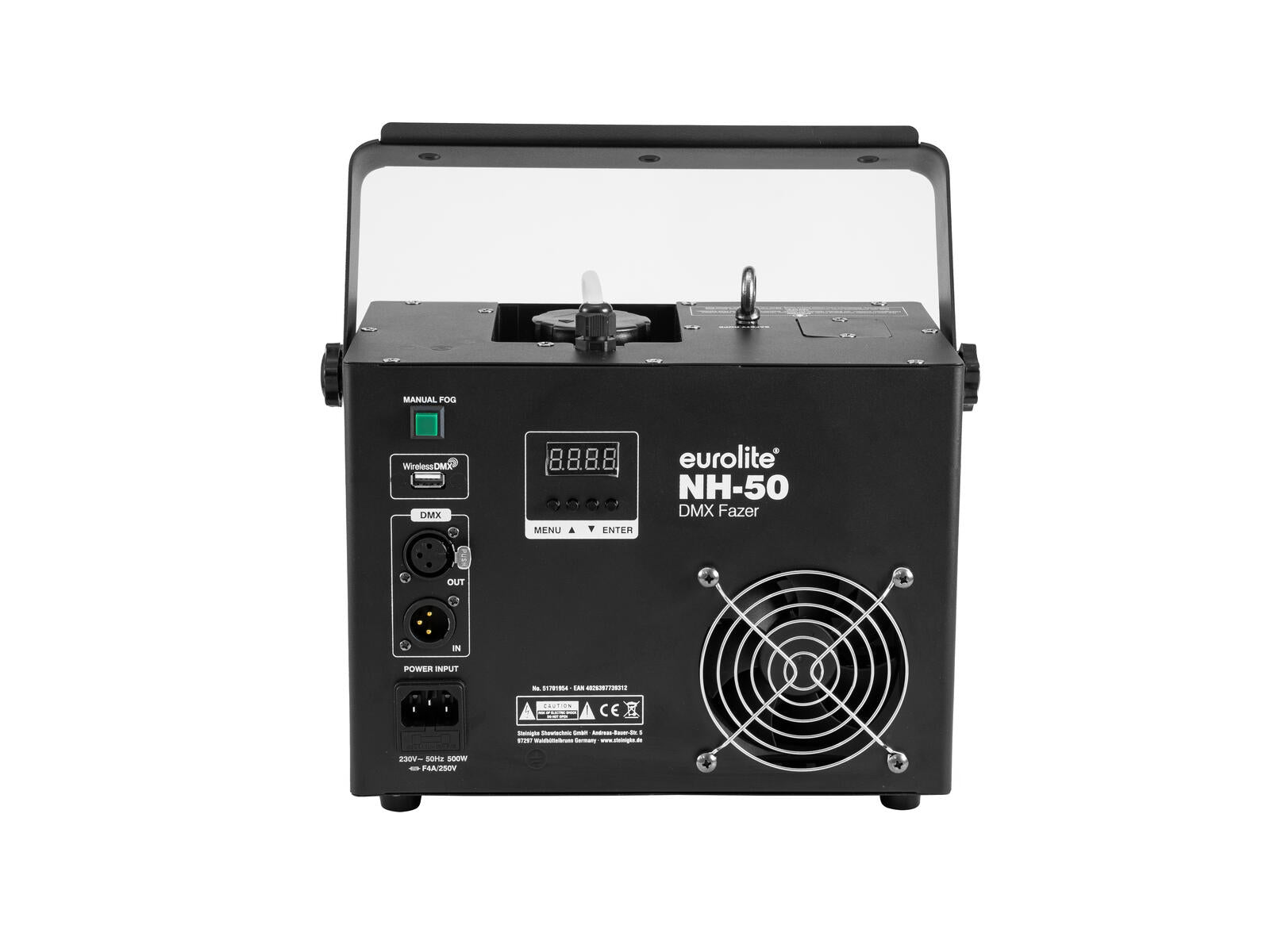

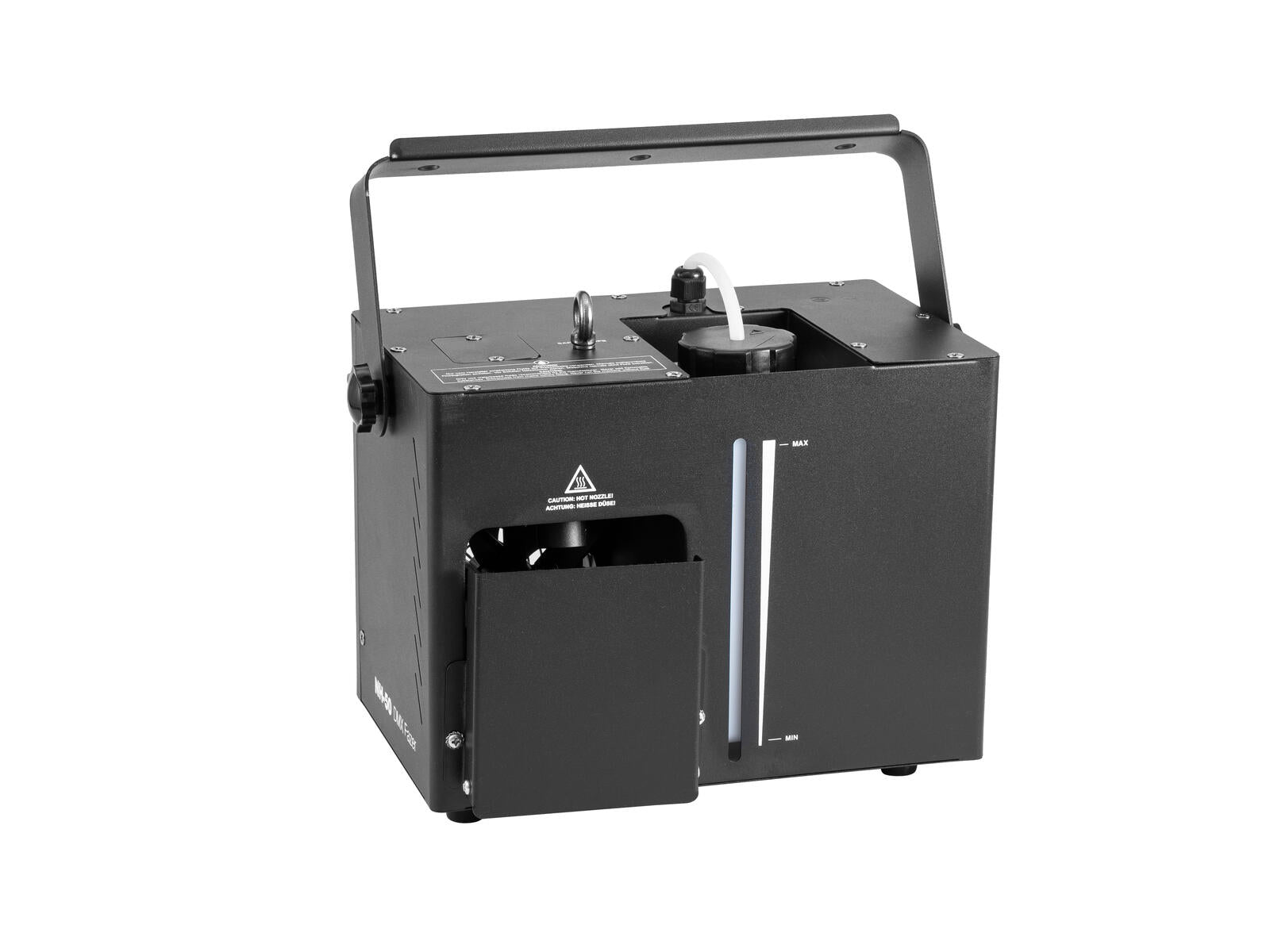

EUROLITE NH-50 DMX Fazer 500W Adjustable Output Angle

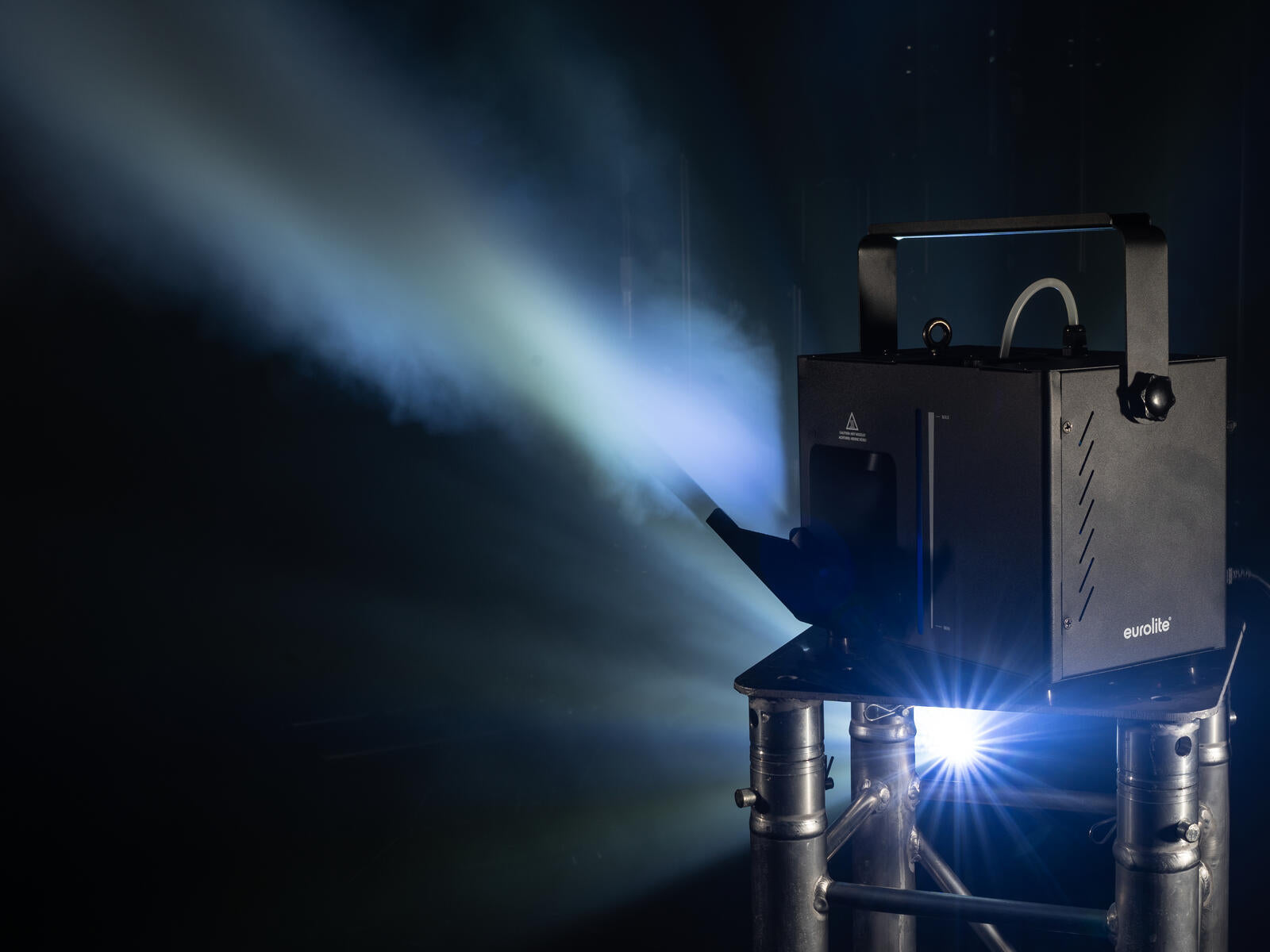

The EUROLITE NH-50 DMX Fazer is a compact and efficient solution for venues needing fine, translucent haze effects without overwhelming the space. Designed for versatility and portability, it’s ideal for mobile DJs, event professionals, and fixed installations. It features an adjustable vertical output angle for optimal fog distribution, integrated auto temperature control, and a removable backlit fluid tank. Compatible with multiple wireless DMX standards, including QuickDMX, W-DMX, and CRMX via optional USB modules, the NH-50 supports DMX and stand-alone operation, offering maximum control flexibility.

Features
Produces fine, translucent haze to highlight lighting and lasers
Vertically adjustable output angle for targeted haze direction
Short 1.5-minute warm-up time
Auto temperature control for reliable operation
Backlit removable tank with 1.3L capacity
Multiple control modes including DMX, stand-alone, master/slave, and optional wireless via USB
Compact form with 7-segment LED display
Durable painted metal housing
Includes mounting bracket for floor or hanging installation
Ideal for mobile DJs, clubs, weddings, and events

Specifications
Power supply - 230 V AC, 50 Hz
Power consumption - Approx. 500 W
IP classification - IP20
Protection class - Protection class I
Power connection - IEC mains input (male) with safety plug
Fuse - 5 x 20 mm, F 4 A (replaceable)
Warm-up time - Approx. 1.5 min
Output volume - Approx. 170 m³/min
Output distance - Approx. 2.0 m
Output duration - Continuous
Tank capacity - 1.3 L water-based fluid
Fluid consumption - Approx. 5.7 ml/min in Faze mode
DMX channels - 1
DMX input - 1 x 3-pin XLR (male)
DMX output - 1 x 3-pin XLR (female)
Control - DMX, stand-alone, master/slave, QuickDMX via USB (optional), W-DMX via USB (optional), CRMX via USB (optional)
Housing color - Black matte
Mounting system - Metal mounting bracket
Operating principle - Vaporizing fog machine with air compressor
Display - Monochrome 4-digit 7-segment LED
Controls - Overheat protection
Material - Painted metal
Dimensions (L x W x H) - 30 x 18.5 x 29.5 cm
Weight - 3.53 kg
Power cord length - Approx. 1.2 m
Mounting hole diameter - 3 x Ø10 mm
