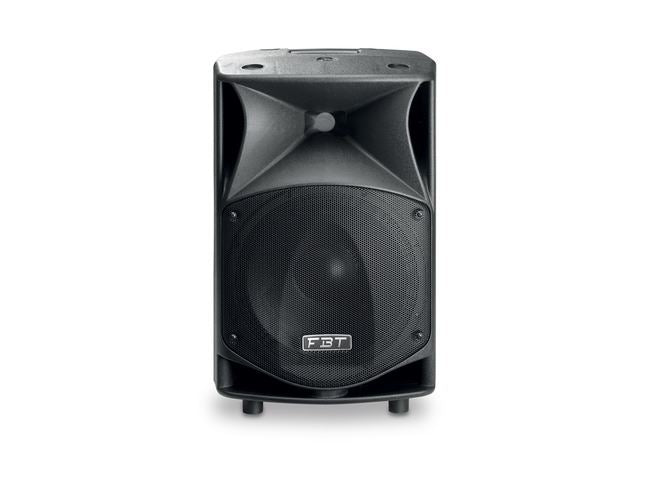

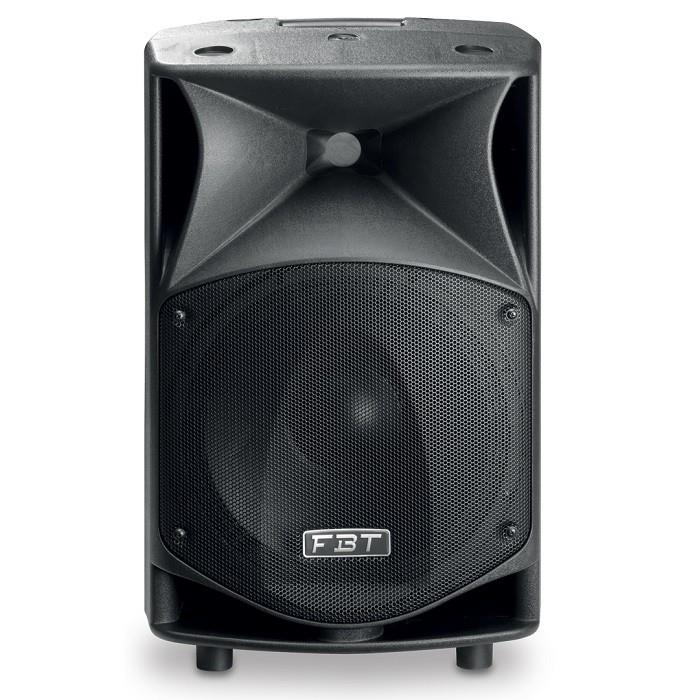

The new FBT J MaxX series combines ease of use and versatility for many portable or installed sound applications: musicians, DJs, AVL contractors, rental sound reinforcement, corporate events, houses of worship, bars and clubs. With its eye-catching gas-injected forms designed to virtually eliminate undesired enclosure resonance and reinforce strong low-frequency performance, the JMaxX series of powered loudspeakers are available in three elegantly crafted two-way models: the 14-inch J MaxX 114A; the 12-inch J MaxX 112A; and the 10-inch J MaxX 110A. All are equipped with FBT’s latest 90° x 60° HF horn design which delivers improved projection, accuracy, and dispersion of the mid and high frequencies.
Providing a myriad of possibilities for bands, DJs and solo artists, as well as for permanent installations, each J Maxx model is actually four loudspeakers in one. Derived from a decade of experience of portable sound reinforcement, the carefully tailored equalisation presets offer a highly intelligible response for vocals and floor monitoring; slightly boosted response in lounge bar applications; punchy and forward sound for DJs and night venues; and a general-purpose EQ setting that mirrors the original and familiar FBTMaxX voicing.
Common to all J MaxX models is FBT’s latest-generation lightweight 700W + 200W Class D power amplifier with universal switch-mode power supply, delivering abundant power and headroom to reproduce even the largest transients without distortion. XLR inputs and outputs, volume control, the EQ presets and filters, and ground lift switch are all conveniently located on a clearly laid out rear panel, making loudspeaker setup and operation intuitive and consistently repeatable.
J MaxX’s versatility is further underscored by the many mounting and fixing options that the ergonomically styled cabinets provide. Mounting in fixed installations are made easy using the M10 suspension points or wall bracket flange plates, while portable use is facilitated by the built-in 35mm pole mount socket. There’s no need for separate stage monitors, as J MaxX’s cabinet profiles are designed with 12°, 40°, and 55° wedge angles, and when used with the specific floor monitoring EQ presets, will ensure that performers hear themselves with ultimate clarity
2-way, bi-amplified bass reflex design cabinet
700W RMS LF, 200W RMS HF, Class D power amplifiers with switch mode power supply
DSP with 4-EQ presets
Control panel with XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Stage monitor angling facility with 12°, 40° or 55° taper
12” LF woofer with 2” voice coil
1’’ exit throat HF compression driver with 1” voice coil
Frequency response from 48Hz to 20 kHz
