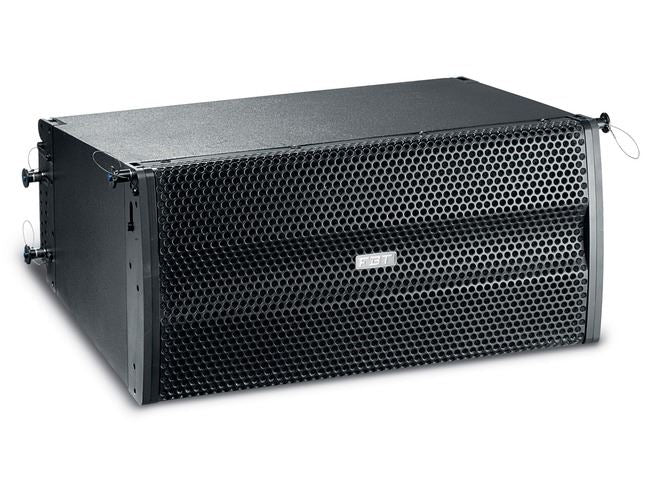

FBT Audio QA 108

Description
PRECISION COVERAGE VERTICAL PASSIVE ARRAY350W + 200W RMS @ 8 ohm - 123dB Cont SPL - 131dB Peak SPL - (Bi-Amp LF/HF Cont. 120dB/127dB) - (Bi-Amp LF/HF Peak 123dB/131dB)The QA 108 Line array system is FBTs latest development in the growing demand for compact and portable professional line arrays. Both the QA 108 passive and the QA 108A powered models feature extraordinary power output, clarity and flexibility to deliver high quality audio reproduction in attractive, compact, easy to handle and affordable systems.

Features
Precision coverage vertical passive array
350W + 200W RMS 8OHM
Maximum SPL cont 123dB (Bi-Amp LF/HF) (120dB/127dB)
Maximum SPL peak 131dB (Bi-Amp LF/HF) (123dB/131dB)
1 x 200mm (8") B&C neodymium woofer with 2 coil
150mm (6") neodymium Pleated Diaphragm Tweeter with a cylindrical 10�V x 100�H waveguide
Frequency response from 68Hz-23kHz
Trapezoidal shape compact enclosure with an angle of 10V�, and are constructed with 12 mm (1/2") Baltic birch plywood and finished with scratch and scuff resistant black paint
Heavy duty metal grille with cloth protect the drivers from dust and moisture. The cabinets are provided with two integrated aluminium fly hardware for suspension allowing settings in 1� steps from 0� to 10�
Dual mode passive internal crossover (Full-range or Bi-Amp configurable)
NeutrikSpeakon NL-4MDV connectors IN & LINK OUT *External digital processor required


Specification
Configuration:Line Array - 2 Way
Frequency response:68Hz - 23kHz
Low frequency woofer:8"
High frequency driver:6" Neodymium Pleated Diaphragm (Planar)
Dispersion:100 x 10 (H x V)
Net Dimension (WxHxD):455 x 220 x 350mm
Transport Dimension (WxHxD):580 x 295 x 480mm
