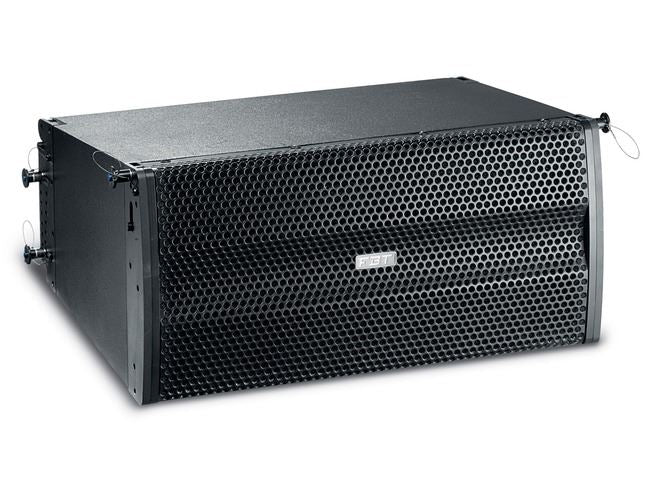

FBT Audio QA-108A
FBT Audio QA-108A

FBT Audio QA-108A

£2,095.50
£2,095.50
The QA108 is part of a QUBE line array system this two way Active speaker our 350/80 W RMSamp module is built in to drive the 8" neodymium magnet woofer with 2" coil and 6" neodymium pleated diaphragm tweeter which can deliver 131dB SPL at 100��� x 10��� H x V This great combination is in a 18mm Baltic birch plywood cabinet completely made in Italy .
Vendor: FBT
SKU: 125-39690
Icon Out of Stock Out Of Stock

This product has been discontinued.

Please find alternative products or check out similar products below.
iFrame
×
DETAILS

Description
PRECISION COVERAGE VERTICAL ACTIVE ARRAY 400W+100W RMS – 131dB SPL The QA 108 Line array system is FBT’s latest development in the growing demand for compact and portable professional line arrays. Both the QA 108 passive and the QA 108A powered models feature extraordinary power output, clarity and flexibility to deliver high quality audio reproduction in attractive, compact, easy to handle and effordable systems.

Features
1 x 200mm (8”) B&C neodymium woofer with 2’’ coil
150mm (6”) neodymium Pleated Diaphragm Tweeter with a cylindrical 10°V x 100°H waveguide
Frequency response from 68Hz-23kHz
Class D built-in Amplifier, 400W RMS to the LF and 100W RMS to the HF with a switch mode power supply
DSP on-board with 4 configuration presets (1 – 2 – 4 – 6 to 12 box)
Control panel features: balanced XLR-F input connector and a balanced XLR-M loop output connector to daisy chain the signal input to additional QA108A speakers,Volume, EQ Preset, HP filter, 3 status LED indicators (Power-On, Peak and Protection/Limiter)
Neutrik Powercon IN and LINK OUT AC power connectors
Trapezoidal shape compact enclosure with an angle of 10V°, and are constructed with 12 mm.(1/2”) Baltic birch plywood and finished with scratch and scuff resistant black paint.
Heavy duty metal grille with cloth protect the drivers from dust and moisture. The cabinets are provided with two integrated aluminum fly hardware for suspension allowing settings in 1° steps from 0° to 10°


Specification
Configuration:Line Array - 2 Way
Frequency response:68Hz - 23kHz
Low frequency woofer:8
High frequency driver:6
Maximum SPL cont/peak:123/131dB
Dispersion:100 x 10 (H x V)
Input connector:XLR with link out
Net Dimension (WxHxD):455 x 220 x 350mm
Transport Dimension (WxHxD):580 x 295 x 480mm
AC Power requirements:450VA
Built-in amplifier LF/HF:350w/80W RMS
Built-in amplifier peak LF/HF:400w/100w
Power cord:5m PowerCon
