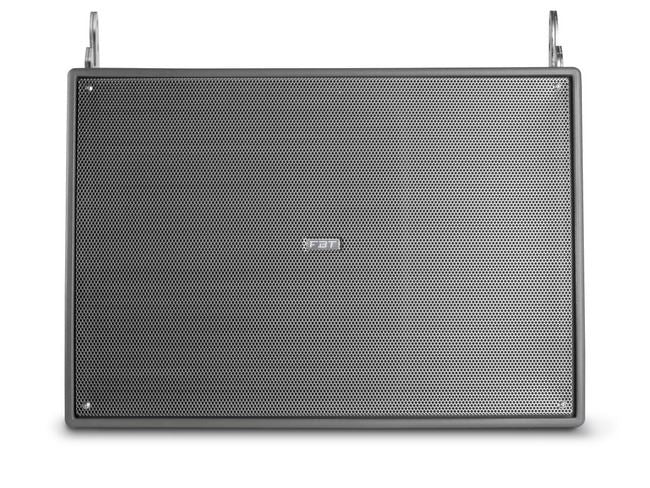

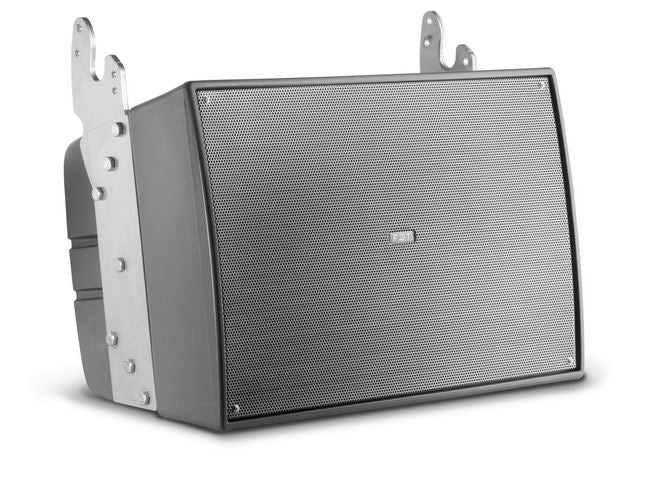

FBT Shadow 142L IP55 Passive Line Array

Description
14” Line Array Speaker System 1000W / 8ohm – 137dB SPL SHADOW 142L is a weatherproof full range, two way loudspeaker system offering high performance and efficiency for a wide range of professional indoor or outdoor applications. This horn loaded design with its smooth frequency response and very high efficiency product ensures excellent quality music reproduction, and clear intelligible speech. Line Array configuration make SHADOW 142L perfect for convention centers, stadiums, arena and many other indoor or outdoor installations, where long throw full range sound reproduction is required.

Features
14” woofer with a 3” coil.
HF section is a constant directivity horn loaded to 2×1.4” driver with a 2.5” coil for smooth, wide dispersion.
Sturdy molded polyethylene curved enclosure, full UV protection.
Water-stop grill with 3 layers of protection.
IP55 weather resistant.
100° x 15° coverage.
7.5° or 15° adjustable angle.
Standard grey finishes.


Specification
Configuration:2 Way
Frequency response:60hz - 20 kHz
Low frequency woofer:14
High frequency driver:2x 1.4
Maximum SPL cont/peak:126.5 / 137db
Dispersion:100 x 15 (H x V)
Input impedance:8 Ohm (8/8 Optional)
Crossover frequency:1.2kHz (Opti Bi-amp)
Input connector:2x Amphenol LTW 4 Pole
Net Dimension (WxHxD):615 x 430 x 514mm
Net Weight:38kg
Transport Dimension (WxHxD):715 x 530 x 515mm
Transport Weight:40kg
