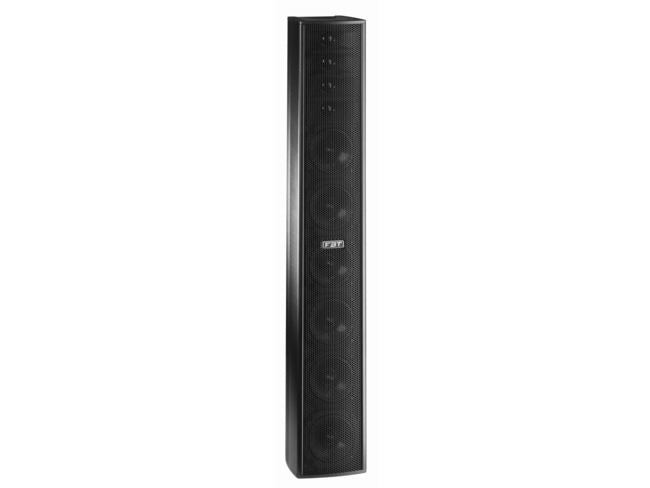

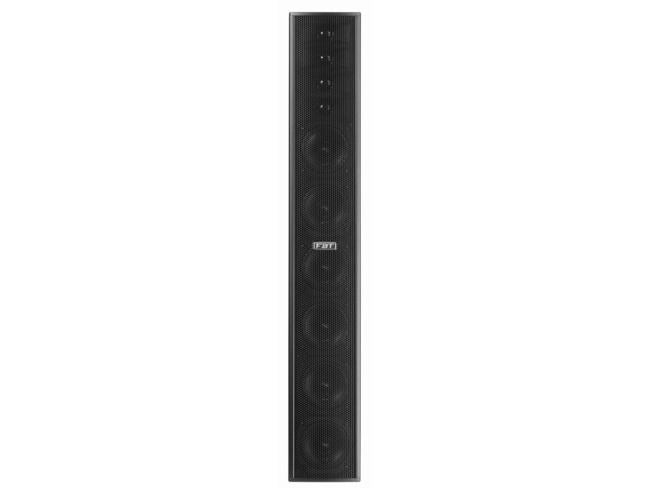

FBT Vertus CLA 604A Powered Line Array Column Speaker

Description
Column Active Line Array 400W + 100W RMS 125DB SPL CLA604A is an extruded aluminum column speaker fitted with 6 x 4" custom woofers and 4 x 1" dome tweeters, each coupled to a wave guide. The internal Class D amplification, 400W for woofers and 100W for tweeters with switch mode power supply and DSP processor with 4 equalization presets provide unexpected dynamics in a system of these dimensions. The rapid latching system with pins allows for the expansion of the system, doubling-up CLA604A modules to form a unified column with an absolute and coherent source integration and increase of SPL and low-frequency directivity control. CLA system features: High-level sound quality from 50Hz to 20kHz expressly developed for live performance Long distance sound projection and better SPL distribution towards the audience Great and dynamic power performance thanks to tri-amplification system Lightweight and easy to carry Design and elegance for an easy integration even in the most demanding installations Very compact dimensions enable the listener to concentrate on sound and not on speakers! High horizontal dispersion

Features
2-Way
Bi-Amped
6x 4" Neodymium woofer
4x 1" Neodymium tweeter with horn
400W Class D amplifier for the bass range
100W Class D amplifier for high frequencies
Built-in switched mode power supply
DSP Processor with 4 equalizer presets
Control panel with volume, presets, HP filter, mic/ line, status LED
Aluminium housing (deep drawn)
Powder coated surface
Tripod or wall mountable
Frequency range: 130 Hz - 20 kHz
Max. SPL: 125 dB
100� x 20�
XLR Signal and power twist for power input and output
Dimensions: 130 x 841 x 130 mm
Weight: 9 kg
Colour: Black or White


Specification
Configuration:Line Array - 2 Way
Frequency response:130Hz - 20kHz
Low frequency woofer:6x 4" with 1" VC
High frequency driver:4x 1" with 1" VC
Maximum SPL cont/peak:122 / 125db
Dispersion:100 x 20 (H x V)
Input impedance:22kohm
Crossover frequency:2.5kHz
Input connector:XLR with link out
Net Dimension (WxHxD):130 x 841 x 130mm
Net Weight:9kg
Transport Dimension (WxHxD):220 x 930 x 220mm
Transport Weight:11.5kg
AC Power requirements:450VA
Built-in amplifier LF/HF:400/100w RMS
Built-in amplifier peak LF/HF:800/200w
Power cord:5m IEC
