FBT X-LITE Rock Pack 2 - 7800W Active PA Sound System

Description

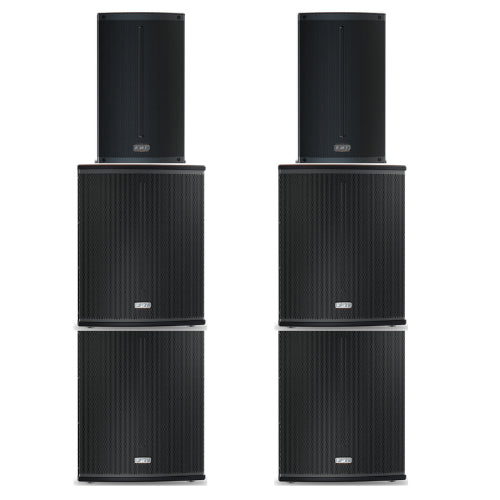

FBT Rock Pack consists of 2x FBT X-Lite 115A, 4x FBT X-SUB 118SA V2 and 6x XLR link cable / 6x Power cable

Covers are not included but can be added - please contact us.

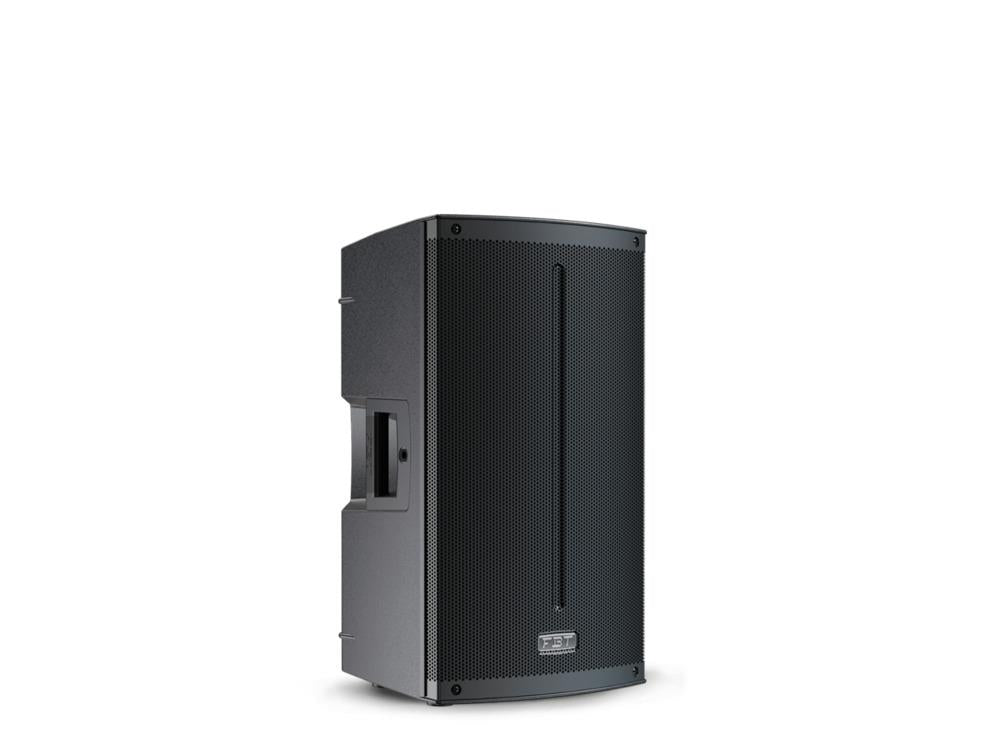

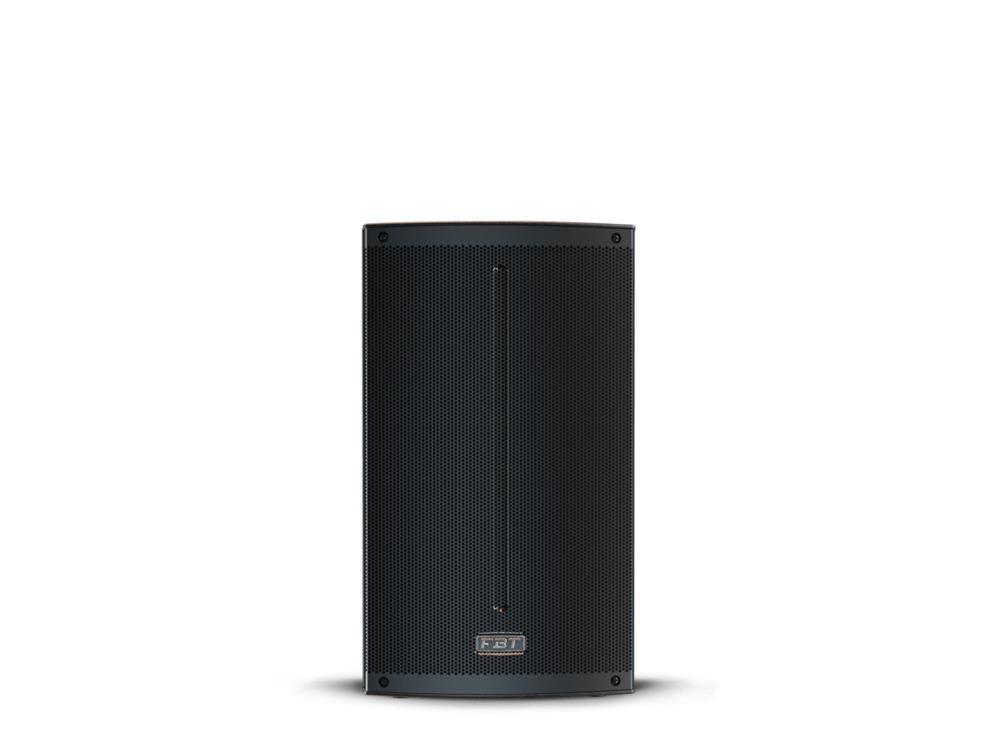

FBT XLITE 115A

The FBT XLITE 115A series speakers with integrated 3-channels mixer feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish, the FBT XLITE 115A series speakers provide fixed installations with an elegant design that blends into any decor.

The asymmetrical shape of the FBT XLITE 115A cabinet also allows use as a powered floor stage monitor.

The FBT XLITE 152A is two way design incorporating a 15” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 42Hz - 20kHz the FBT XLITE 115A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 130dB.

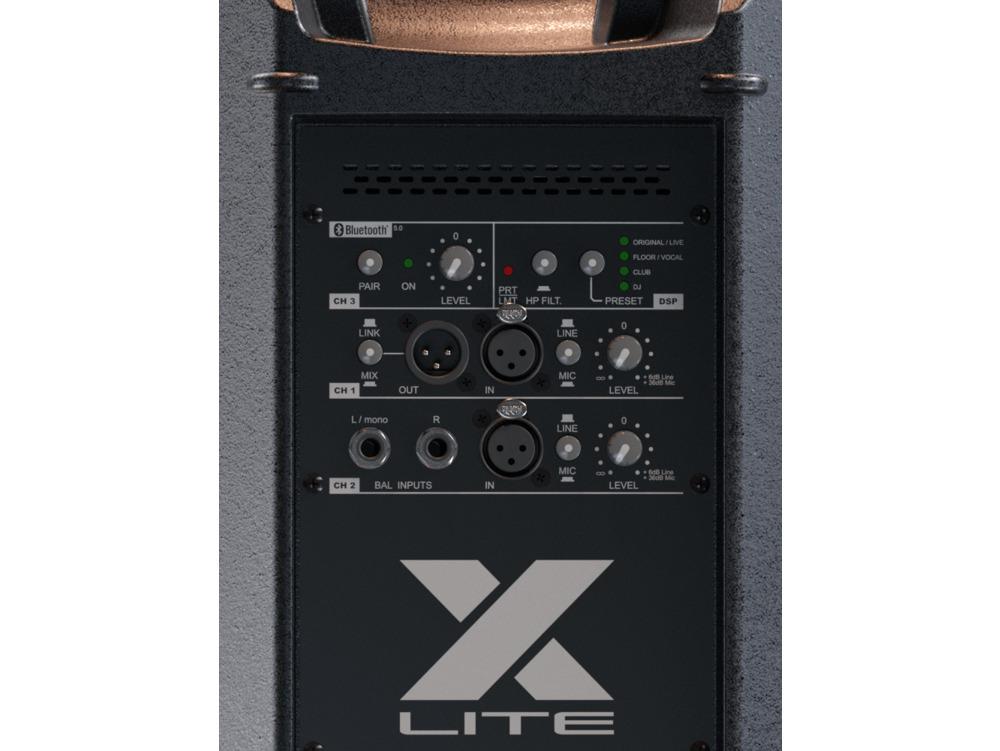

The bi-amplified FBT XLITE 115A active speaker feature a 1200W low frequency amp and a 300W high frequency amp. The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 115A speaker to be surface mounted on walls or ceilings.

A standard 35mm speaker stand socket allows the FBT XLITE 115A to be mounted on speaker stand

2-way bi-amplified system in bass reflex
Polypropylene moulded enclosure
Woofer custom 15” (LF) / 2,5” voice coil
1” throat / 1,4” voice coil HF compression driver
1200/300W built-in amplifier (LF/HF)
Bluetooth 5.0
3-channels mixer
4 DSP presets
30° / 45° monitor taper
Universal switching mode power supply 100-240 VAC
M10 rigging points
4 DSP presets

Configuration: 2 Way
Frequency response: 42Hz - 20KHz
Low frequency woofer: 15" / 2.5" VC
High frequency driver: 1" - 1.4" VC

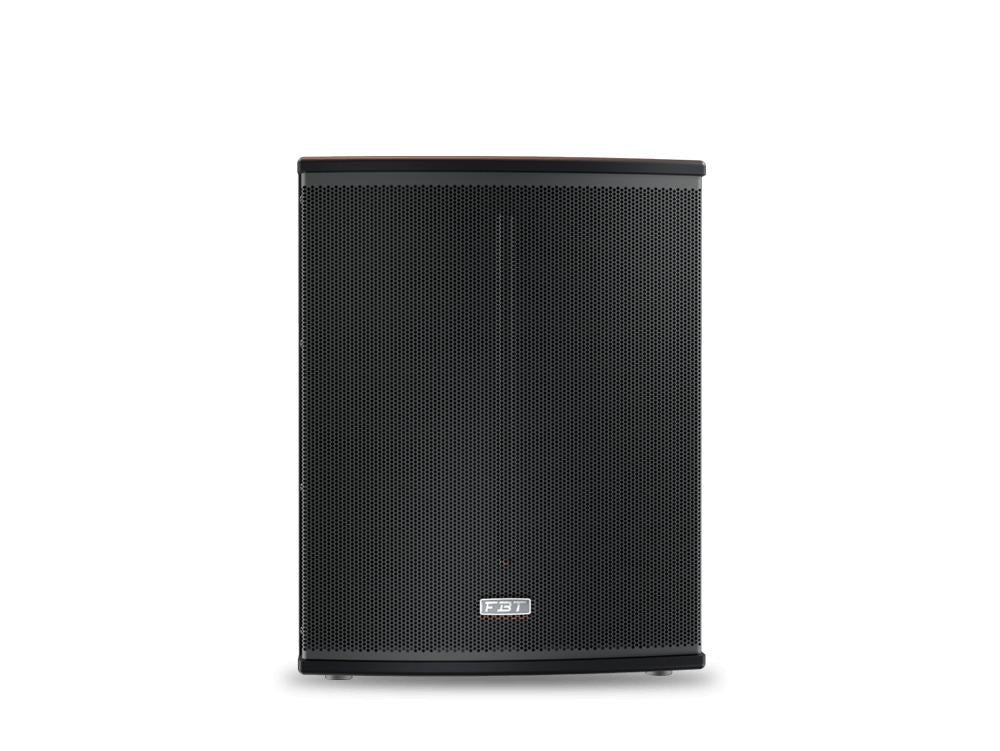

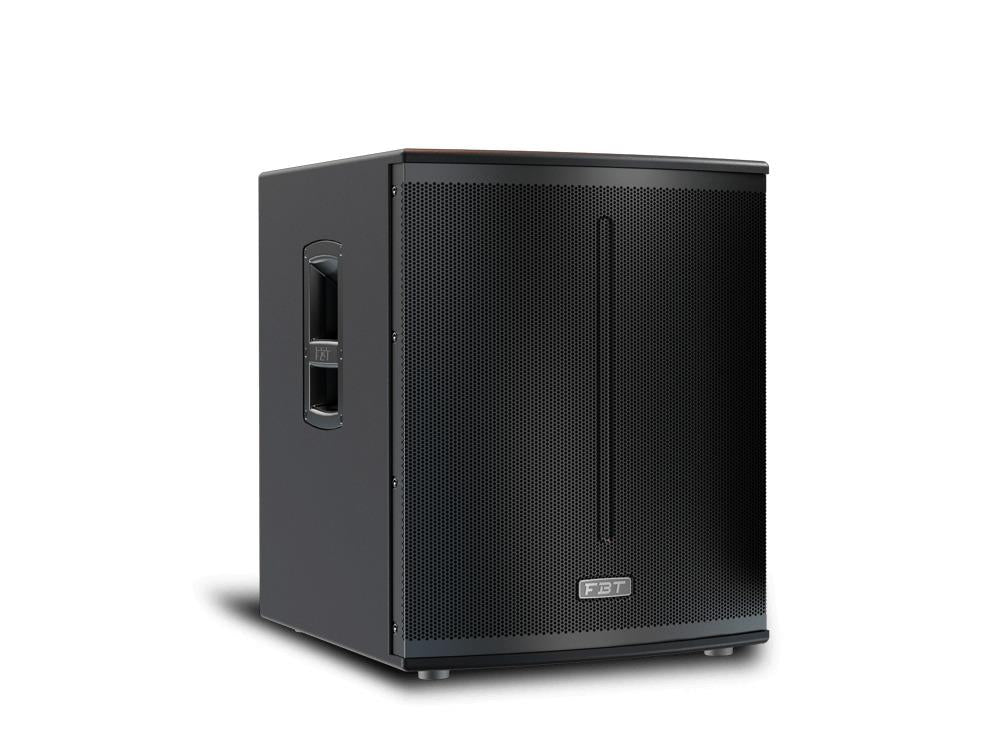

FBT X-SUB 118SA

The FBT X-SUB 118SA provides the following performance criteria: frequency response of 38Hz to 120Hz @ -6dB, maximum SPL of 136 dB peak, 1200W Class D amplifier.

The FBT X-SUB 118SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 118SA feature 0,59\" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm" transport wheels.

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.

Active subwoofer
18" woofer / 3" voice coil
Frequency response 42Hz - 120Hz
4 DSP presets
1200W RMS Class D power amplifier
15mm / 0,59" birch plywood cabinet
Optional 100mm transport wheels
M20 stand pole mount

Configuration: Bass Reflex
Frequency response: 38Hz - 120Hz (@-6dB)
Low frequency woofer: 18" / 3" Voice Coil
Maximum SPL cont/peak: 136dB Half Space
Dispersion: Omnidirectional
Input impedance: 22 kOhm
Input connector: XLR With Link
Net Dimension (WxHxD): 510 x 655 x 630
Net Weight: 34KG
Built in amplifier: 1200W
