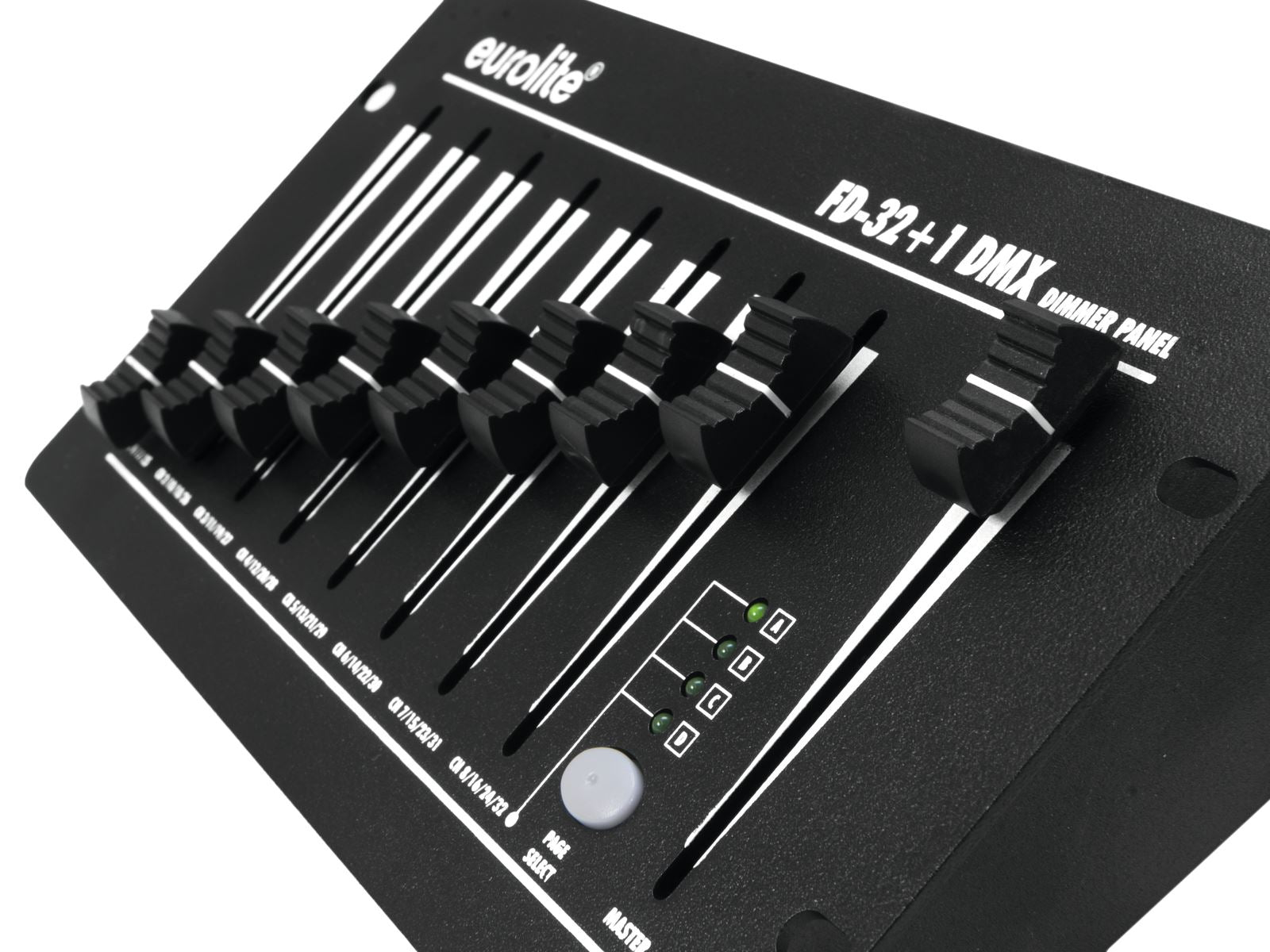

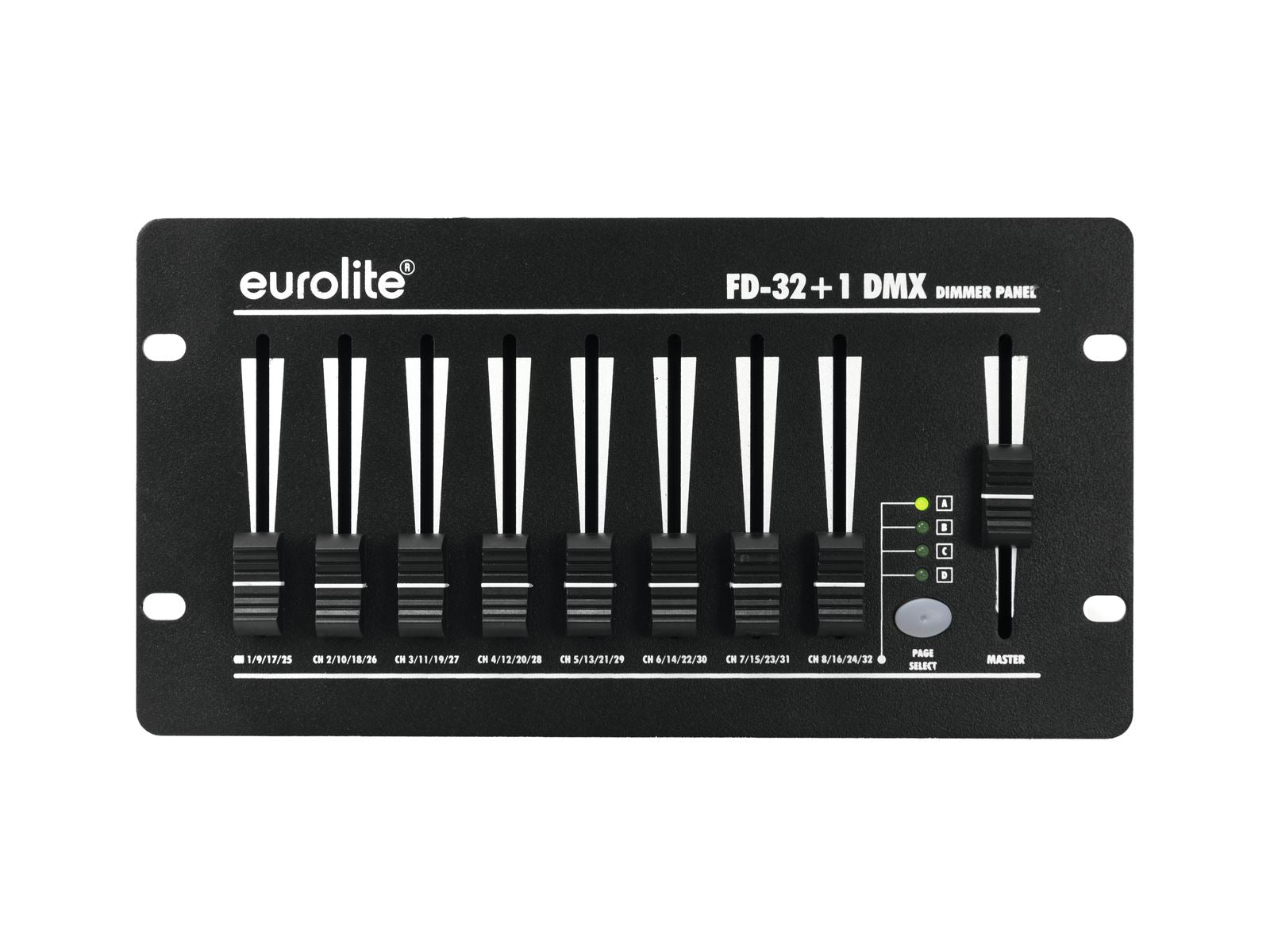

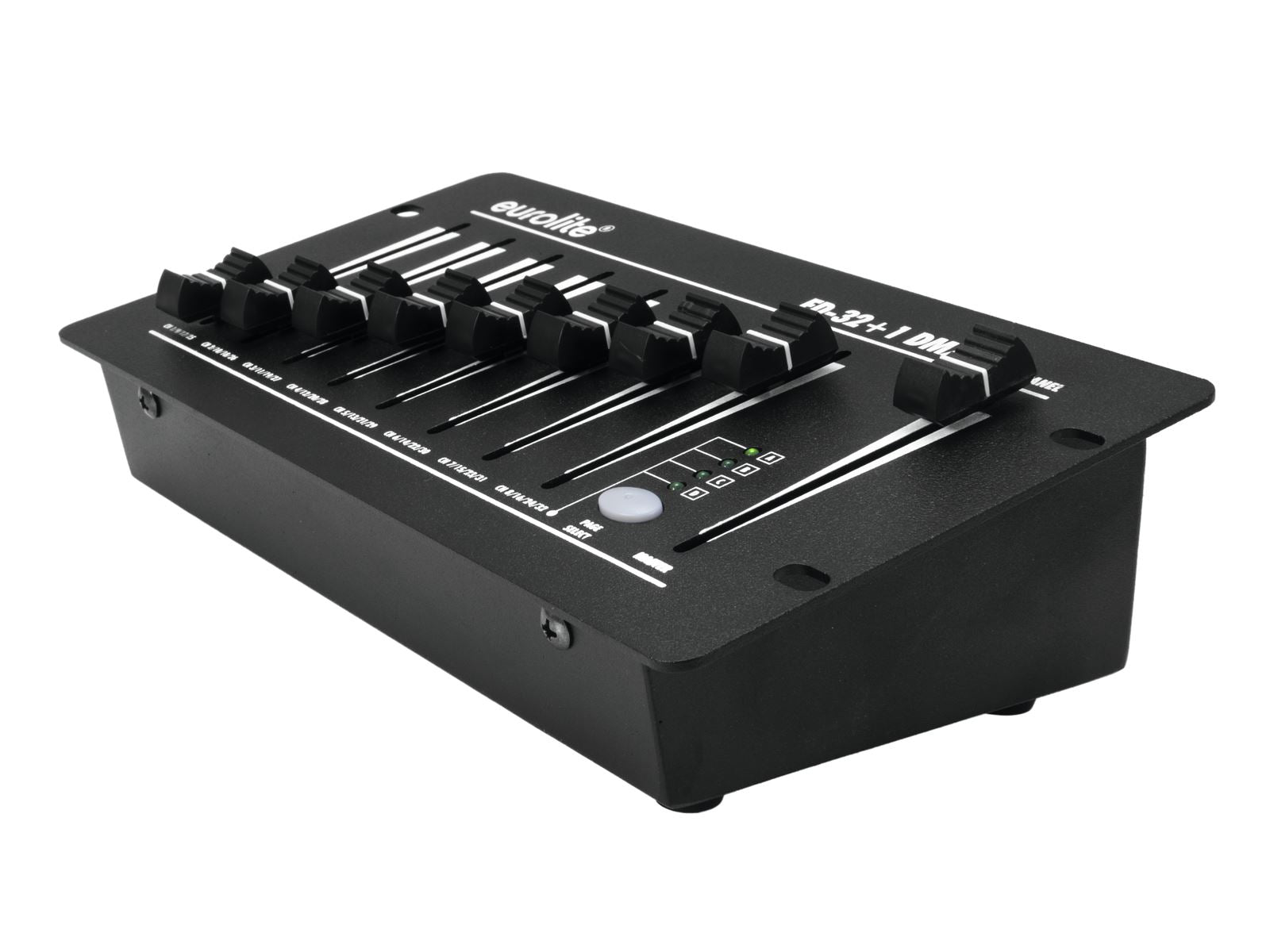

Eurolite Fd-32+1 Dmx Dimmer Panel

Basic DMX controller for 32 channels with master fader
Vendor: Eurolite
SKU: 154-70063830
Icon In Stock In Stock
Icon Delivery Time


Basic DMX controller for 32 channels with master fader

  • Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
  • Simply connect and operate, requires no extensive programming
  • 8 channel faders for adjusting the DMX values in 4 groups
  • 1 master fader
  • Compact design
  • 3-pin XLR connector

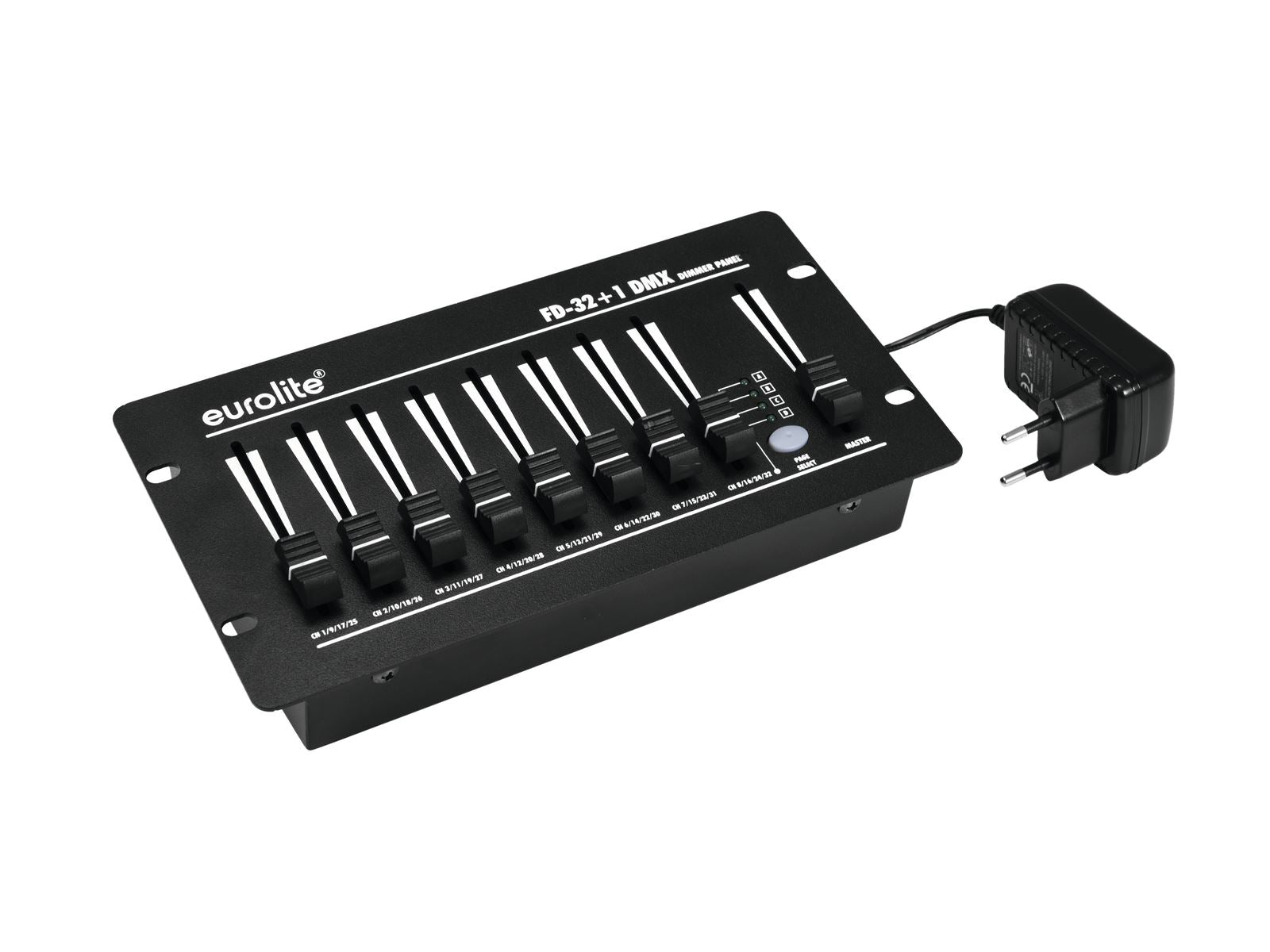

  • Power supply via included power unit or 9 V battery (not included)
  • Can transmit up to 32 DMX channels
  • Controlling by DMX
  • Desktop console housing

Power supply: 100-240 V AC, 50/60 Hz
9 V DC
Power consumption: 7.2 W
IP classification: IP20
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Battery: 1 x 9.0 V E block
DMX channels: Output 32

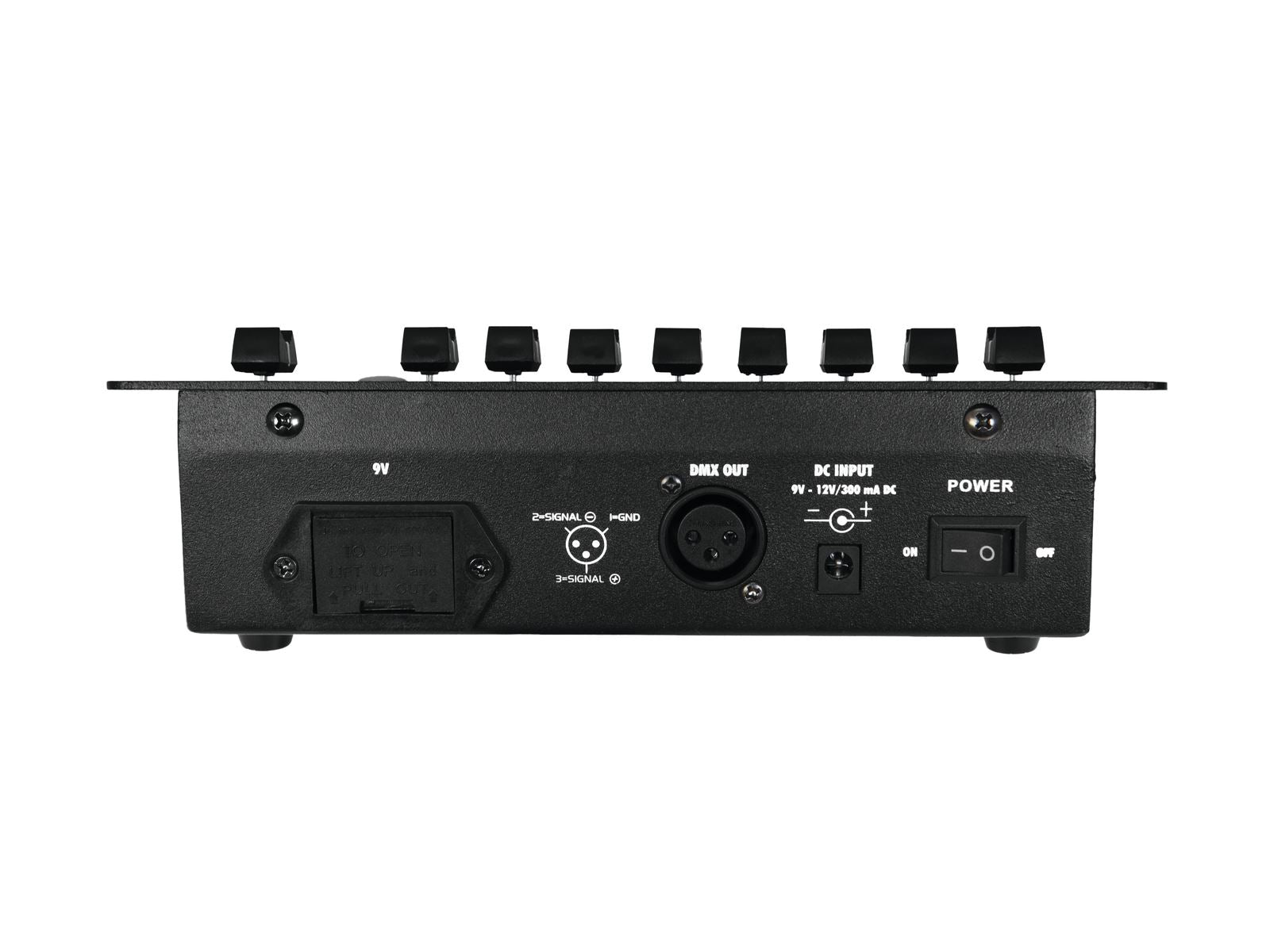

DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX
Housing color: Black
Color: Black
Housing design: Desktop console housing
Dimension: Width: 12 cm
Depth: 23 cm
Height: 6.5 cm
Weight: 1.06 kg
