Global Truss F34 Standard T Piece Stage Black

Description:

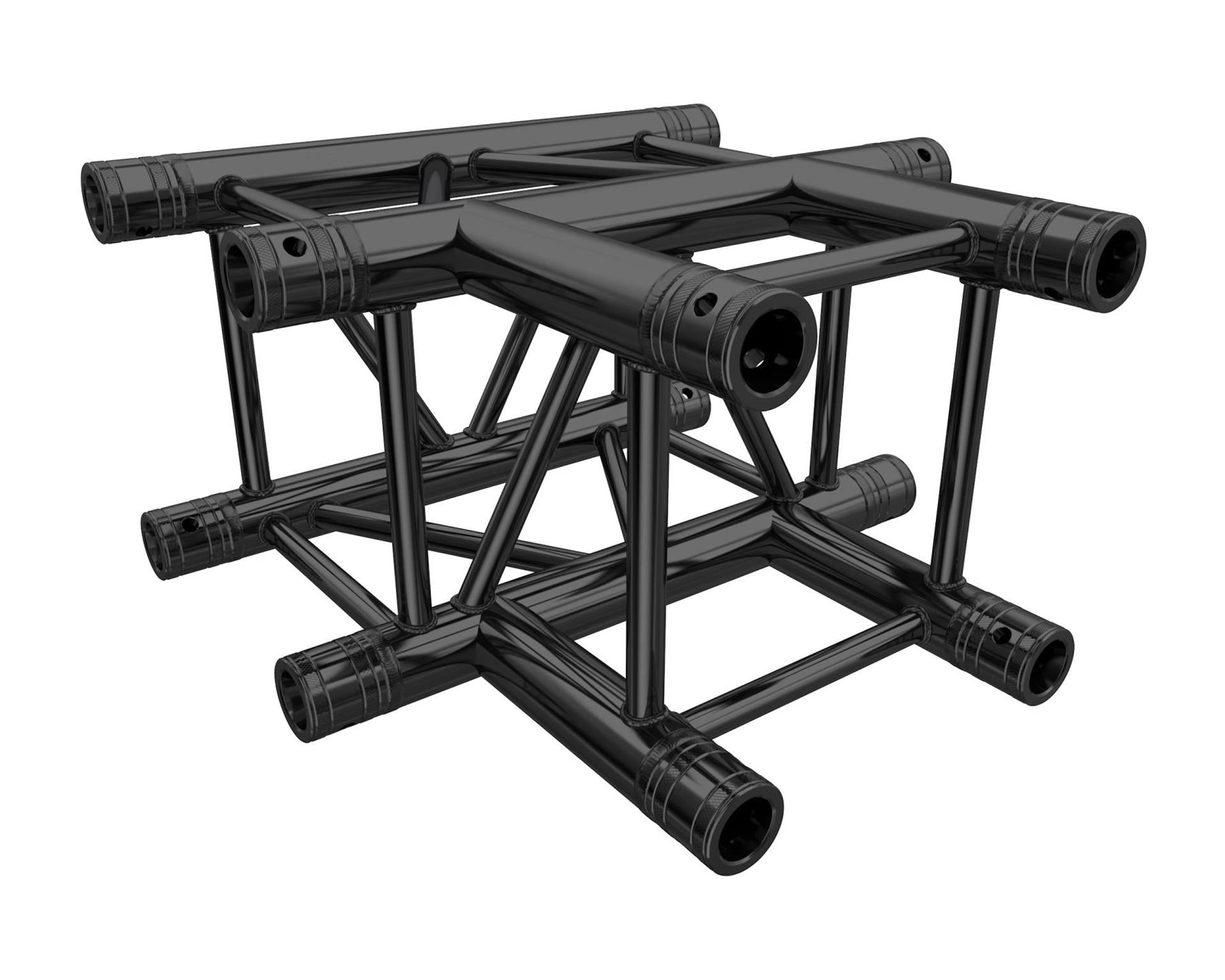

The Global Truss F34 T35 3-way corner is a versatile truss component designed for creating T-shaped connections within complex truss systems. As part of the F34 4-point truss range with an external dimension of 290mm, it delivers excellent load capacity while remaining lightweight and easy to handle, making it ideal for stage, exhibition, and event structures.

This 3-way corner enables truss sections to connect in a T-formation, making it perfect for building frames, grids, and branching truss layouts. It provides flexibility in structural design while maintaining strength and stability across demanding applications.

Constructed from high-quality aluminium (Al EN AW-6082 T6), it features 50 x 2mm main tubes and 20 x 2mm diagonal bracing, ensuring durability and reliable performance. The black powder-coated finish offers a clean, professional appearance suited to stage and event environments.

Supplied with conical connectors, pins, and R-clips, it allows for fast, secure, and efficient assembly. Please note this product is not TÜV certified.

Features:

Type: 3-Way T Corner (T35)
Series: Global Truss F34
System: F34
Finish: Black powder coated

Construction: Aluminium (Al EN AW-6082 T6)
Wall Thickness: 2mm
Main Tube: 50 x 2mm
Brace Diameter: 20 x 2mm
Edge Dimension: 290mm

Design: 3-way T-formation for frames, grids, and branching truss structures
Number of Points: 4-point

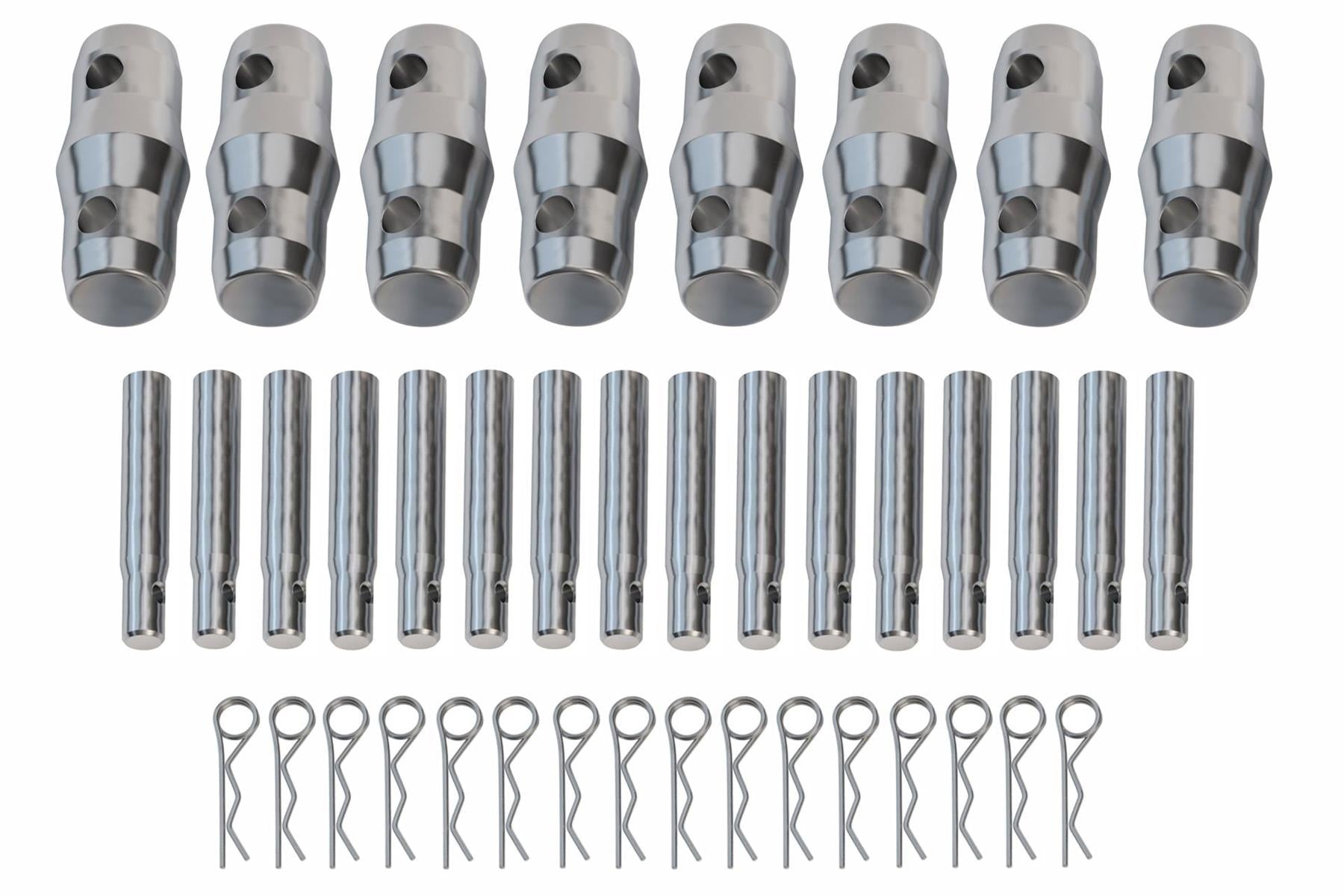

Included Hardware:
8 x Conical connectors
16 x Pins
16 x R-Clips

Application: Stage, events, exhibitions, and complex rigging setups
Assembly: Quick and secure conical connection system

TÜV Certification: No

Dimensions (L x W x H): 290 x 500 x 500mm
Weight: 7.8kg

Shipping Dimensions (L x W x H): 500 x 500 x 300mm
Shipping Weight: 8.2kg

PU: 1
