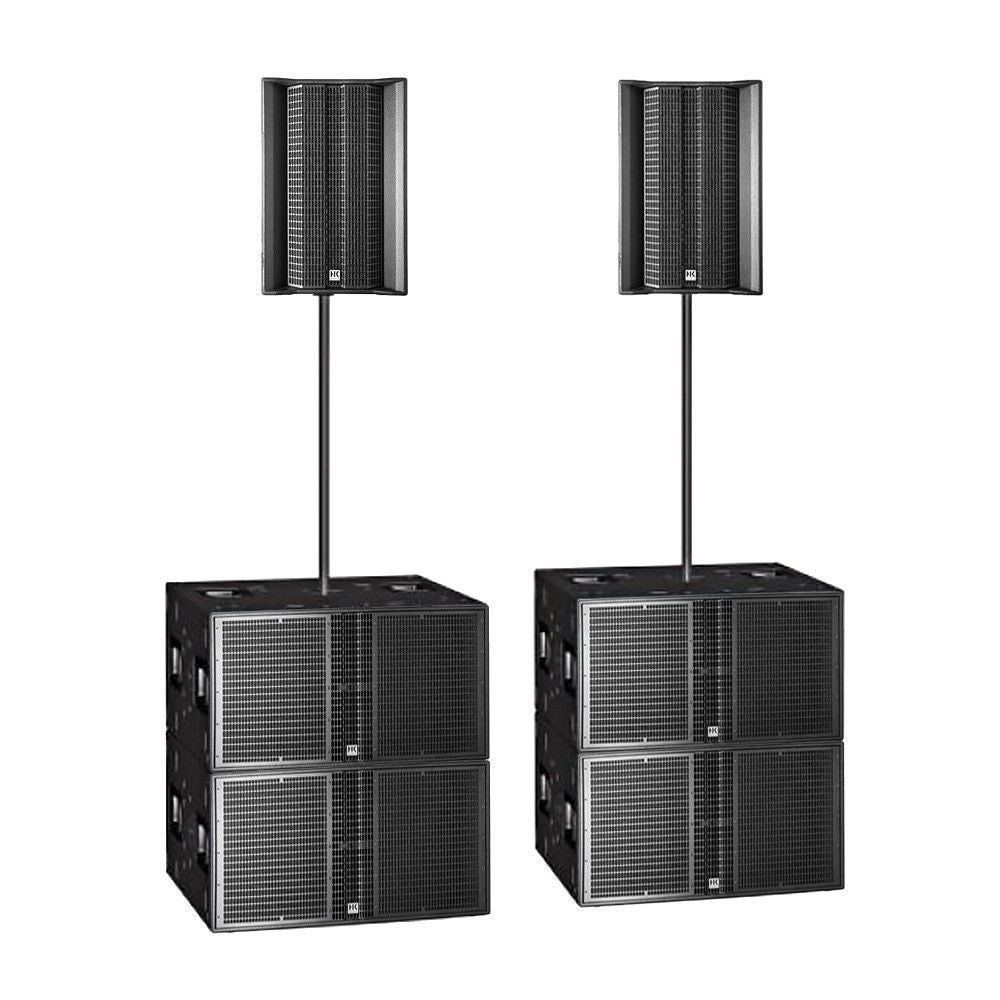

This bundle includes:
2x L5 LTS A Satelite Speakers
4x L SUB 4000 A Subwoofers
1x K&M Pole Mount Set
What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS A has arrived, and it's the first speaker to deliver real long throw performance in an ultra-compact format. Now you can hit the road with fewer speaker components in tow, saving valuable space on your truck. What's more, you can set up, stack and fly rigs that much faster and easier. The new LINEAR 5 LTS A is not only the easiest way of treating audiences of up to 3,000 to the best sound; it's also the most economical option out there. L SUB 4000 A is the flexible new 18' subwoofer from HK Audio. Compatible with all LINEAR 5 full range speakers and mid/high units, its powerful low end — ranging from 30 to 100 Hertz — is totally and powerfully impressive. L SUB 4000 A can also serve as a sub-low add-on to LINEAR SUB 2000 to beef up the bottom end in the range of 30 to 70 Hertz.
L5 LTS A
Max SPL: 133 dB half space (@10% THD)
Max SPL peak: 138 dB half space (@10% THD)
Max SPL calculated: 141 dB half space
Frequency response +/- 3 dB: 115 Hz – 14 kHz
Frequency response -10 dB: 100 Hz – 20 kHz
Power Rating: 1000 W
Amplifier: Class D – Biamped
Active protection circuits: Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak limiter, DSP-Input limiter
Low/Mid Speaker: 3x 8" Neodymium
HF Driver: 1" Neodymium
Horn characteristics: 60° x +5°/-25° MCT horn
Cut-off Frequency active: 1.7 kHz FIR X-Over with 48 dB/oct.
Connections: 1x XLR–1/4"-Combo In, 1x XLR-Thru
Input Sensitivity: +4 dBu @ Gain Centerclick / L5 System Level
Pole mount: MonoTilt 0°
Rigging points: 7x M8
Handles: 2, Integrated
Enclosure: Birch multiplex
Grille: 2 mm metal grille backed with black acoustic foam
Finish: Acrylic enamel, black
Optional accessories: Protective cover, Tilt Bracket, Tilt Bracket Head Stack Extension Pack, Cluster Plate (Pick Point), AP-8 Rigging Point
Dimensions
440 x 680 x 460 mm
Weight
24.9 kg (Single Unit)
L SUB 4000 A
Max SPL 135 dB half space (@ 10% THD)
Max SPL peak 137 dB half space (@ 10% THD)
Max SPL calculated 138 dB half space
Frequency response +/- 3 dB 39 Hz – X-Over
Frequency response -10 dB 31 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak Limiter
LF Speaker 1 x 18" featuring advanced ventilated voice coil gap
Cut-off Frequency active 70 Hz /100 Hz variable with 24 dB/oct.
Connections 2 x XLR–1/4"-Combo In, 2 x XLR Thru, 2 x XLR Mid/High Out
Input Sensitivity +4 dBu @ Gain center-notched
Pole mount 2 x M20 (K&M)
Handles 8 x HK Audio MultiGrip
Enclosure Birch multiplex
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, M20 Distance Pole Add-On, 100 mm casters, tilt unit
Dimensions
910 x 510 x 810 Mm
Weight
59 kg
K&M Speaker Poles
Pair of König & Meyer poles
Colour: Black
Dimensions
Length: 905–1045 mm
Weight
Not Specified
