HK Audio Lucas Nano 605FX Active Compact PA

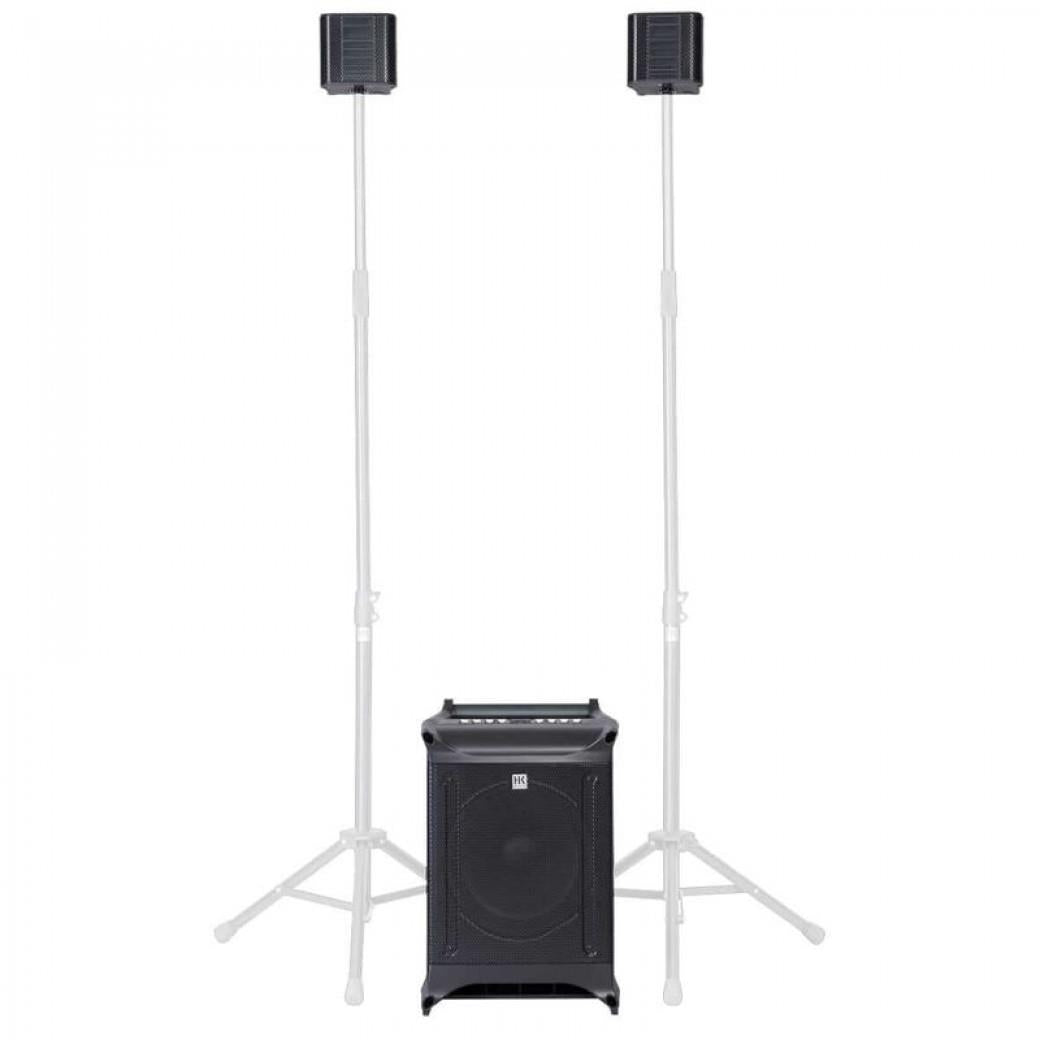

LUCAS NANO is the only genuine stereo PA that can be carried in one hand. With its five inputs, Bluetooth Audio Streaming and onboard reverb effects, the 605 FX is a true all-rounder, whether it’s as a front PA with your band for audiences of up to 120. An MP3 playback party sound system. An entertainer’s stereo PA. An elegant mono solution for singer-songwriters. At home for live sports screenings or karaoke evenings. In the gym, pushing through the burn. Or at garden parties with friends. LUCAS NANO 605 FX consists of an active system subwoofer and two satellites that can be stowed in the subwoofer”s transport bay.

Specifications
Active compact PA
Integrated 5-channel-mixer (3 x combination 1/4″ (6.3 mm)/XLR Ports, 2 x 1/4″ (6.3 mm) jacks/stereo mini-jack, Bluetooth In, Link In)
Bluetooth Audio Streaming
On-board reverb effects
Two-band EQ (low and high)
Optimized for use as a 2.1 stereo system
Can be extended into a more powerful Twin Stereo System setup when used in conjunction with any other 600 series LUCAS NANO
Functions as an elegant mono PA
Active 10” Celestion speaker in the low-resonance bass reflex subwoofer, which also features Anti-Resonance Bracing technology
Two coaxial satellites with a 4.5″ woofer and 1″ tweeter, featuring Multicell Transformer technology
1500 watts peak power (calc.)
Frequency response: 43 – 20,000 Hz
130 dB max. SPL
Weighs just 16.3 kg
Satellite transport bay inside the subwoofer enclosure
High-quality STEREO STAND ADD-ON package from König & Meyer (available separately) for 2.1 stereo system setup
Height-adjustable S-CONNECT POLE LN (available separately): signal-carrying distance pole for cable-free satellite connection and a cable-free set up for mono or Twin Stereo System setups
Simple handling; assembles in seconds
Designed and engineered in Germany
Five-year warranty (after registration)

TECHNICAL DATA

LUCAS NANO 605 FX system
Product Class Portable stereo PA system
Audience up to 120
Max SPL peak 130 dB
Frequency response +/- 3 dB 43 Hz – 20 kHz
Power Rating 460 W (RMS)
Peak power (calc.) 1500 W
Amplifier Class D
Active protection circuits MulitBand limiter, Subsonic filter, Thermo protection, Overload protection
Enclosure Surface-coated Polypropylene
Optional accessories S-CONNECT POLE LN (signal-routing speaker pole), Stereo Stand Add-on, Roller Bag (padded trolley),• Desk/Wall Mount, Link Cable, Drum Rack Adapter
Weight 16.3 kg / 36 lbs

LUCAS NANO 600 Series Satellite
Max SPL peak 124 dB (Single Satellite),
130 dB (Satellite Array)@10%THD, half-space
Frequency response +/- 3 dB 190 Hz – 20 kHz
Mid/High Speaker 4,5" Celestion custom-made
HF Driver 1" Celestion custom-made
HF horn HK Audio Multicell transformer
Mid/high unit dispersion pattern, horizontal/vertical 90° x +10/-45° (Single Satellite),
90° x 30° (Satellite Array)
Pole mount 3/8" thread
Dimensions (WxHxD) 14,5 x 14,5 x 13,5 cm
Weight 1.2 kg / 2.6 lbs

LUCAS NANO 605 FX Subwoofer
Max SPL peak 123 dB@10%THD, half-space
Frequency response +/- 3 dB 43 Hz – 190 Hz
LF Speaker 10" Celestion custom-made
Inputs 3x Combination 1/4" (6.3 mm)/XLR Ports, 2x 1/4" (6.3 mm) Jacks/Stereo Mini-Jack, Bluetooth In, Link In (for Twin Stereo Mode)
Outputs Speaker Out, Easy-Click, Rec Out, Footswitch/Aux Send Out, Link Out for Twin Stereo Mode
Special Features 5-Channel Mixer, 2-Band EQ for Channels 1-3, 7 Reverb Effects, Bluetooth Audio Streaming
Pole mount M33 for the (signal-routing) S-CONNECT POLE LN, a speaker pole adapter sleeve (M33 to M20) is included
Dimensions (WxHxD) 35 x 49 x 47 cm
Weight 13.9 kg / 30.8 lbs.
