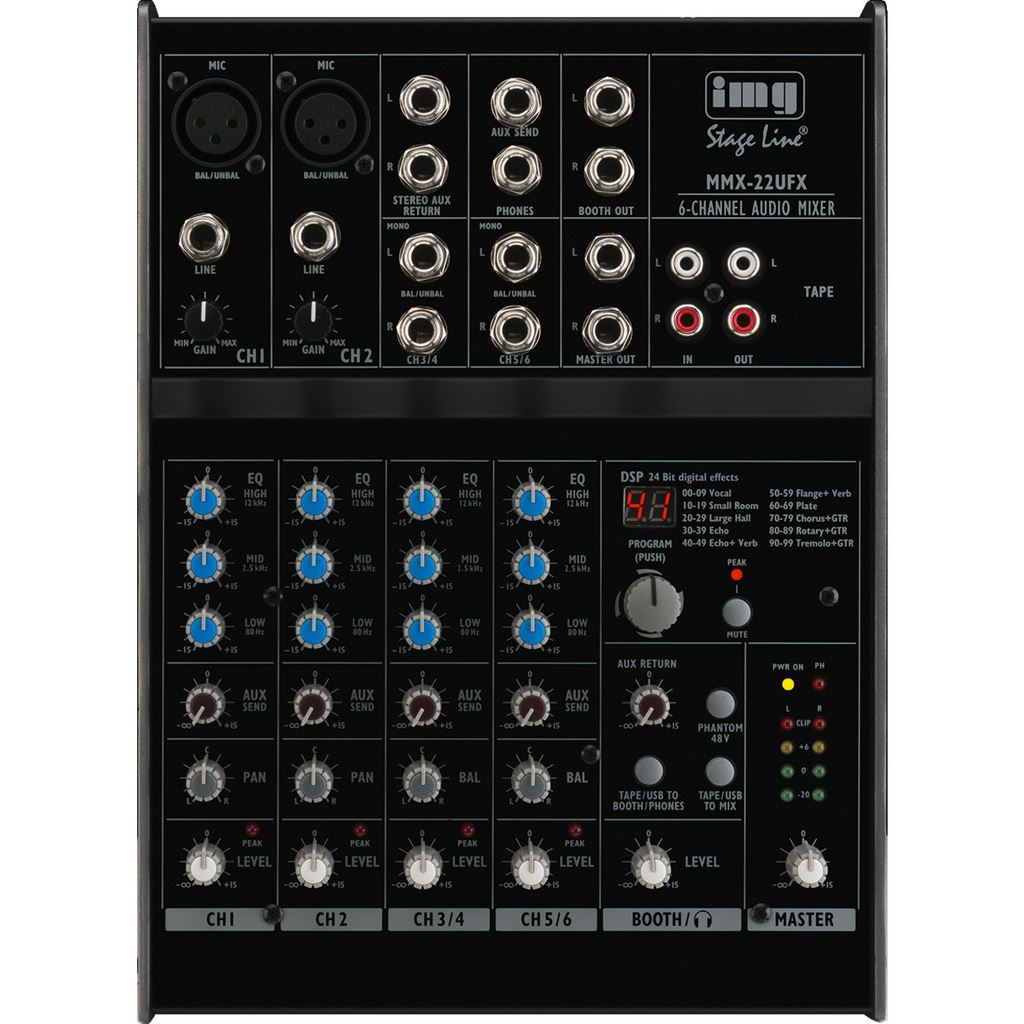

IMG Stageline MMX-22UFX Notepad Mixer with Digital FX Karaoke Studio Mixing Desk

4-channel audio mixer, with 6 inputs, DSP effect unit and USB interface. Plug and mix!

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
2 mono input channels, each with gain control, 3-way equalizer and pan pot
2 stereo input channels, each with 3-way equalizer and balance control
DSP with 100 different effects
Aux send output
Control room function
Tape record/play connections
+48 V phantom power, can be switched centrally
Adjustable headphone output
Stereo LED level display
Power supply via supplied PSU

Specifications
No. of channels: 4
No. of inputs: 6
Mic input: 0.5 mV, bal., 2 x 3-pole XLR
Line input: 10 mV, bal. (stereo), 2 x 6.3 mm jack L/R / 1 mV (mono), 2 x 6.3 mm jack
Tape (play): 100 mV, 1 x RCA L/R
Aux input: 100 mV, 1 x 6.3 mm jack L/R
Master output: 650 mV, 1 x 6.3 mm jack L/R
Aux output: 9.5 V, 1 x 6.3 mm jack
Control room: 2 V, 1 x 6.3 mm jack L/R
Tape (rec): 650 mV, 1 x RCA L/R
Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
Frequency range: 20-20,000 Hz
THD: < 0.05%
S/N ratio: > 74 dB
Crosstalk: -63 dB
Equalizer bass: ±15 dB/80 Hz
Equalizer midrange: ±15 dB/2.5 kHz
Equalizer treble: ±15 dB/12 kHz
Phantom power: +48 V
Power supply: via encl. power supply
Admiss. ambient temp. 0-40 °C

Dimensions
190 x 65 x 260 mm

Weight
2.4 kg
