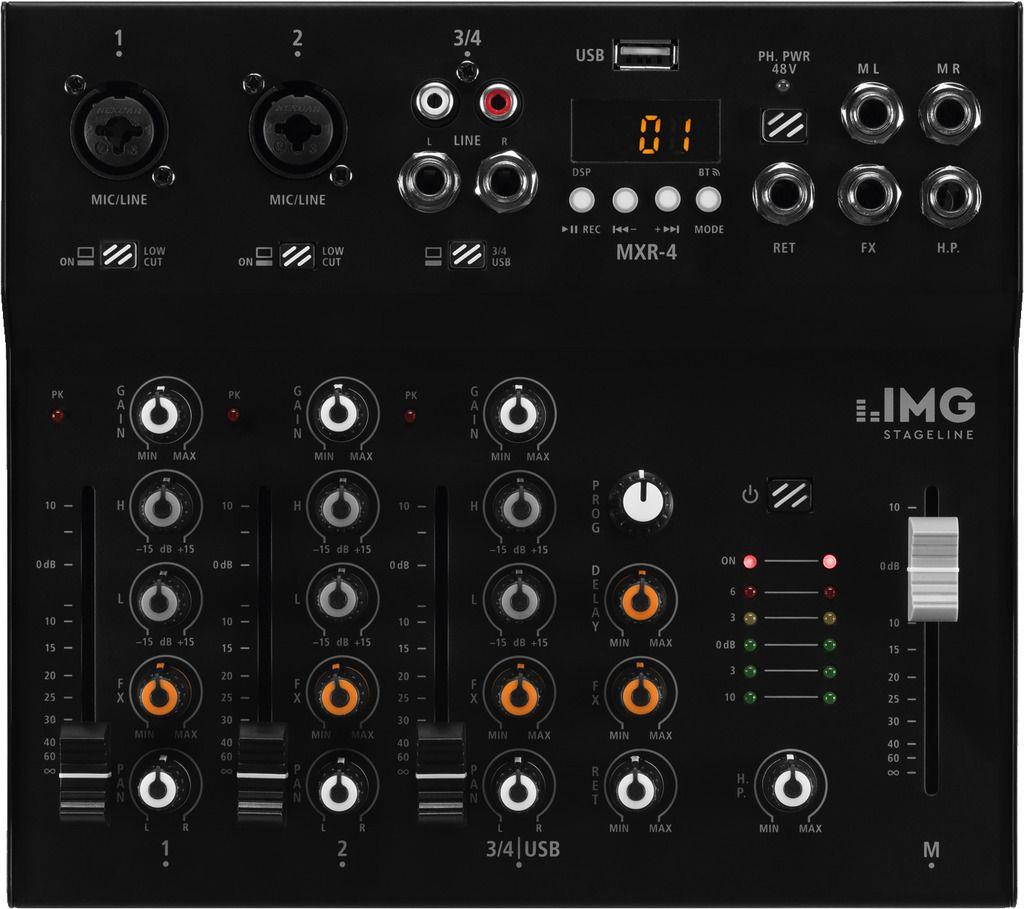

IMG Stageline MXR-4 Audio Mixer


4-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver.

Vendor: Stageline
SKU: 139-MXR-4
Icon Out of Stock Out Of Stock

4-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver.

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital
audio data from a PC and for recording mixings onto a PC
2 mono input channels with gain control, 2-way equalizer and pan pot
1 stereo input channel with 2-way equalizer and balance control
MP3 player
USB interface
Bluetooth receiver
16 different DSP effects
Adjustable aux return input and FX send output
+48 V phantom power, can be activated as required
Adjustable headphone output
Stereo LED level display
Power is provided via USB or supplied power supply

Input channels 4
Number of mix/mono 2
No. of stereo 1
Mic input 2 mV, bal. 2 x XLR
Line input
100 mV (stereo), 2 x 6.3 mm jack L/R
60 mV (mono), 2 x 6.3 mm jack
Aux input 400 mV, 1 x 6.3 mm jack L/R
Master output 500 mV, 1 x 6.3 mm jack L/R
Effect send 4.4 V, 1 x 6.3 mm jack
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
USB yes
Bluetooth yes
Frequency range 20-20,000 Hz
THD < 0.03%
S/N ratio > 83 dBA
Equalizer bass ±15 dB/80 Hz
Equalizer treble ±15 dB/12 kHz
Phantom power +48 V
Power supply
USB or encl.
power supply
Admiss. ambient temp. 0-40 °C

228 x 53 x 205 mm

1.4 kg
