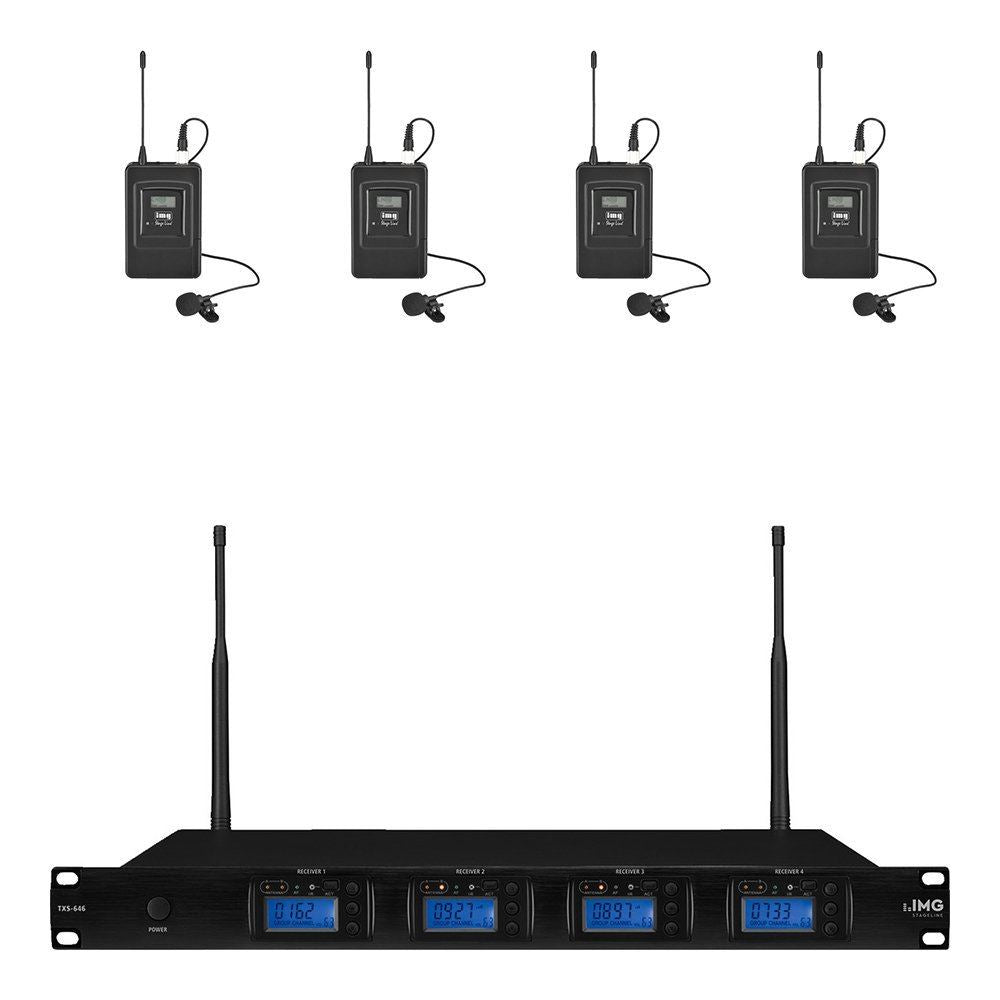

IMG Stageline UHF Wireless Tie Clip System System (Bundle 2)

£762.50
£762.50
Vendor: Stageline
SKU: 139-H3-X7KR-KK27
Icon Out of Stock Out Of Stock

Professional 4-channel multifrequency receiver unit, with UHF PLL technology.

32 selectable UHF frequencies on Channel 38 (606.500-613.500 MHz)
ACT function for transmitting selected frequency to pocket transmitter TXS-606LT, TXS-606HSE or hand-held microphone TXS-606HT via infrared signal
Auto-scan
True diversity system with removable antennas (BNC connection)
Volume and squelch controls for each channel
Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
XLR output for each channel, bal.
6.3 mm output for mixed signal
Robust metal housing
Supplied with power supply
482 mm (19") rack installation, 1 RS


Specifications
Type: receiver unit
Carrier frequency range: 606.500-613.500 MHz
Audio frequency range: 30-18,000 Hz
Channels: 4
THD: < 0.5%
Dynamic range: 100 dB
RF S/N ratio: 105 dB
Admiss. ambient temp.: 0-40 °C
Audio signal receiver: 350 mV/600 Ω (jack) / 25 mV/600 Ω (XLR, balanced)
Power supply receiver: via enclosed plug-in power supply
Connections receiver: 4 x XLR (balanced) / 1 x 6.3 mm jack (unbalanced)


Dimensions
482 x 45 x 310 mm


Weight
2.9 kg




IMG Stageline TXS-606LT Tie Clip Microphone
Multifrequency tie clip microphone transmitter, with UHF PLL technology.

32 selectable UHF frequencies on Channel 38 (606.500-613.500 MHz), can be synchronised with receivers TXS-606/38, TXS-626/38, TXS-646/38 or TXS-686/38 via ACT function
Continuously adjustable sensitivity
LCD for indicating group/channel, audio level and battery status
Tie clip microphone with latchable 3.5 mm plug
Belt clip
Power supply via 2 x 1.5 V battery AA size (not supplied)


Specifications
Type: pocket transmitter
Carrier frequency range: 606.500-613.500 MHz
Audio frequency range: 30-18,000 Hz, ±3 dB
Channels: 1
Operating time: > 8 h
Admiss. ambient temp.: 0-40 °C
Transmitting power: 10 mW
Power supply transmitter: 2 x 1.5 batt. AA size
Connections transmitter: 1 x 3.5 mm jack


Dimensions
61 x 106 x 27 mm


Weight
0.125 kg (single unit)
