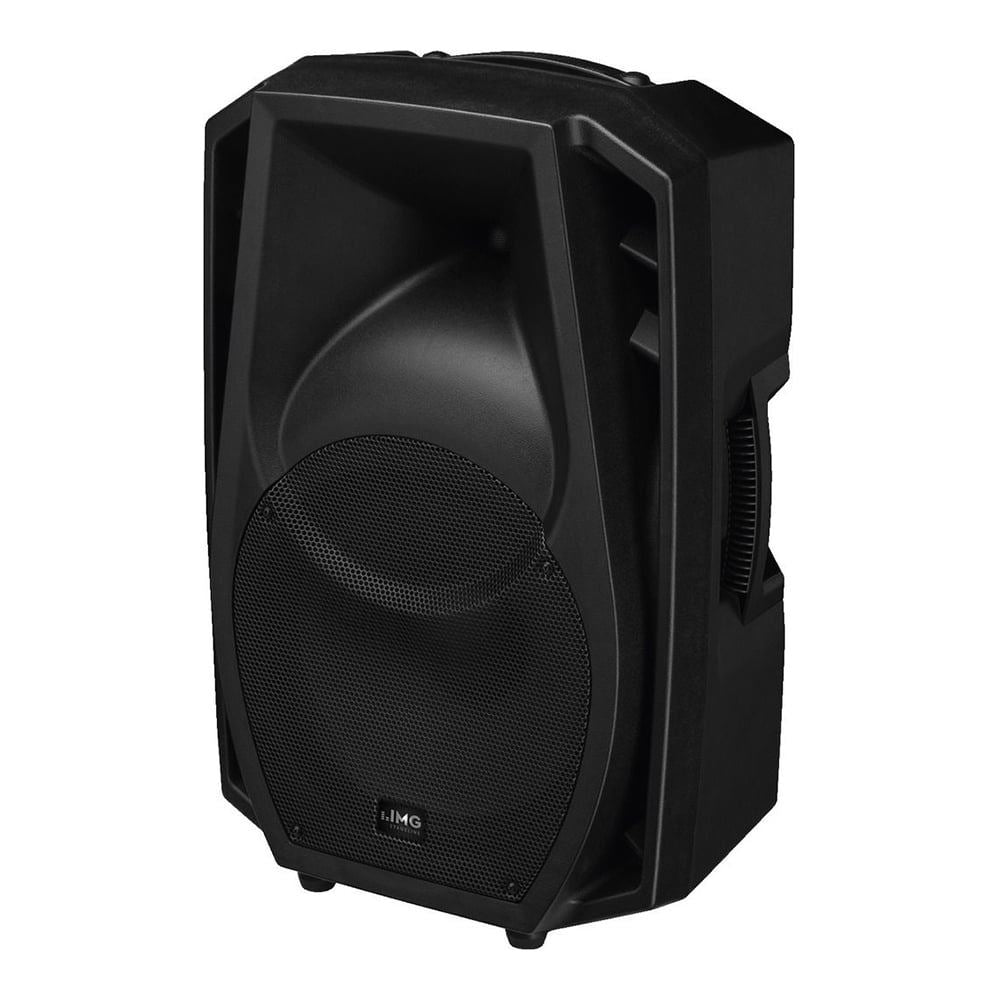

IMG Stageline WAVE-12A Active PA Speaker 350W Bluetooth DJ Sound System

The PA speaker systems of the WAVE series impress with a great sound and an attractive price. They are suitable for smaller to medium-sized function rooms and are the perfect starting equipment for entry-level DJs. The plastic cabinets of contemporary design are also lightweight and easy to use. Thus, they are ideally suited for mobile applications.


Features
Compact 12/2 full range bass-reflex system with plastic cabinet
30 cm (12") bass speaker and 25 mm (1") horn tweeter
Integrated MP3 player with USB/SD slot
Bluetooth receiver
Infrared remote control
Balanced mic input via XLR jack or 6.3 mm jack
Line input via RCA jack or XLR jack
2-way tone control for treble and bass
MIX OUT via XLR jack or 6.3 mm jack
M8 threaded inserts for mounting support
Stand sleeve

Specifications
Active/passive: active
Transmission method: wireless/cable
Total output power: 350 W
Power rating (RMS): 200 W
Frequency range: 55-20,000 Hz
Input signal: 250 mV/7 kΩ (line, XLR, bal.), 150 mV/16 kΩ (line, RCA), 9.5 mV/0.8 kΩ (mic, XLR, bal.), 9.5 mV/0.8 kΩ (mic, 6.3 mm jack)
System: 12/2 full range bass-reflex
Bass speaker: 30 cm (12") bass speaker
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 2
Speaker size: 30 cm (12")
Sensitivity: 95 dB/W/m
Max. rated SPL: 119 dB
Radiation angle, horizontal: 90°
Radiation angle, vertical: 60°
Housing material: plastic
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Admiss. ambient temp.: 0-40 °C
Power supply: ˜ 230 V/50 Hz/160 VA
Dimensions: 390 x 610 x 340 mm
Width: 390 mm
Height: 610 mm
Depth: 340 mm
Weight: 16 kg
Inputs: XLR or RCA L/R (line), XLR or 6.3 mm jack (mic)
Outputs: XLR, bal. (parallel line out)
