Infinity Furion FX402 Bar IP65 10 x 60W RGBW LED FX Bar

£3,599.00
£3,599.00
Vendor: Infinity
SKU: 129-41470
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

Description

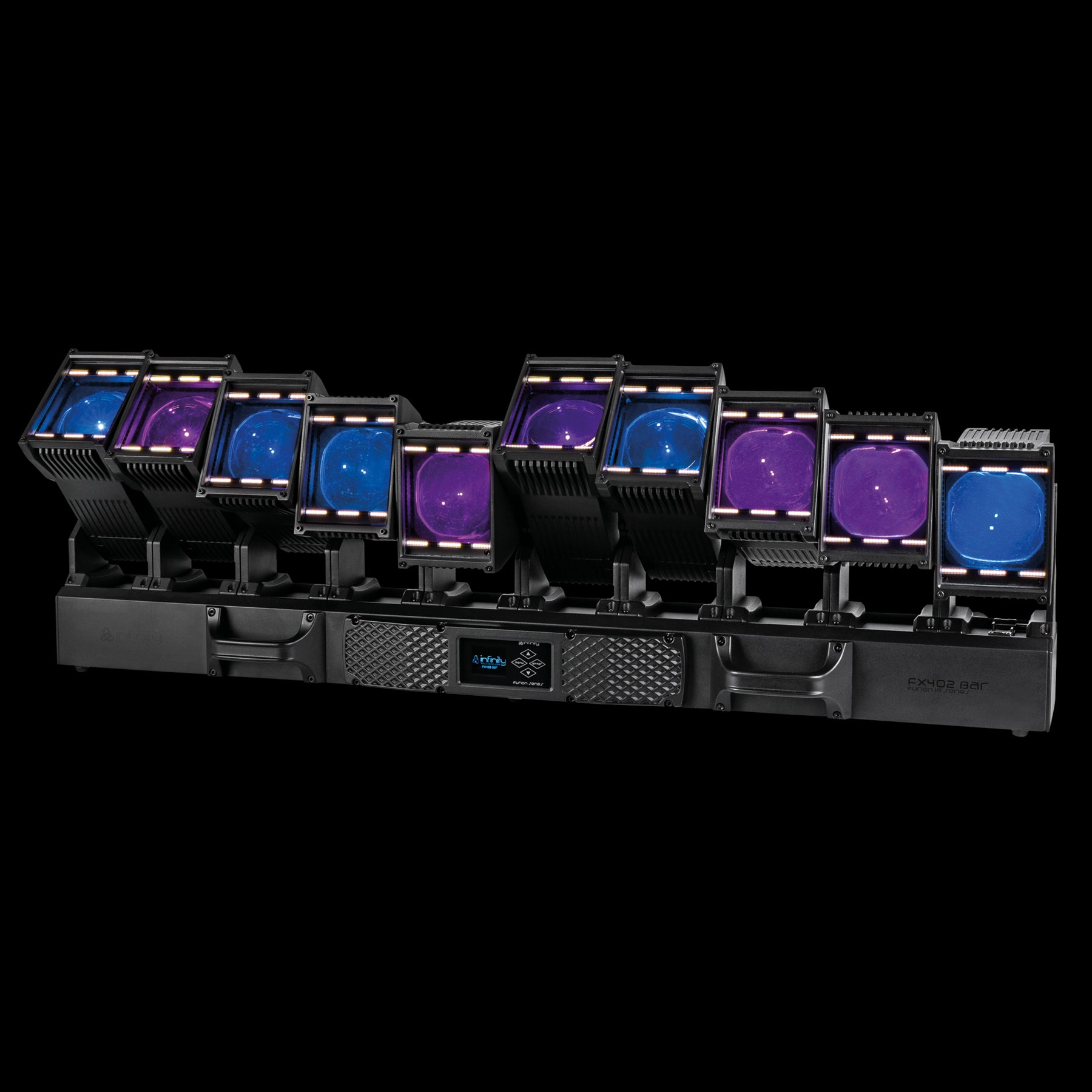

The Infinity Furion FX402 Bar is an IP65-rated LED batten with 10 high-power 60-watt RGBW LEDs in 10 tilt heads with zoom and 60 warm and cold white strobe pixel LEDs. It creates unique light effects, igniting creative ideas for live events, TV shows, club and theatre settings, and more.
The RGBW LEDs can be individually controlled, as can the tilt and zoom of every head, offering flexible and smooth control over light effects and coverage. Each tilt head features 6 individually controllable CW and 6 individually controllable WW strobe pixels, alternatingly positioned, adding intricate accents to an already impressive light output. The heads can be tilted over 200 degrees, while the beam angle can be adjusted between 2.7° and 31.4° for each head individually thanks to the high-precision motorised zoom.
With Art-Net and sACN, it is easy to integrate the Furion FX402 Bar into any professional infrastructure. In DMX mode, the fixture can be controlled from 29 channels up to a cleverly configured advanced mode with 255 channels, meaning that two fixtures can be controlled from a single DMX universe in the most advanced DMX mode. The Furion FX402 Bar can be controlled via DMX/RDM, manually, and has an auto mode, giving you comprehensive options. The refresh rate (PWM) can be adjusted between 600 and 15,000 Hz to suit studio and TV applications, while the high-resolution dimming function offers precise control over the amount of light output.
The FX402’s forged magnesium and aluminium body is strong and lightweight, ensuring durability and minimal maintenance. Its IP65 rating provides protection against dust and water, making it suitable for both indoor and outdoor use. Aligning multiple fixtures has been made easy with extendable pins on one side and matching holes on the other. The seamless edge-to-edge mounting keeps the tilt heads of different fixtures the same distance apart, creating homogeneous runway effects.
With the Furion FX402 Bar, lighting designers have access to an exquisite professional batten light effect that combines power and creativity with smooth movements in a durable design.

Light Source Type
LED
Light Source Quantity
10
Light Source Power
60 W
LED Colour Type
RGBW
Refresh Rate
600 Hz
Refresh Rate (Max.)
15 kHz
Luminous Flux (Total)
8951 lm
CRI
83.7
CCT
7200 K
Optical
Beam Angle Minimum (Circular)
2.7 °
Beam Angle Maximum (Circular)
26.7 °
Cutoff Angle Minimum (Circular)
3.8 °
Cutoff Angle Maximum (Circular)
31.4 °
Field Angle Minimum (Circular)
3.4 °
Field Angle Maximum (Circular)
30.3 °
Zoom Type
Motorised
Zoom Ratio
1:10
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
29, 56, 144, 255
Protocols
Art-Net, DMX, RDM, sACN
Display
TFT
Dim Curve
Linear, Square, I-Square, S-Curve
Zone Control (Sections)
10
Dimmer Resolution
16 bit
Zoom Resolution
8 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Movement
Tilt
200 °
Pan/Tilt Resolution
16-bit
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
800 W
Fuse
15 A
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45
Mechanical Specifications
Length (mm)
1000 mm (39.37″)
Width (mm)
209 mm (8.228″)
Height (mm)
322 mm (12.677″)
Weight
31 kg (68.343 lb)
IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Minimum Operating Temperature
-10 °C (14 °F)
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
