Instagrid ONE Type G Portable Power Supply 230V AC Rechargeable Battery Generator

The Instagrid ONE Type G is a compact, high-performance portable power supply delivering professional-grade 230V AC output in an ultra-portable format. Engineered for demanding field use across film, events, construction, and remote applications, it provides 3.6kW of continuous power and up to 18kW peak output, rivaling traditional generators without the noise, fuel, or emissions. Weighing just 20kg and featuring a rugged, IP54-rated enclosure, Instagrid ONE is suitable for indoor and outdoor use in all weather conditions.

Its integrated lithium-ion battery pack recharges fully in under 2.5 hours from a standard 230V outlet and supports real-time monitoring via the Instagrid App. With dual outputs—BS 1363 (13A) and Neutrik PowerCON TRUE1 TOP®—the unit is compatible with a wide range of professional gear and integrates seamlessly with Instagrid LINK and LINK MAX systems for expanded or 3-phase power setups.

Features:
3.6kW continuous / 18kW peak output (230V AC / 16A)

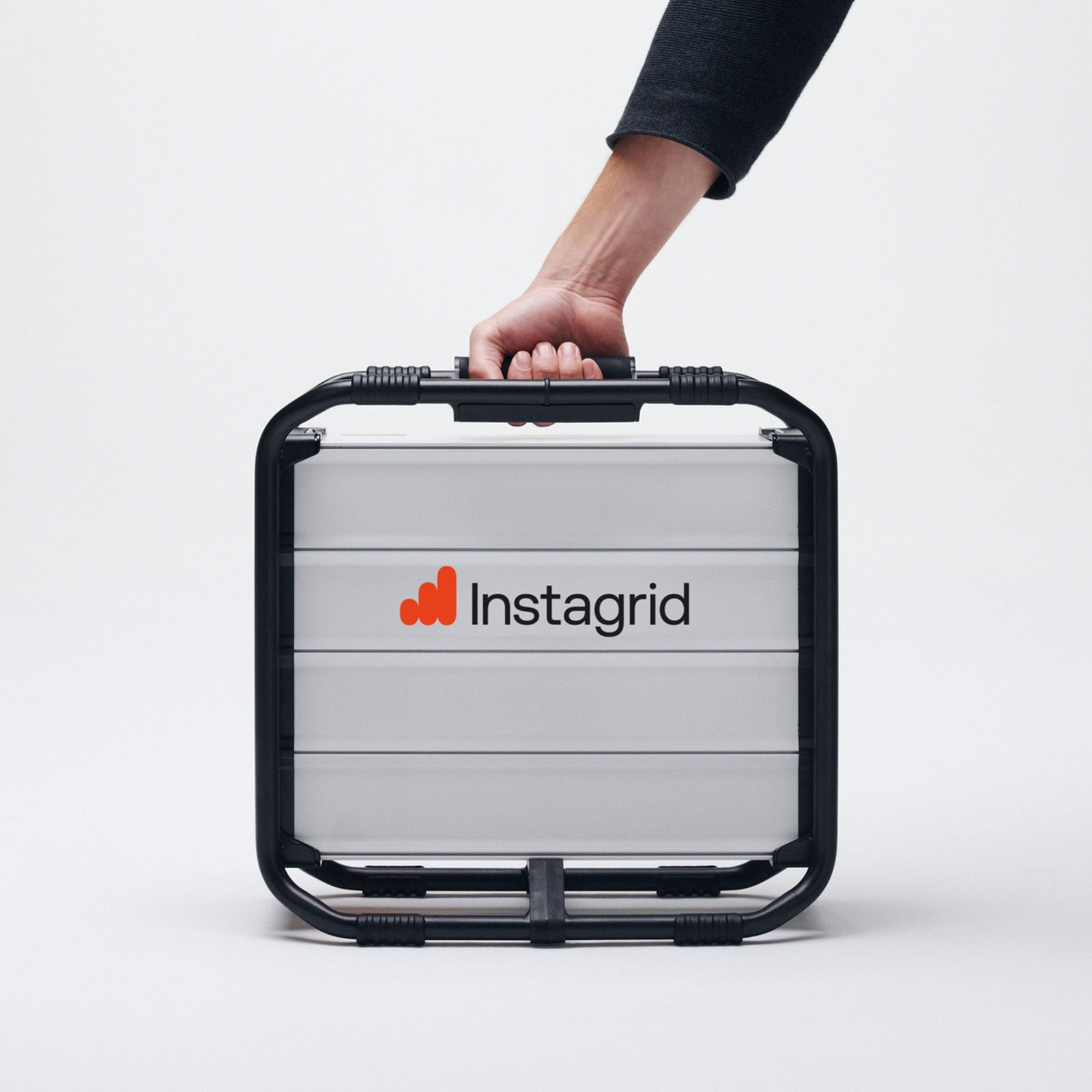

20kg, hand-carryable form factor with built-in handle
Recharges 0–100% in under 2.5 hours via 230V AC input
IP54-rated: water and dust resistant, for indoor/outdoor use
Zero noise, zero emissions, zero fuel
Dual 230V AC outputs: BS 1363 (13A) and Neutrik TRUE1 TOP®
Works with LINK and LINK MAX for capacity and 3-phase expansion
Real-time system status monitoring with the Instagrid App

Specifications:
Rated Output Power: 3,600W (230V AC / 16 A)
Peak Output Power: 18,000W
Overload Tolerance: 150% (5,400W) for 500 sec; 200% (7,200W) for 50 sec; 250% (9,000W) for 10 sec
Output Voltage: 230V AC / 50Hz
Output Sockets: 1 x BS 1363 (13A), 1 x Neutrik PowerCON TRUE1 TOP®
Input Voltage (Charging): 100–240V AC / 50–60Hz
Input Power (Charging): 400–960W
Charge Time: <2.5 hours (from 0–100%)
Battery Capacity: 2,074Wh (24 x 86.4Wh lithium-ion modules)
Battery Type: Lithium-ion, stacked micro-inverter architecture
Dimensions (L x W x H): 420 x 210 x 420 mm
Weight: 20 kg
Operating Temperature: –20°C to +60°C (discharge), 0°C to +45°C (charging)
IP Rating: IP54 – dust and splash resistant
Protection Class: Class II (double-insulated)
Noise Emission: <30 dB(A) – fanless passive cooling
Mounting & Transport: Integrated carry handle, LINK system compatible
Certifications: CE (RED, LVD, EMC, RoHS, WEEE), REACH compliant
