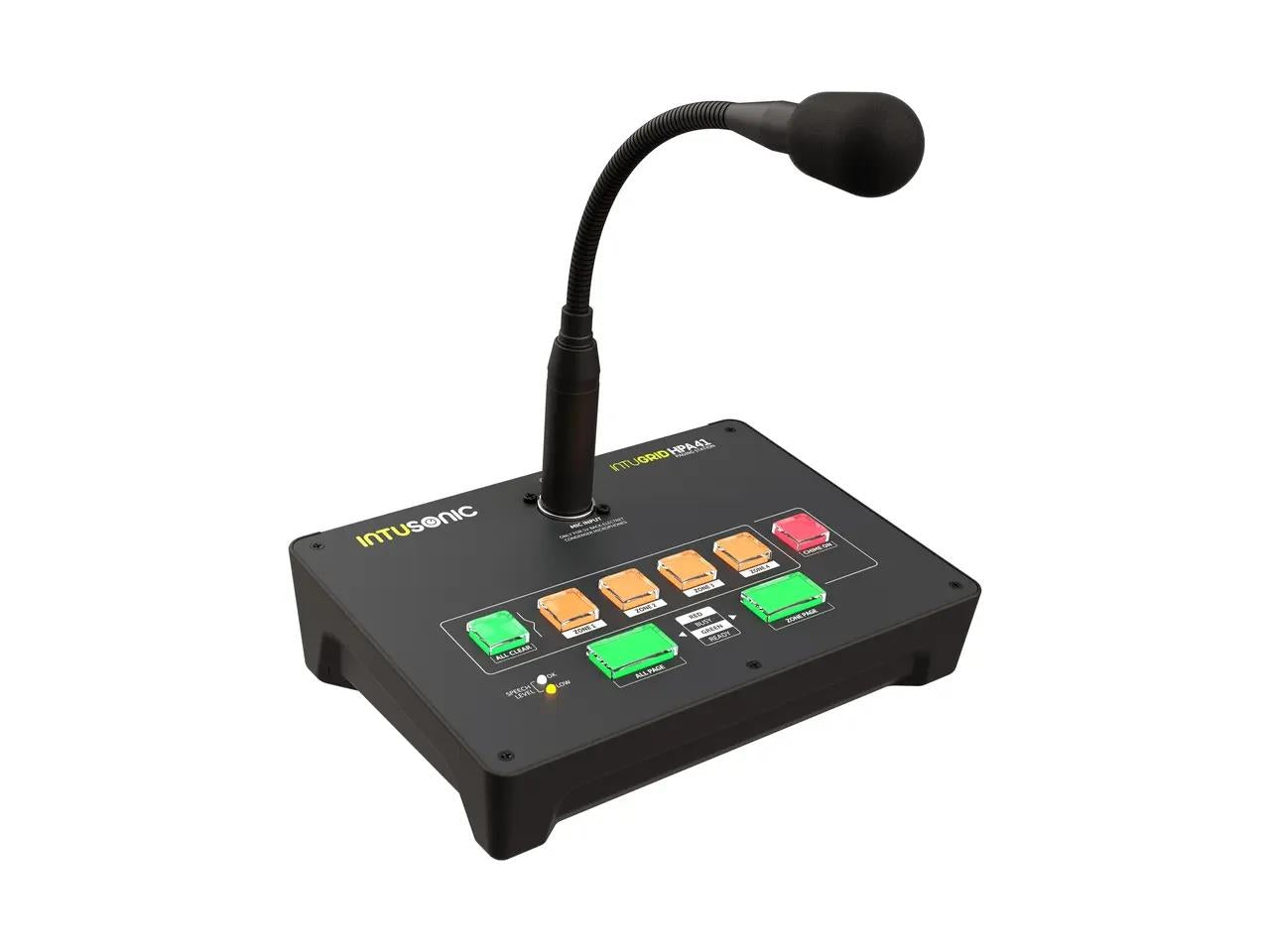

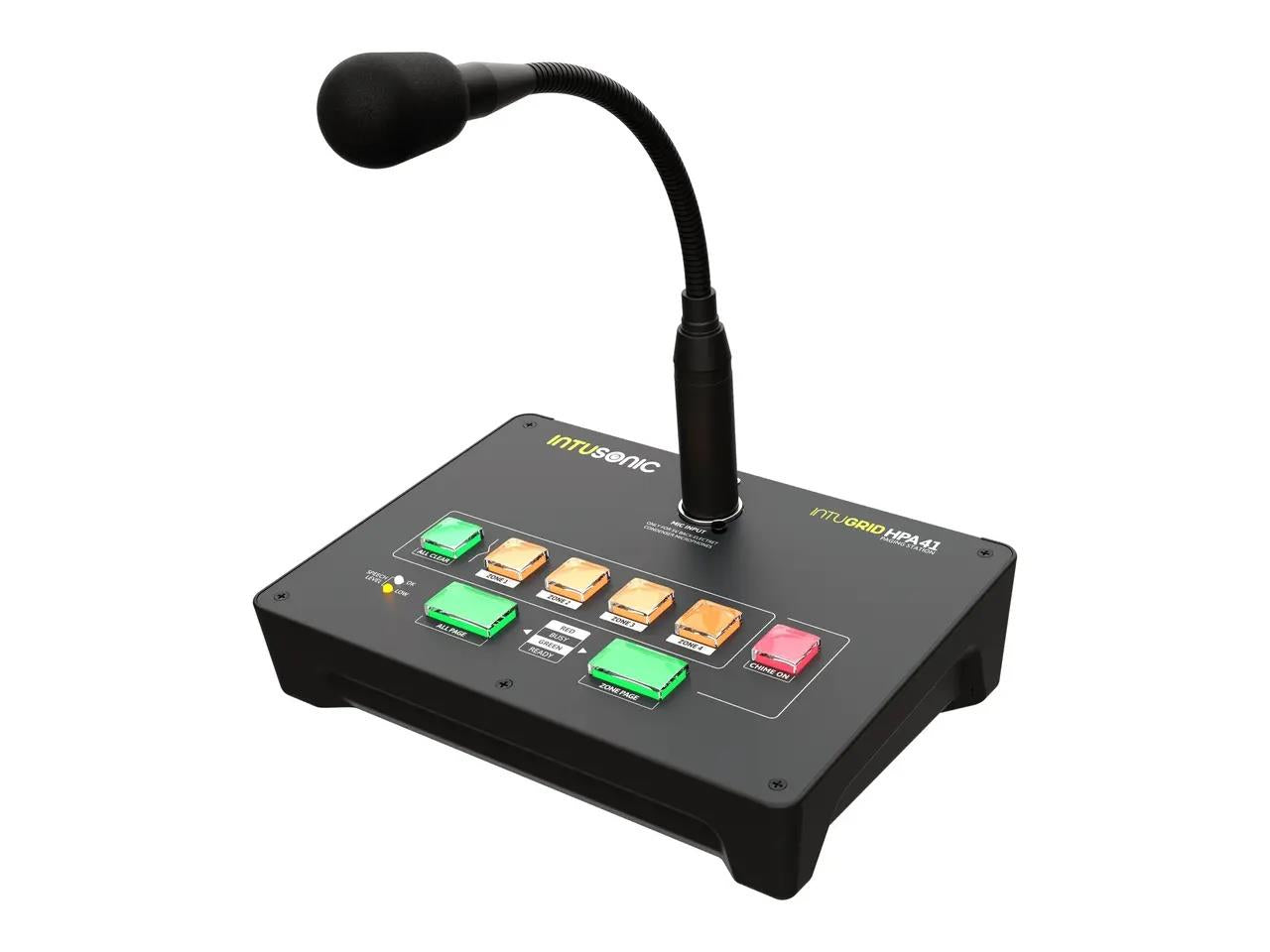

INTUSONIC HPA41 4-zone Paging Station

Description

The INTUGRID HPA41 is a versatile 4-zone paging station designed for integration within INTUGRID system environments. Featuring an intelligent auto-chime function, it automatically plays a pre-announcement tone when paging is initiated, removing the need for manual triggering and ensuring consistent operation. The system allows customisation of the chime via the IntuLink bus or by replacing the memory IC, while a built-in microphone level indicator assists users in achieving optimal audio performance. With flexible zone selection and simple controls, it provides an efficient and professional solution for multi-zone paging applications.

Features

4-zone paging station for INTUGRID systems
Selectable paging to individual zones or all zones simultaneously
Integrated auto-chime player with replaceable or customisable chime sounds

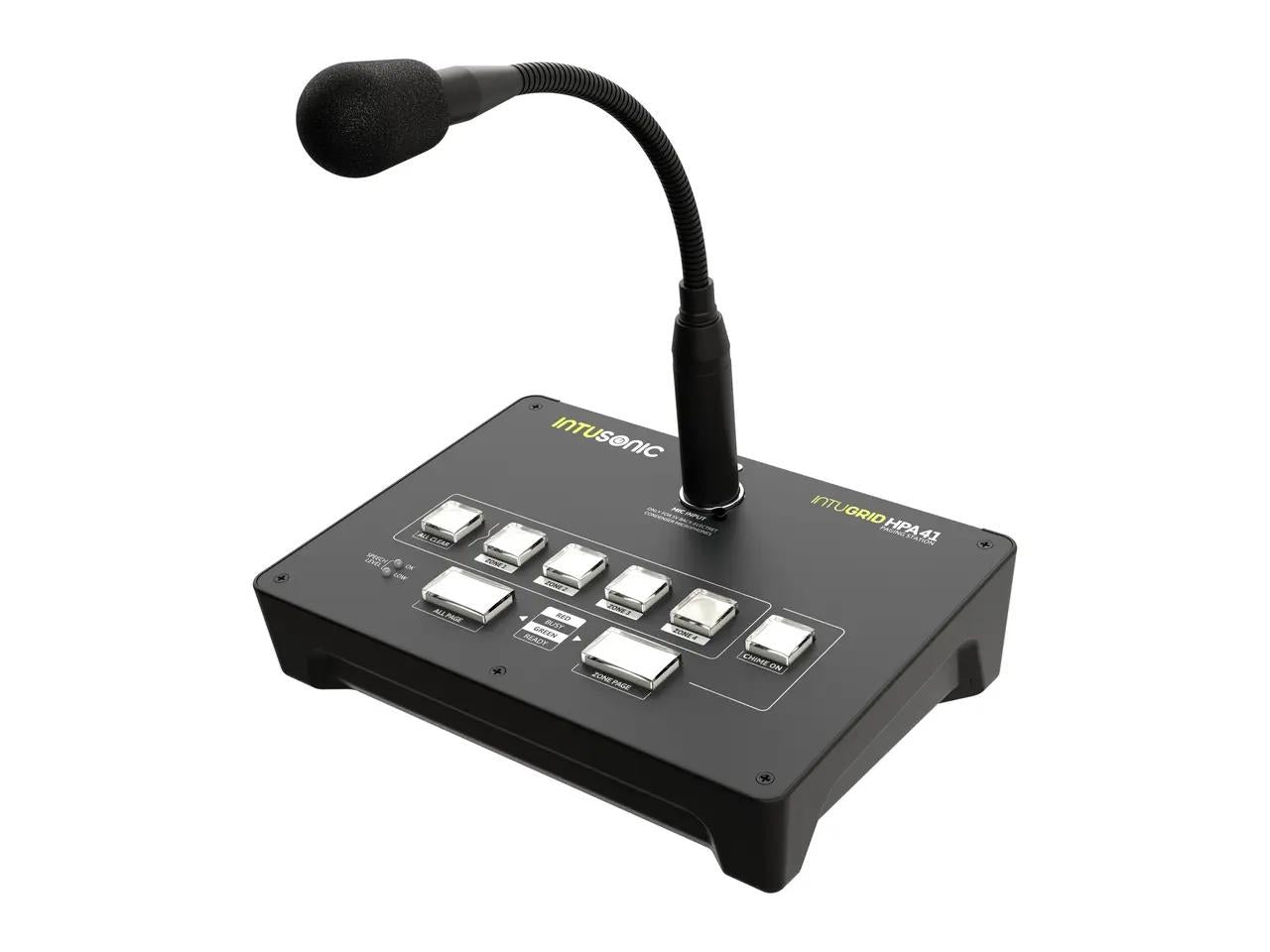

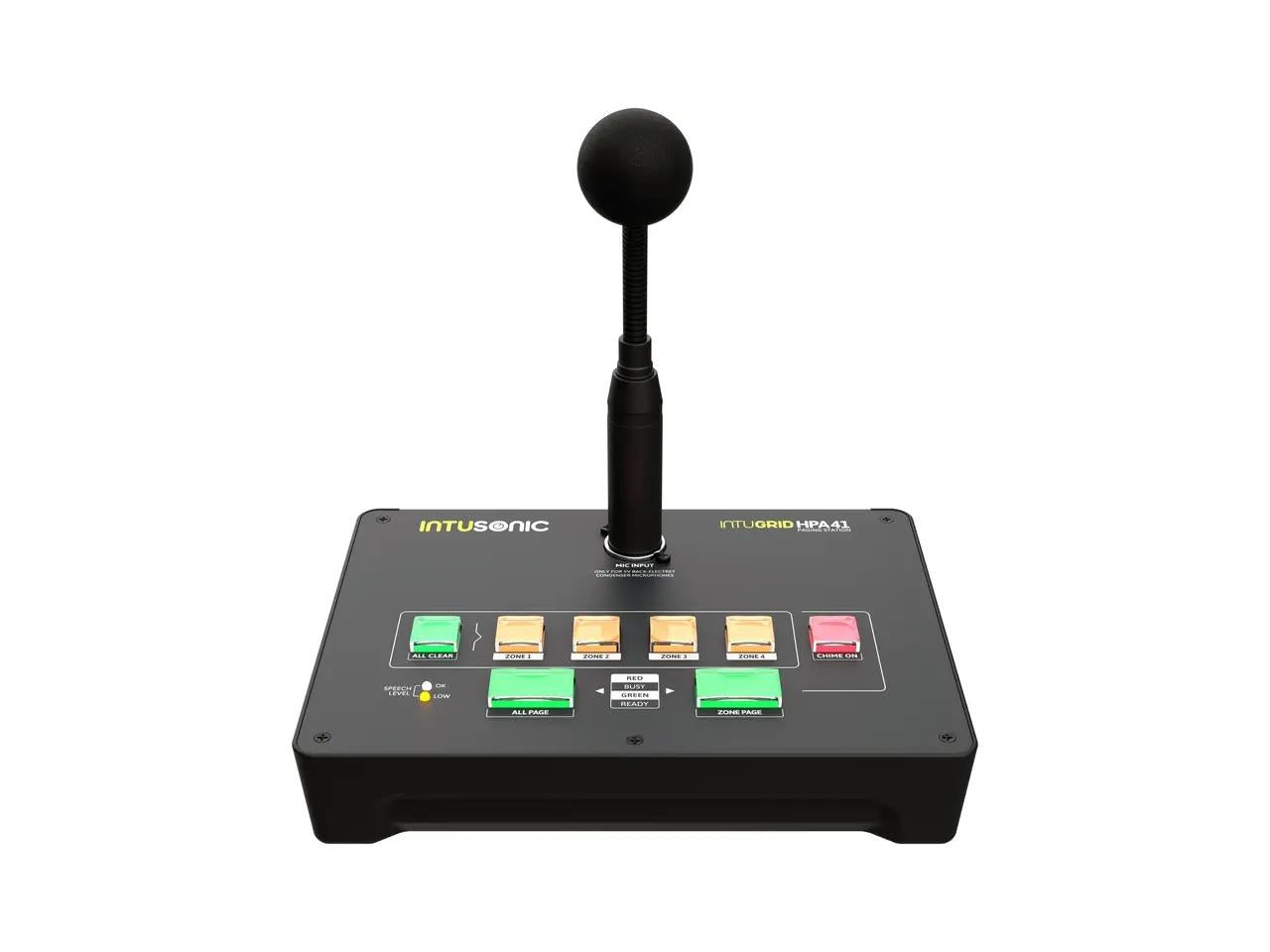

Electret gooseneck microphone for clear voice transmission
Microphone level indicator for optimal positioning and audio clarity

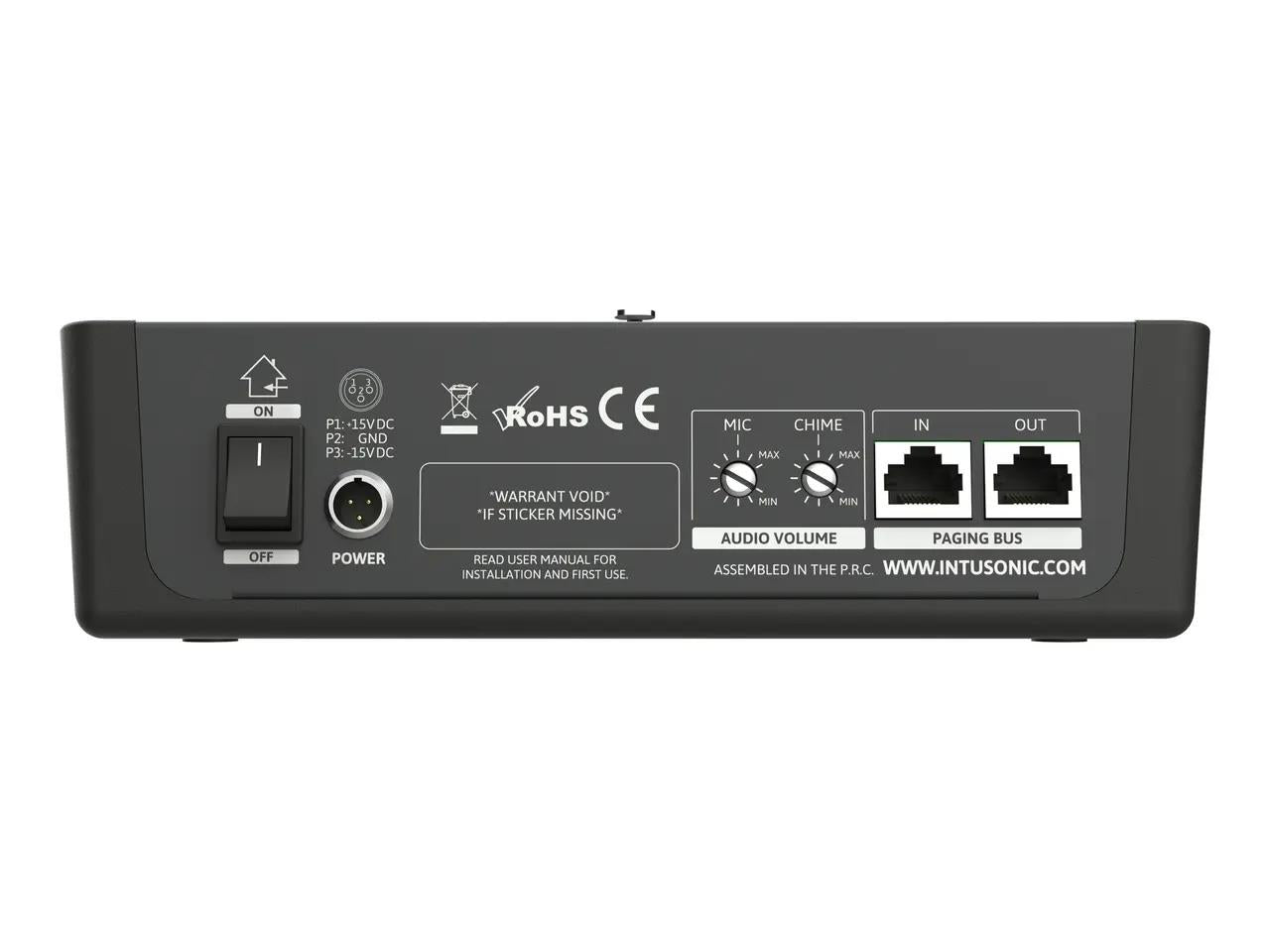

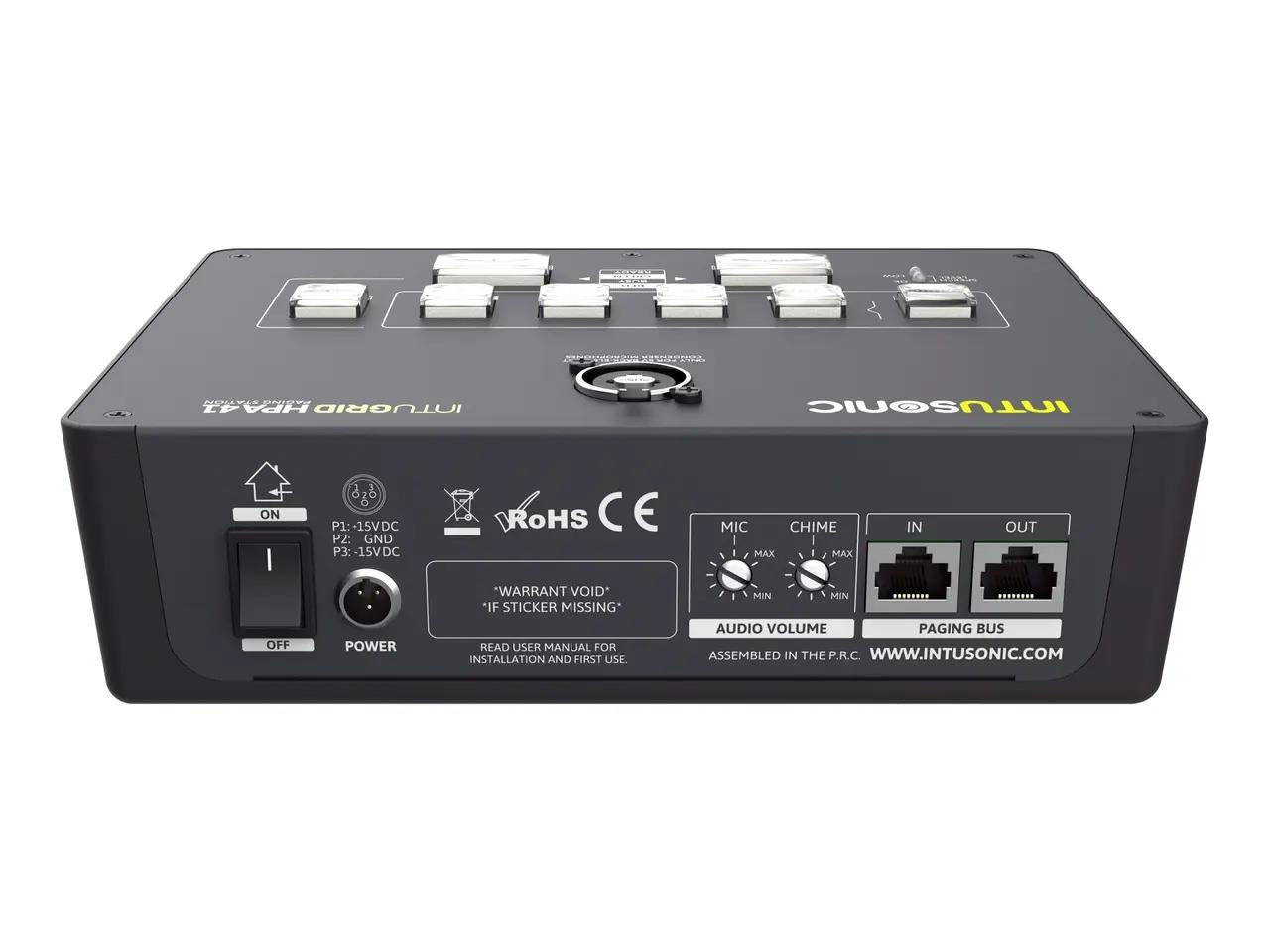

Separate rear-panel controls for chime and microphone volume adjustment
Zone preselection with quick clear function

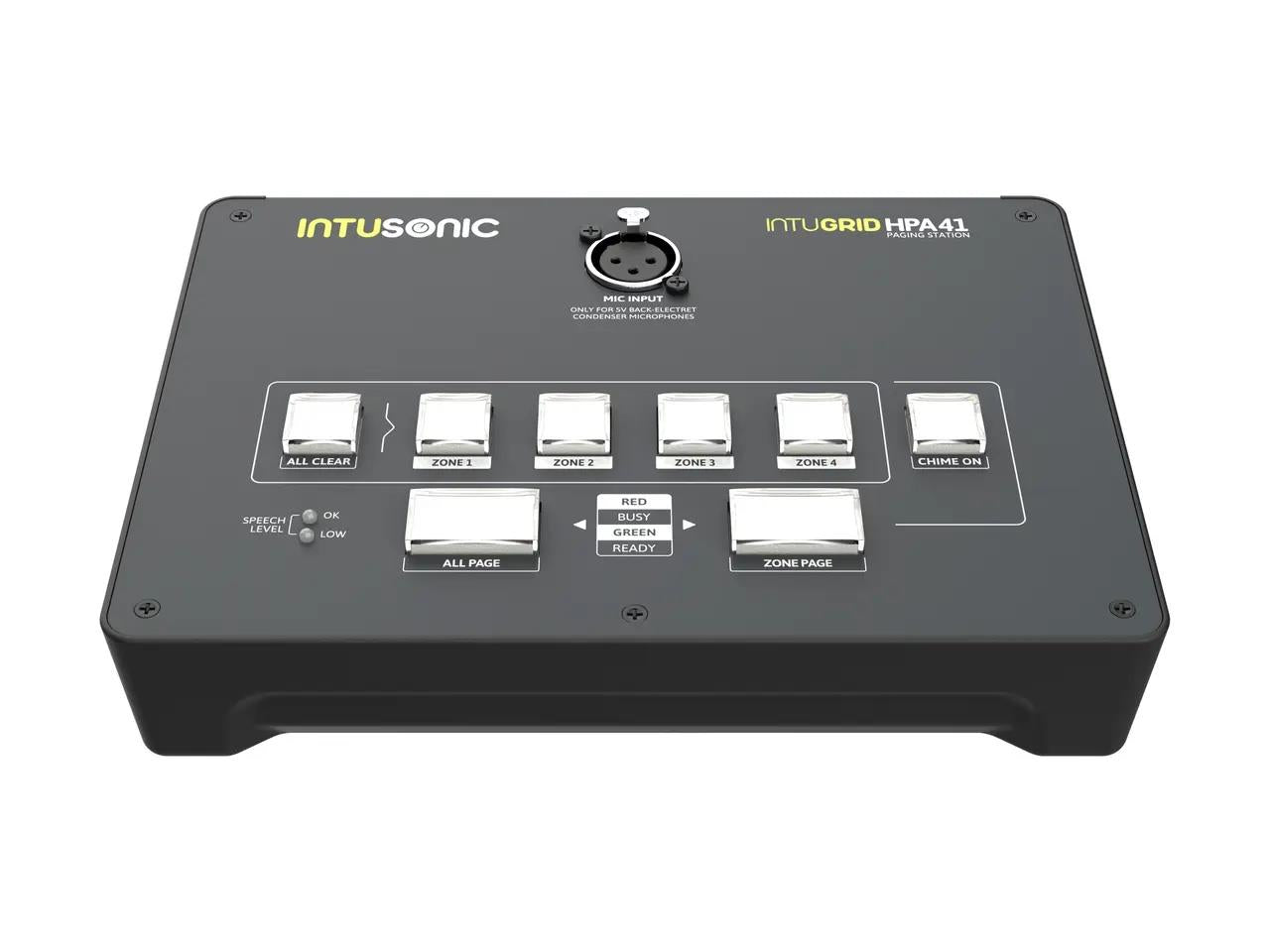

Desktop console design for convenient operation
RS-485 connectivity via RJ-45 for system integration

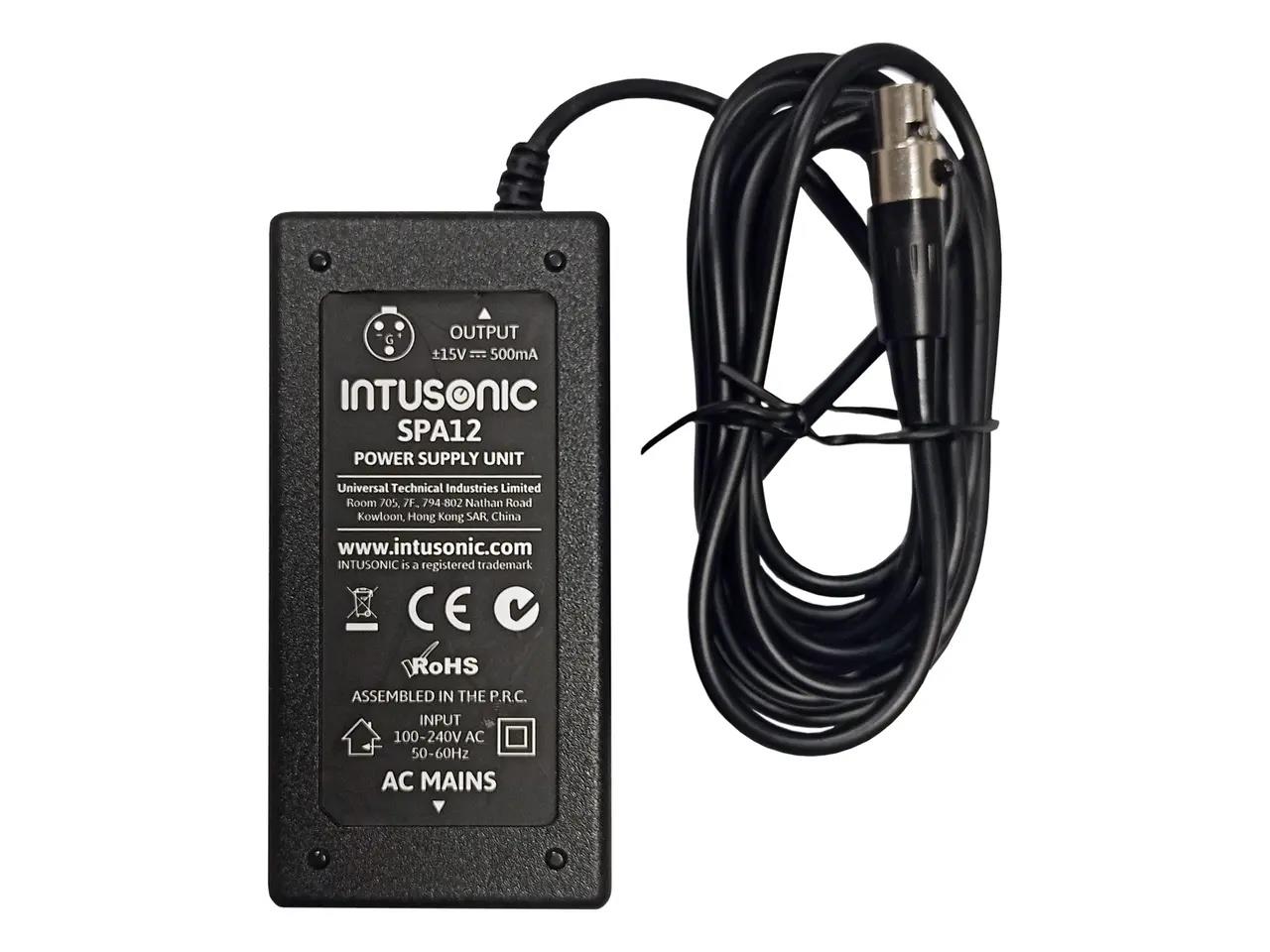

External professional-grade power supply for high headroom audio

Specifications

Power supply: 100–240 V AC, 50/60 Hz or 15 V DC 500 mA
Power consumption: 5 W
IP rating: IP20
Microphone type: Electret gooseneck
Capsule size: Ø 13 mm x 60 mm
Phantom power: 15 V DC
Network connections: 2 x RJ-45 (RS-485)
Zone outputs: 4 switchable zones

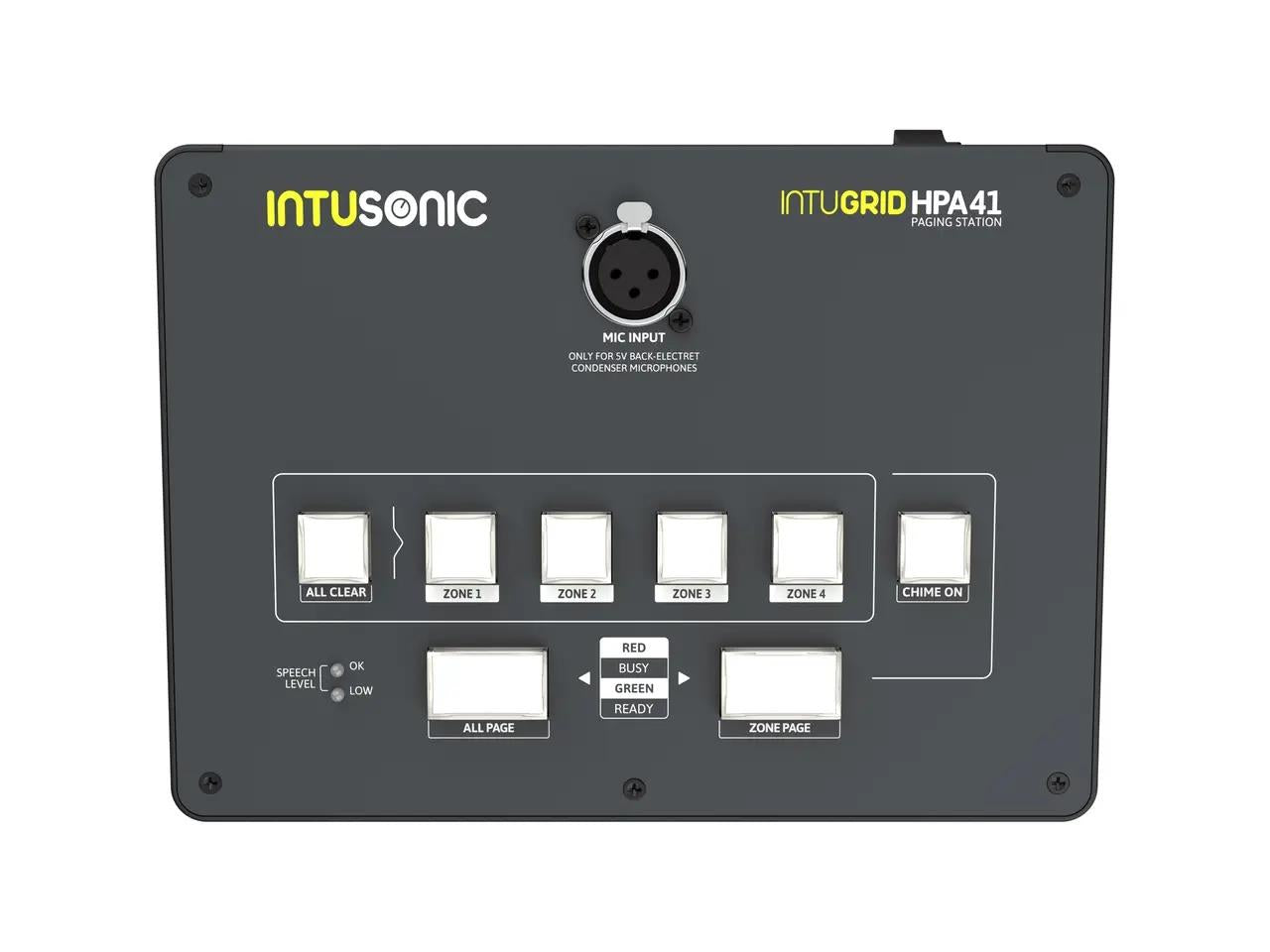

Controls: Power switch, level control, chime button, clear button
Indicators: Speech level LED
Audio channels: 1 x mono microphone input via XLR
Housing: Desktop console
Colour: Black matte and anthracite matte
Dimensions (unit W x D x H): 205 x 155 x 60 mm
Microphone length: 280 mm
Microphone diameter: 27 mm
Weight: 0.90 kg
