Intusonic IntuForce 2SDL70 2 x 70W - 4 Ohm Stereo Amplifier

Description:

The INTUFORCE 2SDL70 is an extremely compact low-impedance power amplifier for installation purposes. Featuring ultra-high CMRR circuitry at the input, it accepts long cable runs, and hence is perfectly suited to be placed close to the speakers but far from the source. Via its input forwarding function, it can serve both as a stereo and as a dual-mono amplifier. Every input sports an internal 100Hz High-pass filter to suit the connected speakers. Rear-side volume controls with peak LEDs allow exact level settings without any tampering by the operator. A balanced link output, which can either carry the original input signal or the signal processed by the volume controls, allows to build large cascaded systems to more complex requirements. Being based on class D amplification technology and a switch mode power supply with very conservative power reserves, the 2SDL70 not only runs cool and silent, but also has the endurance to satisfy the most demanding applications.

Features:

2 individual amplifier blocks with 65W power @ 4 Ω each.
Class D topology with switch mode power supply
Balanced (TRS and 3.5mm terminal strip) inputs.
Ultra-High CMRR input circuitry for long cable runs.
Input forwarding switch for stereo and parallel mono modes.

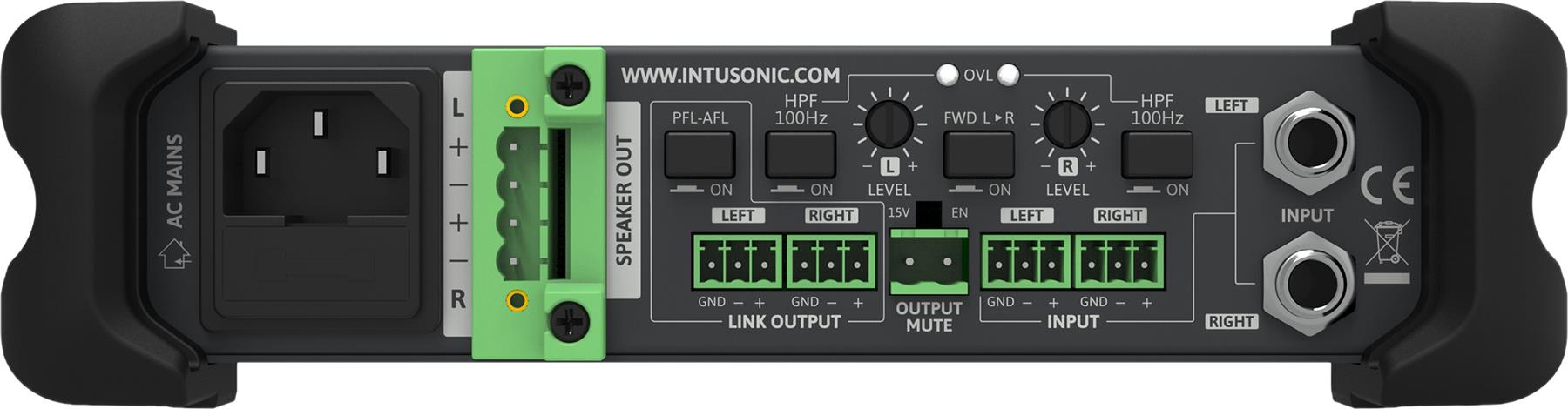

Rear-side volume control for each channel with Peak LED
Separate 100Hz HPF for both inputs
Line-level LINK output on 3.5mm strip connectors with routing pre/post-volume for
External MUTE contact
Speaker output via 5.0mm terminal strip connector
Noiseless convection cooling without fan
Full metal case, supplied with TPR bumper corner, surface mounting brackets and front mounting brackets

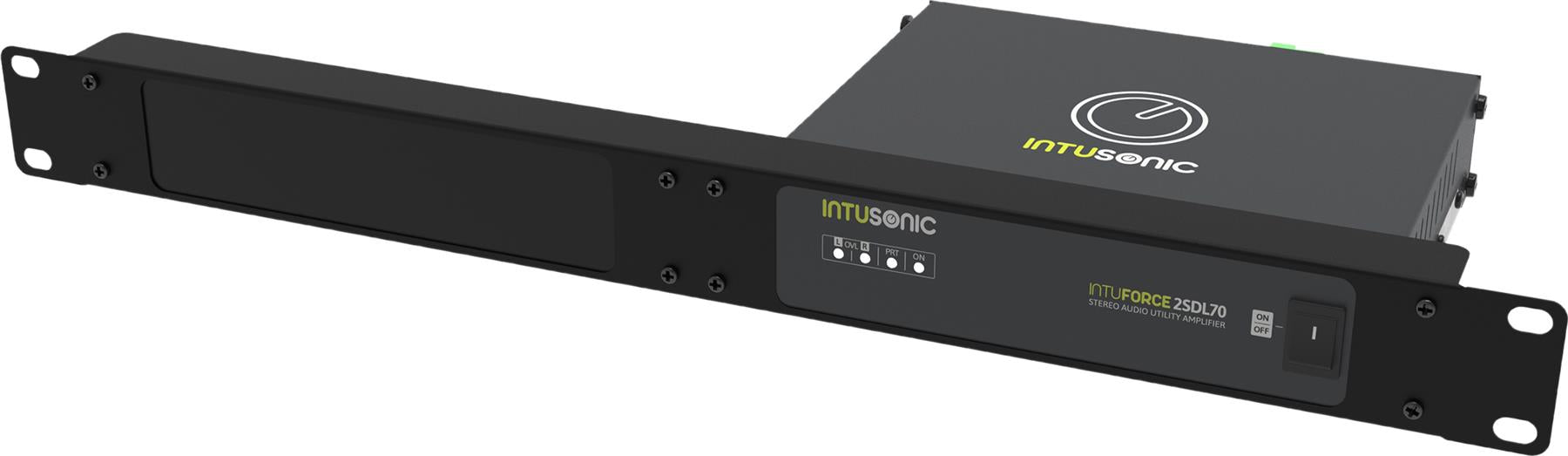

JUP2 rackmount kit for 19’’ rack mounting available optionally.
CE/ROHS compliant
