INTUSONIC NSA52 5-source Media Player with DAB+

Description

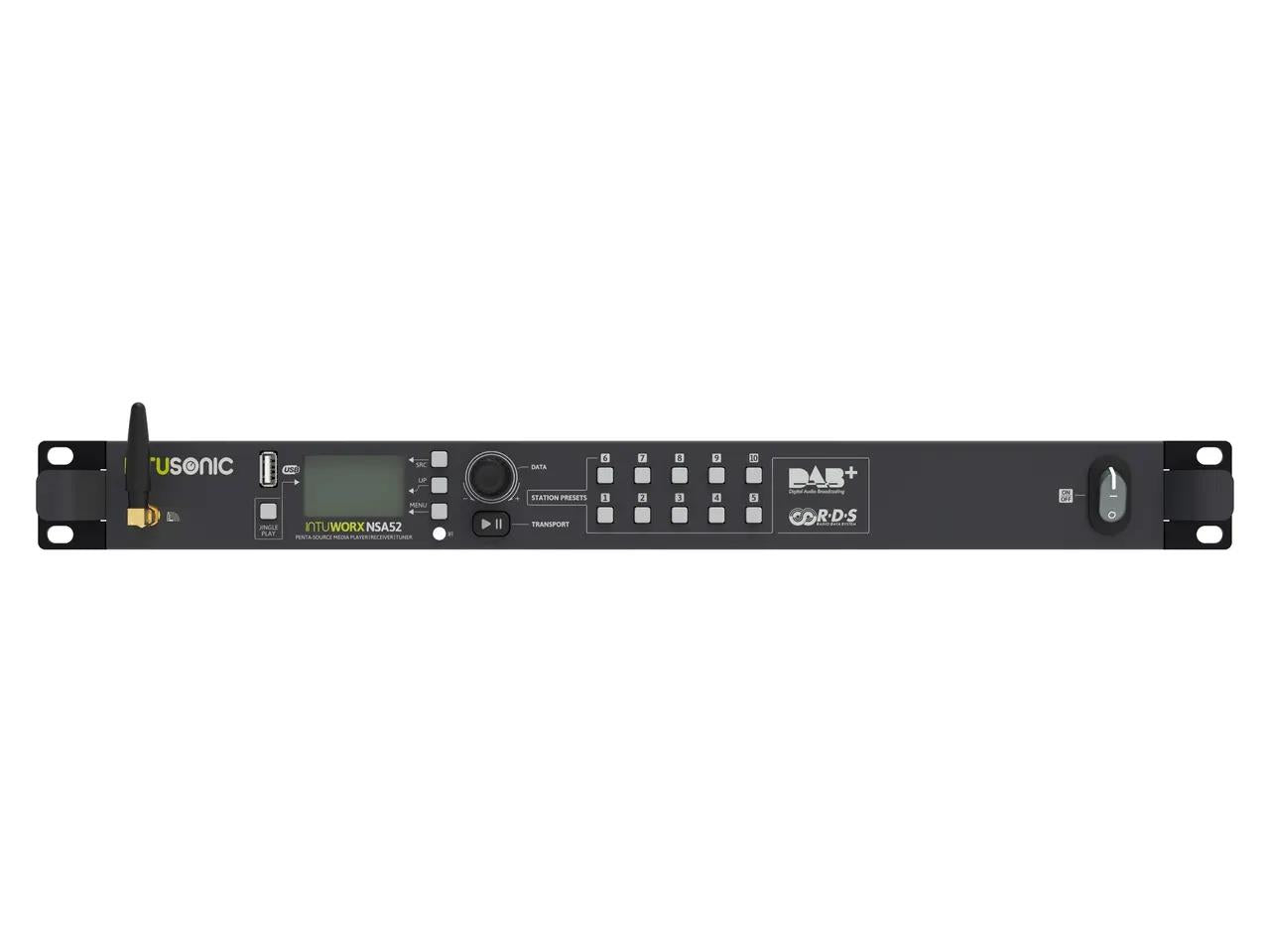

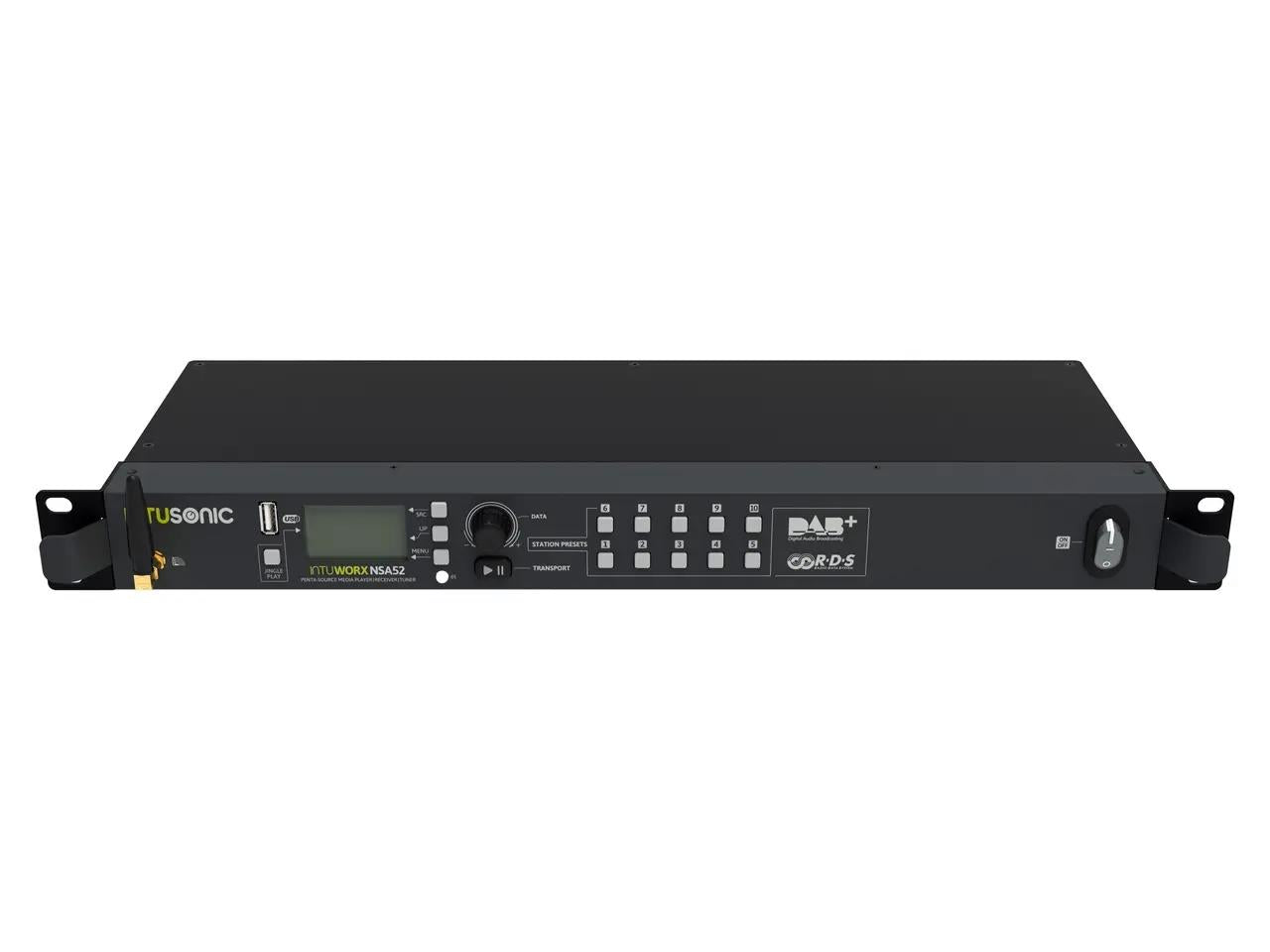

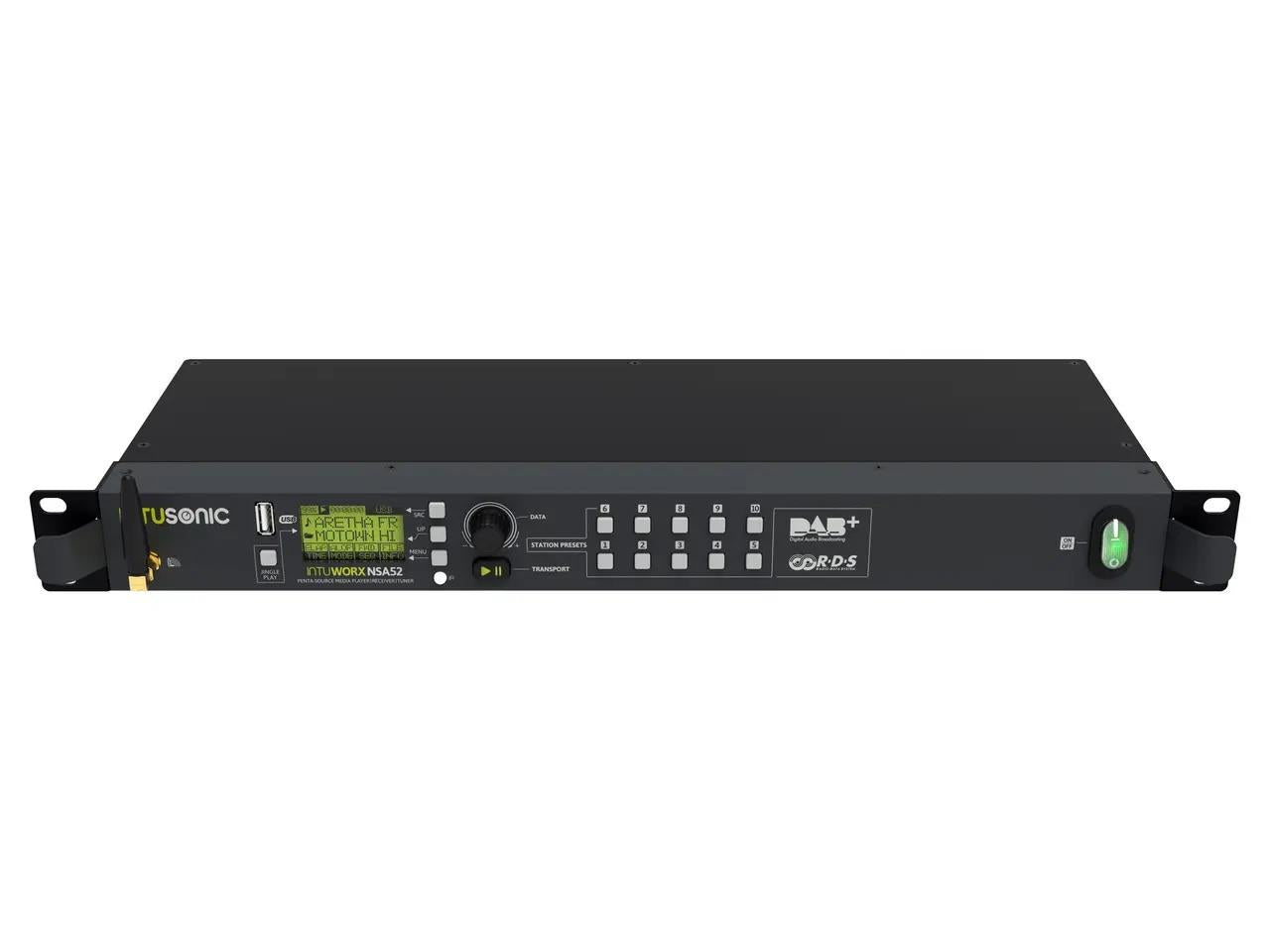

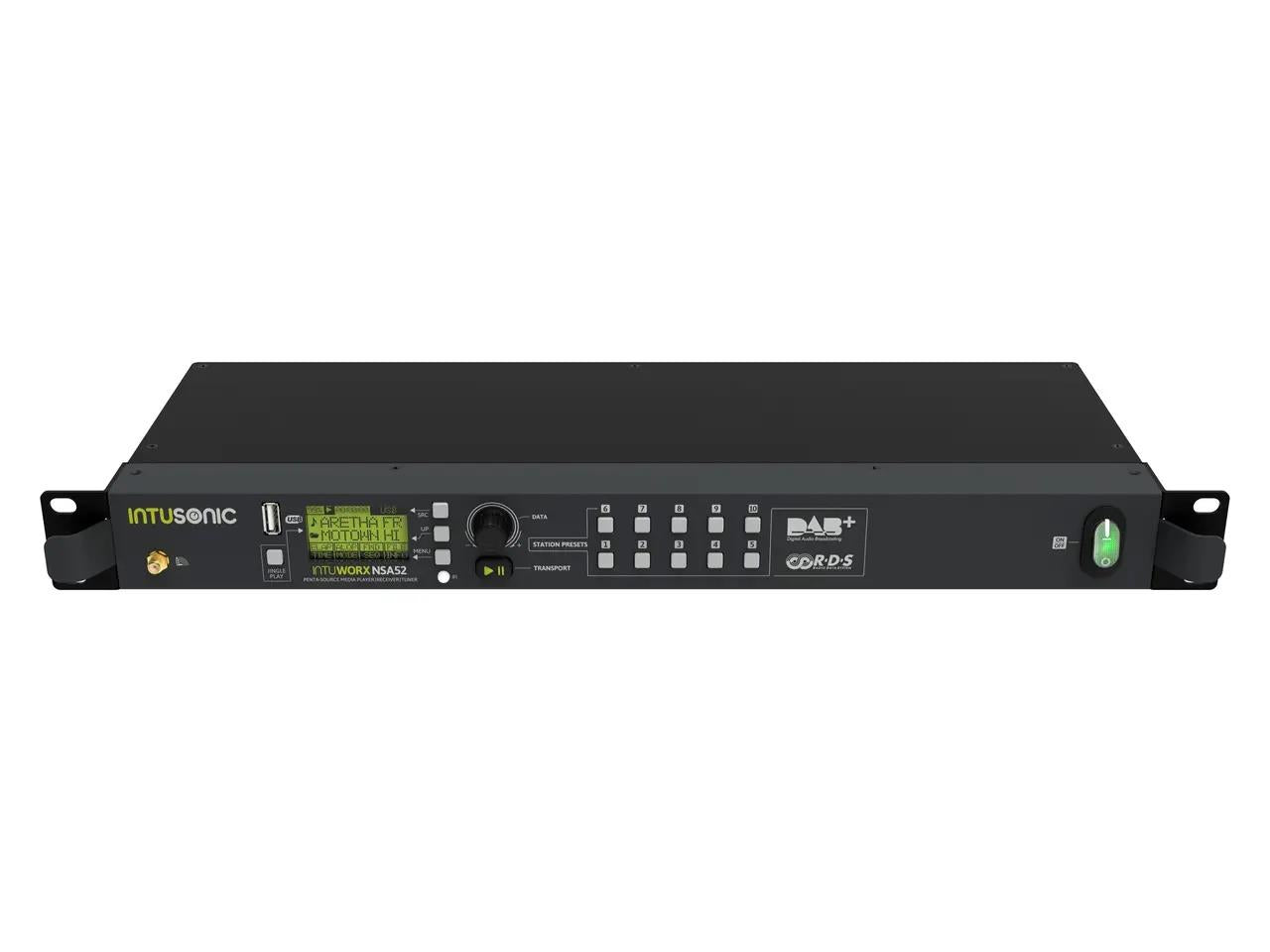

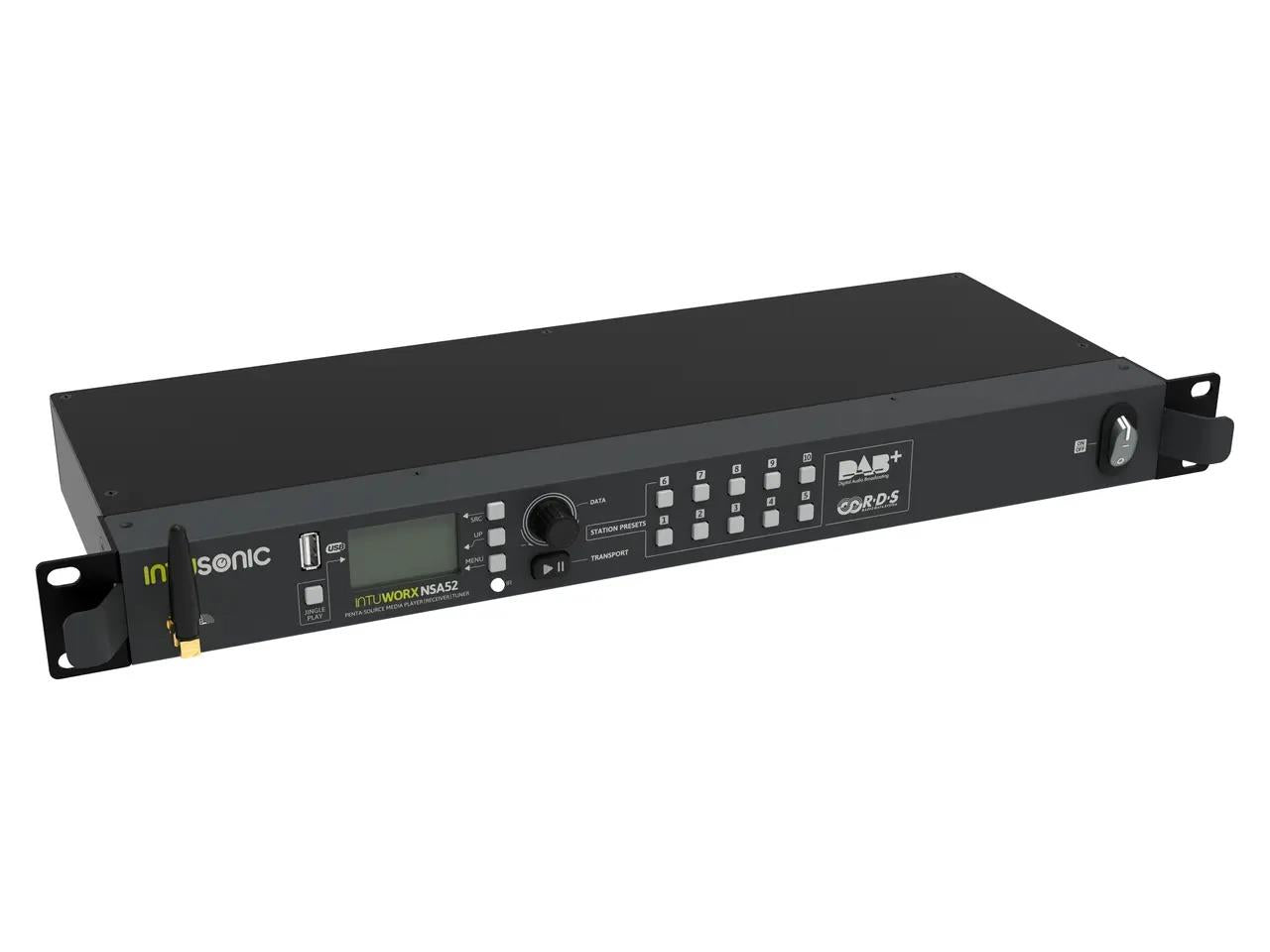

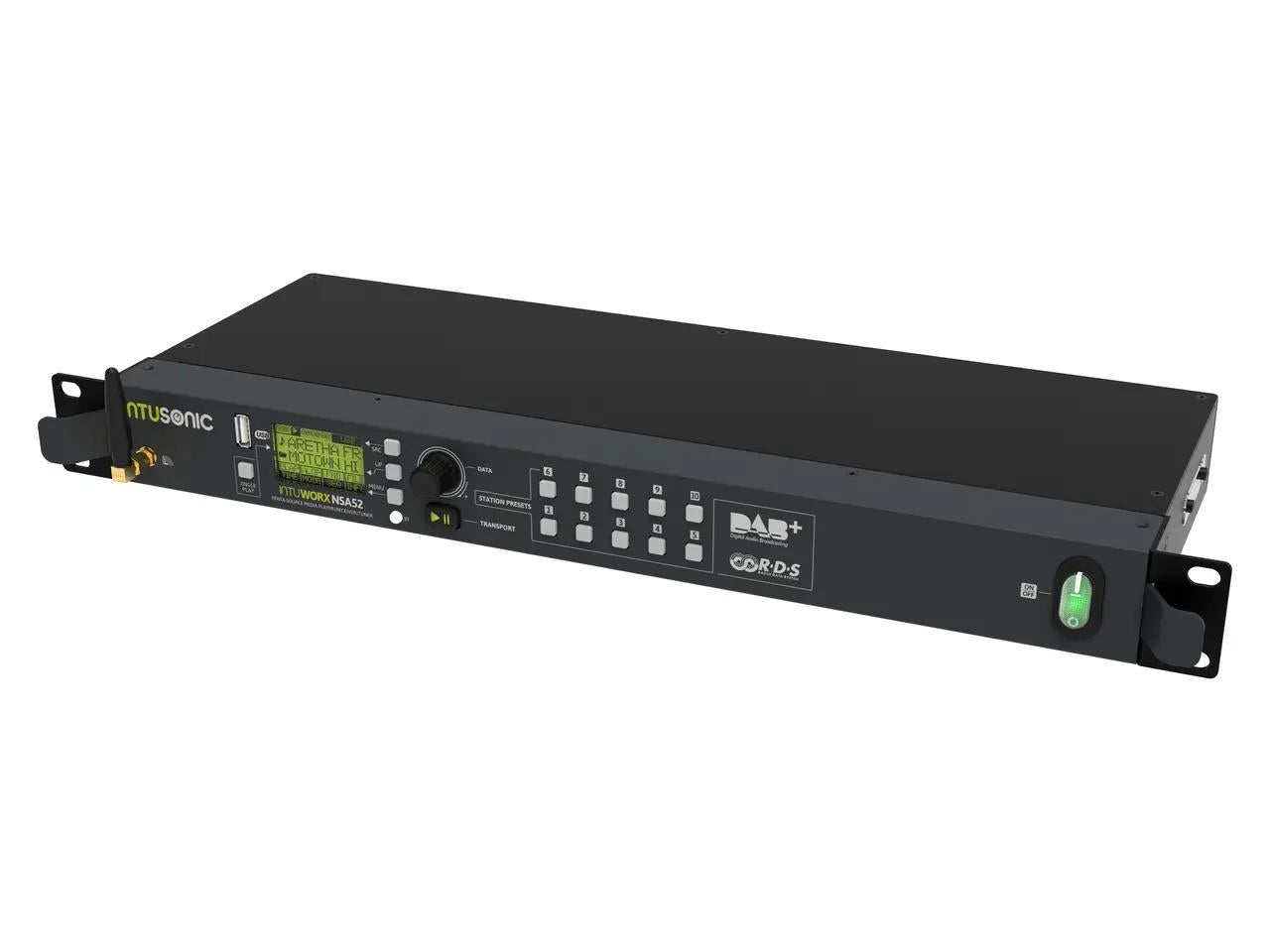

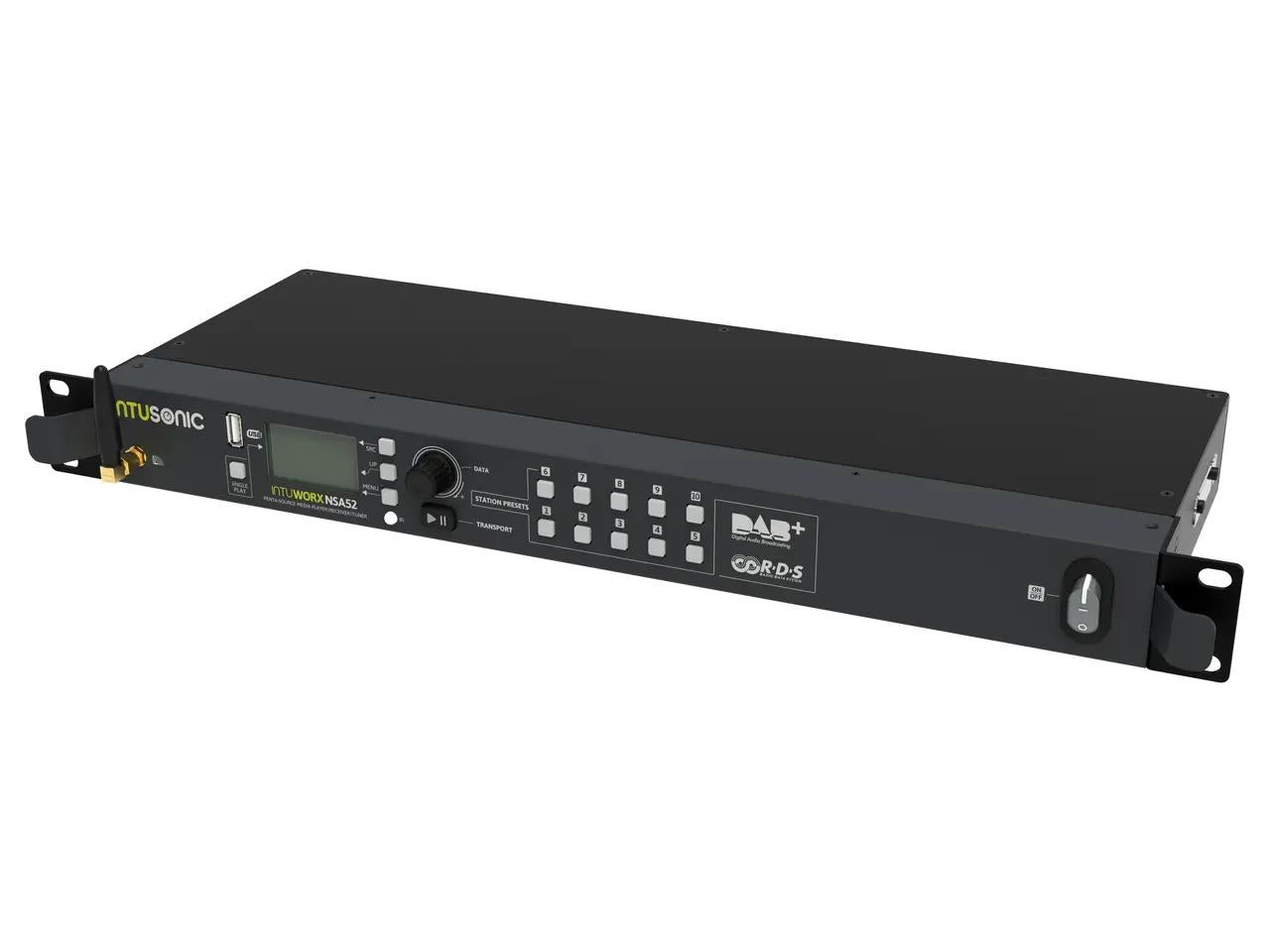

The INTUWORX NSA52 is a multifunctional 19-inch media player designed for professional audio installations, combining multiple audio sources into a single compact 1U unit. It integrates a USB MP3 player, DAB+ and FM tuners, wireless audio connectivity, and a built-in jingle player, all controlled via an intuitive interface with a clear graphical display. Designed for flexibility and reliability, it offers both balanced and unbalanced outputs along with remote control operation, making it ideal for commercial environments, venues, and public address systems.

Features

All-in-one media player with USB, DAB+, FM tuner, wireless audio, and jingle playback
Built-in jingle player supporting up to 4 audio clips with manual or scheduled playback
Trigger inputs for external activation of jingles
USB playback supporting MP3, WAV, FLAC, and APE formats
Folder navigation with repeat and random playback modes
ID3 tag support with track and file display options
DAB+ digital radio for high-quality audio reception
FM tuner with RDS and 10 preset station memory
Wireless audio streaming via LINKOUSTIC connection

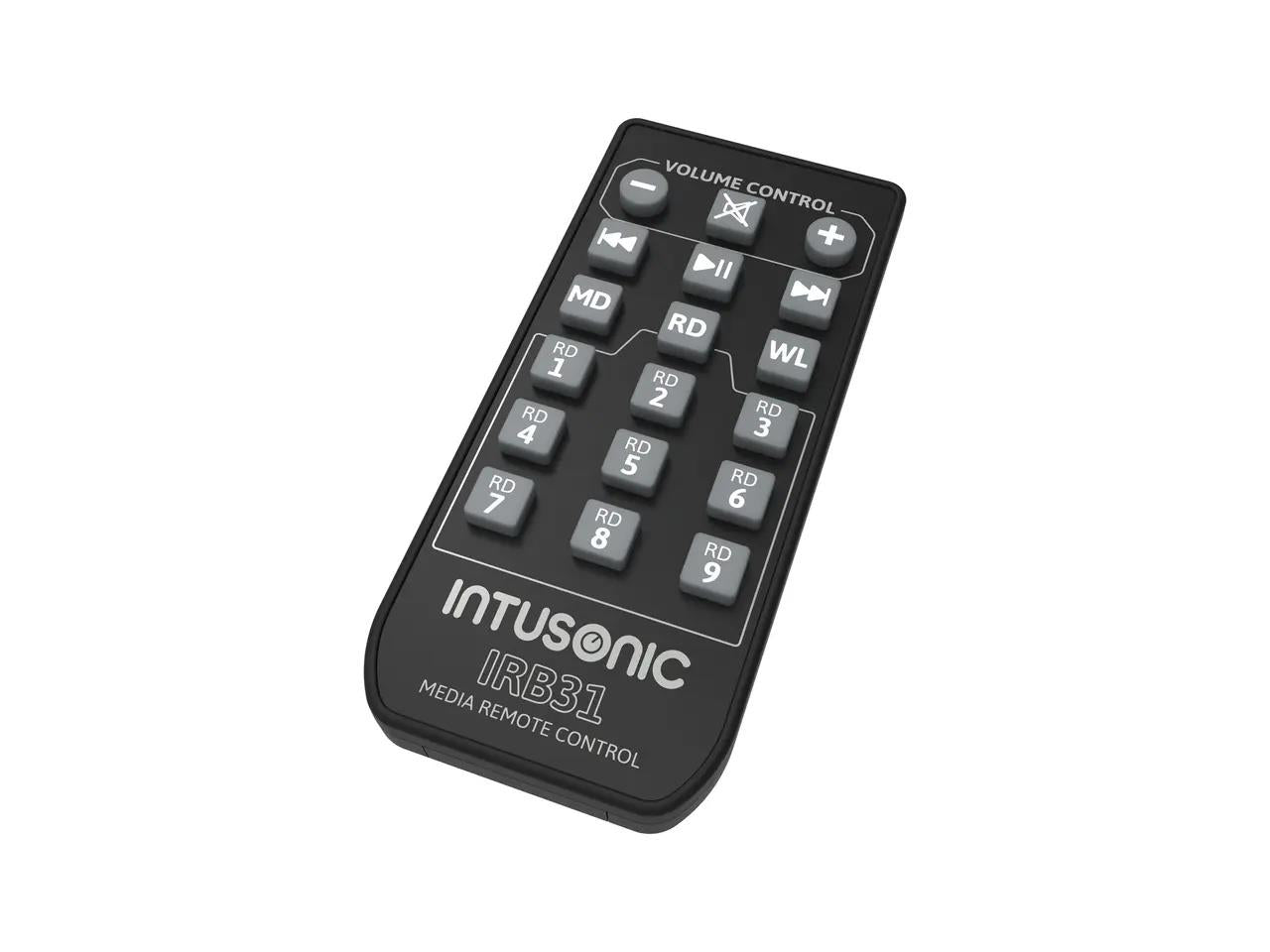

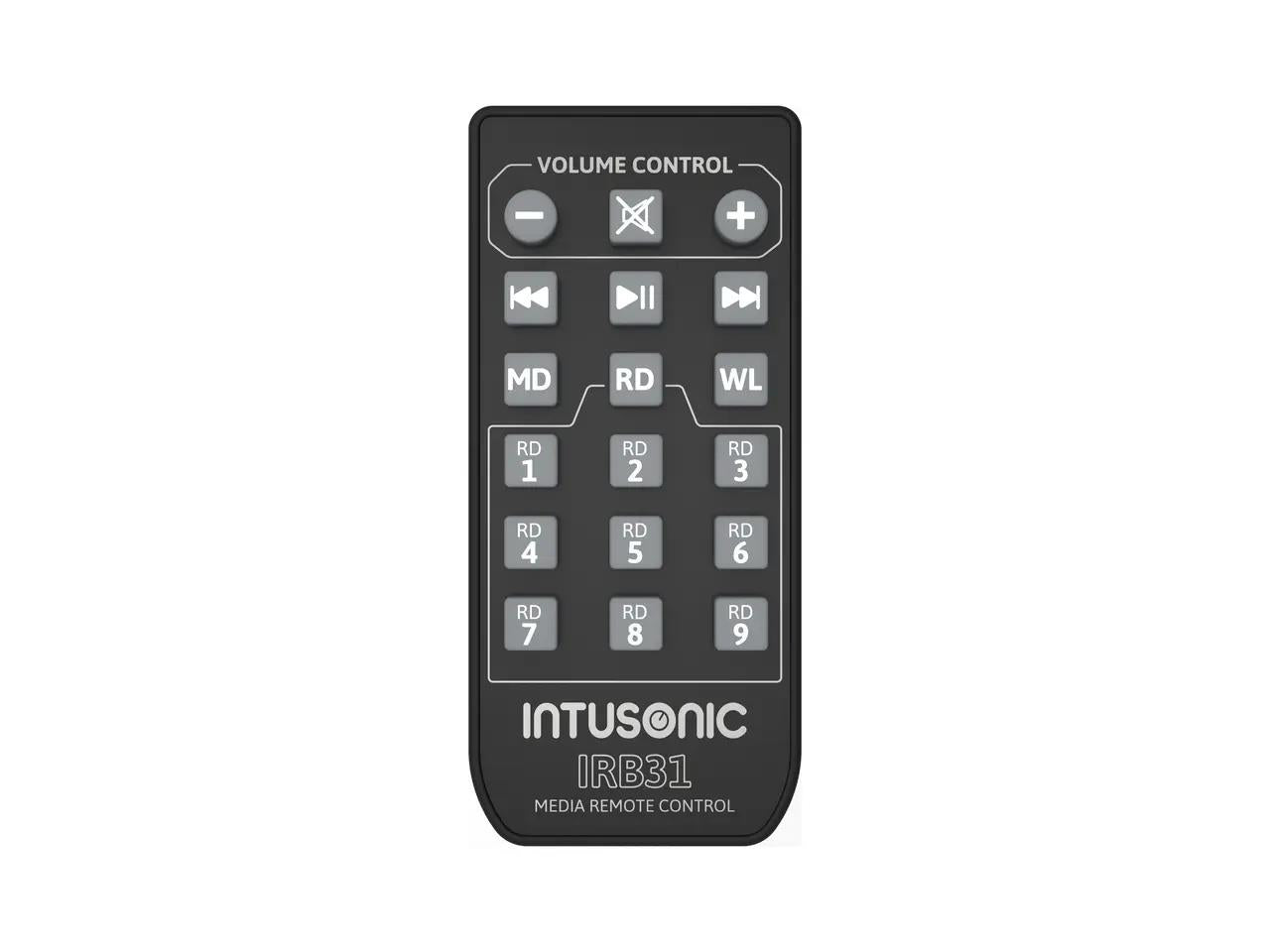

IR remote control for convenient operation
Monochrome LCD display with track and tuner information
Balanced XLR and unbalanced RCA outputs for flexible integration
Rear-panel volume control for system matching
Compact 19-inch rack mountable 1U design

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 12 W
IP rating: IP20
Protection class: Class I
Audio sources: USB player, Bluetooth wireless audio, FM tuner, DAB+ tuner
Supported formats: MP3, WAV, FLAC, APE
USB support: Up to 64 GB (FAT16/32)
Bluetooth range: Up to 10 m indoors
Wireless frequency: 2.4 GHz
Tuner frequency range: DAB+ 174.928 – 239.200 MHz
Display: Monochrome LCD

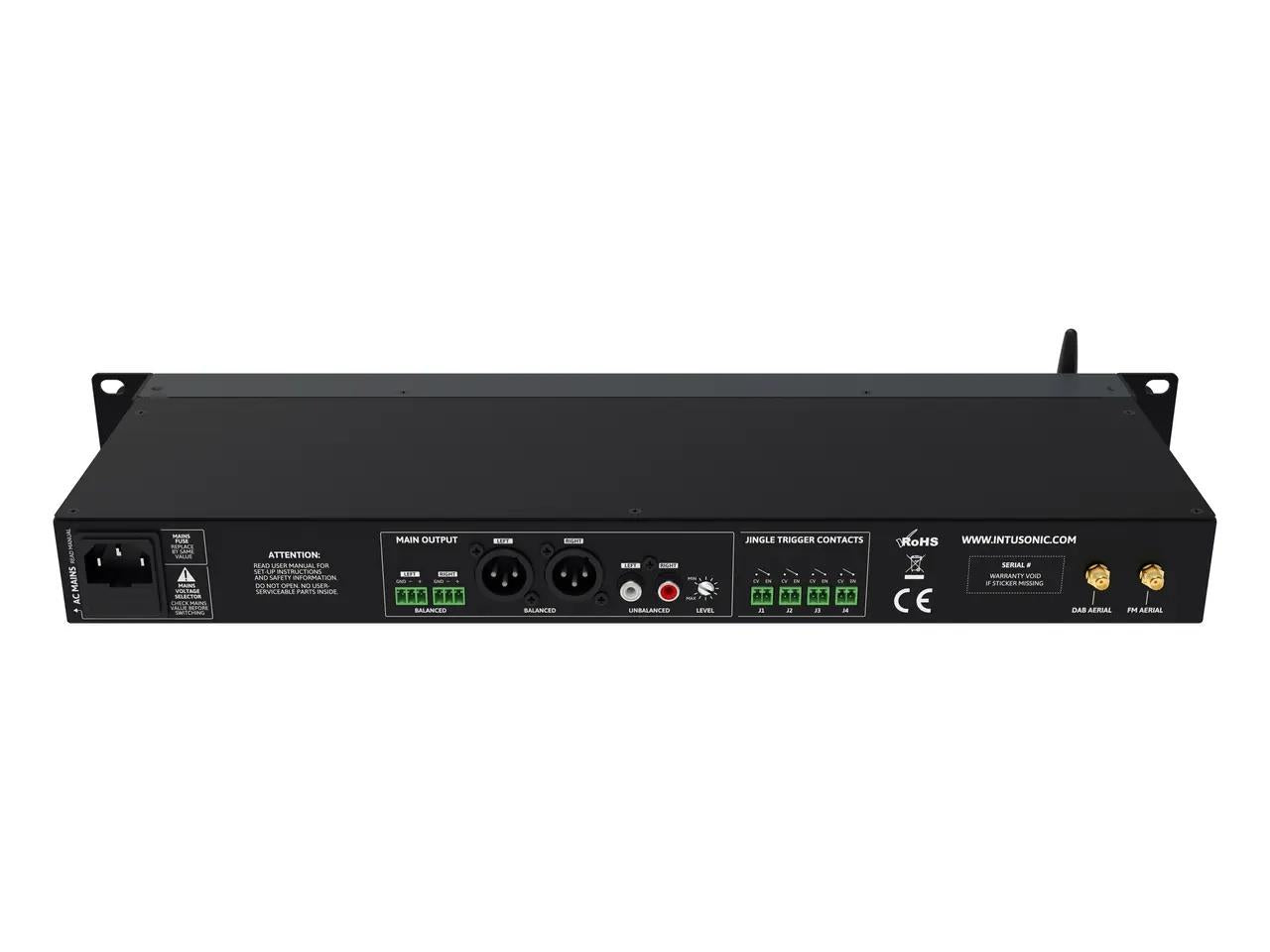

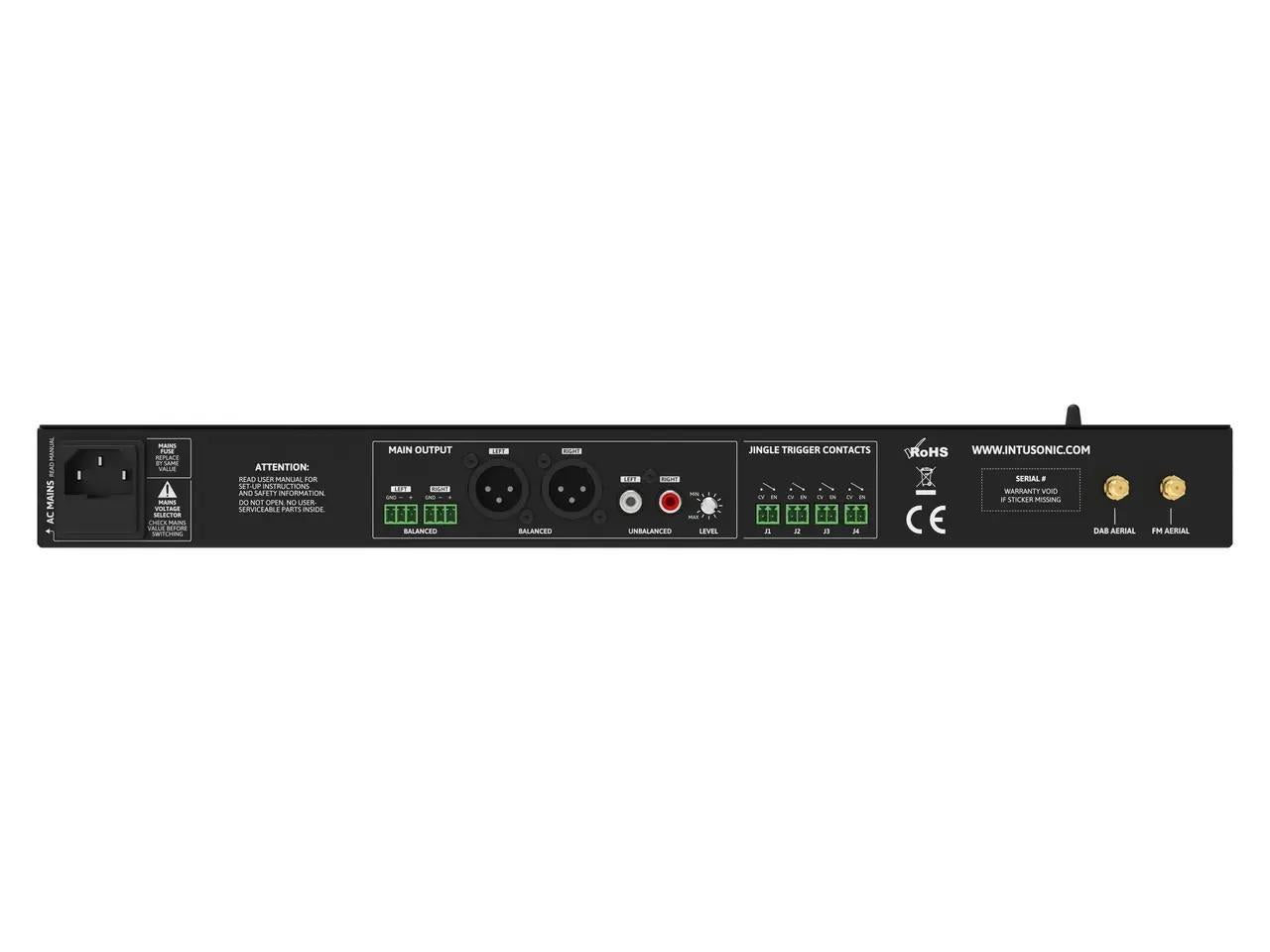

Outputs: 2 x XLR (balanced), 1 x stereo RCA, screw terminal outputs
Inputs: 4 x trigger inputs via screw terminals
Antenna connections: 3 x SMA
Controls: Power switch, encoder, level control, memory button
Mounting: 19-inch rack, 1U
Mounting depth: 17 cm
Dimensions (W x D x H): 483 x 188 x 44 mm
Weight: 2.50 kg
