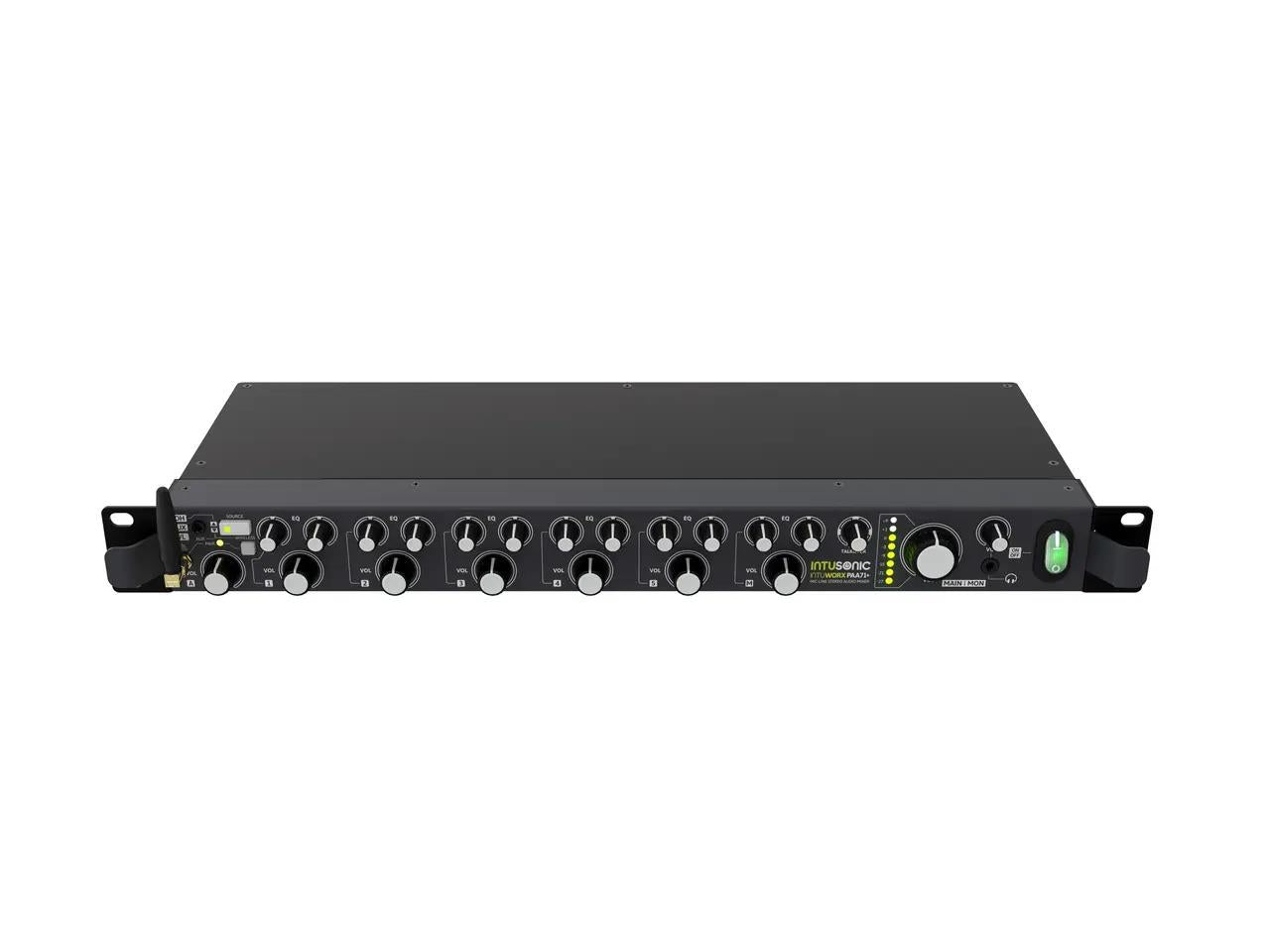

INTUSONIC PAA71+ Microphone Line Mixer Rack Install PA

Description

The INTUWORX PAA71+ is a versatile 7-channel mic/line mixer designed as the central hub for installed sound systems. With an improved design, it offers flexible input options including microphone, line, and wireless audio sources, making it suitable for a wide range of commercial and professional applications. Multiple configurable inputs, integrated equalisation, and a dedicated talkover microphone channel provide precise control over both music and announcements, while additional connectivity options allow seamless integration into larger audio and emergency systems.

Features

7-channel mic/line mixer for installed audio systems
5 multi-purpose inputs switchable between microphone and stereo line

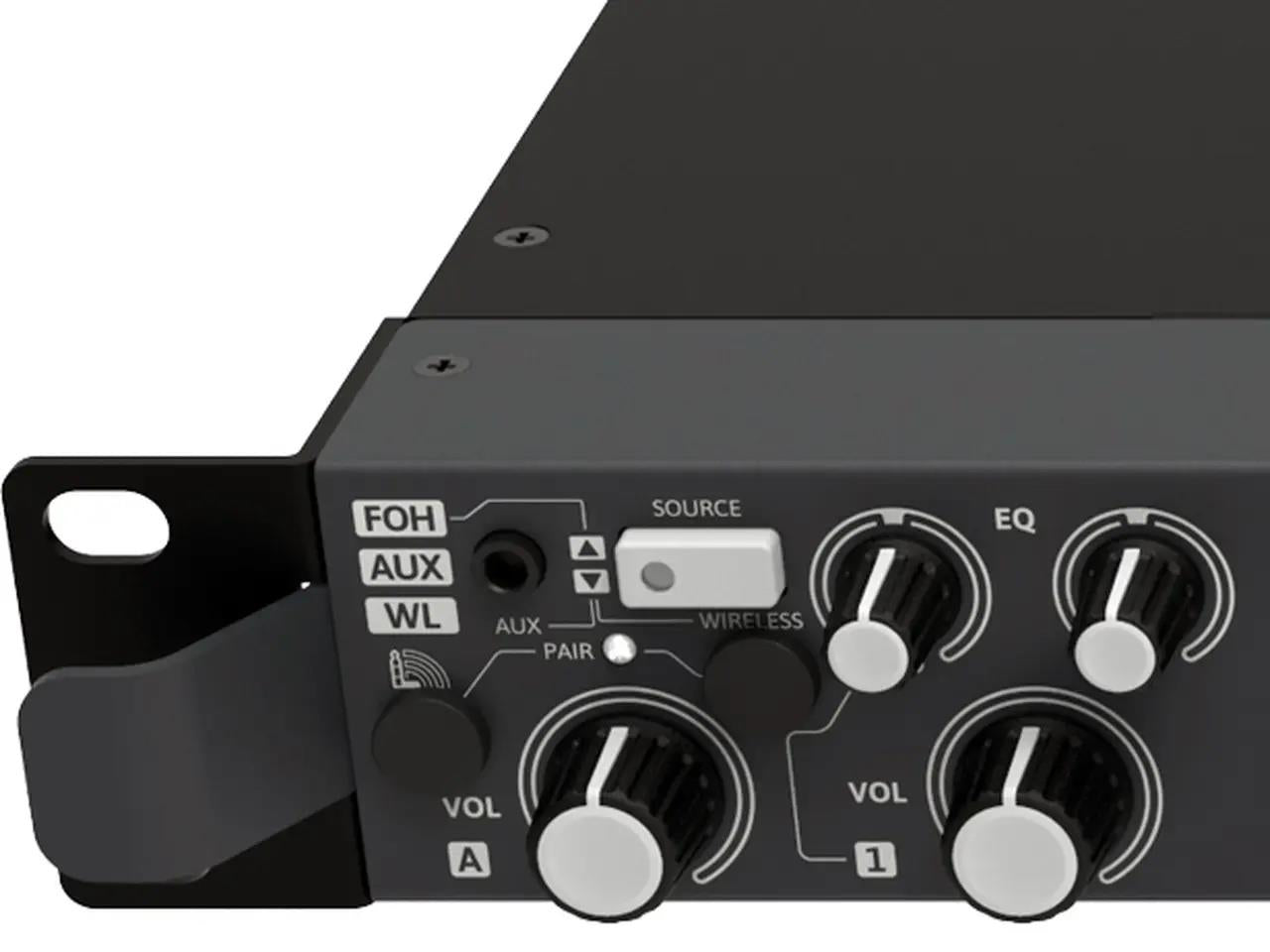

Dedicated stereo input with selectable AUX, front 3.5 mm jack, or wireless audio link
Additional microphone input with adjustable talkover priority
Built-in LINKOUSTIC wireless audio connectivity
2-band EQ and gain control on each channel (except stereo input)
Adjustable monitor output for headphones or balanced mono signal
External shutdown and emergency signal inputs for system integration
Optional 12 V phantom power for microphone inputs
Independent level controls per channel with master volume control
Status LEDs for power, pairing, and level monitoring
19-inch rack mountable design for professional installations

Specifications

Power supply: 115/230 V AC, 50/60 Hz
Power consumption: Max. 12 W
Protection class: Class I
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: >82 dB (line)
Total harmonic distortion: <0.05% at 1 kHz
Phantom power: 12 V DC
Wireless frequency: 2.4 GHz

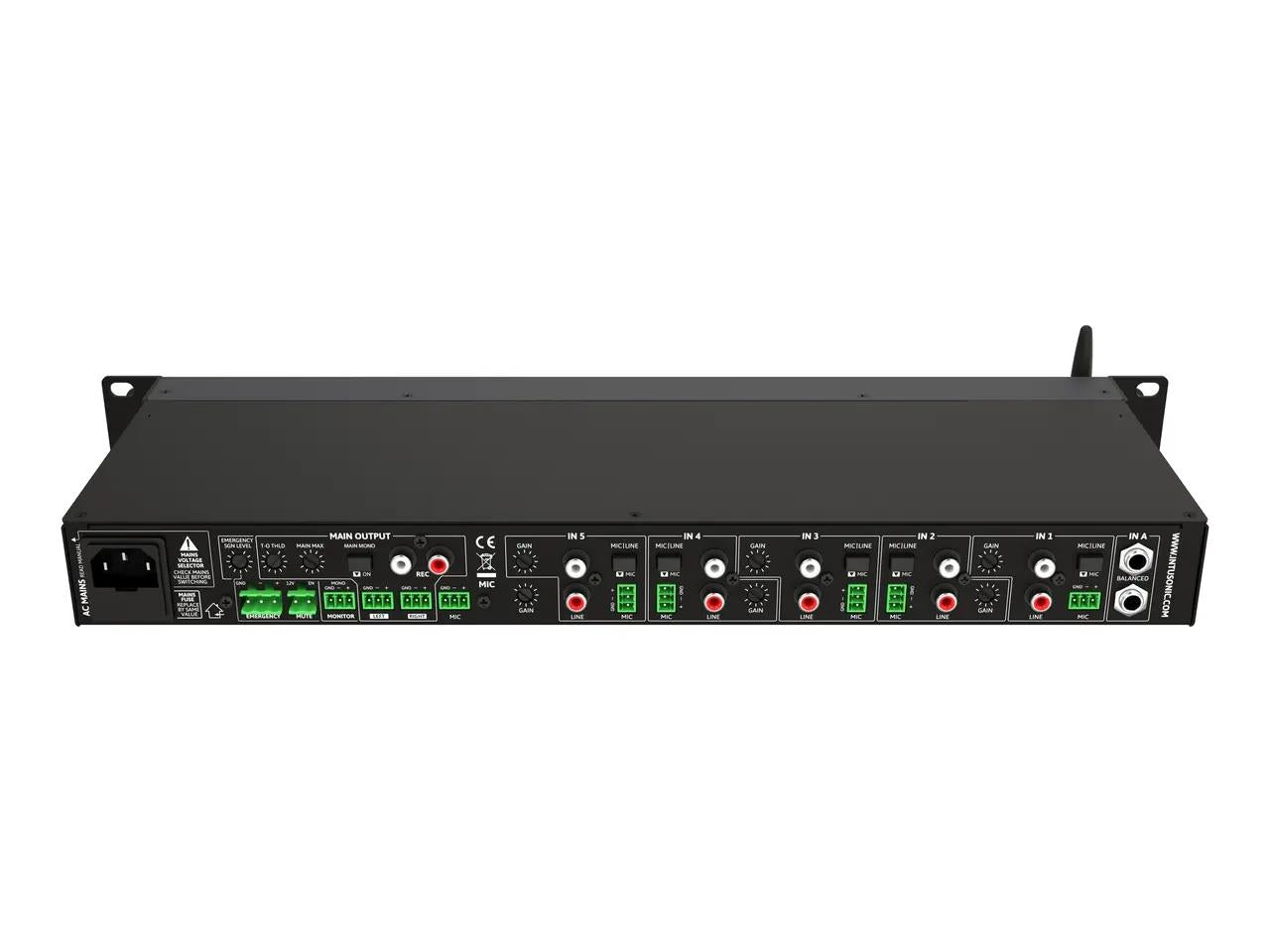

Inputs: 2 x 6.3 mm balanced line inputs, 1 x 3.5 mm stereo AUX input, 5 x stereo RCA line inputs, 6 x microphone inputs via screw terminals, emergency and mute inputs via screw terminals
Outputs: Master output via screw terminals, record output via RCA, headphone output via 3.5 mm jack, zone output via screw terminals
Controls: Power switch, source selector, per-channel level controls, EQ controls, master level, stereo/mono switch, talkover control
Indicators: Power, pairing, level meter LEDs
Mounting: 19-inch rack
Dimensions (W x D x H): 483 x 190 x 44 mm
Weight: 2.70 kg
