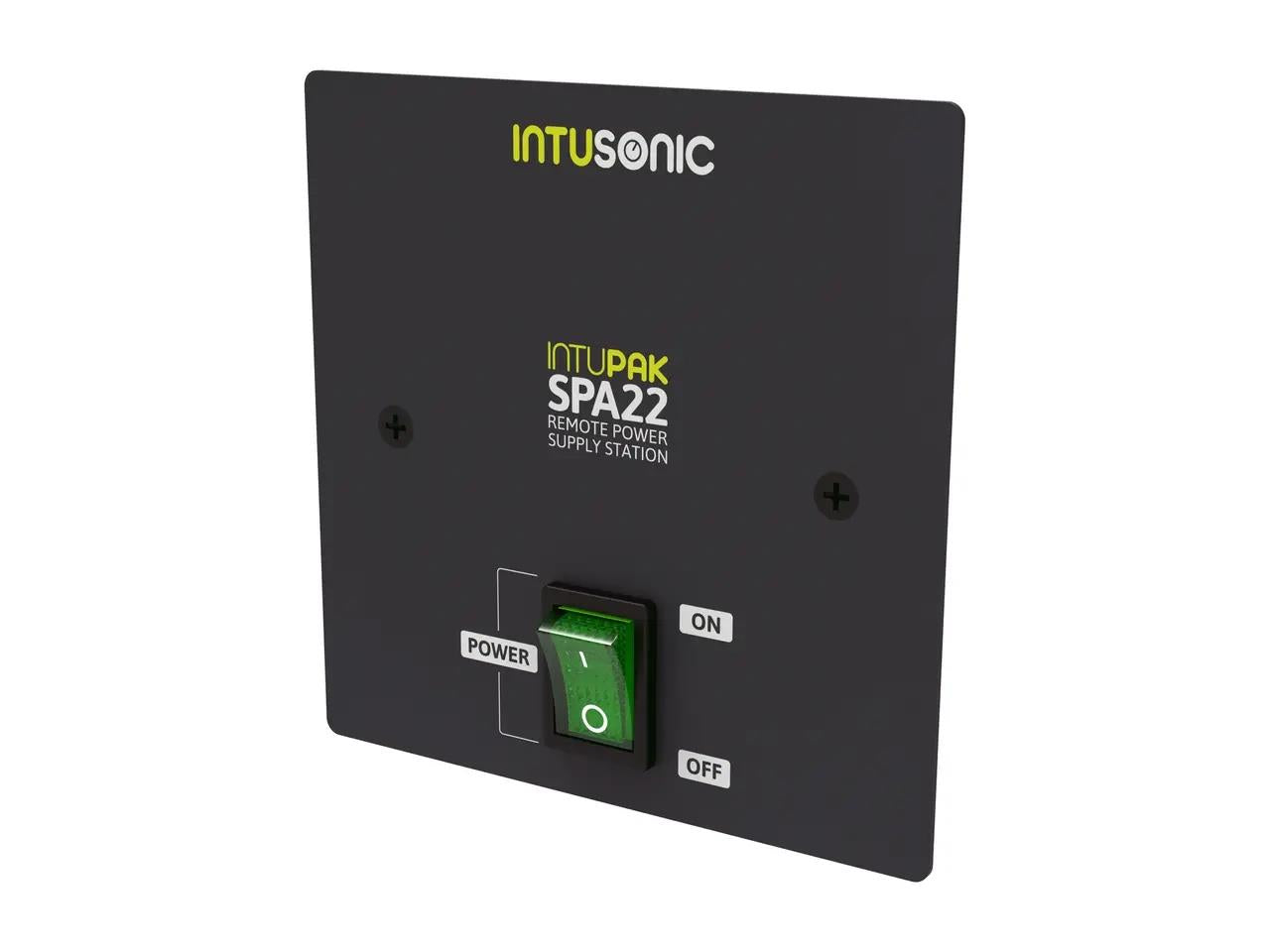

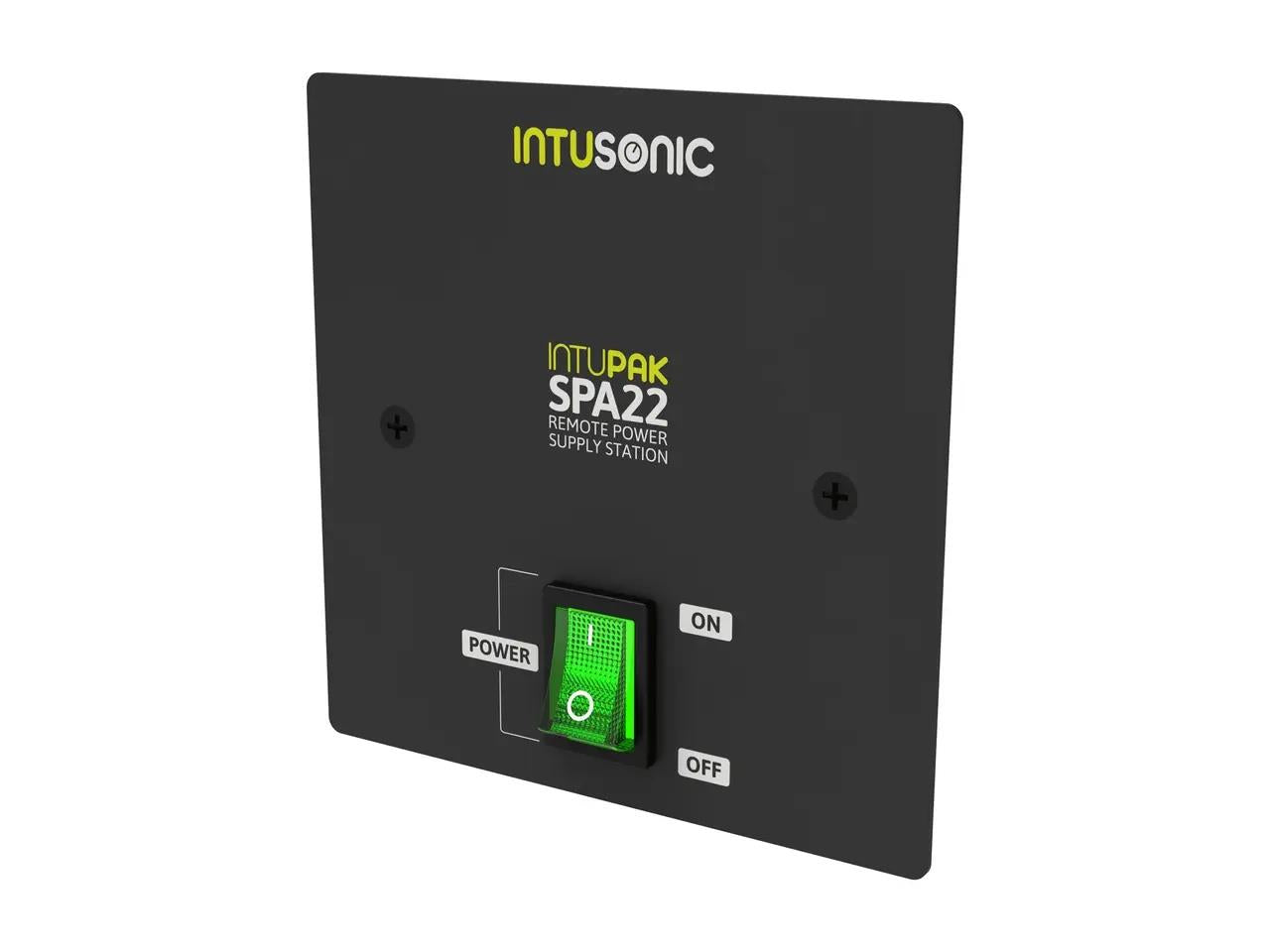

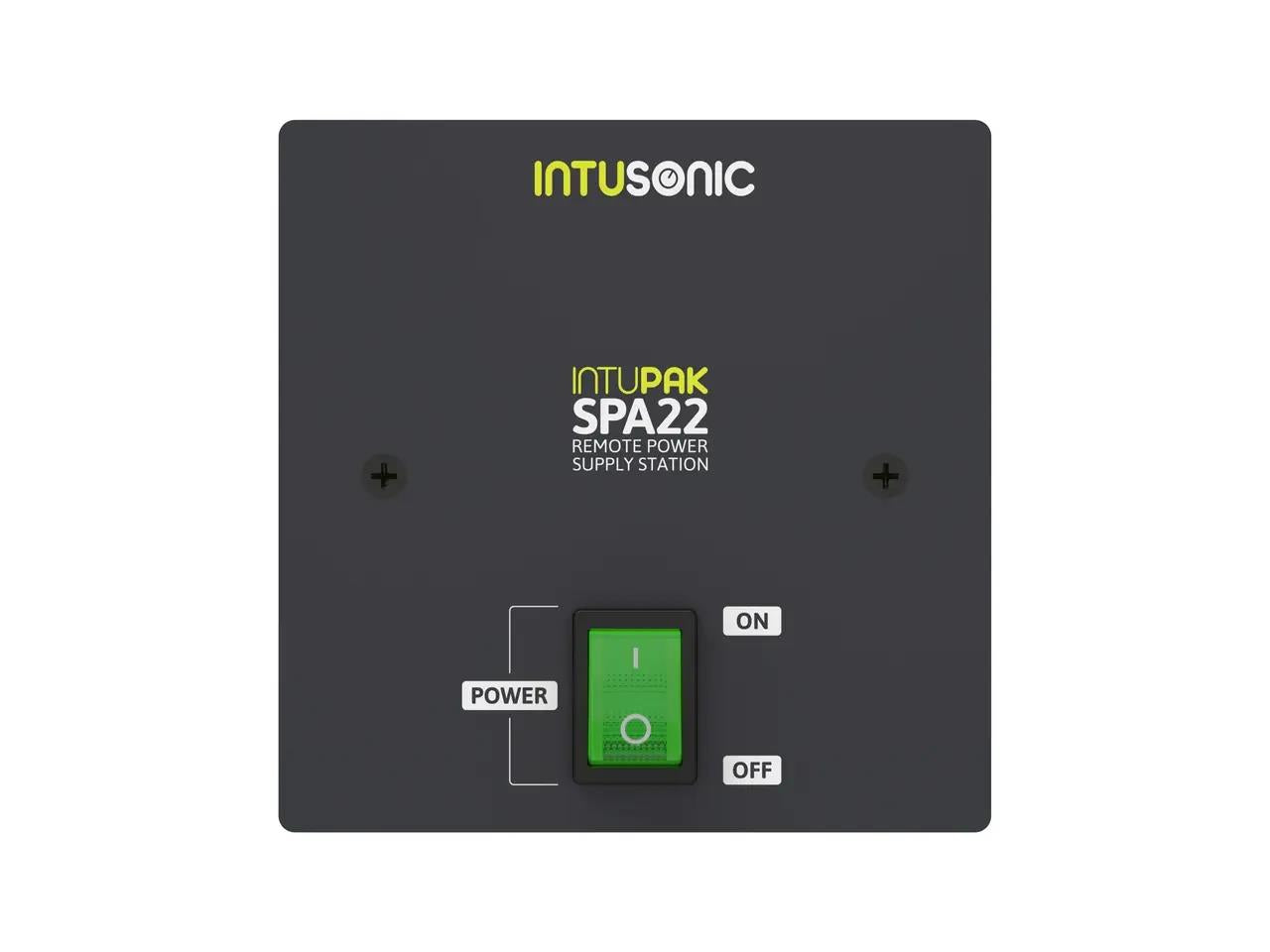

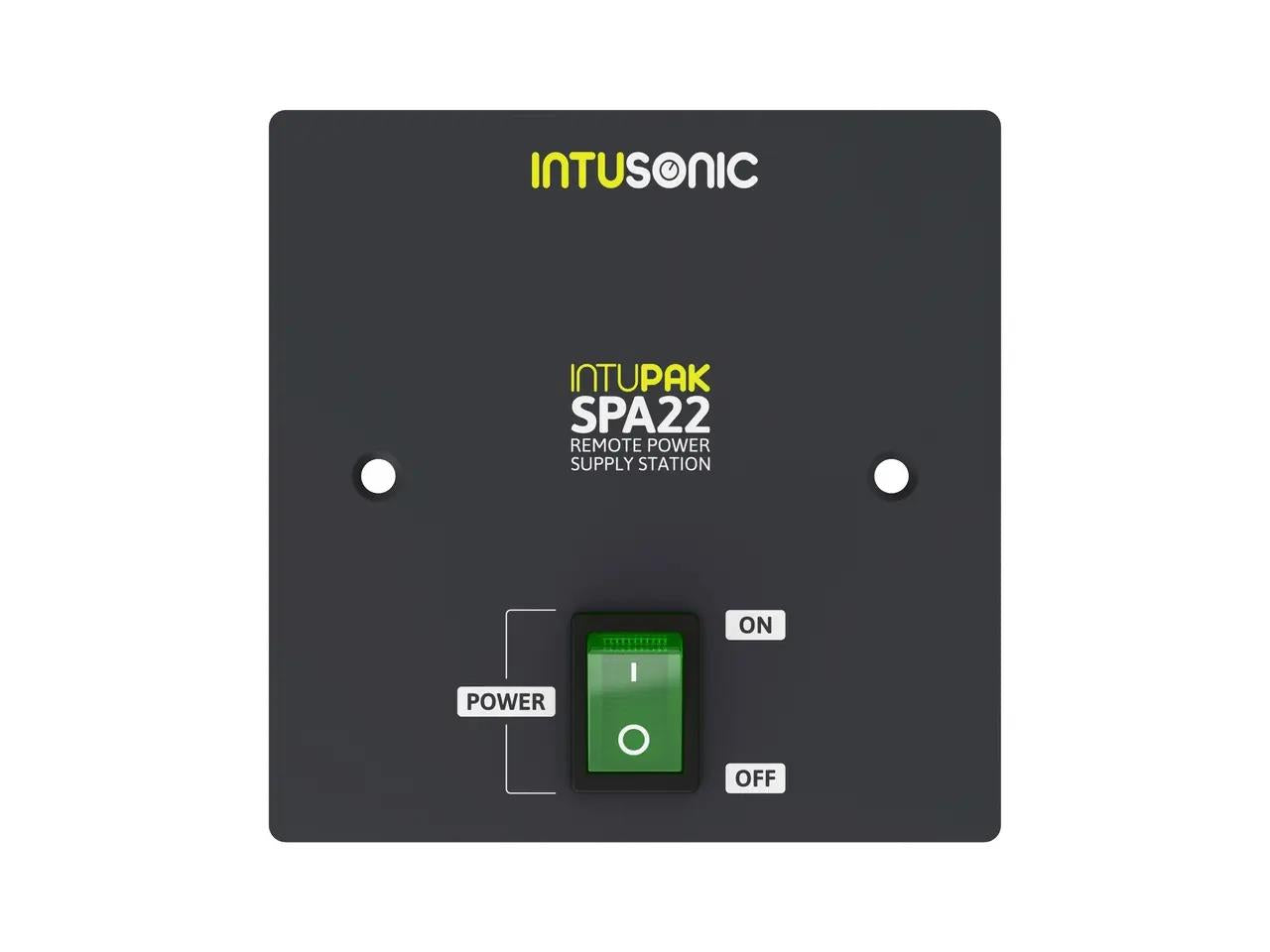

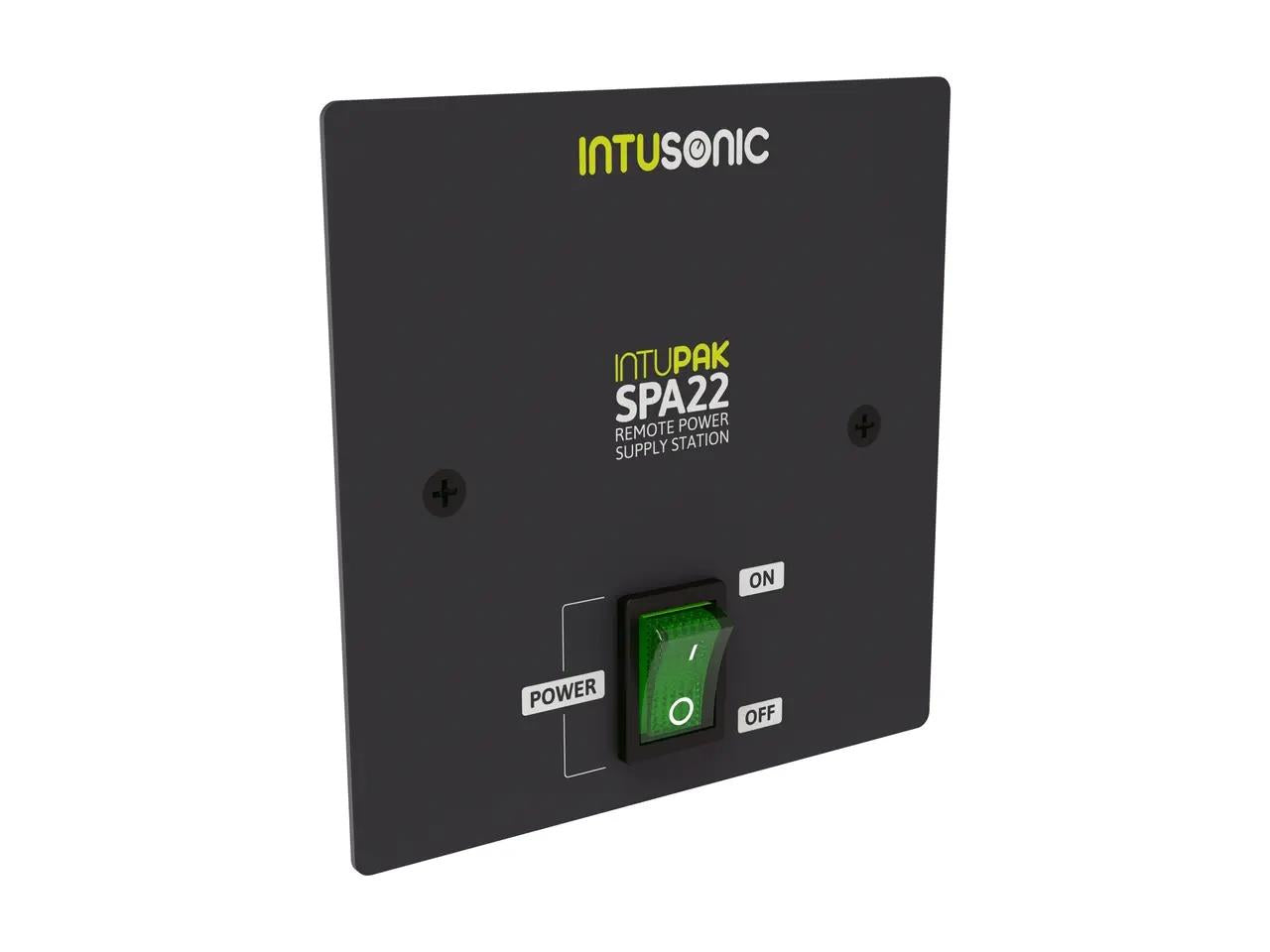

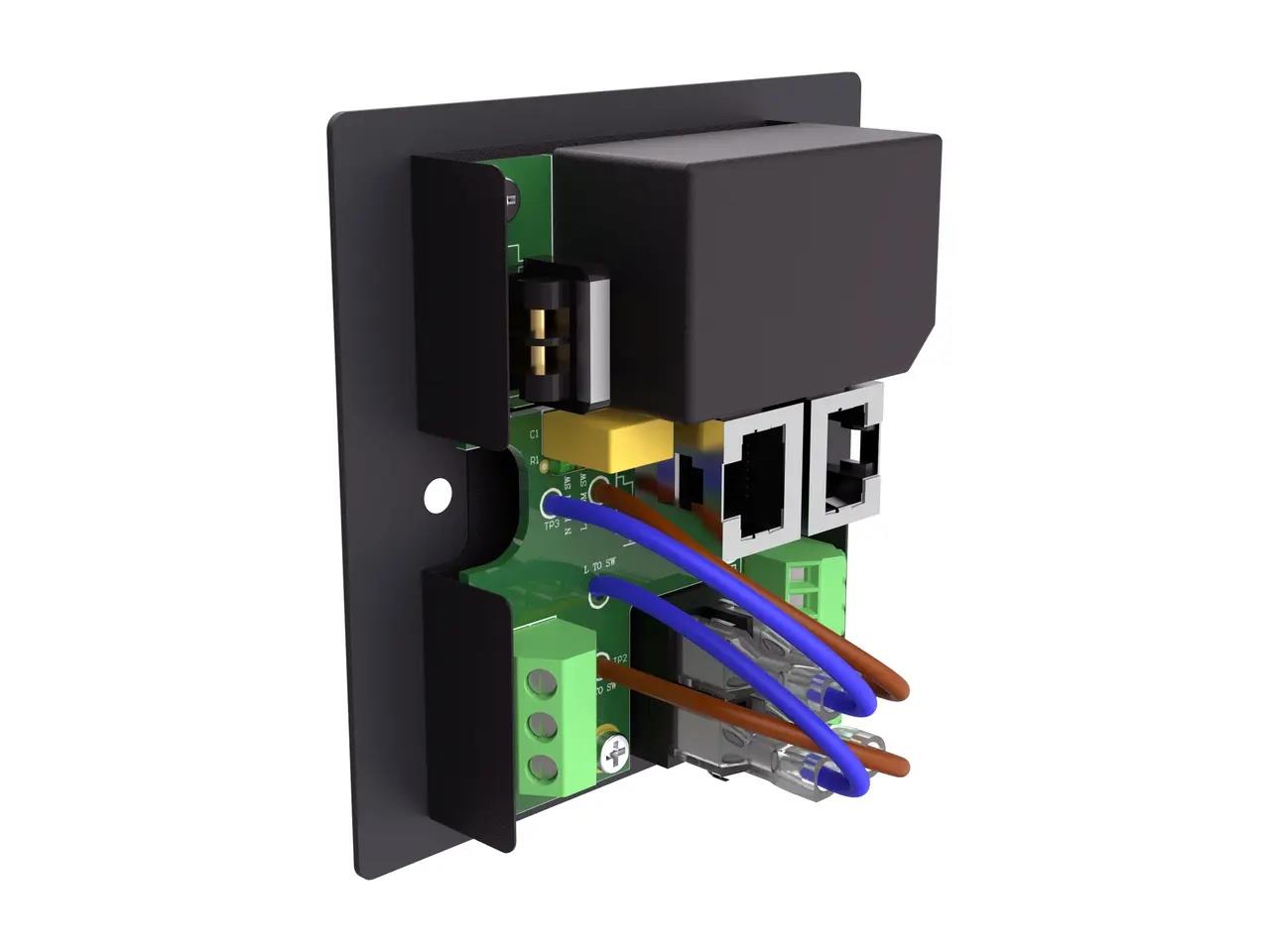

INTUSONIC SPA22 Mounting Remote Power Station

Description

The INTUPAK SPA22 is a compact and flexible power supply unit designed specifically for wall-mounted audio devices such as preamplifiers and control panels. Engineered to fit standard wall box dimensions, it offers a clean and professional installation solution without the need for external power adapters or long low-voltage cable runs. With a symmetrical ±12V low-noise output, it ensures stable power delivery and supports high-quality audio performance across connected systems.

Features

Flush-mount power supply designed for wall-mounted audio devices
Compatible with INTUPAK VAA22 and other Intusonic wall panels
Symmetrical ±12 V low-noise DC output for high-quality audio performance

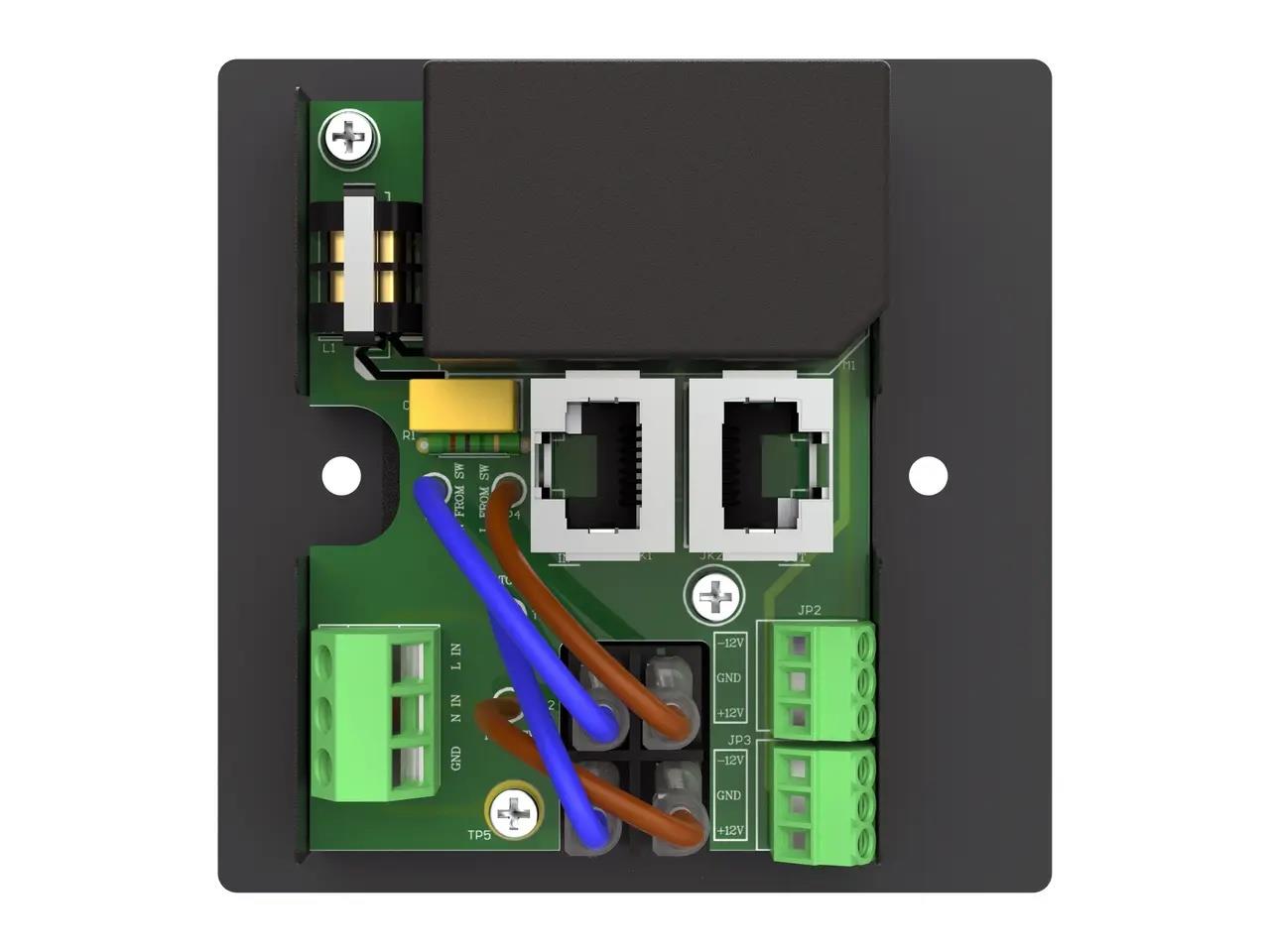

Integrated IntuLink RJ45 connection for power distribution and data pass-through
Terminal strip outputs for flexible system integration

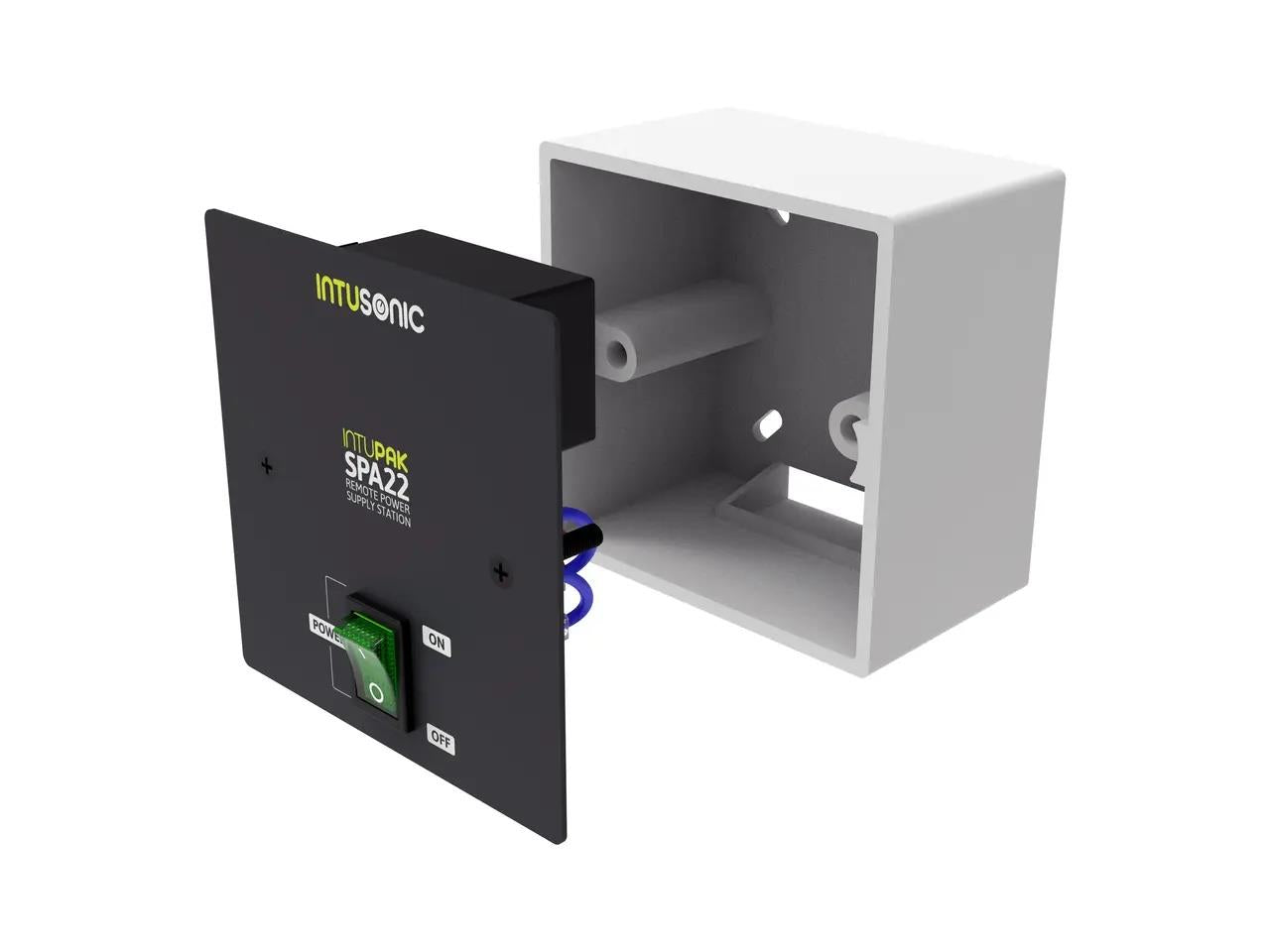

Compact design suitable for standard wall boxes

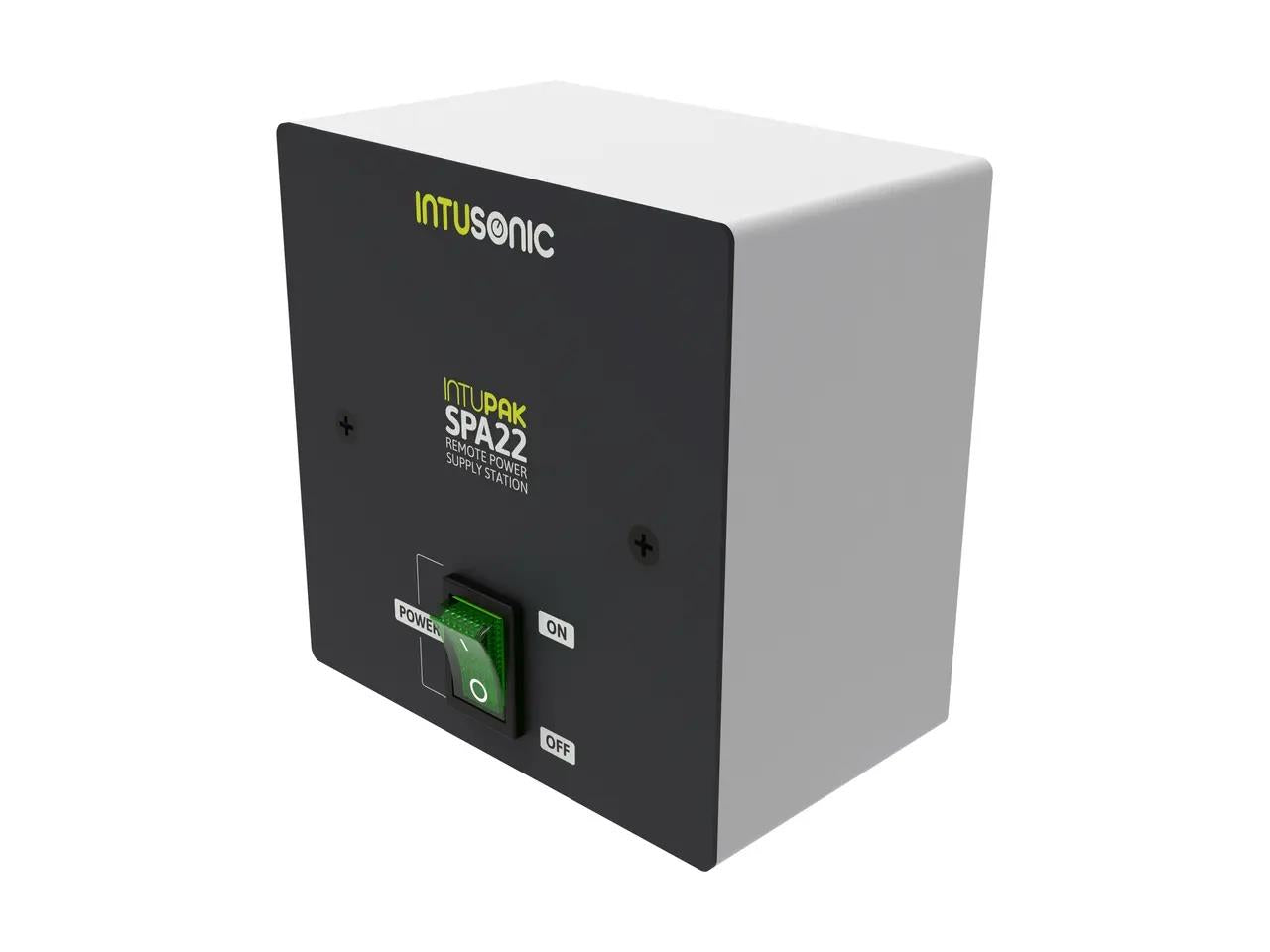

Supports both flush and surface mounting installations
Reliable power solution for distributed audio systems

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 3 W
IP rating: IP20
Protection class: Class I
Output: ±12 V DC
Power connection: Screw terminal input
Network connection: RJ-45 (female)
Mounting: Flush mount
Colour: Black matte
Dimensions (W x D x H): 86 x 58 x 86 mm
Weight: 0.24 kg
