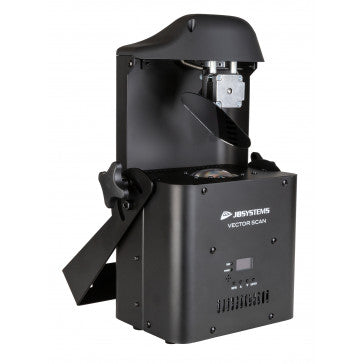

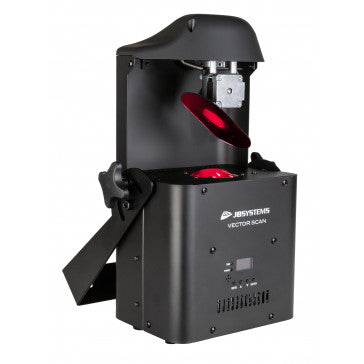

JB Systems Vector Scan 100W LED Scanner

The JB Systems Vector Scan is a powerful and compact 100W LED scanner designed for dynamic lighting effects in bars, clubs, and mobile DJ or rental applications. It features a motorised focus controllable via DMX, a 3-facet rotating prism, and 7 rotating gobos for stunning mid-air patterns. An 8-color wheel plus open expands creative possibilities, while multiple operating modes ensure versatility—from sound-activated standalone shows to full DMX control via 5, 8, or 14 channels. The scanner also supports master/slave operation for synchronised light shows and is wireless DMX ready via an optional WTR-DMX dongle. An OLED display makes navigation simple, and 3-pin XLR and PowerCon-compatible connections provide reliable signal and power handling.

Scanner type: 100W white LED
Focus: motorized, DMX controllable
Gobo wheel: 7 rotating gobos + open
Color wheel: 8 colors + open
Prism: 3-facet rotating
Dimmer: 0–100%
Strobe: variable effects
DMX channels: 5 / 8 / 14
Control modes: DMX, Sound-active, Master/Slave
Display: OLED

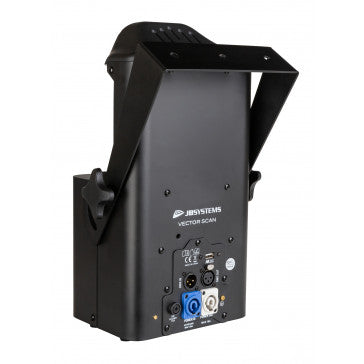

DMX connections: 3-pin XLR in/out
Power connection: PowerCon® or compatible
Wireless DMX: optional WTR-DMX dongle
Mounting: M12
IP rating: indoor

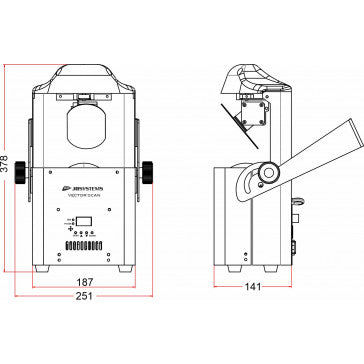

Dimensions: 25.1 x 14.2 x 37.8 cm
Weight: 5.5 kg
Power supply: 100–240V AC, 50/60Hz
Power consumption: 130W
