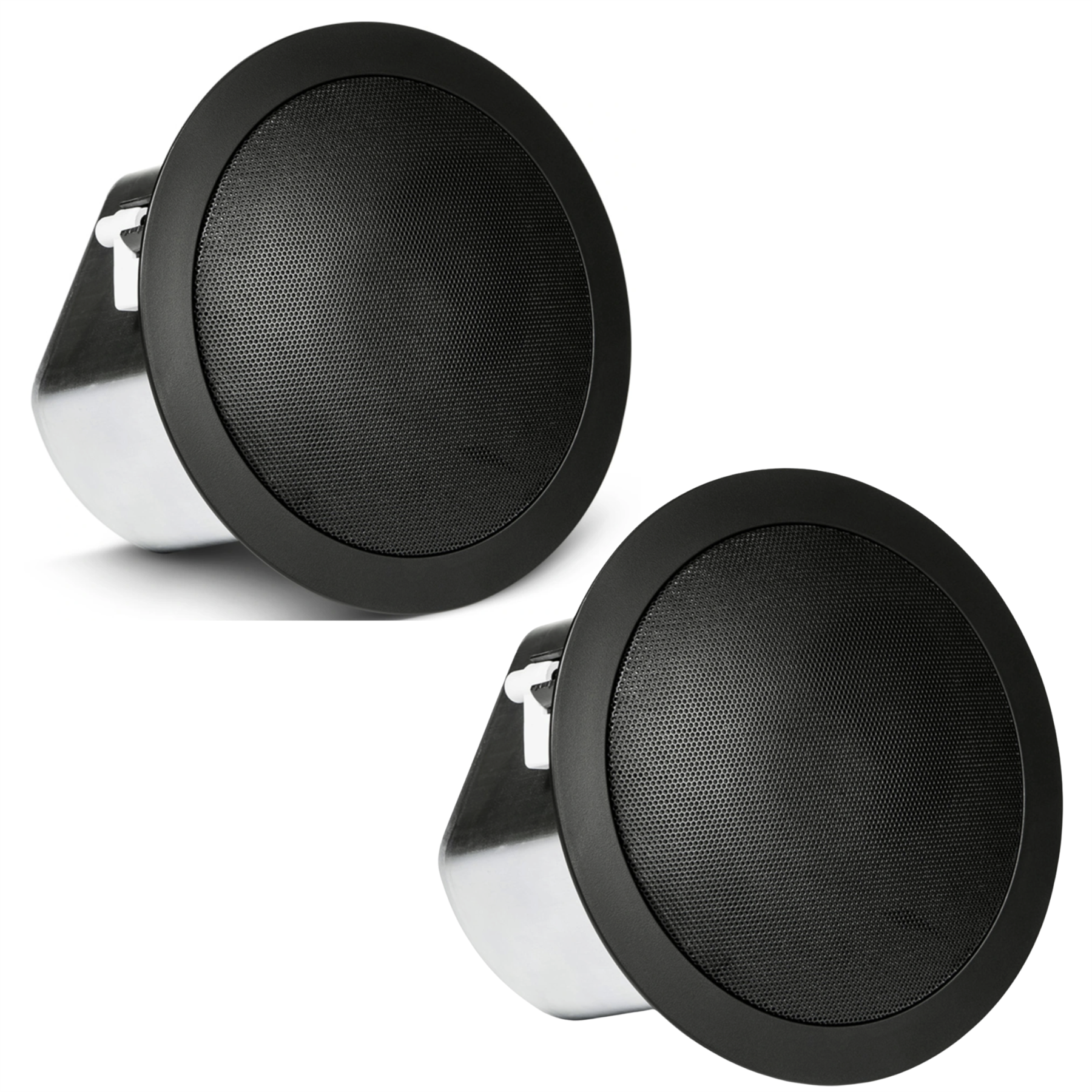

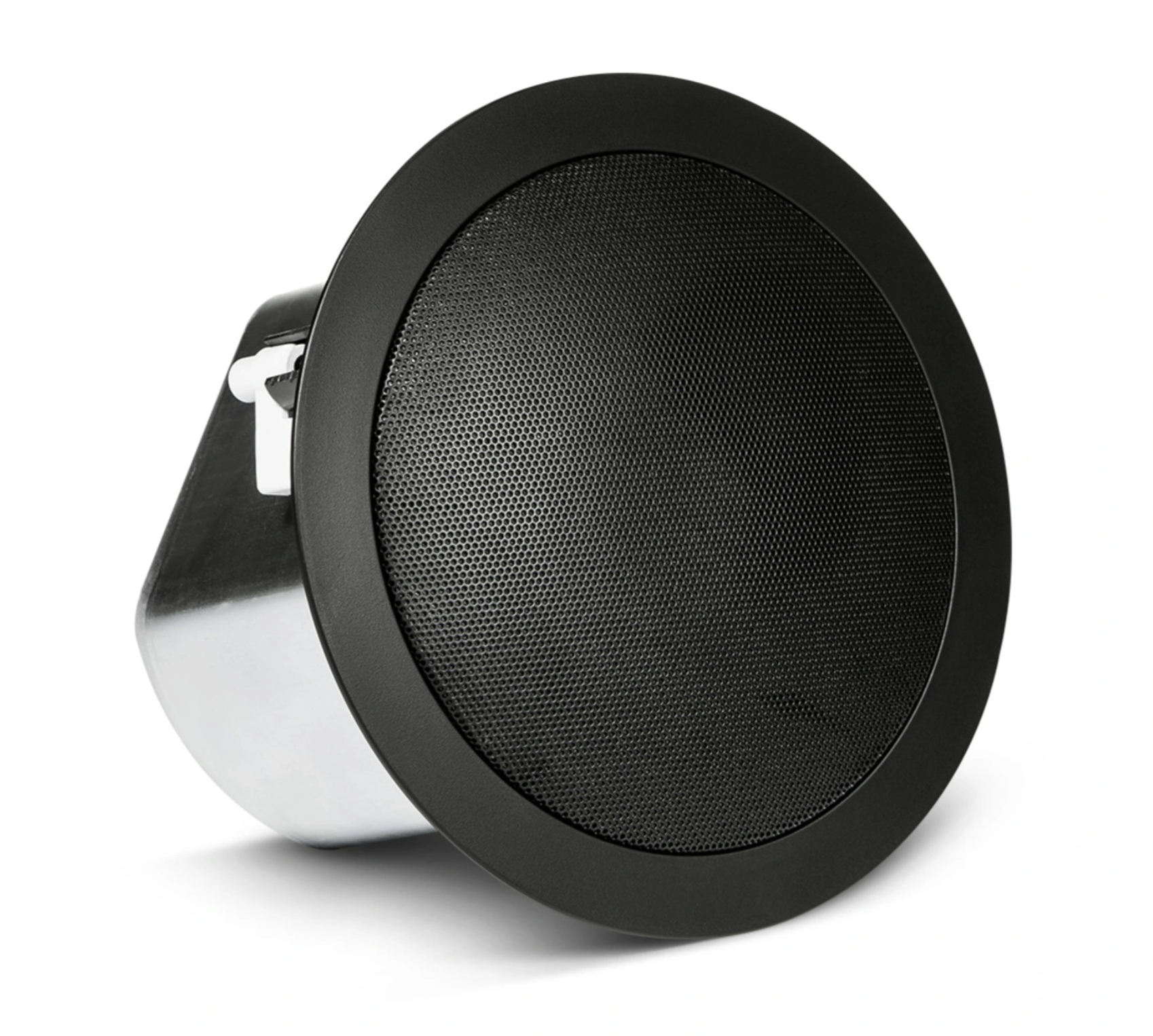

JBL Control 12C/T Compact Ceiling Loudspeaker Black Pair

Description

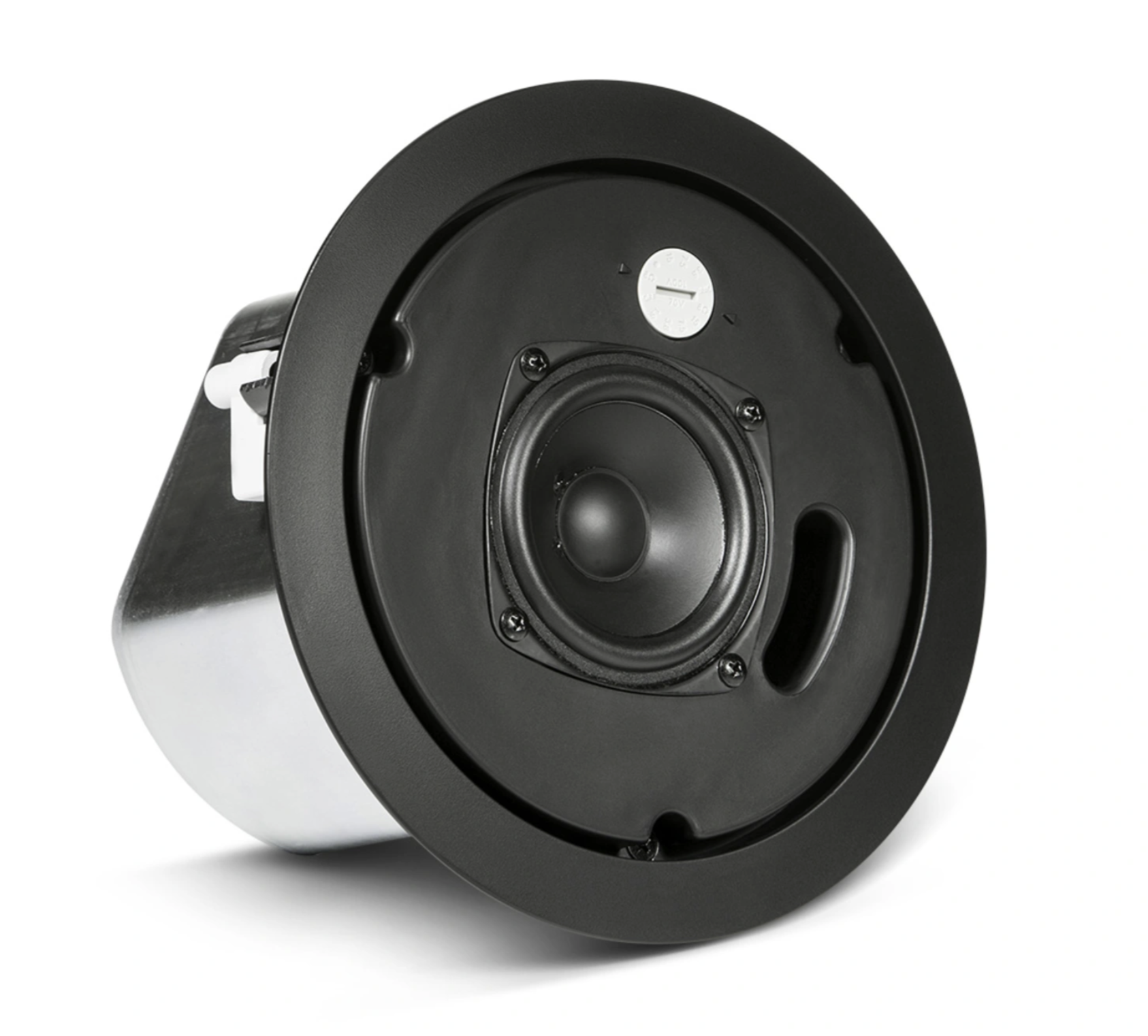

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with an integrated backcan for quick and easy installation.

Frequency Range (-10 dB): 68 Hz – 17 kHz
Power Rating: IEC system long-term ratings (low-Z direct); 40 W continuous program power; 20 W continuous pink noise (80 W peak), 100 hr
Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70 V and 100 V; 1.9 W @ 70 V only
Frequency Response (±3 dB): 95 Hz – 15 kHz
Sensitivity: 84 dB (1 kHz – 16 kHz)
Coverage Angle: 130° conical
Directivity Factor (Q): 9.8
Directivity Index (DI): 7.4 dB
Maximum SPL (1 m): 97 dB (low-impedance, 103 dB peak); 96 dB (top 70 V/100 V tap)
Impedance: 8 ohms (direct/bypass 8 Ω setting)
Drivers: 76 mm (3 in) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors: Removable locking 4-pin connector with screw-down terminals; max wire size 12 AWG (2.5 mm²)
Connector Wiring: Pin 1 = + In; Pin 2 = − In; Pin 3 = + Loop Thru; Pin 4 = − Loop Thru
Strain Reliefs: For two cables or two flex conduits via coupled clamping mechanism
Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; zinc-plated steel backcan
Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL listed; suitable for use in air handling spaces; signaling speaker; transformer UL registered per UL1876; RoHS, C-tick N108, CE compliant; in accordance with IEC60849/EN60849
Dimensions: 196 mm diameter × 138 mm depth from back of baffle (7.7 in × 5.4 in)
Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears; up to 55 mm (2.2 in) with MTC-TCD dog-ears
Safety Seismic Attachment: One point, top surface
Net Weight: 1.6 kg (3.5 lb, one speaker)
Shipping Weight: 6.7 kg (14.7 lb, pair in master carton)
Included Accessories: C-ring support backing plate, 2 tile support rails, cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories: MTC-24NC new construction bracket; MTC-24MR mud-ring; MTC-TCD thick-ceiling dog-ears; MTC-48TR tile rail
Colour: Black

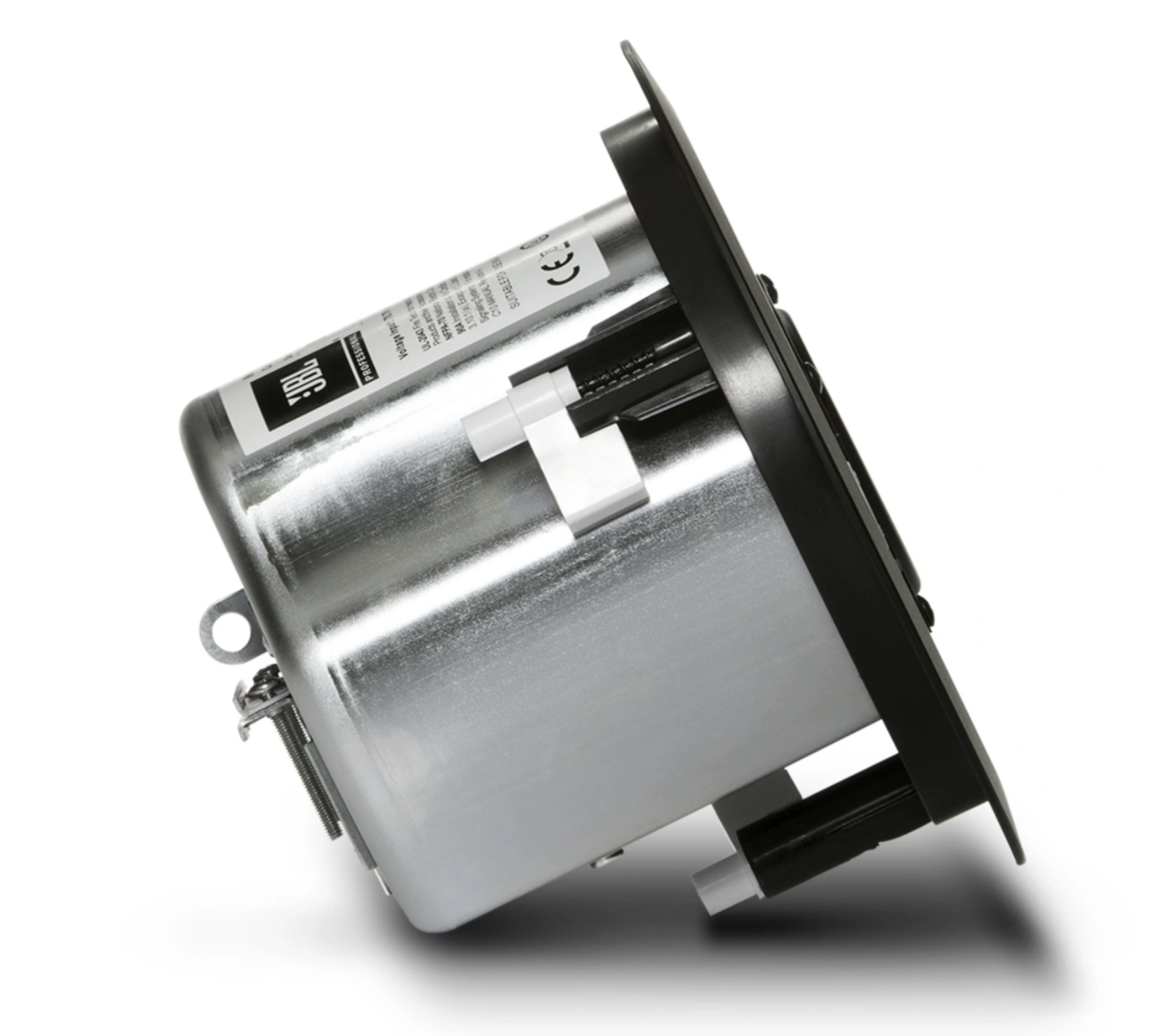

Backcan: Formed steel
Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Plenum Usage: Yes, integrated backcan
