Part of the CS-1 Conference system. The CS-1 CU Control unit works as a main unit of the whole system. Connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.
Part of the CS-1 Conference system. The CS-1 CU Control unit works as a main unit of the whole system. Connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units. Requires optional Chairman unit and delegate units for a complete system. USB record facility included.

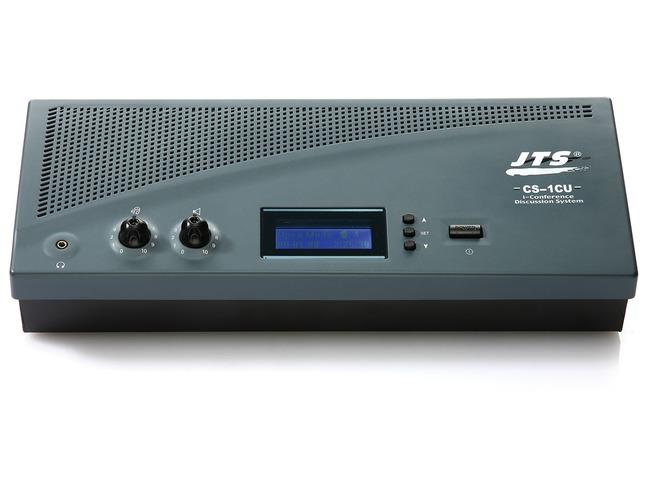

Conference System - Control Station and Power Supply Unit. The control unit is the centre of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.
Specifications
Input impedance: 33KΩ
Output Level: -14dBV/+11dBV (nominal/maximum)
Output Impedance: 500Ω
Voltage: 100-240VAC, 50/60Hz
Current Consumption: MAX 0.9A(100VAC) / 0.3A(240VAC)
DC Supply to contribution units: ±15V
Input Sensitivity: -14dBV/+11dBV (nominal/maximum)
Adjustment: -20dBV/+5dBV(nominal/maximum)
Phantom Supply: 12V+/-1V, 2*680Ω (±2%)
Weight
Approx 500g
