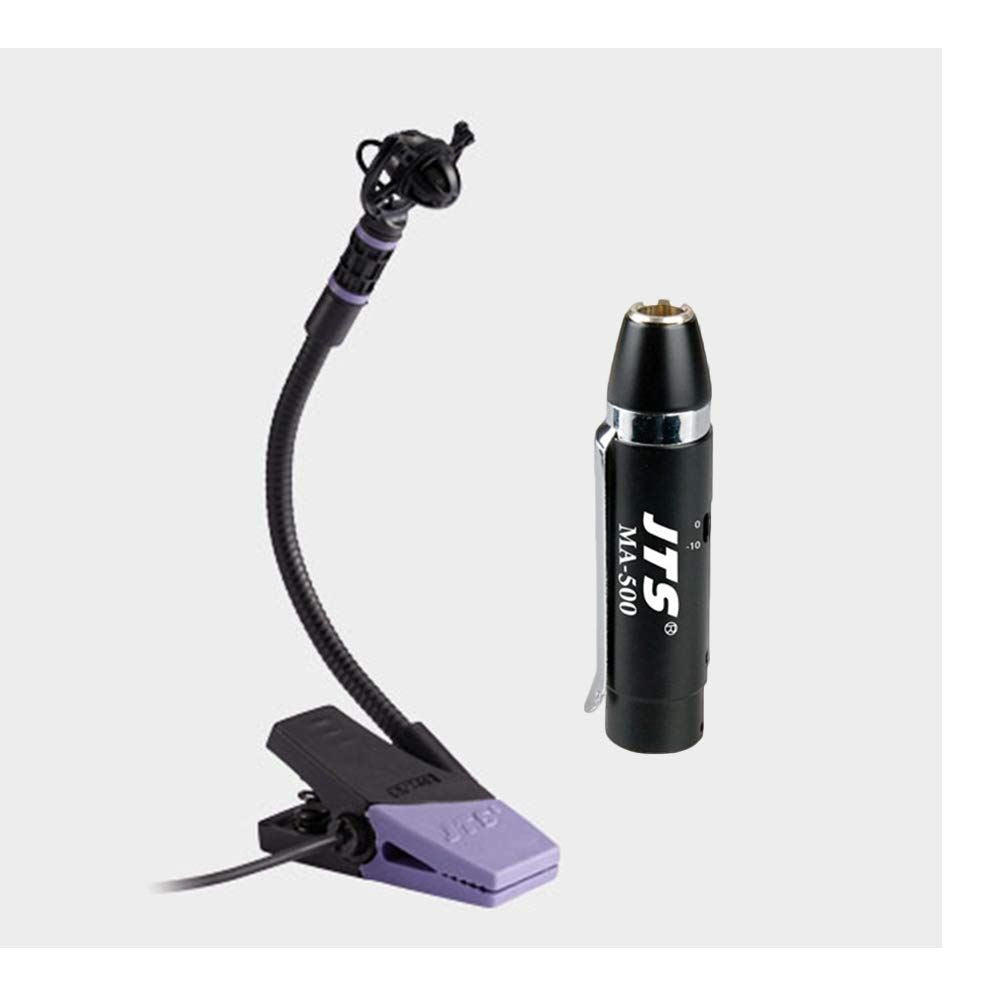

The JTS CZ-508 is a lightweight miniature clip-on condenser microphone designed for minimal physical size interference for the performer. The clip-on design allows optimal placement position thereby eliminating the use of mic stands, reducing stage clutter and set up time.
Outstanding for saxophone, brass, woodwind instruments.
Extended frequency response and wide dynamic range for pure and natural sound without colouration.
Excellent shock-mount design for superior isolation from shock and vibrations.
Flexible gooseneck together with adjustable axis allows accurate positioning.
Newly added spider suspension isolates unwanted mechanical vibration effectively.
Type Electret Condenser
Frequency Response 50~18,000 Hz
Polar Pattern Cardioid
Sensitivity(at 1,000Hz) -64dB*(0.63mV)*
Max. SPL for 1% T.H.D. 130 dB
Output Connector 3P XLR(M)
Phantom Power Requirements 9-52 VDC
Standard Accessories Windscreen
307 x 13 x 13 mm
This product provides power to miniature condenser microphones through phantom power. It works with CM series condenser microphones and part of CX series microphones with mini XLR connector. MA-500/MA-500E can be powered by JTS’s PS-1, Phantom Power Supply or 12V to 48V phantom power from other devices.
MIC Input 4P Mini XLR(Male)
Phantom Power 12~48V
Low Cut 100Hz -6dB
Frequency Response 30~20,000 Hz
T.H.D. <0.045%@1KHz -50dB
S/N. >95 dB
20 x 84.5 mm
