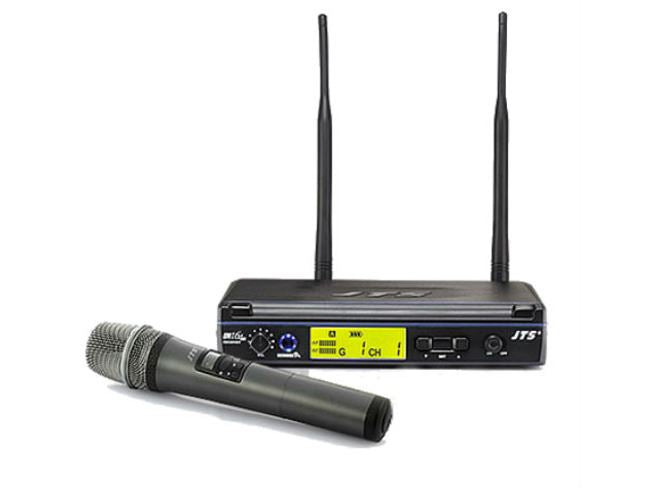

JTS UHF Handheld Wireless Microphone CH38

REMOSET uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.
200~480 meters operation distance.
LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.
IN164R is single channel version of IN264R.
IN164R with bandwidth of 36 MHz.
Preset 6 groups, maximum 23 channels in one group.

Specifications (IN164R)
Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency: 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
LCD Display: Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number, Controls Power On/Off, Frequency Up/Down, Lock-on, ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 500mA
Output Connector 1 XLR Balanced Socket
6.3mm unbalanced phone jack

Specifications (IN264TH)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display: Channel, Battery Fuel Gauge, ID Number, Controls Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode, ID Pairing
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V x2

Dimensions
8.2 x 1.5 x 6.5 in (210 x 40 x 166 mm)

Weight
Not Specified
