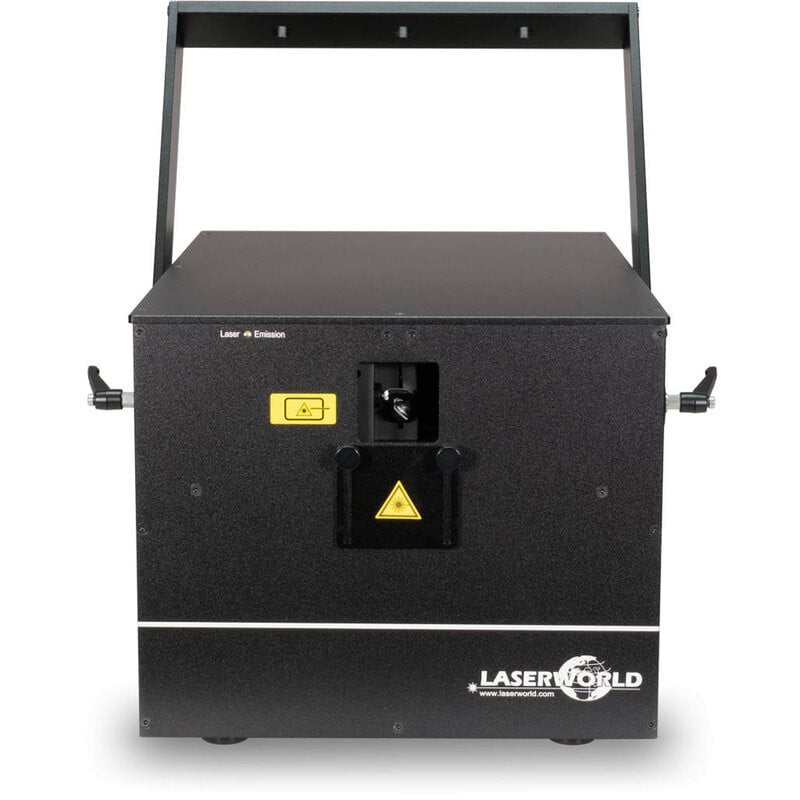

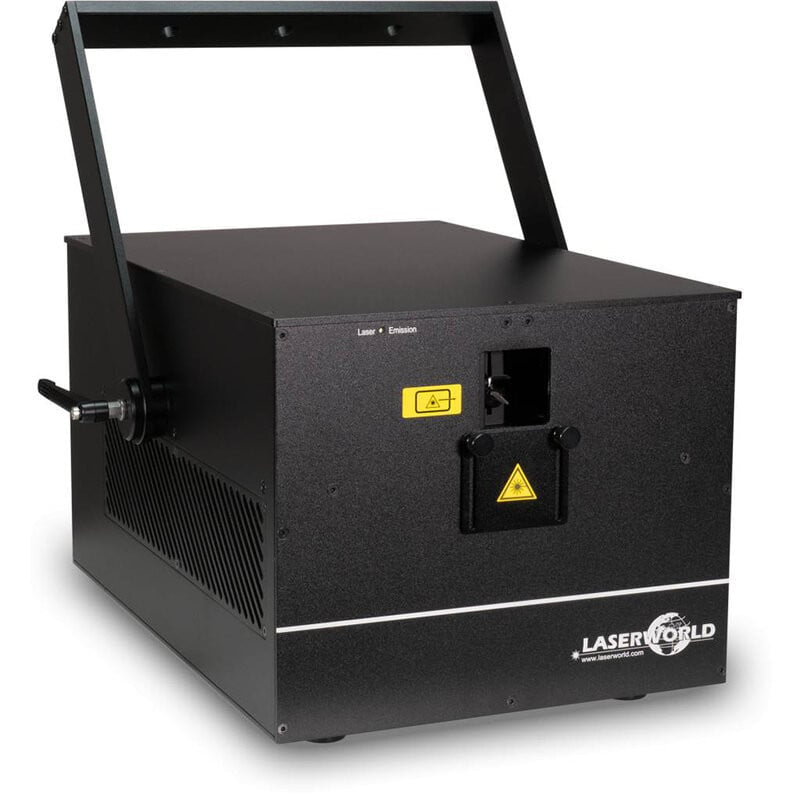

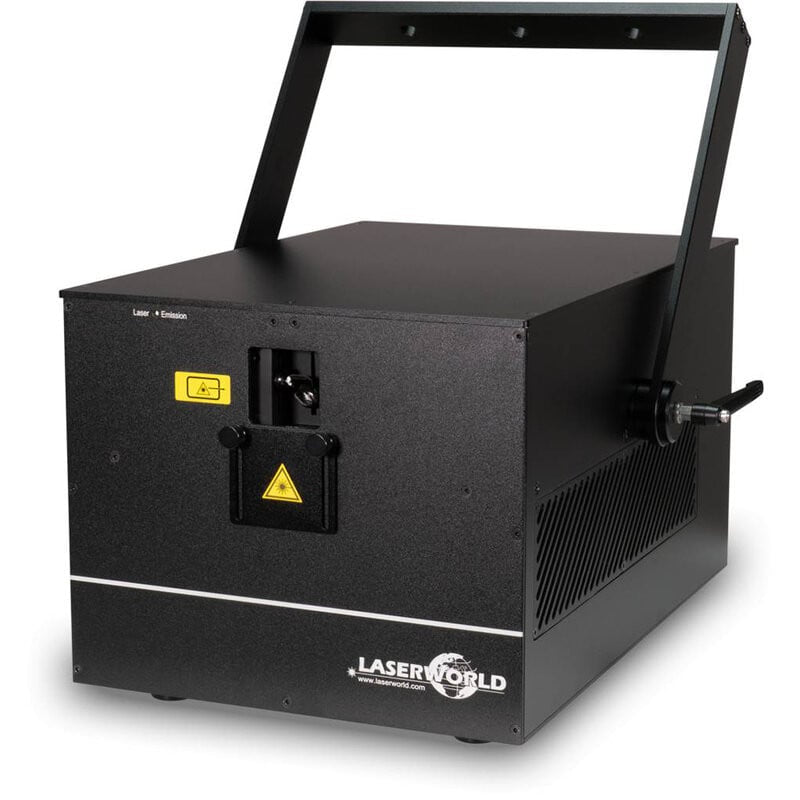

Laserworld CS-12.000RGB ShowNET RGB Laser

The Laserworld CS-12.000RGB ShowNET is a high-powered, analog-modulated RGB full-color laser projector designed for semi-professional applications in medium to large venues. With a guaranteed output power of 12,000 mW, this pure diode laser system delivers intense, vibrant beams ideal for laser shows, concerts, clubs, and festivals.

Equipped with red (3,000 mW / 638 nm), green (3,000 mW / 520 nm), and royal blue (6,000 mW / 450 nm) laser sources, the CS-12.000RGB produces a wide color gamut with precision. The 30 kpps galvo scanner at 8° and a scan angle of up to 40° allow for detailed graphics, animations, and beam effects. With beam specifications of approximately 5 mm diameter and 1.2 mrad divergence, this system ensures crisp, professional results.

The integrated ShowNET mainboard offers flexible control via DMX, Art-Net, LAN, ILDA streaming, or stand-alone operation. It’s compatible with Showeditor and Showcontroller software, enabling custom graphics, logos, texts, and laser shows. Pre-programmed effects and animations can be triggered and adjusted in real time via DMX or Art-Net.

A sealed optics section with passive heat sink cooling minimizes maintenance needs. The lightweight housing with a stable 360° bracket supports versatile mounting for both suspended and standing installations—perfect for mobile setups or fixed installations.

Features:
12,000 mW guaranteed output power for bright, powerful beams
Full-color RGB diode laser with analog modulation
Red: 3,000 mW / 638 nm, Green: 3,000 mW / 520 nm, Blue: 6,000 mW / 450 nm
Graphic-capable scanner: 30 kpps @ 8°
Scan angle up to 40° for wide coverage
Beam specs: ca. 5 mm diameter, 1.2 mrad divergence

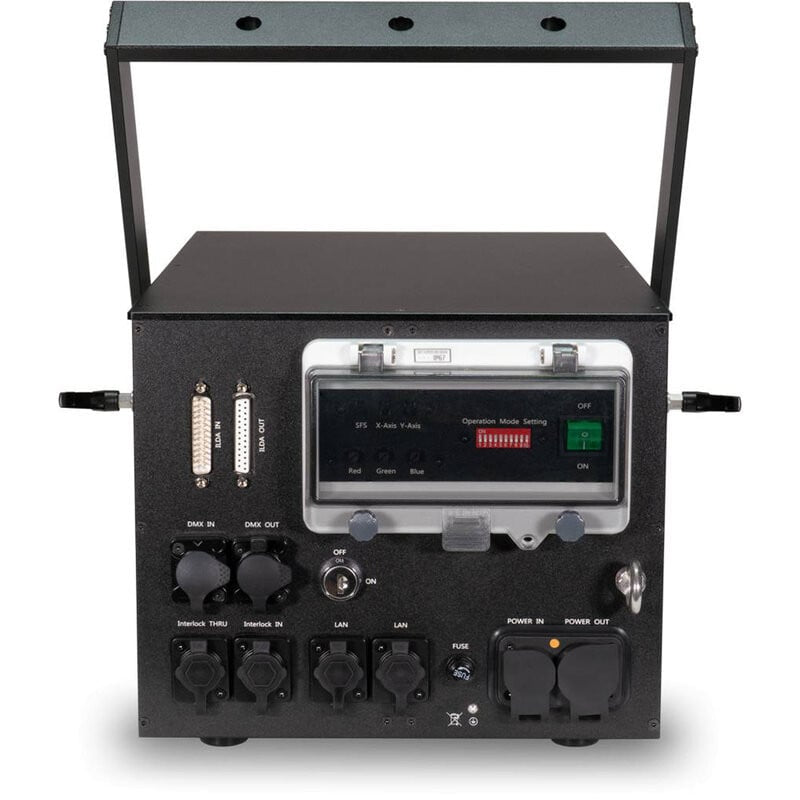

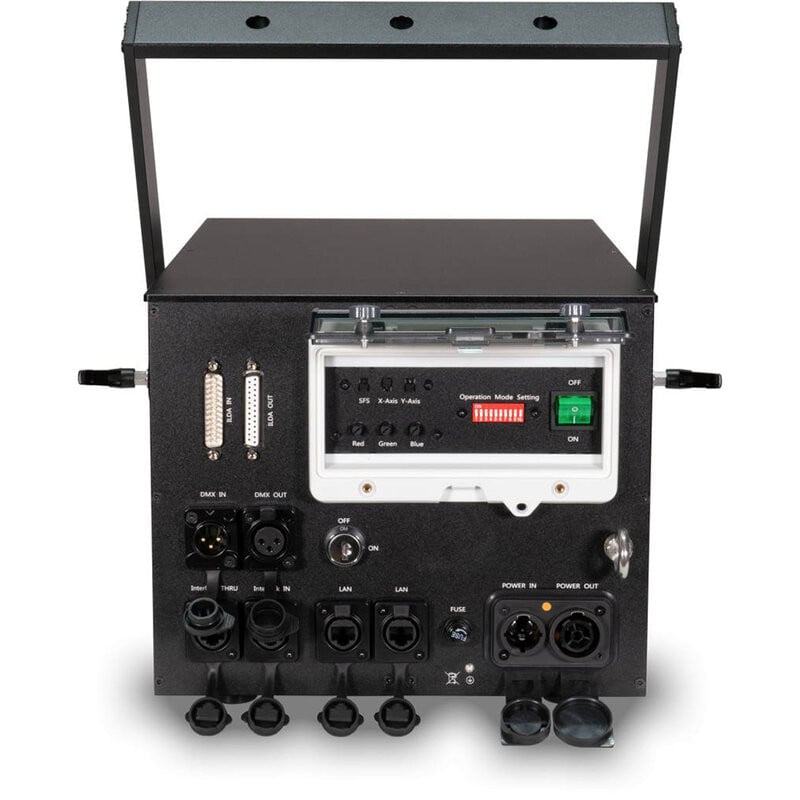

Integrated ShowNET mainboard with multiple control options: DMX, Art-Net, LAN, ILDA streaming, stand-alone, Master/Slave
Compatible with Showeditor and Showcontroller for advanced programming
Pre-stored effects and animations adjustable in real time
Low-maintenance sealed optics with passive cooling
Lightweight compact housing with 360° mounting bracket
IP54 rating for versatile indoor/outdoor use

Specifications:
Model: CS-12.000RGB ShowNET
Guaranteed Output Power: 12,000 mW
Laser Sources: Diode
– Red: 3,000 mW / 638 nm
– Green: 3,000 mW / 520 nm
– Blue: 6,000 mW / 450 nm
Beam Specifications: ca. 5 mm / 1.2 mrad
Scanner: 30 kpps @ 8°
Max. Scan Angle: 40°
Laser Class: 4
Operation Modes: ILDA, DMX, LAN, Art-Net, ILDA streaming, integrated SD card, stand-alone, Master/Slave
IP Rating: IP54
Power Supply: 85 – 250 V AC, 50/60 Hz
Dimensions (W x D x H): 28.5 x 18 x 19 cm
Weight: 7.7 kg
