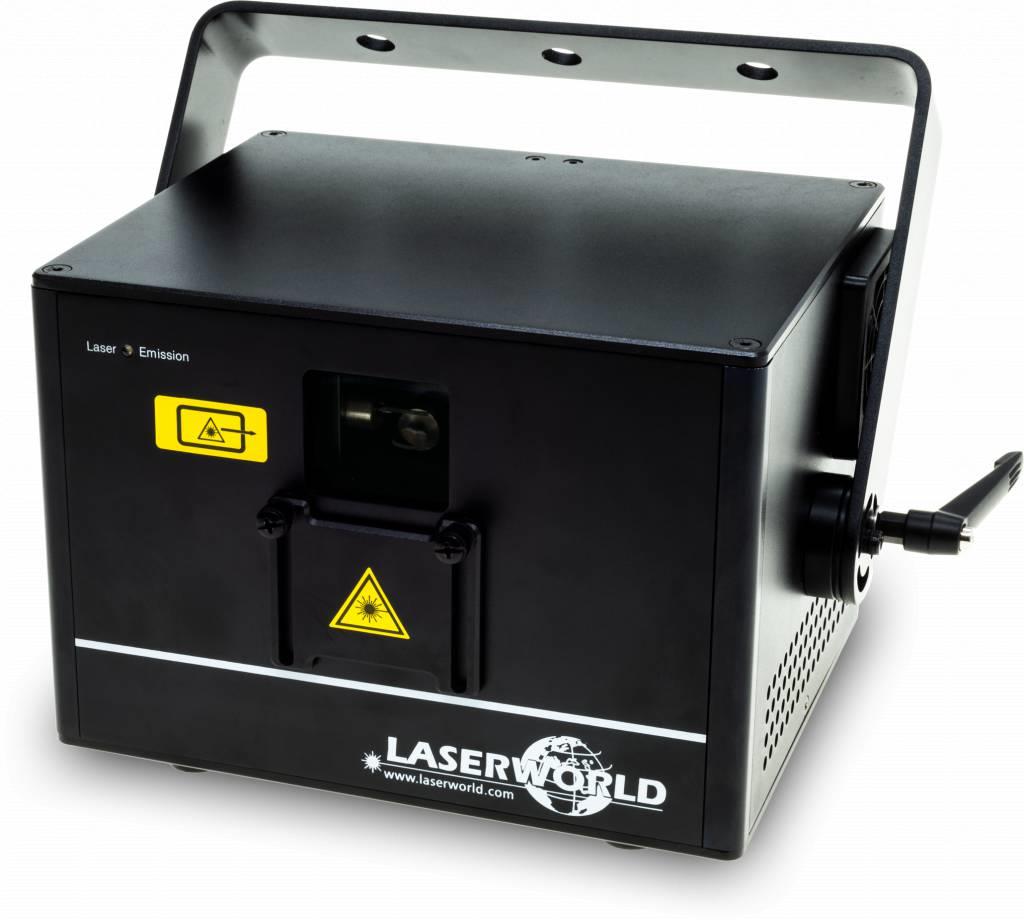

Laserworld CS-4000RGB FX 4W Pure Diode Laser

Description

A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics all of which can combine with the 3 built in grating effects to become a real room filler. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of your lighting, but also has an ILDA port for computer control. Perfect for medium-sized to large nightclub installs, indoor events and mobile DJs

4 W pure diode RGB laser system
3 additional grating effects: Line, Burst and Radial
DMX controllable, master-slave operation possible
Full diode projector - no DPSS anymore
Computer controllable via ILDA
Plug & play: Sound-to-light and stand-alone modes
Capable of basic graphics - 28kpps @ 8° ILDA scanners
Full color with analog modulation
Front panel laser beam masking plate
360° mounting bracket

Total Power 4'000 mW
Guaranteed Power 3'500 mW
Power Red 850 mW / 635 nm
Power Green 850 mW / 520 nm
Power Blue 1'800 mW / 450 nm
Beam Specifications 3 mm / 1.4 mrad
Scanner 28kpps @ 8°
ILDA; galvo system
Max. Scan Angle 40°
Laser Source Diode
Laser Class 4

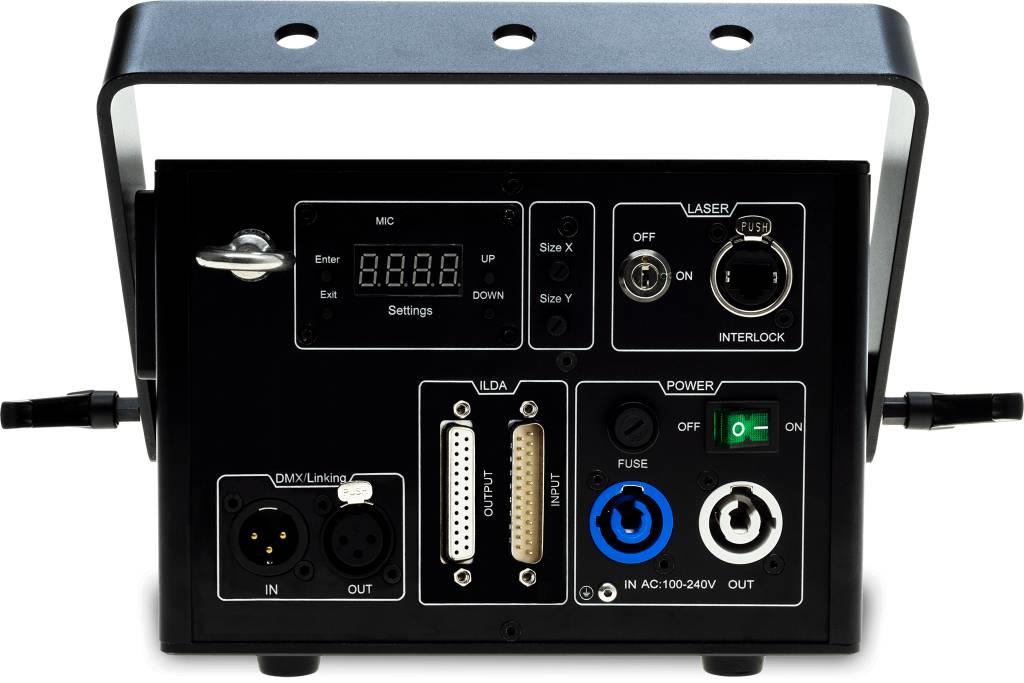

Operation Modes stand-alone, sound-to-light, DMX, ILDA, master-slave
Basic Patterns 130 (layers, tunnels, fences, waves, etc.)
Accessories power cable, manual, interlock, key
Power Supply 85V - 250 V AC
Power Consumption 60 W
Dimensions 200 x 165 x 141 mm
Weight 5.0 kg
