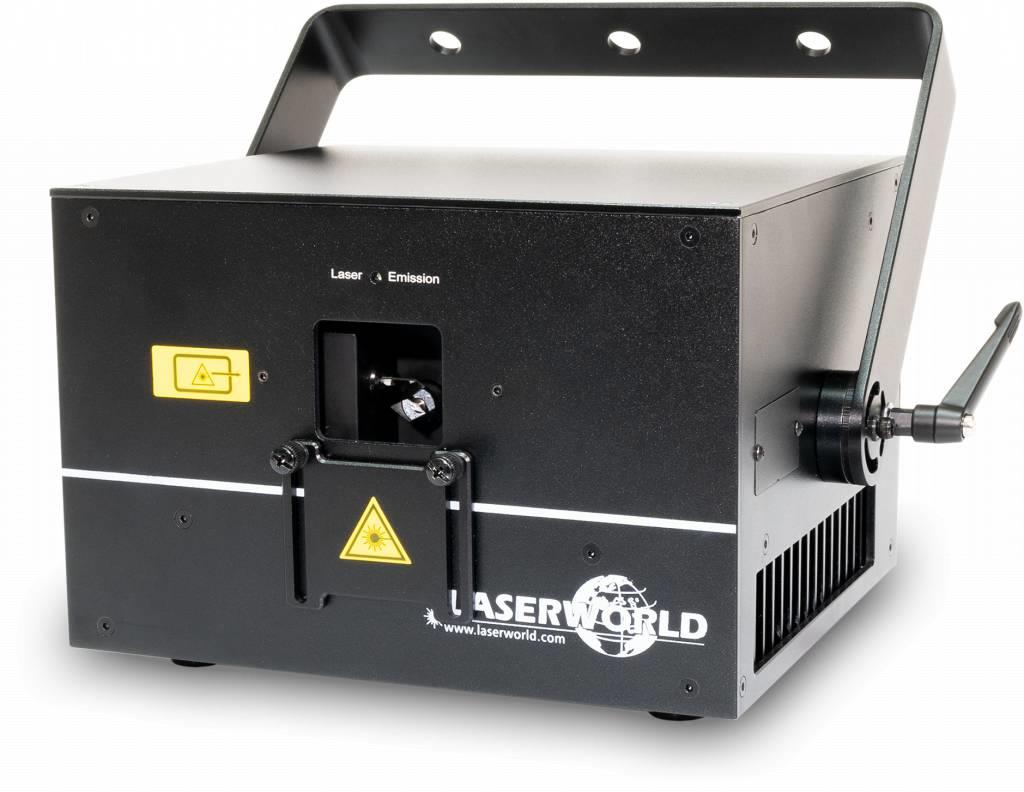

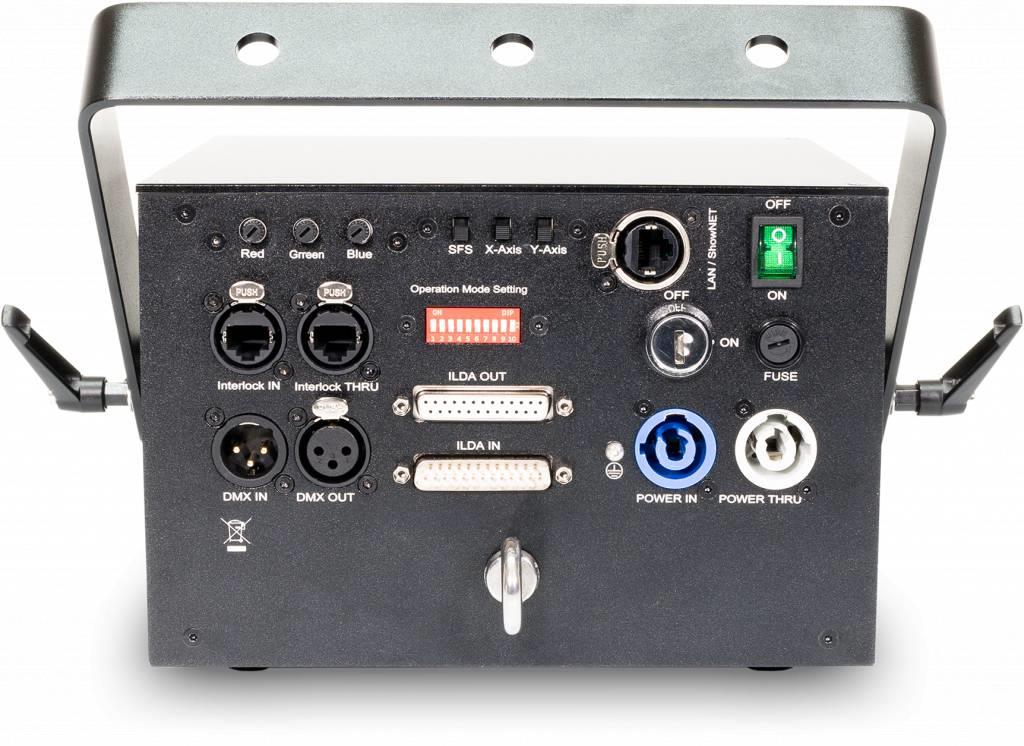

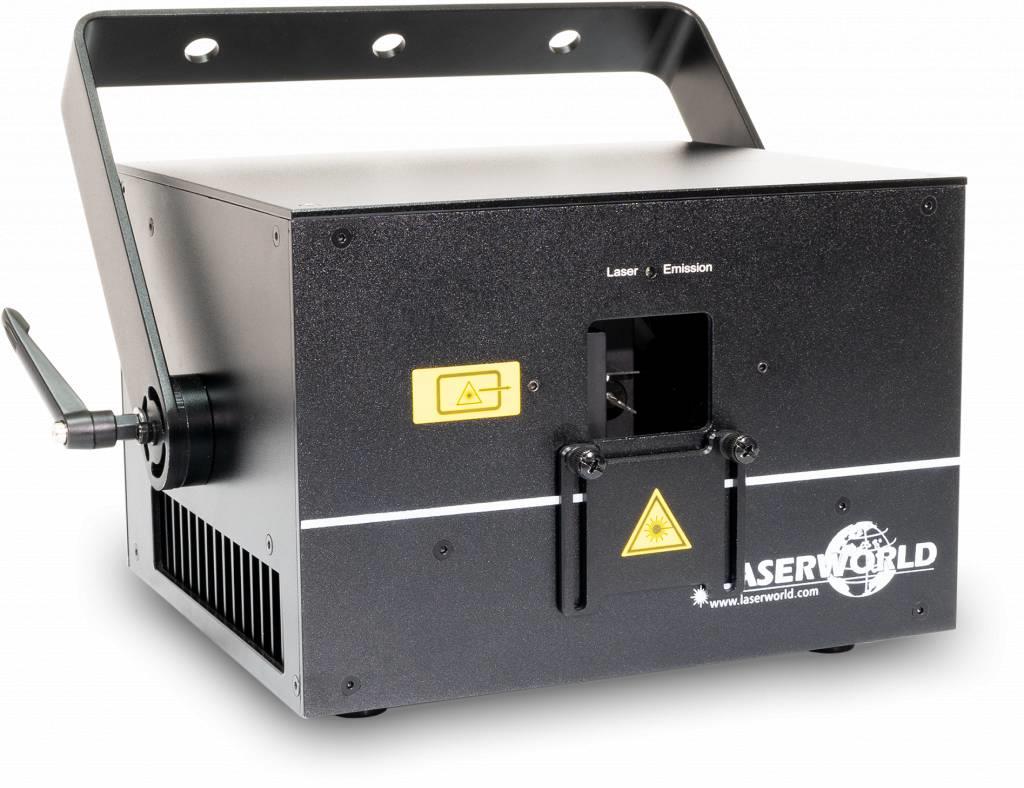

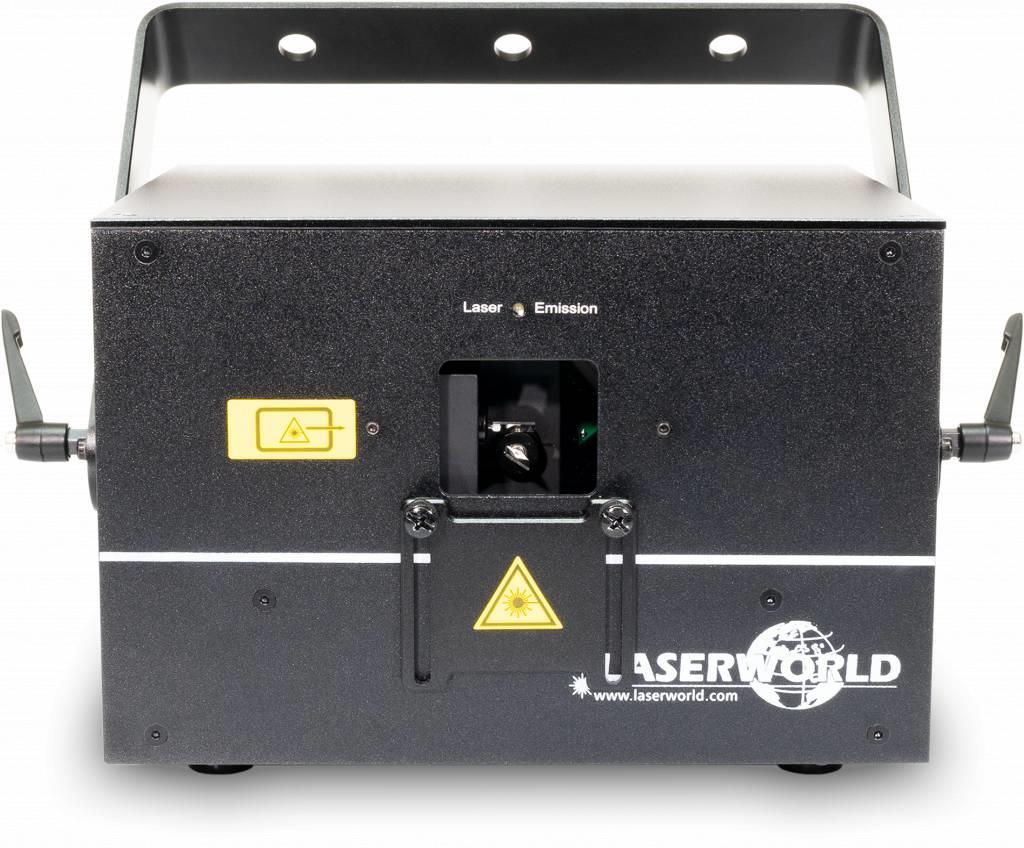

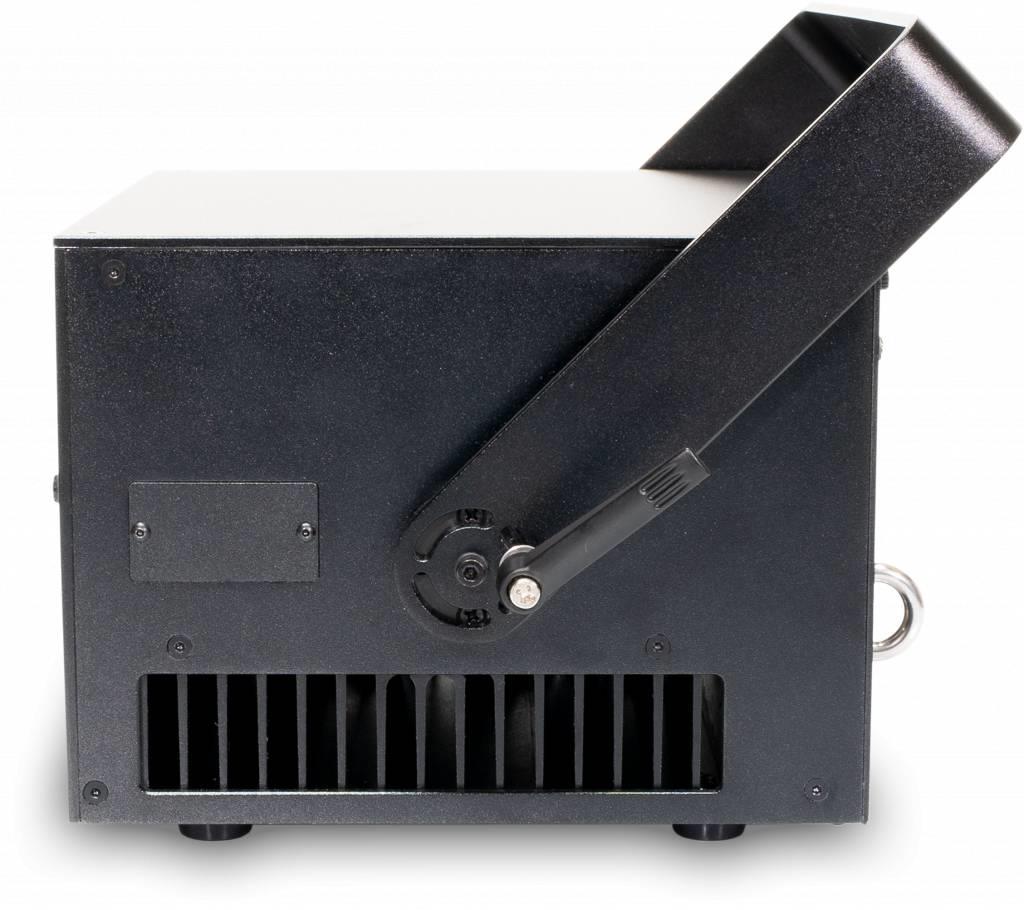

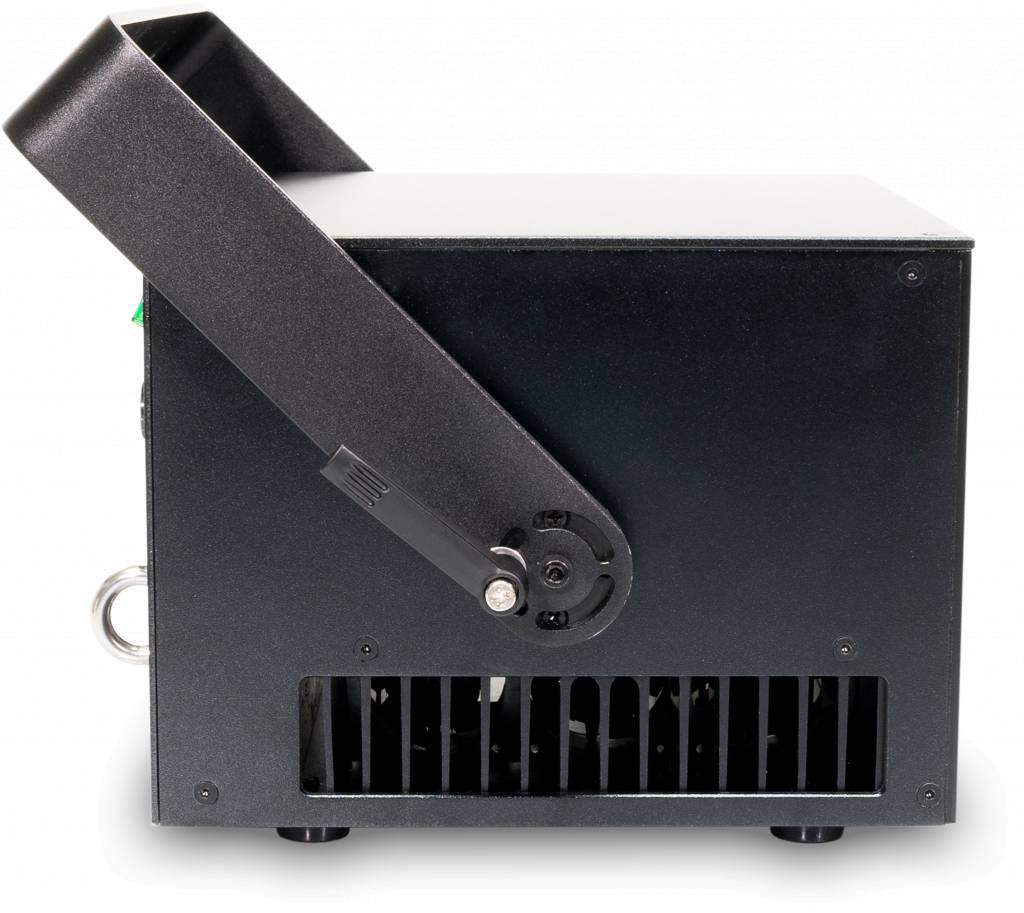

Laserworld DS-2000RGB MK4 Laser Shownet DMX

Description:

A high power full colour semi professional laser with built in multi-control mainboard. Amazing DMX control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting. Full feature laser show software license included! Sealed optics section for low maintenance Perfect for small/medium sized nightclub installs, indoor events and mobile DJs

The Laserworld DS-2000RGB MK4 units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analog color modulation.

The Laserworld DS-2000RGB MK4 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns (which can also be changed / updated by user), that can be easily triggered through DMX, stand-alone

The Laserworld DS-2000RGB MK4 comes with integrated ShowNET network interface and free laser show software. Details in the box below.

Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.

The Laserworld DS-2000RGB MK4 comes with 500 mW / 638 nm red and uses green diodes at 500 mW / 520 nm. The blue diode has 1'400 mW / 450 nm.

Beam specifications are at great ca. 4 mm / 0.9 mrad full angle and scanning can go as fast as 40 kpps@8° ILDA, whereas the scanners can scan a maximum angle of 50°.

With integrated and switchable scan safety.

The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.

Features:

2'000 mW guaranteed power
Graphics capable - 40 kpps@8° ILDA
Max scan angle 50°
Full colour mixing - analog modulation
Extremely sharp intense beams – ca. 4 mm beam diameter and low divergence of 0.9 mrad
Save safety settings direct to the laser and they apply in all modes
Link multiple units with linking Power, DMX and ILDA
Free computer control software – Showeditor - upgradable to Showcontroller
Multiple control modes - Auto, DMX, Artnet and ILDA

Specifications:

Guaranteed Power at aperture 2'000 mW
Power Red 500 mW / 638 nm
Power Green 500 mW / 520 nm
Power Blue 1'400 mW / 450 nm
Beam Specifications* ca. 4 mm / 0.9 mrad
Scanner 40 kpps@8° ILDA
Max. Scan Angle 50°
Laser Source Diode
Laser Class 4
Operation Modes ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
Basic Patterns over 120 (layers, tunnels, fences, waves, etc.)
Accessories power cable, manual, interlock, key, full version Showeditor software license included
IP rating IP4X
Power Supply 85 V - 250 V / AC, 50/60 Hz internal PSU
Power Consumption 45 W
Dimensions 210 x 190 x 145 mm
Weight 4 kg
EAN / MPN 7640144997540
