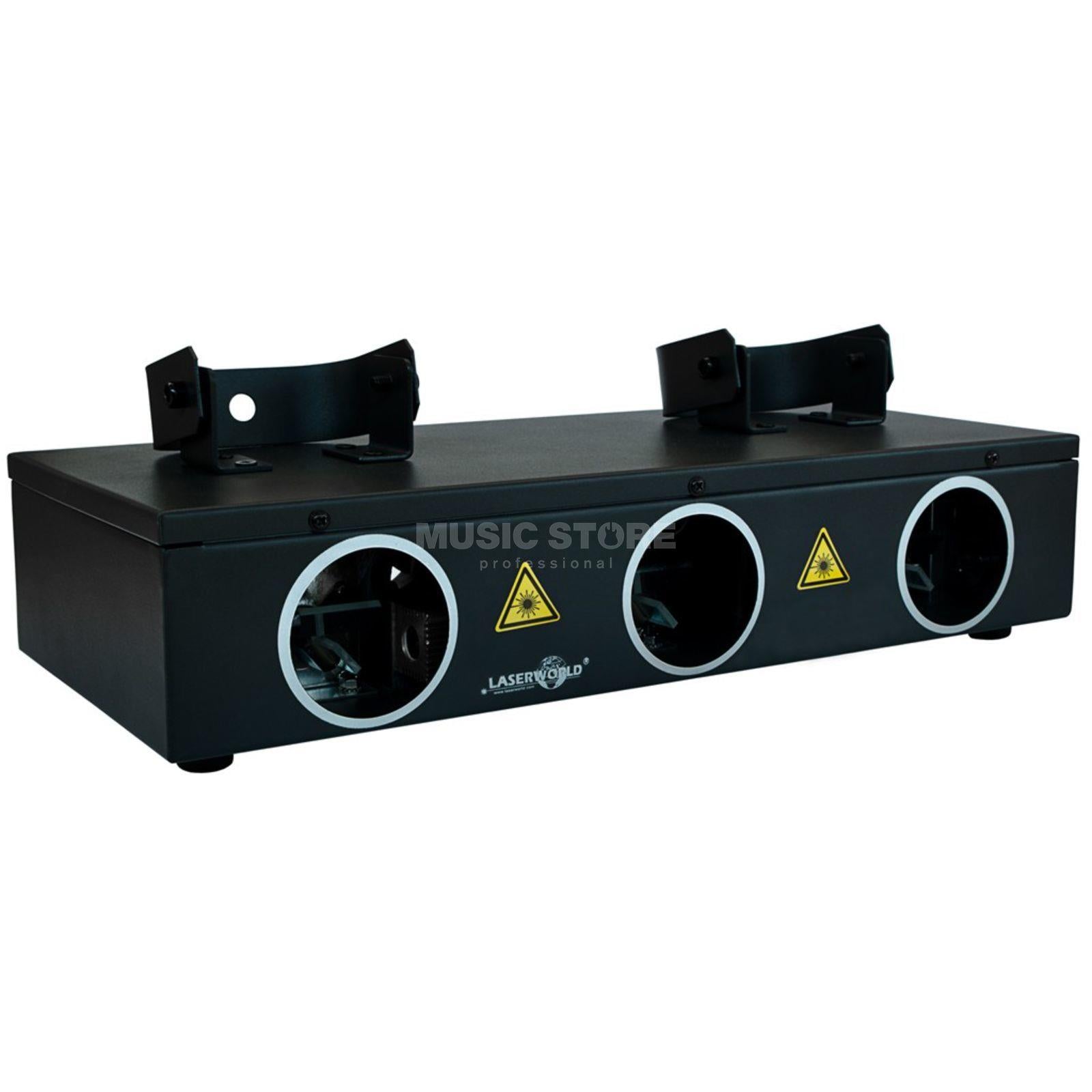

Laserworld EL-200RGB Laser

The Laserworld EL-200RGB is an RGB laser system with a total output power of up to 200 mW.

The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have good specifications with a diameter of about 3 mm and a beam divergence of about 2 mrad and the projector offers high-speed stepper motors with 2-5kpps as well as a scan angle of up to 30°. About 50 preset basic patterns, like layers, tunnels, fences, waves etc. can be controlled via DMX. A sound-to-light mode, as well as a stand-alone mode, are available too. For the sound-to-light mode, the sensitivity of the integrated adjustable microphone can be adjusted.
There is an on-off switch at the rear side of this device. The triple laser aperture provides extra intense red, green and blue beam effects.

The Laserworld EL-200RGB is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

With ultra-bright 445 nm royal blue!

Specifications
Total Power typical: 200 mW
Guaranteed power: 145 mW
Power Red: 60 mW / 650 nm
Power Green: 25 mW / 532 nm
Power Blue: 60 mW / 445 nm
Beam Specifications: ca. 3 mm / 2 mrad
Laser Sources: Diode, DPSS Laser
Laser Class: 3B
Operation Modes: Stand-Alone, Sound-to-Light, DMX
Scanner: high-speed stepper motors, up to 2-5 kpps
Scan Angle max.: 30°
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, interlock, key
Power Supply: 85V - 250 V AC
Power Consumption: 60 W

Dimensions
175/395/85 mm

Weight
3.9 kg
