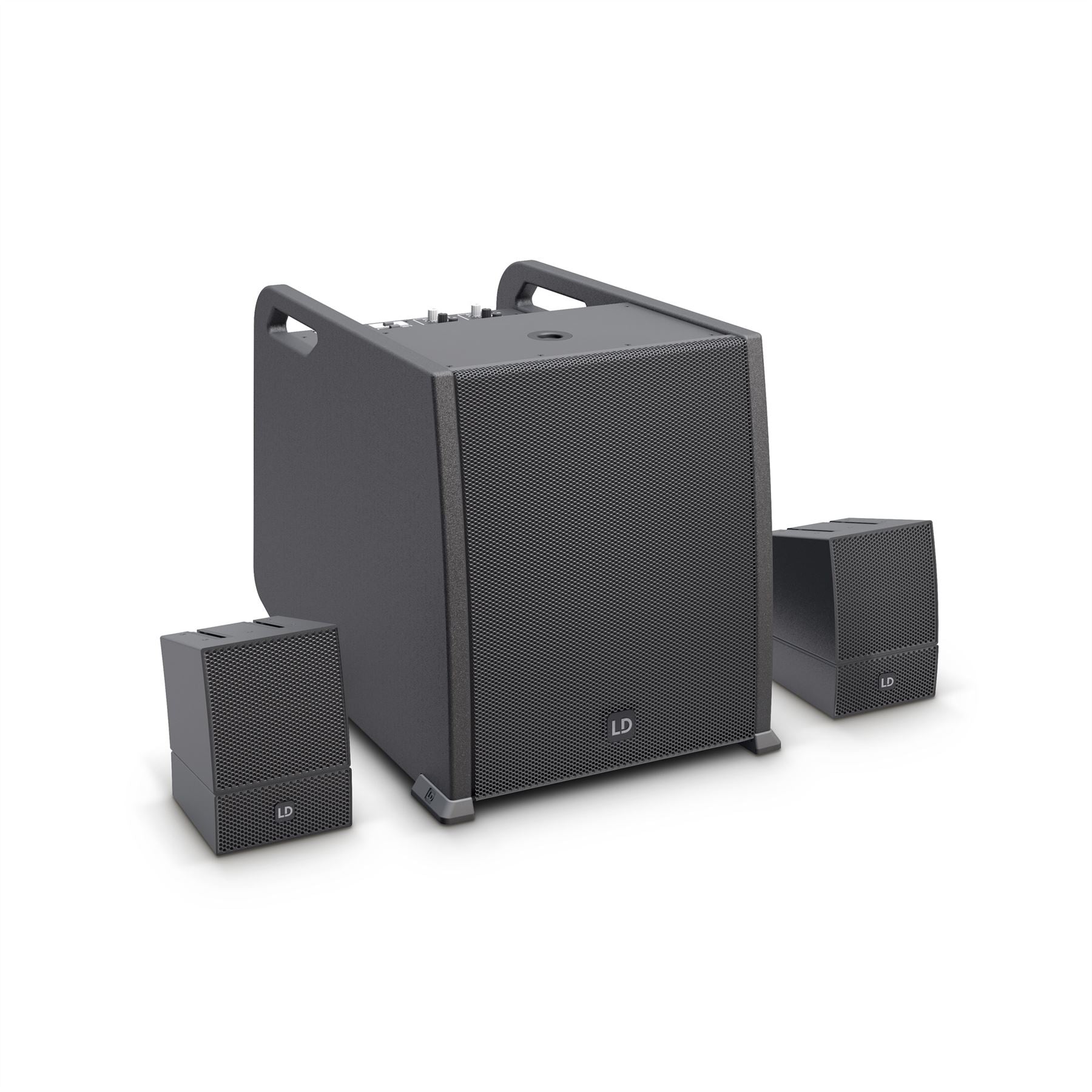

LD Systems CURV 500 AVS Portable Array System AV Set with Speaker Cables

The patented CURV 500A AV Set is the perfect fit anywhere music is played: in bars, clubs, studios and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV 500A AV Set can remain discreetly in the background, but also provide an impressive rocking performance.

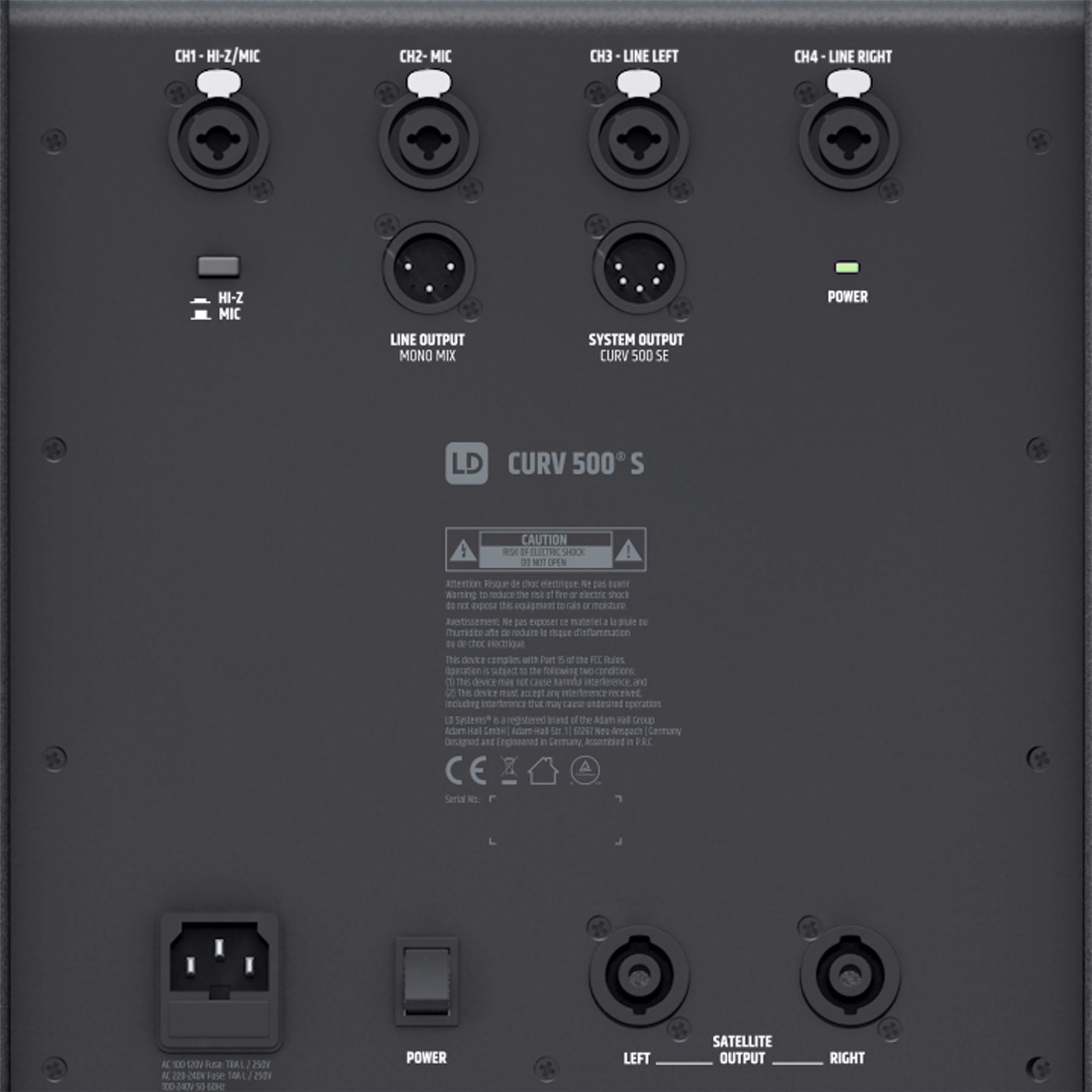

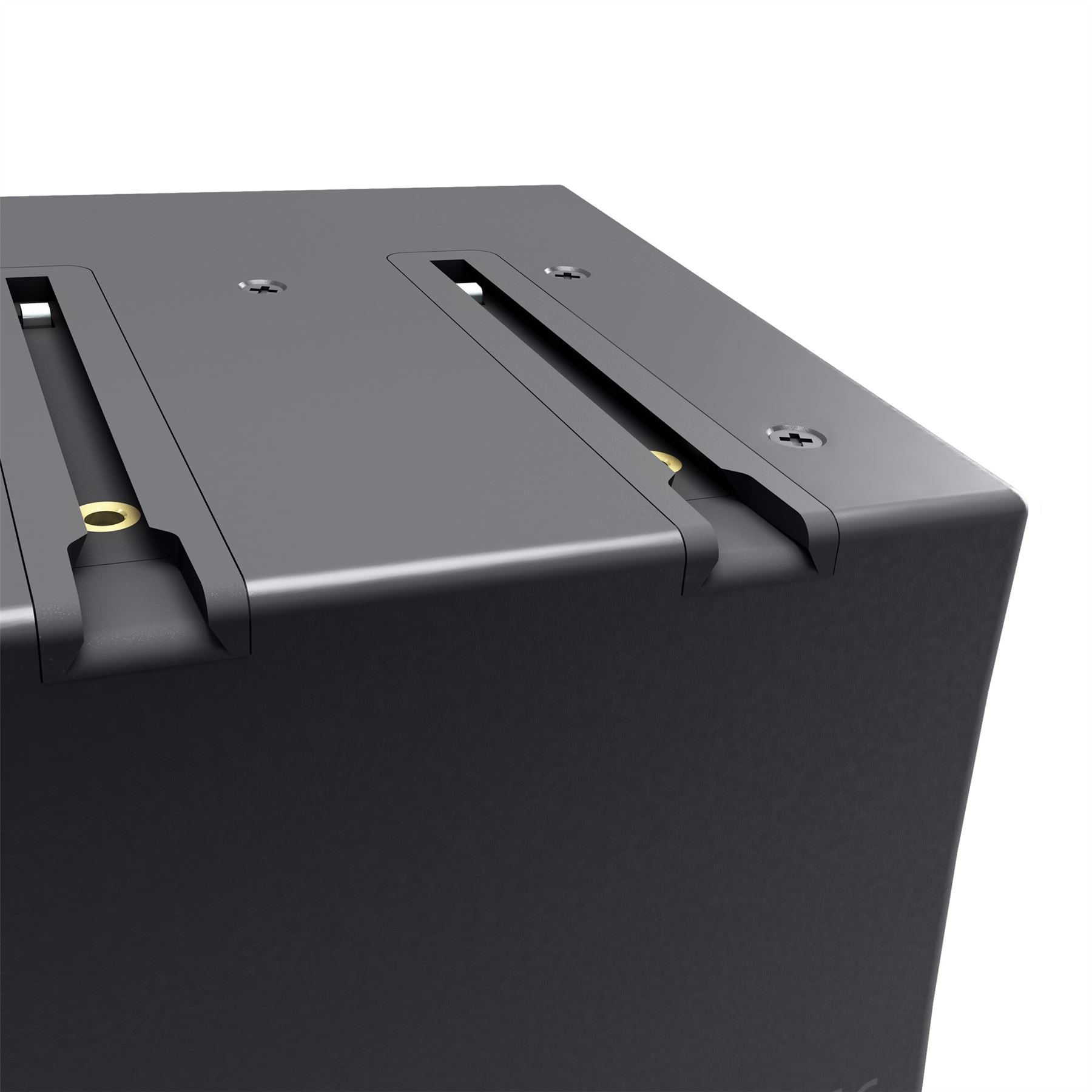

The 10" bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500A AV Set and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and BluetoothA. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore, the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.

The two satellites are operated via SmartLinkA adapters. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAheadA technology; one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required. For even more power, a total of eight array satellites can be operated in stereo mode (max. four on each side).

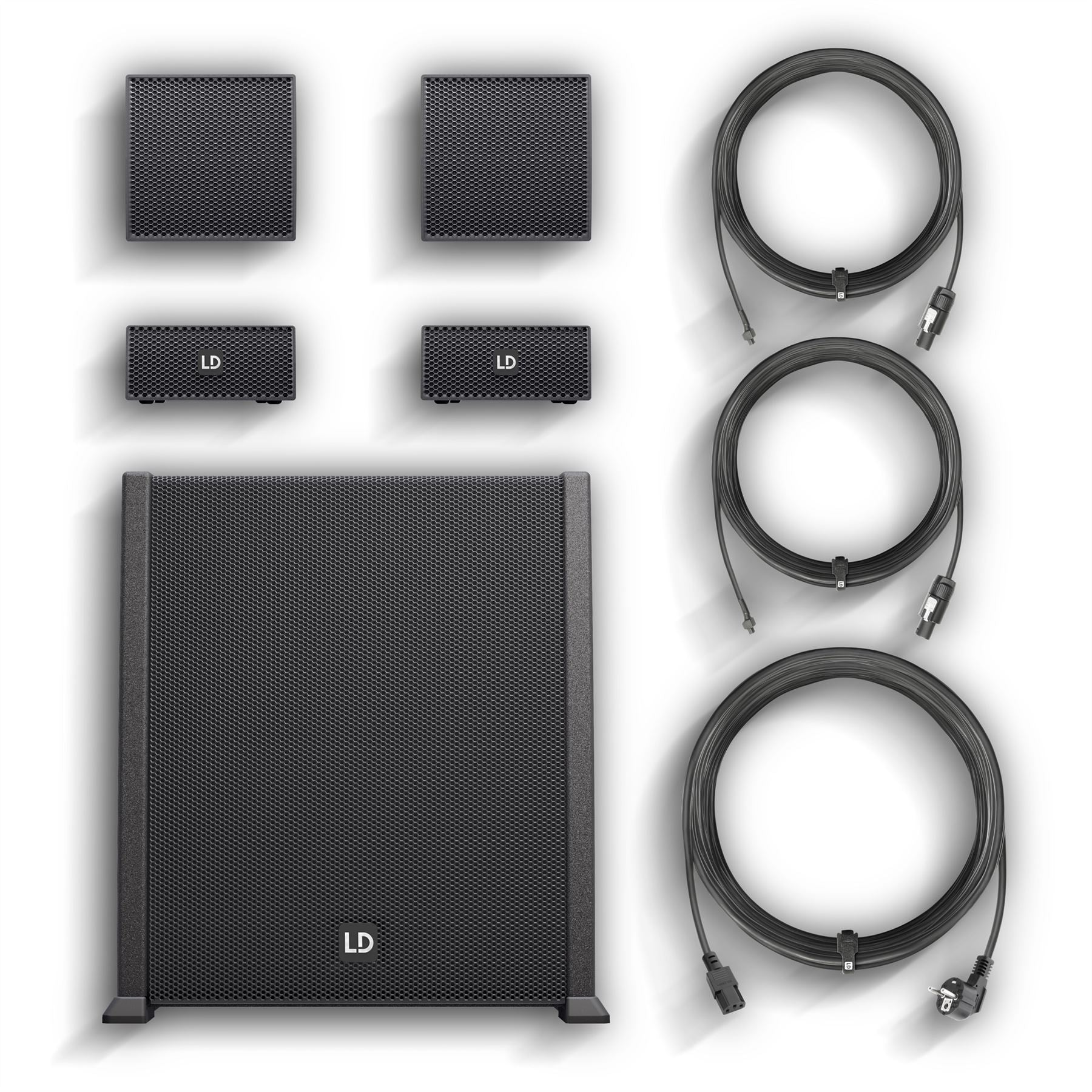

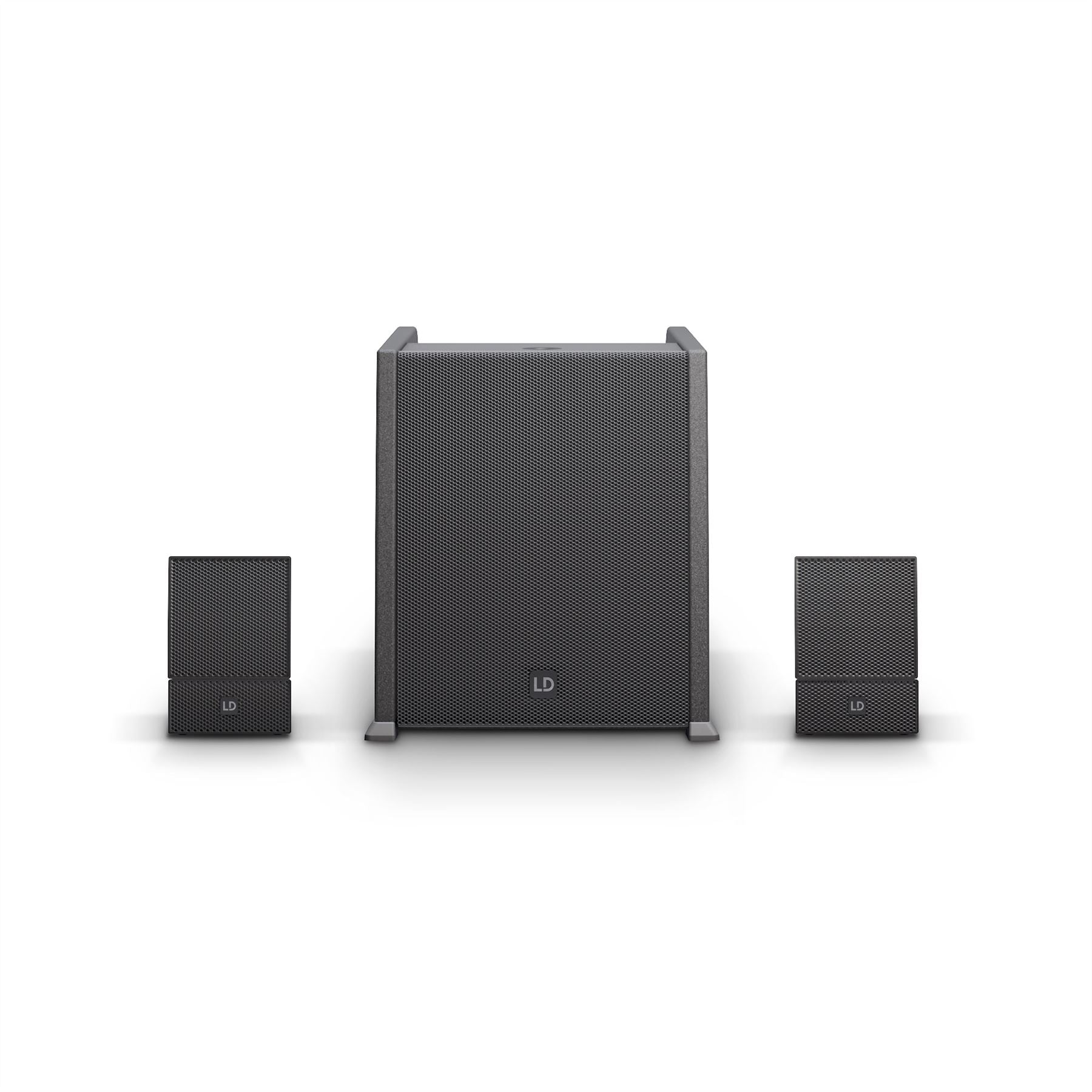

The CURV 500A AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLinkA adapters, and two speaker cables.

Features
The first truly portable array system
Fully scalable for far and near field applications
WaveAheadA technology for high definition audio
SmartLinkA plug & play adapter for universal mounting options
Built-in 4 channel mixer with DFX and BluetoothA technology
Durable lightweight aluminium unibody array elements
For mobile and fixed applications

Specifications
Product type: PA Complete Systems
System output (RMS):: 380 W
Colour: Black
Number of array satellites: 2
Number of Smartlink adapters: 2
Number of subwoofers: 1
Max. SPL (continuous): 116 dB
Max. SPL (peak): 122 dB
Frequency response: 47 - 20000 Hz
Dispersion (H x V): 110° horizontal, vertical (each satellite) 10
RMS: Subwoofer: 300 W , Array Satellites: 2 x 160 W
Peak power: Subwoofer: 1200 W , Array Satellites: 2 x 640 W
Amplifier: Class D
Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload
Weight: 22,8 kg
Accessories (included): 2 x Speaker cable with terminal block CURV 500 CABLE 2 (3 m), Power cord

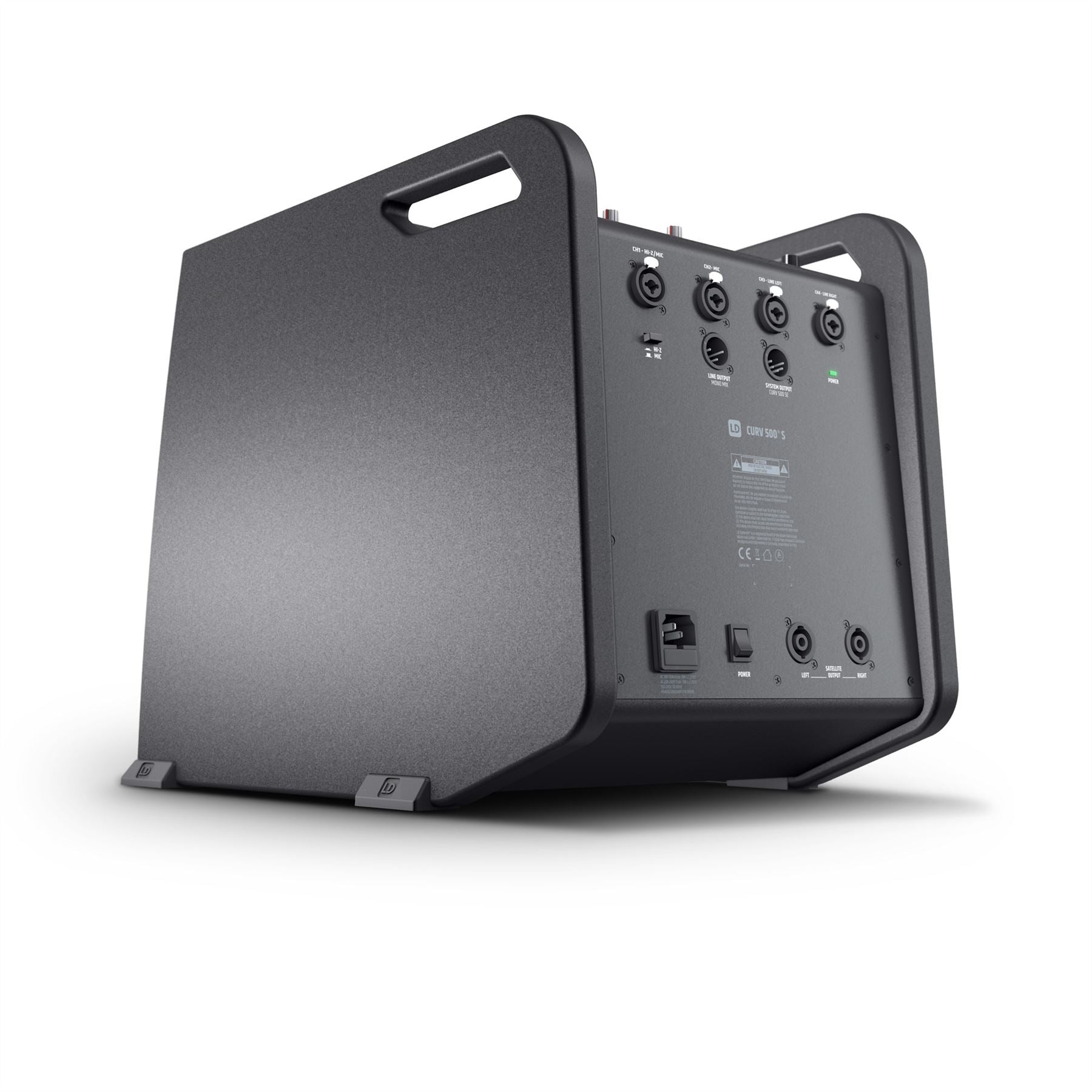

Subwoofer
Low/mid driver dimensions: 10 "
Woofer size: 254 mm
Cabinet construction: Bass Reflex
Cabinet material: plywood
Cabinet surface: PA painting
Dimensions Subwoofer (W x H x D): 325 x 383 x 491 mm
Subwoofer weight: 16.5 kg
Subwoofer features: 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20

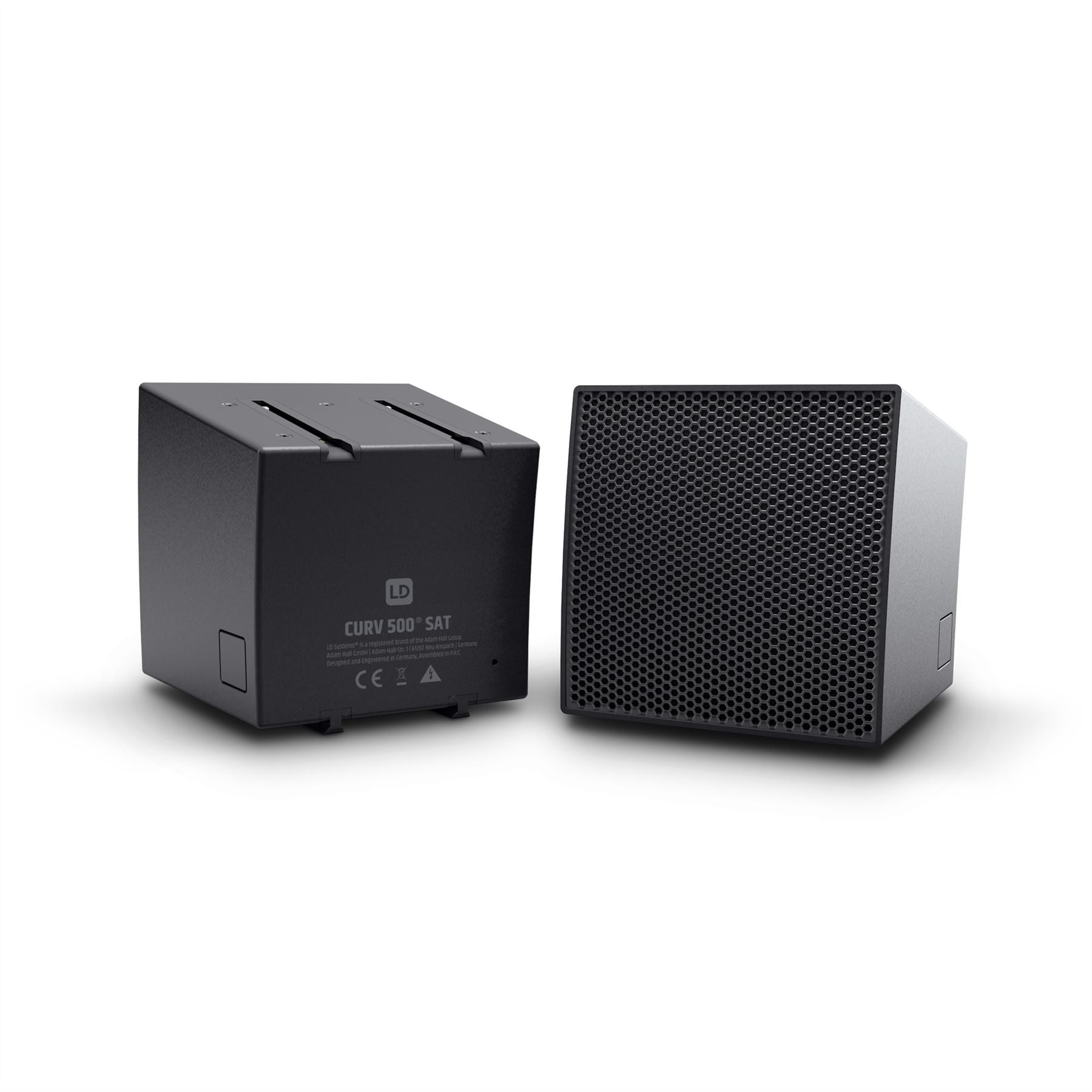

Array Satellites

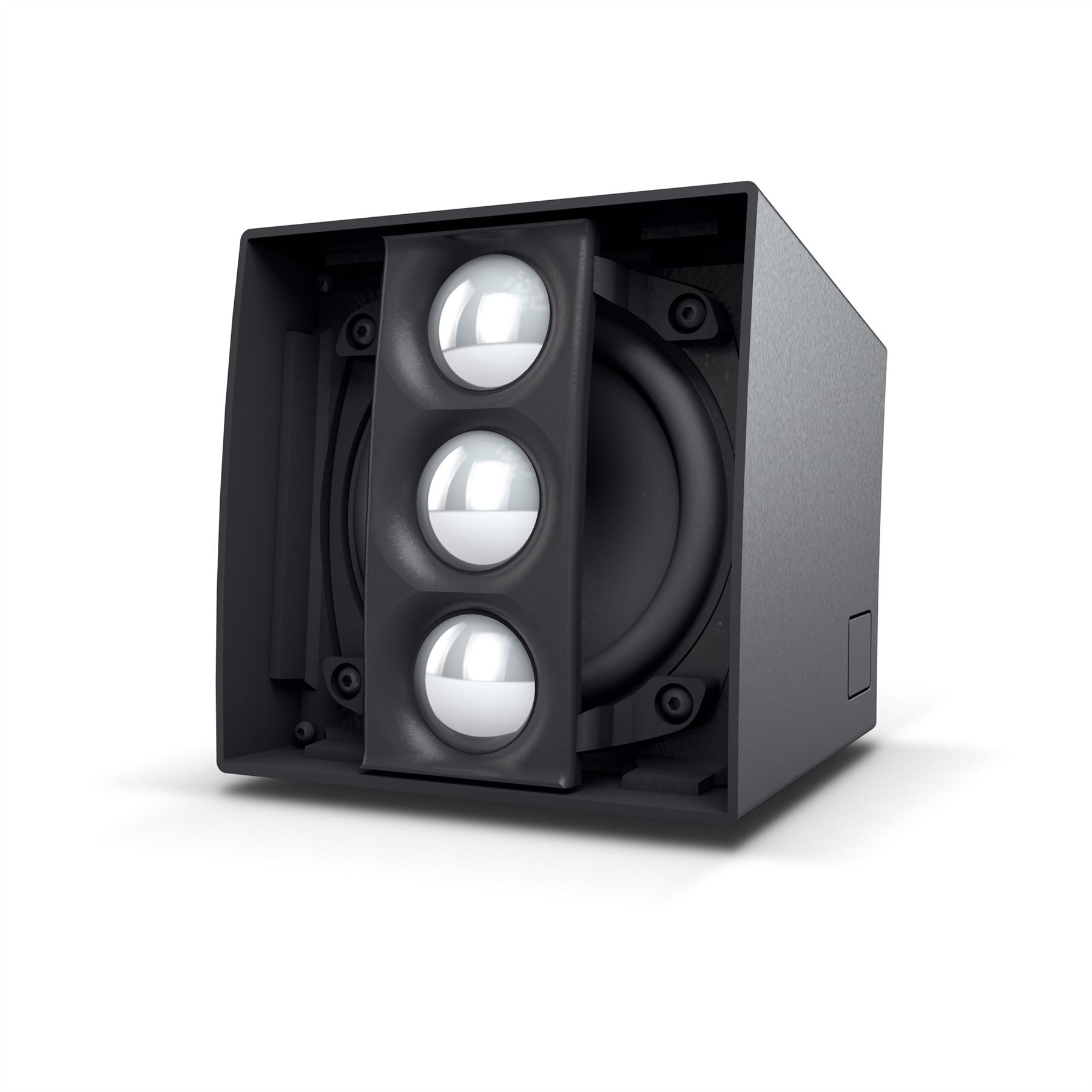

Mid/Hi system: MF: 1 x 4" / HF: 3 x 1" with WaveAheadA Technology / 16 ohms
Array Satellite Features: internal crossover, metal grille, WaveAheadA Technology
Array Satellite Material: Die-cast aluminum
Array Satellite Surface:: Powder coated
Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
Array Satellite Weight: 1.7 kg

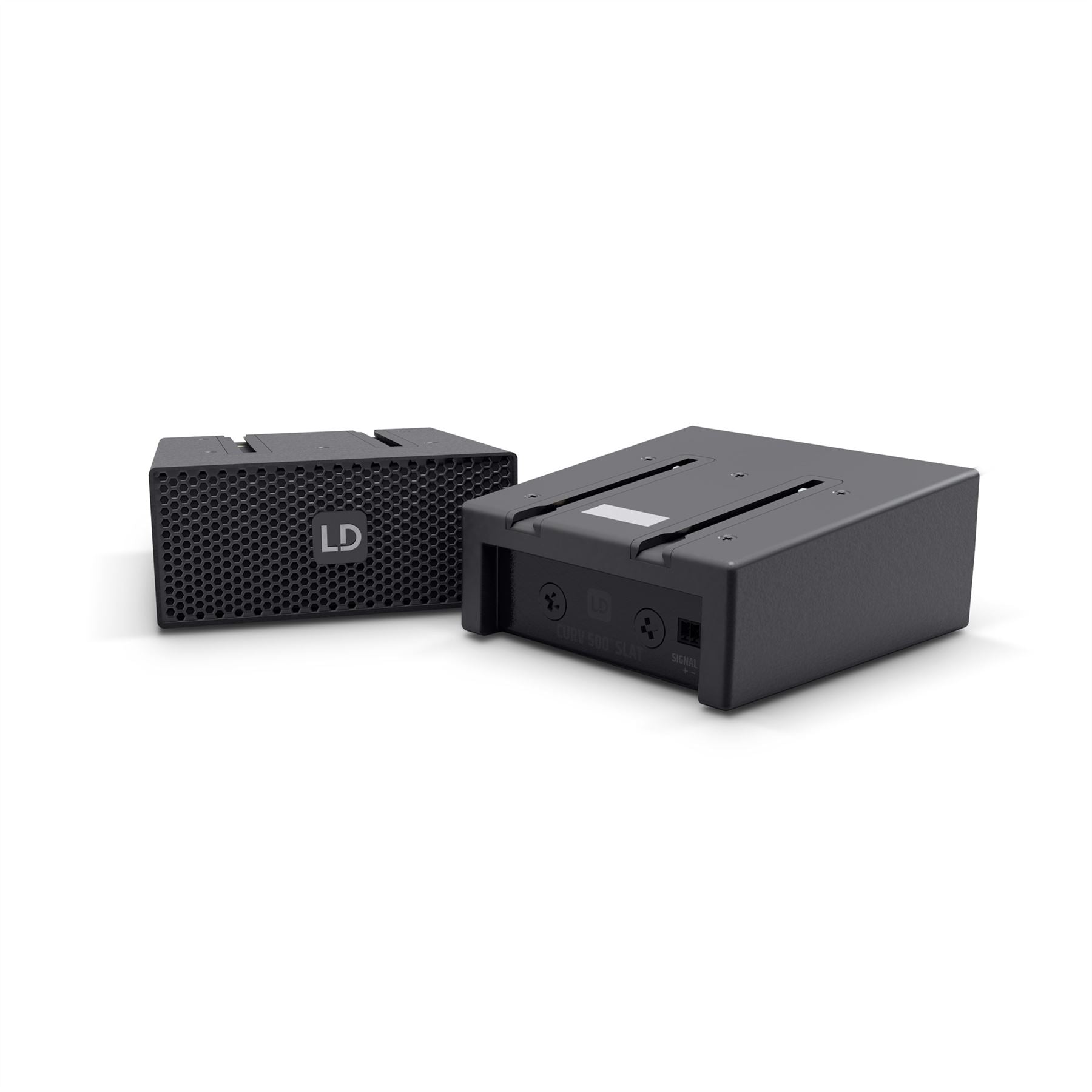

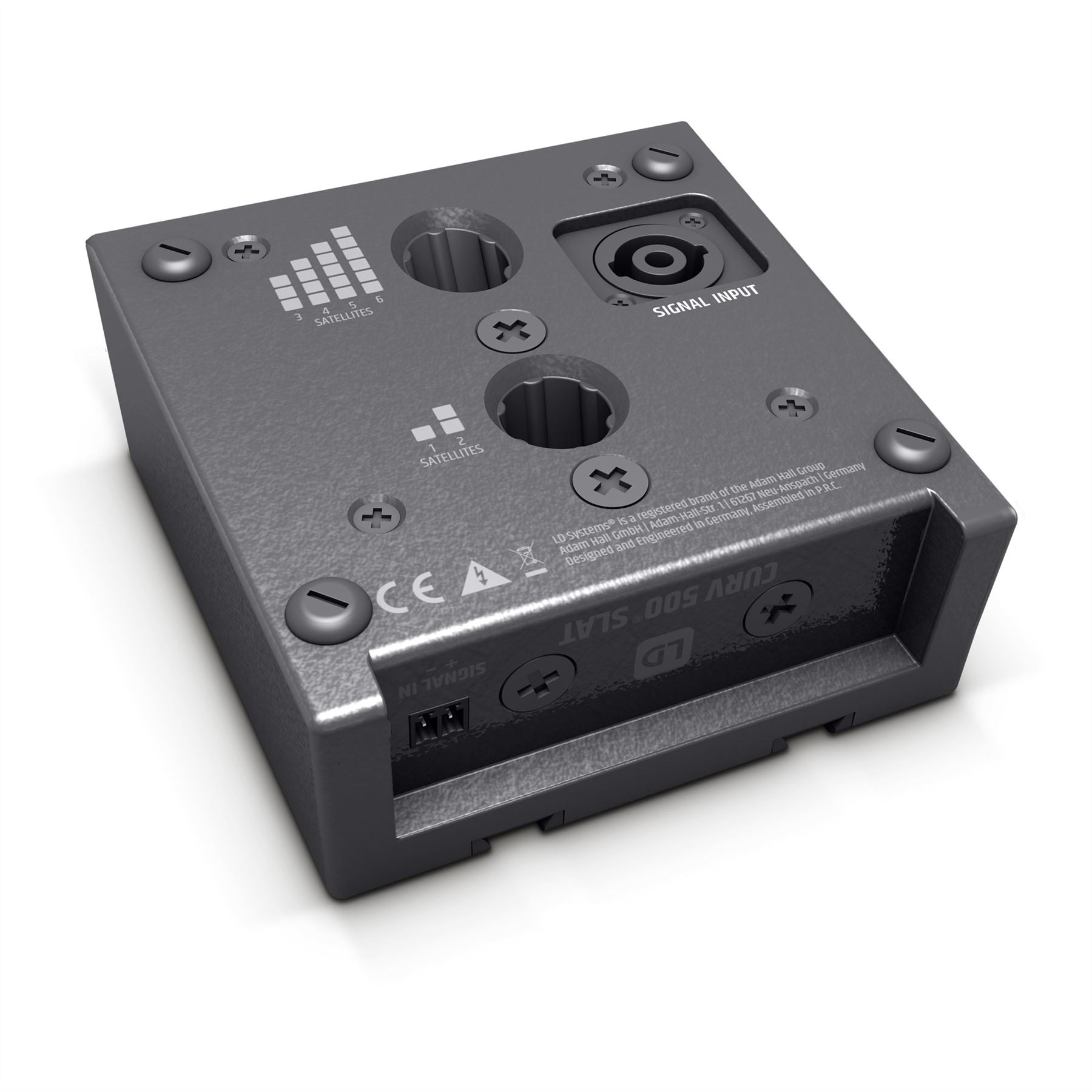

SmartlinkA Adapter
Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix
Smartlink Adapter Material: Die-cast aluminum
Smartlink Adapter Surface: Powder coated
Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
Smartlink Adapter Weight: 0.6 kg
