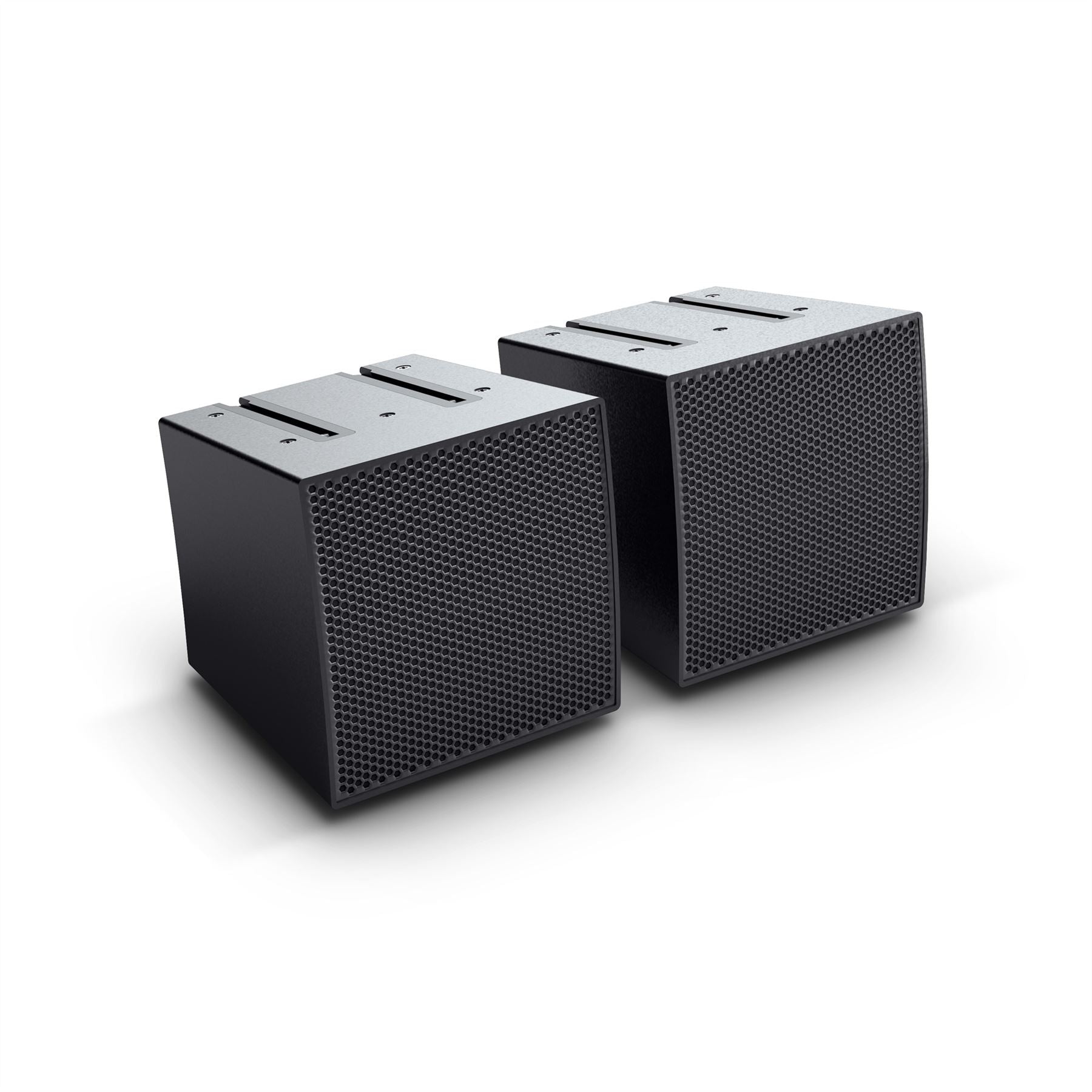

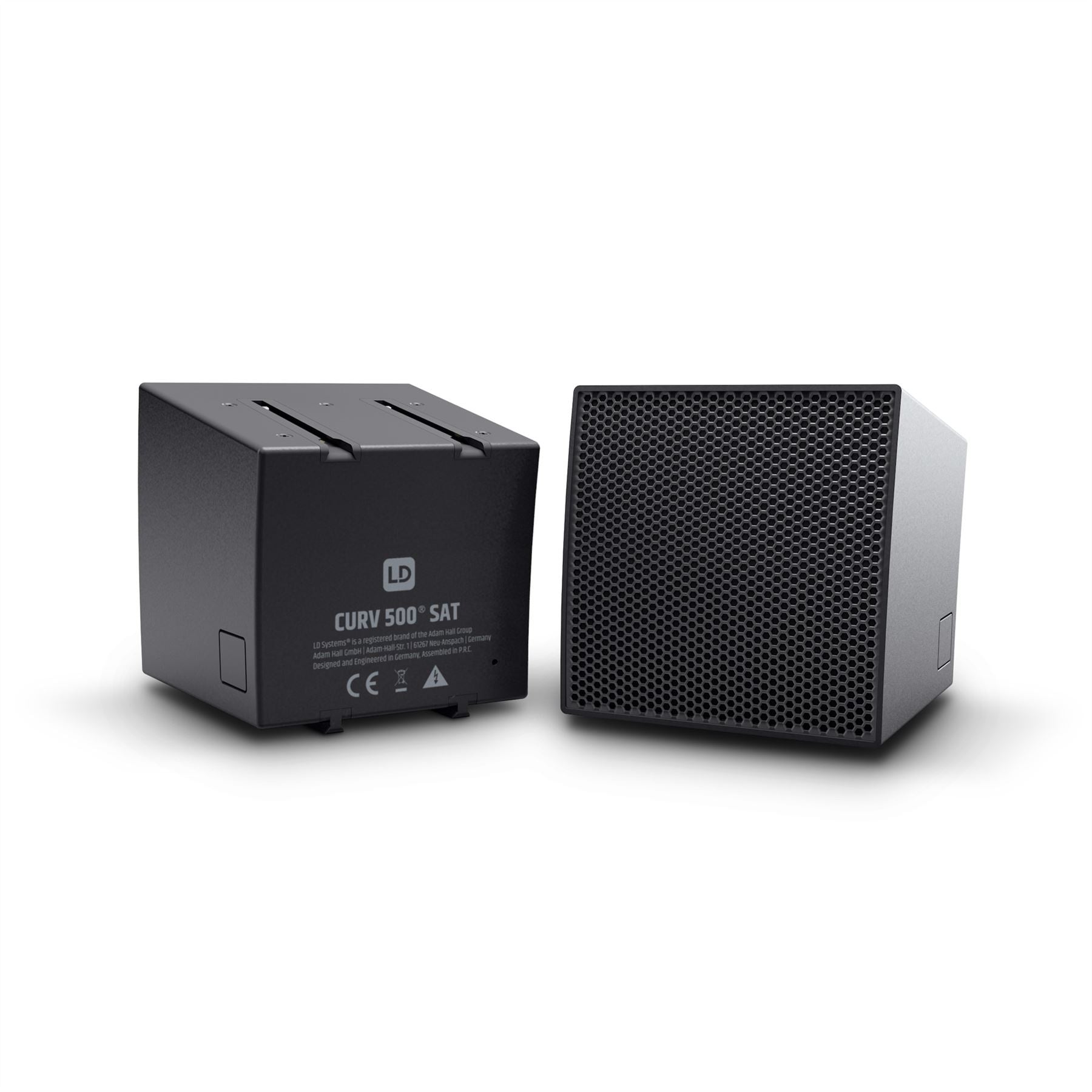

This accessory package is suitable for extension or addition to an existing CURV 500A. The satellites, 12 x 12 cm in size, are made of black die-cast aluminium and produce an excellent sound. This is achieved by their single 4-inch midrange driver and three 1-inch high-frequency drivers. Thanks to the WaveAheadA technology developed by LD Systems, the tweeters are arranged vertically ahead of the high-performance full-range speaker, thus the perfect sound mix and dispersion is achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. With the patented SmartLinkA plug-in mechanism, the system, comprising up to four array satellites, can be assembled without cables in a matter of seconds. Robust metal grilles with acoustic material for rear tensioning protect the drivers of the rugged satellites featuring 16 ohm impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. For fixed installations, there is an M3 screw connection for the safety rope.
Features
Bundle consisting of two array satellites
Compact cabinet made of black die-cast aluminium, rugged and resilient

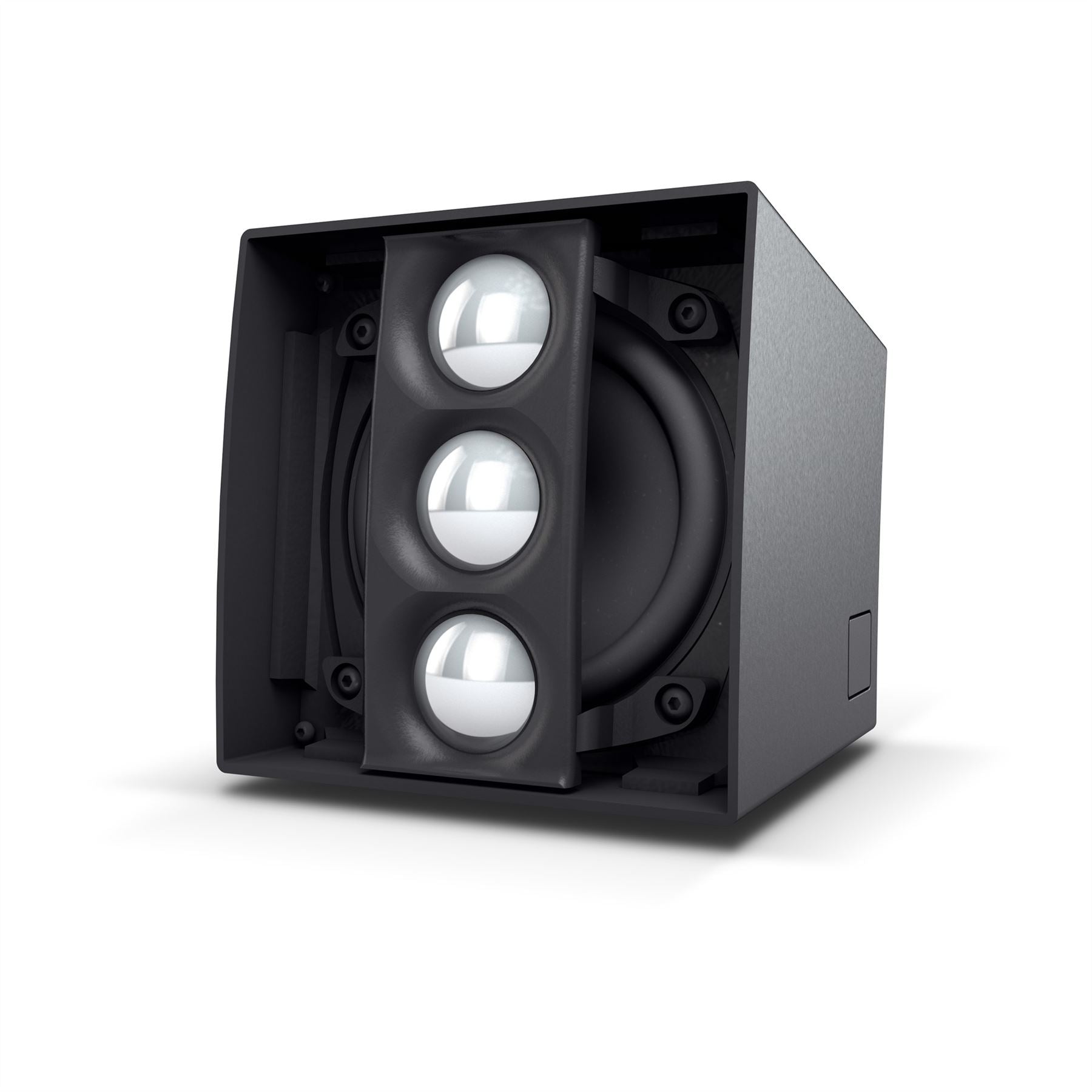

A single 4-inch midrange driver and three 1-inch high-frequency drivers with patented WaveAheadA technology deliver excellent sound
SmartLinkA system allows for cable-free assembly of up to four array satellites
16 ohm impedance per satellite
Specifications
Product type: PA Complete Systems Accessories
Type: Array Satellites
Midrange size: 1 x 4 "
Tweeter dimensions: 3 x 1 "
Load rating (RMS): 40 W
Peak power: 80 W
Speakers per amplifier channel (DSP44/45K): 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion: 110° horizontal, vertical (each satellite) 10°
Impedance: 16 Ohm(s)
Material: Die-cast aluminum
Surface: Powder coated
Colour: Black
Width: 122 mm
Height: 122 mm
Depth: 122 mm
##Weight (pair): 3.44 kg
Features: internal crossover, M3 thread for safety rope for installations, metal grille, SmartLinkA System, WaveAheadA Technology
