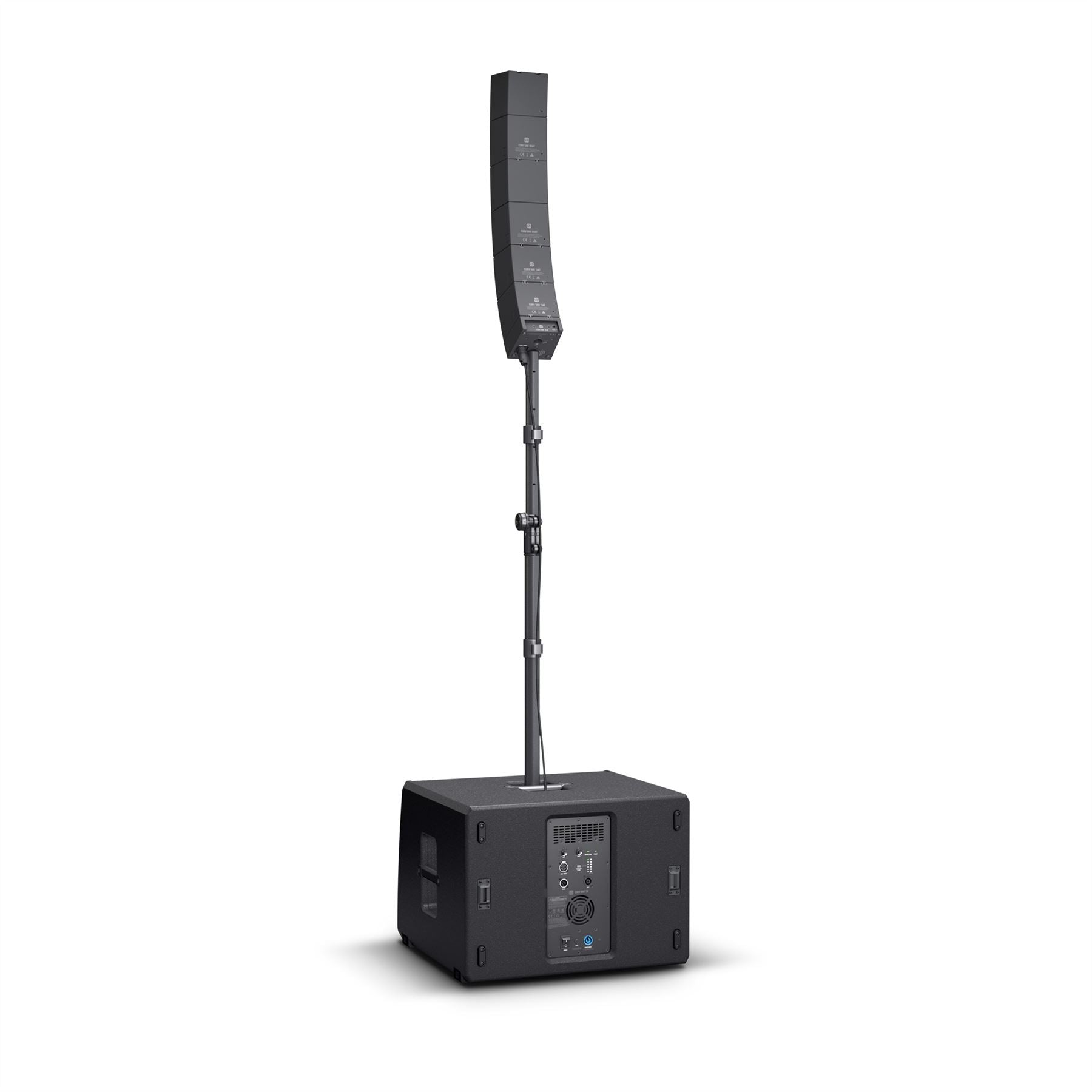

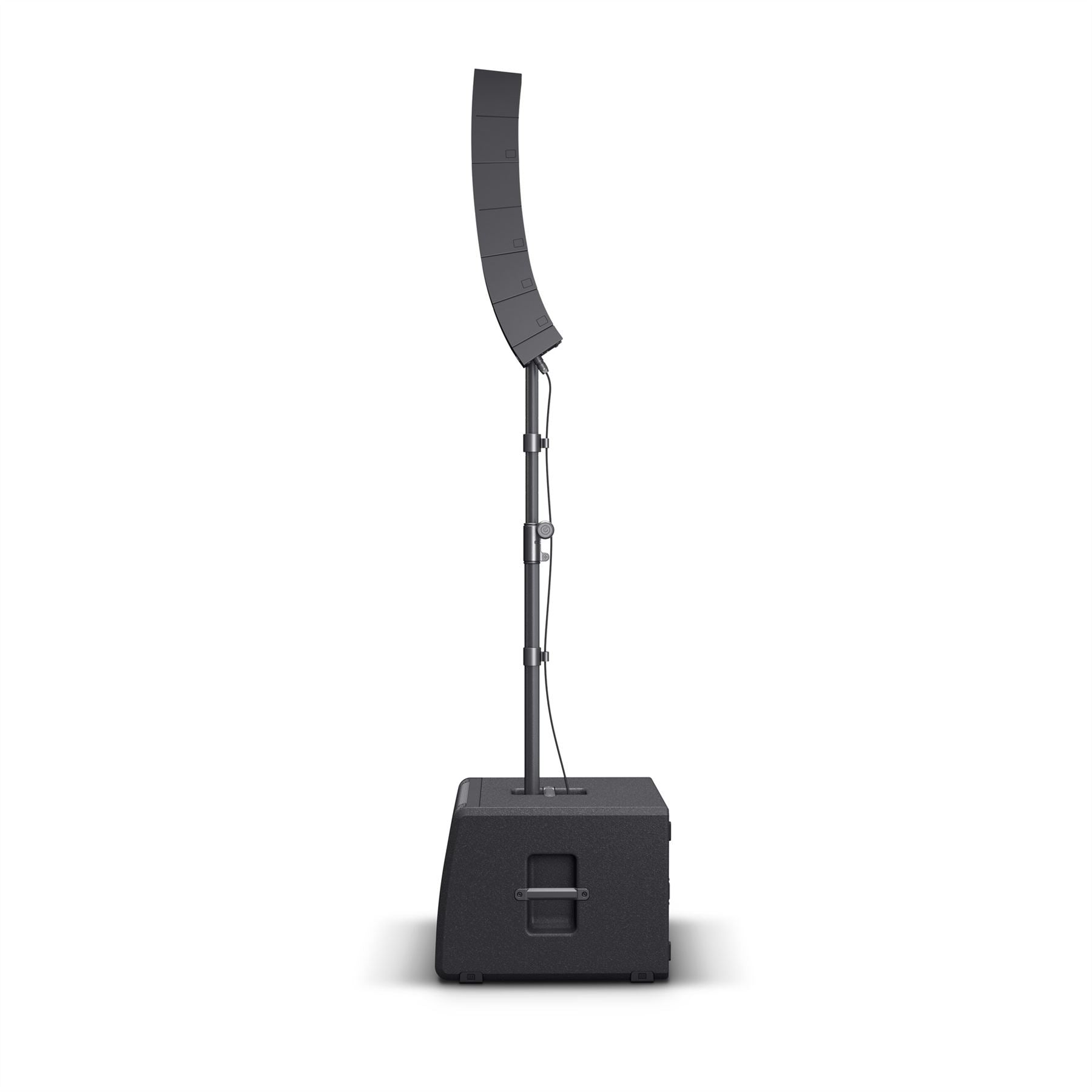

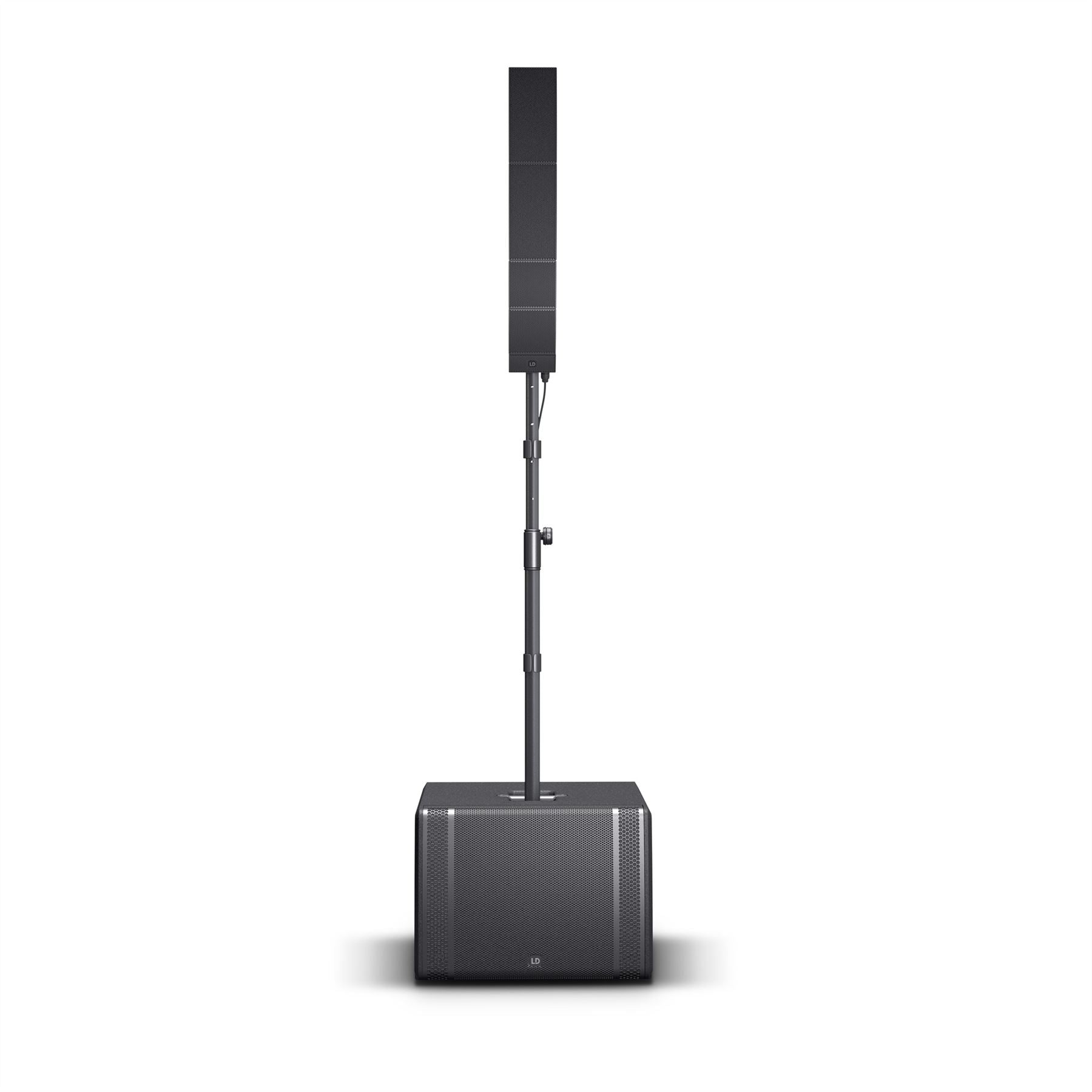

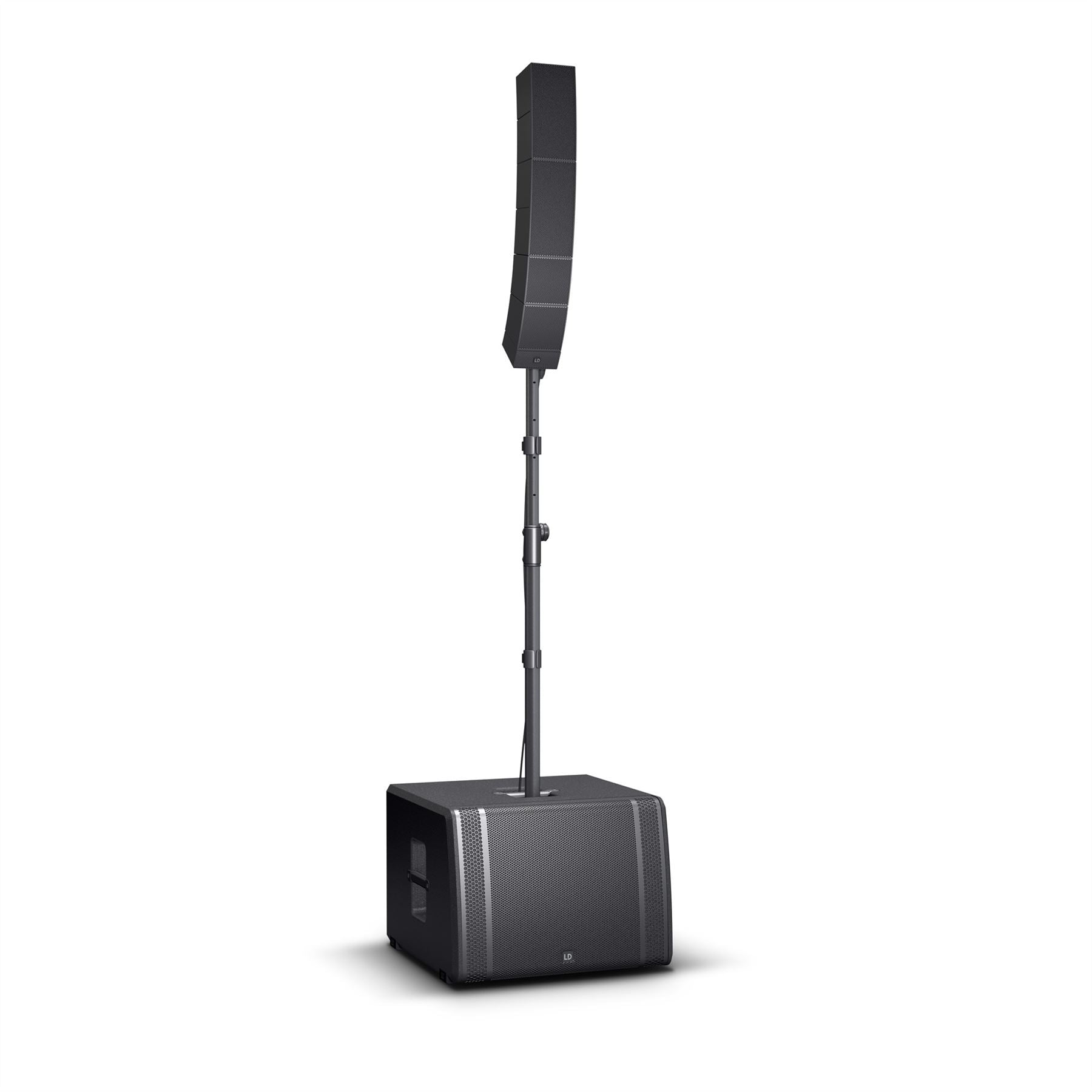

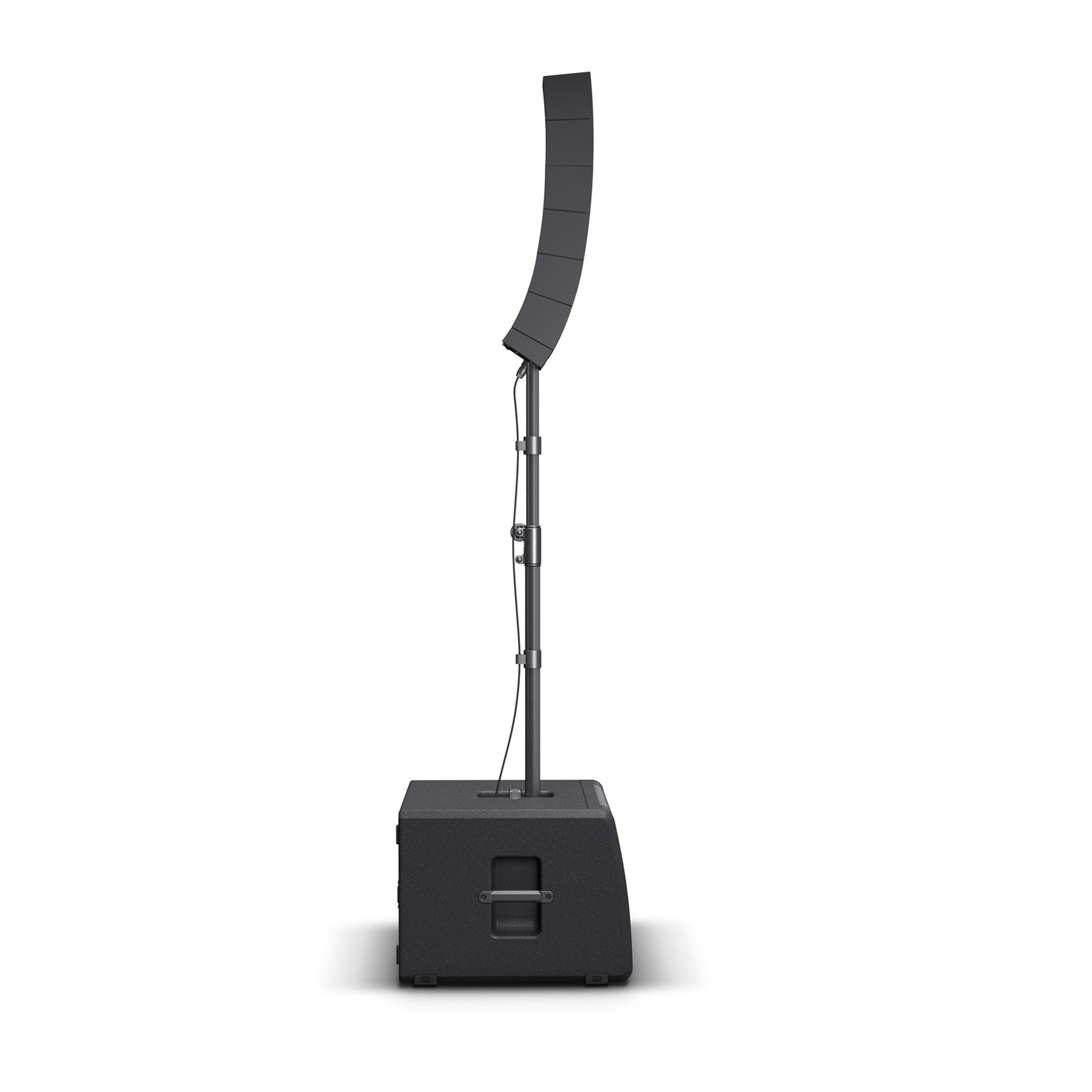

LD Systems CURV 500 TS Compact Touring Array System

Description:

This bundle includes 2x LD Systems CURV 500 TS Array Systems

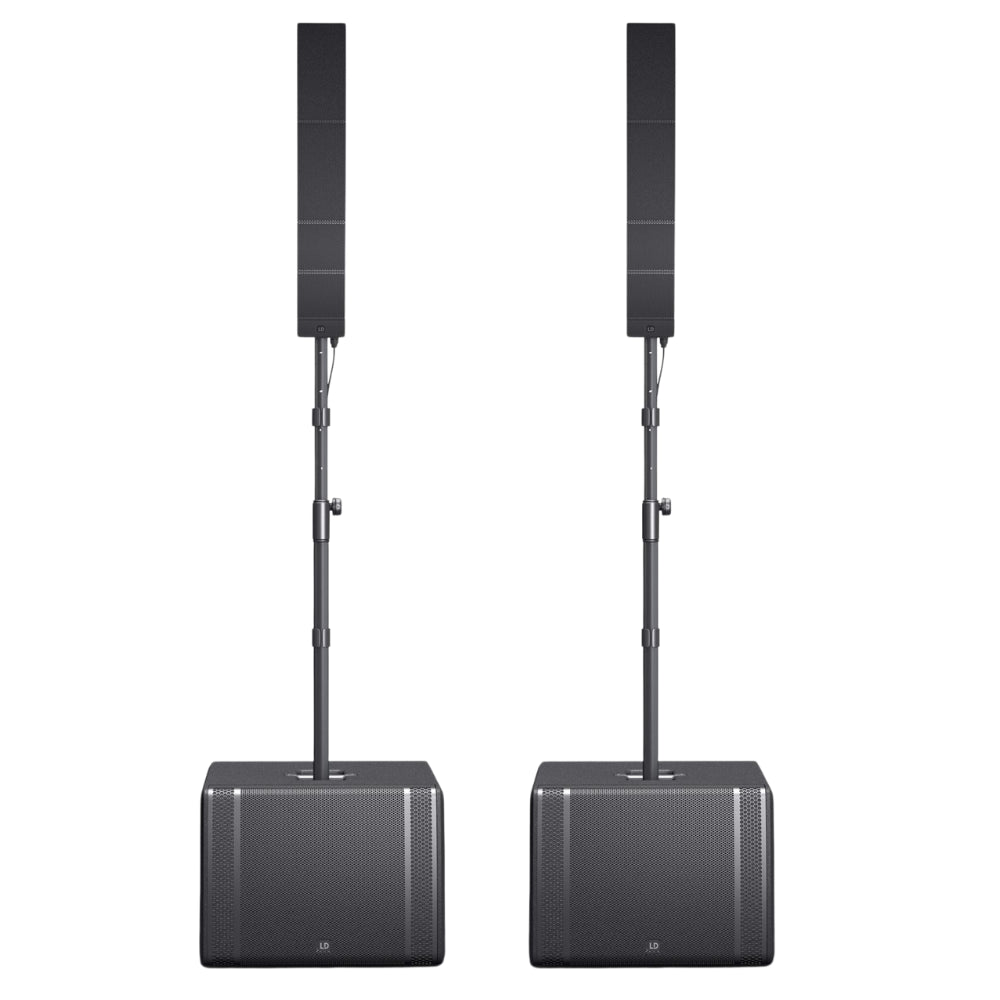

2x LD Systems CURV 500 TS Compact Touring Array System
The compact, highly portable CURV 500A Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLinkA plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAheadA technology, and two duplex satellites with twice the speaker complement.

The ported 15" subwoofer base includes the CURV 500A Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500A Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

Features:

Portable touring array system for live events, DJs and bands
25 premium transducers and WaveAheadA technology for breath-taking high-definition sound
1,000 watts RMS system power and 131 dB max. SPL
Fully scalable for far and near field applications
SmartLinkA plug & play adapter for versatile application
Durable aluminum unibody satellite construction
18 mm birch ply subwoofer cabinet with Polyurea finish
Ergonomic handles for convenient transport and setup

Specifications:

Product type: PA Complete Systems
System output (RMS):: 1000 W
Colour: Black
Number of array satellites: 4
Number of Smartlink adapters: 1
Number of subwoofers: 1
Max. SPL (continuous): 125 dB
Max. SPL (peak): 131 dB
Frequency response: 40 - 20000
Dispersion (H x V): 110° horizontal, vertical 34
RMS: Subwoofer: 700 W , Array Satellites: 300 W
Peak power: Subwoofer: 1400 W , Array Satellites: 600 W
Amplifier: Class D
Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload
Weight: 48,2 kg
Accessories (included): Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)

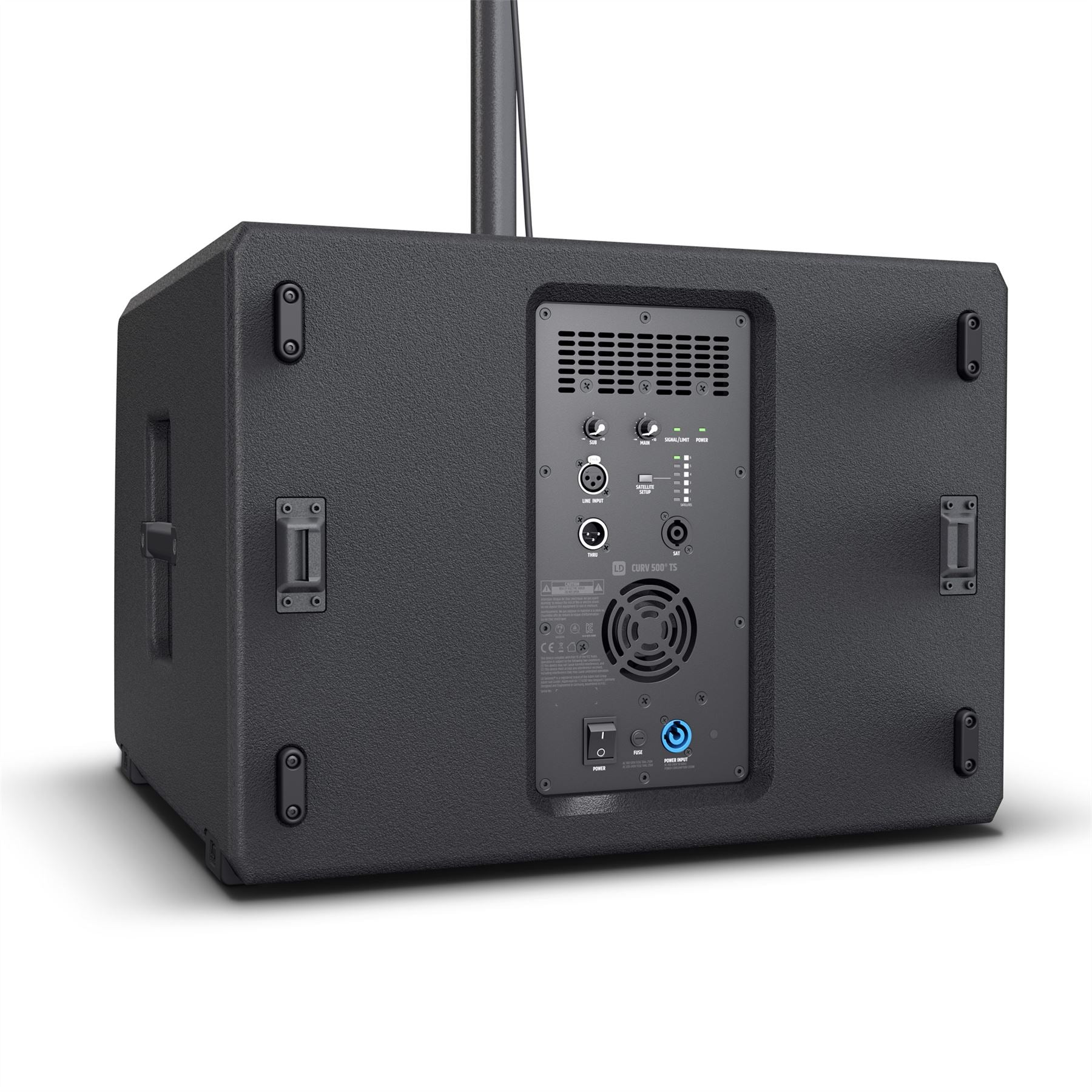

Subwoofer
Low/mid driver dimensions: 15 "
Low/mid driver dimensions (mm): 381 mm
Cabinet construction: Bass Reflex
Housing material: plywood
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 600 x 437 x587 mm
Subwoofer weight: 35.5 kg

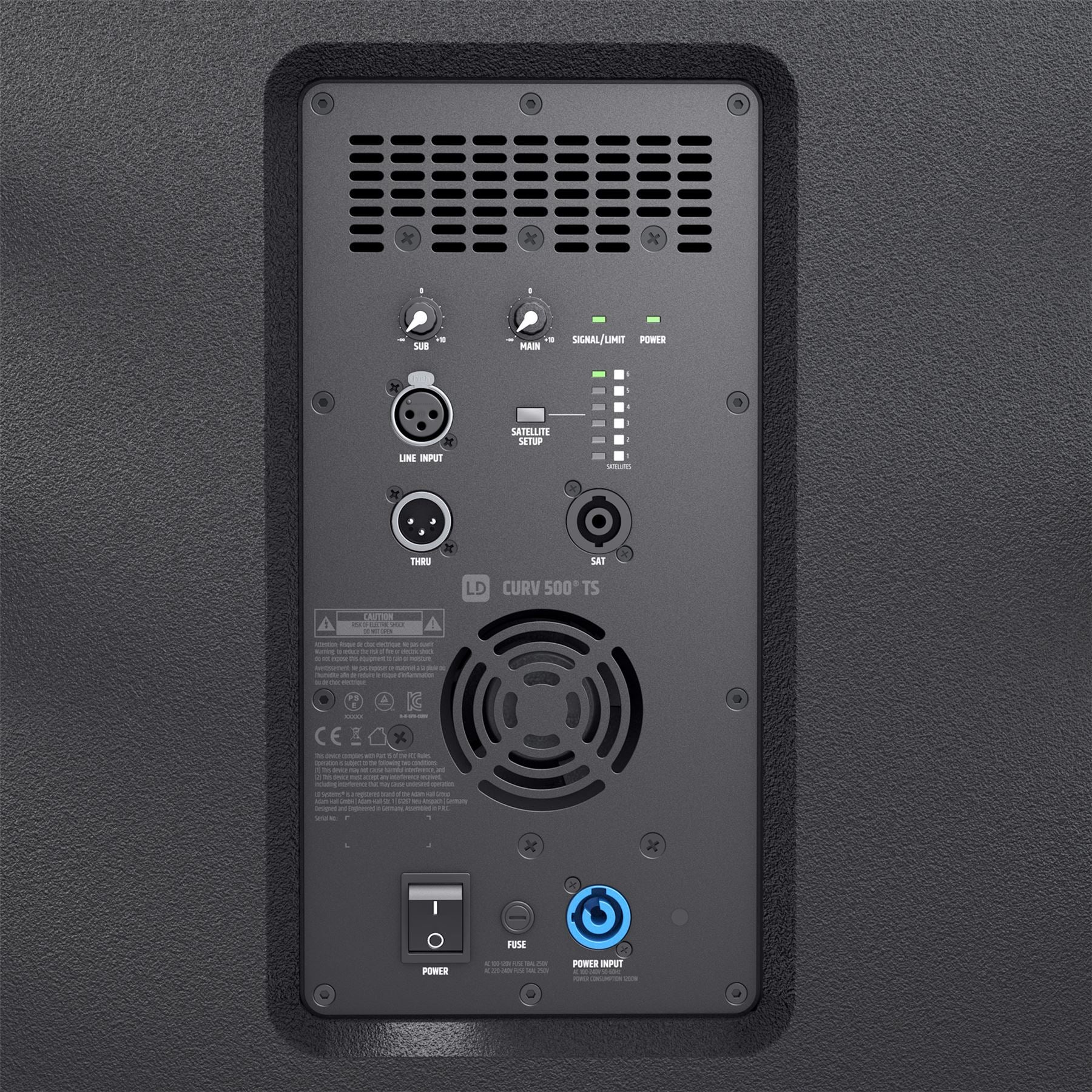

Subwoofer features: 4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20
LDCURV500DSAT - CURV 500 D SAT
Product type: Installation Loudspeakers
Type: Array Satellites, Wall-mounted Loudspeaker
Midrange size: 2 x 4 "
Tweeter dimensions: 6 x 1 "
Load rating (RMS): 80 W
Peak power: 160 W
Dispersion: 110° horizontal, vertical (each satellite) 7°
Impedance: 8 Ohm(s)
Material: Die-cast aluminum
Surface: Powder coated
Colour: Black
Width: 122 mm
Height: 240 mm
Depth: 126 mm
LDCURV500S2 - CURV 500 S2
Product type: PA Complete Systems Accessories
Type: Array Satellites
Midrange size: 1 x 4 "
Tweeter dimensions: 3 x 1 "
Load rating (RMS): 40 W
Peak power: 80 W
Speakers per amplifier channel (DSP44/45K): 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion: 110° horizontal, vertical (each satellite) 10°
Impedance: 16 Ohm(s)
Material: Die-cast aluminum
Surface: Powder coated
Colour: Black
Width: 122 mm
Height: 122 mm
Depth: 122 mm
##Weight (pair): 3.44 kg
Features: internal crossover, M3 thread for safety rope for installations, metal grille, SmartLinkA System, WaveAheadA Technology
LDCURV500SLA - CURV 500 SLA
Product type: PA Complete Systems Accessories
Type: SmartlinkA Adapter
Material: Die-cast aluminum
Surface: Powder coated
Connectors: 1x Phoenix, 1x Speakon compatible
Colour: Black
Width: 122 mm
Height: 122 mm
Depth: 57 mm
Weight: 0,35 kg
Features: 2 x 16 mm flanges, 2x M6 thread for optional wall mount
