LD Systems DAVE 10 G3 Compact 10" active PA System

LD Systems DAVE 10 G3 - Active PA-System with DSP

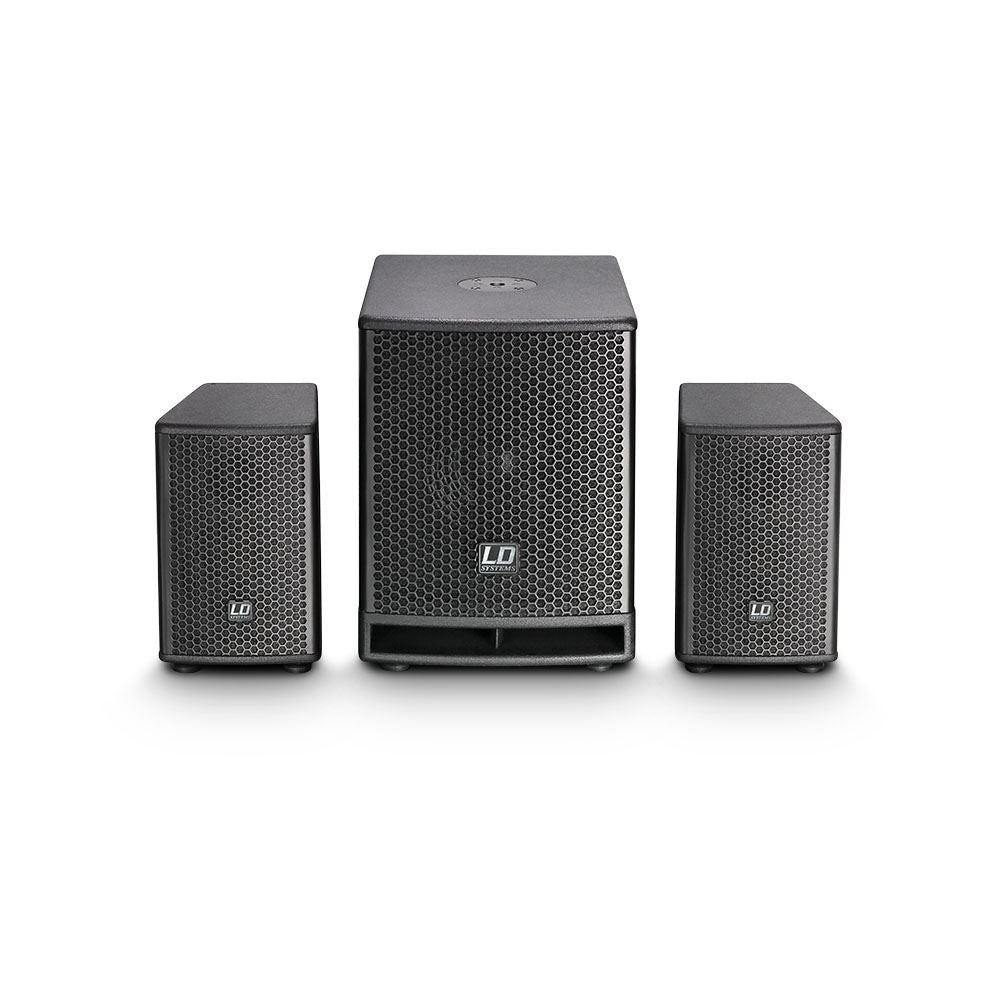

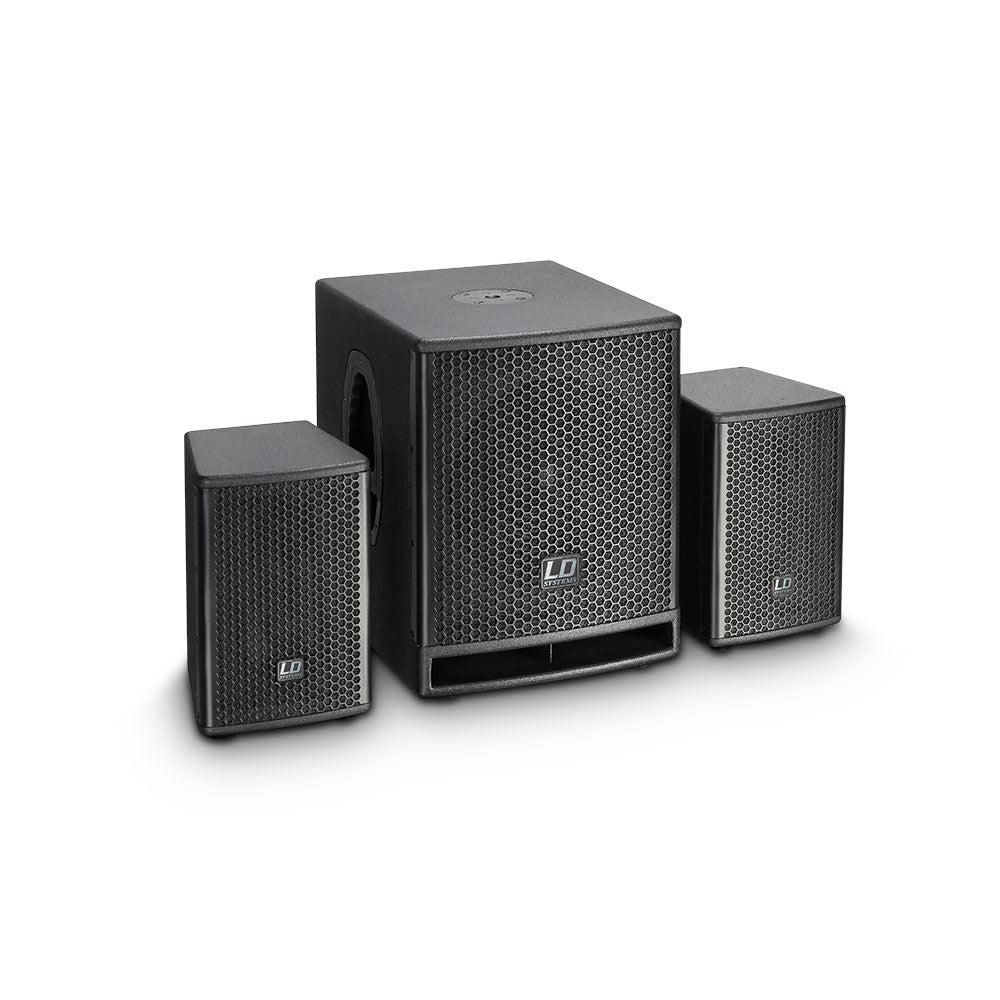

The LD Systems DAVE 10 G3 is the latest generation of an extremely compact active PA system. The bass reflex subwoofer provides a solid bass foundation; the satellites ensure clearly defined mids and clear treble. The 2.1 power amp module built into the subwoofer delivers 1400W Peak power, and the intelligent LD LECC DSP guarantees perfect interaction and controlled functioning. The digital signal processor includes specially optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

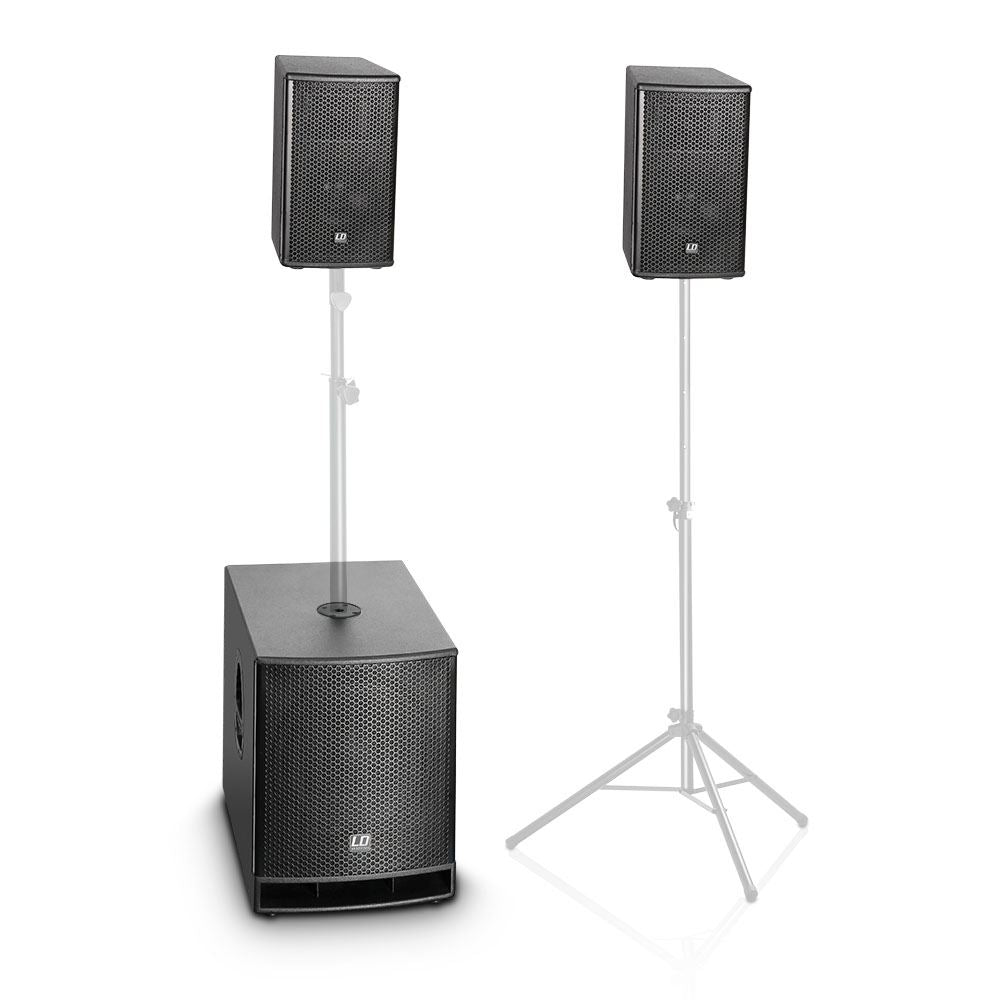

The DAVE 10 G3 system's professional features include sturdy MDF cabinets, the necessary protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomic handles. The LD "Evolutive" handles of the subwoofer are a genuine innovation - they permit a trouble-free, secure grip from all sides! The stand support of the satellites is tilted by five degrees for perfect orientation of the speaker cabinet.

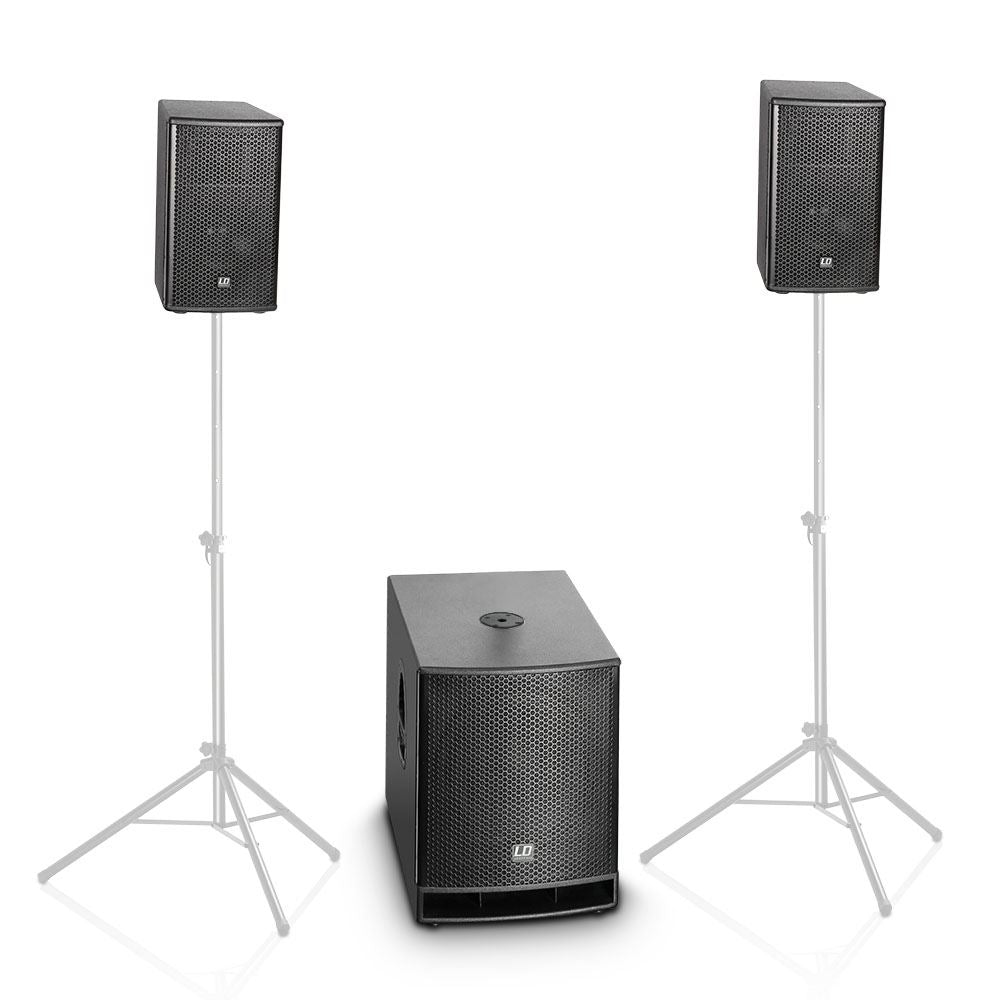

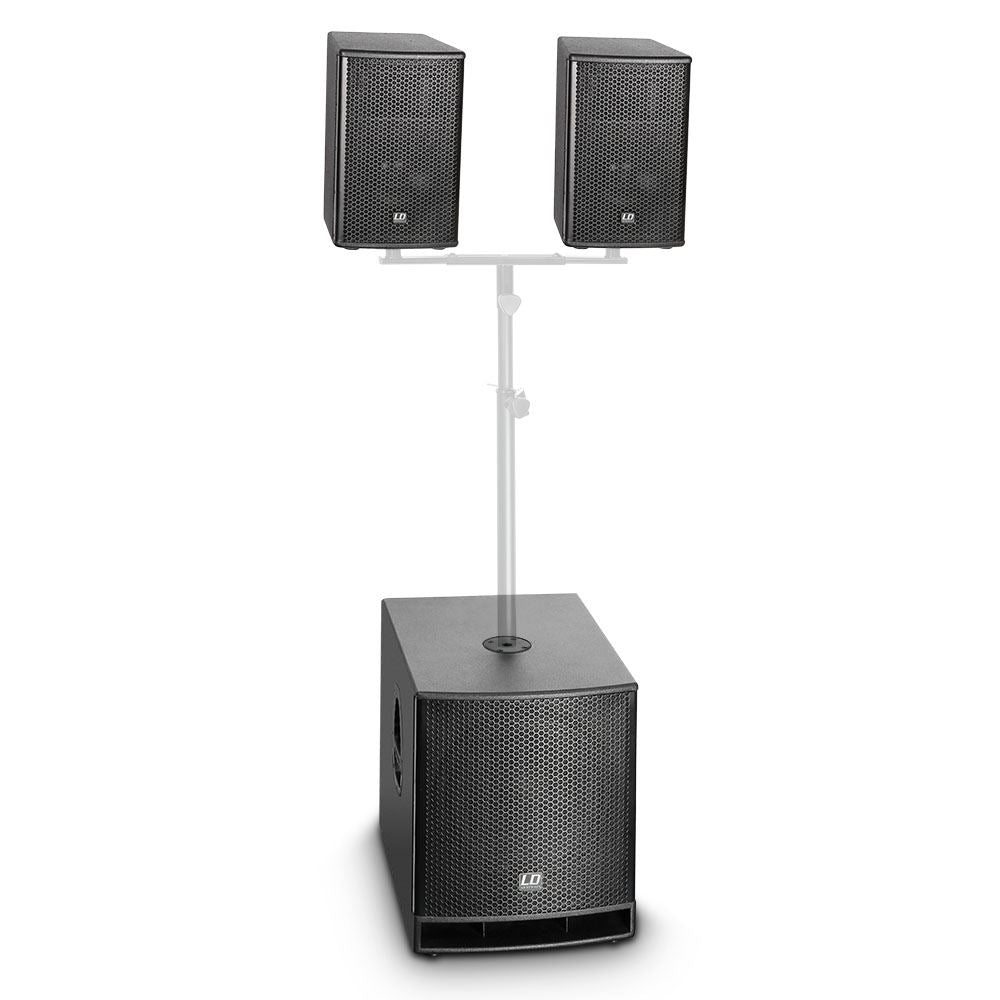

Protection covers for the system components and a castor board with a lashing strap for convenient transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

The DAVE 10 G3 is especially suitable for portable use and are very convenient to transport, making it just right for solo entertainers and duos. However, it also cuts a good figure in small permanent installations, e.g., in bars and restaurants.

Specifications
Weight: 27,5 kg
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 115 dB
Max. SPL (peak): 126 dB
Frequency response: 45 - 19000 Hz
Dispersion (H x V): 70 x 70
Subwoofer
Low/mid driver dimensions: 10 "
Woofer size: 254 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 "
Woofer voice coil (mm): 50.8 mm

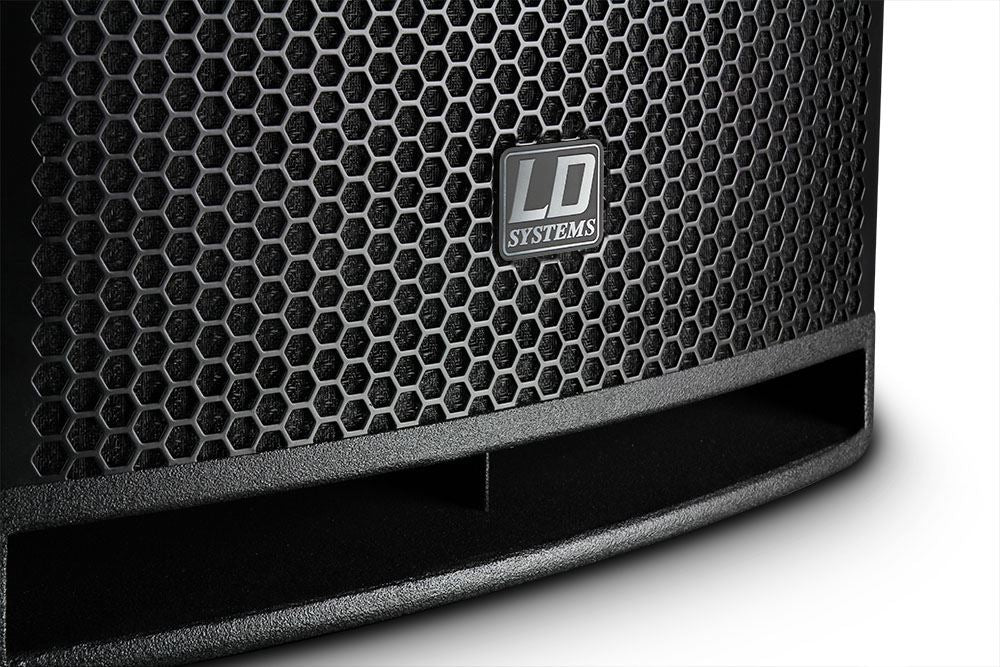

Cabinet construction: Bass Reflex
Cabinet material: 15 mm MDF
Cabinet surface: texture paint
Subwoofer width: 345 mm
Subwoofer height: 430 mm
Subwoofer depth: 460 mm

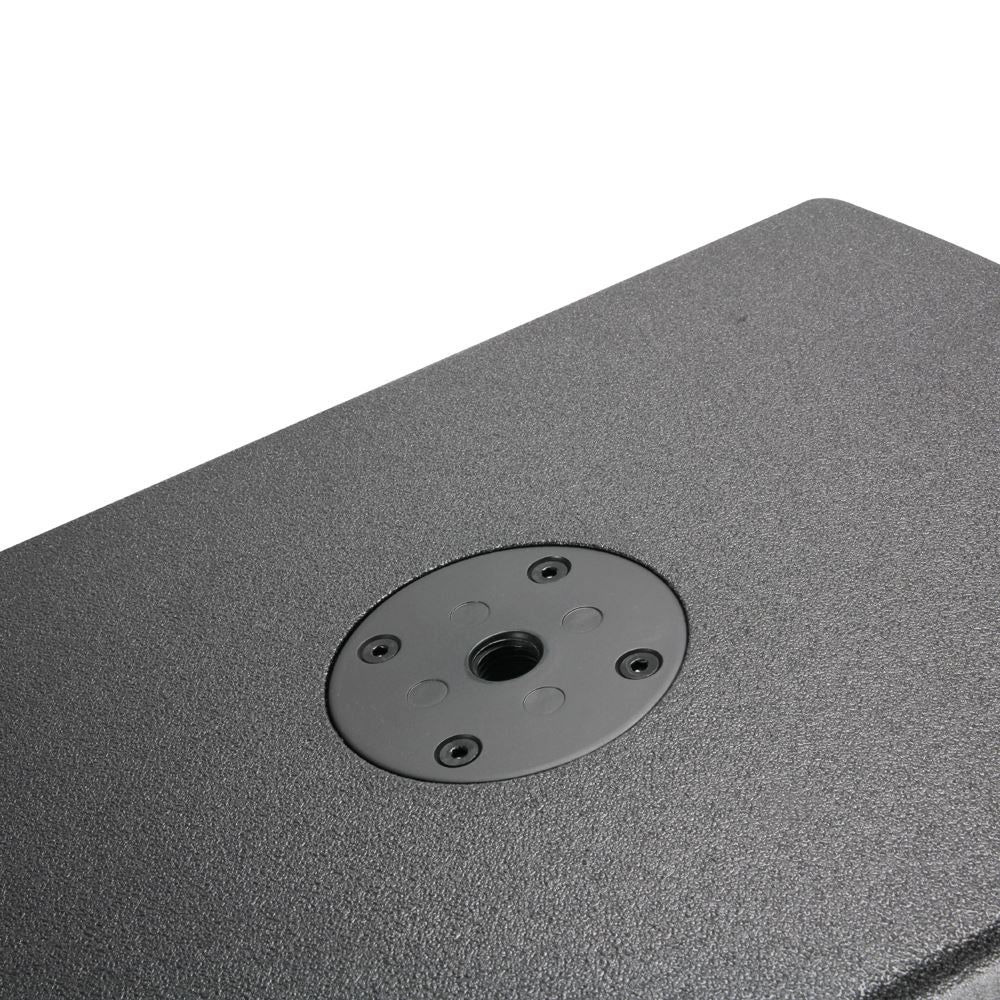

Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20
Mid/Hi System
Midrange size: 5.25 ", 133.4 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1 ", 25.4 mm
Horn: radial
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)
Loudspeaker inputs: 1

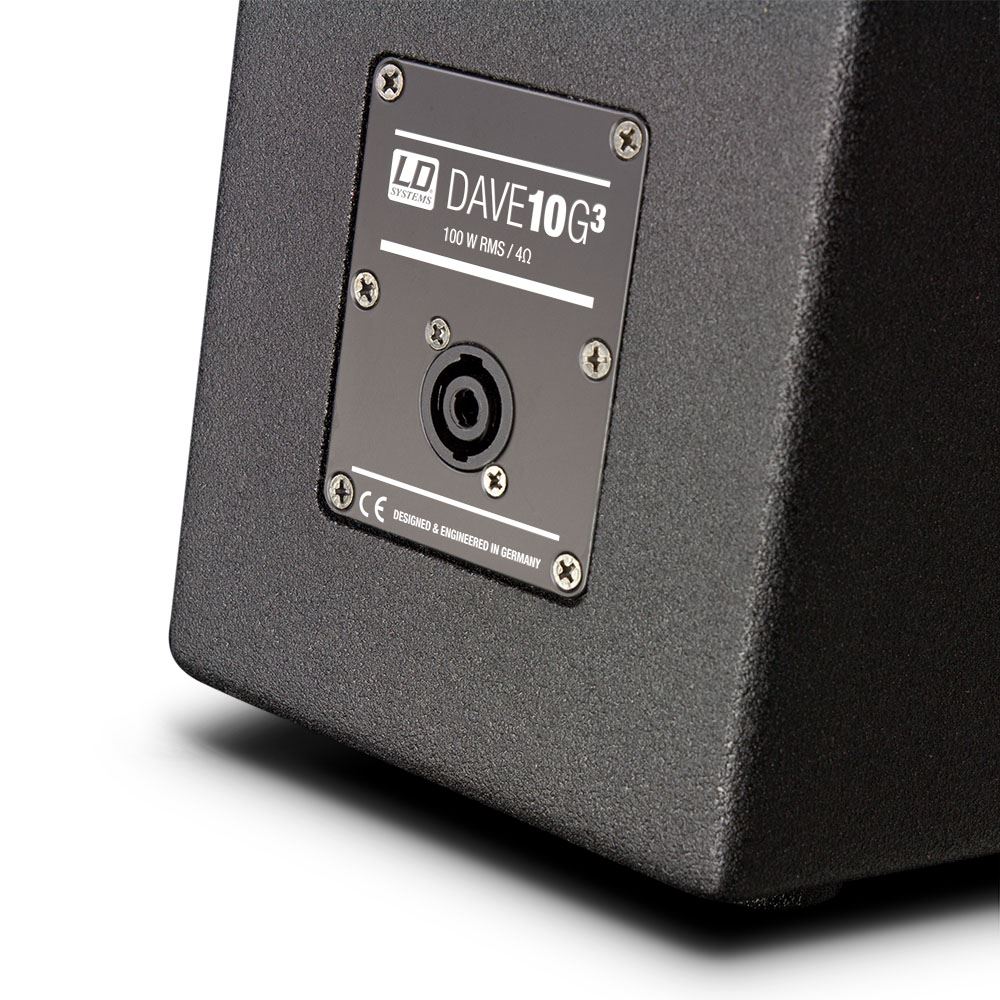

Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 12 mm MDF
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 200 mm
Mid/Hi system height: 300 mm
Mid/Hi system depth: 230 mm

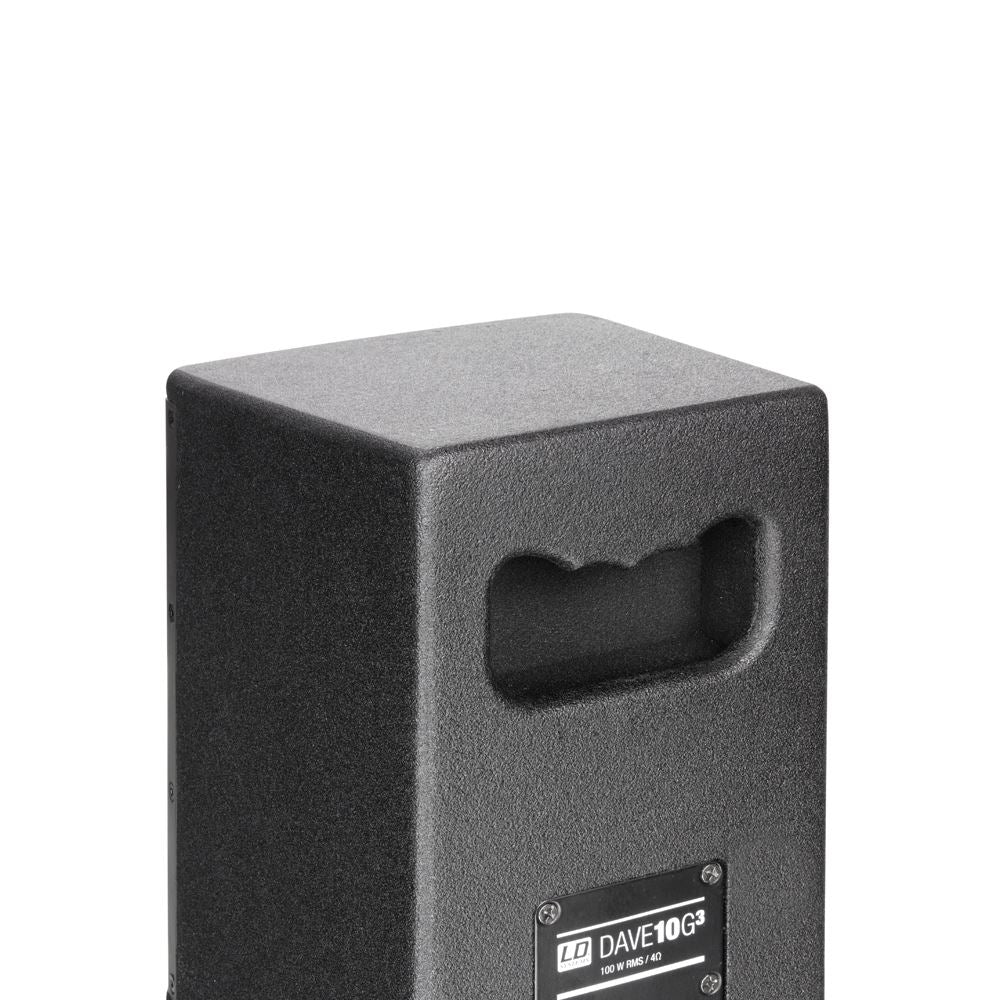

Mid/Hi system features: ergonomically shaped insert handles, Pole mount flange with 5° tilt

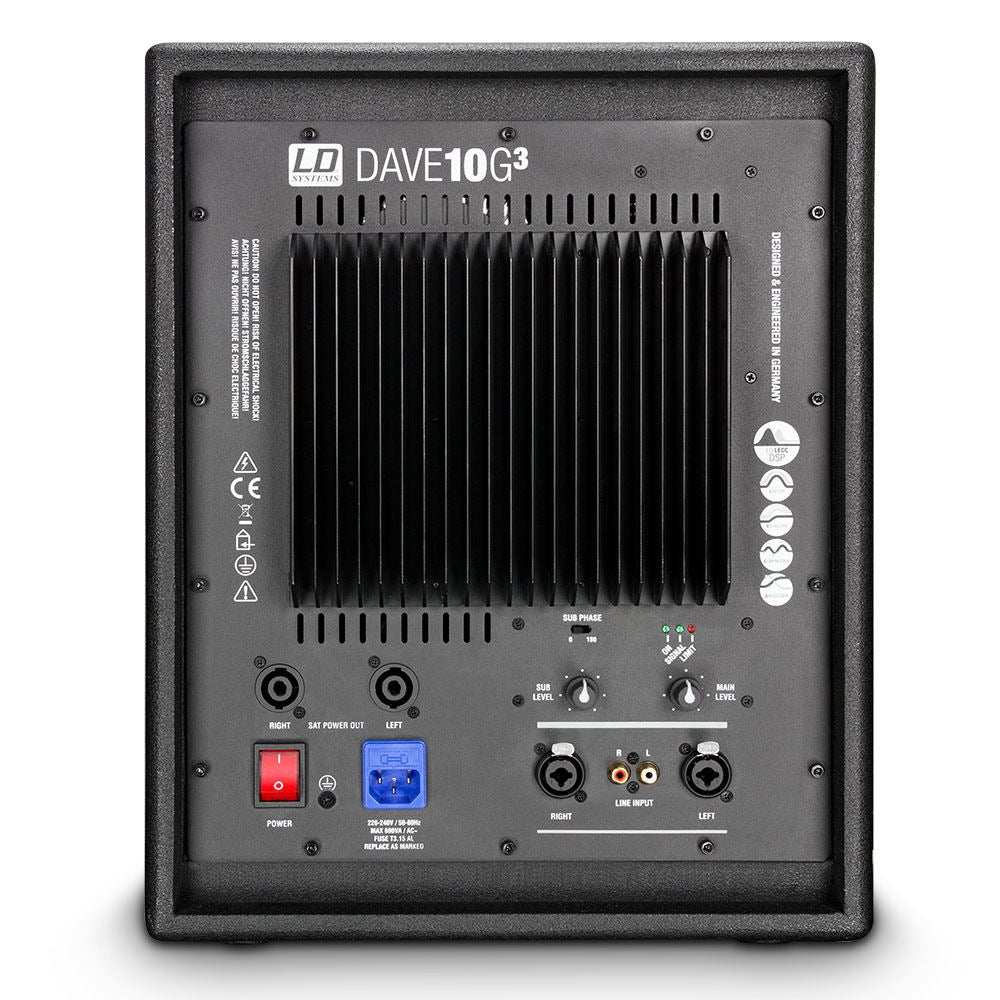

Amplifier module (integrated in subwoofer)
Amplifier: Class A/B
Amplifier output system (RMS): 350 W
Amplifier output system (peak): 1400 W
Protection circuits: limiter, overload, short circuit
Cooling: Aluminium heat sink
Controls: Power, Sub level, Subwoofer Phase Reverse, volume
Indicators: Limit, Power, Signal
Operating voltage: transformer, 220 V AC - 240 V AC
Power consumption: 600 VA
Line inputs: 2
Line input connectors: 6.3 mm jack, RCA, XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
